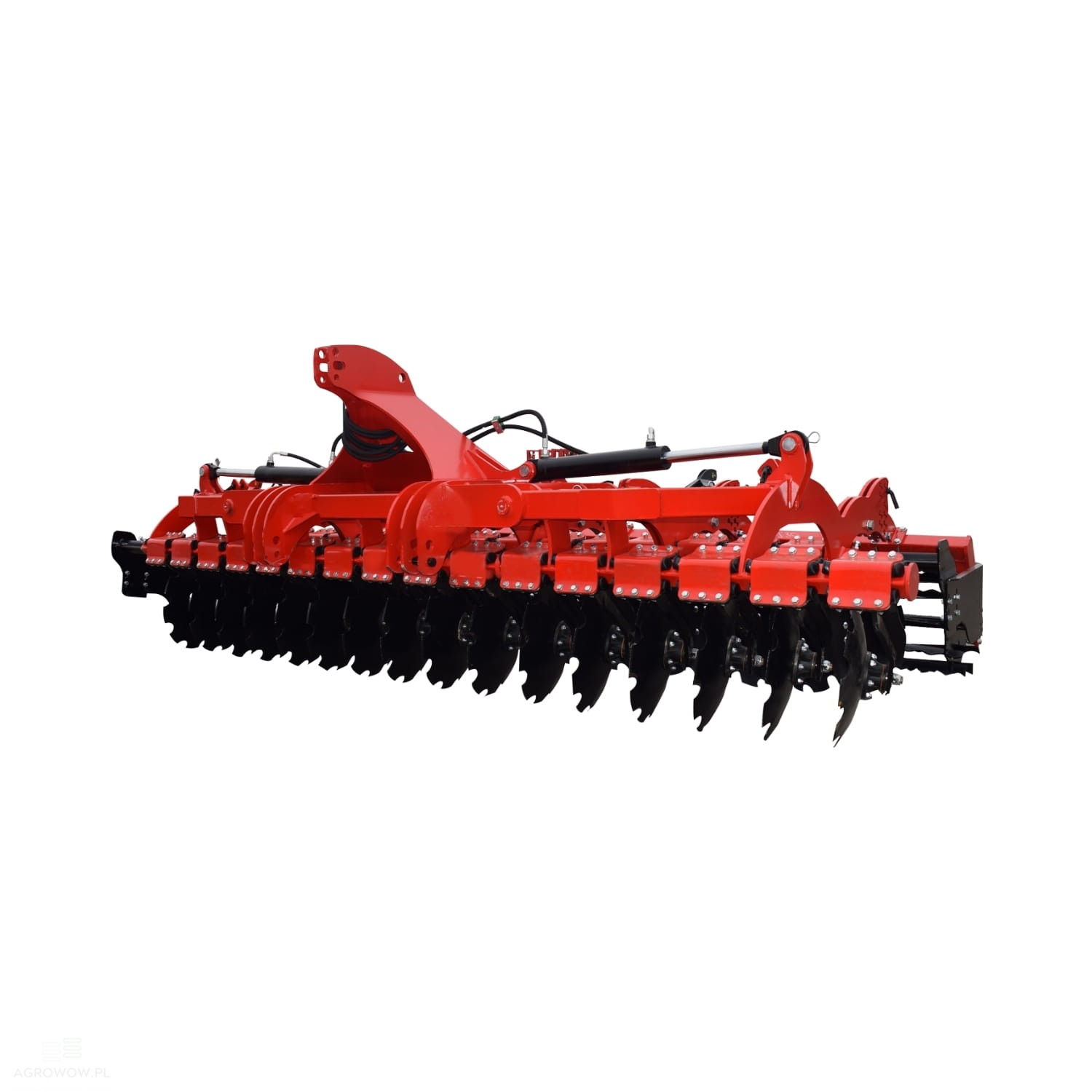

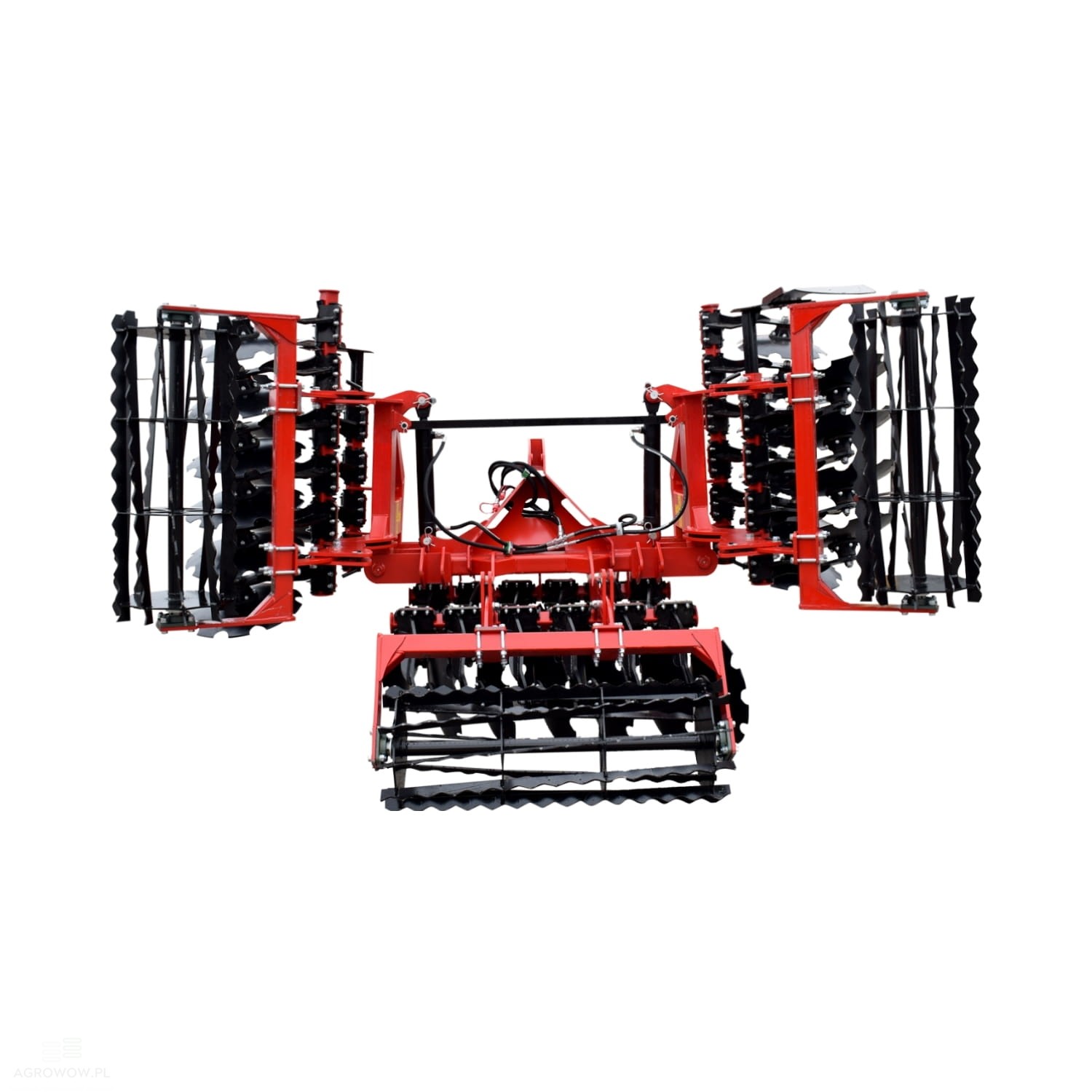

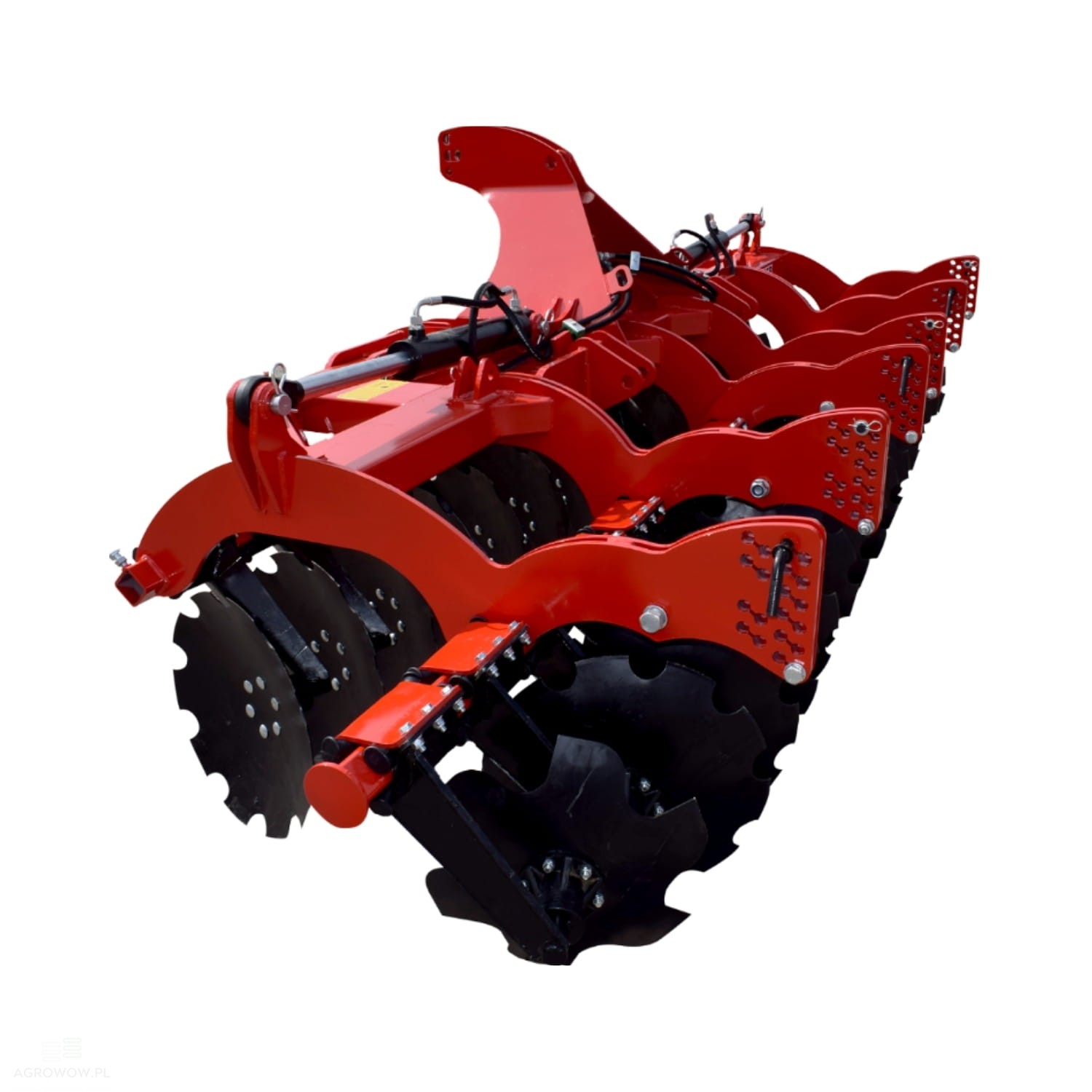

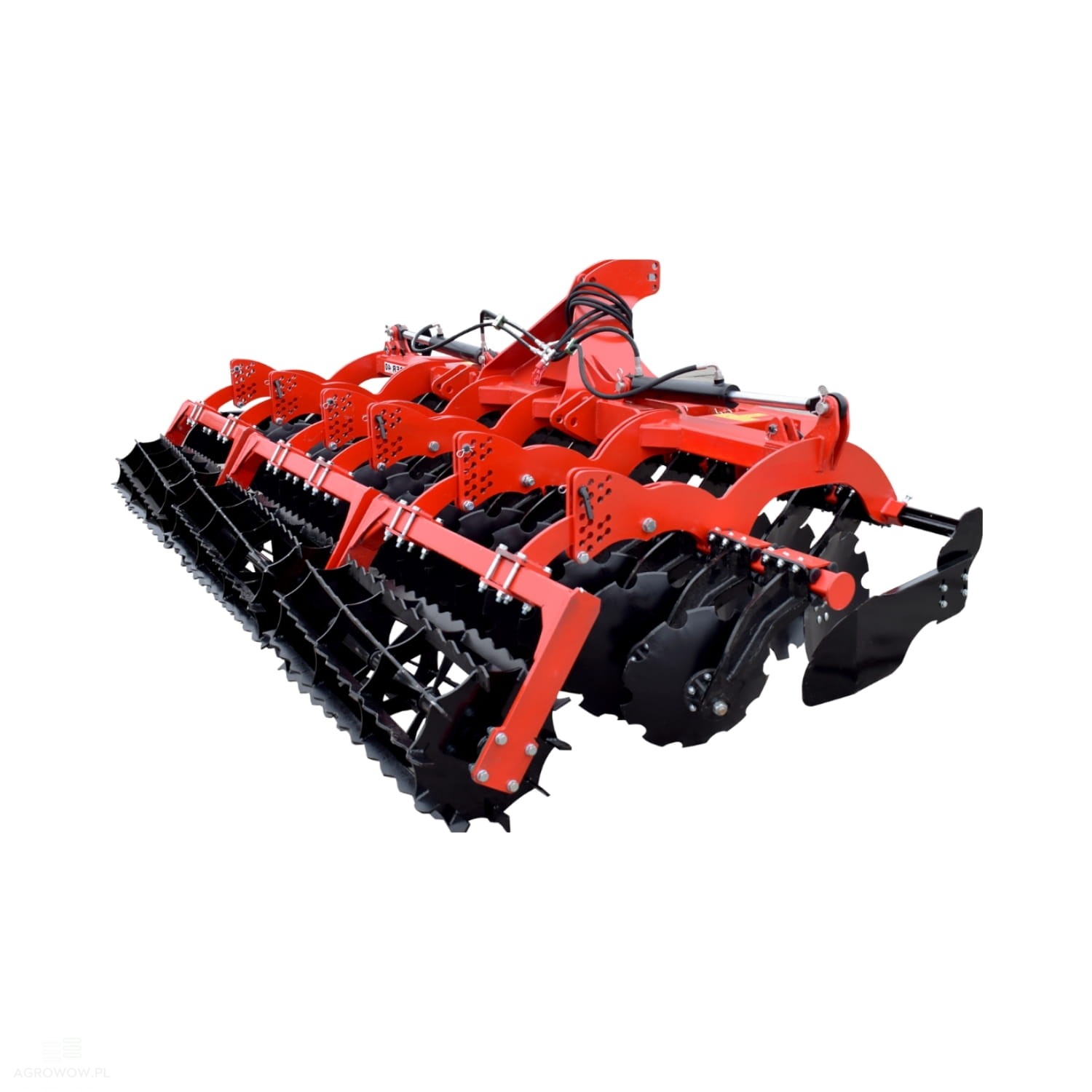

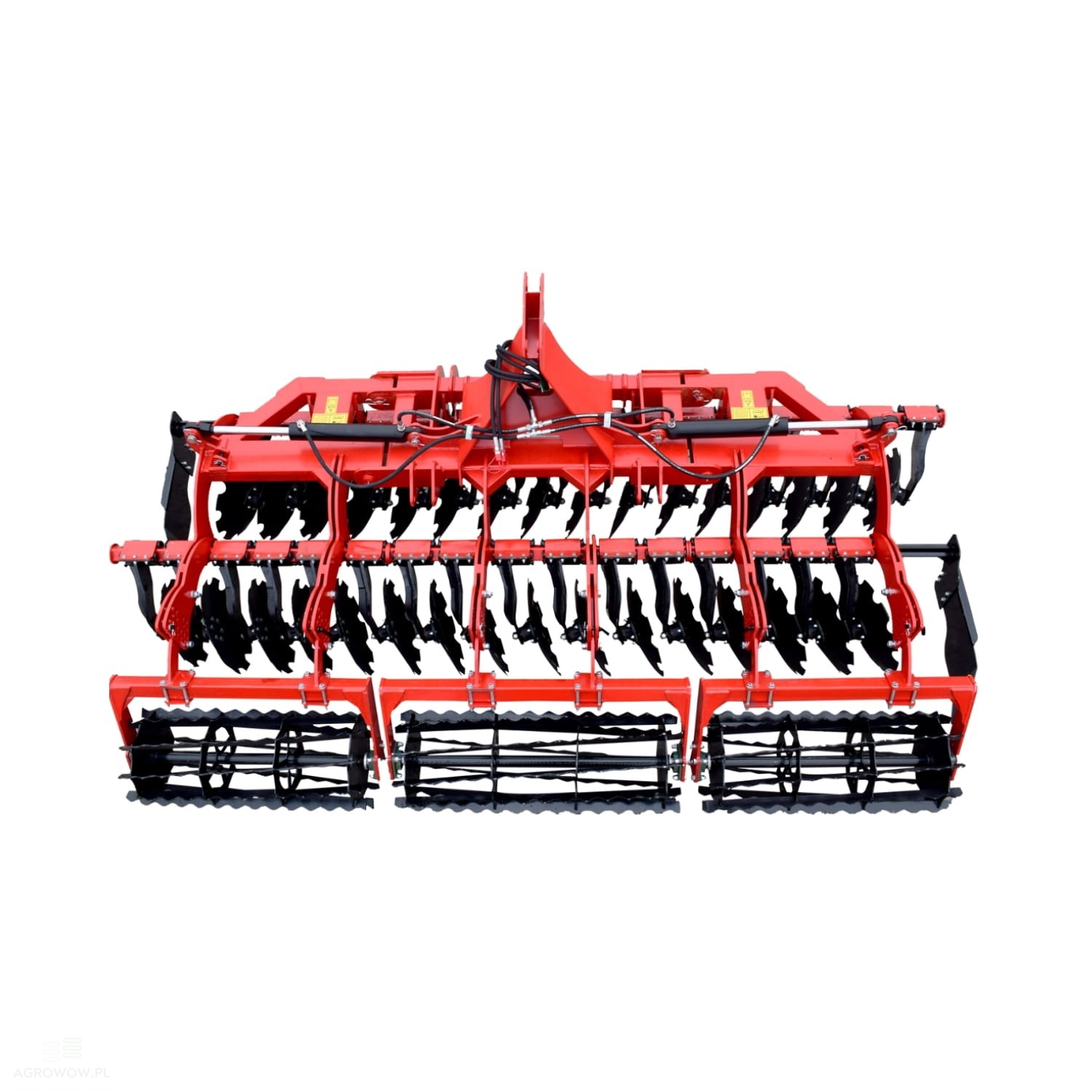

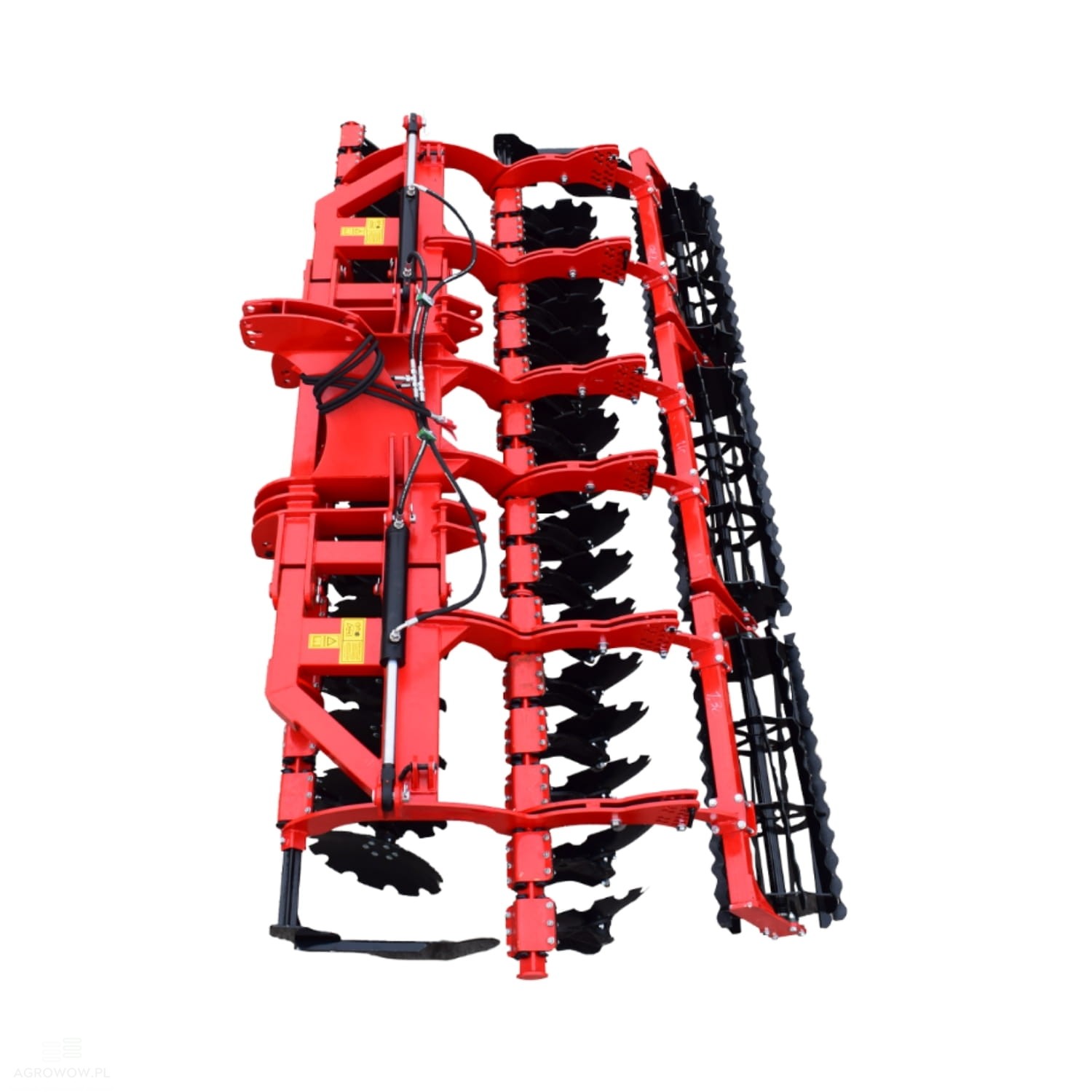

Agrowow hydraulic disc harrow TIGER II 4.5 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: THII45

- Manufacturer's name: Hydraulic disc harrow TIGER II

- Width: 4500 mm

- Number of cylinders: 2

- Number of discs: 36

- Disc diameter: 560 / 610 / 660 mm

- Disc row spacing: 900 mm

- Weight: 2300 kg

- Power requirement: 140-170 HP

- Efficiency: 3.5-5.5 ha/h

- Polish 560 mm boron steel disc

- Reinforced construction

- 6-hole hubs

- Rubber roller damping system

- Side screens

- Universal mounted hitch system for Cat. II and Cat. III

- Rear tubular or string roller

- Powder-coated components

Optional extras (at additional cost):

- Packer roller

The packer roller is an essential tillage component responsible for effective soil compaction and leveling. Its specialized design allows for effective crushing of larger soil clods, improving substrate structure and increasing its moisture retention capacity. By stabilizing the surface, it supports proper plant rooting and creates optimal conditions for growth.

- Roof roller

The roof roller is an ideal solution for light and medium soils, designed for precise surface crushing and leveling. Its unique structure minimizes the risk of excessive soil drying while improving water storage capacity, which promotes crop development. Additionally, it helps limit soil erosion, enhancing stability and structure.

- Double roof roller

The double roof roller is an advanced technology that provides even more effective soil loosening and leveling. Its design allows for precise crushing of larger clods, improves substrate structure, and reduces the risk of excessive drying. It further increases moisture retention capacity, which positively influences plant development and optimizes field conditions for further cultivation.

- Croskill roller

The croskill roller is a modern solution that, thanks to its double structure, effectively breaks up compacted soil layers and levels the field surface. It is particularly useful in pre-sowing preparation as it improves soil structure and boosts moisture retention. It excels in medium and heavy soils by eliminating excessive compaction, stabilizing the substrate, and supporting plant development.

- Maintenance-free SKF hubs

Maintenance-free SKF hubs are an innovative solution that eliminates the need for frequent lubrication and maintenance, significantly simplifying equipment operation. Made from highly durable materials, they offer exceptional resistance to heavy loads and intensive use. Their application minimizes failure risks, reduces downtime, and lowers operating costs, increasing overall work efficiency.

- Polish 610 mm boron steel discs

Discs with a diameter of 610 mm, made from high-grade boron steel, are distinguished by their exceptional wear resistance and long service life. Their precise profiling ensures effective cutting of crop residues, intensive soil mixing, and optimal preparation for subsequent cultivation. A solid construction ensures reliability even in the most difficult field conditions.

- Transport trolley + drawbar (+950 kg)

The transport trolley with a drawbar is a functional solution that facilitates moving the machine both in the field and on access roads. Its robust construction ensures stability during transport, and an ergonomically designed drawbar allows for quick and convenient connection and disconnection, streamlining logistics and increasing user comfort.

Detailed Description:

• The TIGER II 4.5 m hydraulic disc harrow is a modern and efficient agricultural tool designed for effective and precise soil cultivation.

• Solid construction, advanced technological solutions, and a hydraulic regulation system make the machine perform excellently in both traditional and simplified cultivation systems.

• A working width of 4500 mm and an efficiency of 3.5-5.5 ha/h make this aggregate an ideal solution for farms focused on maximizing work efficiency.

• The machine is equipped with 36 discs with a diameter of 560, 610, or 660 mm, manufactured from high-grade boron steel, which ensures exceptional durability and resistance to abrasion.

• A disc row spacing of 900 mm guarantees excellent soil mixing and loosening, which improves its structure and moisture retention capacity.

• Reinforced construction and the use of 6-hole hubs ensure that the aggregate is exceptionally stable and resistant to intensive operation.

• A hydraulic system with two cylinders allows for precise control of working depth, enabling adaptation of the machine to various soil conditions.

• A damping system in the form of rubber rollers effectively absorbs vibrations, protecting the structure against overloads and improving operator comfort.

• The machine is designed for both pre-sowing cultivation and post-harvest soil finishing.

• Excellent working properties allow for weed elimination, mixing of organic and mineral fertilizers, and field preparation for subsequent sowing.

• Compatibility with a seed drill allows for simultaneous cultivation and sowing in a single pass, saving both time and fuel.

• All structural elements are powder-coated to effectively protect the machine against corrosion and mechanical damage, increasing its durability.

• A universal Category II and III hitch system allows for quick and convenient connection of the aggregate to various tractor models ranging from 140 to 170 HP.

• Thanks to modern technology, high-quality components, and a robust design, the TIGER II 4.5 m hydraulic disc harrow is an ideal solution for farmers expecting high performance, reliability, and comfort in daily field operations.
