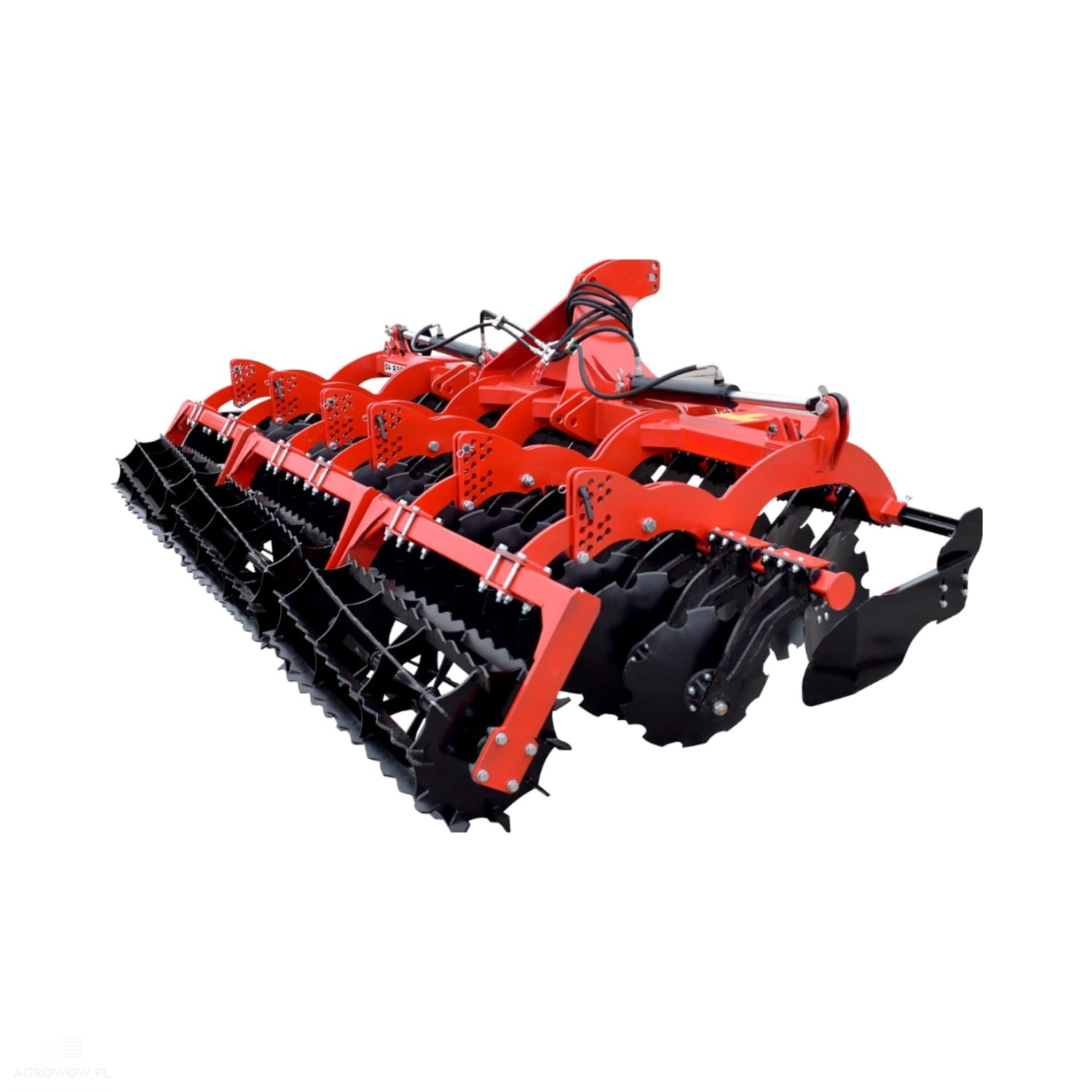

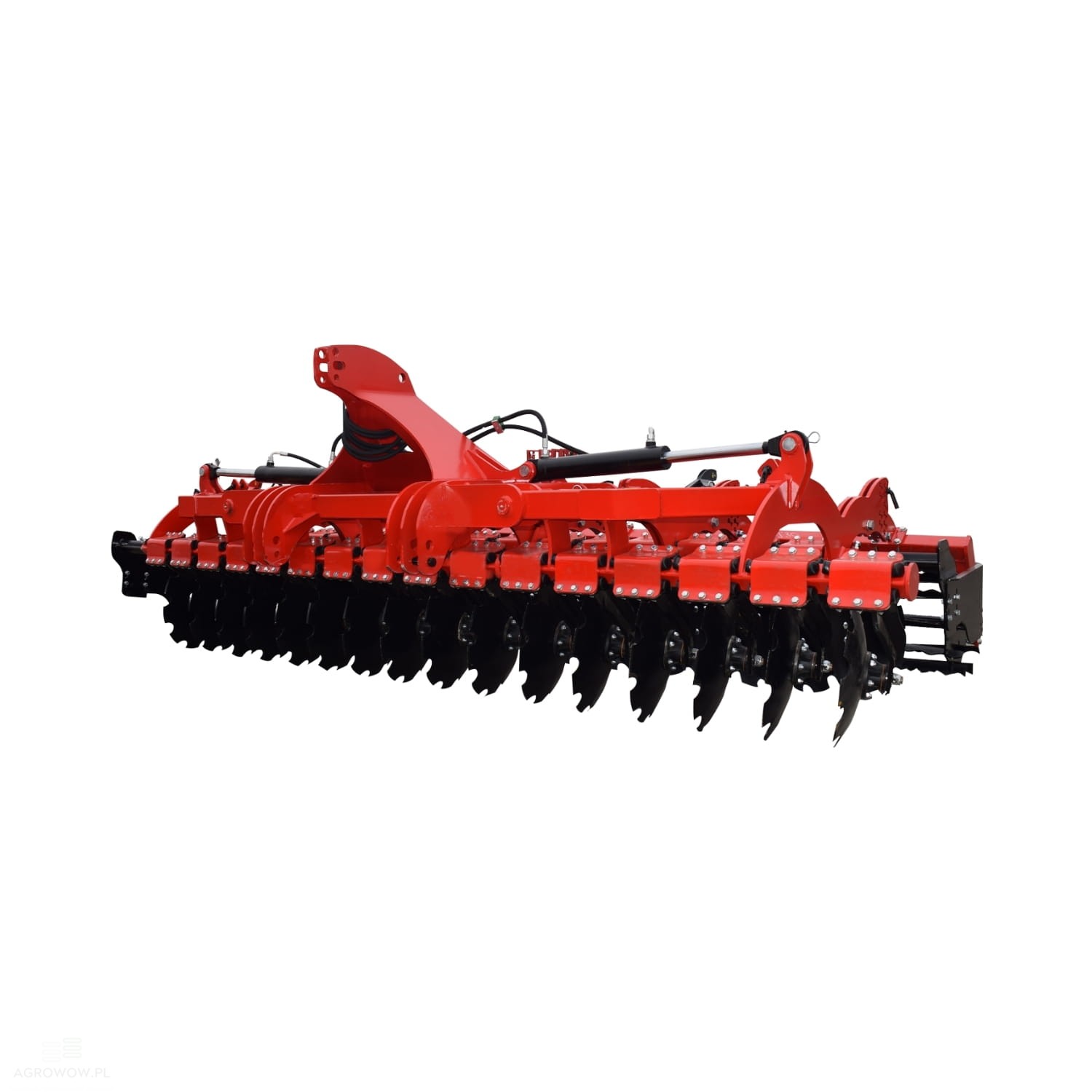

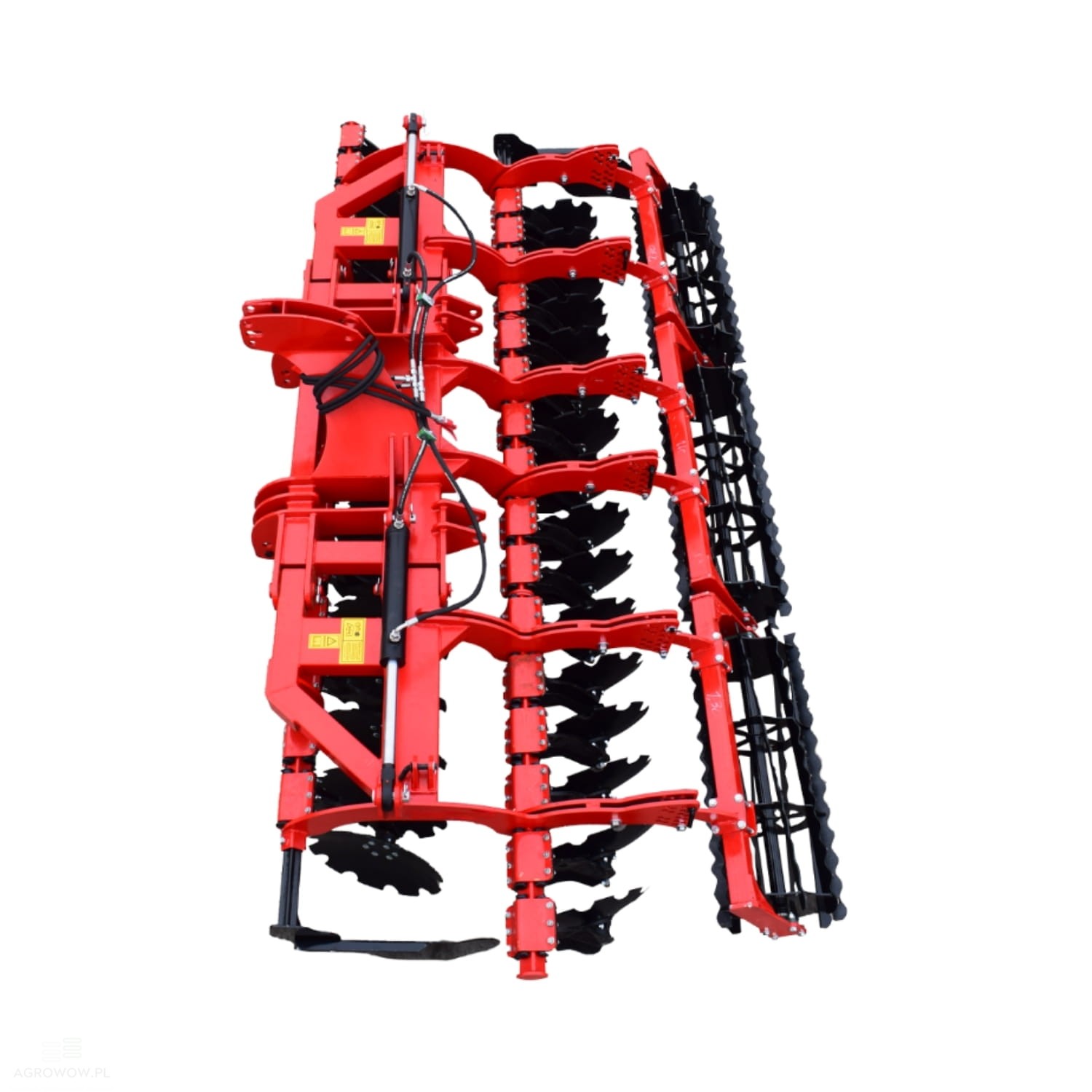

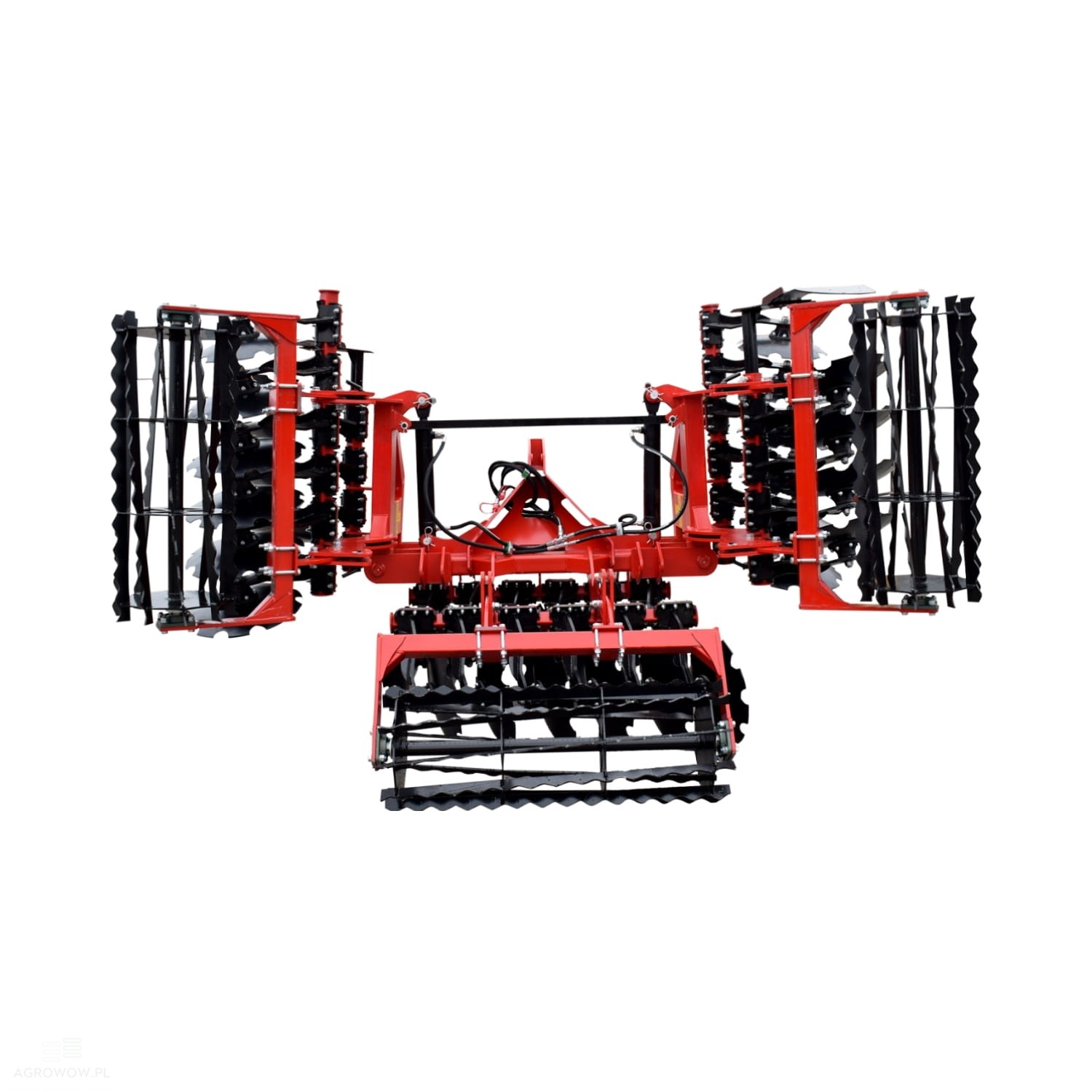

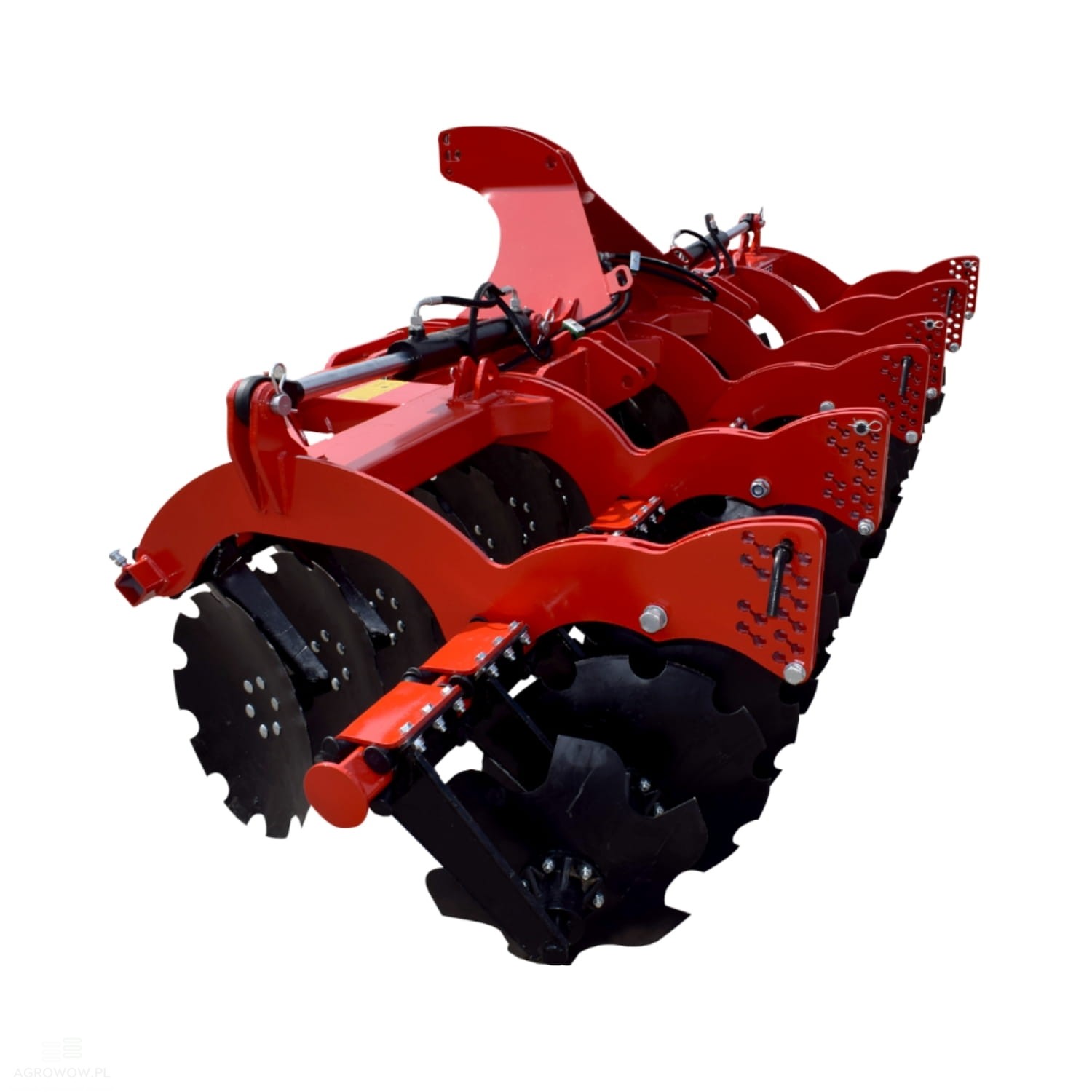

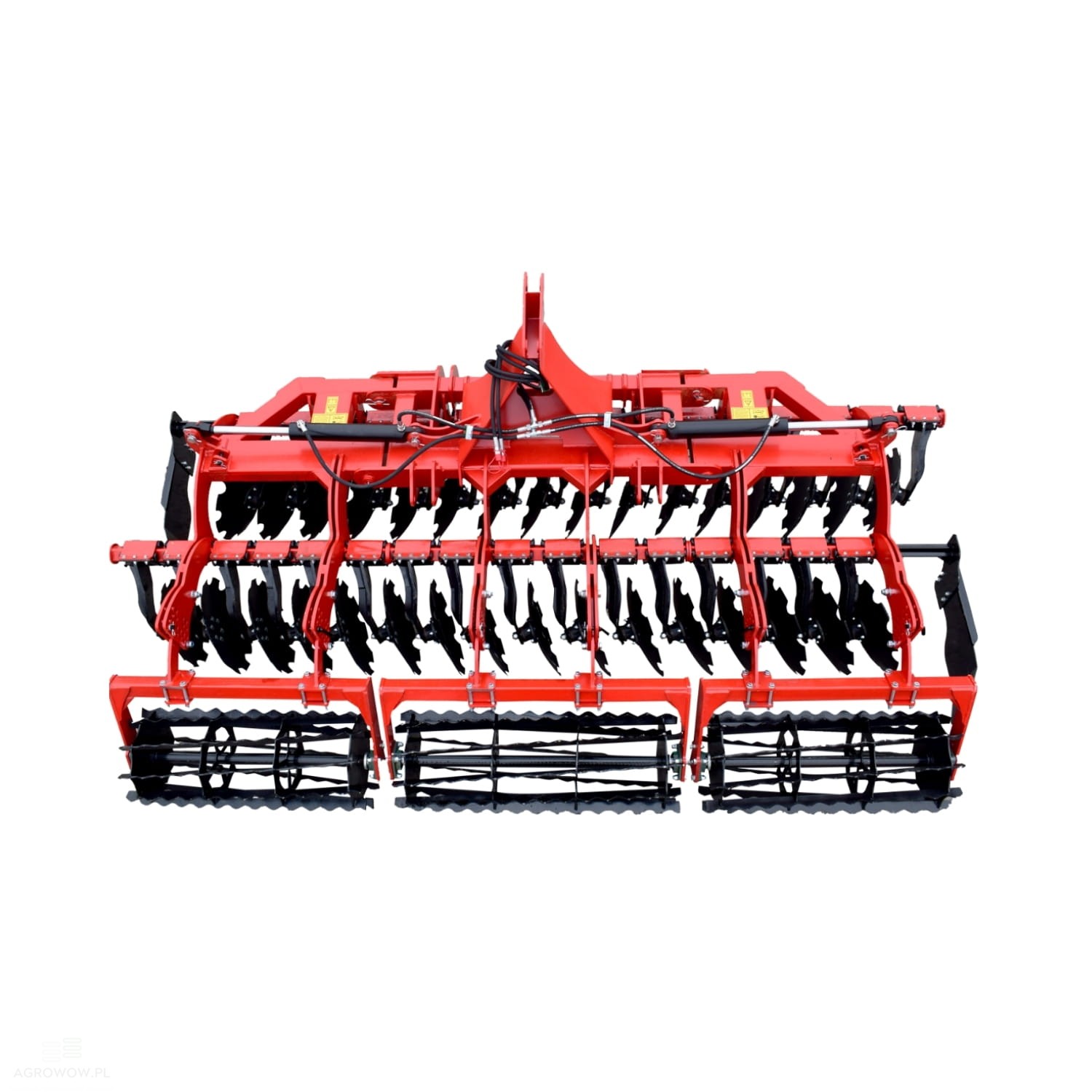

Agrowow hydraulic disc harrow TIGER II 5.0 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: THII50

- Manufacturer's name: Hydraulic disc harrow TIGER II

- Width: 5000 mm

- Number of cylinders: 2

- Number of discs: 40

- Disc diameter: 560 / 610 / 660 mm

- Disc row spacing: 900 mm

- Weight: 2500 kg

- Power requirement: 160-190 HP

- Efficiency: 4.0-6.0 ha/h

- Polish 560 mm boron steel disc

- Reinforced construction

- 6-hole hubs

- Rubber roller damping system

- Side screens

- Universal mounted hitch system for Cat. II and Cat. III

- Rear tubular or string roller

- Powder-coated components

Optional extras (at additional cost):

- Packer roller

The packer roller is a key element of agricultural machinery, responsible for effective soil compaction and leveling. Its carefully designed structure allows for effective crushing of larger soil clods, improving substrate structure and increasing its moisture retention capacity. As a result, the soil becomes more stable, which promotes proper plant rooting and ensures optimal conditions for their growth.

- Roof roller

The roof roller is an excellent solution for light and medium soils, where its main task is accurate crushing and leveling of the surface. A special design limits excessive soil drying and increases its moisture storage capacity, which positively affects crop development. Furthermore, the roof roller helps limit soil erosion, improving its stability and structure.

- Double roof roller

The double roof roller is an advanced solution that loosens and levels the soil even more effectively. Its design allows for precise crushing of larger soil clods, improves substrate structure, and reduces the risk of excessive soil drying. Furthermore, it increases the capacity to retain moisture, which beneficially influences plant growth and prepares the field for further stages of cultivation.

- Croskill roller

The croskill roller is a modern solution that, thanks to its double construction, effectively breaks up compacted soil layers and levels the field surface. It is particularly useful during soil preparation for sowing, because it improves its structure and increases the capacity to retain moisture. It works perfectly on medium and heavy soils, eliminating excessive compaction, stabilizing the substrate, and supporting plant development.

- Maintenance-free SKF hubs

Maintenance-free SKF hubs are an innovative solution that eliminates the need for regular lubrication and maintenance, significantly facilitating the operation of agricultural machinery. Made of exceptionally durable materials, they are characterized by high resistance to intensive loads and long-term operation. Their application minimizes the risk of failure, shortens downtime, and reduces operating costs, increasing work efficiency.

- Polish 610 mm boron steel discs

Discs with a diameter of 610 mm, made of high-grade boron steel, are distinguished by extraordinary wear resistance and long service life. Their precise profiling allows for effective cutting of plant residues, intensive soil mixing, and its optimal preparation for further stages of cultivation. A solid construction ensures reliability even in the most difficult field conditions.

- Transport trolley + drawbar (+950 kg)

The transport trolley with a drawbar is a functional solution that facilitates moving the machine both in the field and on access roads. A solid construction ensures stability during transport, and an ergonomically designed drawbar allows for quick and convenient connection and disconnection of the machine, which streamlines work logistics and increases user comfort.

Detailed Description:

• The TIGER II 5.0 m hydraulic disc harrow is a modern and robust agricultural machine, designed for effective and precise soil cultivation.

• Advanced technological solutions, solid construction, and a hydraulic regulation system make the harrow perform excellently in both traditional and simplified cultivation systems.

• A working width of 5000 mm and high efficiency at the level of 4.0-6.0 ha/h make it an ideal tool for farms that focus on maximizing work efficiency.

• The machine is equipped with 40 discs with a diameter of 560, 610, or 660 mm, made of high-grade boron steel, which ensures their exceptional wear resistance and long durability.

• A disc row spacing of 900 mm enables effective mixing and loosening of the soil, which improves its structure and increases the capacity to store moisture.

• Reinforced construction and the use of 6-hole hubs ensure the stability and durability of the machine even during intensive operation.

• A hydraulic system with two cylinders allows for precise adjustment of the working depth, enabling optimal soil preparation in various terrain conditions.

• A damping system in the form of rubber rollers effectively reduces vibrations, protecting the structure against overloads and increasing operator comfort.

• The machine works perfectly both in pre-sowing cultivation and in finishing soil after harvests.

• The harrow's efficiency allows for effective weed elimination, mixing of organic and mineral fertilizers, and preparation of the field for subsequent sowing.

• The option to work with a seed drill allows for simultaneous cultivation and sowing in a single pass, which significantly saves time and fuel.

• All elements of the machine have been covered with a powder coating, which effectively protects the structure against corrosion and mechanical damage, extending its lifespan.

• A universal category II and III hitch system enables easy connection of the harrow to various models of tractors with a power range from 160 to 190 HP.

• Modern technologies, high-quality components, and solid workmanship make the TIGER II 5.0 m hydraulic disc harrow an excellent choice for farmers who are looking for a reliable, efficient, and comfortable-to-use agricultural machine.
