Agrowow hydraulic disc harrow TIGER II 5.5 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: THII55

- Manufacturer's name: Hydraulic disc harrow TIGER II

- Width: 5500 mm

- Number of cylinders: 2

- Number of discs: 44

- Disc diameter: 560 / 610 / 660 mm

- Disc row spacing: 900 mm

- Weight: 2700 kg

- Power requirement: 180-220 HP

- Efficiency: 4.5-6.5 ha/h

- Polish 560 mm boron steel disc

- Reinforced construction

- 6-hole hubs

- Rubber roller damping system

- Side screens

- Universal mounted hitch system for Cat. II and Cat. III

- Rear tubular or string roller

- Powder-coated components

Optional extras (at additional cost):

- Packer roller

The packer roller is an essential tillage component responsible for effective soil compaction and leveling. Its specialized design effectively breaks up larger soil clods, improving ground structure and increasing moisture retention. This creates a stable base that promotes better plant rooting and optimal growth conditions.

- Roof roller

The roof roller is an ideal solution for light to medium soils, designed for precise surface crushing and leveling. Its unique structure minimizes the risk of excessive soil drying while improving water storage capacity, which positively impacts crop development. Furthermore, it helps limit soil erosion, enhancing overall stability and structure.

- Double roof roller

The double roof roller is an advanced solution that provides even more effective soil loosening and leveling. Its design efficiently crushes larger clods, improves soil structure, and reduces the risk of excessive drying. It further enhances the soil's ability to store moisture, facilitating better plant growth and optimal field preparation.

- Croskill roller

The croskill roller is an innovative technology featuring a double structure that effectively breaks up compacted soil layers and levels the field surface. It is particularly useful during pre-sowing preparation, as it improves soil structure and boosts moisture retention. It excels in medium and heavy soils by eliminating excessive compaction, stabilizing the substrate, and supporting plant development.

- Maintenance-free SKF hubs

Maintenance-free SKF hubs are a technologically advanced solution that eliminates the need for regular lubrication and maintenance, significantly simplifying equipment operation. Made from highly durable materials, they offer exceptional resistance to heavy loads and intensive use. Their application minimizes failure risks, reduces downtime, and lowers operating costs, increasing overall work efficiency.

- Polish 610 mm boron steel discs

Discs with a diameter of 610 mm, made from high-grade boron steel, stand out due to their excellent wear resistance and long-lasting durability. Their precisely profiled shape ensures effective cutting of crop residues, intensive soil mixing, and optimal preparation for subsequent cultivation stages. A solid construction ensures reliability even in the most demanding field conditions.

- Transport trolley + drawbar (+950 kg)

The transport trolley with a drawbar is a practical and functional solution that facilitates moving the machine both in the field and on public roads. Its robust construction ensures stability during transport, while the ergonomically designed drawbar allows for quick and convenient connection and disconnection, streamlining logistics and increasing user comfort.

Detailed Description:

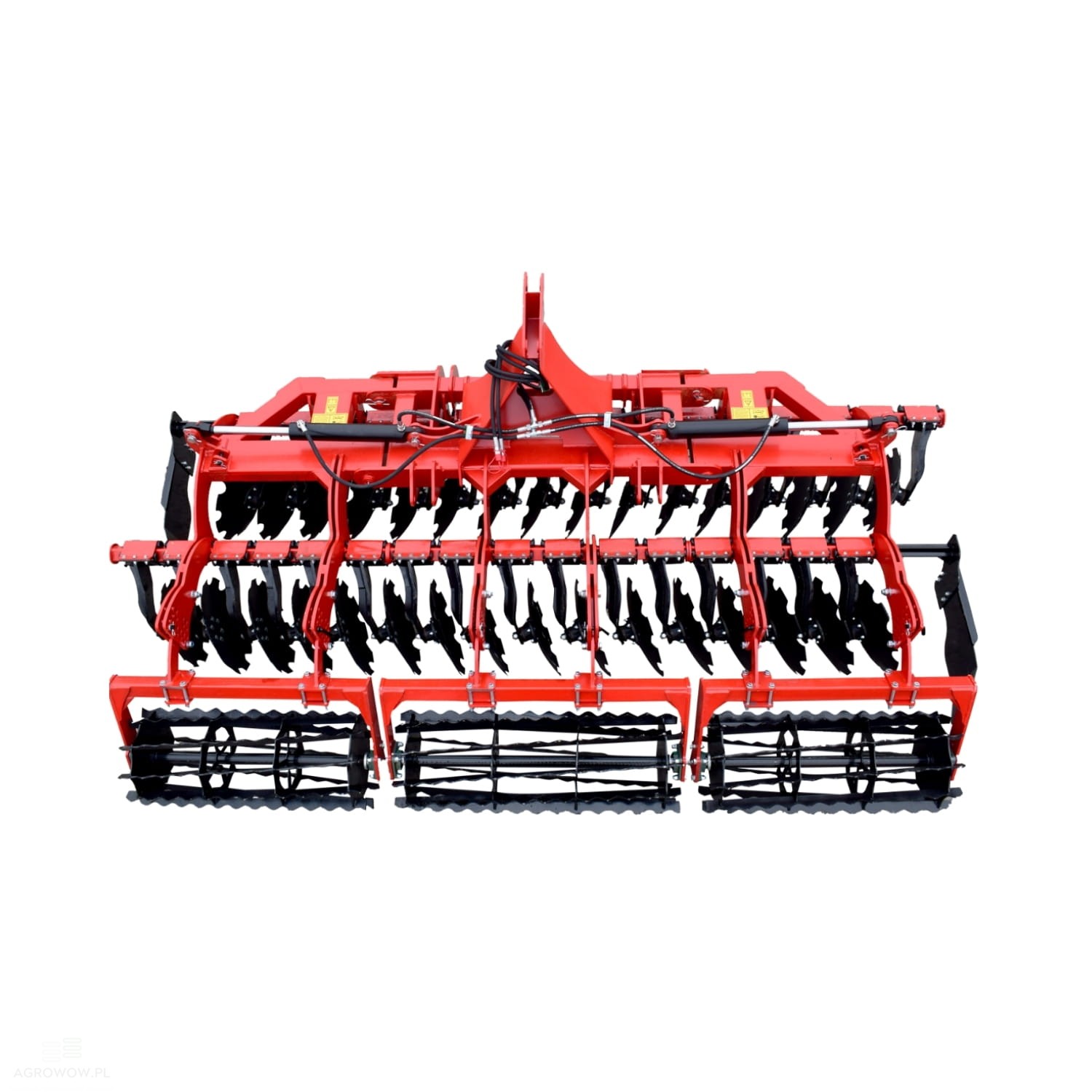

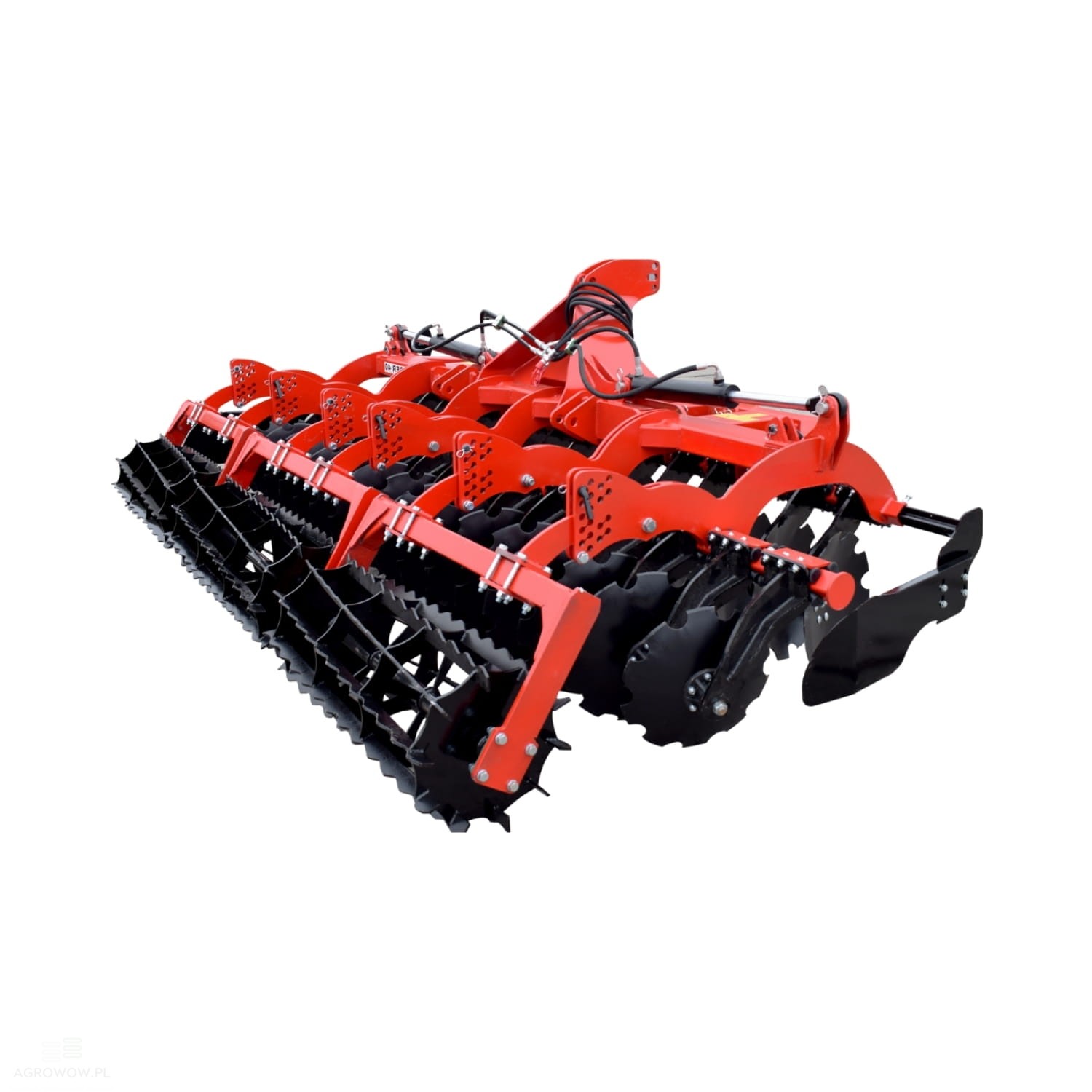

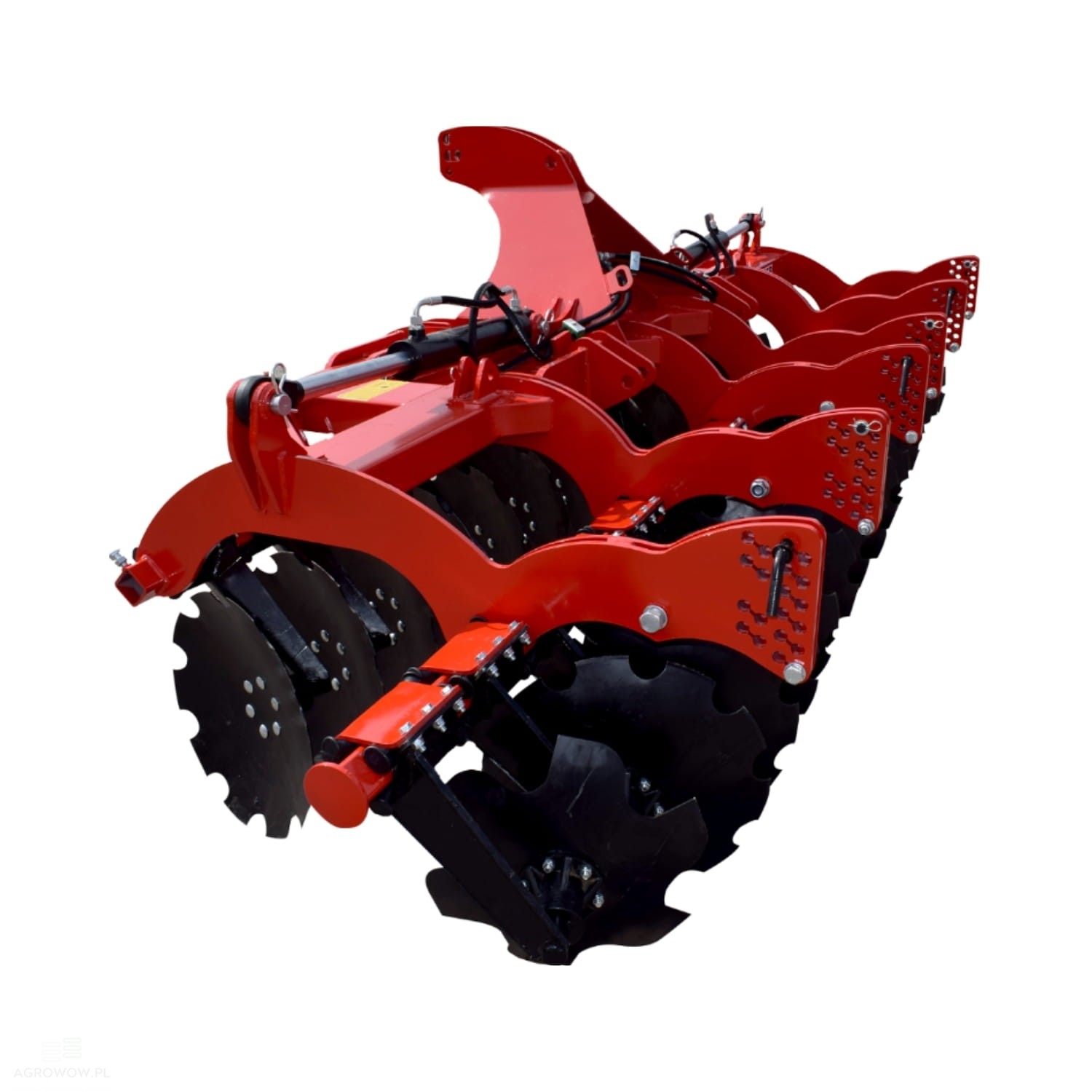

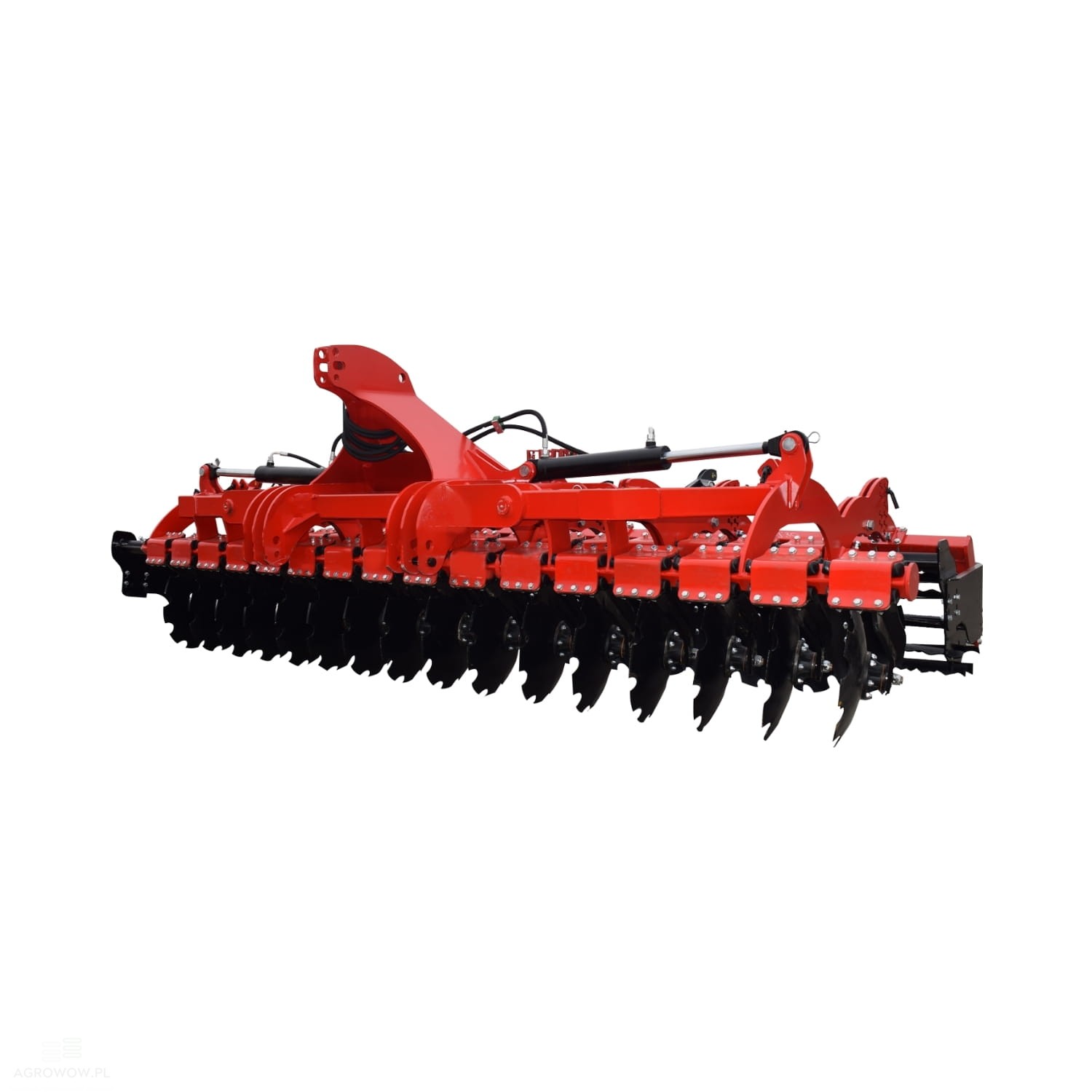

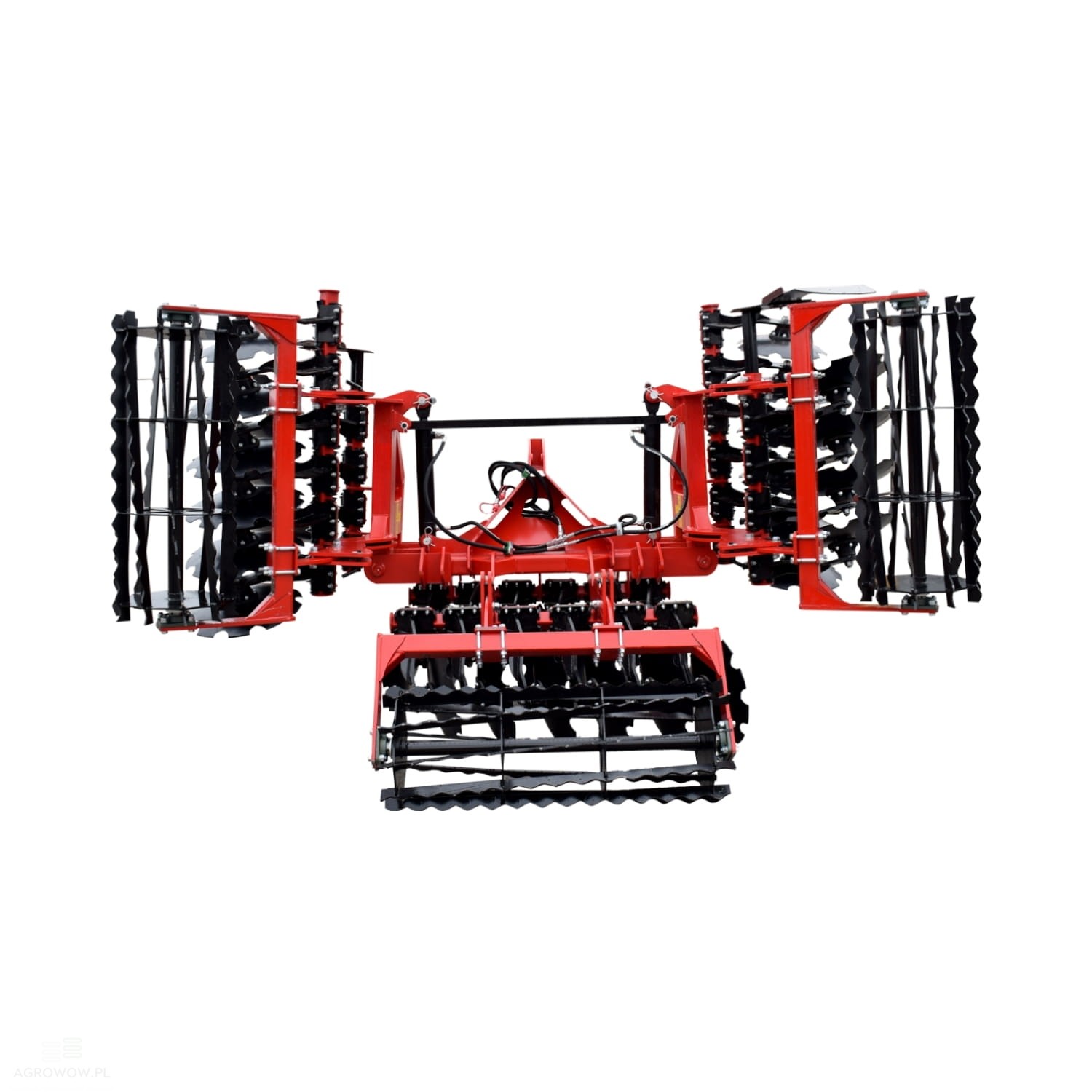

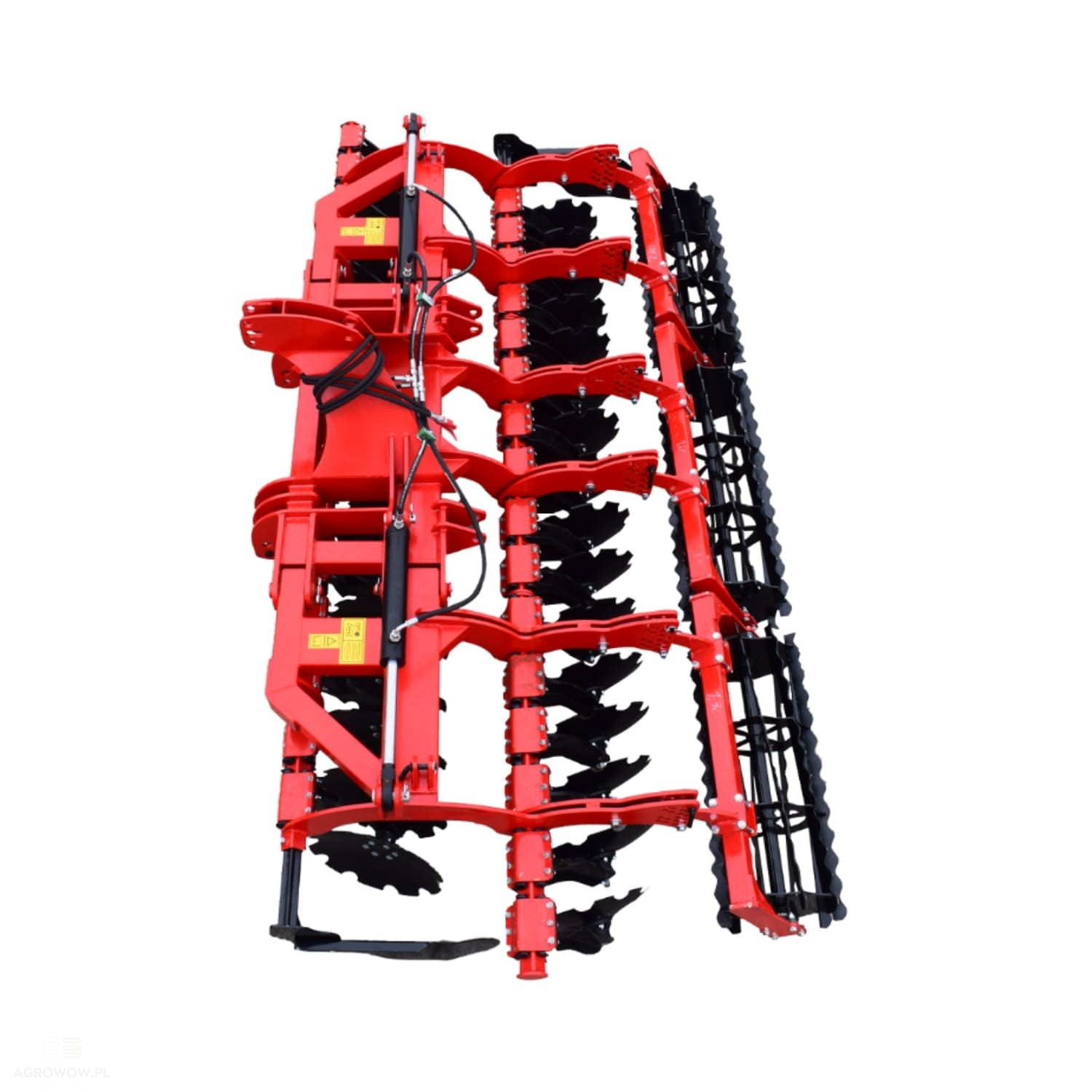

• The TIGER II 5.5 m hydraulic disc harrow is a modern and robust agricultural machine designed for efficient and precise soil cultivation.

• Solid construction, advanced technology, and a hydraulic regulation system make this harrow excellent for both traditional and simplified cultivation systems.

• With a working width of 5500 mm and an efficiency of 4.5-6.5 ha/h, it is a perfect choice for farms prioritizing work efficiency maximization.

• The machine features 44 discs with a diameter of 560, 610, or 660 mm, manufactured from high-grade boron steel, ensuring exceptional abrasion resistance and a long service life.

• A disc row spacing of 900 mm enables effective mixing and loosening of the soil, improving its structure and moisture retention capacity.

• Reinforced construction and the use of 6-hole hubs ensure the machine's stability and durability, even in demanding working conditions.

• The hydraulic system with two cylinders allows for precise working depth adjustment, providing optimal soil preparation across various terrain conditions.

• A rubber roller damping system effectively absorbs vibrations, protecting the structure from overloads and enhancing operator comfort.

• The machine excels in both pre-sowing cultivation and post-harvest finishing.

• The harrow's efficiency allows for effective weed elimination, the mixing of organic and mineral fertilizers, and preparation of the field for subsequent sowing.

• Compatibility with a seed drill enables simultaneous cultivation and sowing in a single pass, saving both time and fuel.

• All structural elements are powder-coated to provide effective protection against corrosion and mechanical damage, extending the machine's lifespan.

• A universal Category II and III hitch system allows for quick and convenient connection to various tractor models ranging from 180 to 220 HP.

• Thanks to modern technology, high-quality components, and a robust design, the TIGER II 5.5 m hydraulic disc harrow is an ideal solution for farmers expecting high performance, reliability, and comfort in daily field operations.
