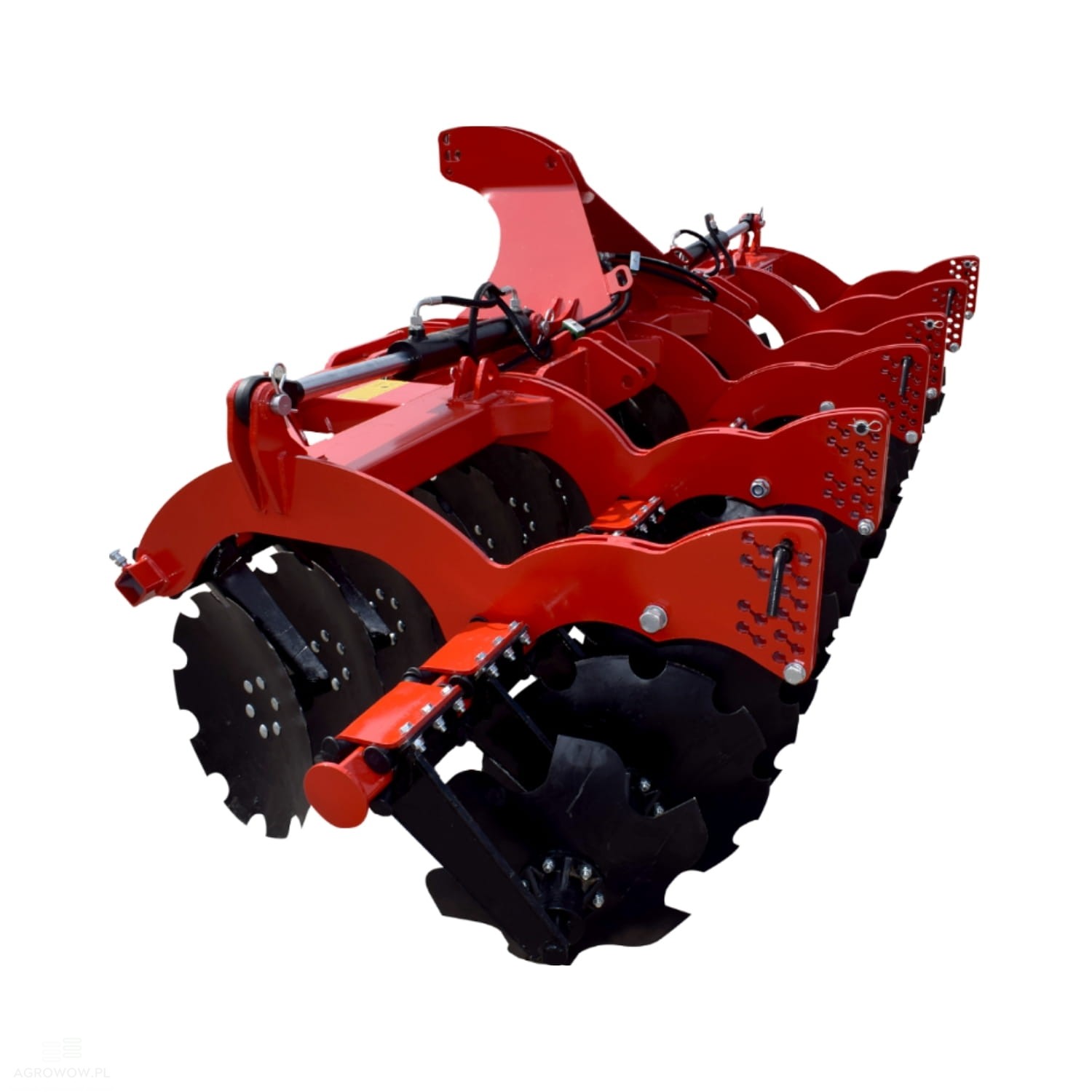

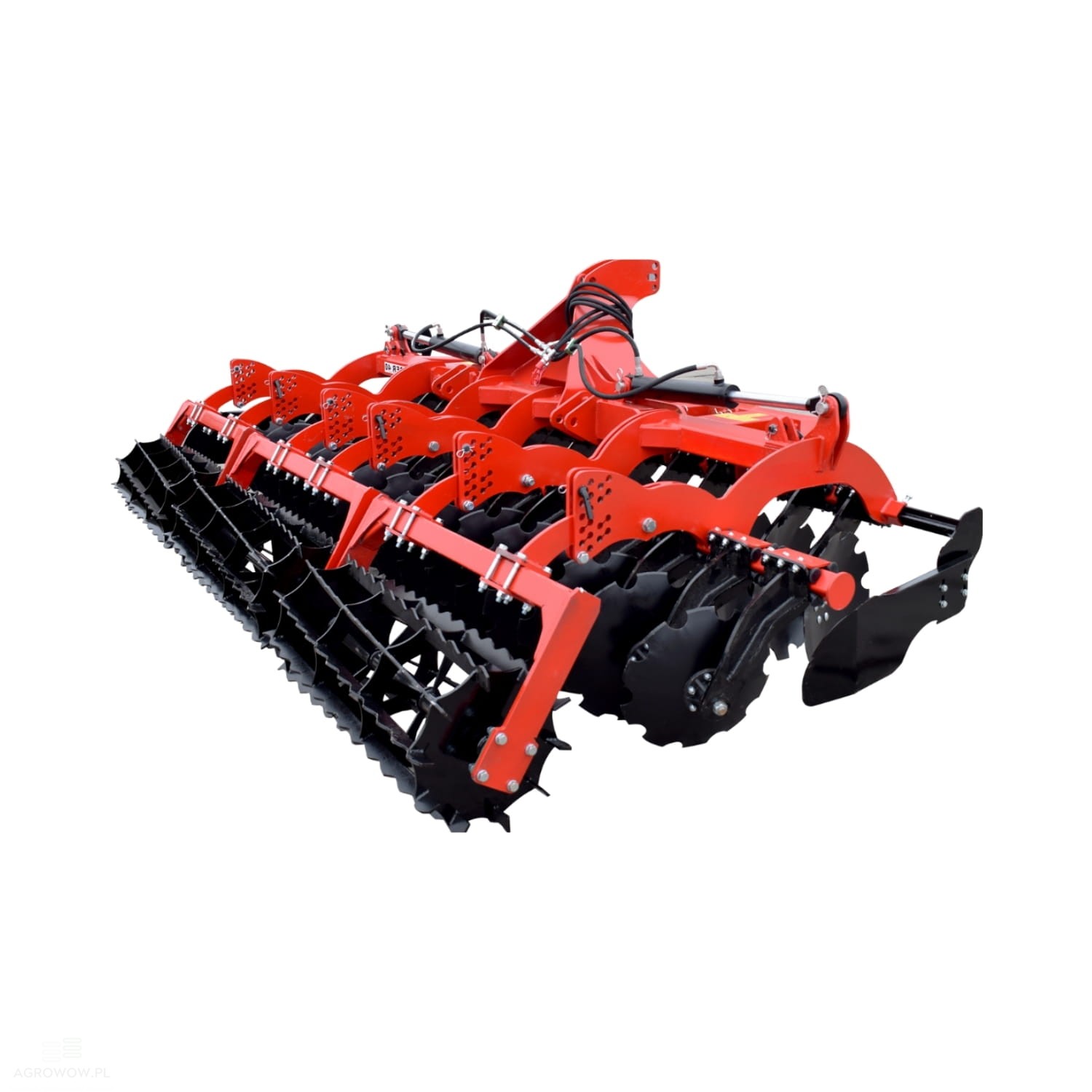

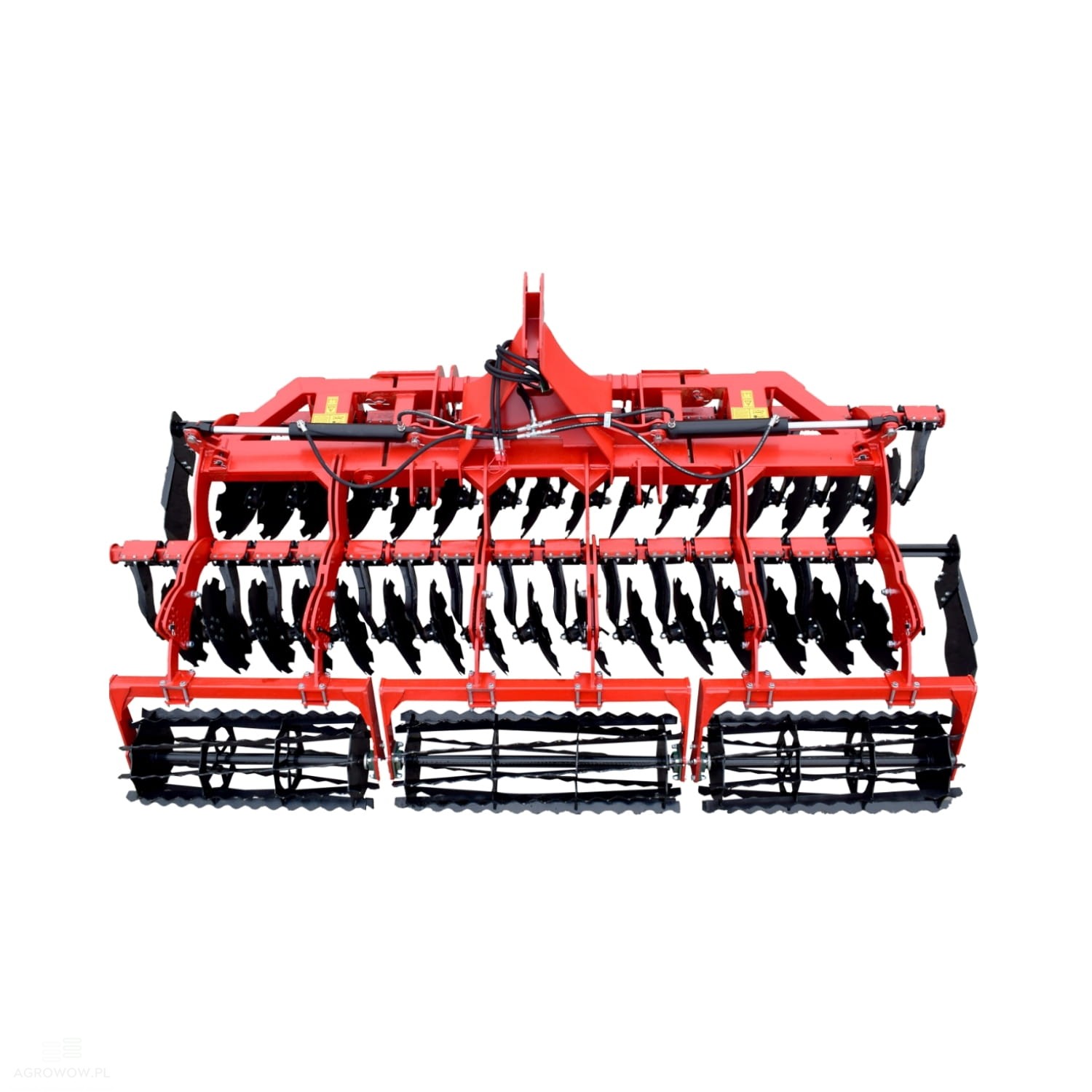

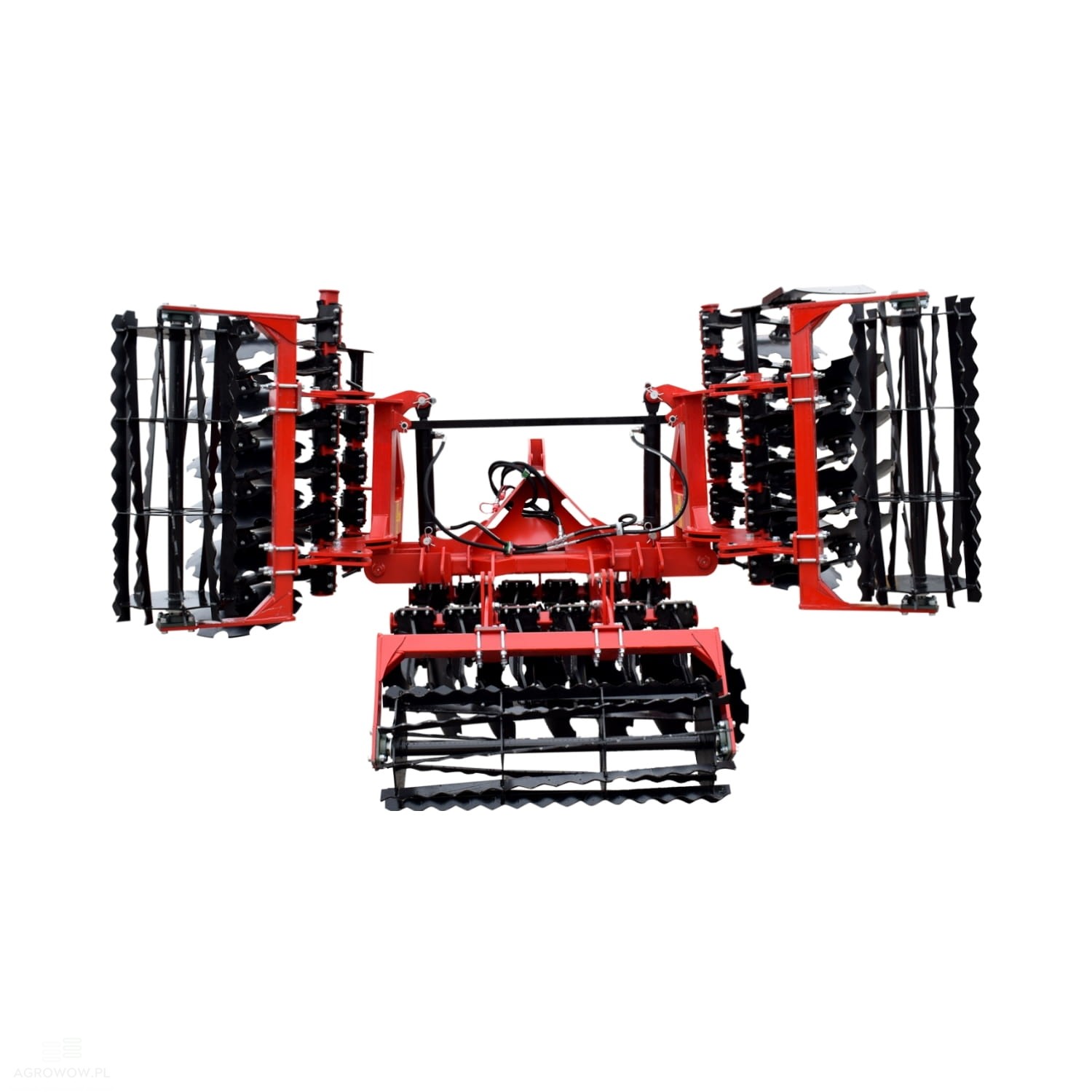

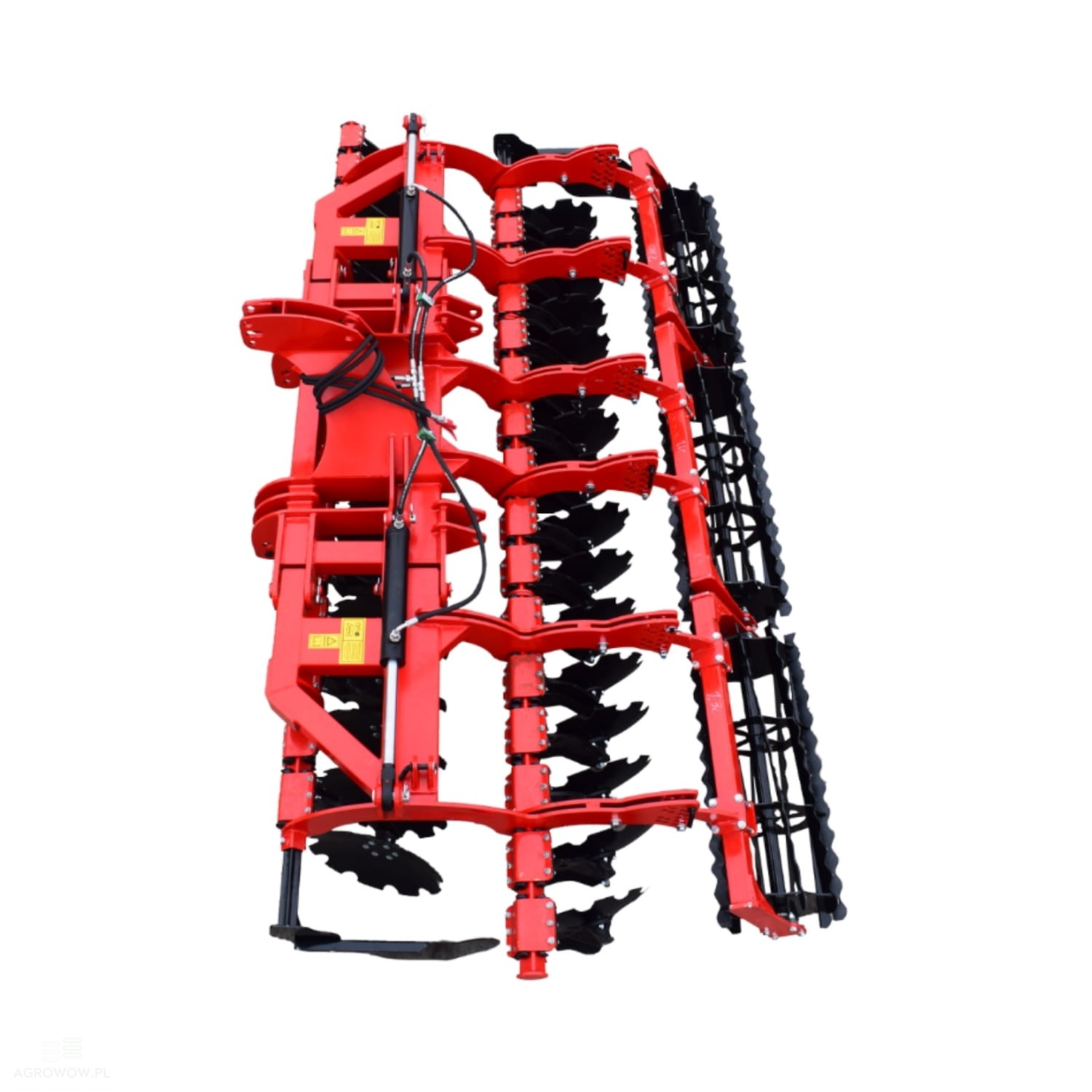

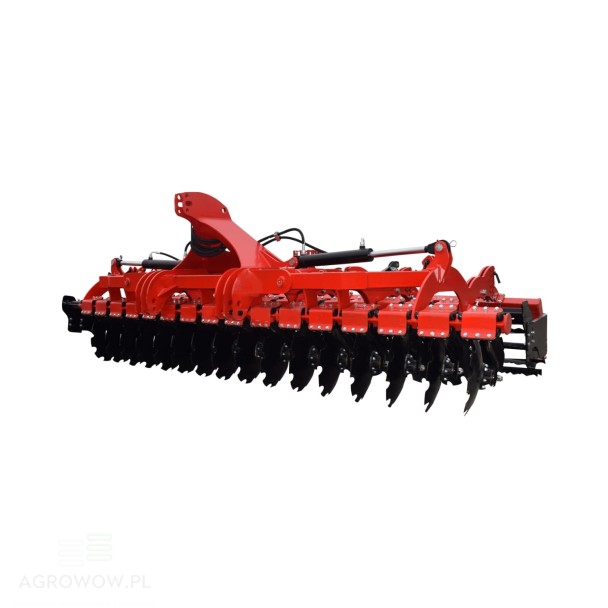

Agrowow hydraulic disc harrow TIGER II 6.0 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: THII60

- Manufacturer's name: Hydraulic disc harrow TIGER II

- Width: 6000 mm

- Number of cylinders: 2

- Number of discs: 48

- Disc diameter: 560 / 610 / 660 mm

- Disc row spacing: 900 mm

- Weight: 2950 kg

- Power requirement: 180-250 HP

- Efficiency: 5.0-7.0 ha/h

- Polish 560 mm boron steel disc

- Reinforced construction

- 6-hole hubs

- Rubber roller damping system

- Side screens

- Universal mounted hitch system for Cat. II and Cat. III

- Rear tubular or string roller

- Powder-coated components

Optional extras (at additional cost):

- Packer roller

The packer roller is a key element of tillage machinery that ensures effective soil compaction and leveling. Thanks to its carefully designed structure, it effectively crushes larger soil clods, improving ground structure and increasing its moisture retention capacity. As a result, the soil becomes more stable, which promotes better plant rooting and creates optimal conditions for their growth.

- Roof roller

The roof roller is an excellent solution for light and medium soils, where its main task is accurate crushing and leveling of the surface. Its special design reduces the risk of excessive soil drying, improving its moisture storage capacity, which positively affects plant development. Additionally, the roof roller limits the process of soil erosion, improving its stability and structure.

- Double roof roller

The double roof roller is an innovative solution that loosens and levels the soil even more effectively. Thanks to its thoughtful design, it efficiently crushes larger soil clods, improves ground structure, and reduces the risk of its excessive drying. Additionally, it increases the soil's moisture retention capacity, which beneficially influences plant growth and prepares the field for subsequent stages of cultivation.

- Croskill roller

The croskill roller is a technologically advanced construction that, thanks to its double structure, effectively breaks up compacted soil layers and levels the field surface. It is particularly useful in preparing soil for sowing, as it improves its structure and increases moisture retention capacity. It works great on medium and heavy soils, eliminating excessive compaction, stabilizing the ground, and supporting proper plant development.

- Maintenance-free SKF hubs

Maintenance-free SKF hubs are a modern solution that eliminates the need for frequent lubrication and maintenance, which significantly simplifies the use of agricultural machinery. Made of exceptionally durable materials, they are characterized by high resistance to intensive loads and long-term operation. Their use reduces the risk of failure, shortens downtime, and lowers operating costs, increasing work efficiency on the farm.

- Polish 610 mm boron steel discs

Discs with a diameter of 610 mm, made of high-grade boron steel, are characterized by high abrasion resistance and long service life. Their precisely profiled shape enables effective cutting of crop residues, intensive soil mixing, and its optimal preparation for subsequent stages of cultivation. A solid construction ensures reliability even in demanding field conditions.

- Transport trolley + drawbar (+950 kg)

A transport trolley with a drawbar is a practical and functional solution that facilitates moving the machine both in the field and on access roads. A solid construction ensures stability during transport, and an ergonomically designed drawbar allows for quick and convenient connecting and disconnecting of the machine, streamlining work logistics and increasing the comfort of use.

Detailed Description:

• The TIGER II 6.0 m hydraulic disc harrow is a modern and robust agricultural machine designed for precise and efficient soil cultivation.

• Advanced technology, solid construction, and a hydraulic regulation system make the harrow perform excellently in both traditional and simplified cultivation systems.

• With a working width of 6000 mm and an efficiency of 5.0-7.0 ha/h, it is an excellent solution for large farms striving to maximize work efficiency.

• The machine is equipped with 48 discs with a diameter of 560, 610, or 660 mm, made of high-grade boron steel, which ensures their exceptional abrasion resistance and long service life.

• A disc row spacing of 900 mm enables effective mixing and loosening of the soil, improving its structure and moisture retention capacity.

• Reinforced construction and the use of 6-hole hubs ensure exceptional stability and durability of the machine, even during intensive operation.

• The hydraulic system with two cylinders allows for precise working depth adjustment, enabling optimal adaptation of the machine to various terrain conditions.

• A damping system in the form of rubber rollers effectively dampens vibrations, protecting the structure against overloads and increasing the operator's comfort.

• The harrow performs perfectly in both pre-sowing cultivation and soil finishing after harvests.

• The harrow effectively eliminates weeds, enables the mixing of organic and mineral fertilizers, and prepares the field for subsequent sowing.

• The option to work with a seed drill enables simultaneous cultivation and sowing in a single pass, which allows for saving time and fuel.

• All elements of the structure have been covered with powder coating, which ensures effective protection against corrosion and mechanical damage, extending the machine's durability.

• A universal category II and III hitch system enables quick and convenient connection of the harrow to various tractor models with a power range from 180 to 250 HP.

• Thanks to modern technological solutions, high-quality components, and a solid construction, the TIGER II 6.0 m hydraulic disc harrow is an excellent choice for farmers expecting reliability, high efficiency, and comfort of use in daily field work.
