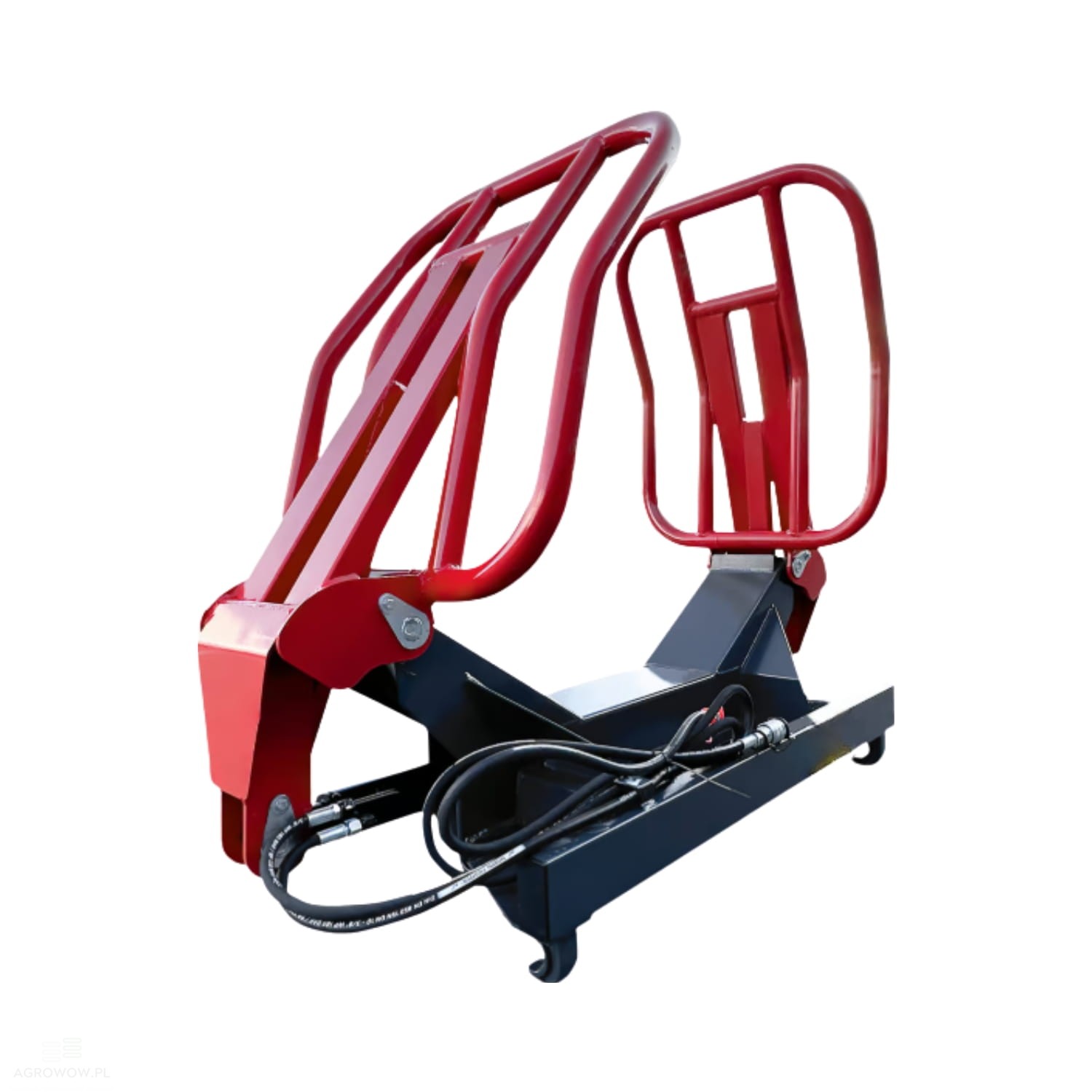

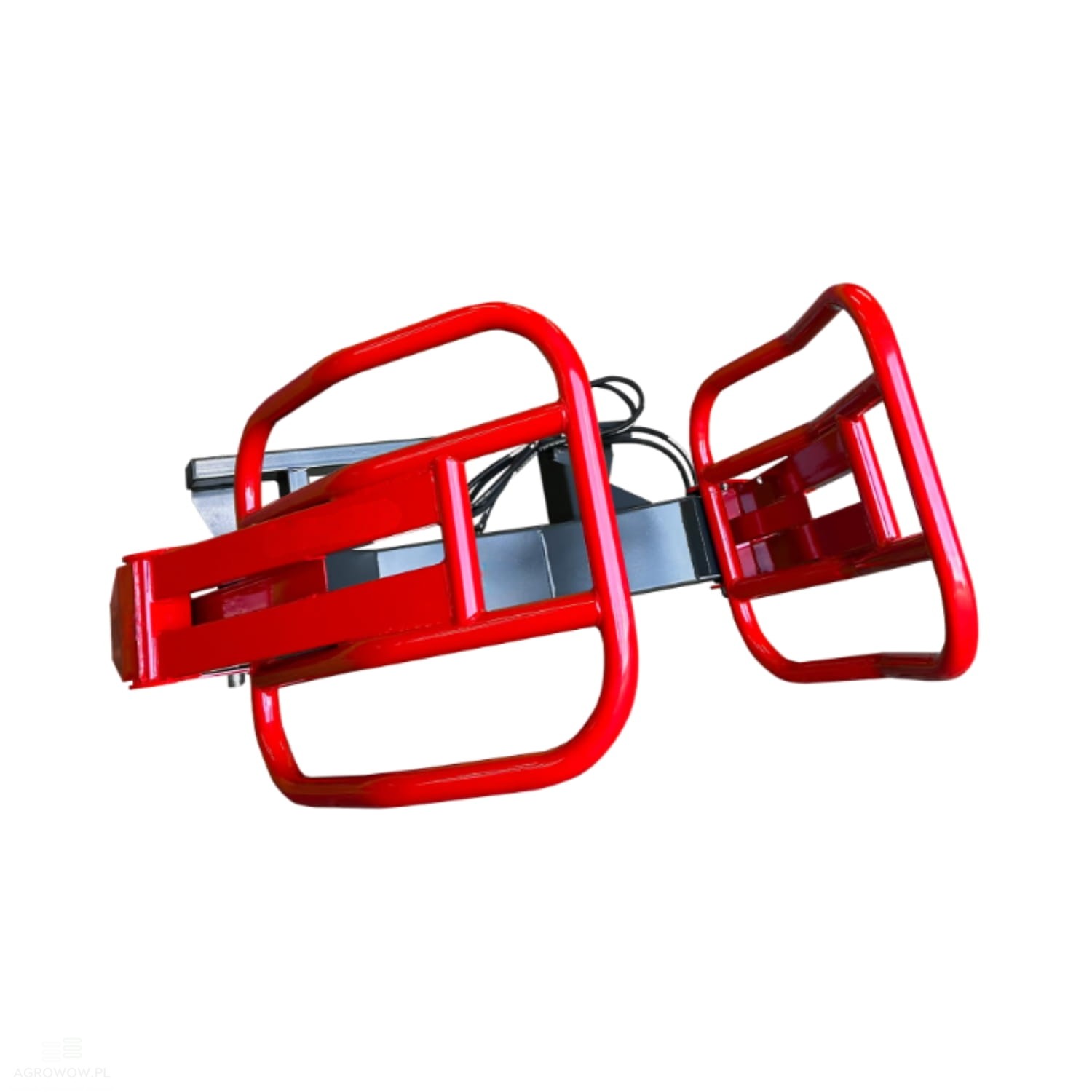

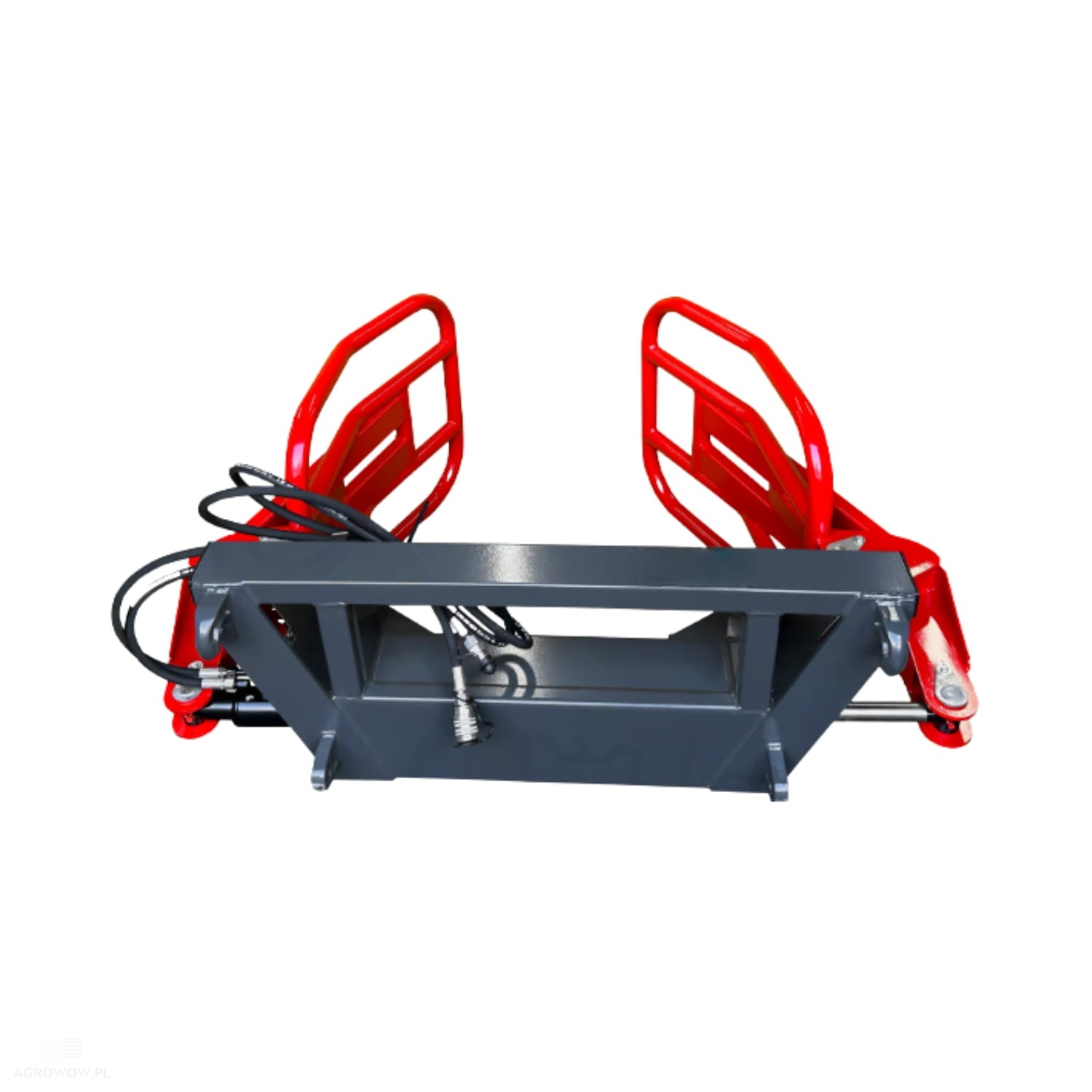

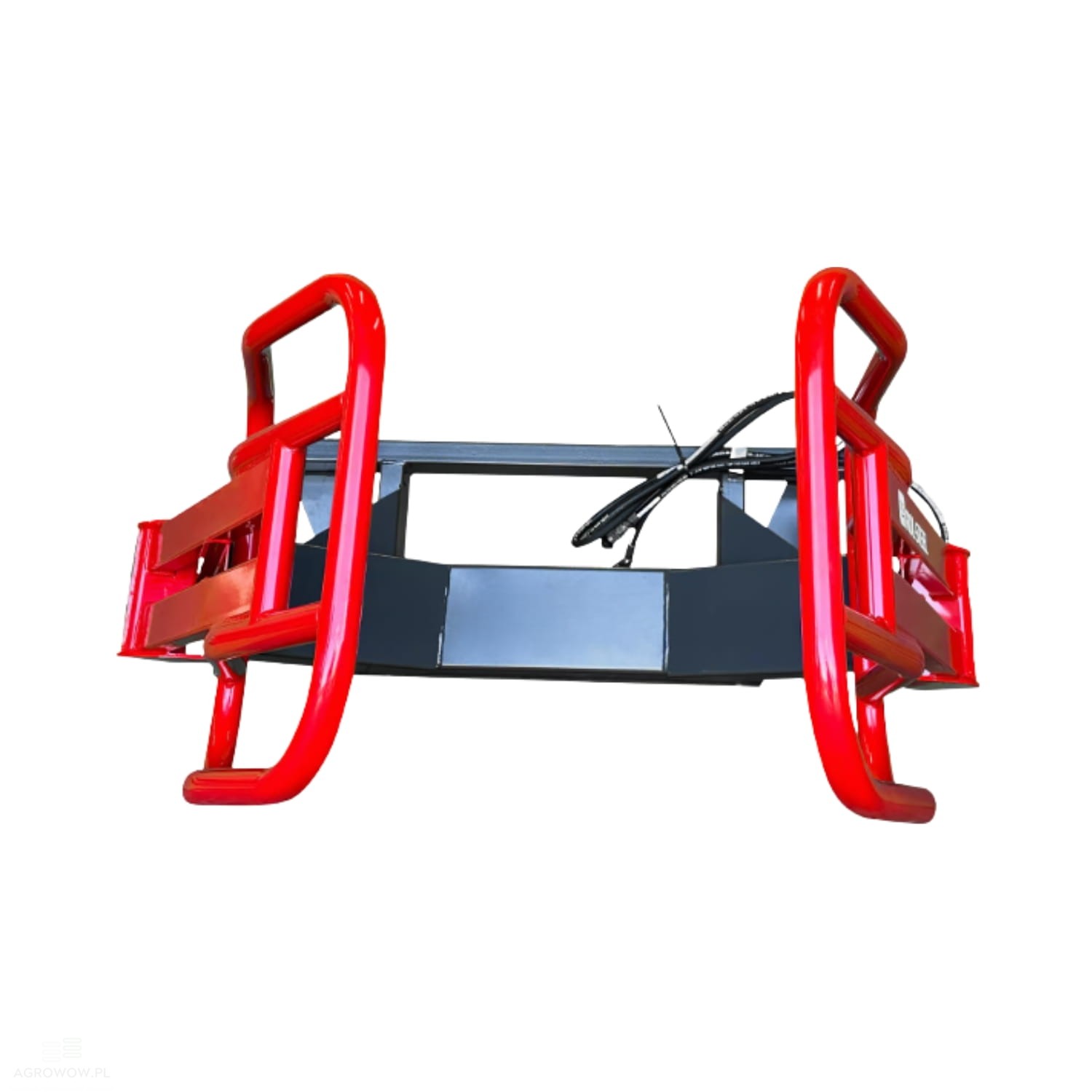

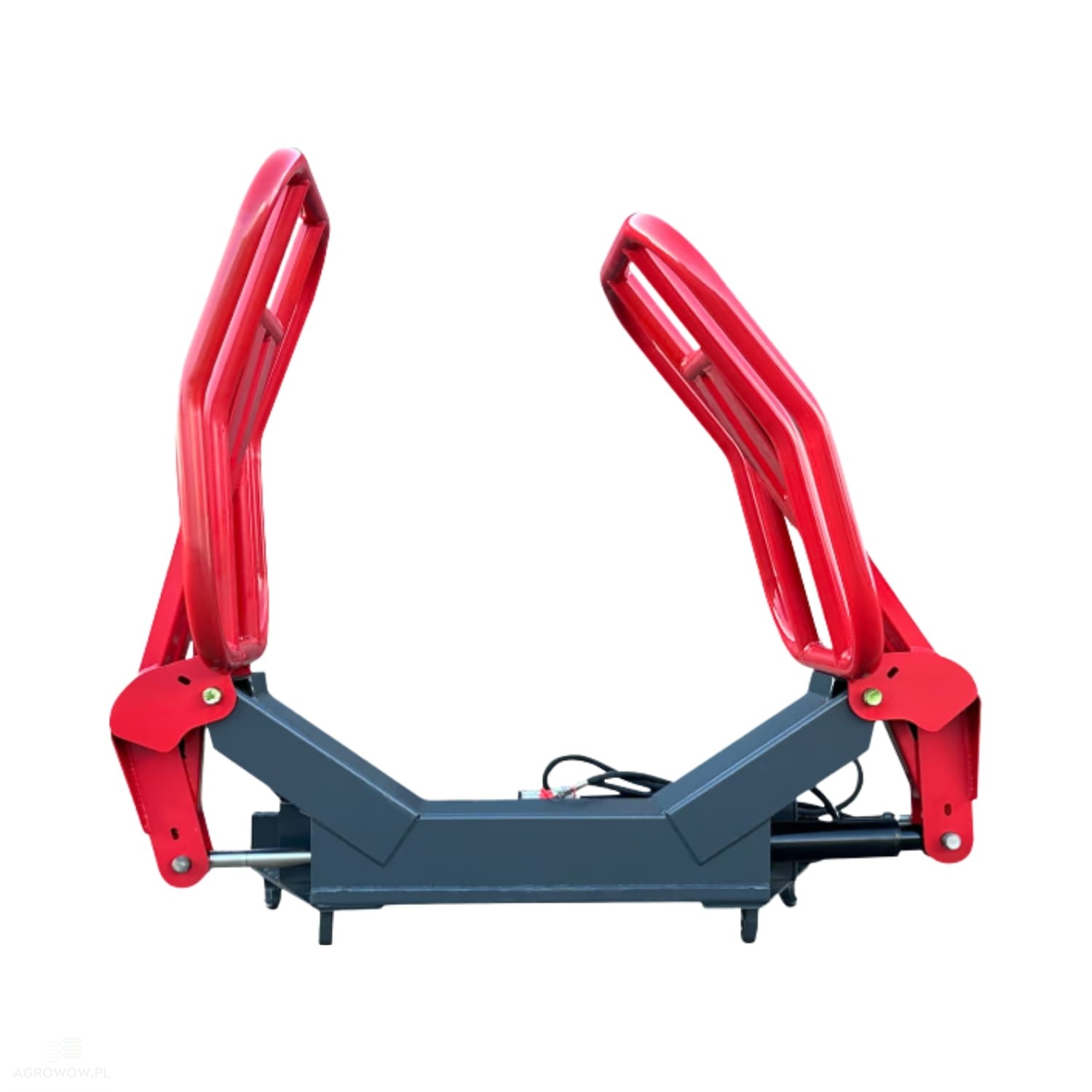

Agrowow single-cylinder bale gripper

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: AW01CH

- Manufacturer's name: Standard bale gripper

- Width: 1500 mm

- Height: 720 mm

- Depth: 1300 mm

- Weight: 155 kg

- Maximum arm span: 1900 mm

- Floating arms

- Gripper for bale diameters: 900-1700 mm

- Number of cylinders: 1

- Lifting capacity: 800 kg

- Arms made of pipe: 48.3 x 2.9 mm

- Hitch/Mounting: Euro

Optional Extras:

- SMS hitch (Stoll, Schäffer and others)

A universal mounting system used primarily on compact front and articulated loaders from brands such as Stoll, Schäffer, or Ålö. It is characterized by a simple and durable construction, making it popular in Western and Northern European countries. It ensures quick and convenient connection of attachments.

- TŁOK hitch (Pin/Ram type)

A mounting type used most frequently on older-type domestic front loaders, based on a mechanism of sleeves and pins (the so-called "pin-on" or "ram" mount). It is not a quick-coupler system – installing the attachment requires manual securing with pins. A simple solution, but less convenient than modern systems like the EURO type.

- Mailleux (MX) hitch

A specialized hitch system created by MX, intended exclusively for loaders of this brand. It differs structurally from popular standards, which ensures a perfect fit, durability, and connection reliability. It is incompatible with the EURO system without an adapter.

- KOMBI hitch (EURO + Three-Point Linkage Cat. I/II) - on request

A combination hitch that blends the EURO standard with a tractor category I or II rear three-point linkage (TUZ). It allows for versatile utilization of the attachment – both on a front loader and directly on the tractor's rear lift. An ideal solution for users looking for multifunctionality.

Detailed Description:

• The 1500 mm wide bale gripper is a solidly manufactured attachment designed for the safe transport and loading of round bales with a diameter from 900 to 1700 mm.

• Thanks to its well-thought-out design, it performs excellently on agricultural farms as well as in companies dealing with feed production, transport services, or crop material warehousing.

• The device is characterized by compact yet efficient dimensions: its total height is 720 mm, depth is 1300 mm, and width is 1500 mm.

• The unladen weight of the gripper is 155 kg, making it lightweight yet highly stable and resistant to intensive exploitation.

• A maximum lifting capacity of 800 kg enables comfortable and safe handling of even heavy bales.

• The gripper is equipped with a single hydraulic cylinder responsible for the smooth and even closing of the arms.

• The maximum arm span is 1900 mm, allowing for the trouble-free loading of bales of various sizes.

• The arms are floating and manufactured from a durable pipe with a cross-section of 48.3 x 2.9 mm – their flexible operation limits the risk of damaging the protective film wrap on the bales, which is particularly vital for silage.

• The standard EURO-type hitch ensures full compatibility with most front loaders available on the market, facilitating quick attachment connection without the need for additional adapters.

• The entire construction is made of high-quality steel resistant to deformation, cracking, and abrasion, which guarantees a long service life for the gripper, even under intensive field-work conditions.

• The 1500 mm model is a reliable and functional solution that increases the efficiency of bale handling while ensuring operator safety and minimizing the risk of load damage.

• It is a practical tool that will successfully find application in daily handling, agricultural, and transport operations.
