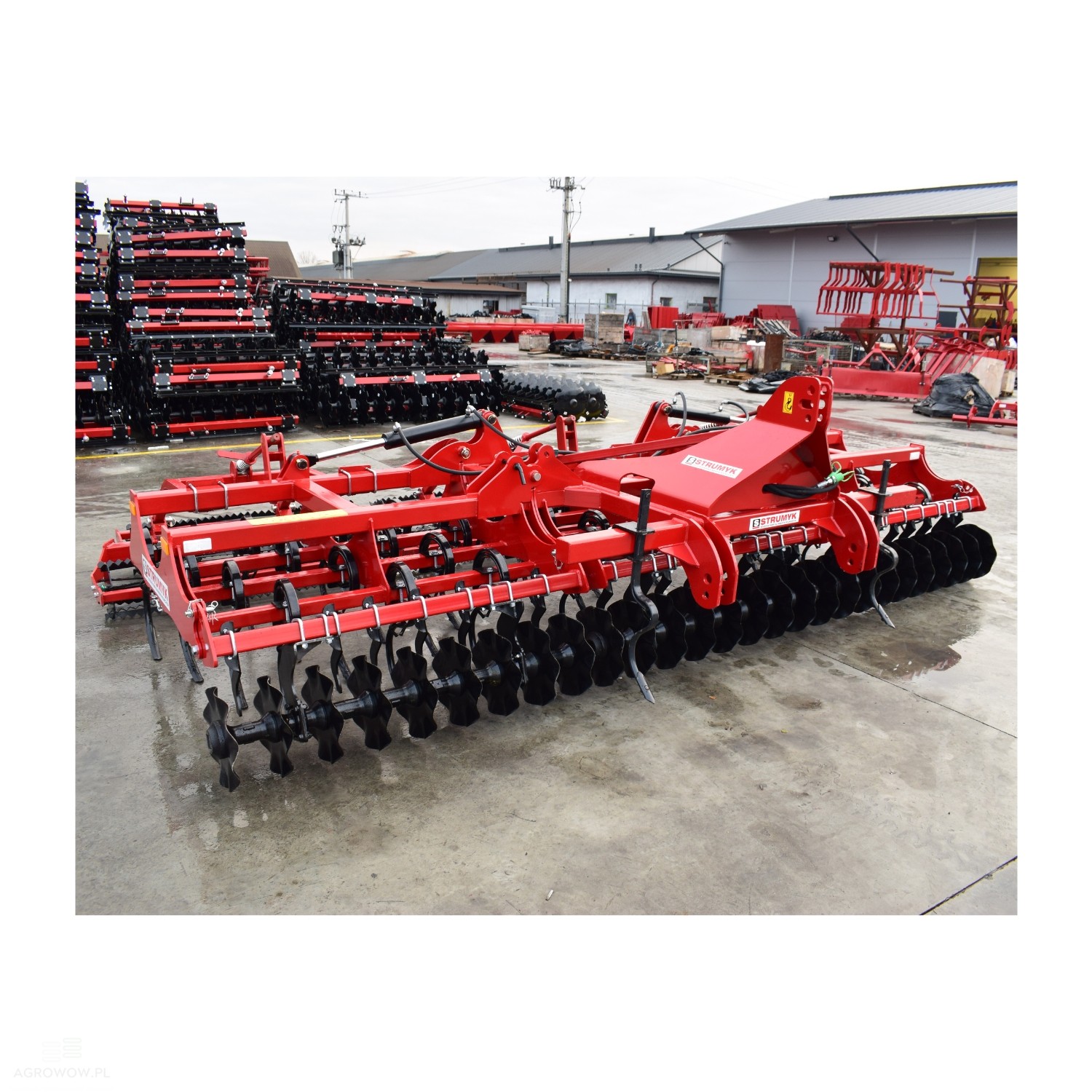

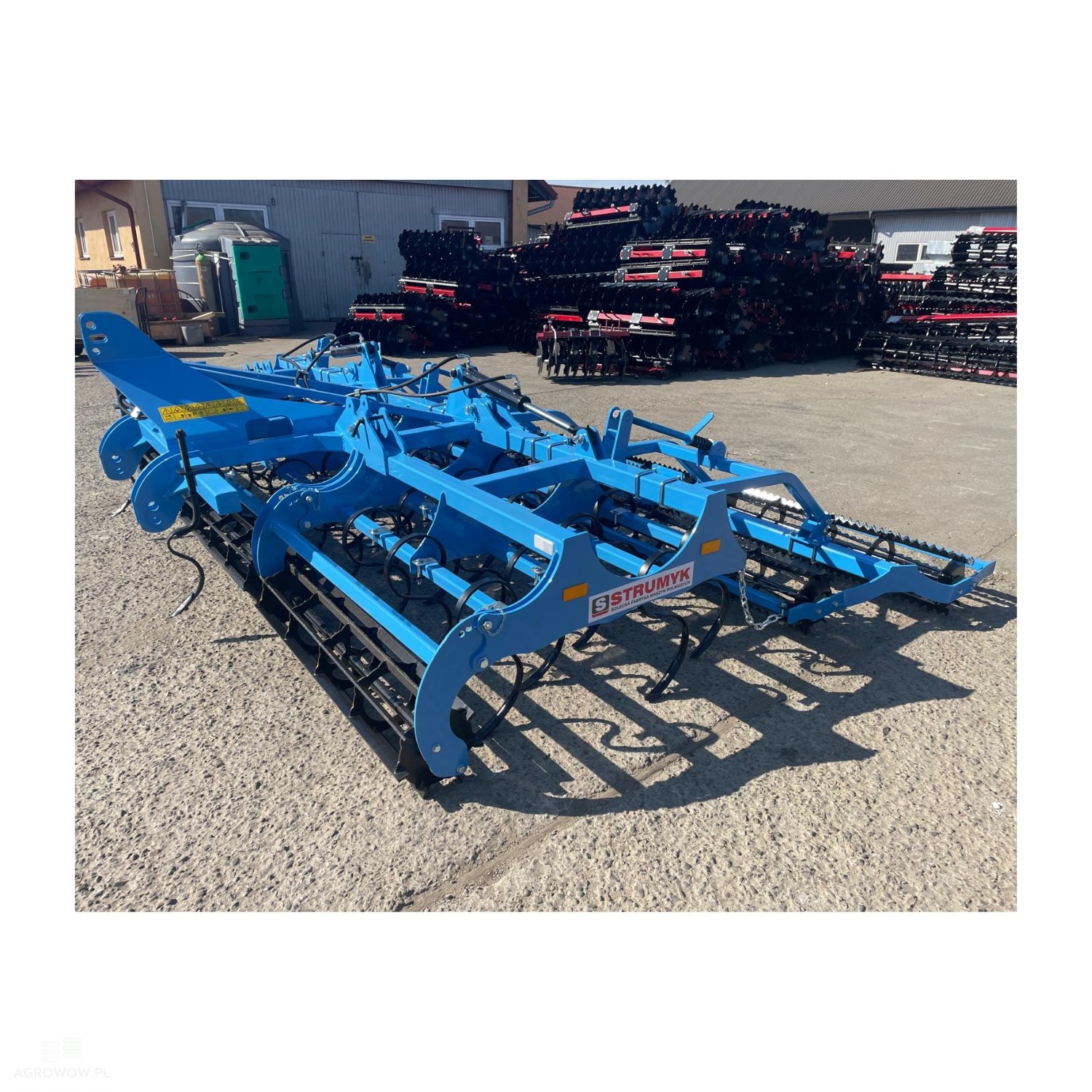

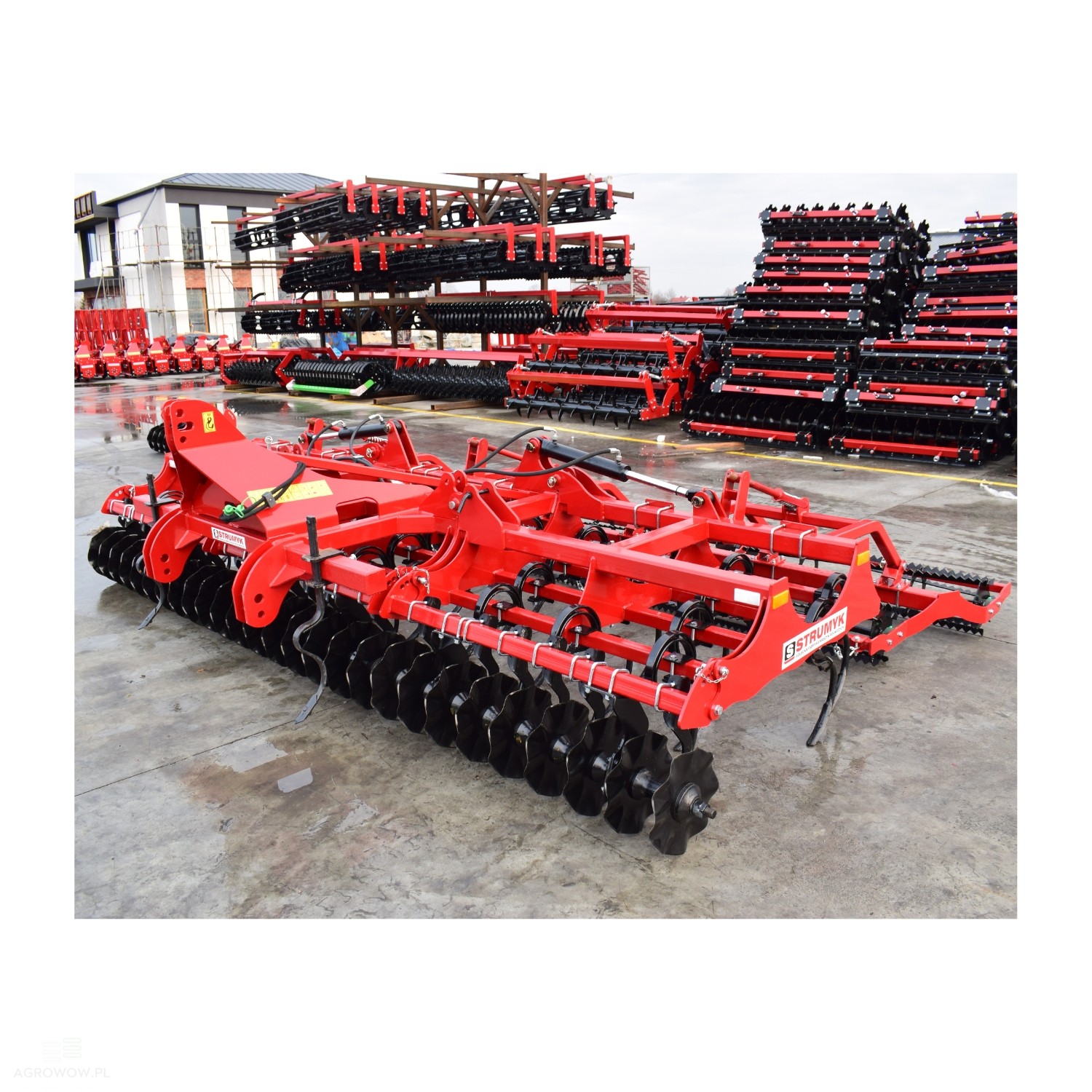

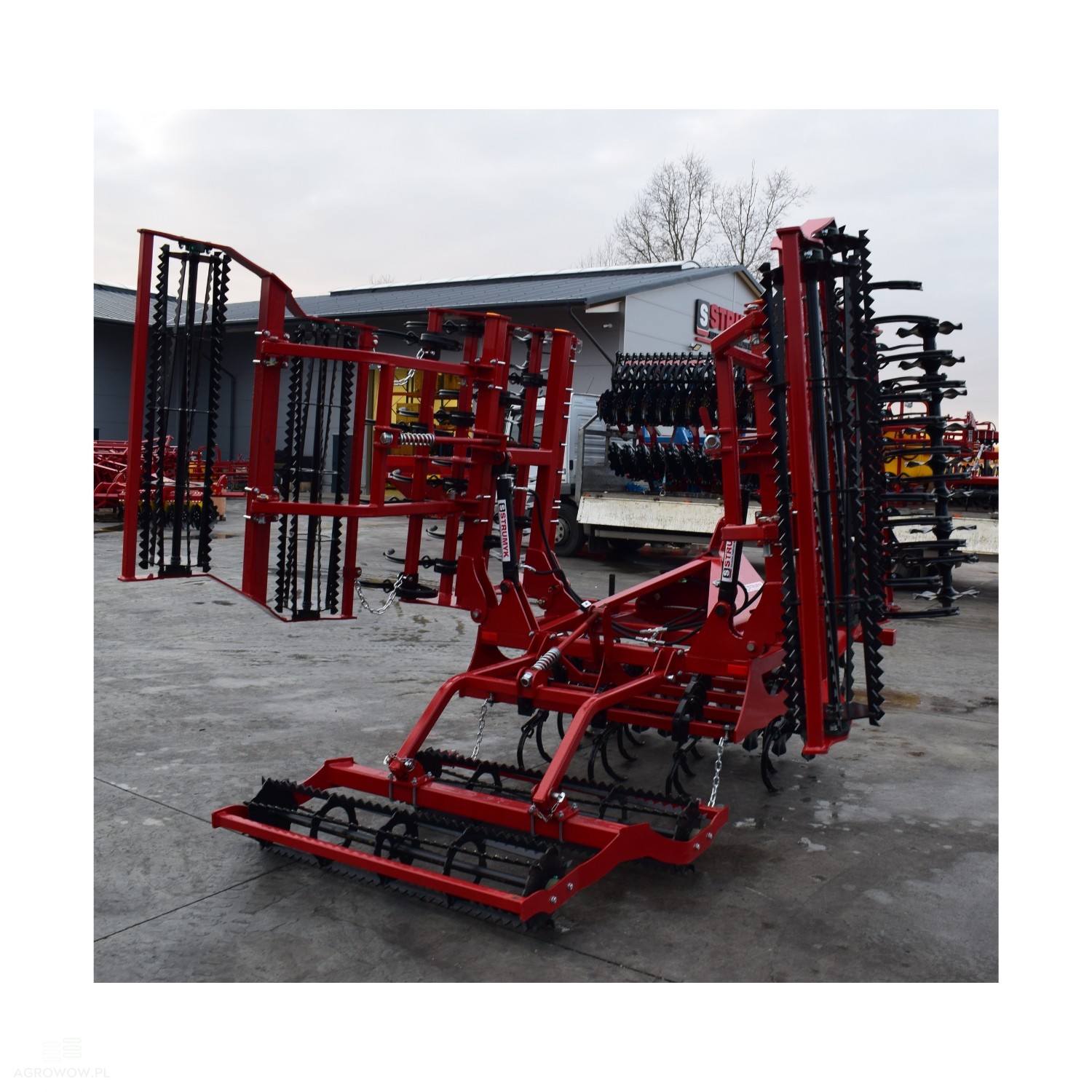

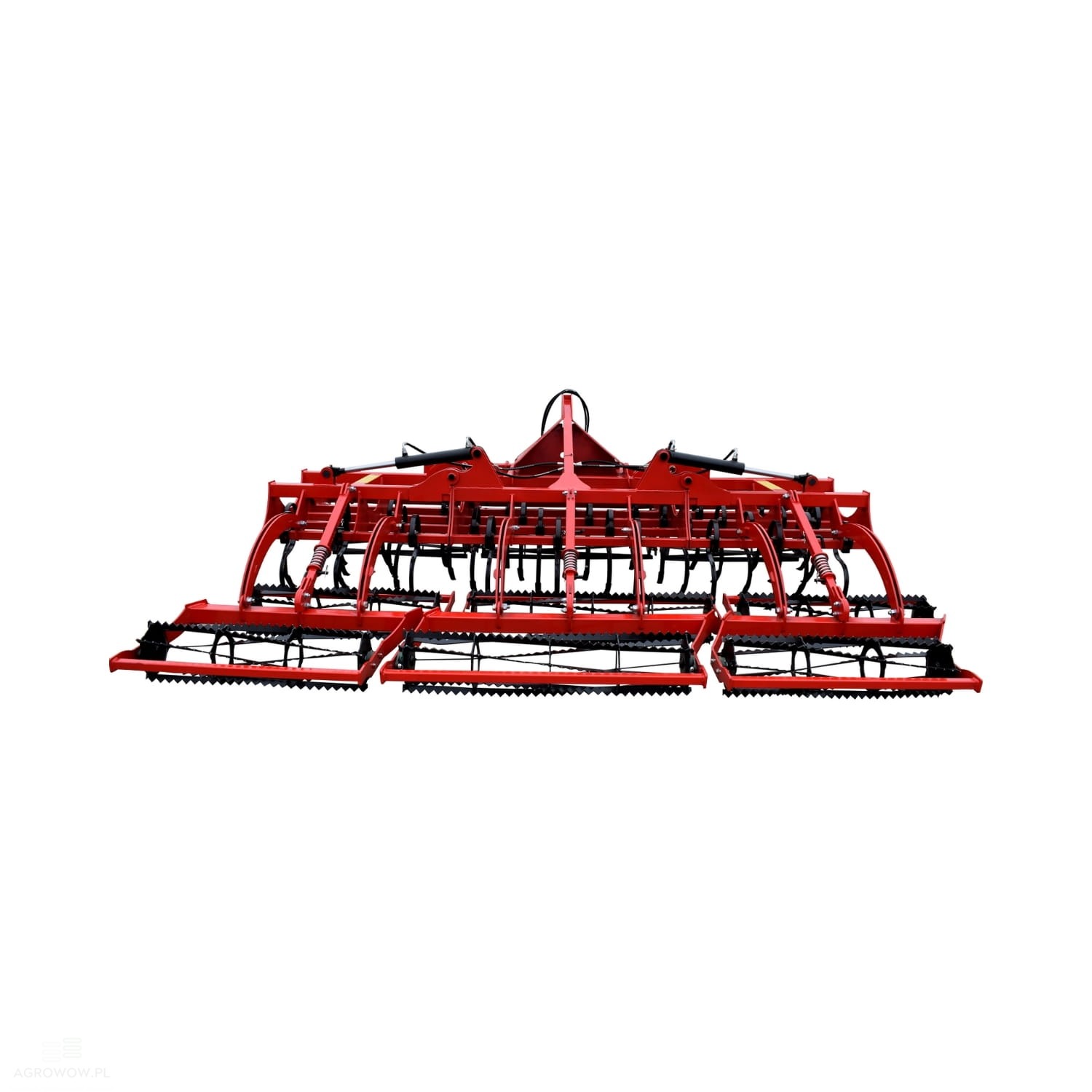

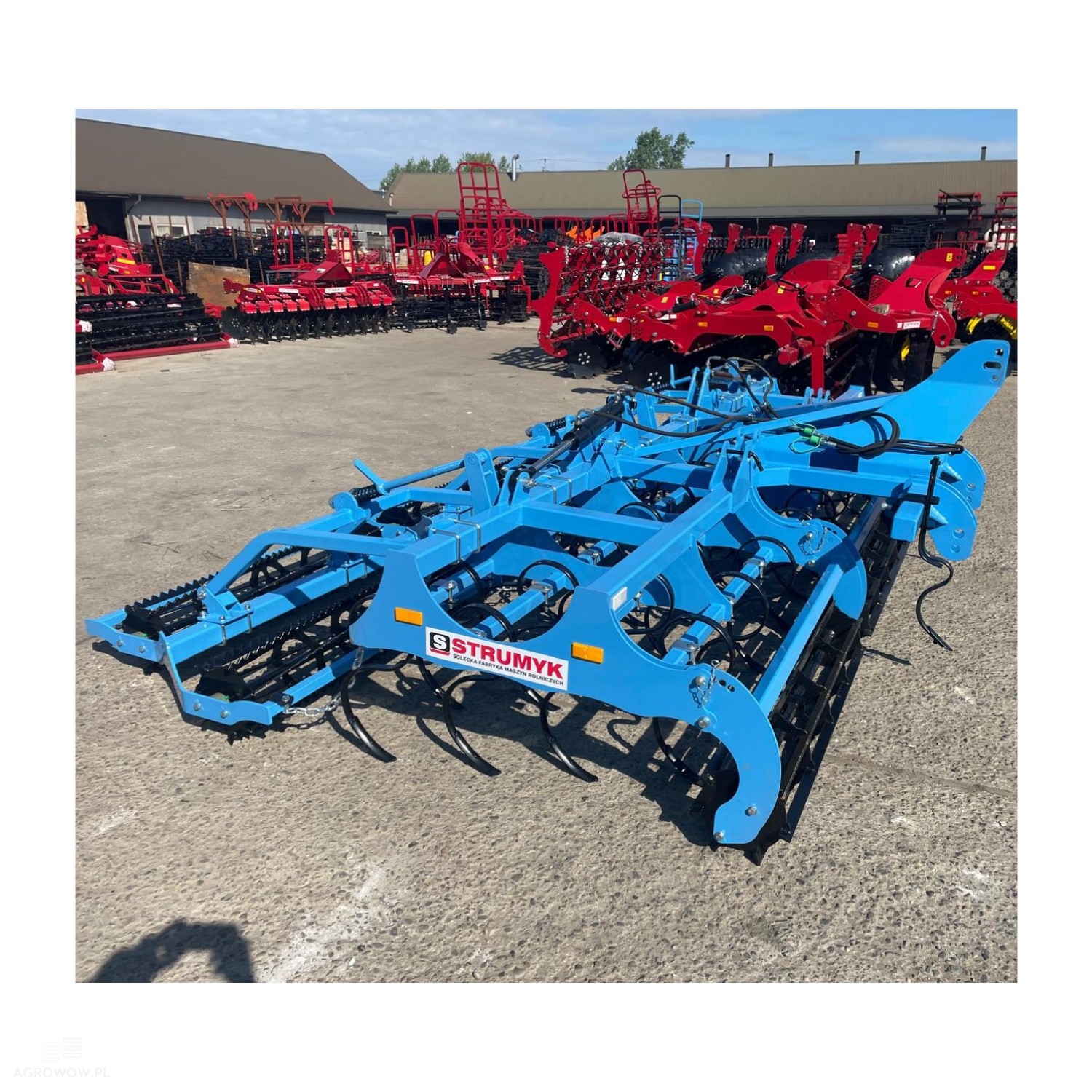

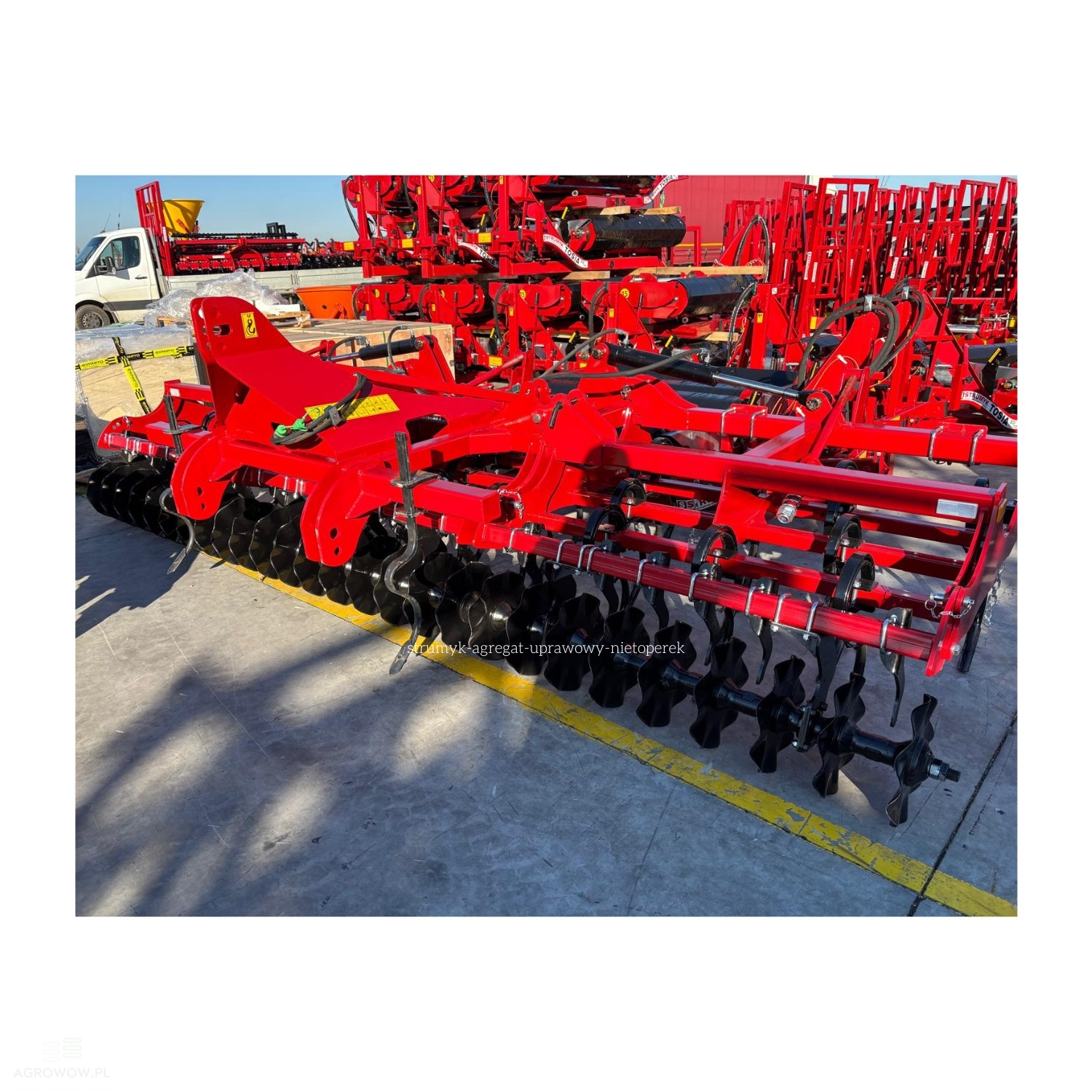

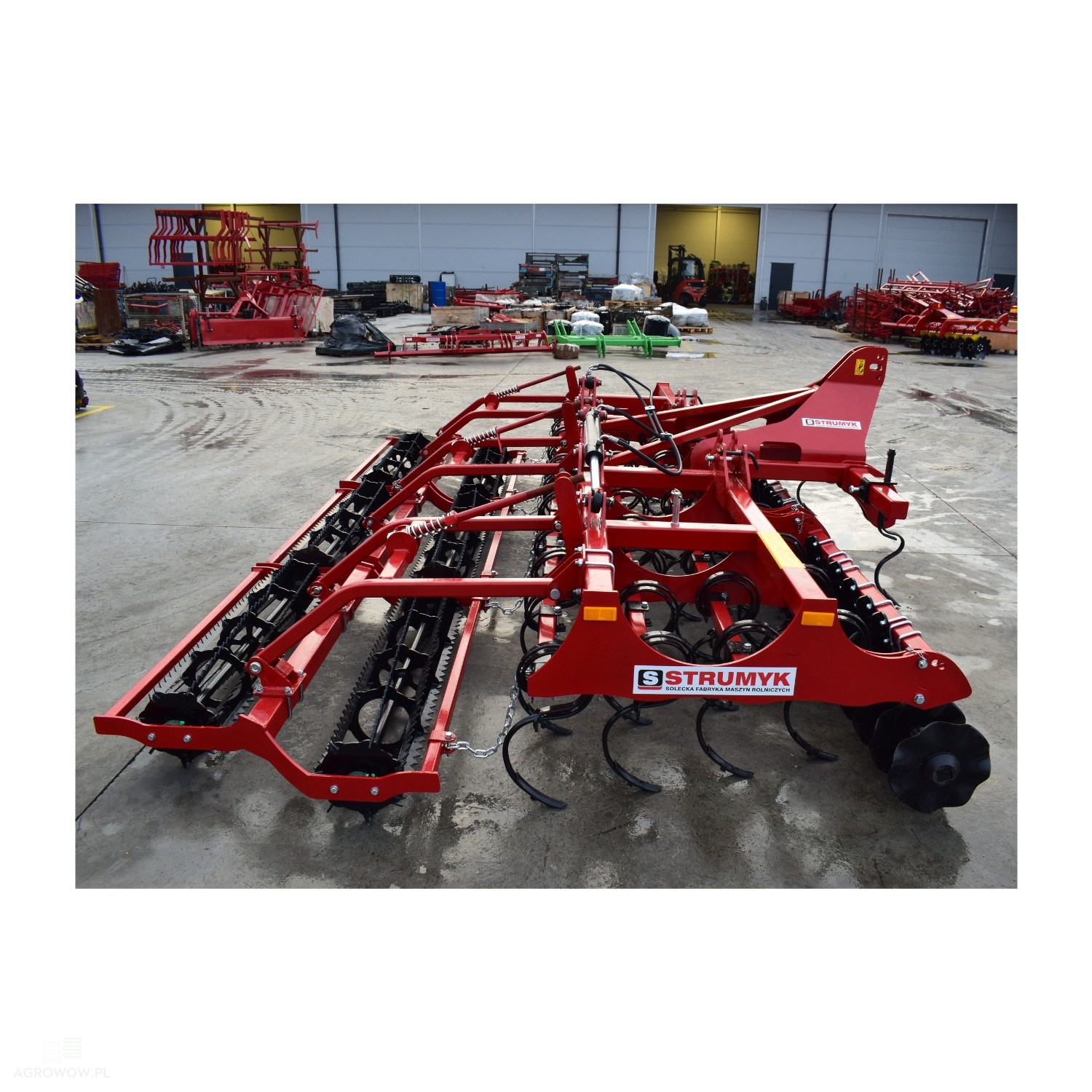

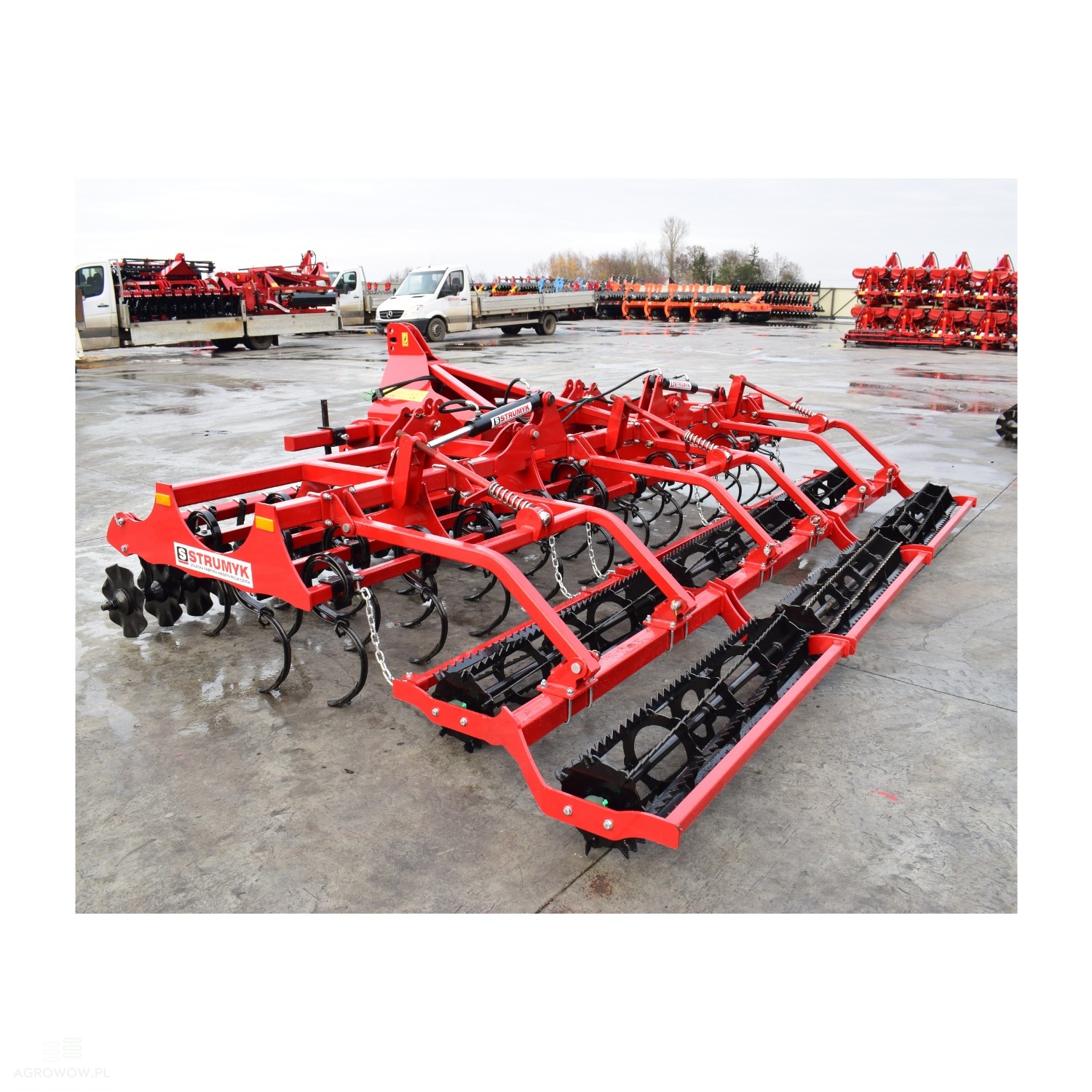

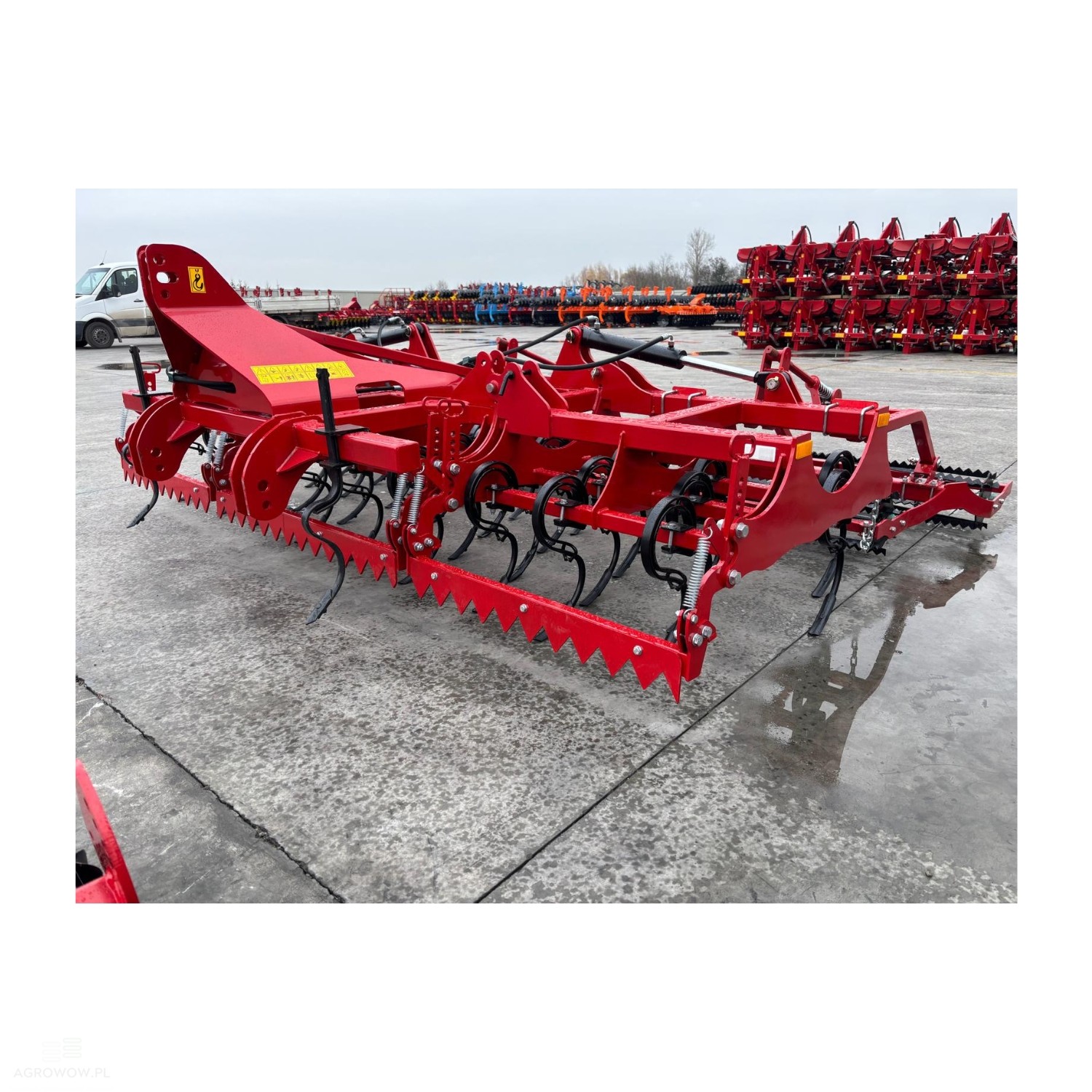

Agrowow tillage aggregate NIETOPEREK 3.6 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: SAGN36

- Manufacturer's name: Tillage aggregate NIETOPEREK

- Width: 3600 mm

- Weight: 1250 kg

- Power requirement: 85-95 HP

- Tine with coulter

- Coulter: 36 pcs

- Goosefoot share: 36 pcs

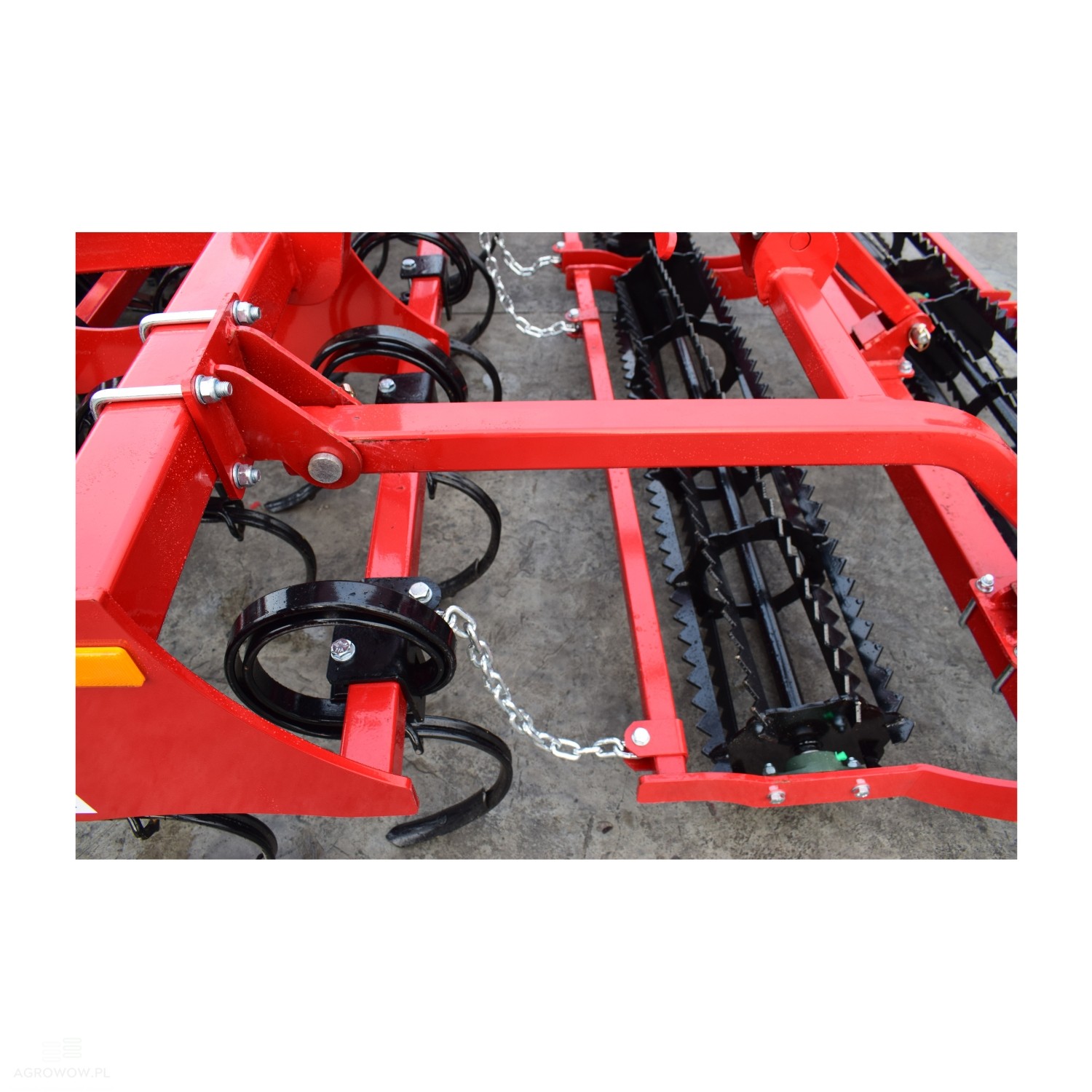

- Track eradicators with smooth depth and width adjustment

- Smooth front jet roller

- Number of rollers: 6+3

- Number of working tine rows: 4

- Tine: 32x10

- Number of crumbling and compacting roller rows: 2

- Number of actuators: 2

- Efficiency: 1.9-3.9 ha/h

- Powder-coated parts

Optional extras (at additional cost):

- Reinforced tine with coulter

Wzmacniany ząb z redliczką to kluczowy element roboczy w agregatach uprawowych, zaprojektowany do skutecznego spulchniania i napowietrzania gleby. Jego wytrzymała konstrukcja zapewnia wysoką odporność na ścieranie i uszkodzenia mechaniczne, co przekłada się na dłuższą żywotność i efektywność pracy nawet w wymagających warunkach. Redliczka precyzyjnie tnie oraz rozdrabnia warstwę gleby, tworząc optymalne podłoże do siewu.- Ząb wzmacniany z gęsiostopką

- Reinforced tine with goosefoot share

The reinforced tine with a goosefoot share is an effective solution for large-surface soil loosening, ensuring thorough preparation for cultivation. Thanks to the specially designed "goosefoot" tip, it effectively cuts the substrate, eliminating weeds and limiting the need for herbicides. The solid construction of the tine guarantees durability and resistance to intensive use, proving effective in various soil conditions..

Detailed Description:

• The NIETOPEREK tillage aggregate is a versatile and solid agricultural machine designed for effective soil preparation before sowing.

• Thanks to its durable construction and properly placed working elements, the machine provides ideal conditions for plant growth and improves soil structure.

• The aggregate with a working width of 3600 mm is equipped with 36 tines with coulters and 36 goosefoot shares, which effectively loosen and aerate the soil, eliminating compacted layers and weeds.

• Four rows of working tines guarantee thorough and uniform preparation of the substrate, improving its permeability and moisture storage capacity.

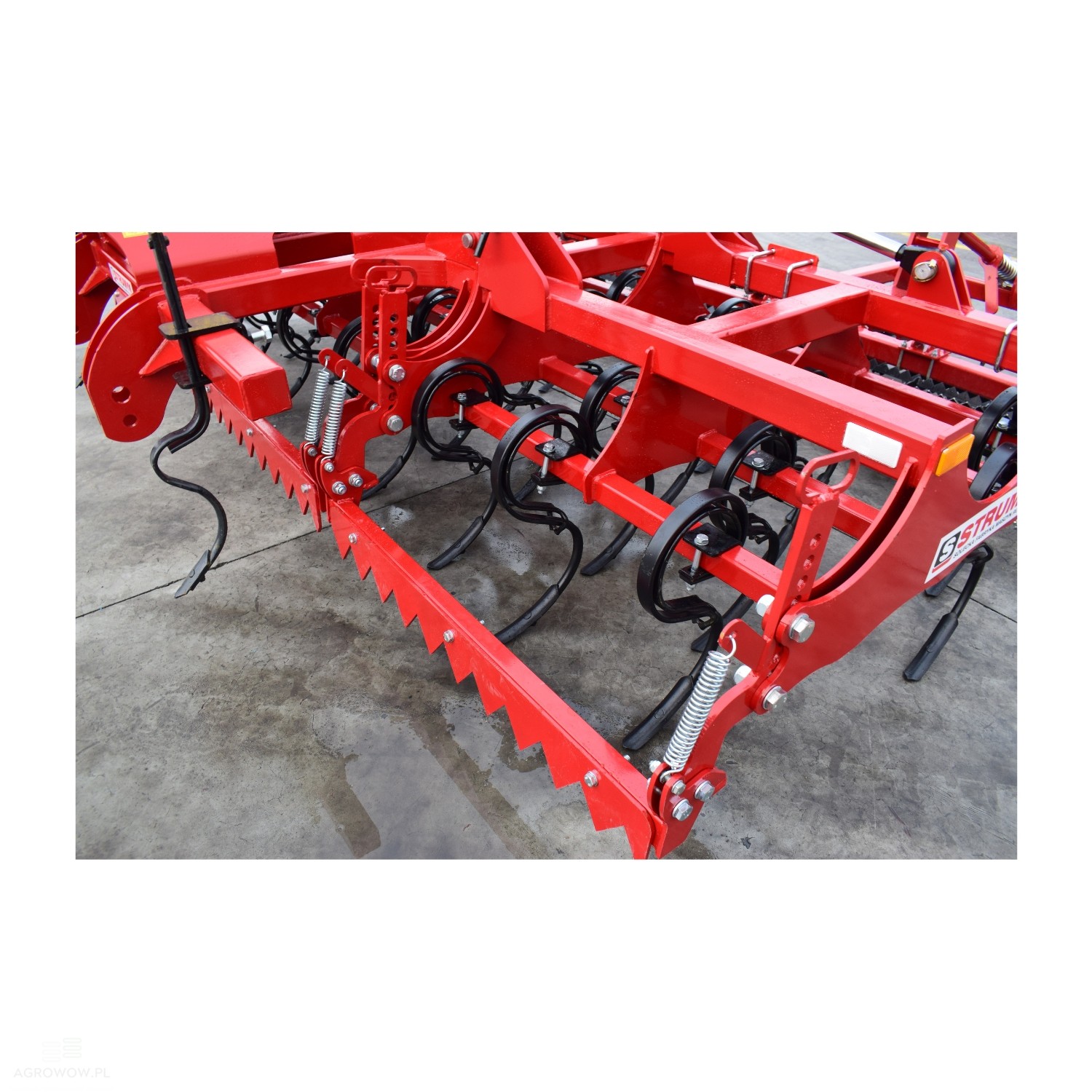

• Adjustable track eradicators with smooth working width and depth regulation allow for precise leveling of the soil surface after the tractor's passage.

• The machine is equipped with nine rollers—six working and three crumbling-compacting—which effectively level the field, limit excessive soil loosening, and improve its water retention capacity.

• A smooth front jet roller additionally improves surface leveling, minimizing unevenness and preventing soil erosion.

• The aggregate weighs 1250 kg, ensuring machine stability and resistance to intensive operation in various soil conditions.

• The working efficiency in the range of 1.9-3.9 ha/h makes the machine perfect for medium and larger farms, enabling effective soil preparation.

• The aggregate requires a tractor with 85-95 HP, making it an optimal choice for farmers seeking economical yet efficient equipment.

• It is compatible with a wide range of tractors, such as the John Deere 5100M, New Holland T5.100, Kubota M6-101, Zetor Forterra 100, and Ursus 10014.

• The machine has two hydraulic cylinders that allow for precise adjustment of work settings to current soil conditions.

• All elements of the machine have been secured with powder coating, which increases their resistance to corrosion and mechanical damage.

• The solid construction and high-quality components ensure durability and failure-free operation even in demanding field conditions.

• The NIETOPEREK tillage aggregate is an ideal choice for farmers looking for a machine that improves soil structure, increases work efficiency, and optimizes the cultivation process.

• Modern technological solutions applied in this machine not only facilitate cultivation but also contribute to better crop quality and farm efficiency.
