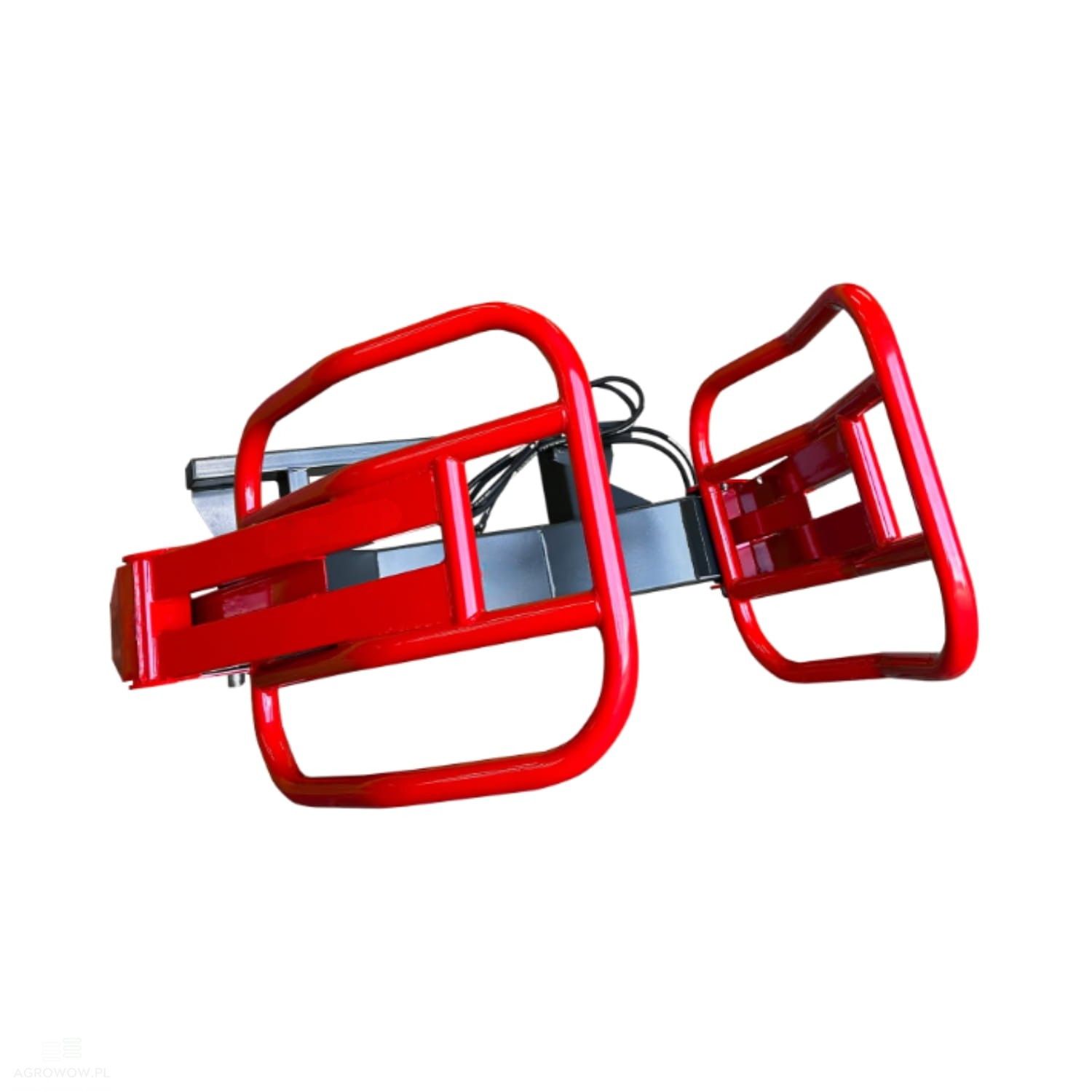

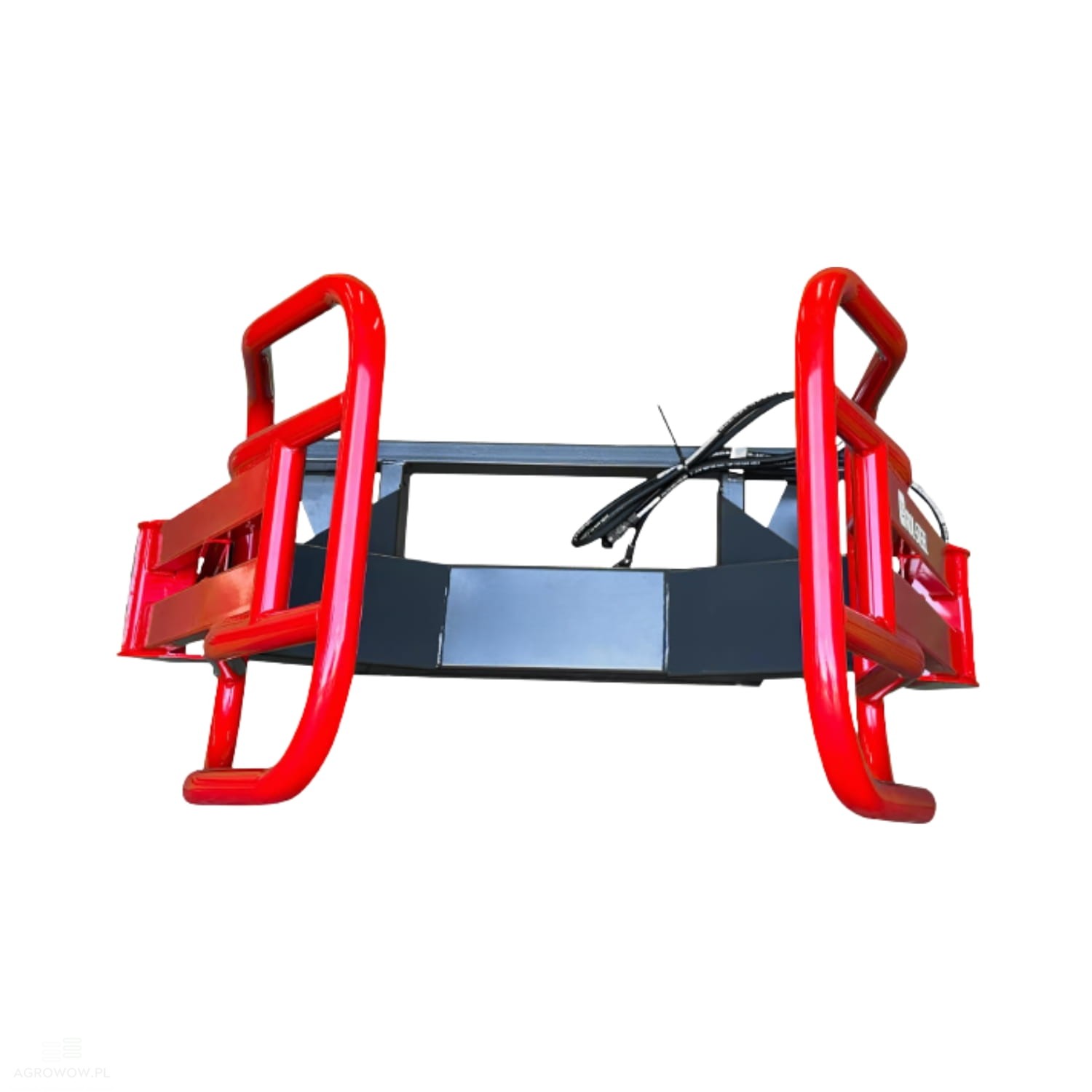

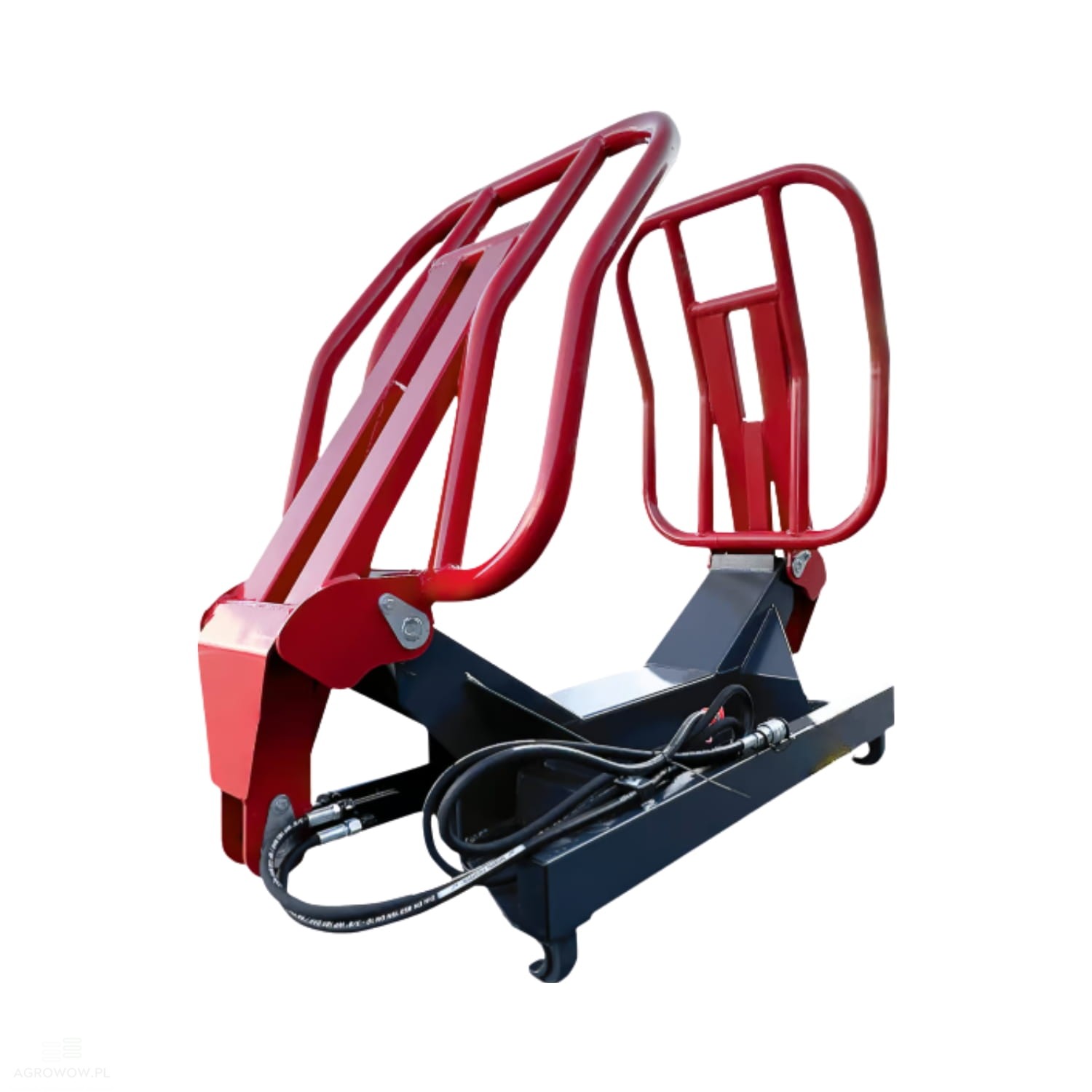

Agrowow twin-cylinder bale gripper

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: AW02CH

- Manufacturer's name: Standard bale gripper

- Width: 1500 mm

- Height: 720 mm

- Depth: 1300 mm

- Weight: 155 kg

- Maximum arm span: 1900 mm

- Floating arms

- Gripper for bale diameters: 900-1700 mm

- Number of cylinders: 2

- Lifting capacity: 800 kg

- Arms made of pipe: 48.3 x 2.9 mm

- Hitch/Mounting: Euro

Optional Extras:

- SMS hitch (Stoll, Schäffer and others)

A versatile mounting system used primarily on compact front and articulated loaders, such as those manufactured by Stoll, Schäffer, or Ålö. It features a simple construction and high durability, making it popular in Western and Northern Europe. It enables quick and convenient attachment connection.

- TŁOK hitch (Pin/Ram type)

A classic hitch type used mainly on older, domestic front loader models. It is based on a system of sleeves and pins, commonly referred to as a "pin-on" or "ram" mount. It does not belong to the quick-coupler group – installation requires manual securing with pins. Although simple in design, it falls short in terms of convenience compared to modern solutions like the EURO system.

- Mailleux (MX) hitch

A dedicated mounting system developed by MX and intended exclusively for loaders of this brand. It differs from popular standards due to its specific construction and arrangement of mounting points, which guarantees durability and a perfect fit. Without using an adapter, it is not compatible with the EURO system.

- KOMBI hitch (EURO + Three-Point Linkage Cat. I/II) - on request

A system that combines a classic EURO mount with a tractor category I or II rear three-point linkage (TUZ). It allows the attachment to be connected to both front loaders and the tractor's rear lift, offering the user great flexibility and operational functionality.

Detailed Description:

• The 1500 mm wide bale gripper is a durable, functional, and precisely engineered tool designed for transporting, loading, and unloading round bales with a diameter from 900 to 1700 mm.

• It is a versatile solution that will find application in modern agricultural farms as well as in companies dealing with feed distribution, warehousing services, or crop material logistics.

• The device features a compact yet effective design – 1500 mm in width, 720 mm in height, and 1300 mm in depth – which allows it to perform exceptionally well both in open fields and narrow farm alleyways.

• With an unladen weight of 155 kg, the gripper ensures stability during operation without unnecessarily overloading the machine, resulting in better maneuverability and fuel savings.

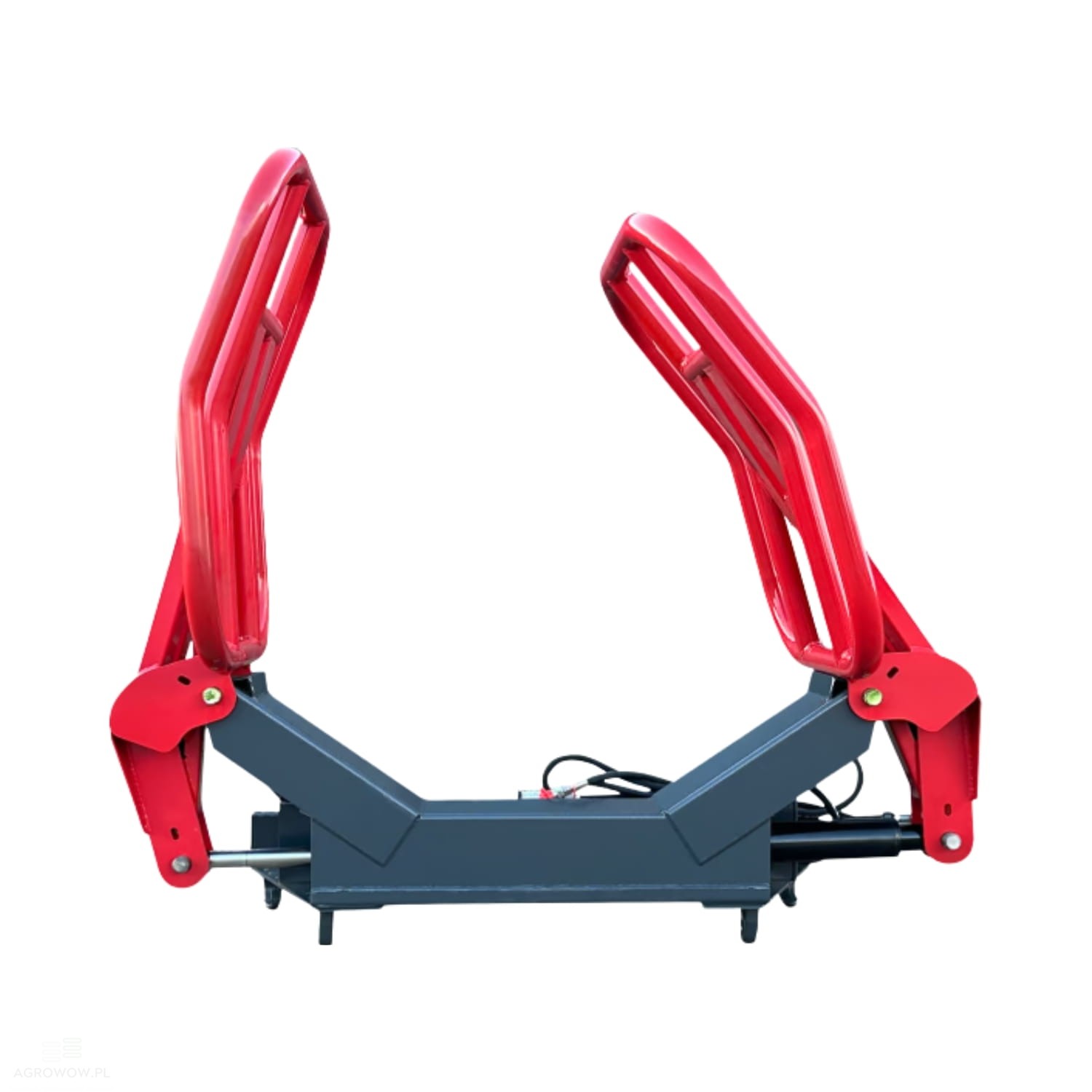

• This model is equipped with two hydraulic cylinders that ensure even and smooth closing of the arms, regardless of the bale's position or weight.

• Thanks to this, the operator can rely on a precise and secure grasp of the load, which is crucial especially when working on uneven terrain or in challenging weather conditions.

• The maximum arm span reaches up to 1900 mm, allowing for the handling of a wide range of bale sizes.

• The arms are manufactured from durable pipe with a cross-section of 48.3 x 2.9 mm, and their floating construction minimizes pressure on the bale at the moment of gripping.

• This reduces the risk of damaging the external protective layer of film – which is particularly vital for silage or straw stored outdoors.

• The device's lifting capacity of 800 kg allows for the smooth handling of even heavy bales without fear of overloading the equipment.

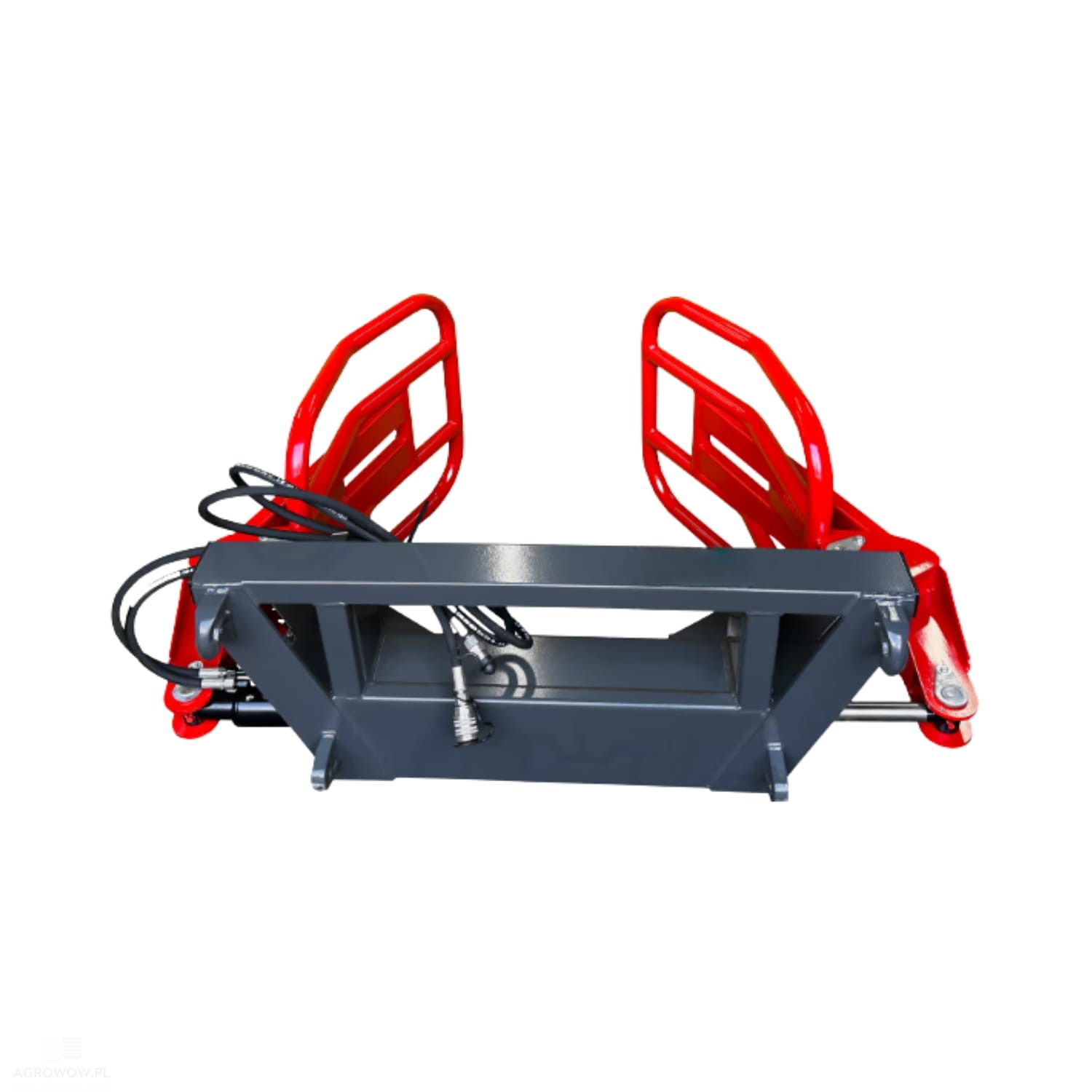

• The standard EURO-type hitch guarantees compatibility with most front loaders available on the market, significantly easing daily exploitation without the need for conversion frames or additional adapters.

• The entire construction is built from high-grade steel resistant to abrasion, deformation, and mechanical damage, ensuring long-term durability even during intensive seasonal use.

• This reliable and easy-to-operate tool serves as invaluable support in daily operations, increasing productivity as well as safety for both the operator and the transported material.
