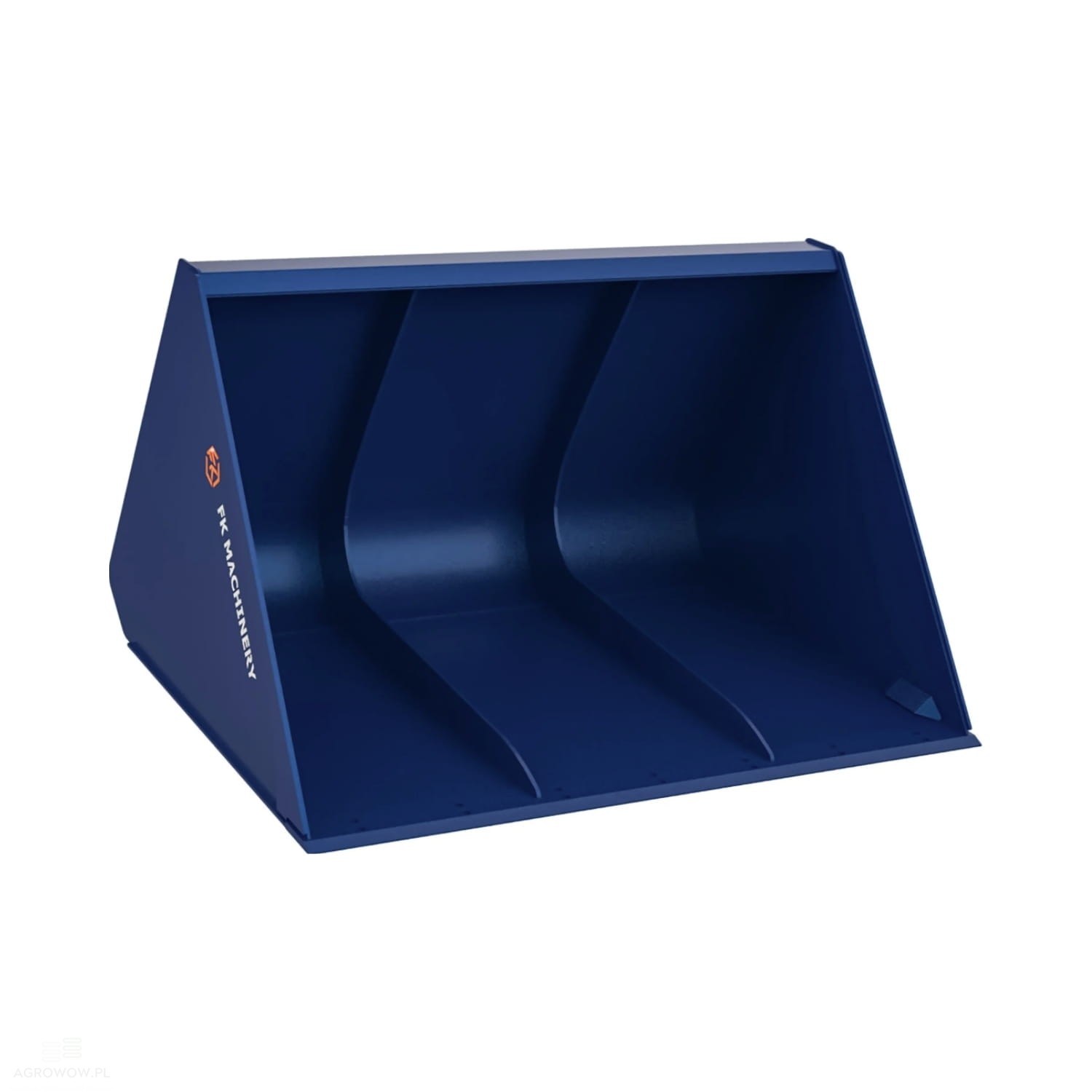

Kołaszewski heavy soil bucket MAXI 2.6 x 1.22 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KXLHBS-D260

- Manufacturer's name: Heavy soil bucket MAXI

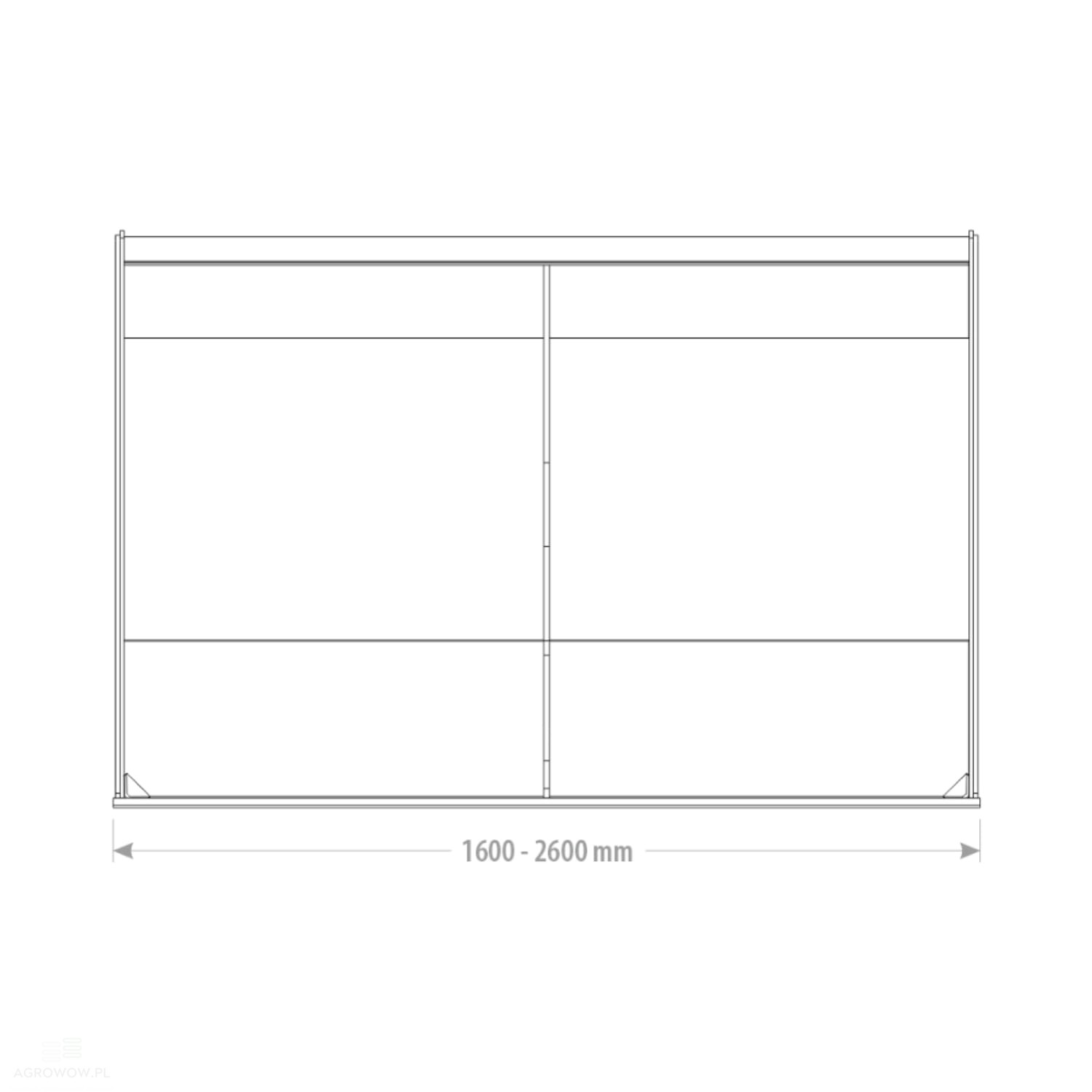

- Width: 2600 mm

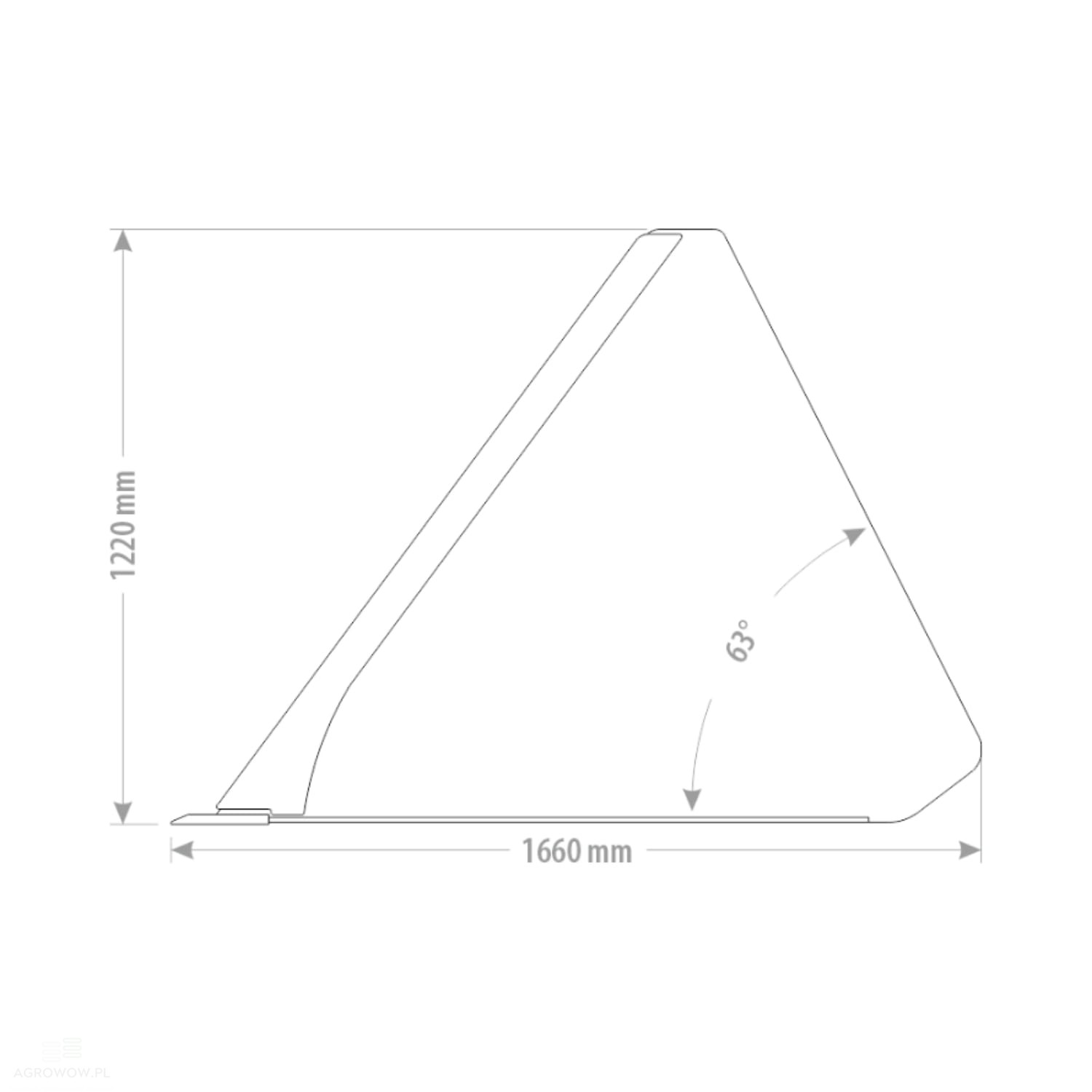

- Length: 1660 mm

- Height: 1220 mm

- Capacity: 2.63 m³

- Weight: 819 kg

- Side plate thickness: 8 mm

- Shell thickness: 6 mm

- HB500 cutting edge: 200x20 mm

- Side extensions

- Floor reinforcements: 10 mm

- Reinforced side-to-floor joint

- Ribs: 12 mm

Optional extras (at additional cost):

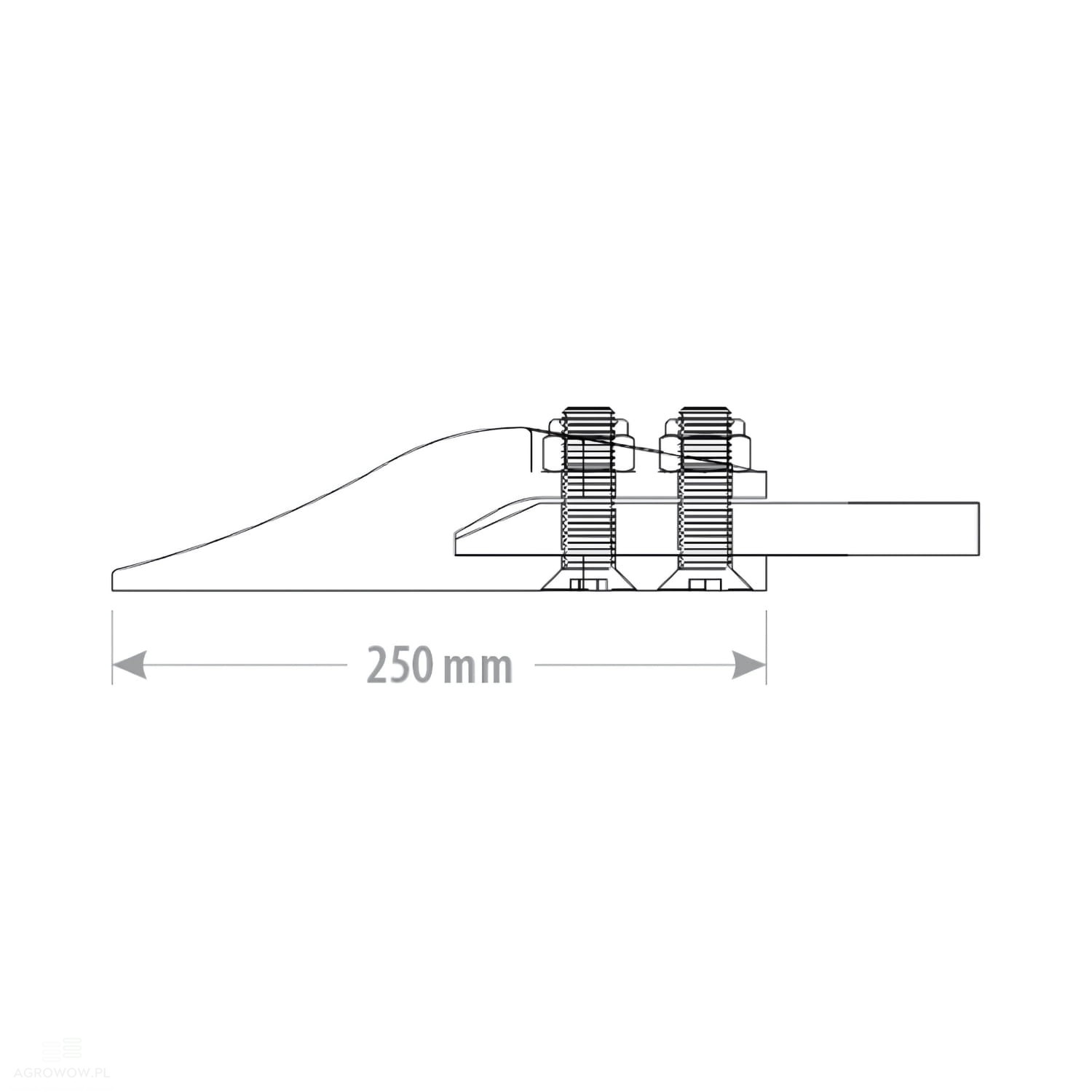

- Bolt-on tooth L-250 – default spacing 285 mm

The L-250 tooth is an easy-to-mount component that fits various agricultural tools. The tooth features a standard spacing of 285 mm, allowing the distance between teeth to be properly adjusted to individual needs. This design ensures operating stability, especially during deeper soil loosening, making it an ideal choice for intensive field work.

- Profiled sides for increased volume

The modified sides of the tool increase its capacity, allowing more material to be loaded in a single cycle. Thanks to this modification, the tool becomes more effective, maximizing the workspace while improving comfort and work efficiency in the field.

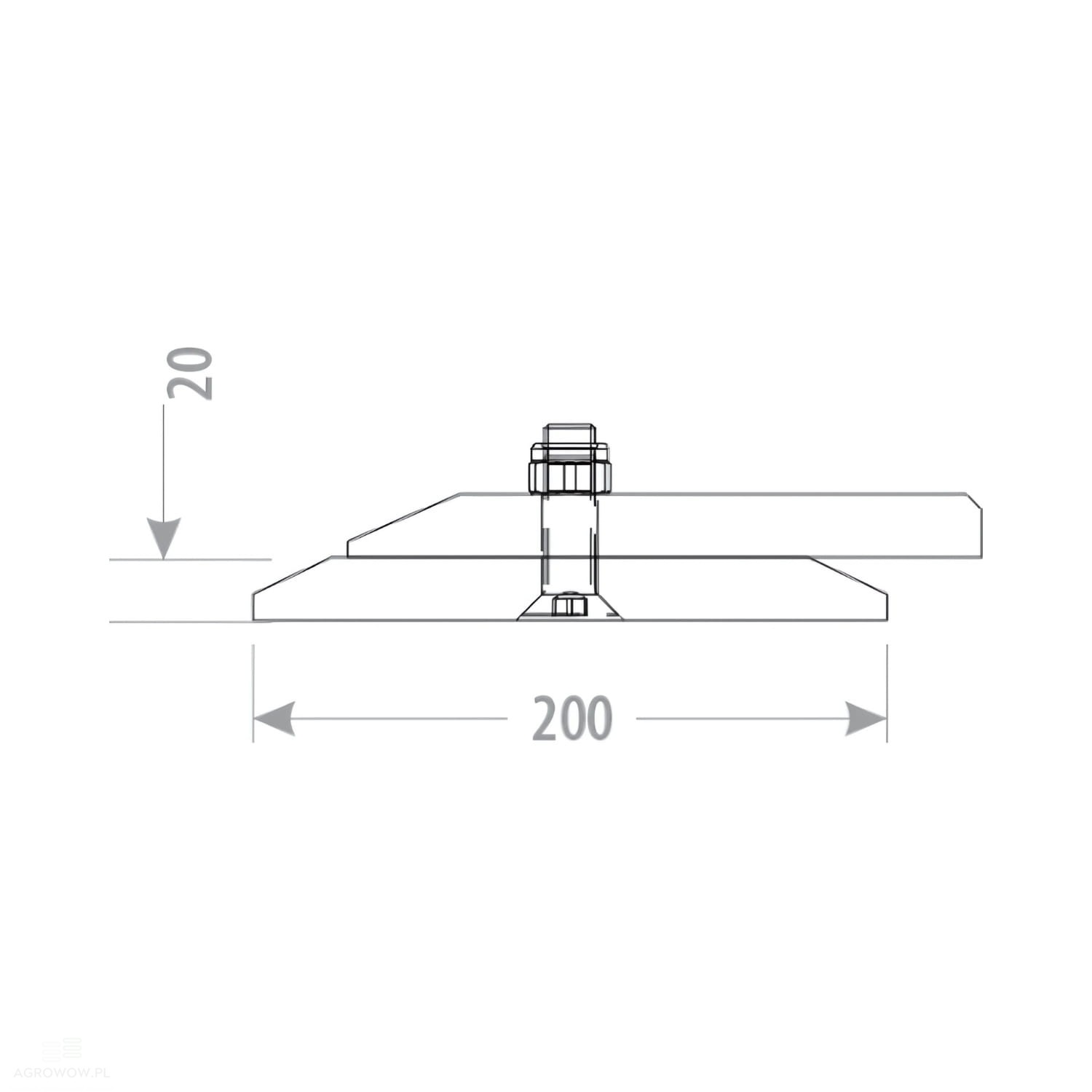

- Bolt-on HB500 cutting edge, 200x20 mm, double-beveled

The HB500 cutting edge measuring 200x20 mm, made of wear-resistant steel, provides high durability and longevity. The double-beveled cutting edge offers two working blades that can be used interchangeably, which significantly extends its durability and reduces the need for frequent replacement. This design allows the cutting edge to perform perfectly in difficult ground conditions, ensuring high work efficiency.

Detailed Description:

• The MAXI bucket with a width of 2600 mm is an exceptionally durable tool designed for intensive construction work and the transport of bulk materials such as sand, gravel, or stones. It performs perfectly in difficult operating conditions, guaranteeing reliability and high efficiency under all circumstances.

• Its robust construction makes the bucket an ideal solution for work on construction sites, in warehouses, and anywhere a high-capacity tool with resistance to mechanical damage is essential.

• The MAXI bucket, with a width of 2600 mm, length of 1660 mm, and height of 1220 mm, constitutes an excellent tool for loading and transporting large quantities of material, especially in difficult terrain.

• With a working capacity of 2.63 m³, the bucket enables fast scooping of soil and other materials, which accelerates loading operations, eliminating the need for multiple scoops and reducing working time.

• The bucket is made of high-quality materials – 8 mm thick sides and a 6 mm thick shell, ensuring high resistance to mechanical damage even in difficult operating conditions.

• The floor of the bucket has been reinforced with a 10 mm thickness, providing additional durability for the tool, increasing its resistance to damage, and extending its service life in harsh working conditions.

• The cutting edge measuring 200x20 mm, made of exceptionally resistant HB500 steel, is characterized by high resistance to abrasive wear, which enables efficient scooping of materials from hard ground, ensuring long-lasting performance.

• The side extensions and the reinforced side-to-floor joint further improve the strength of the bucket, enabling it to work in difficult operating conditions while ensuring the stability and reliability of the tool.

• The 12 mm thick ribs strengthen the stability of the structure, providing better control over the bucket during intensive transport work.

• The bucket weighs 819 kg, which provides appropriate counterweight and stability during operation, improving loading precision and user safety, especially when working with heavier machinery and tractors.

• Thanks to its solid construction and durable materials, the MAXI bucket guarantees long-lasting and trouble-free operation, becoming an indispensable tool in professional construction and transport work.

• The MAXI bucket is an efficient, reliable tool that performs perfectly in all working conditions, increasing the efficiency and safety of the operations performed.
