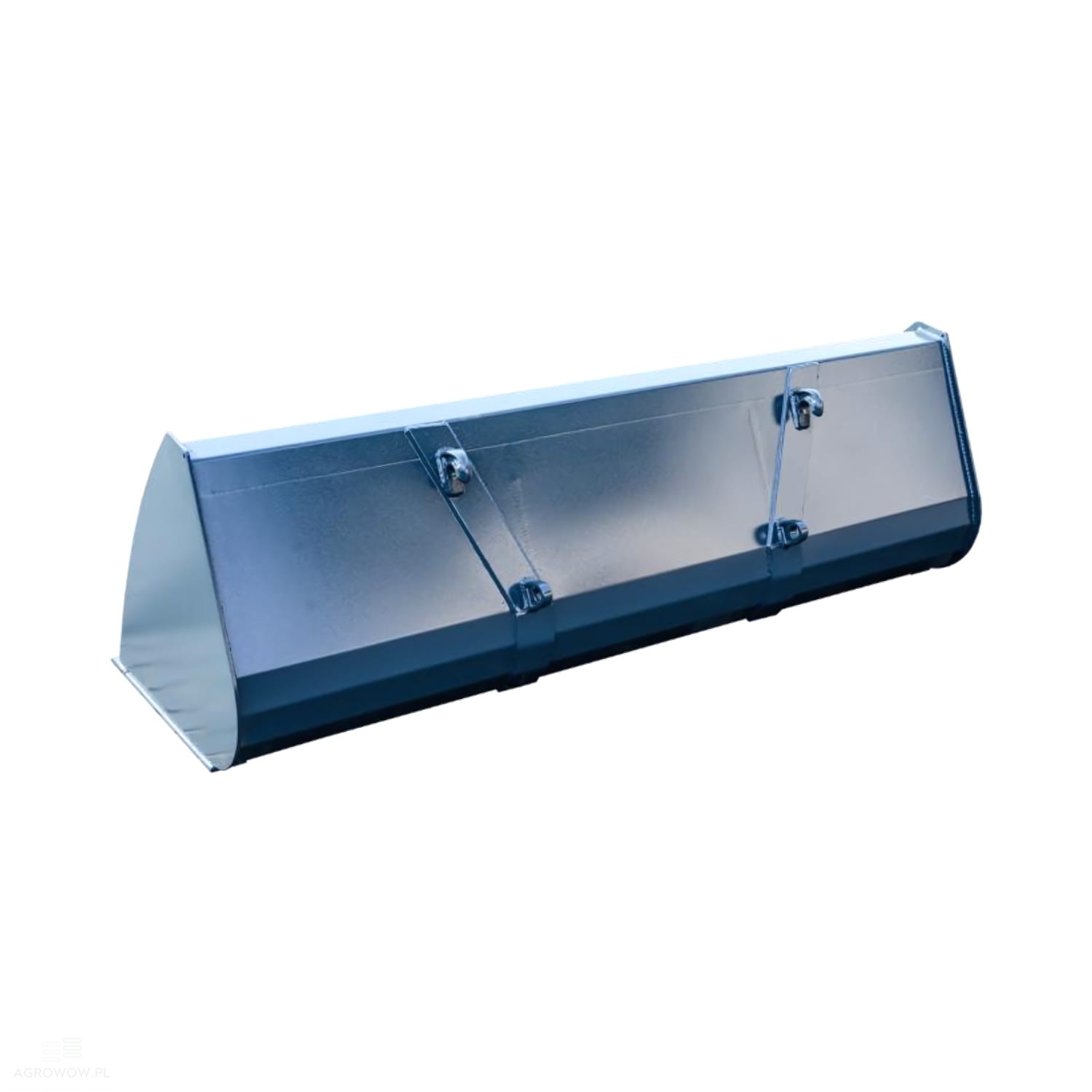

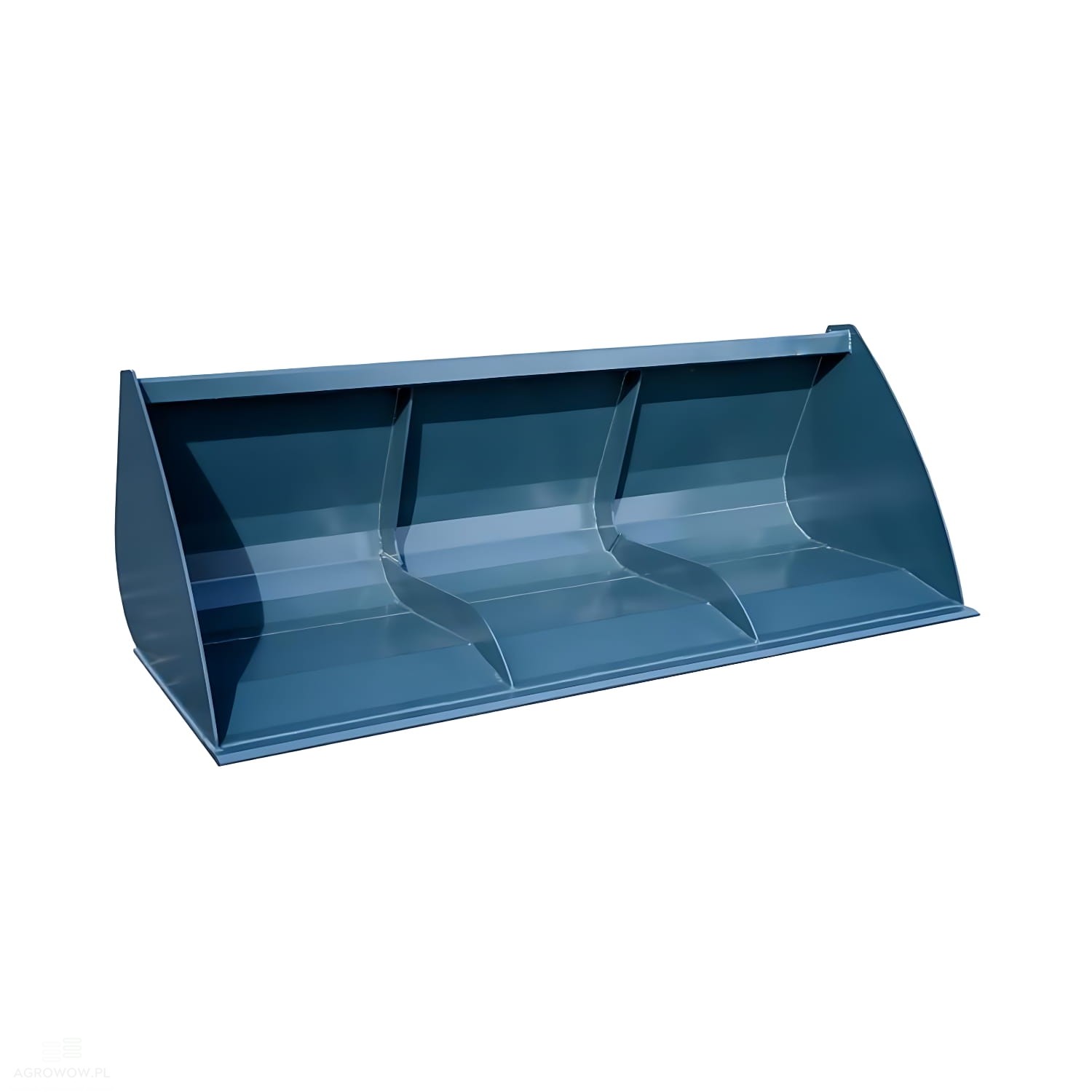

WAW-POL high-capacity bucket 7-10 T / 1.5 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: WAW-POL

- Catalogue number: WL15LO

- Manufacturer's name: High-capacity bucket

- Width: 1500 mm

- Weight: 170 kg

- Capacity: 0.58 m³

- Shell thickness: 4 mm

- Side plate thickness: 8 mm

- Reinforcement: 10 mm

- Cutting edge: 15x120 mm

- Machine weight class: 7-10 T

- Universal compatibility for any machine

- Hitch upon request: any mounting type available (e.g., Euro, JCB, Manitou, Bobcat, CAT, Weidemann, Tramer, etc.)

Detailed Description:

• The high-capacity bucket featuring a width of 1500 mm and a capacity of 0.58 m³ is a robust, functional attachment designed for machines with an operating weight ranging from 7 to 10 tons.

• It has been engineered for the efficient handling of high-volume materials with relatively low density, such as sawdust, silage, coal, grain, compost, or snow.

• Consequently, it finds wide application in agriculture, the municipal sector, as well as in light industry and loose raw material warehousing.

• The bucket's structure is manufactured from durable steel resistant to damage and intensive use.

• The 4 mm thick shell and side plates reinforced with 8 mm sheet metal ensure appropriate rigidity and protect the construction against deformation.

• An additional 10 mm thick central reinforcement stabilizes the bucket body when working with a full load, significantly extending its operational life.

• At the working edge, a steel cutting edge measuring 120x15 mm is utilized, which effectively facilitates the scooping of materials while remaining resistant to abrasion and intensive use.

• The bucket weighs 170 kg, which, for this capacity, represents a very good unladen weight-to-working efficiency ratio.

• Thanks to its compact width of 1500 mm, it maintains mobility and working precision, which is essential in confined space conditions, such as on farms or inside halls.

• One of the greatest advantages of this model is its universality – it can be equipped with any type of hitch, allowing it to fit almost any machine.

• Mountings such as Euro, JCB, Manitou, Bobcat, CAT, Weidemann, Tramer, and others are available upon request, enabling the bucket to fit telehandlers, front loaders, forklifts, and excavators equipped with an appropriate adapter.

• Thanks to its reinforced structure, large capacity, and wide range of hitch configurations, the 1500 mm high-capacity bucket constitutes an excellent solution for professional users who expect reliability, efficiency, and universality in their daily work.

• It is perfectly suited for anywhere that fast, trouble-free, large-scale loading of lightweight materials is what matters.
