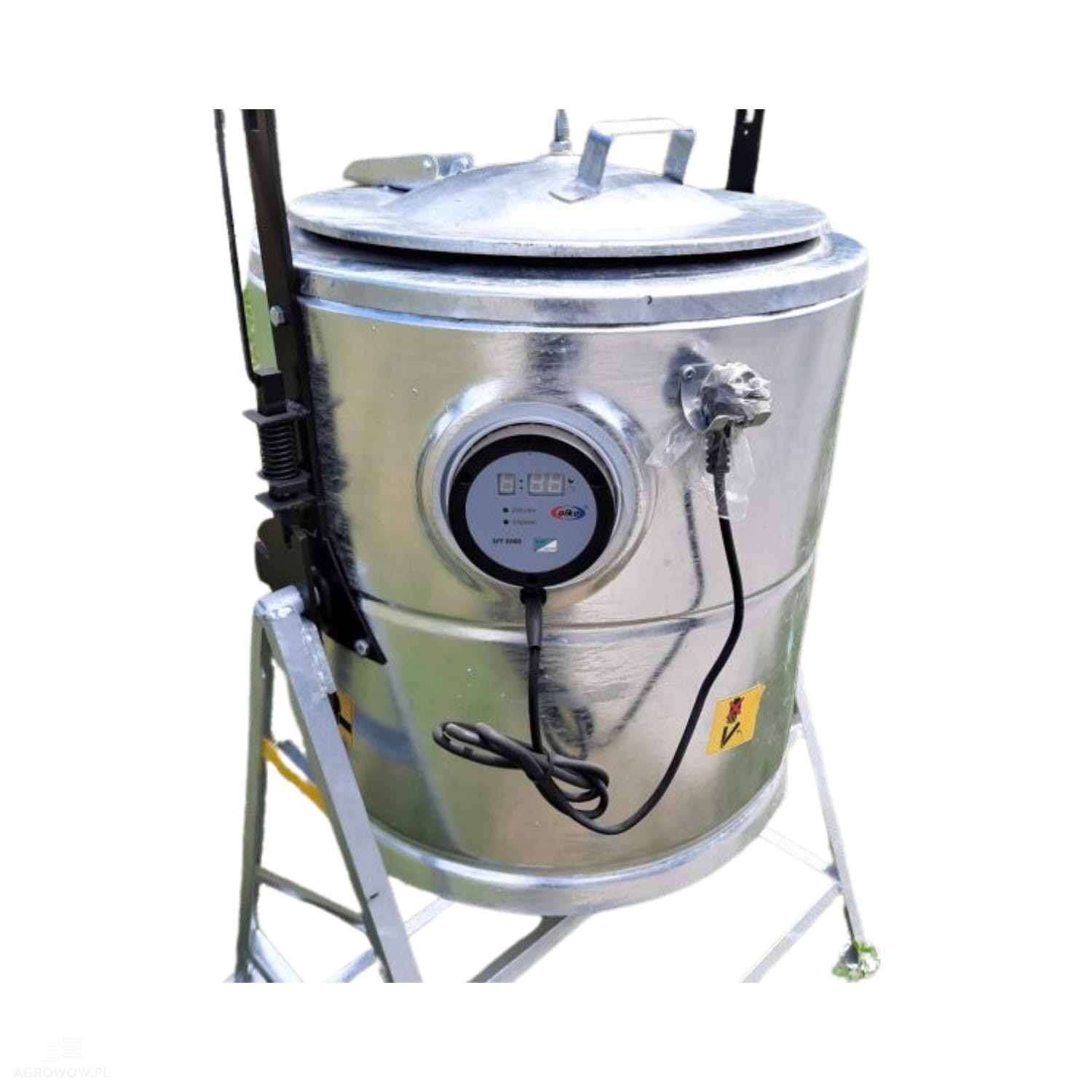

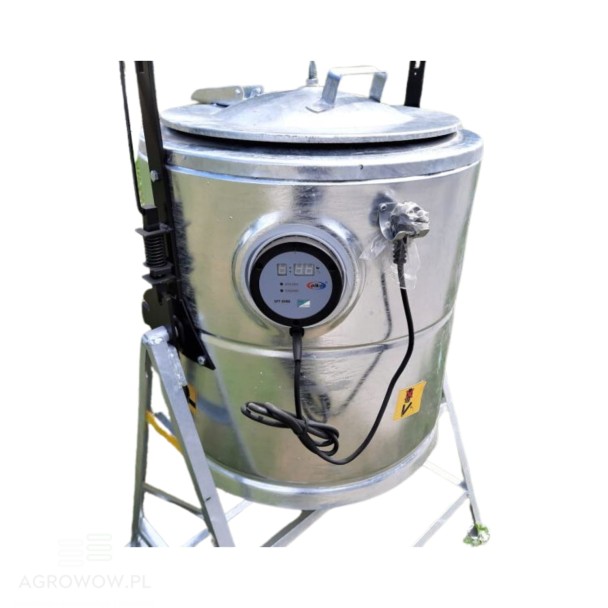

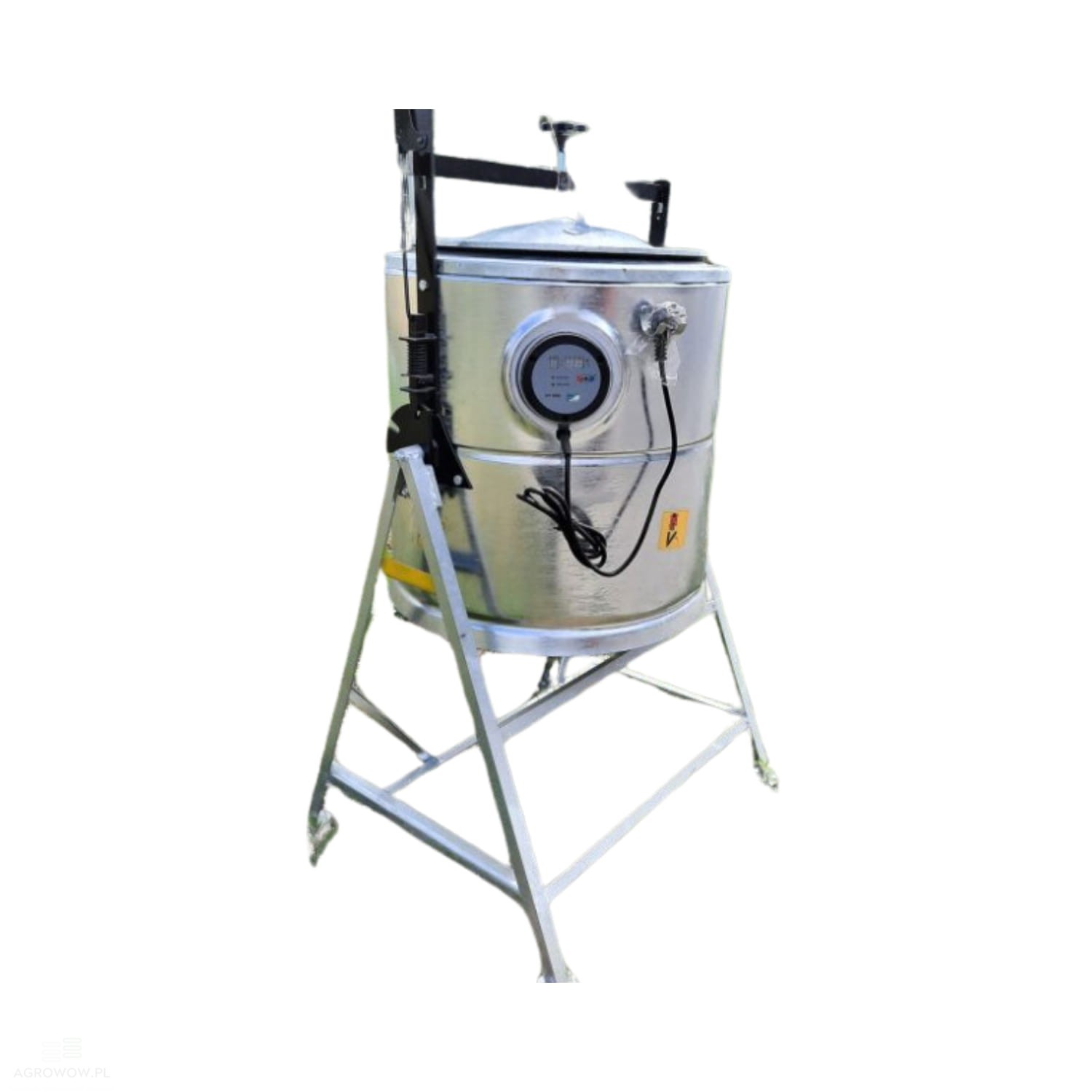

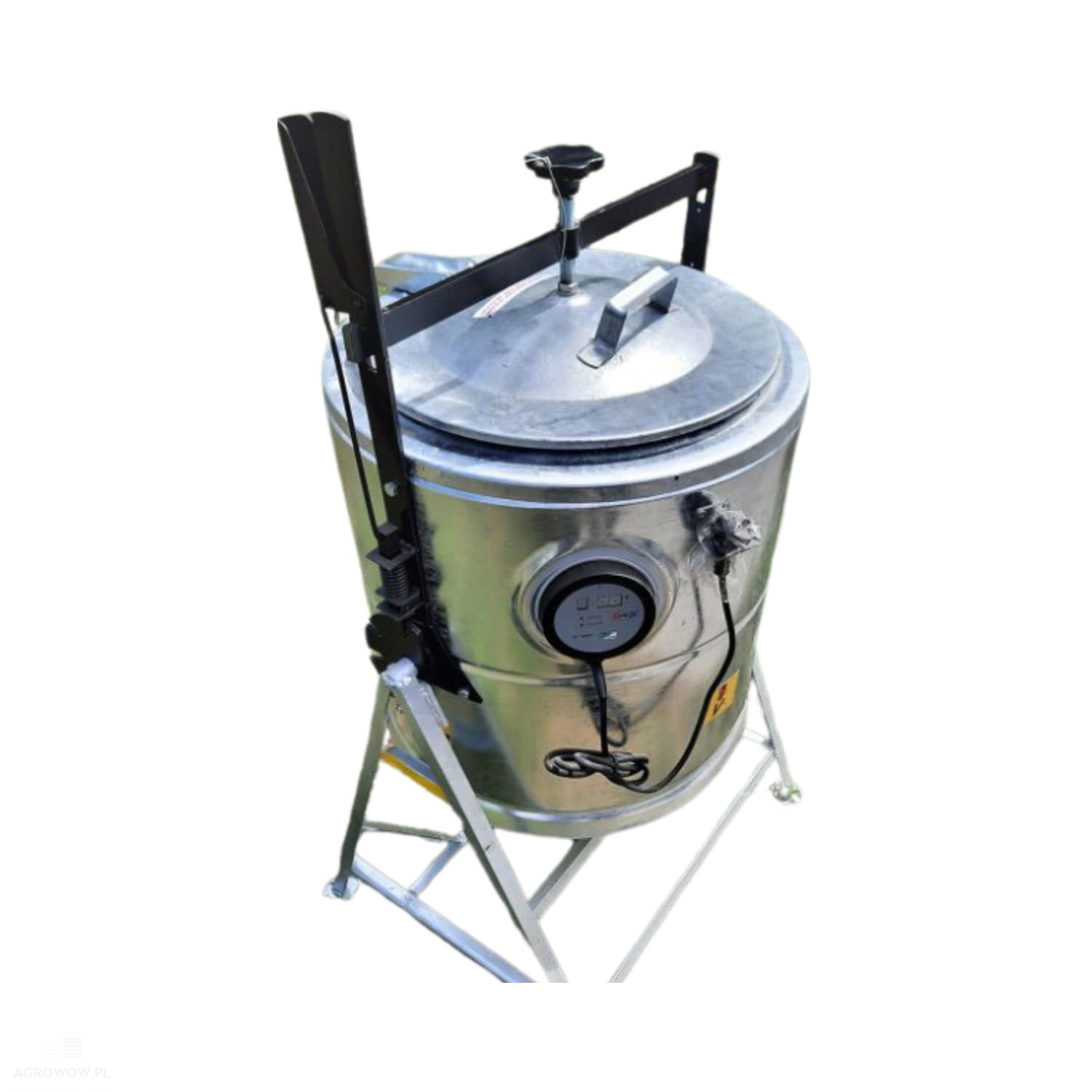

Inofama 100 L electric potato steamer

Want to determine the specifications and customize a meadow harrow to your individual needs?

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Inofama

- Catalogue number: IFM100PE

- Manufacturer's name: Electric agricultural feed cooker / potato steamer

- Boiler capacity: 100 L

- Total height of the steamer: 1420 mm

- Outer casing diameter: 580 mm

- Inner boiler diameter: 460 mm

- Maximum boiler tilt angle (from vertical): 106°

- Total weight of the steamer: 52 kg

- Single load capacity of raw potatoes: 60 kg

- Rated supply voltage: 230 V

- Water volume required per steaming cycle: 6 L

- Average heater operating time per single potato load: 5 h

- Rated power: 1400 W

- Rated load: 10 A (+10% / -14%)

- Power supply: 50 Hz, 230 V

- Cut-off temperature: 92.5°C (+/- 1°C)

- Switching durability: 105 cycles

- Thermal retention: Stored potatoes maintain a temperature of approx. 40°C after 24 hours

- Material: Made of galvanized sheet steel

- Structure: Double-walled cylindrical tank

- Insulation: Space between the boiler and the outer casing is filled with insulating material

- Closure: Top of the cooker boiler is sealed with a removable lid

- Mounting: Secured in a stand on trunnions

Extra Cost:

- Sludge Collector

A sludge collector, also known as a sediment trap, is a key component used in a wide variety of water, heating, and industrial systems, as well as in appliances like feed cookers. Its primary function is the separation and removal of sediment, impurities, and solid particles from liquids, which maintains high system efficiency and prevents malfunctions or damage. Sludge collectors are typically manufactured from durable materials such as stainless steel, galvanized steel, or wear-resistant and corrosion-resistant plastics. Structurally, they take the form of a cylindrical or conical tank equipped with inlet and outlet ports, along with a drain valve that allows for easy removal of accumulated debris. As fluid flows through, heavier particles settle at the bottom of the device, from where they can be regularly cleared. Sludge collectors find application in many sectors, including heating systems, cooling installations, and industrial water circuits. On farms, they serve as a vital piece of equipment for potato steamers, where they effectively remove soil residue, wastewater, and other sediments generated during cooking or steaming. Their application makes these appliances more efficient, easier to clean, and ensures a higher level of hygiene.

Detailed Description:

• This 100 L electric potato steamer is a reliable device designed for households and farms requiring an efficient solution for preparing potatoes and other vegetables as livestock feed.

• Thanks to a single load capacity of up to 60 kg of potatoes, the appliance allows for the efficient preparation of large quantities of feed in a short time, which is crucial in day-to-day farm operations.

• The steamer is manufactured from galvanized sheet steel, which ensures corrosion resistance and durability for years of use.

• The double-walled cylindrical tank, filled with high-grade insulating material, minimizes heat loss, making the appliance exceptionally energy-efficient.

• The agricultural feed cooker requires only 6 liters of water per steaming cycle, and thanks to its 1400 W rated power, it is remarkably economical to operate.

• The average cooking time is approximately 5 hours, which allows for thorough and even cooking of the potatoes.

• A removable lid enables easy loading and emptying of the boiler, while the sturdy stand with trunnions allows the boiler tilt angle to be adjusted up to 106°, simplifying overall operation and unloading.

• The device ensures long-term thermal retention – cooked potatoes maintain a temperature of approximately 40°C even 24 hours after the cooking process ends, which is highly practical for farm workflows.

• The potato steamer comes equipped with an automatic shut-off feature once the temperature reaches 92.5°C (+/- 1°C), guaranteeing safe operation and protecting the equipment against overheating.

• Its multi-purpose nature allows it to be used not only for cooking potatoes but also for other root vegetables, making it a versatile tool for farms with diverse operational profiles.

• This 100 L electric feed cooker by Inofama successfully combines modern technology with robust workmanship.

• Thanks to its precise engineering, durable materials, and ease of use, it meets the highest standards of functionality.

• It represents the ideal choice for both small and large farms that value reliability, savings, and convenience in preparing animal feed.

Frequently Asked Questions - FAQ

1. Does the electric steamer heat up the load faster than a traditional wood-fired or coal-fired agricultural feed cooker?

It heats up slightly slower, but it is completely maintenance-free. You do not need to watch the fire, add fuel, or clean out the ash.

2. Does the electric steamer maintain the heat of the steamed feed for a long time after the cooking cycle is complete?

Yes, the steamer acts like a large thermos. Thanks to the hot water in the jacket, the load remains warm for several hours after the power is turned off.

3. Can the electric steamer be safely used outdoors, for example, under a shed or lean-to?

Yes, provided that the location is covered and dry. The appliance and the power outlet must be protected from rain and moisture.
