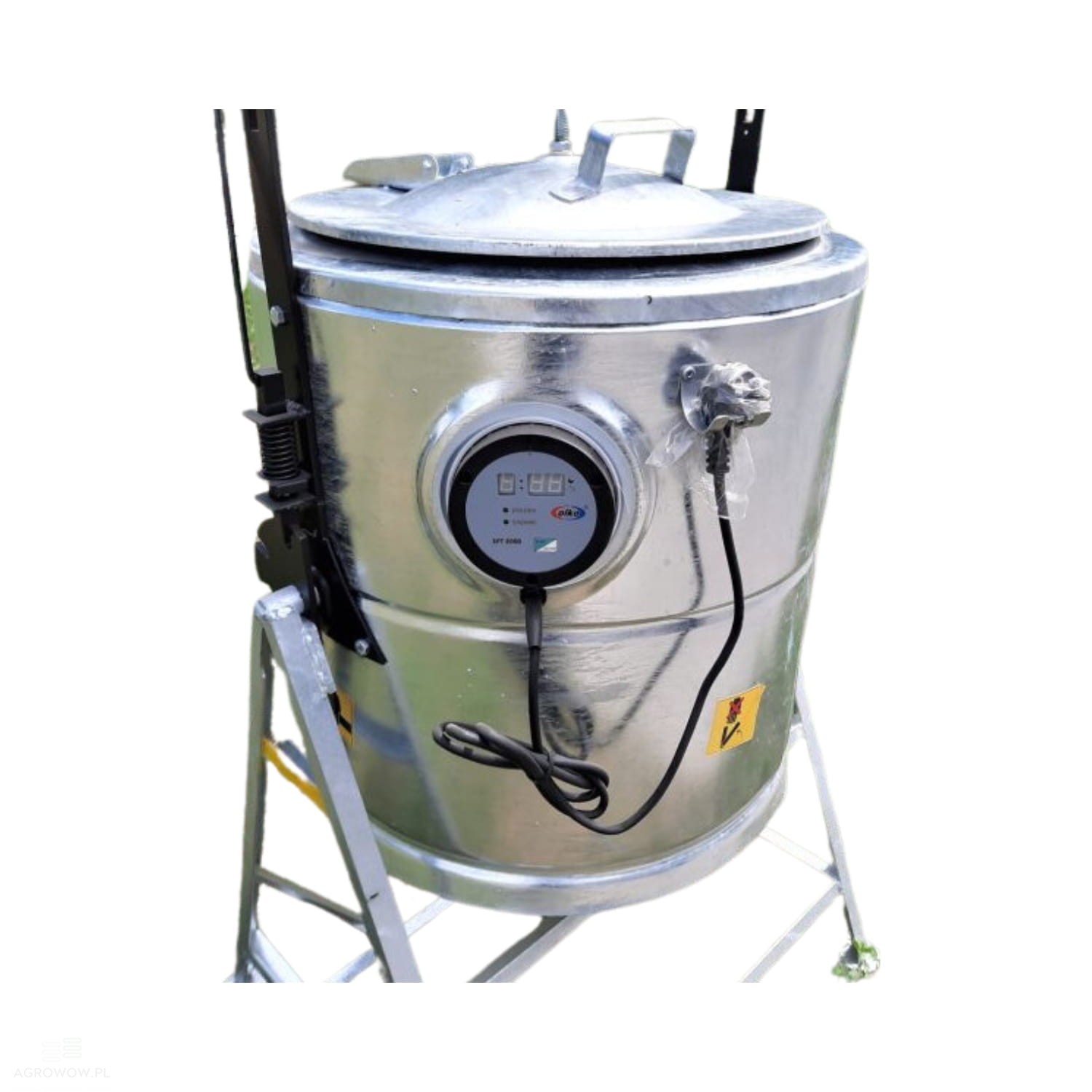

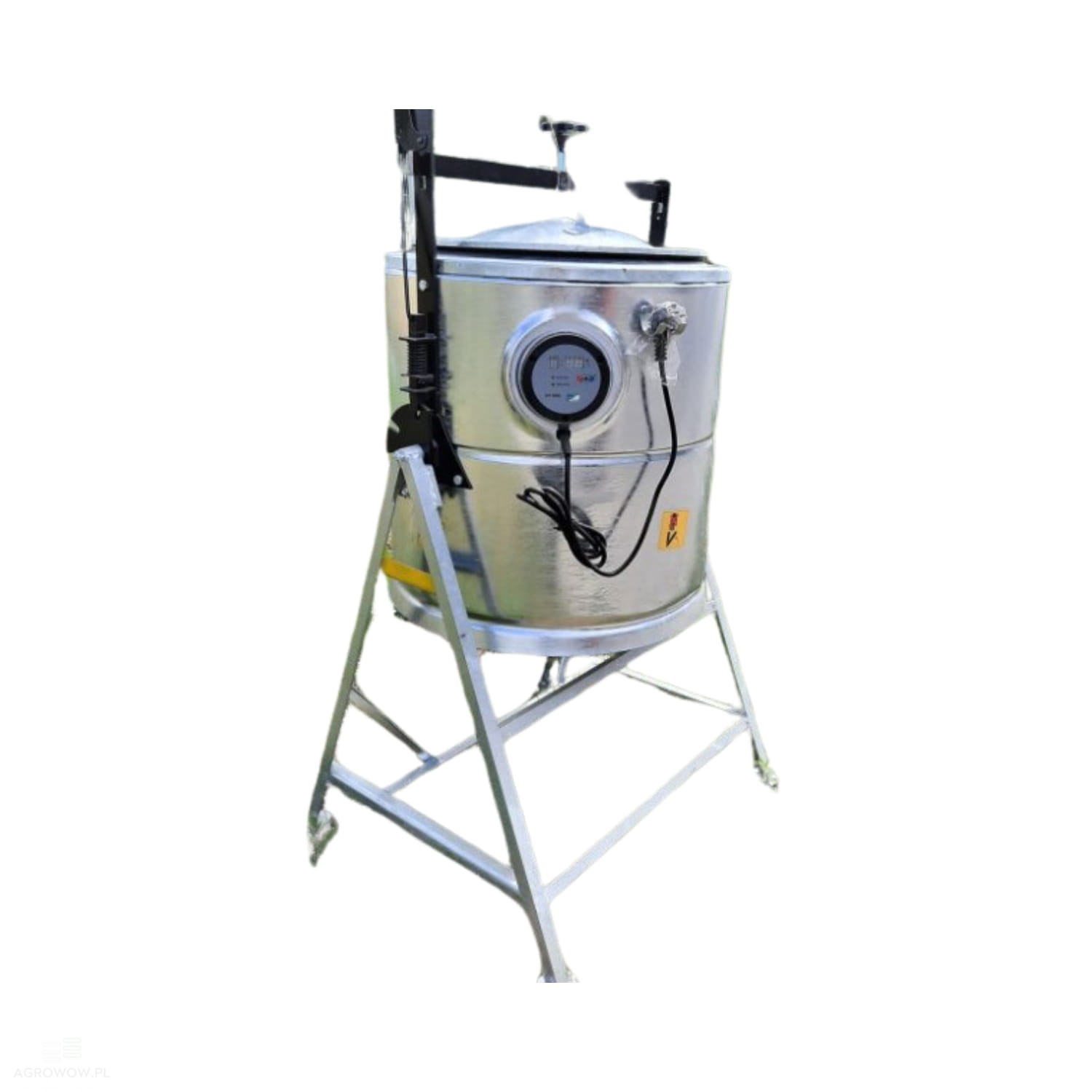

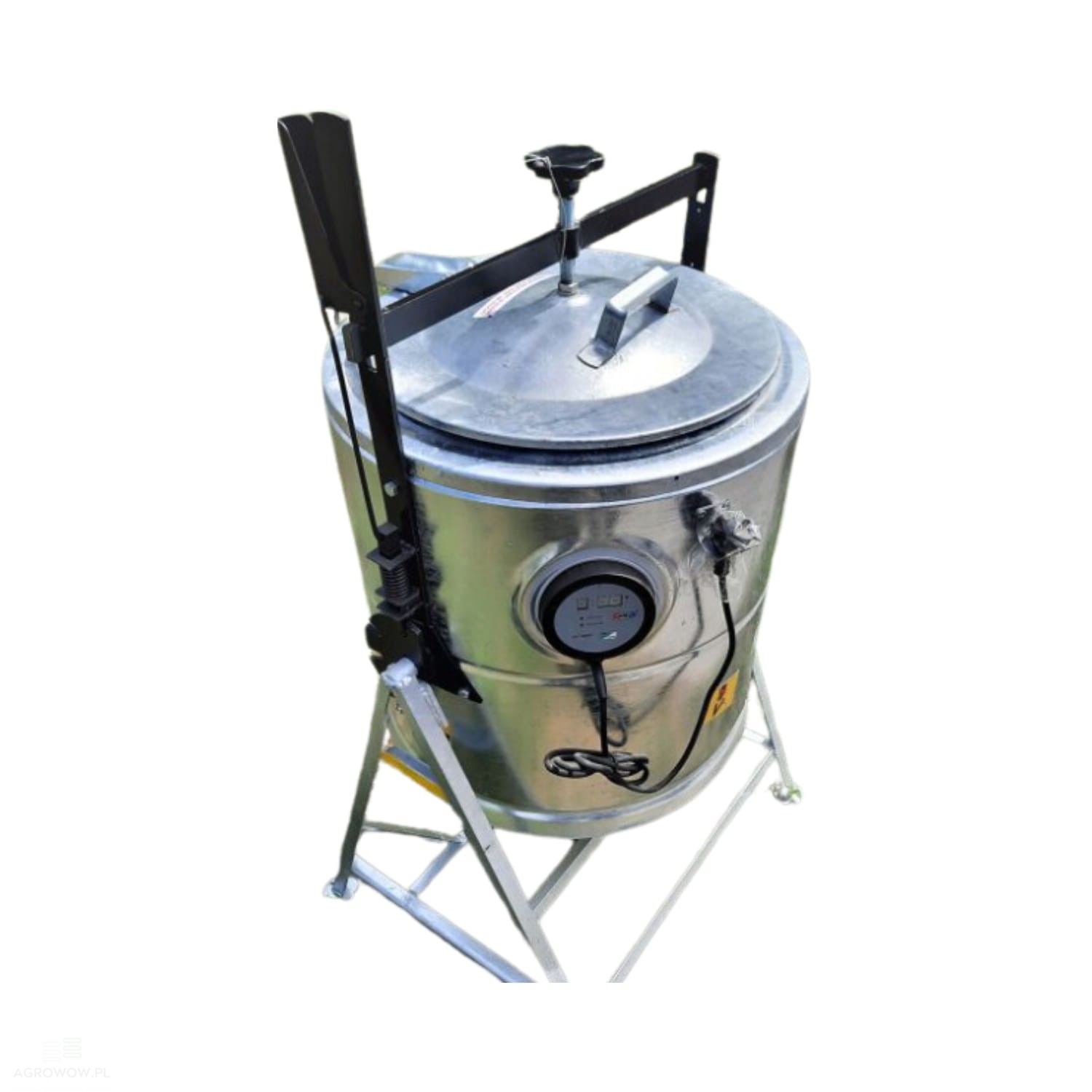

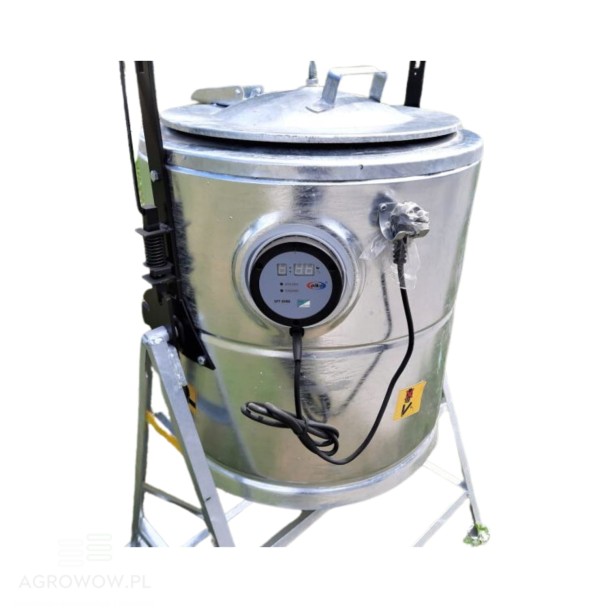

Inofama 63 L electric potato steamer

Want to determine the specifications and customize a meadow harrow to your individual needs?

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Inofama

- Catalogue number: IFM63PE

- Manufacturer's name: Electric agricultural feed cooker / potato steamer

- Boiler capacity: 63 L

- Total height of the steamer: 1290 mm

- Outer casing diameter: 540 mm

- Inner boiler diameter: 420 mm

- Maximum boiler tilt angle (from vertical): 106°

- Total weight of the steamer: 45 kg

- Single load capacity of raw potatoes: 36 kg

- Rated supply voltage: 230 V

- Water volume required per steaming cycle: 4 L

- Average heater operating time per single potato load: 4 h

- Rated power: 1000 W

- Rated load: 10 A (+10% / -14%)

- Power supply: 50 Hz, 230 V

- Cut-off temperature: 92.5°C (+/- 1°C)

- Switching durability: 105 cycles

- Thermal retention: Stored potatoes maintain a temperature of approx. 40°C after 24 hours

- Material: Made of galvanized sheet steel

- Structure: Double-walled cylindrical tank

- Insulation: Space between the boiler and the outer casing is filled with insulating material

- Closure: Top of the cooker boiler is sealed with a removable lid

- Mounting: Secured in a stand on trunnions

Extra Cost:

- Sludge Collector

A sludge collector, also known as a sediment trap, is a technical component used in a wide variety of water, heating, and industrial systems, as well as in appliances like feed cookers. Its primary function is the separation and removal of sediment, solid particles, and impurities from liquids, which maintains high system efficiency and prevents damage or malfunctions. Sludge collectors are typically manufactured from durable materials such as stainless steel, galvanized steel, or special corrosion-resistant and wear-resistant plastics. Structurally, they most commonly take the form of a cylindrical or conical tank equipped with inlet and outlet ports, along with a drain valve that allows for easy removal of accumulated debris. As fluid flows through the sludge collector, heavier particles settle at the bottom of the tank, from where they can be regularly cleared using the drain valve. These types of devices find application in many sectors, including heating systems, cooling circuits, and industrial installations. On farms, sludge collectors serve as a crucial piece of equipment for potato steamers, where they effectively remove soil residue, wastewater, and other sediments generated during the cooking or steaming process. Their application makes these cookers operate more efficiently, while also being easier to clean and highly hygienic.

Detailed Description:

• This 63 L electric potato steamer has been designed with households and farms in mind, providing a reliable device for preparing potatoes and other vegetables as livestock feed.

• Thanks to a single load capacity of up to 36 kg of potatoes, the appliance allows for the quick and efficient preparation of large quantities of feed.

• The device is manufactured from high-grade galvanized sheet steel, which guarantees corrosion resistance and longevity.

• The double-walled cylindrical tank, filled with insulating material, minimizes heat loss, making this feed cooker an energy-saving and economical solution.

• The potato steamer requires only 4 liters of water per steaming cycle, and with its 1000 W power output, it is remarkably efficient to operate.

• The average cooking time is approximately 4 hours, which ensures highly productive operation with minimal energy consumption.

• The appliance comes equipped with a removable lid that facilitates easy potato loading, as well as a sturdy stand with trunnions that provides a stable setup and enables the boiler tilt angle to be adjusted up to 106°.

• This design ensures that emptying the cooker is quick, convenient, and ergonomic.

• The premium quality of insulation allows the cooked potatoes to retain a temperature of approximately 40°C even 24 hours after the process ends, which is highly practical for daily farm routines.

• Designed with user convenience and safety in mind, the potato steamer features an automatic shut-off system once the temperature reaches 92.5°C (+/- 1°C), protecting the unit against overheating and ensuring safe handling.

• This versatile appliance can be utilized not only as a potato steamer but also for cooking other root vegetables, making it an all-round tool for farms with diverse agricultural operations.

• The Inofama electric feed cooker is an indispensable tool for any farm that values traditional livestock feeding methods.

• Combining modern technology with robust materials, it delivers a durable, reliable, and simple-to-operate machine.

• By choosing this steamer, you invest in equipment that will serve you for many years thanks to its rugged construction and top-tier manufacturing quality.

• It represents an excellent choice for both small and large-scale agricultural operations.

Frequently Asked Questions - FAQ

1. How much electricity does the electric steamer consume during one full potato steaming cycle?

On average, it consumes about 7–9 kWh (for a standard 3 kW heating element running for 2.5 hours). The total cost of a single cooking cycle is usually less than 10 PLN.

2. How exactly is the electric steamer constructed, and how does the water jacket system work?

The heating element heats the water located between the double walls of the boiler. Thanks to this "water bath" mechanism, the heat is distributed evenly throughout the tank, ensuring that the feed load never burns or scorches.

3. Is the electric steamer equipped with a thermostat, and does it turn off automatically once the water has boiled?

Yes, a built-in thermostat continuously monitors the temperature. The device automatically disconnects the heating element once the target temperature is reached, guaranteeing complete operational safety.
