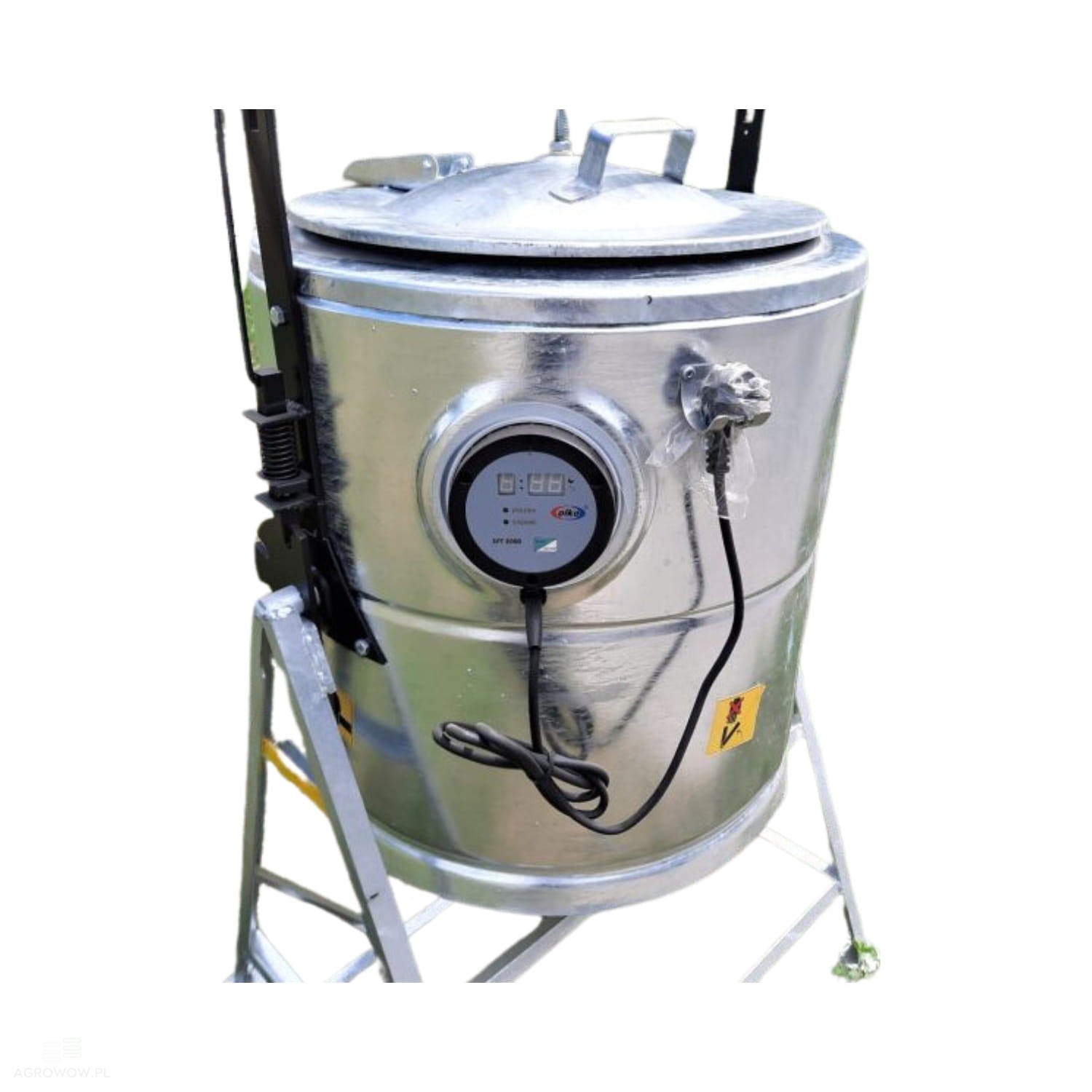

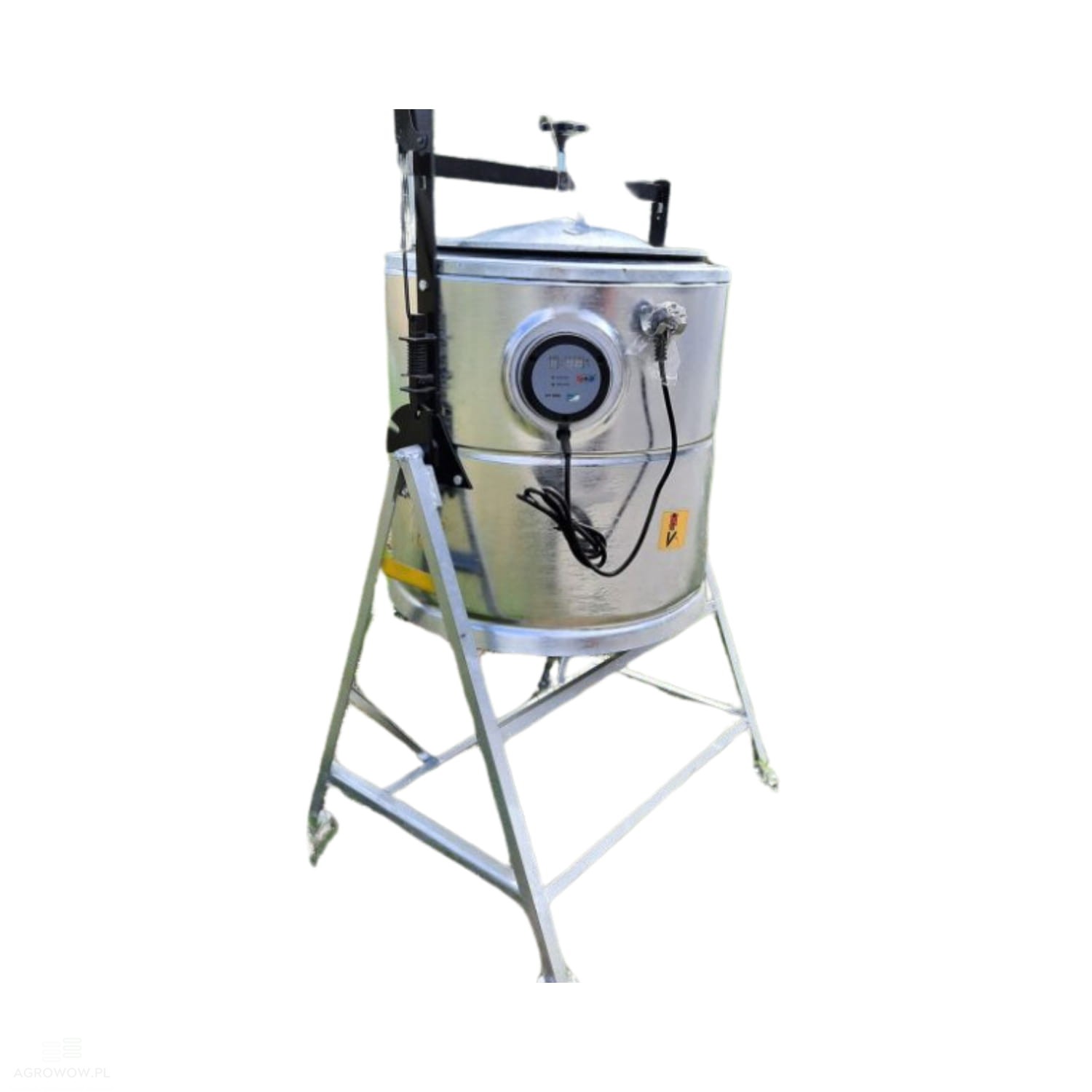

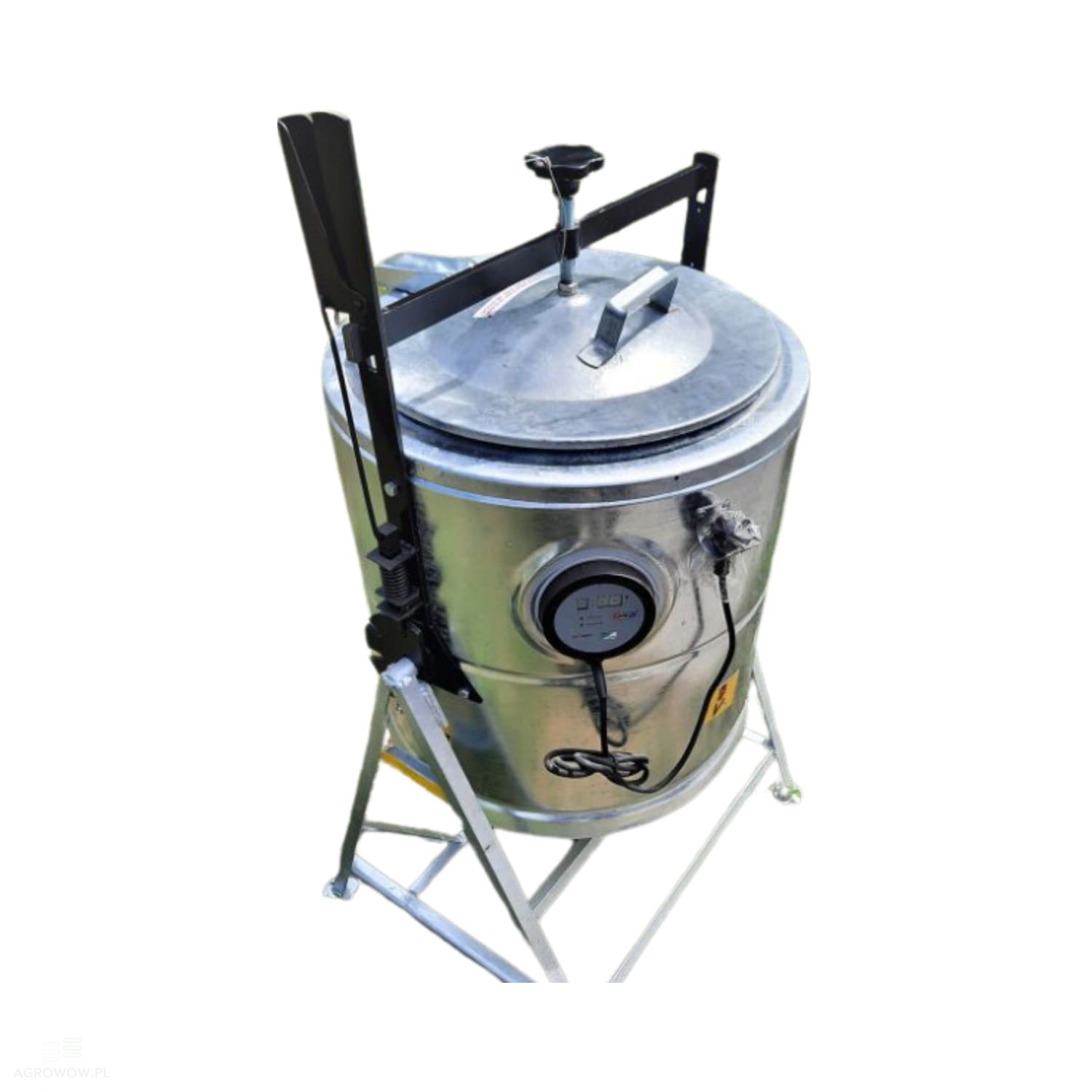

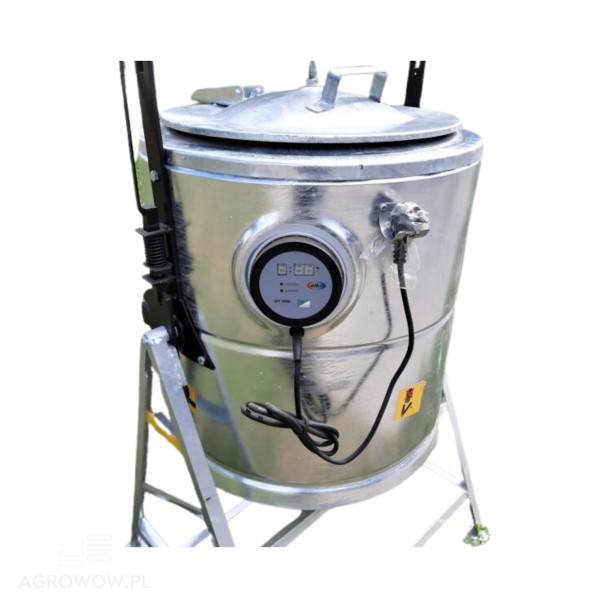

Inofama 160 L electric potato steamer

Want to determine the specifications and customize a meadow harrow to your individual needs?

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Inofama

- Catalogue number: IFM160PE

- Manufacturer's name: Electric agricultural feed cooker / potato steamer

- Boiler capacity: 160 L

- Total height of the steamer: 1450 mm

- Outer casing diameter: 700 mm

- Inner boiler diameter: 580 mm

- Maximum boiler tilt angle (from vertical): 106°

- Total weight of the steamer: 71 kg

- Single load capacity of raw potatoes: 100 kg

- Rated supply voltage: 230 V

- Water volume required per steaming cycle: 8.5 L

- Average heater operating time per single potato load: 6 h

- Rated power: 2000 W

- Rated load: 10 A (+10% / -14%)

- Power supply: 50 Hz, 230 V

- Cut-off temperature: 92.5°C (+/- 1°C)

- Switching durability: 105 cycles

- Thermal retention: Stored potatoes maintain a temperature of approx. 40°C after 24 hours

- Material: Made of galvanized sheet steel

- Structure: Double-walled cylindrical tank

- Insulation: Space between the boiler and the outer casing is filled with insulating material

- Closure: Top of the cooker boiler is sealed with a removable lid

- Mounting: Secured in a stand on trunnions

Extra Cost:

- Sludge Collector

Szlamik, znany również jako szlamownik, to istotny komponent wykorzystywany w różnego rodzaju instalacjach wodnych, grzewczych, przemysłowych oraz urządzeniach takich jak parniki. Jego głównym zadaniem jest separacja i eliminacja osadów, zanieczyszczeń oraz cząstek stałych z cieczy, co pozwala na utrzymanie wysokiej efektywności działania systemów oraz minimalizuje ryzyko awarii i uszkodzeń. Szlamiki wykonuje się z materiałów odpornych na ścieranie i korozję, takich jak stal nierdzewna, stal ocynkowana czy wytrzymałe tworzywa sztuczne. Konstrukcja zazwyczaj opiera się na cylindrycznym lub stożkowym zbiorniku wyposażonym w króćce wlotowe i wylotowe oraz zawór spustowy, który umożliwia łatwe opróżnianie nagromadzonych zanieczyszczeń. W trakcie przepływu cieczy cięższe cząstki osadzają się na dnie urządzenia, skąd można je systematycznie usuwać. Szlamiki są powszechnie stosowane w systemach grzewczych, instalacjach chłodniczych oraz w obiegach wodnych w przemyśle. W gospodarstwach rolnych pełnią kluczową rolę w parnikach do ziemniaków, gdzie skutecznie usuwają osady, ziemię i wodę powstające podczas gotowania lub parowania. Ich zastosowanie zwiększa wydajność urządzeń, ułatwia czyszczenie oraz zapewnia wyższy poziom higieny, co jest niezwykle istotne w codziennej pracy gospodarstwa.

Detailed Description:

• This 160 L electric potato steamer is an efficient and reliable appliance, perfect for farms and households requiring an effective solution for preparing potatoes and other vegetables as livestock feed.

• A single load capacity of up to 100 kg of potatoes allows for the preparation of large quantities of feed in a short time, significantly streamlining daily farm chores.

• The device is manufactured from high-quality galvanized sheet steel, which guarantees corrosion resistance and durability for many years of use.

• The double-walled cylindrical tank, filled with high-grade insulating material, minimizes heat loss, making the steamer exceptionally energy-efficient.

• The agricultural feed cooker requires only 8.5 liters of water per steaming cycle, and thanks to its 2000 W rated power, it is highly effective and economical to operate.

• The average cooking time is 6 hours, which ensures even and thorough cooking of potatoes and other vegetables.

• The appliance comes equipped with a removable lid that facilitates easy loading and emptying of the boiler, as well as a sturdy stand with trunnions that enables the boiler tilt angle to be adjusted up to 106°.

• This design ensures that the emptying process is quick, ergonomic, and convenient.

• The outstanding quality of insulation allows the cooked potatoes to retain a temperature of approximately 40°C even 24 hours after the cooking cycle ends, which is highly practical for daily farm workflows.

• For enhanced safety, the potato steamer features an automatic shut-off system once the temperature reaches 92.5°C (+/- 1°C), providing robust protection against overheating.

• The multi-purpose nature of this steamer allows users to cook not only potatoes but also various other root vegetables, making it a versatile tool for farms with diverse agricultural profiles.

• This 160 L electric feed cooker by Inofama successfully combines modern technology with robust workmanship.

• Thanks to its durable materials and well-thought-out design, it meets the highest standards of functionality and operational reliability.

• It is an excellent choice for both small and large farms that value convenience, savings, and efficiency in animal feed preparation.

Frequently Asked Questions - FAQ

1. Is the electric steamer equipped with a thermostat, and does it turn off automatically once the water has boiled?

Yes, a built-in thermostat continuously monitors the temperature. The device automatically disconnects the heating element once the target temperature is reached, ensuring complete operational safety.

2. Can the temperature of the electric steamer be precisely adjusted for different agricultural applications?

Yes, the temperature can be adjusted using a control knob. This allows you to set it to boiling point for potatoes, or to a low temperature (e.g., 40°C) which is ideal for safely liquefying honey.

3. Is it possible to purchase spare parts, such as a heating element or thermostat, after several years of using the electric steamer?

Yes, electric steamers are fully serviceable devices. Consumable components such as heating elements, gaskets, and thermostats feature standard configurations and are widely available on the market, allowing for hassle-free replacement even after many years of service.
