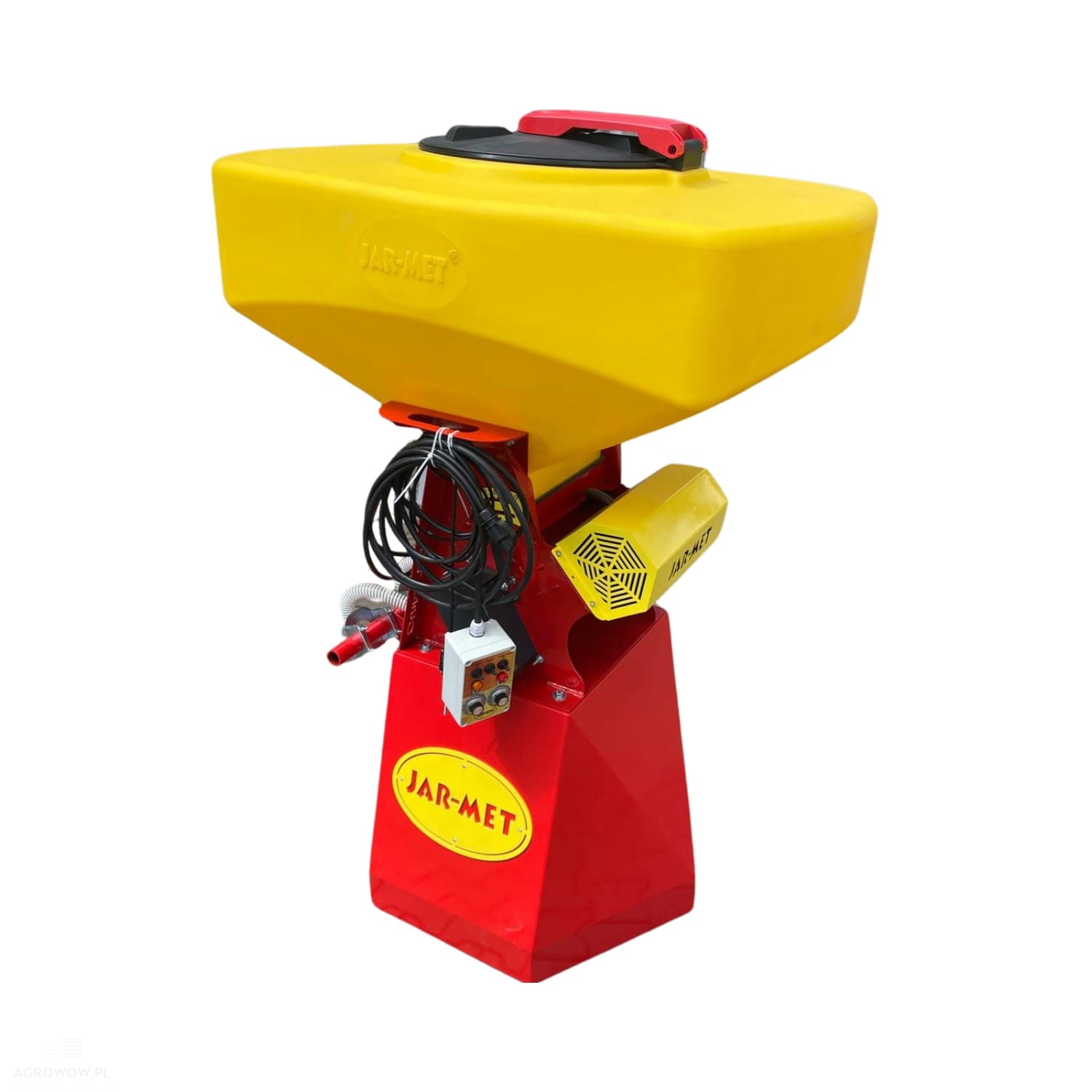

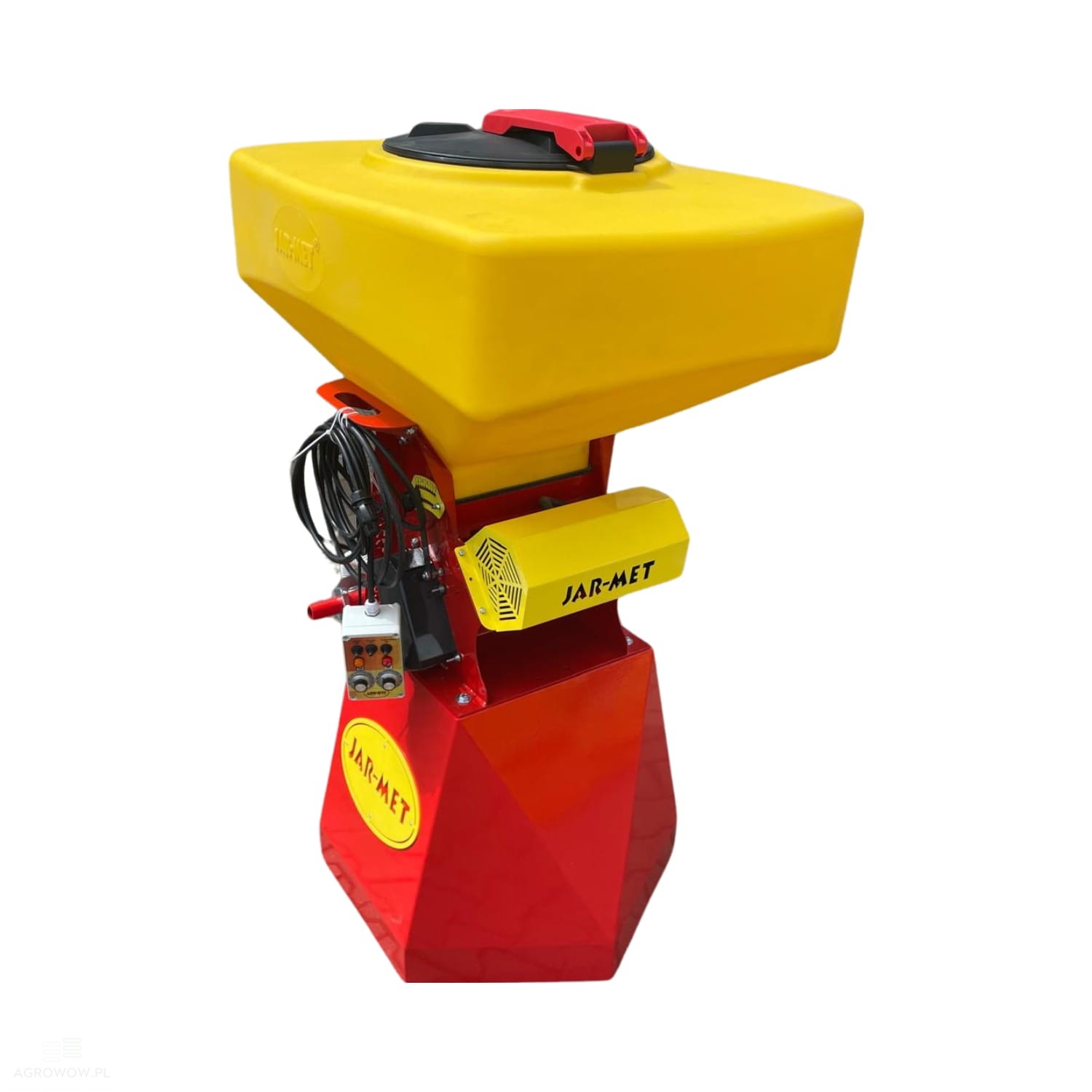

Jarmet 500 L pneumatic catch crop seeder

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Jarmet

- Catalogue number: JA500RP

- Manufacturer's name: Pneumatic catch crop seeder / broadcast seeder

- Width: 920 mm

- Length: 1200 mm

- Height: 1200 mm

- Capacity: 500 L

- Weight: 80 kg

- Sowing width for grasses and small seeds: 1000–6000 mm

- Electric blower: 8 seeding outlets

- Blower power supply: 12V / 25A

- Independent speed control of the seeding roller

- Independent speed control of the blower

- Empty tank sensor

- Three-point hitch (TUZ) position sensor

- Universal seeding roller designed for both coarse and fine seeds

- 8 seeding channels in the seeder chamber

- 8 spreader plates

Optional extras:

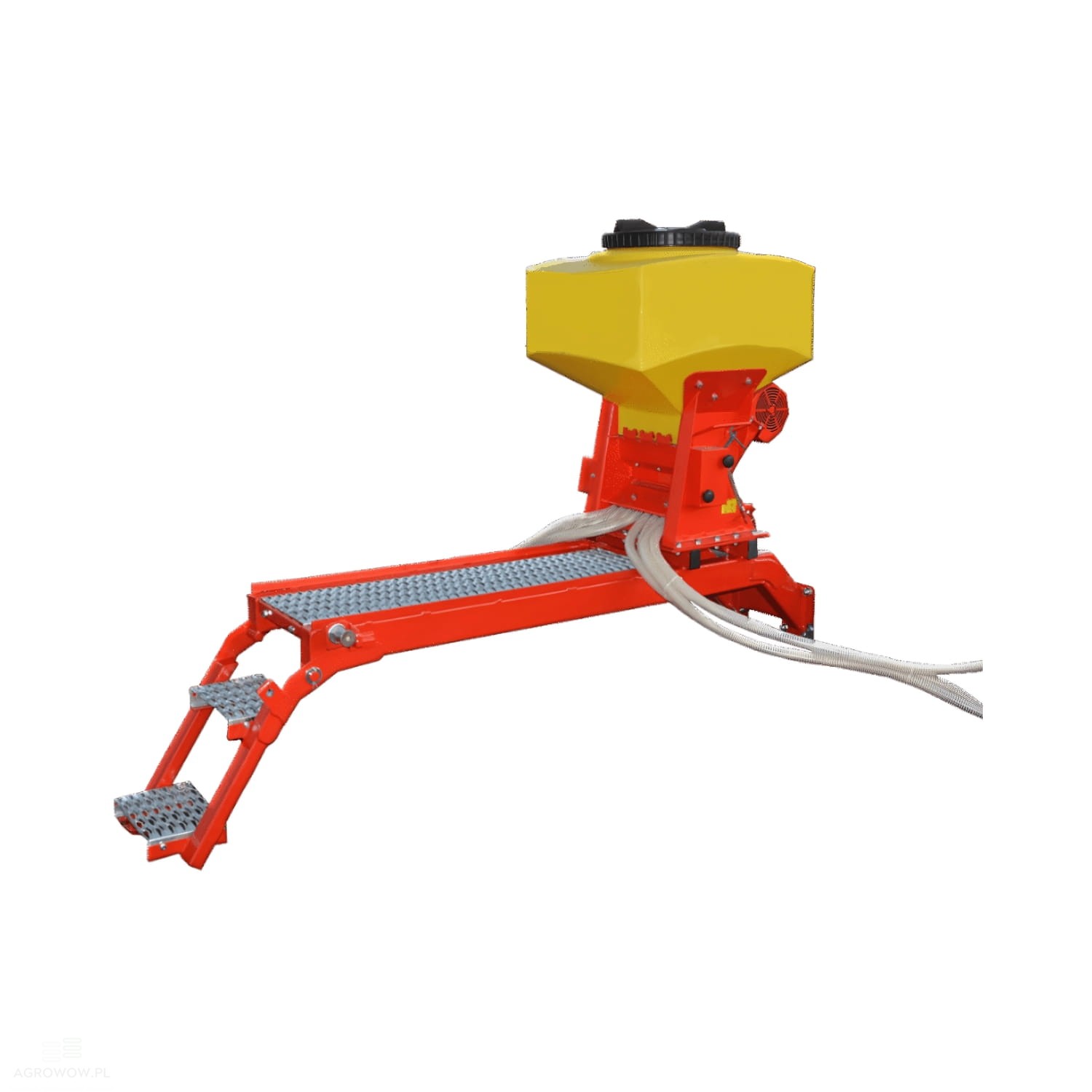

- Mounting platform for weeder harrows or hybrid seedbed cultivators

The platform designed for mounting the seeder on a weeder harrow or a hybrid cultivator unit is an innovative and convenient solution that enables quick and safe attachment of the seeding device directly onto tillage machinery. Thanks to this, it is possible to simultaneously carry out mechanical weeding or soil loosening along with the sowing of catch crops, granular fertilizers, or small-seeded plants. Implementing this platform significantly reduces the number of necessary field passes, which translates into lower fuel consumption, time savings, and reduced operational costs. At the same time, it increases the precision of the treatments, positively impacting farming efficiency. This solution is particularly recommended for farmers focusing on modern technologies, labor efficiency, and sustainable cultivation practices.

Detailed Description:

• The 500-liter pneumatic catch crop seeder is a modern solution designed for the precise and uniform sowing of a wide range of seeds – from fine grasses to larger cereal grains and granular fertilizers.

• The increased tank capacity allows for long operation without the need for frequent seed refills, which significantly raises efficiency when working on large acreages and minimizes downtime.

• The compact yet spacious design – 920 mm in width, 1200 mm in length, and 1200 mm in height – allows for easy mounting of the seeder onto many types of tillage implements, including weeder harrows, hybrid cultivators, or disc harrows.

• Despite its large capacity, the seeder weighs only 80 kg, ensuring ease of transport and minimal impact on the payload of the carrying machine.

• The device utilizes a modern electric blower powered by a 12V supply with a 25A current draw.

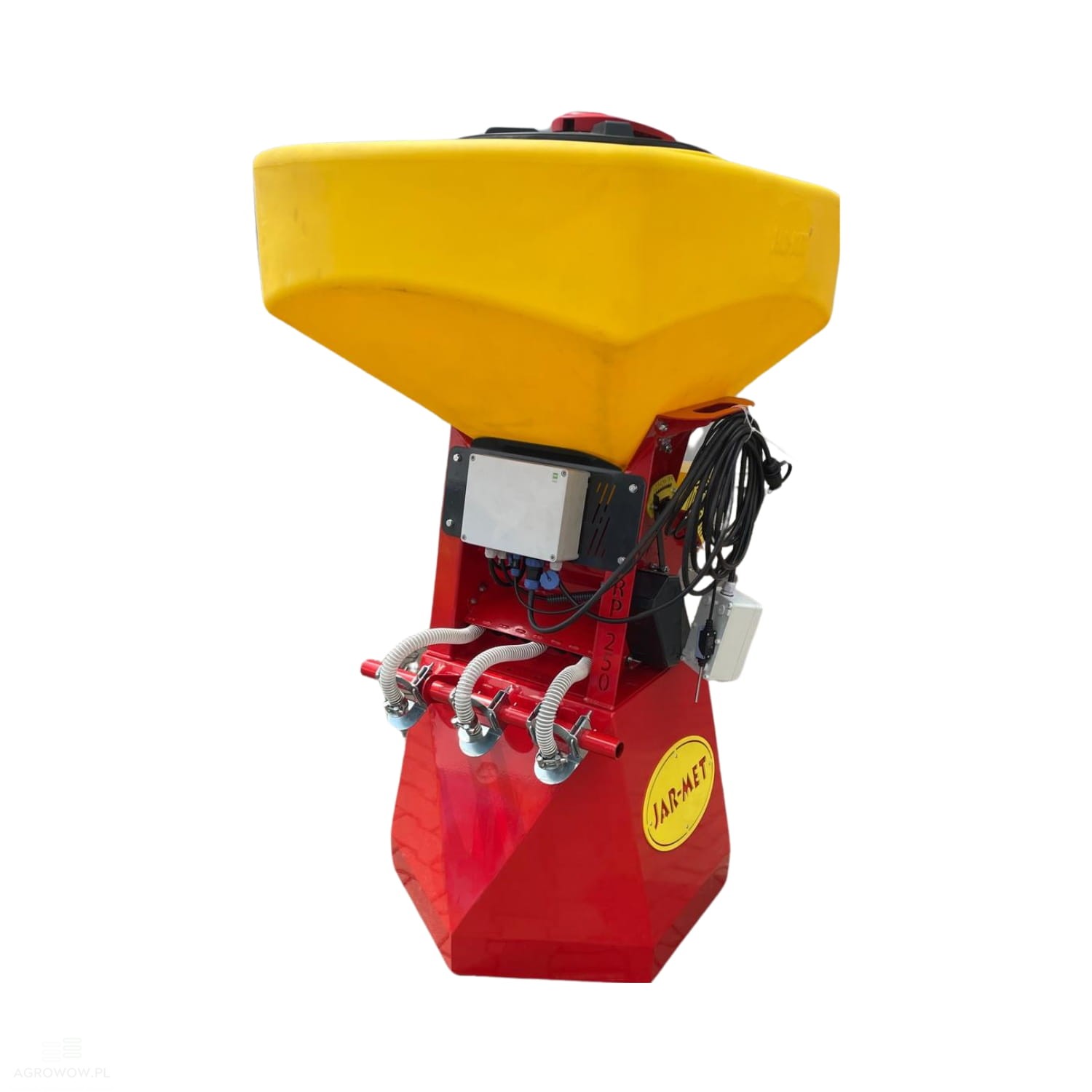

• It features 8 seeding outlets that ensure the effective distribution of the seed material through the delivery hoses to the discharge points.

• The sowing width for grasses and small seeds ranges from 1 to 6 meters, providing high flexibility and the ability to match operating parameters to the working width of the machine and the specific field layout.

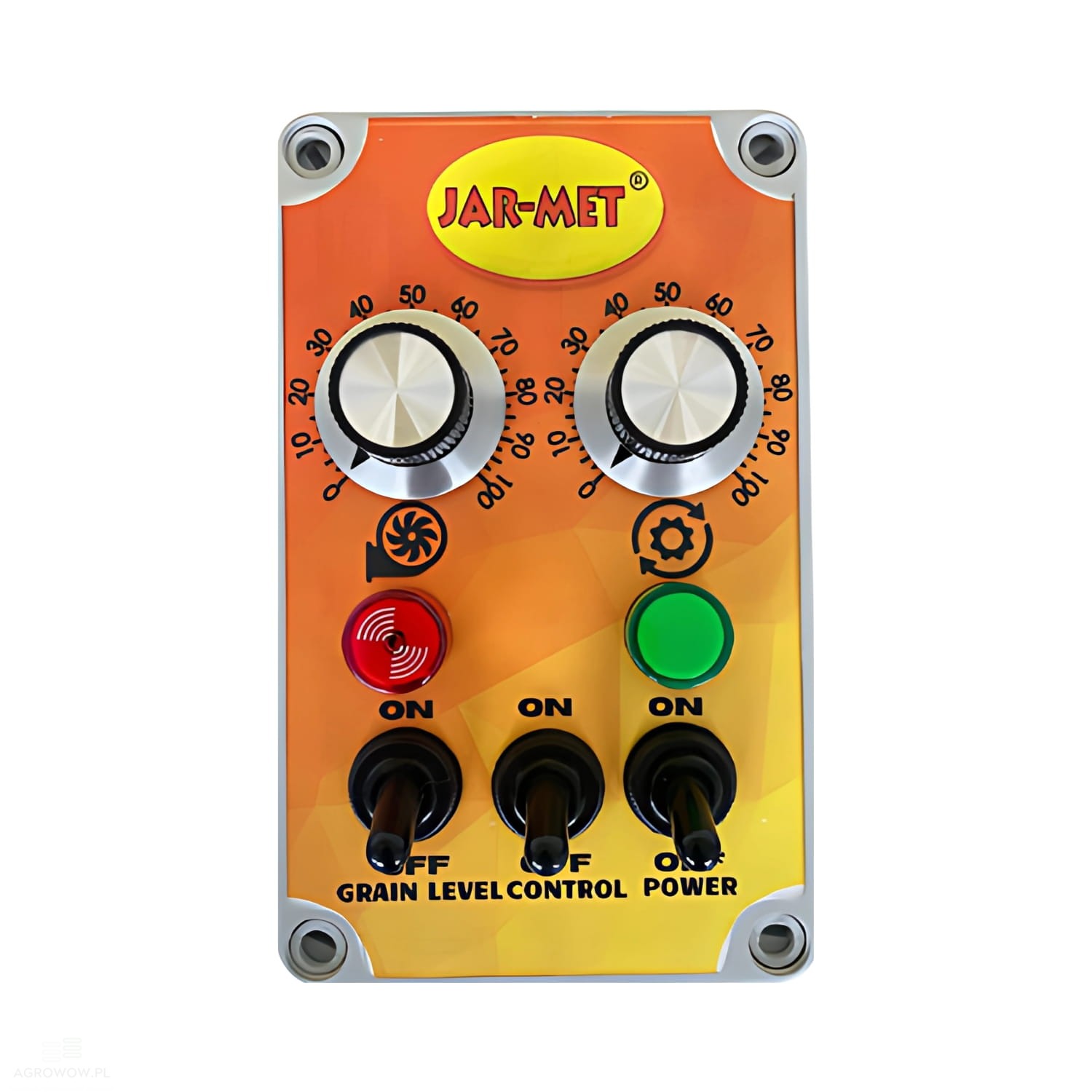

• The seeder is equipped with independent speed control for both the seeding roller and the blower.

• This allows for precise calibration of the parameters according to the type of seed material and the tractor's forward speed, ensuring full control over the quality of the operation.

• A practical empty tank sensor alerts the operator when seeds need to be replenished, eliminating the risk of unplanned gaps in the field and missed spots.

• Additionally, the built-in three-point hitch (TUZ) position sensor supports automated operation, enabling more precise seed metering depending on the machine's position when raised or lowered.

• The central component of the device is the universal seeding roller, adapted for both fine and coarse seeds, making the seeder highly versatile and ready for work in various cultivation environments.

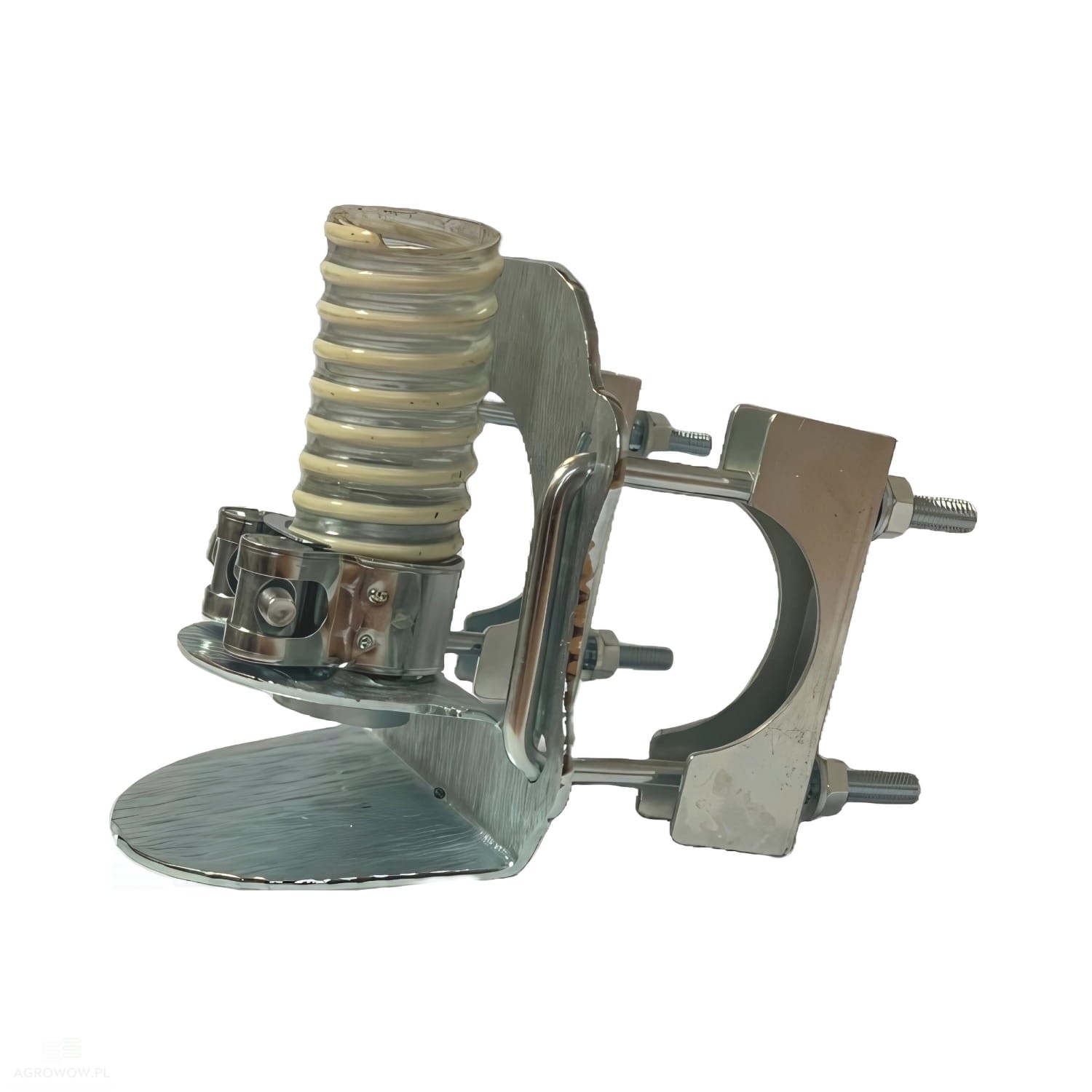

• The seed material is transported through 8 seeding channels ending in spreader plates, which guarantee a uniform distribution of seeds across the entire working width, even in variable wind conditions or uneven terrain.

• This technologically advanced device is perfectly suited for no-till systems, strip-till farming, precision agriculture, as well as organic and conventional farms, offering high accuracy, outstanding output, and reliable performance.
