Jarmet pneumatic catch crop seeder 300 L

Chcesz ustalić parametry i dopasować siewnik do poplonów do swoich indywidualnych potrzeb?

Jesteśmy w stanie przygotować mocowanie do każdego rodzaju sprzętu — traktora, koparki, ładowarki, wózka widłowego i wielu innych maszyn

Skontaktuj się z naszym inżynierem sprzedaży!

Adres e-mail: sklep@agrowow.pl

Numer telefonu: +48 880 261 210 | +48 504 947 222

Chętnie pomożemy w wyborze odpowiedniej konfiguracji oraz odpowiemy na każde pytanie.

- Manufacturer: Jarmet

- Catalogue number: JA250RP

- Manufacturer's name: Pneumatic catch crop spreader RP 300

- Width: 880 mm

- Length: 1100 mm

- Height: 1000 mm

- Capacity: 300 L

- Weight: 60 kg

- Sowing width (grass and fine seeds): 1000–6000 mm

- Electric blower: 8 metering outlets

- Blower power supply: 12V / 25A

- Independent control of the metering roller speed

- Independent control of the blower speed

- Hopper empty sensor

- Three-point linkage (TUZ) position sensor

- Universal metering roller designed for both coarse and fine seeds

- 8 distribution channels inside the spreader chamber

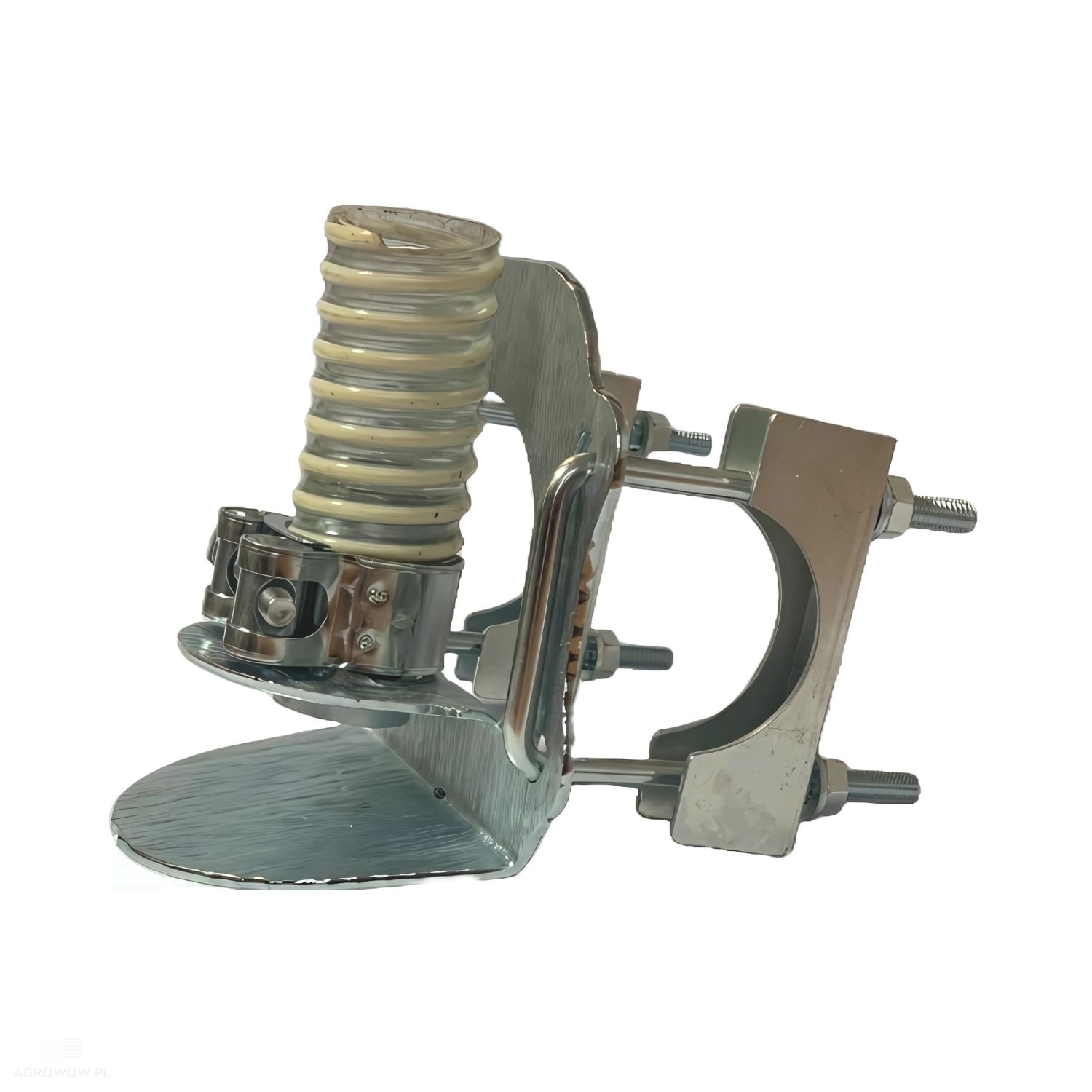

- 8 spreading plates

Extra Cost:

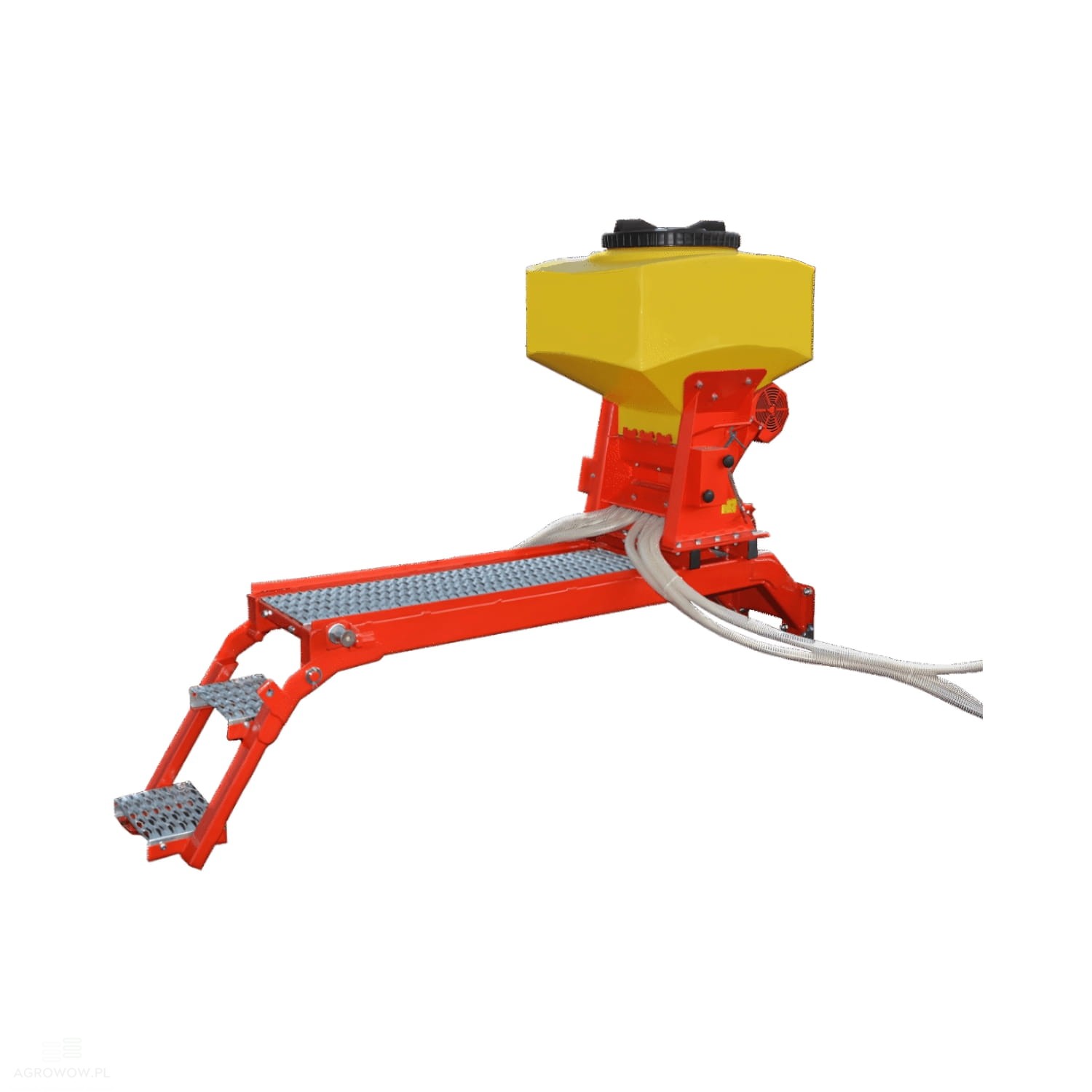

- Mounting Platform for Weeder Harrows or Hybrid Implements

This mounting platform is a functional solution that enables the quick and secure attachment of the seed or fertilizer spreader onto tillage machinery, such as weeder harrows or hybrid multi-task units. It facilitates the efficient combination of mechanical weeding or soil loosening with the simultaneous sowing of catch crops, granulated fertilizers, or fine seeds. Using the platform reduces the number of field passes, lowers fuel costs, and saves time while enhancing the precision and effectiveness of the operations. It is an ideal solution for farms aiming for maximum efficiency and sustainable crop management.

Detailed Description:

• The 300 L pneumatic catch crop seeder is a technologically advanced device designed for the precise, uniform, and efficient sowing of catch crop seeds, grass, grains, and fertilizers across various farming systems.

• Thanks to its modern design and large hopper capacity—up to 300 liters—the seeder allows for longer operational runtimes without the need for frequent refills, significantly boosting productivity on larger acreages.

• The unit features compact dimensions—880 mm in width, 1100 mm in length, and 1000 mm in height—combined with a relatively low dead weight of 60 kg, making transport and installation onto various tillage implements remarkably easy.

• The core of the seeder is an electric blower with 8 metering outlets, powered by a 12V system with a 25A current draw, which precisely routes the seeds through hoses to the distribution plates positioned across the working width of the implement.

• The sowing width for grass and fine seeds ranges from 1 to 6 meters, providing high flexibility to match different crop layouts and field conditions.

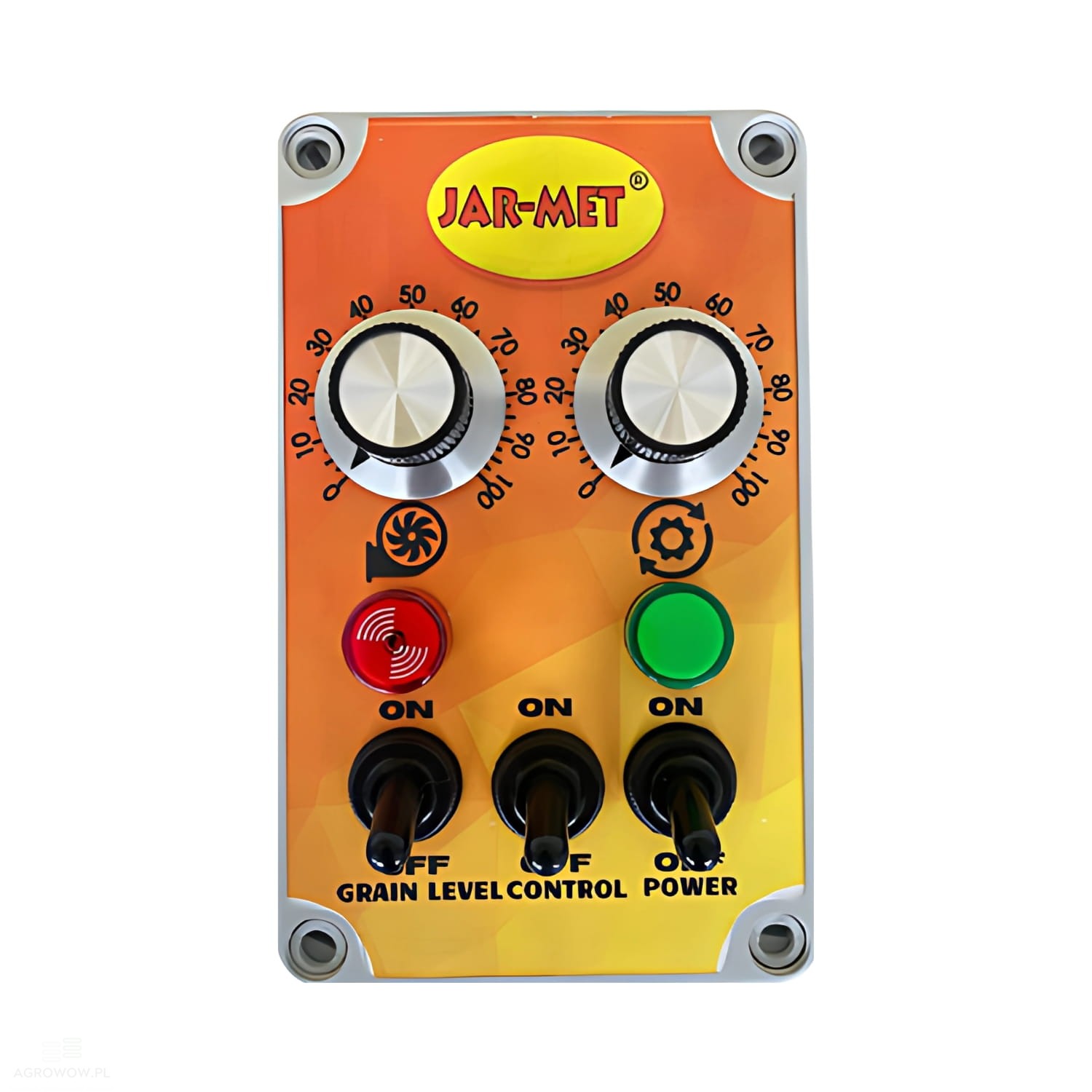

• The catch crop seeder is equipped with independent speed controls for both the metering roller and the blower, allowing complete adjustment of operating parameters to suit the specific seed type and the working speed of the carrier machine.

• An additional advantage is the hopper empty sensor, which alerts the operator when a refill is required, as well as the three-point linkage (TUZ) position sensor, which increases operational precision and automation by tracking the height changes of the machinery.

• The universal metering roller is perfectly suited for both fine and coarse seeds, making the seeder exceptionally versatile in daily use.

• Sowing is carried out through 8 distribution channels terminating in specialized spreading plates, which ensure an even distribution of material over the entire working area.

• The 300 L pneumatic catch crop seeder is the ideal tool for modern farms looking to increase efficiency, reduce seed waste, and maintain full control over the quality of their field operations.

• It performs excellently in min-till systems, precision farming, as well as in ecological and conventional agricultural setups.
