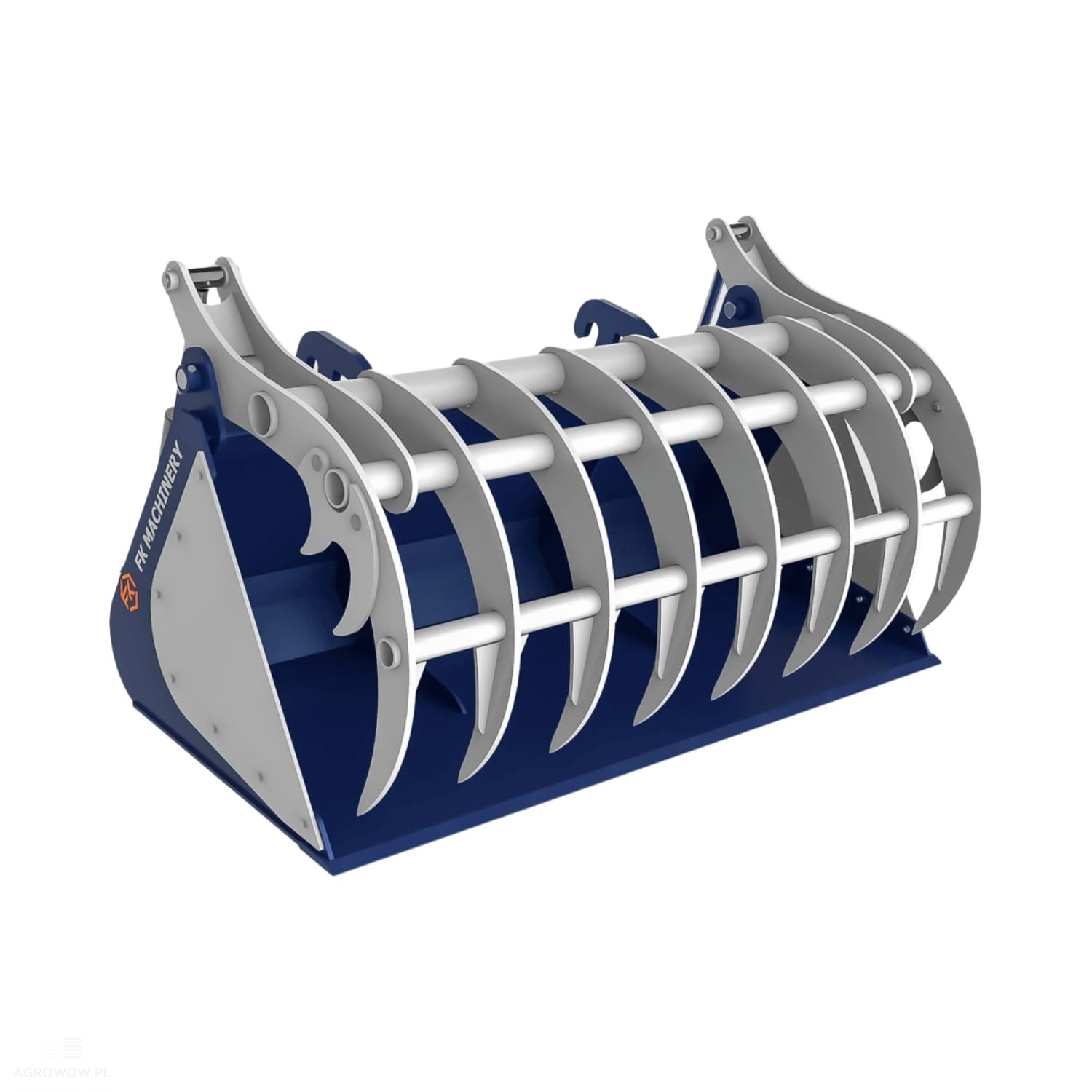

Kołaszewski MAXI TELESKOP bucket grab with clamp 1.8 x 1.24 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KXLBGB180

- Manufacturer's name: MAXI TELESKOP bucket grab with clamp

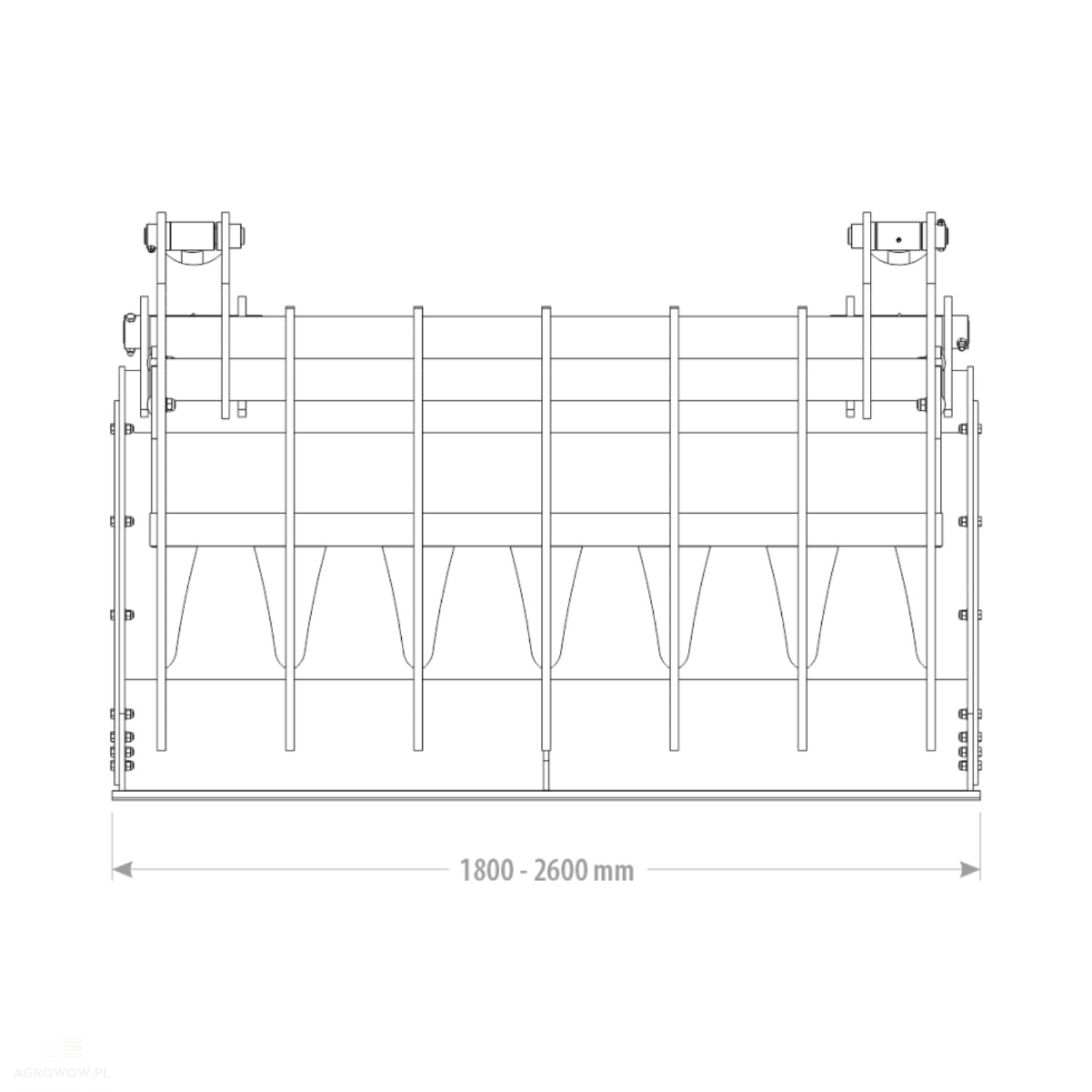

- Width: 1800 mm

- Length: 1360 mm

- Height: 1240 mm

- Height with clamp open: 1675 mm

- Capacity: 1.42 m³

- Weight: 807 kg

- Number of tines: 6

- Side panel thickness: 12 mm

- Main body shell thickness: 6 mm

- HB500 cutting edge: 200x20 mm

- Bolt-on tines in the clamp: 2

- Clamp tine thickness: 18 mm

- Bolt-on side panels: 10 mm

Optional equipment (at additional cost):

- VMP relief valve

The VMP type relief valve is a modern hydraulic device that plays an important role in maintaining system pressure stability. Its primary task is to discharge excess working fluid when the system pressure exceeds a set limit, which protects the system from overloads and damage. Thanks to this function, the VMP valve enables smooth and efficient operation of the entire hydraulic system. The valve features a pressure adjustment mechanism, allowing precise matching of pressure parameters to the requirements of a specific device. Additionally, the valve is equipped with sensors monitoring the pressure and temperature of the working fluid, which transmit this data to an electronic controller. Based on the gathered information, the controller generates electrical impulses that alter the valve position and precisely adjust fluid flow, ensuring optimal system functioning under various operating conditions.

- Bolt-on cutting edge / wear blade

The cutting edge with an adjustable bolt-on mounting is a key working element used in hydraulic tools such as buckets and transport equipment. Its design allows for easy replacement and adaptation to various working conditions, making it a versatile solution. The bolt-on cutting edge features high resistance to abrasion and wear, especially in harsh conditions involving stones, gravel, or other hard materials. Made of high-quality materials like HB500 steel, it ensures long-term efficiency and reliability even during heavy-duty use. Regular tightening and maintenance of the cutting edge help maintain its optimal performance, reducing tool upkeep costs and ensuring long-term efficiency in demanding working conditions.

Detailed Description:

• The MAXI bucket grab with clamp is a robust and efficient agricultural tool designed for high-intensity use on farms and in the construction industry.
• It is ideal for transporting bulk materials such as silage, manure, compost, grain, and other loose substances, offering reliability and high efficiency even under demanding working conditions.
• Equipped with a spacious hopper featuring a capacity of 1.42 m³ and a width of 1800 mm, the bucket enables the loading of larger material volumes in a single cycle.
• Thanks to this capacity, users save time, boost work throughput, and reduce the number of operational cycles required, directly affecting the efficiency of material transport onto trailers, muck spreaders, and other utility vehicles.
• The top clamp mechanism, featuring bolt-on tines, ensures the stability of transported loads, eliminating the risk of material sliding out or being blown away by the wind.
• This proves particularly important when working in volatile weather conditions involving strong wind, rain, or snow.
• The tines, manufactured from high-grade steel, are highly resistant to wear, ensuring long-term functionality and facilitating the maintenance and replacement of these elements.
• Featuring a heavy-duty construction with 12 mm thick side walls and a 6 mm shell, the bucket displays high resistance to mechanical damage.
• This makes the tool capable of withstanding harsh operational factors, such as uneven surfaces, stony ground, or the presence of hard objects within the material.
• Thanks to this resilience, the bucket remains functional over a long period.
• Equipped with a 200x20 mm HB500 cutting edge, the bucket provides outstanding abrasion resistance, making it exceptionally durable and efficient even under intensive exploitation.
• The edge cuts through and moves material cleanly, allowing for even dosing and rapid loading.
• Easy access to the pin lubrication points makes equipment maintenance fast and convenient.
• As a result, the bucket grab maintains its high functionality over a long period, reducing repair costs and minimizing the need for replacement parts.
• It requires two hydraulic sections, giving the operator full control over its functions.
• With dual hydraulic circuits, users can precisely adjust the speed and clamping force depending on the type of material, providing greater flexibility and operational efficiency across various working environments.
• With its six steel tines, the bucket ensures high efficiency when handling bulk materials.
• These tines effectively support and hold the load, preventing spillage to accelerate loading and transport operations, especially when dealing with demanding materials.
• The MAXI bucket grab with clamp is a versatile attachment that combines premium build quality, functionality, and dependability.
• Thanks to its advanced design, premium manufacturing quality, and straightforward maintenance, it ensures rapid, safe, and efficient material handling in tough environments, making it an ideal asset for agricultural and construction applications.
