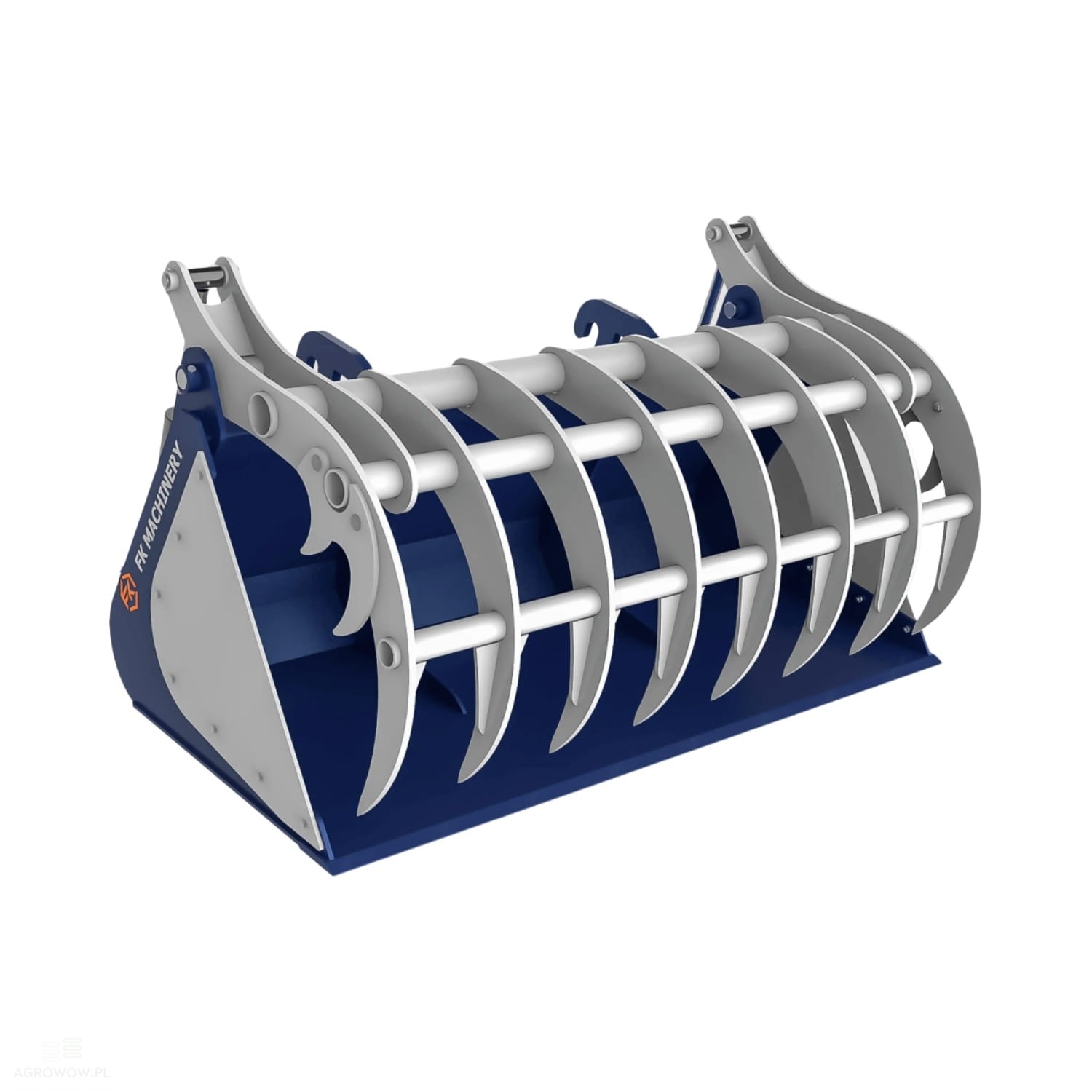

Kołaszewski MAXI TELESKOP bucket grab with clamp 2.2 x 1.24 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KXLBGB220

- Manufacturer's name: MAXI TELESKOP bucket grab with clamp

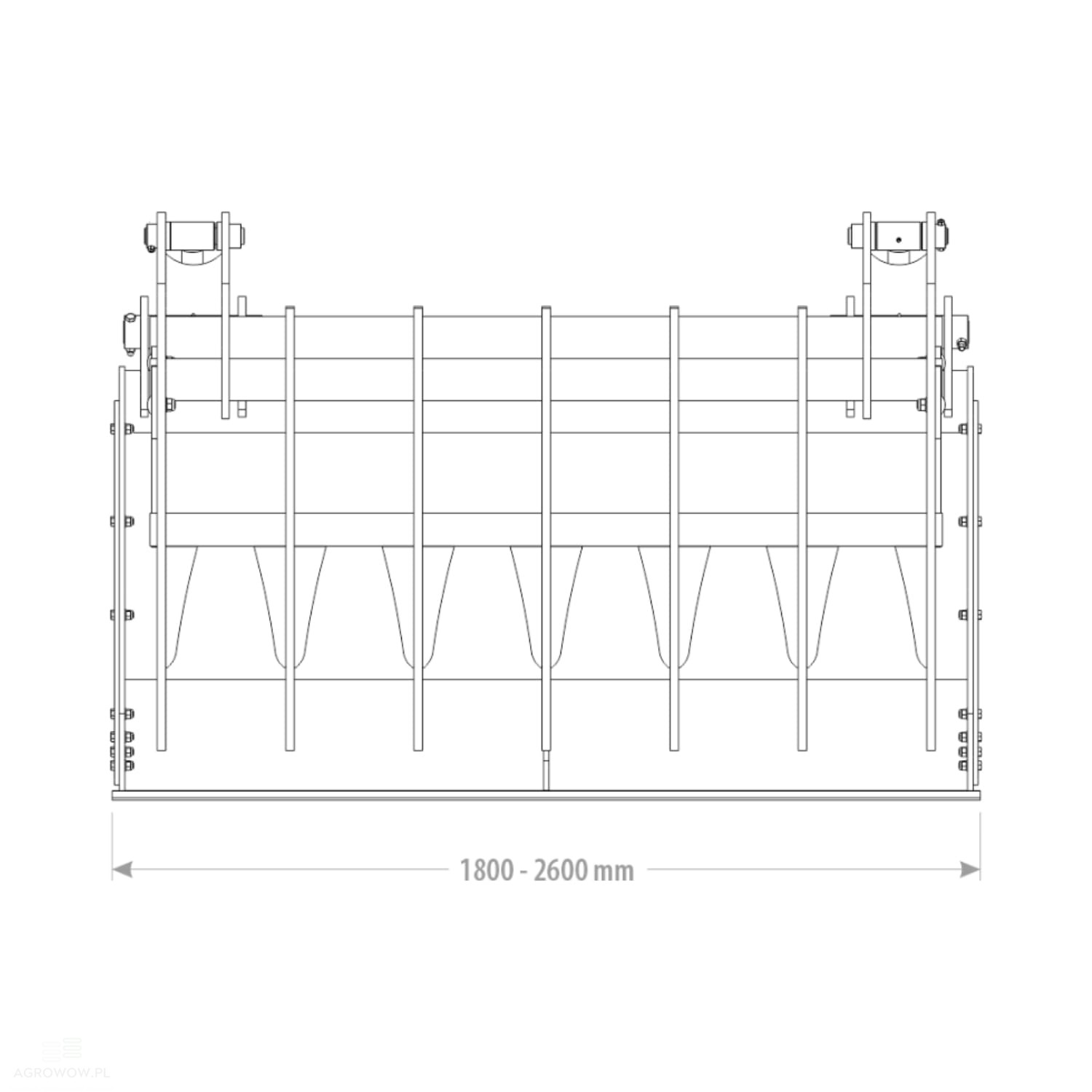

- Width: 2200 mm

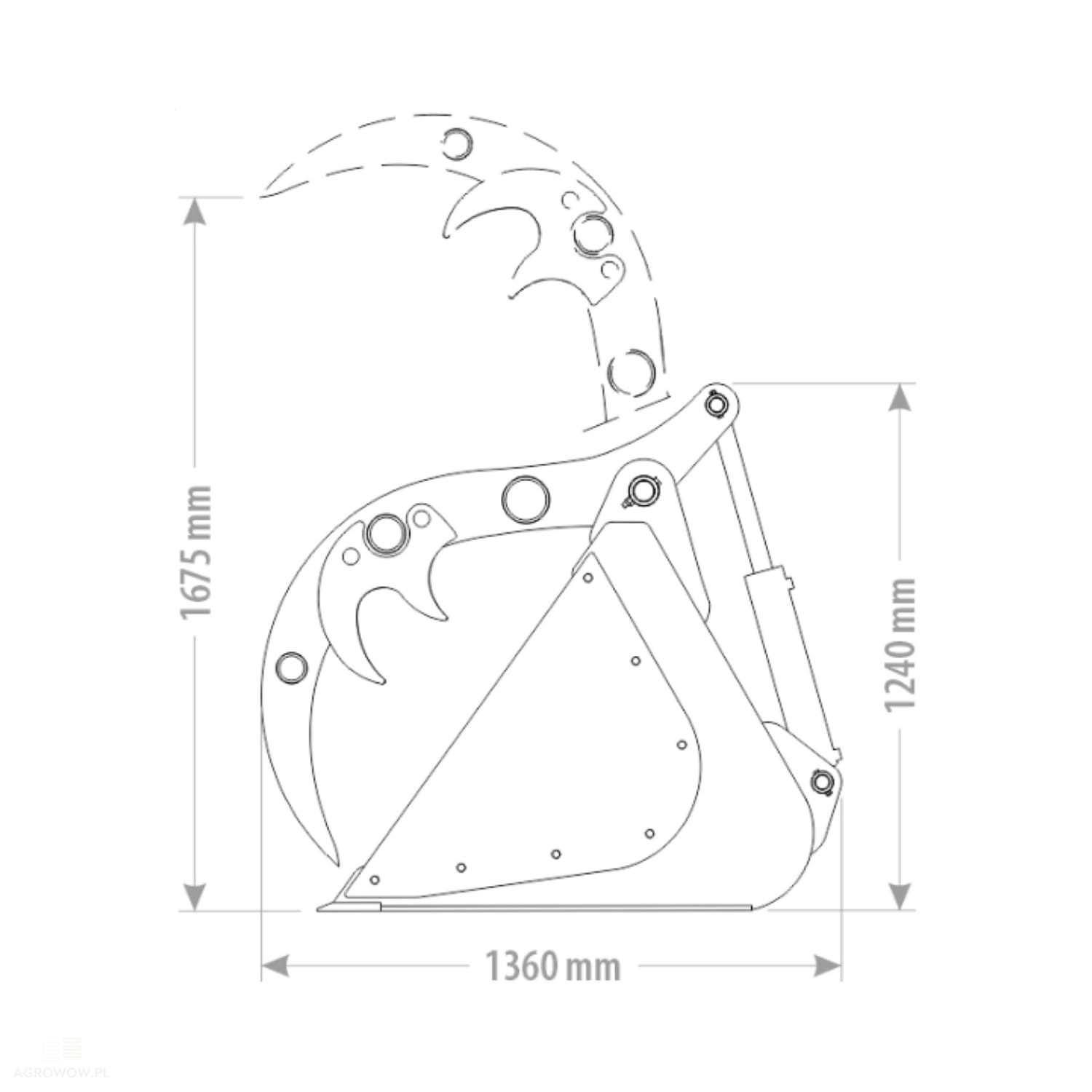

- Length: 1360 mm

- Height: 1240 mm

- Height with clamp open: 1675 mm

- Capacity: 1.74 m³

- Weight: 920 kg

- Number of tines: 7

- Side panel thickness: 12 mm

- Main body shell thickness: 6 mm

- HB500 cutting edge: 200x20 mm

- Bolt-on tines in the clamp: 2

- Clamp tine thickness: 18 mm

- Bolt-on side panels: 10 mm

Optional equipment (at additional cost):

- VMP relief valve

The VMP relief valve is a modern hydraulic component designed to maintain pressure stability within the system. Its primary function is to discharge excess working fluid when the pressure exceeds a preset value, preventing overloads and potential system damage. Thanks to this property, the VMP valve ensures smooth and efficient hydraulic performance. Equipped with a pressure adjustment mechanism, it allows precise tuning of operating parameters to match specific system requirements. Additionally, the valve features sensors that monitor the pressure and temperature of the working fluid, transmitting this data to an electronic controller. Based on this information, the controller sends electrical impulses that adjust the valve position, precisely controlling fluid flow to guarantee optimal system performance under various operating conditions.

- Bolt-on cutting edge / wear blade

The cutting edge with an adjustable bolt-on mounting is a key working element used in hydraulic tools such as buckets and transport attachments. Its design allows for easy replacement and adaptation to various working conditions, making it highly versatile. The bolt-on cutting edge features exceptional resistance to abrasion and damage, particularly in harsh environments containing stones, gravel, or other hard materials. Made of durable materials like HB500 steel, it ensures long-term efficiency and reliability even during heavy-duty use. Regular tightening and maintenance of the cutting edge help maintain its high performance, reducing equipment upkeep costs and ensuring long-term operational readiness of the tools in demanding working environments.

Detailed Description:

• The MAXI bucket grab with clamp is an exceptionally robust agricultural tool designed for high-intensity use in farming and construction.

• It performs perfectly when transporting bulk materials such as silage, manure, compost, grain, and other loose substances, ensuring efficiency and reliability under demanding working conditions.

• This bucket is equipped with a spacious hopper featuring a capacity of 1.58 m³ and a width of 2000 mm, allowing for the loading of larger material volumes in a single cycle.

• Consequently, users save time, improve work efficiency, and reduce the number of operational cycles required, enabling rapid material transport onto trailers, muck spreaders, and other utility vehicles.

• The top clamp mechanism, featuring bolt-on tines, guarantees load stability, eliminating the risk of material sliding out or being blown away by the wind.

• This proves crucial in harsh weather conditions involving strong wind, rain, or snow.

• The tines, manufactured from high-grade steel, ensure long-term efficiency, while the simple replacement and maintenance of these components contribute directly to extending the lifespan of the attachment.

• Featuring a heavy-duty construction with 12 mm thick side walls and a 6 mm shell, the bucket offers high resistance to mechanical damage.

• This makes the device extremely durable under tough operational factors, such as uneven surfaces, stony ground, or the presence of hard objects within the material.

• Thanks to this resilience, the bucket remains functional over long periods.

• Equipped with a 200x20 mm HB500 cutting edge, the bucket provides outstanding abrasion resistance, making it highly durable and efficient even under intensive exploitation.

• The edge cuts through material cleanly, allowing for even dosing and rapid loading.

• Easy access to the pin lubrication points makes equipment maintenance fast and convenient.

• Regular greasing helps keep the bucket grab in excellent condition, reducing repair costs and extending its service life.

• The attachment requires two hydraulic sections, giving the operator full control over its functions.

• With dual hydraulic circuits, users can precisely adjust the speed and clamping force depending on the material being transported, increasing flexibility and operational efficiency across changing working conditions.

• With its seven steel tines, the bucket ensures high efficiency when handling bulk materials.

• These tines effectively support and hold the load, preventing spillage to accelerate loading and transport operations, especially when dealing with demanding materials.

• The MAXI bucket grab with clamp is a versatile attachment that combines premium build quality, functionality, and dependability.

• Thanks to its advanced design, straightforward maintenance, and high output, it ensures rapid, safe, and efficient material handling in tough environments, making it an ideal asset for agricultural and construction applications.
