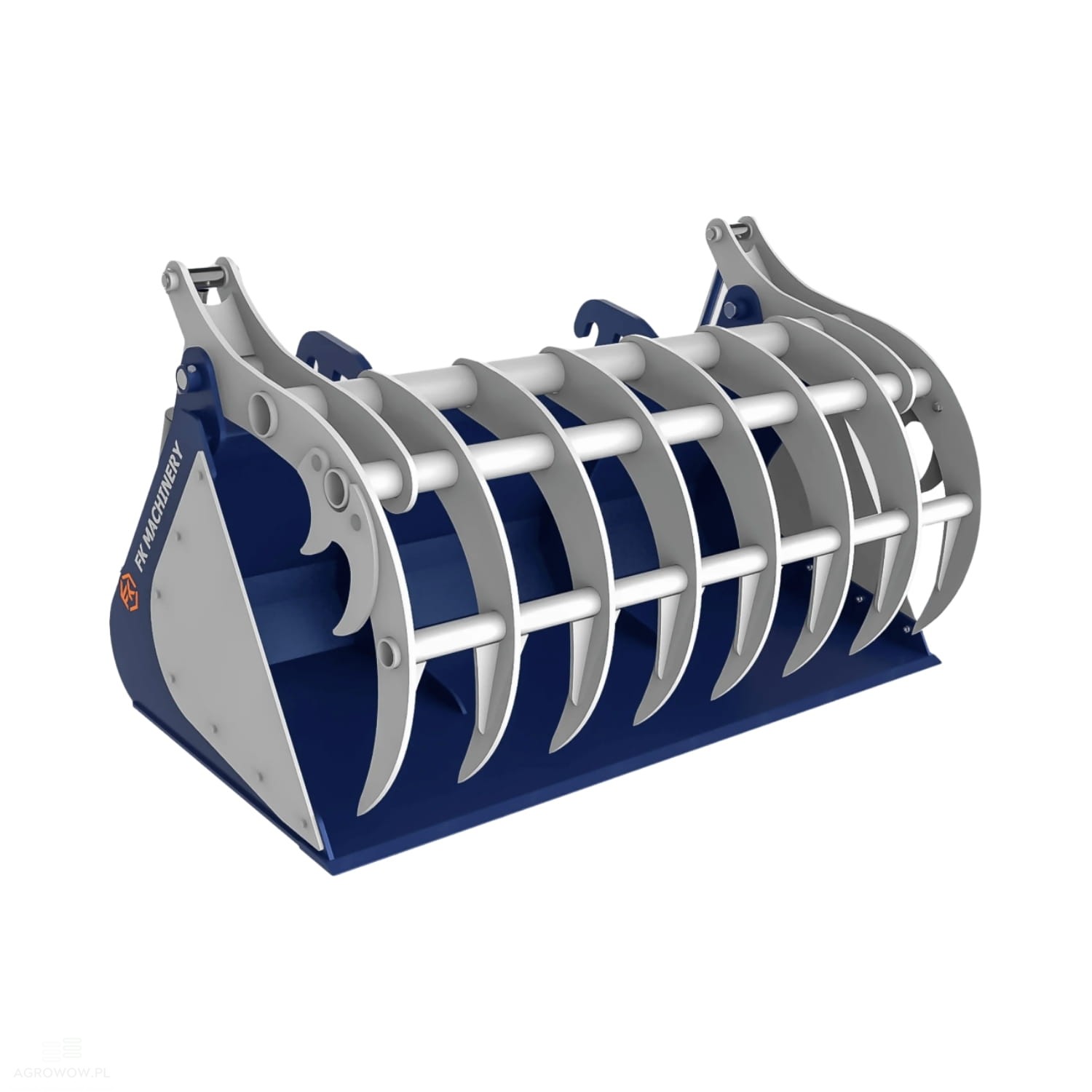

Kołaszewski MAXI TELESKOP bucket grab with clamp 2.4 x 1.24 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KXLBGB240

- Manufacturer's name: MAXI TELESKOP bucket grab with clamp

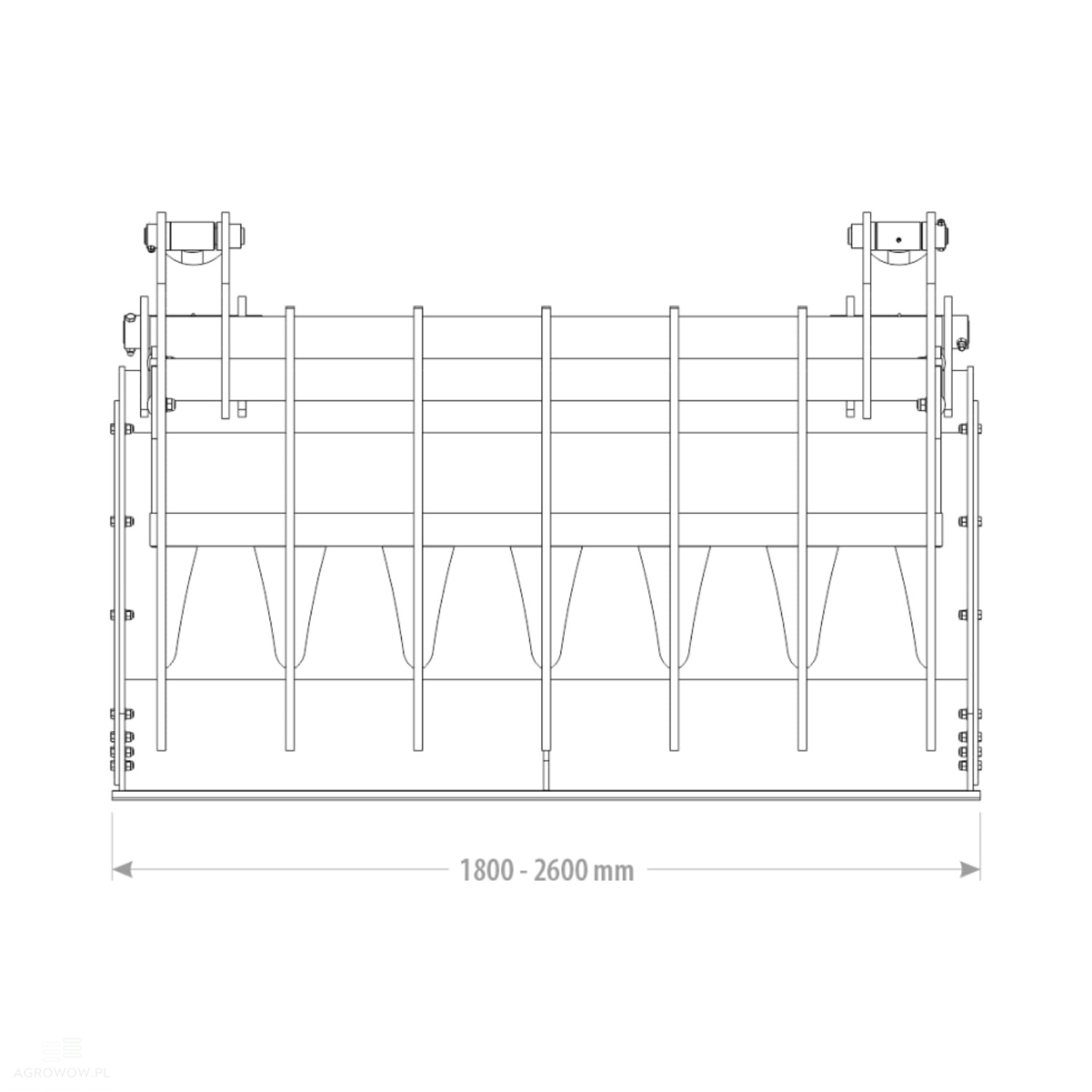

- Width: 2400 mm

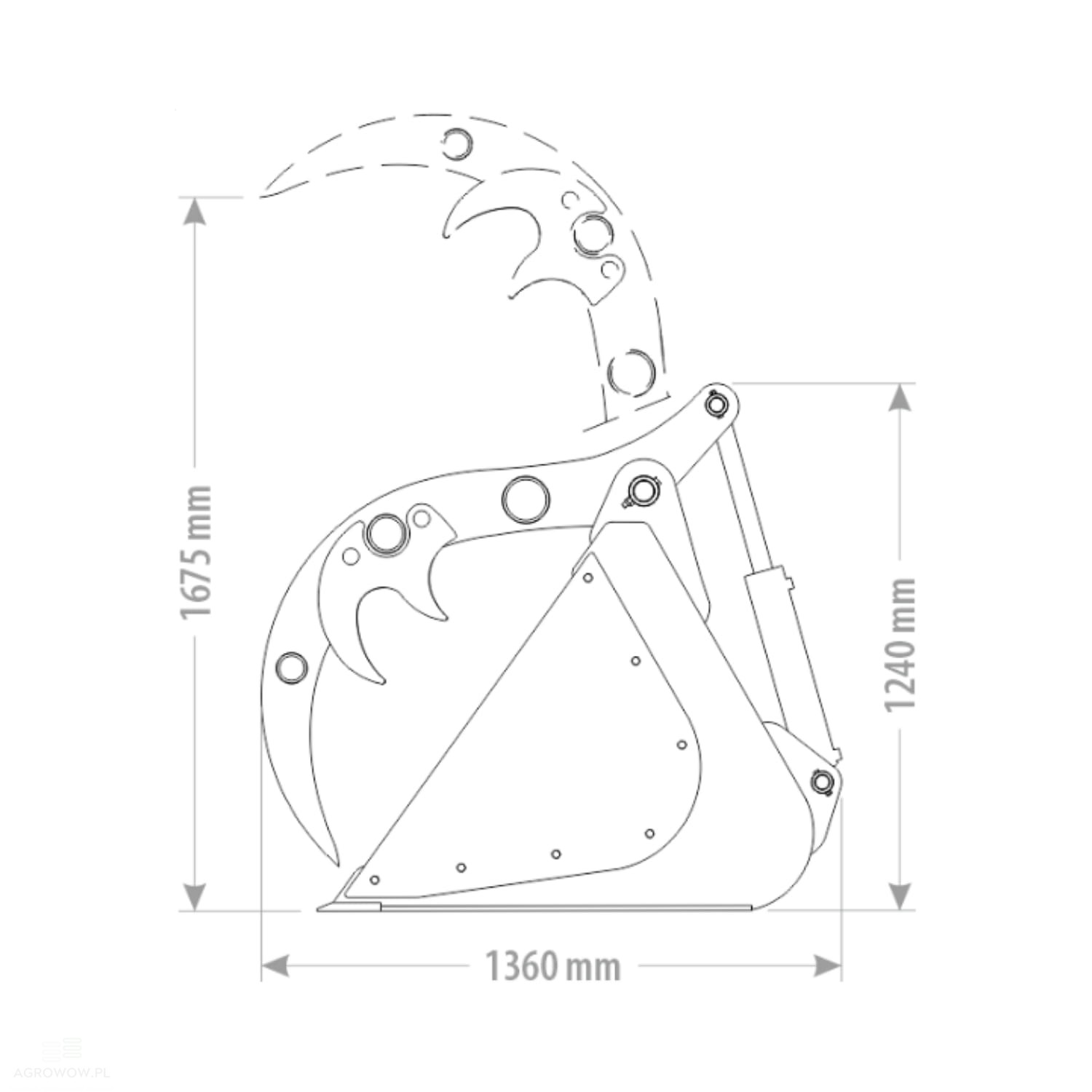

- Length: 1360 mm

- Height: 1240 mm

- Height with clamp open: 1675 mm

- Capacity: 1.90 m³

- Weight: 954 kg

- Number of tines: 8

- Side panel thickness: 12 mm

- Main body shell thickness: 6 mm

- HB500 cutting edge: 200x20 mm

- Bolt-on tines in the clamp: 2

- Clamp tine thickness: 18 mm

- Bolt-on side panels: 10 mm

Optional equipment (at additional cost):

- VMP relief valve

The VMP relief valve is a modern hydraulic device designed to ensure pressure stability within the system. Its primary role is to discharge excess working fluid from the circuit when the pressure exceeds a preset value, protecting the system from overloads and component damage. Thanks to this function, the VMP valve ensures the efficient operation of the hydraulic system. It features a pressure adjustment mechanism that allows precise tuning of parameters to match the specific equipment's requirements. Additionally, the valve is equipped with sensors that monitor the pressure and temperature of the working fluid. These data are transmitted to an electronic controller, which uses them to generate electrical impulses that alter the valve position and regulate fluid flow, ensuring optimal system performance under various operating conditions.

- Bolt-on cutting edge / wear blade

The cutting edge with an adjustable bolt-on mounting is an essential working element used in hydraulic tools such as buckets and transport attachments. Its design allows for easy replacement and adaptation to various working conditions, making it a highly versatile solution. The bolt-on cutting edge features exceptional resistance to abrasion and damage, particularly in harsh environments containing stones, gravel, or other hard materials. Made of high-quality materials like HB500 steel, it ensures long-term reliability and efficiency even during heavy-duty use. Regular tightening and maintenance of the cutting edge help maintain its optimal performance, reducing tool upkeep costs and ensuring long-term operational readiness in demanding working environments.

Detailed Description:

• The MAXI bucket grab with clamp is an exceptional and highly efficient agricultural tool designed for high-intensity use in farming and construction.

• It is ideal for transporting a wide variety of bulk materials such as silage, manure, compost, grain, and other loose substances, offering reliability and efficiency even under demanding working conditions.

• This bucket has been designed with a large capacity of 1.90 m³ and a width of 2400 mm, enabling the loading of larger material volumes in a single cycle.

• Consequently, users save time, boost work throughput, and reduce the number of operational cycles required, contributing to more efficient material transport onto trailers, muck spreaders, and other utility vehicles.

• The top clamp mechanism, featuring bolt-on tines, ensures the stability of transported loads, eliminating the risk of material sliding out or being blown away by the wind.

• This proves particularly crucial in volatile weather conditions involving strong wind, rain, or snow.

• The tines, manufactured from high-grade steel, guarantee long-term efficiency, while the simple replacement and maintenance of these components contribute directly to the increased durability of the attachment.

• Featuring a heavy-duty construction with 12 mm thick side walls and a 6 mm shell, the bucket displays high resistance to mechanical damage.

• This enables the tool to withstand harsh operational factors, such as uneven surfaces, stony ground, and hard objects embedded within the material, preserving its functional properties over long periods.

• Equipped with a 200x20 mm HB500 cutting edge, the bucket provides outstanding abrasion resistance, making it highly durable and efficient even under intensive exploitation.

• The edge cuts through material cleanly, allowing for even dosing and rapid loading, which improves workflow organization and saves time on the farm.

• Easy access to the pin lubrication points makes equipment maintenance fast and convenient, requiring minimal downtime.

• Regular greasing helps keep the bucket grab in excellent technical condition over the long term, reducing the need for costly repairs and preventing premature equipment wear.

• The attachment requires two hydraulic sections, giving the operator full control over its functions.

• With dual hydraulic circuits, users can precisely adjust the speed and clamping force depending on the type of material being handled, increasing flexibility and operational efficiency across various working environments.

• With its eight steel tines, the bucket ensures high efficiency when handling bulk materials.

• These tines effectively support and hold the load, preventing spillage to accelerate loading and transport operations, especially when dealing with demanding materials.

• The MAXI bucket grab with clamp is a versatile attachment that combines premium build quality, functionality, and dependability.

• Thanks to its advanced design, straightforward maintenance, and high output, it ensures rapid, safe, and efficient material handling in tough environments, making it an ideal asset for agricultural and construction applications.
