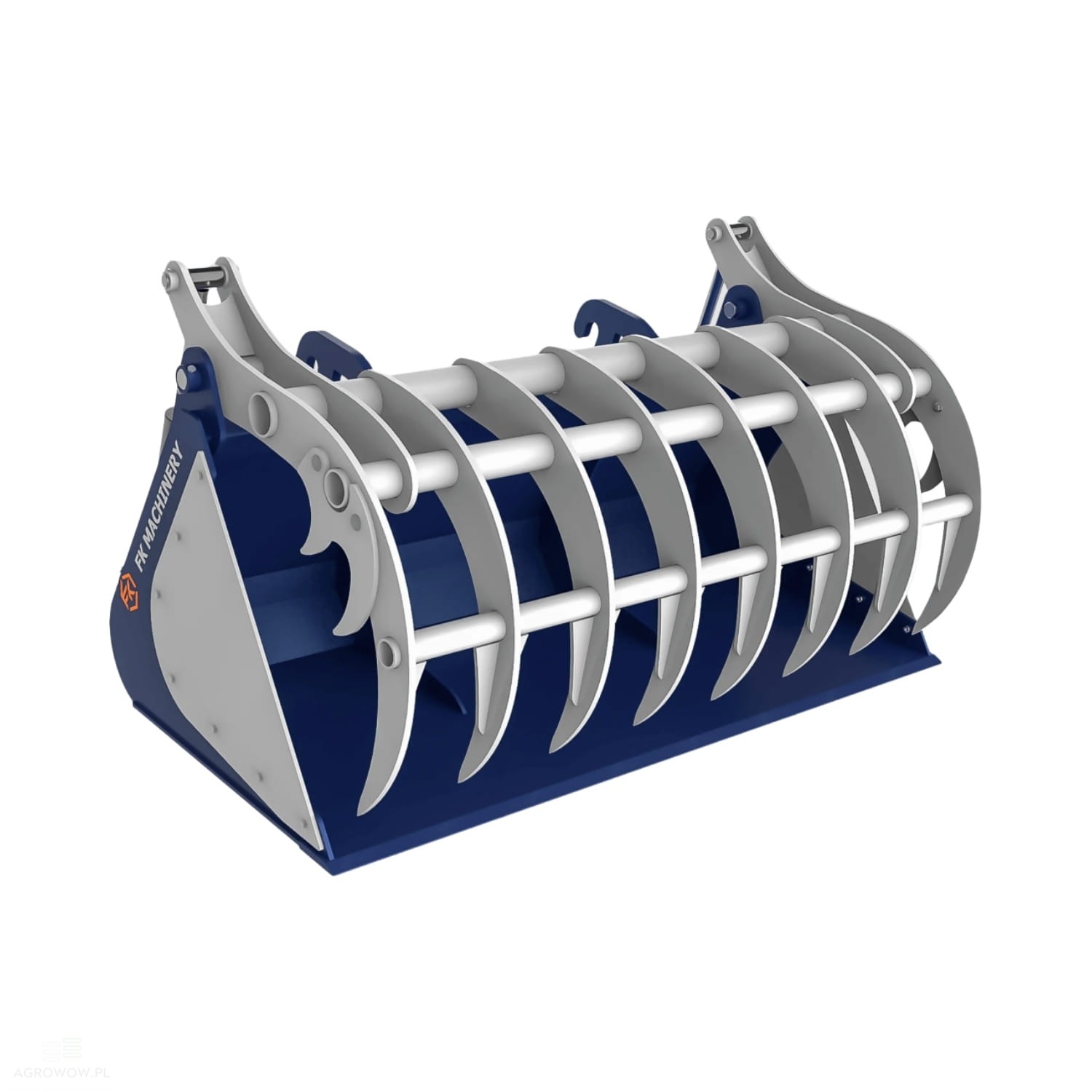

Kołaszewski MAXI TELESKOP bucket grab with clamp 2.6 x 1.24 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KXLBGB260

- Manufacturer's name: MAXI TELESKOP bucket grab with clamp

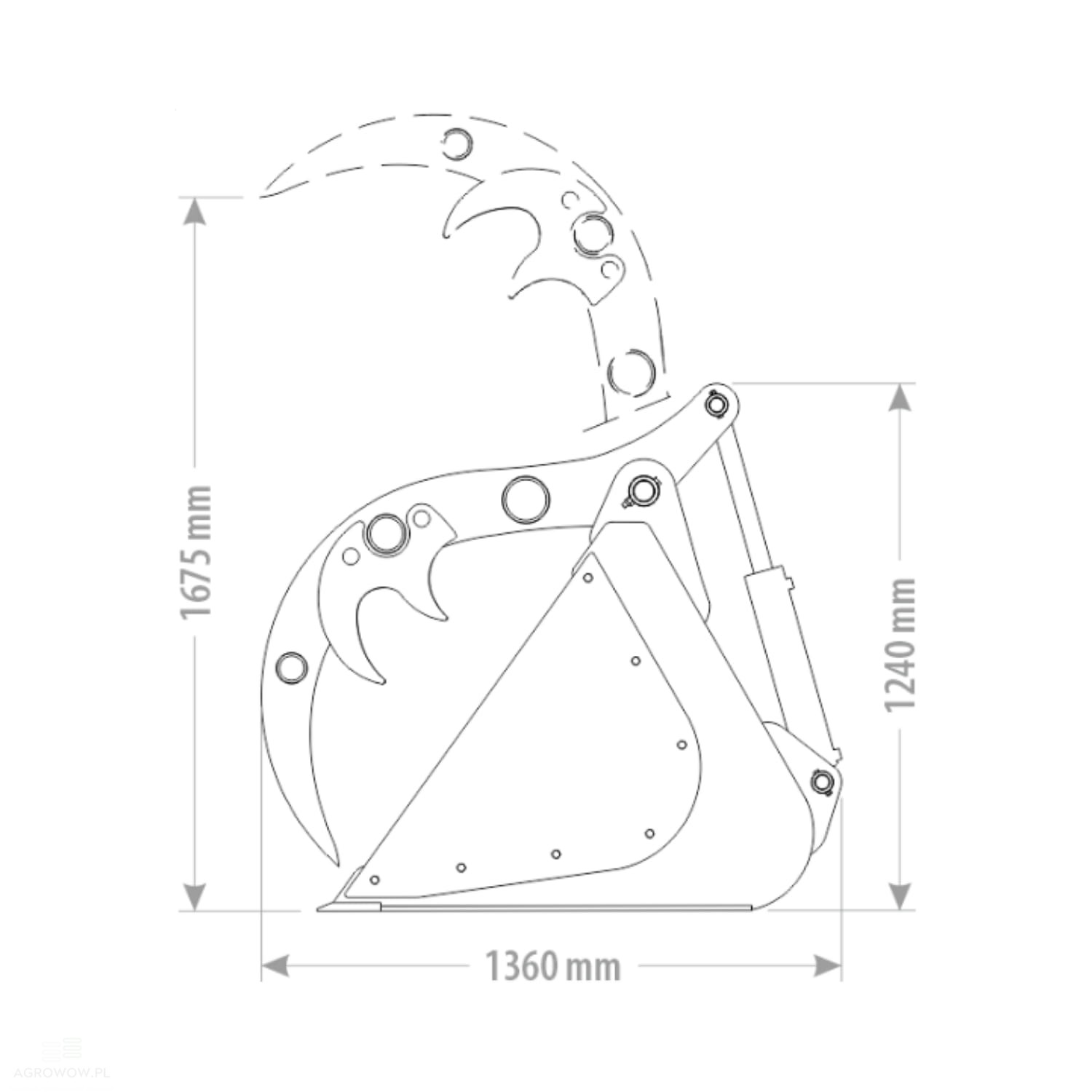

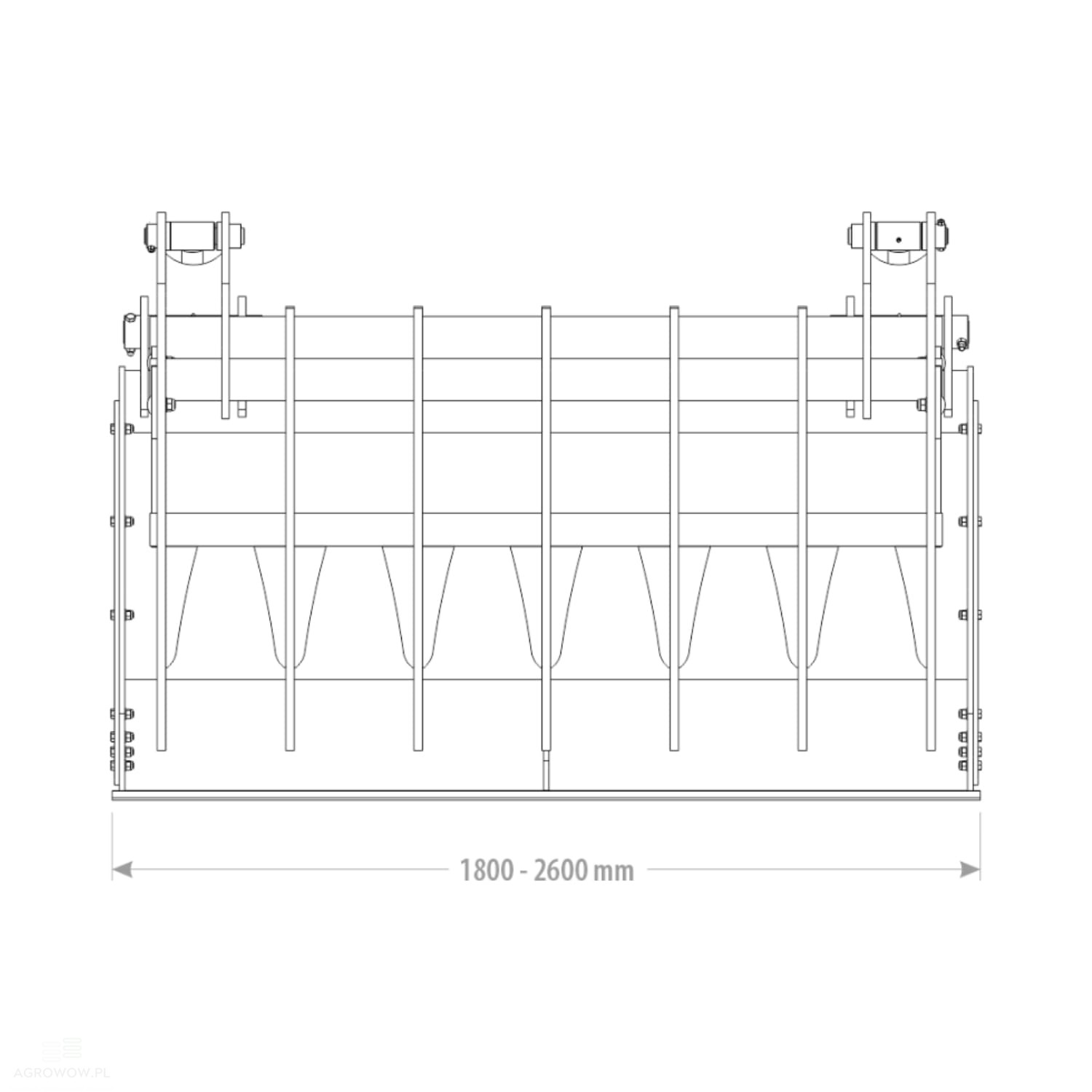

- Width: 2600 mm

- Length: 1360 mm

- Height: 1240 mm

- Height with clamp open: 1675 mm

- Capacity: 2.05 m³

- Weight: 1001 kg

- Number of tines: 9

- Side panel thickness: 12 mm

- Main body shell thickness: 6 mm

- HB500 cutting edge: 200x20 mm

- Bolt-on tines in the clamp: 2

- Clamp tine thickness: 18 mm

- Bolt-on side panels: 10 mm

Optional equipment:

- VMP relief valve

The VMP relief valve is an advanced hydraulic device designed to ensure pressure stability within the system. Its primary role is to discharge excess working fluid from the circuit when the pressure exceeds a preset value, preventing system overloads and component damage. Thanks to this function, the VMP valve guarantees the optimal operation of the entire hydraulic system. The valve features a pressure adjustment mechanism that allows precise tuning of pressure parameters to match the equipment's requirements. Additionally, it is equipped with sensors monitoring the pressure and temperature of the working fluid, which transmit data to an electronic controller. Based on this information, the controller sends electrical impulses to alter the valve position, precisely regulating the fluid flow to ensure optimal system performance under changing operating conditions.

- Bolt-on cutting edge / wear blade

The cutting edge with an adjustable bolt-on mounting is a key working element used in hydraulic tools such as buckets and transport attachments. Its design allows for easy replacement and adaptation to various working conditions, making it a highly versatile solution. The bolt-on cutting edge features exceptional resistance to abrasion and damage, particularly in harsh environments containing stones, gravel, or other hard materials. Made of highly durable materials like HB500 steel, it ensures reliability and efficiency even during heavy-duty use. Regular tightening and maintenance of the cutting edge help maintain its high performance, reducing tool upkeep costs and ensuring long-term operational readiness in demanding working environments.

Detailed Description:

• The MAXI bucket grab with clamp is an exceptionally robust agricultural tool designed for high-intensity use in farming and construction.

• It is ideal for transporting a wide variety of materials such as silage, manure, compost, grain, and other bulk substances, offering reliability and efficiency even under demanding working conditions.

• Equipped with a large hopper capacity of 2.05 m³ and a width of 2600 mm, the bucket enables the loading of larger material volumes in a single cycle.

• Consequently, users save time, boost work throughput, and reduce the number of operational cycles required, resulting in more efficient material loading onto trailers, muck spreaders, and other utility vehicles.

• The top clamp mechanism, featuring bolt-on tines, ensures the stability of transported loads, eliminating the risk of material sliding out or being blown away by the wind.

• This proves particularly crucial in volatile weather conditions involving strong wind, rain, or snow.

• The tines, manufactured from high-grade steel, guarantee long-term efficiency, while the simple replacement and maintenance of these components contribute directly to the longevity of the attachment.

• Featuring a heavy-duty construction with 12 mm thick side walls and a 6 mm shell, the bucket displays exceptional resistance to mechanical damage.

• This enables the tool to withstand harsh operational factors, such as uneven surfaces, stony ground, and hard objects embedded within the material, preserving its functional properties over long periods.

• Equipped with a 200x20 mm HB500 cutting edge, the bucket provides outstanding abrasion resistance, making it highly durable and efficient even under intensive exploitation.

• The edge cuts through material cleanly, allowing for even dosing and rapid loading, which improves workflow organization and saves time.

• Easy access to the pin lubrication points makes equipment maintenance fast and convenient, requiring minimal downtime.

• Regular greasing helps keep the bucket grab in excellent technical condition over the long term, reducing the need for costly repairs and preventing premature equipment wear.

• The attachment requires two hydraulic sections, giving the operator full control over its functions.

• With dual hydraulic circuits, users can precisely adjust the speed and clamping force depending on the type of material being handled, increasing flexibility and operational efficiency across various working environments.

• With its nine steel tines, the bucket ensures high efficiency when handling bulk and packed materials.

• These tines effectively support and hold the load, preventing spillage to accelerate loading and transport operations, especially when dealing with demanding materials.

• The MAXI bucket grab with clamp is a versatile attachment that combines premium build quality, functionality, and dependability.

• Thanks to its advanced design, straightforward maintenance, and high output, it ensures rapid, safe, and efficient material handling in tough environments, making it an ideal asset for agricultural and construction applications.
