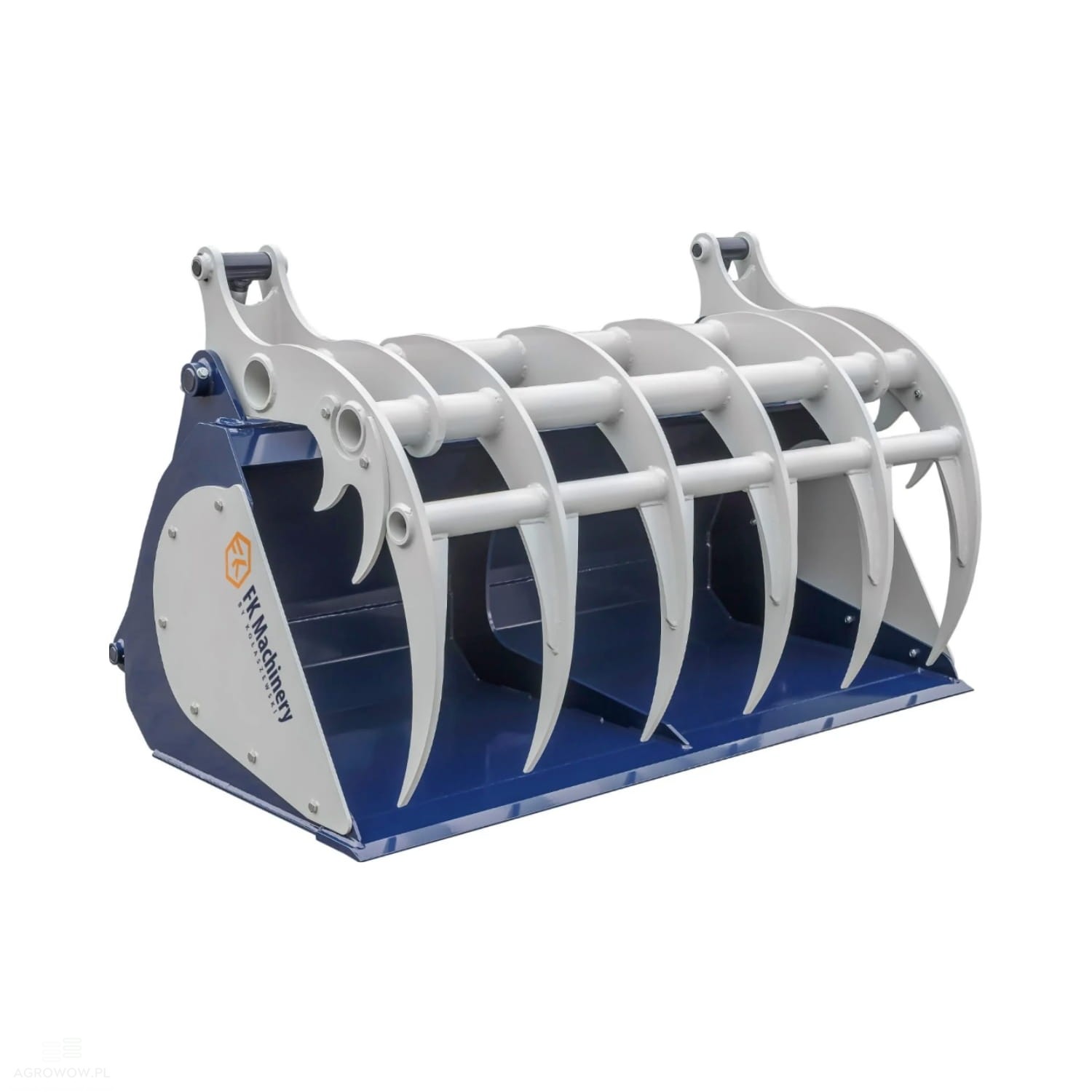

Kołaszewski MAXI bucket grab with clamp 1.8 x 1.12 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KMBGBM180

- Manufacturer's name: MAXI bucket grab with clamp

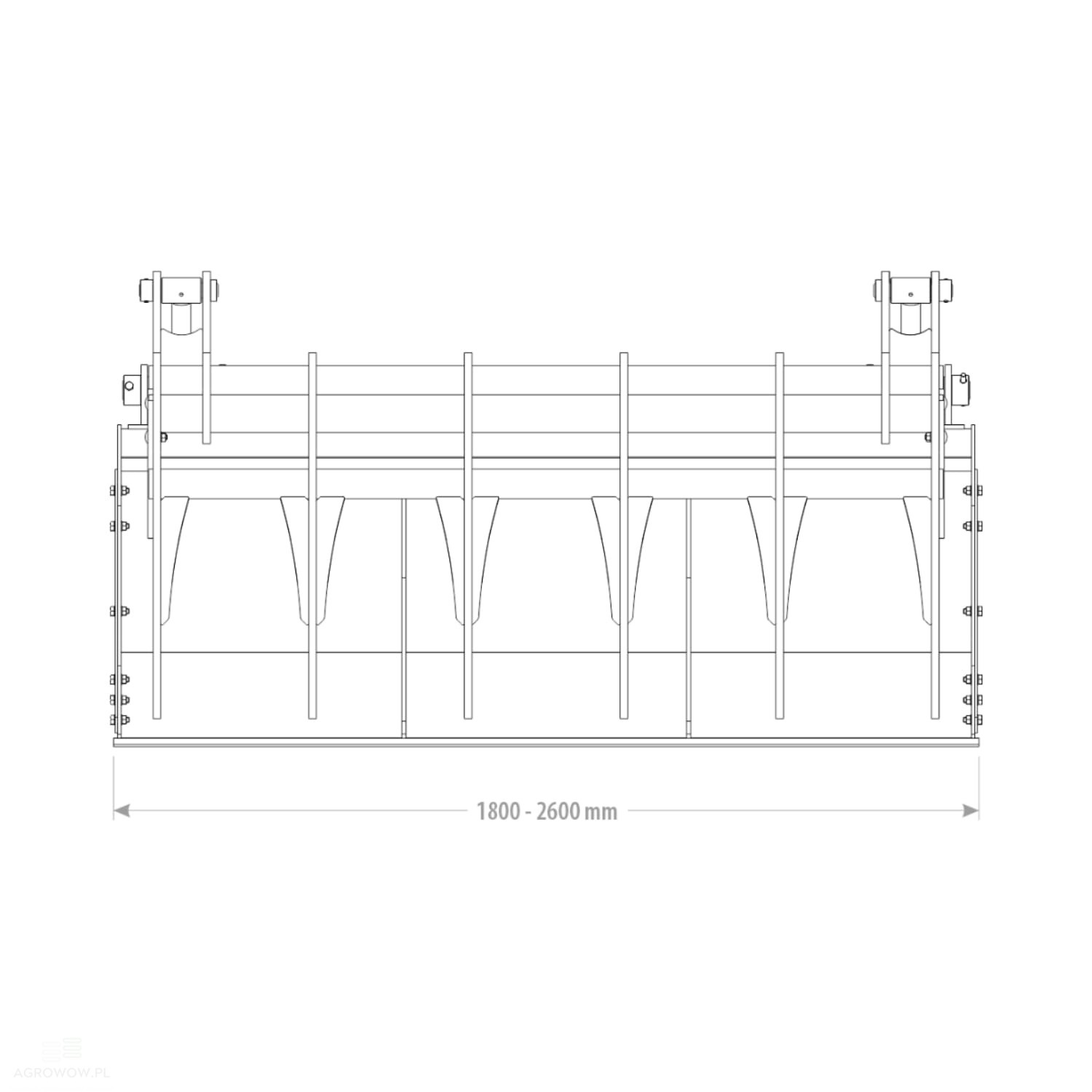

- Width: 1800 mm

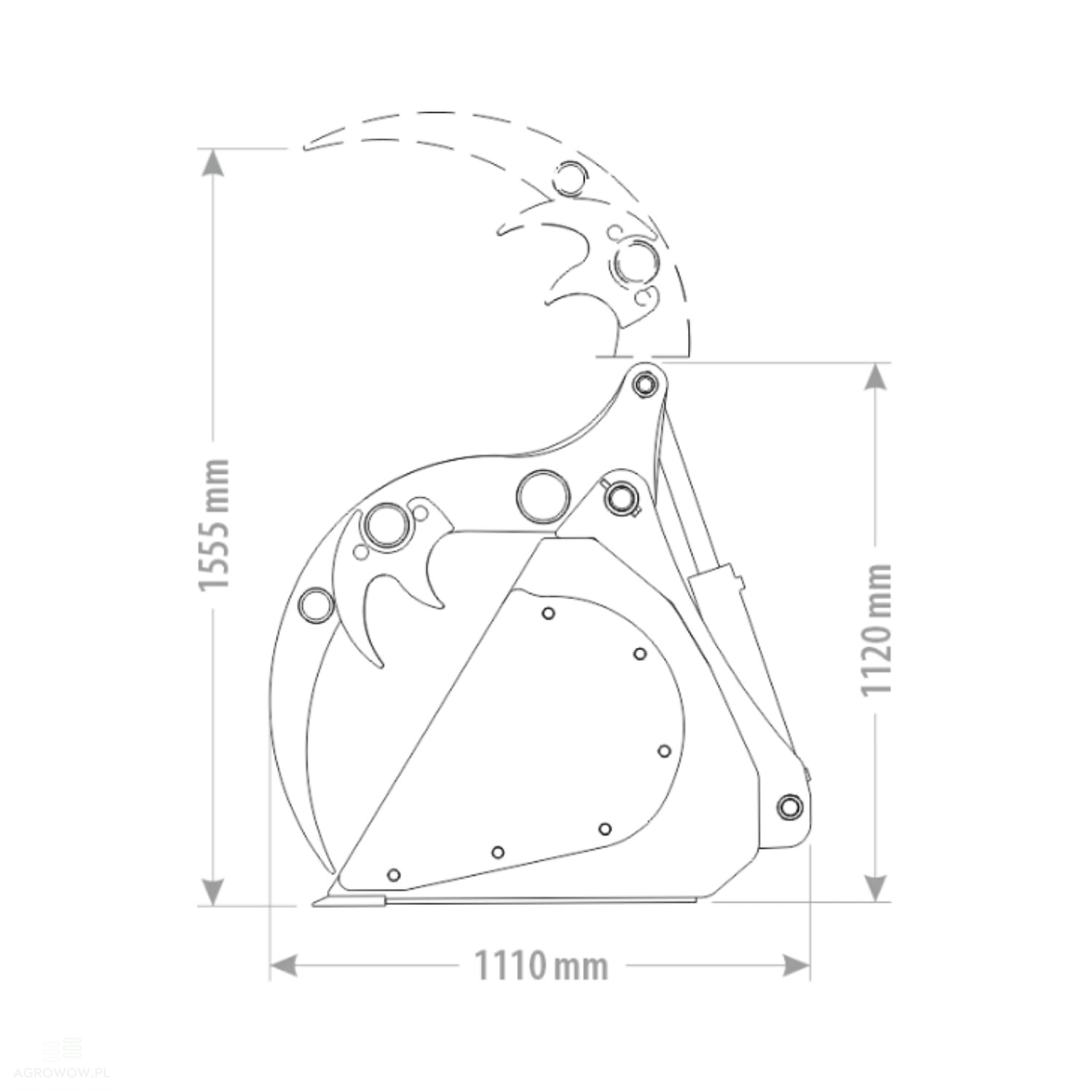

- Length: 1110 mm

- Height: 1120 mm

- Height with clamp open: 1555 mm

- Capacity: 0.95 m³

- Weight: 675 kg

- Number of tines: 6

- Side panel thickness: 8 mm

- Main body shell thickness: 6 mm

- HB500 cutting edge: 150x20 mm

- Bolt-on tines in the clamp: 2

- Clamp tine thickness: 18 mm

- Bolt-on side panels: 6 mm

Optional equipment:

- VMP relief valve

The VMP type relief valve is an advanced device used in hydraulic systems, whose main task is to maintain pressure stability in the system. It operates by discharging excess working fluid from the system when the pressure exceeds a set limit value. Thanks to this function, the VMP valve provides protection against excessive loads and damage, while stabilizing the operation of the entire hydraulic system. This valve is equipped with an adjustment mechanism, allowing precise tuning of the working pressure to the individual requirements of the equipment. Furthermore, the valve features sensors monitoring fluid pressure and temperature, which transmit data to an electronic controller. Based on this information, the controller generates appropriate electrical impulses that alter the valve position and adjust fluid flow within the system, ensuring its optimal operation under various working conditions.

- Bolt-on cutting edge / wear blade

The bolt-on cutting edge is a working element used in a variety of hydraulic tools, including buckets and other material transport equipment. Its design allows for easy replacement and adjustment, making it possible to adapt the tool to specific working conditions. The bolt-on cutting edge features high wear resistance, particularly in harsh environments involving stones, gravel, or other hard materials. Due to its robust construction and the high-grade material from which it is made (e.g., HB500 steel), the cutting edge ensures long-term equipment functionality. Regular maintenance and tightening of the cutting edge help maintain optimal work efficiency while reducing the upkeep costs of the working tools.

Detailed Description:

• The MAXI bucket grab with clamp is a heavy-duty, versatile tool designed for intensive use in both agriculture and construction.
• It is ideal for handling bulk materials such as silage, manure, compost, and grain, ensuring high operational efficiency even under demanding conditions.
• With a capacity of 0.95 m³ and a width of 1800 mm, the bucket maximizes loading volumes per cycle.
• This significantly reduces the number of operational runs required, saving time and increasing daily productivity when loading trailers, muck spreaders, or utility vehicles.
• The top clamp mechanism features high-grade steel, bolt-on tines that secure unstable loads and prevent spillage or wind loss during transport—especially in harsh weather.
• The bolt-on design allows for quick, cost-effective maintenance and easy replacement.
• Built for longevity, the robust chassis features 8 mm thick side walls and a 6 mm shell to resist severe mechanical impacts, overloads, and uneven or stony ground.
• Additionally, the 150x20 mm HB500 steel cutting edge provides outstanding abrasion resistance, ensuring efficient material dosing and clean scraping.
• For operational convenience, easily accessible lubrication points simplify daily pin maintenance, protecting moving parts from premature wear.
• The system requires two hydraulic sections, utilizing dual circuits to give the operator precise control over clamping speed and force based on the material type.
• Combining premium build quality with reliable hydraulic functionality, the MAXI bucket grab is an indispensable asset for front loaders, optimizing material handling across agricultural and industrial job sites.
