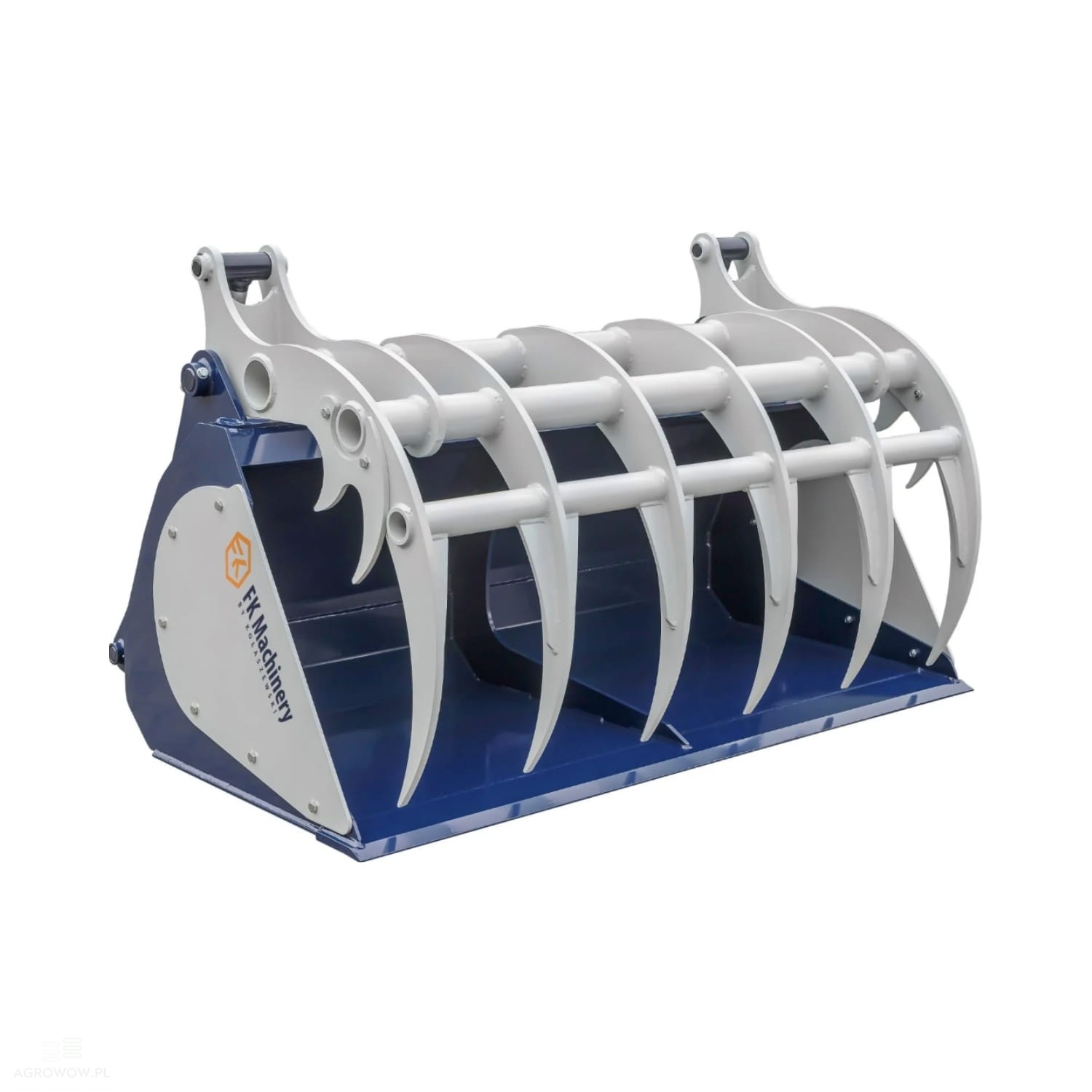

Kołaszewski MAXI bucket grab with clamp 2.0 x 1.12 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KMBGBM200

- Manufacturer's name: MAXI bucket grab with clamp

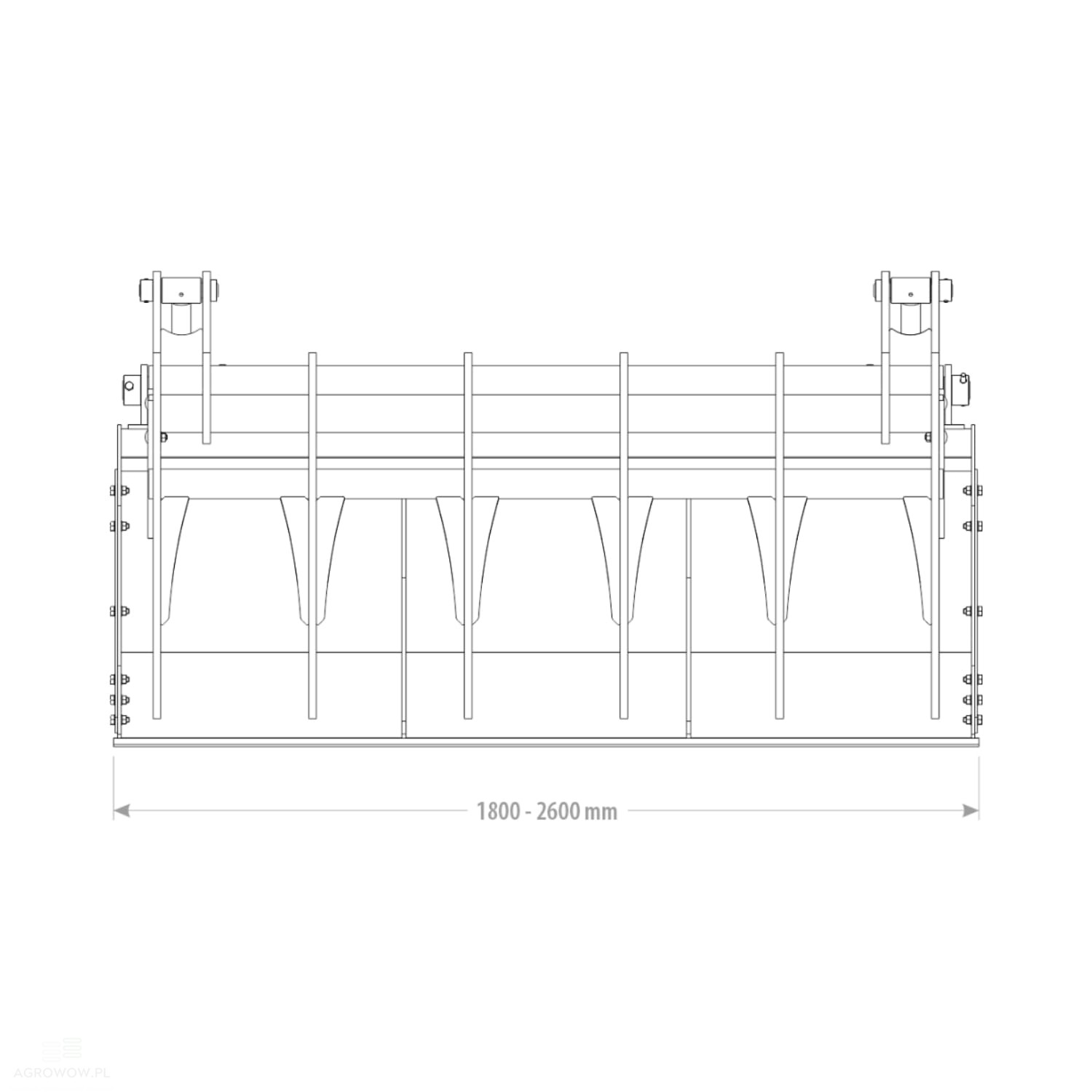

- Width: 2000 mm

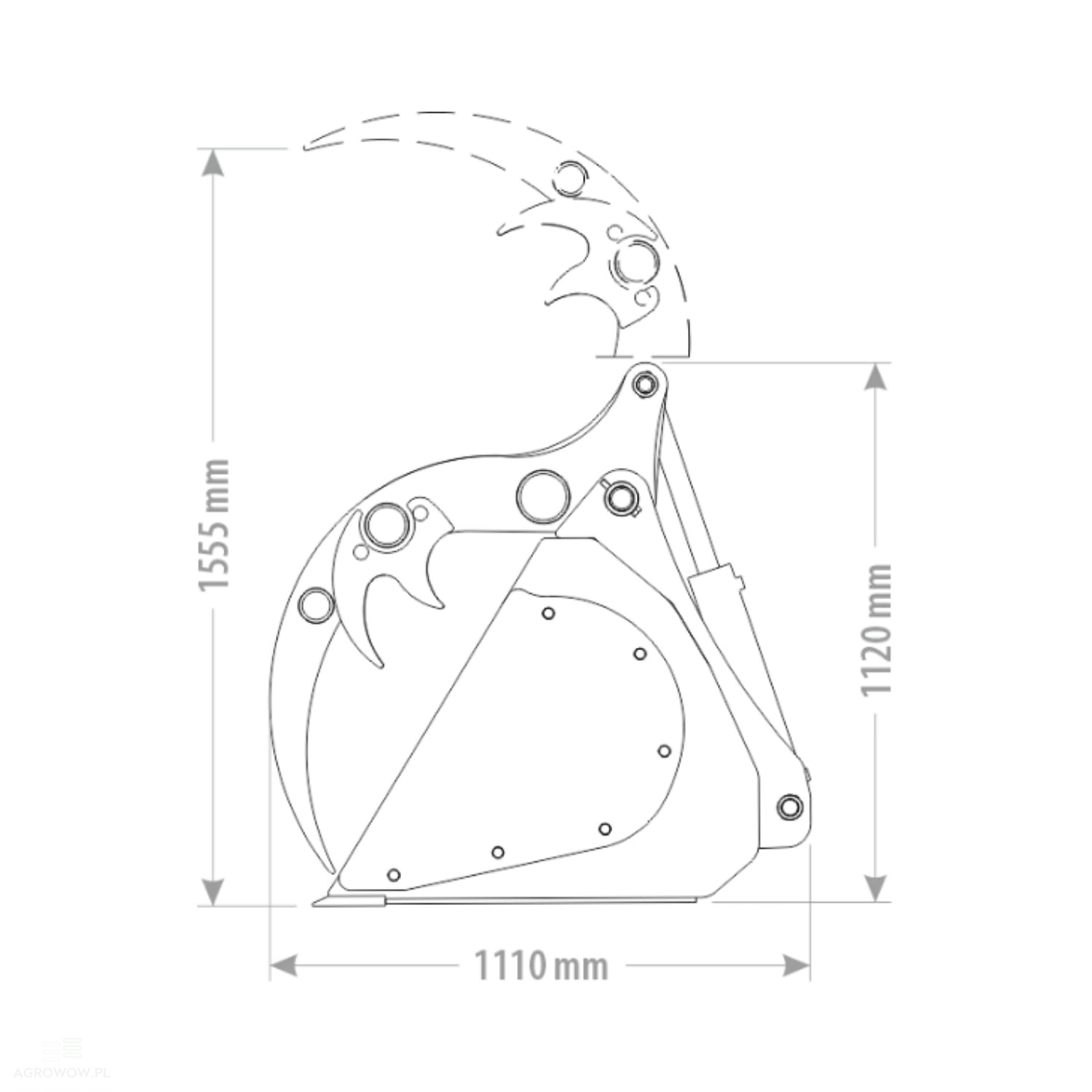

- Length: 1110 mm

- Height: 1120 mm

- Height with clamp open: 1555 mm

- Capacity: 1.06 m³

- Weight: 708 kg

- Number of tines: 6

- Side panel thickness: 8 mm

- Main body shell thickness: 6 mm

- HB500 cutting edge: 150x20 mm

- Bolt-on tines in the clamp: 2

- Clamp tine thickness: 18 mm

- Bolt-on side panels: 6 mm

Optional equipment (at additional cost):

- VMP relief valve

The VMP type relief valve is a modern hydraulic device that plays a crucial role in maintaining system pressure stability. Its primary task is to remove excess working fluid when the system pressure exceeds a set value, which provides protection against excessive loads and potential damage. Thanks to this, the VMP valve stabilizes the operation of the entire hydraulic system, ensuring its safety and efficiency. The valve features an adjustment mechanism, allowing precise matching of the working pressure to the requirements of a specific device. Additionally, the valve is equipped with sensors monitoring the pressure and temperature of the working fluid, which transmit this data to an electronic controller. Based on this information, the controller sends electrical impulses that adjust the valve position and regulate fluid flow, ensuring optimal system operation under various working conditions.

- Bolt-on cutting edge / wear blade

The cutting edge with an adjustable bolt-on mounting is a working element used in various hydraulic tools such as buckets and transport equipment. Its design allows for easy replacement and adaptation to different working conditions, making it highly versatile. The bolt-on cutting edge features high resistance to abrasion and wear, especially in harsh conditions involving stones, gravel, or other hard materials. Made of high-quality materials like HB500 steel, it ensures long-term equipment functionality even during heavy-duty use. Regular tightening and maintenance of the cutting edge help maintain its optimal performance and reduce costs associated with maintaining the work tools, ensuring continuous work efficiency.

Detailed Description:

• The MAXI bucket grab with clamp is an exceptional and robust tool built for heavy-duty use in agriculture and construction, delivering high throughput during the transport of bulk materials such as silage, manure, compost, grain, and other loose substances.

• Equipped with a spacious hopper featuring a volume of 1.06 m³, the bucket offers plenty of room to load larger material quantities in a single cycle, significantly increasing work throughput by saving time and reducing the number of required operational cycles.

• Thanks to this large capacity, the bucket enables fast and efficient material transport onto trailers, muck spreaders, and other utility vehicles.

• The top clamp mechanism, featuring bolt-on tines, ensures the security of transported loads, eliminating the risk of material sliding out or being blown away by the wind.

• This proves particularly important in harsh weather conditions, ensuring load stability across diverse working environments.

• The robust construction of the bucket, with 8 mm thick side walls and a 6 mm shell, provides high resistance to mechanical damage, guaranteeing its reliability under tough operational factors such as stony ground or uneven surfaces.

• Its 6 steel tines, manufactured from high-quality steel, effectively support and hold the load, minimizing the risk of spillage to improve transport efficiency and shorten working times.

• These tines are exceptionally resistant to abrasion, ensuring tool longevity even during intensive exploitation.

• The tines within the clamp mechanism are bolt-on, allowing for easy replacement and maintenance, which increases the lifespan of the equipment and its functionality.

• Regular maintenance keeps the bucket in good condition for many years, reducing operating costs.

• The cutting edge made of HB500 steel with dimensions of 150x20 mm guarantees excellent abrasion resistance, making the bucket exceptionally durable and reliable, even in demanding working conditions.

• The attachment requires two hydraulic sections, giving the operator full control over the bucket's functions, enabling precise and efficient operation across various working environments.

• Dual hydraulic circuits allow for flexibility in setting the speed and clamping force depending on the material being transported.

• The bucket is an ideal attachment for use with front loaders, making it exceptionally versatile and effective in various sectors, from agriculture to construction.

• Premium build quality, straightforward maintenance, and dependability ensure long-term functionality.

• This is an indispensable tool that improves work efficiency while ensuring load stability and safety during material handling in tough environments.
