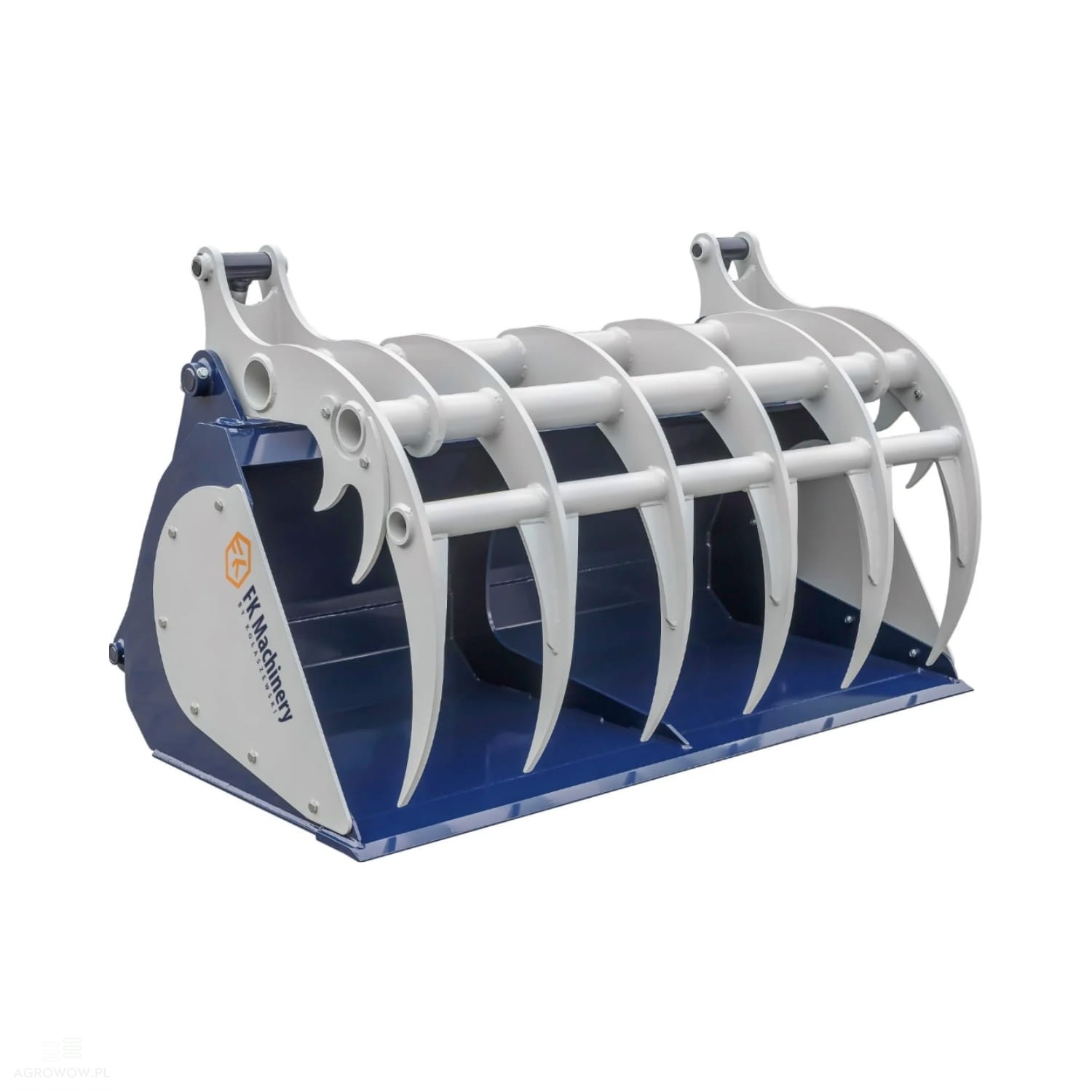

Kołaszewski MAXI bucket grab with clamp 2.2 x 1.12 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KMBGBM220

- Manufacturer's name: MAXI bucket grab with clamp

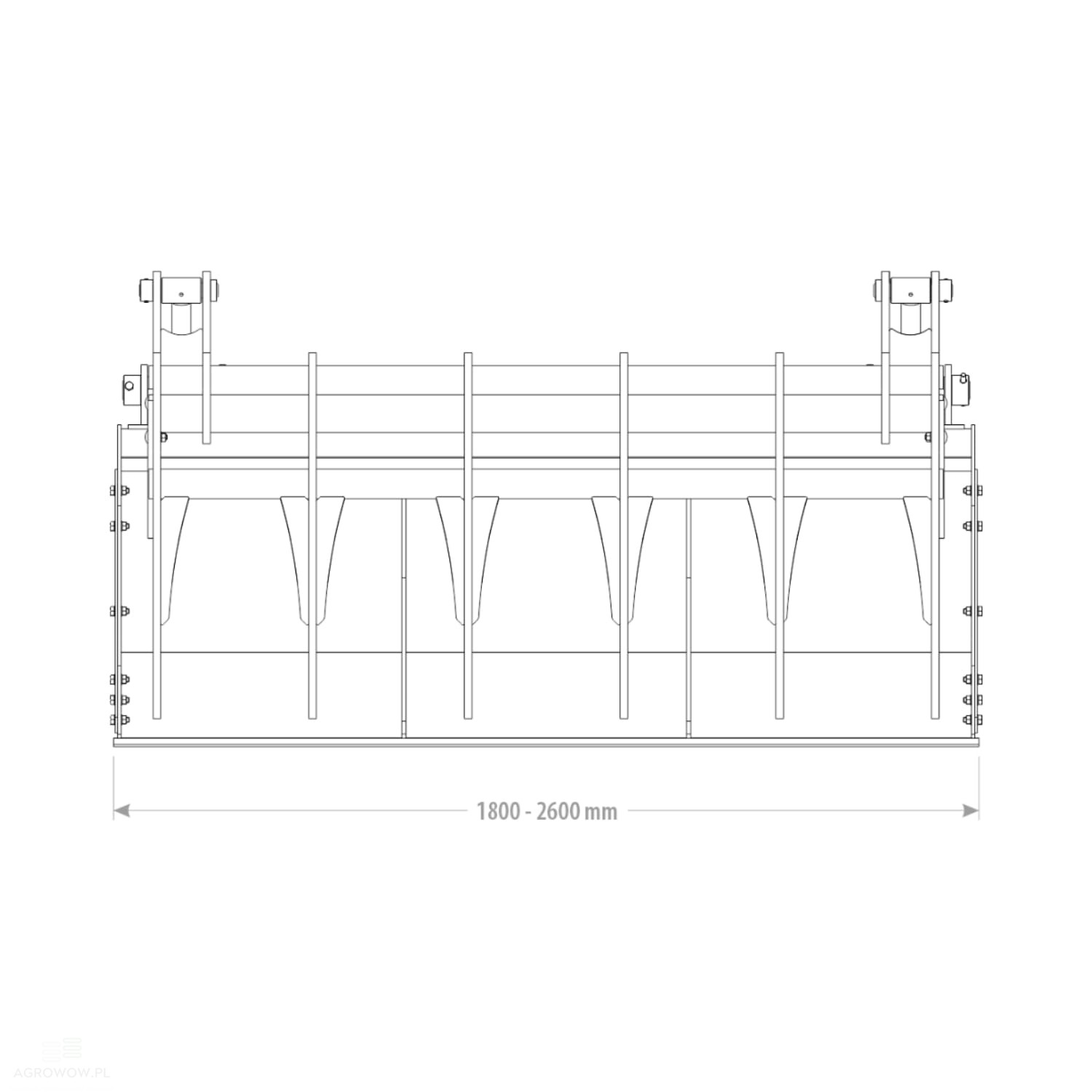

- Width: 2200 mm

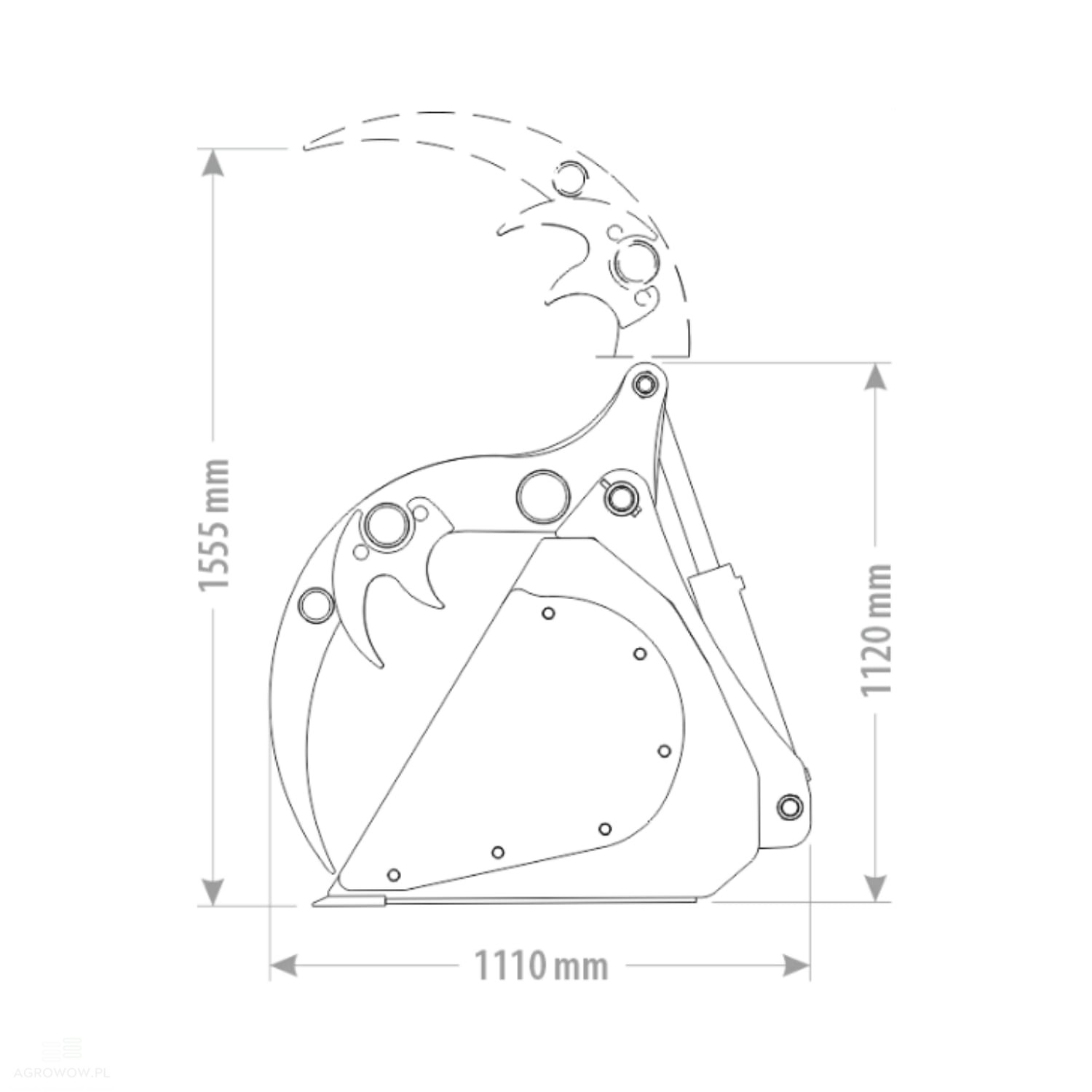

- Length: 1110 mm

- Height: 1120 mm

- Height with clamp open: 1555 mm

- Capacity: 1.17 m³

- Weight: 758 kg

- Number of tines: 7

- Side panel thickness: 8 mm

- Main body shell thickness: 6 mm

- HB500 cutting edge: 150x20 mm

- Bolt-on tines in the clamp: 2

- Clamp tine thickness: 18 mm

- Bolt-on side panels: 6 mm

- Hinges: 3

Optional equipment (at additional cost):

- VMP relief valve

The VMP type relief valve is an advanced hydraulic device that plays a crucial role in managing system pressure. Its primary function is to discharge excess working fluid when the system pressure exceeds a programmed value, protecting the system from excessive loads and damage. Thanks to this function, the VMP valve stabilizes the operation of the hydraulic system, ensuring its safe and effective performance. The valve features a pressure adjustment mechanism, allowing precise matching of its parameters to the specific requirements of the equipment. Furthermore, the valve is equipped with sensors that monitor the pressure and temperature of the working fluid. The gathered data is transmitted to an electronic controller, which uses it to send appropriate electrical impulses, regulating the valve position and adjusting fluid flow to ensure optimal system operation under various working conditions.

- Bolt-on cutting edge / wear blade

The cutting edge with an adjustable bolt-on mounting is a key working element used in hydraulic tools such as buckets and transport equipment. Thanks to a design that allows for easy replacement and adaptation to various working conditions, it is an exceptionally versatile tool. The bolt-on cutting edge features high resistance to abrasion and wear, especially in harsh environments involving stones, gravel, or other hard materials. Made of high-grade materials like HB500 steel, it ensures long-term equipment efficiency even during intensive use. Regular tightening and maintenance of the cutting edge help maintain its optimal performance, while reducing costs associated with maintaining the work tools and ensuring their continuous efficiency.

Detailed Description:

• The MAXI bucket grab with clamp is an exceptional agricultural tool designed for high-intensity use in farming and construction, engineered for transporting bulk materials such as silage, manure, compost, grain, and other loose substances.

• It is a device that ensures high work throughput, even under demanding working conditions.

• Equipped with a spacious hopper featuring a capacity of 1.17 m³ and a width of 2200 mm, the bucket enables the loading of larger material volumes in a single cycle.

• Consequently, the user can save time, increase work efficiency, and reduce the number of operational cycles required, leading to the efficient transport of materials onto trailers, muck spreaders, and other utility vehicles.

• The top clamp mechanism, featuring bolt-on tines, ensures the stability of transported materials, eliminating the risk of them sliding out or being blown away by the wind, which is particularly important when working in harsh weather conditions.

• The tines, manufactured from high-quality steel, ensure long-term functionality and effectiveness, while the simple replacement and maintenance of these components contribute to lower equipment upkeep costs and longevity.

• The robust construction of the bucket, with 8 mm thick side walls and a 6 mm shell, ensures resistance to mechanical damage, guaranteeing reliability under tough operational factors.

• The tool withstands intensive use even in the presence of uneven surfaces, stones, or other hard objects within the material.

• Equipped with a 150x20 mm HB500 cutting edge, the bucket offers outstanding abrasion resistance, making it exceptionally durable and efficient, even under intensively exploited conditions.

• The edge efficiently processes material, enabling even dosing and loading.

• Easy access to the pin lubrication points makes equipment maintenance fast and convenient, which extends its lifespan and lowers upkeep costs.

• Regular greasing of moving parts helps keep the bucket grab in excellent technical condition over a long period, minimizing the need for costly repairs.

• The required two hydraulic sections provide full control over the bucket's functions.

• Dual hydraulic circuits give flexibility, allowing the operator to adjust the speed and clamping force depending on the type of material being transported, which ensures precise and efficient use across different working conditions.

• With its seven steel tines, the bucket ensures high efficiency when handling bulk materials.

• These tines effectively support and hold the load, preventing spillage, which improves transport speed and reduces the time required for loading and transport operations, especially when dealing with demanding materials.

• The MAXI bucket grab with clamp is a versatile tool that combines premium build quality with functionality and dependability.

• Thanks to its advanced design, straightforward maintenance, and high output, the bucket ensures rapid and safe material handling in tough environments, proving its value perfectly in both agricultural and construction applications.
