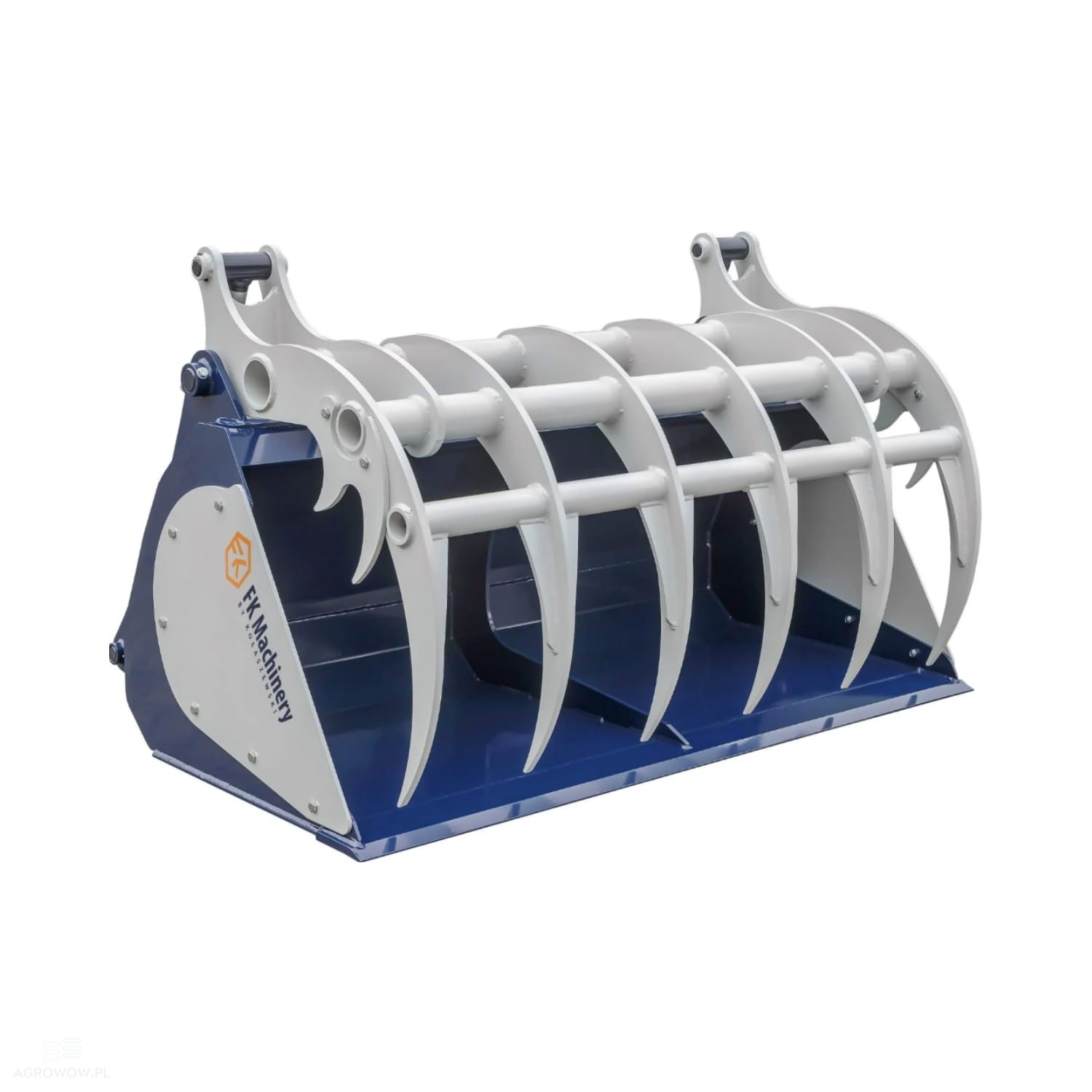

Kołaszewski MAXI bucket grab with clamp 2.4 x 1.12 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Adres e-mail: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KMBGBM240

- Manufacturer's name: MAXI bucket grab with clamp

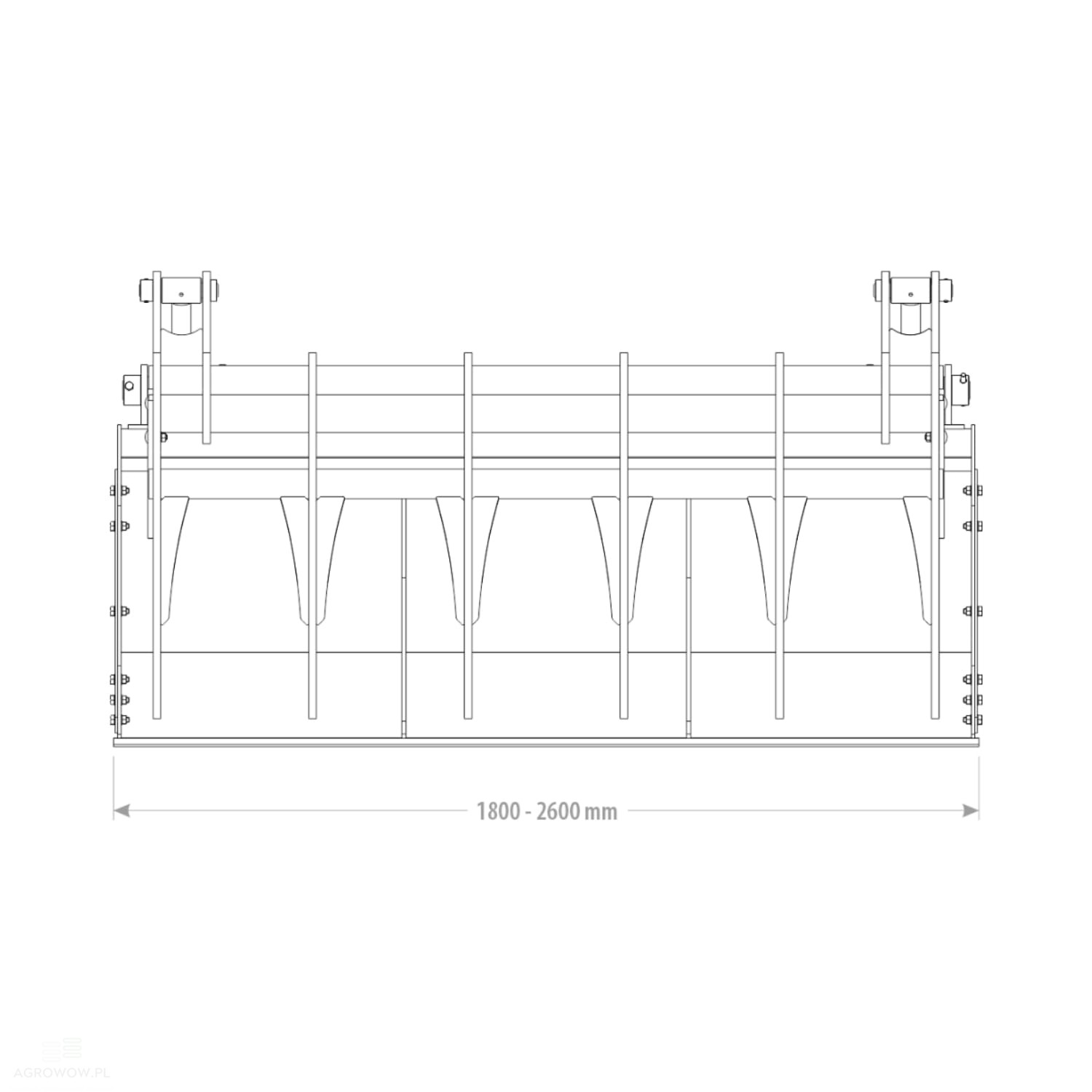

- Width: 2400 mm

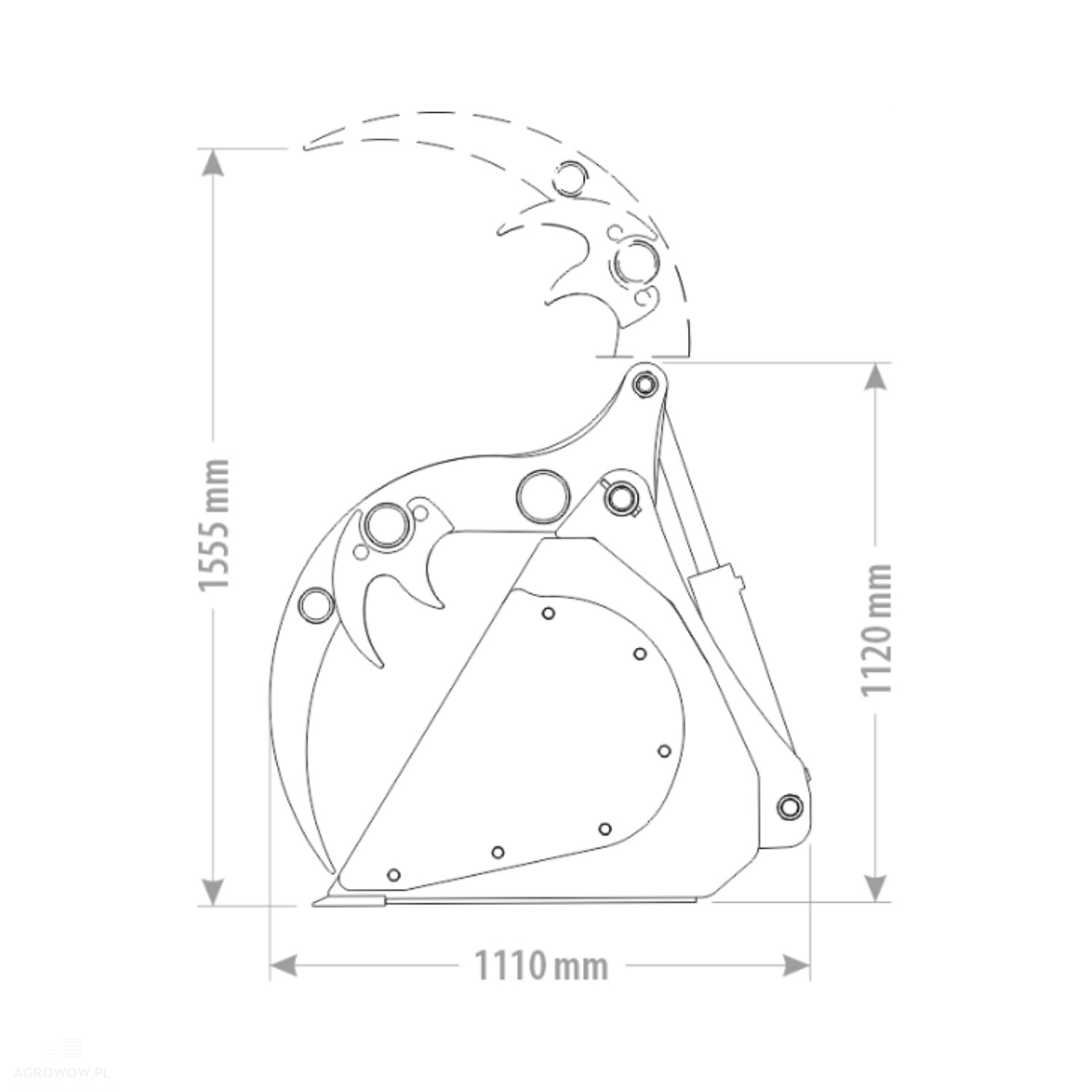

- Length: 1110 mm

- Height: 1120 mm

- Height with clamp open: 1555 mm

- Capacity: 1.27 m³

- Weight: 781 kg

- Number of tines: 7

- Side panel thickness: 8 mm

- Main body shell thickness: 6 mm

- HB500 cutting edge: 150x20 mm

- Bolt-on tines in the clamp: 2

- Clamp tine thickness: 18 mm

- Bolt-on side panels: 6 mm

- Hinges: 3

Optional equipment (at additional cost):

- VMP relief valve

The VMP type relief valve is a modern hydraulic device that plays a crucial role in managing pressure within the hydraulic system. Its primary task is to discharge excess working fluid when the system pressure exceeds a specified limit, helping protect the system from overloads and damage. Thanks to this function, the VMP valve ensures operational stability for the entire hydraulic system, guaranteeing safe and efficient performance. The valve features a pressure adjustment mechanism, allowing precise tuning of pressure parameters to match the specific needs of the equipment. Furthermore, the valve includes sensors monitoring the pressure and temperature of the working fluid, which transmit data to an electronic controller. Based on this information, the controller generates electrical impulses that alter the valve position, precisely regulating fluid flow within the system and ensuring its optimal operation under various conditions.

- Bolt-on cutting edge / wear blade

The cutting edge with an adjustable bolt-on mounting is an important working element used in hydraulic tools such as buckets or material transport equipment. Thanks to a design that allows for easy replacement and adaptation to various working conditions, it is an exceptionally versatile tool. The bolt-on cutting edge features high resistance to abrasion and wear, especially in harsh conditions involving stones, gravel, or other hard materials. Made of high-quality materials like HB500 steel, it ensures long-term equipment efficiency even during intensive use. Regular tightening and maintenance of the cutting edge help maintain its optimal performance, reducing costs associated with maintaining the work equipment and ensuring long-term work efficiency.

Detailed Description:

• The MAXI bucket grab with clamp is an exceptionally efficient agricultural tool designed for high-intensity use on farms and in the construction industry.

• It is ideal for transporting bulk materials such as silage, manure, compost, grain, and other loose substances, ensuring high work efficiency under demanding working conditions.

• This bucket offers a large capacity of 1.27 m³ and a width of 2400 mm, enabling the loading of larger material volumes in a single cycle.

• Thanks to this, users can save time, increase work throughput, and reduce the number of operational cycles required, which translates into efficient material transport onto trailers, muck spreaders, and other utility vehicles.

• The top clamp mechanism, featuring bolt-on tines, ensures load stability, eliminating the risk of material sliding out or being blown away by the wind, particularly when working in volatile weather conditions.

• The tines, manufactured from high-grade steel, are highly resistant to wear, ensuring long-term effectiveness and allowing for easy maintenance and replacement.

• Featuring a heavy-duty construction with 8 mm thick side walls and a 6 mm shell, the bucket displays high resistance to mechanical damage, ensuring reliability under harsh operational factors such as stony ground or uneven surfaces.

• Thanks to this resilience, the attachment maintains its functional properties over a long period.

• Equipped with a 150x20 mm HB500 cutting edge, the bucket provides outstanding abrasion resistance, making it exceptionally durable and efficient under intensively exploited conditions.

• The edge efficiently processes and moves material, ensuring even dosing and material loading.

• Easy access to the pin lubrication points ensures fast and convenient maintenance execution, which helps keep the bucket grab in excellent condition for a long time, minimizing the need for costly repairs and reducing operating costs.

• The attachment requires two hydraulic sections, giving the operator full control over the bucket's functions.

• Thanks to this, the device operates smoothly and dependably, allowing for precise adjustment of speed and clamping force depending on the material being transported and the working conditions.

• With its seven steel tines, the bucket ensures high efficiency when handling bulk materials.

• These tines effectively support and hold the load, preventing spillage to accelerate loading and transport operations, especially when dealing with demanding materials.

• The MAXI bucket grab with clamp is a versatile tool that combines solid construction with functionality and dependability.

• Thanks to its advanced design, premium manufacturing quality, and straightforward maintenance, it ensures rapid, safe, and efficient material handling in tough environments, proving its value in both agricultural and construction applications.
