Kołaszewski MAXI bucket grab with clamp 2.6 x 1.12 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KMBGBM260

- Manufacturer's name: MAXI bucket grab with clamp

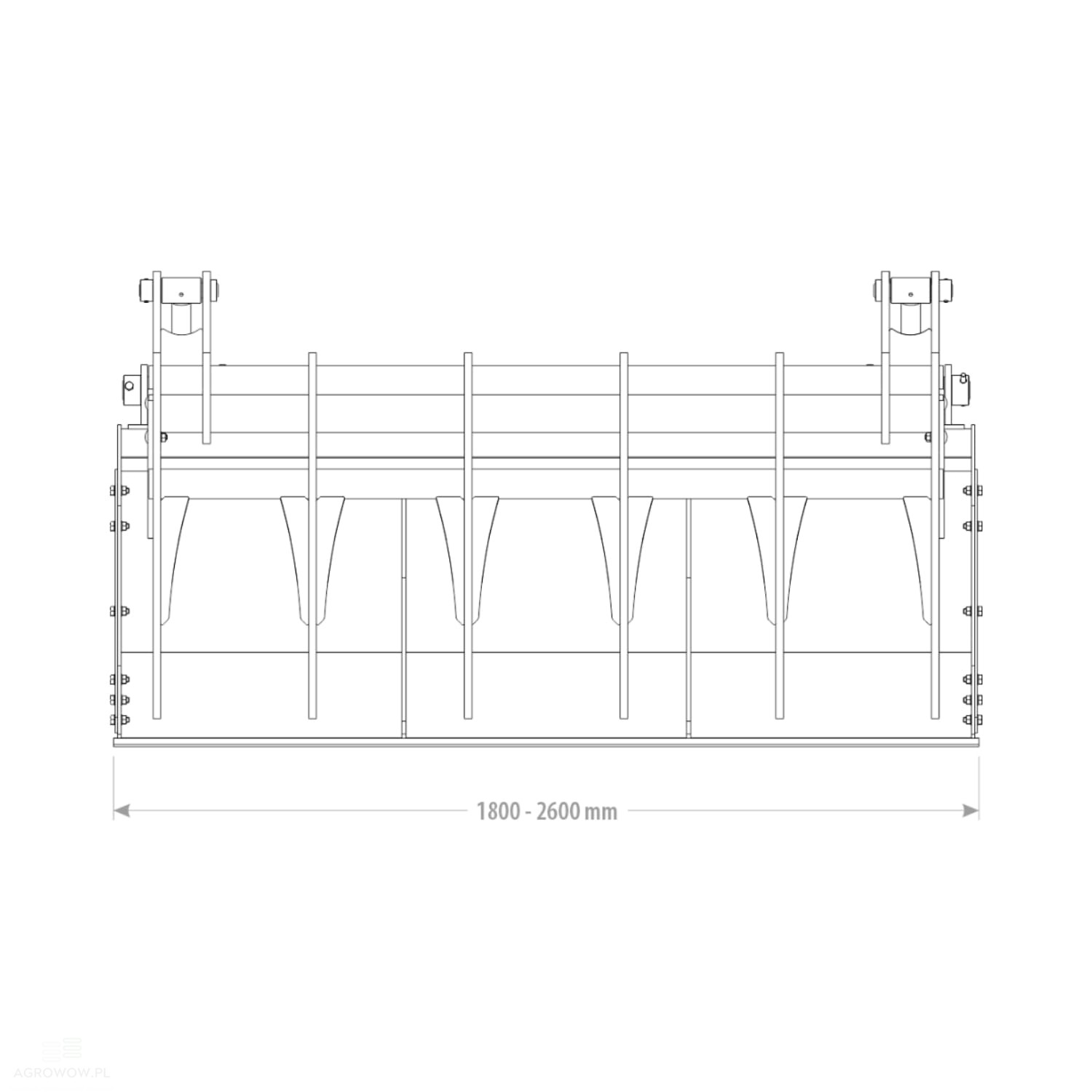

- Width: 2600 mm

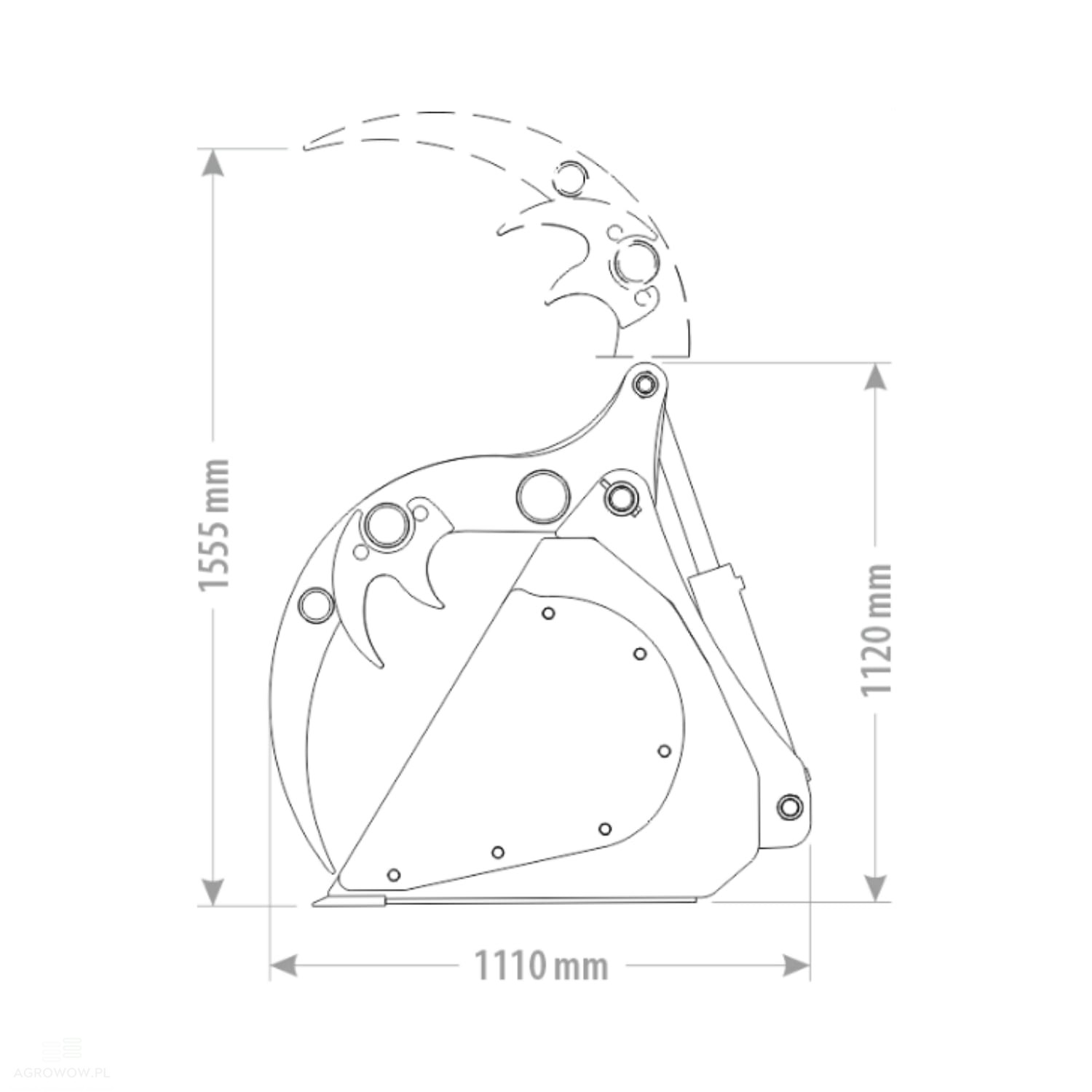

- Length: 1110 mm

- Height: 1120 mm

- Height with clamp open: 1555 mm

- Capacity: 1.38 m³

- Weight: 822 kg

- Number of tines: 7

- Side panel thickness: 8 mm

- Main body shell thickness: 6 mm

- HB500 cutting edge: 150x20 mm

- Bolt-on tines in the clamp: 2

- Clamp tine thickness: 18 mm

- Bolt-on side panels: 6 mm

- Hinges: 3

Optional equipment (at additional cost):

- VMP relief valve

The VMP type relief valve is an advanced hydraulic device that plays a crucial role in controlling system pressure. Its primary task is to remove excess working fluid from the system when the pressure exceeds a preset value, which protects the system from overloads and damage. Thanks to this function, the VMP valve ensures the stability of the hydraulic system, enabling its safe and efficient operation. The valve is equipped with a pressure adjustment mechanism, allowing precise matching of operating parameters to the specific requirements of the equipment. Furthermore, the valve includes sensors monitoring the pressure and temperature of the working fluid, which transmit data to an electronic controller. Based on the gathered information, the controller sends electrical impulses that alter the valve position, precisely regulating fluid flow and ensuring optimal system operation under variable working conditions.

- Bolt-on cutting edge / wear blade

The cutting edge with an adjustable bolt-on mounting is an important working element used in hydraulic tools such as buckets or material transport equipment. Its design allows for easy replacement and adaptation to various working conditions, making it an exceptionally versatile tool. The bolt-on cutting edge features high resistance to abrasion and wear, especially in harsh conditions involving stones, gravel, or other hard materials. Made of high-quality materials like HB500 steel, it ensures long-term efficiency and reliability even during intensive use. Regular tightening and maintenance of the cutting edge help maintain its optimal performance, reducing equipment upkeep costs and ensuring long-term work efficiency in demanding working conditions.

Detailed Description:

• The MAXI bucket grab with clamp is an efficient agricultural tool designed for high-intensity use on farms and in the construction industry.

• It is ideal for transporting a variety of bulk materials such as silage, manure, compost, grain, and other loose substances, providing reliability and high efficiency under demanding working conditions.

• Equipped with a spacious hopper featuring a volume of 1.38 m³ and a width of 2600 mm, the bucket enables the loading of larger material quantities in a single cycle.

• Thanks to this, users can save time, increase work throughput, and reduce the number of operational cycles required, which translates into efficient material transport onto trailers, muck spreaders, and other utility vehicles.

• The top clamp mechanism, featuring bolt-on tines, ensures load stability, eliminating the risk of material sliding out or being blown away by the wind.

• This proves particularly important when working in harsh weather conditions involving strong wind, rain, or snow.

• The high-quality steel from which the tines are manufactured guarantees long-term efficiency, as well as ease of replacement and maintenance.

• The robust construction of the bucket, with 8 mm thick side walls and a 6 mm shell, provides high resistance to mechanical damage.

• Thanks to this, the bucket withstands tough operational factors, such as uneven surfaces, stony ground, or the presence of hard objects within the material, preserving its functional properties over a long period.

• Equipped with a 150x20 mm HB500 cutting edge, the bucket offers outstanding abrasion resistance.

• The edge efficiently processes and moves material, enabling even dosing and effective loading, which contributes to time savings and improved workflow organization on the farm.

• Easy access to the pin lubrication points makes equipment maintenance fast and convenient, contributing to the long-term functionality of the bucket grab and lowering costs associated with repairs and part replacements.

• It requires two hydraulic sections, giving the operator full control over the bucket's functions.

• With dual hydraulic circuits, users can precisely adjust the speed and clamping force depending on the material being transported, providing greater flexibility and operational efficiency across various working conditions.

• Equipped with 7 steel tines, the bucket ensures high efficiency when handling bulk materials.

• These tines effectively support and hold the load, preventing spillage and increasing transport speed, which accelerates loading and material handling in demanding working environments.

• The MAXI bucket grab with clamp is a versatile tool that combines premium build quality, functionality, and dependability.

• Thanks to its solid construction, advanced technology, and straightforward maintenance, it ensures rapid, safe, and efficient material handling in tough environments.

• It is an ideal asset for both agriculture and construction, boosting work efficiency and ensuring load stability for bulk materials.
