Kołaszewski MINI beet bucket 1.2 x 0.65 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KSPB120

- Manufacturer's name: MINI beet bucket / beet shovel

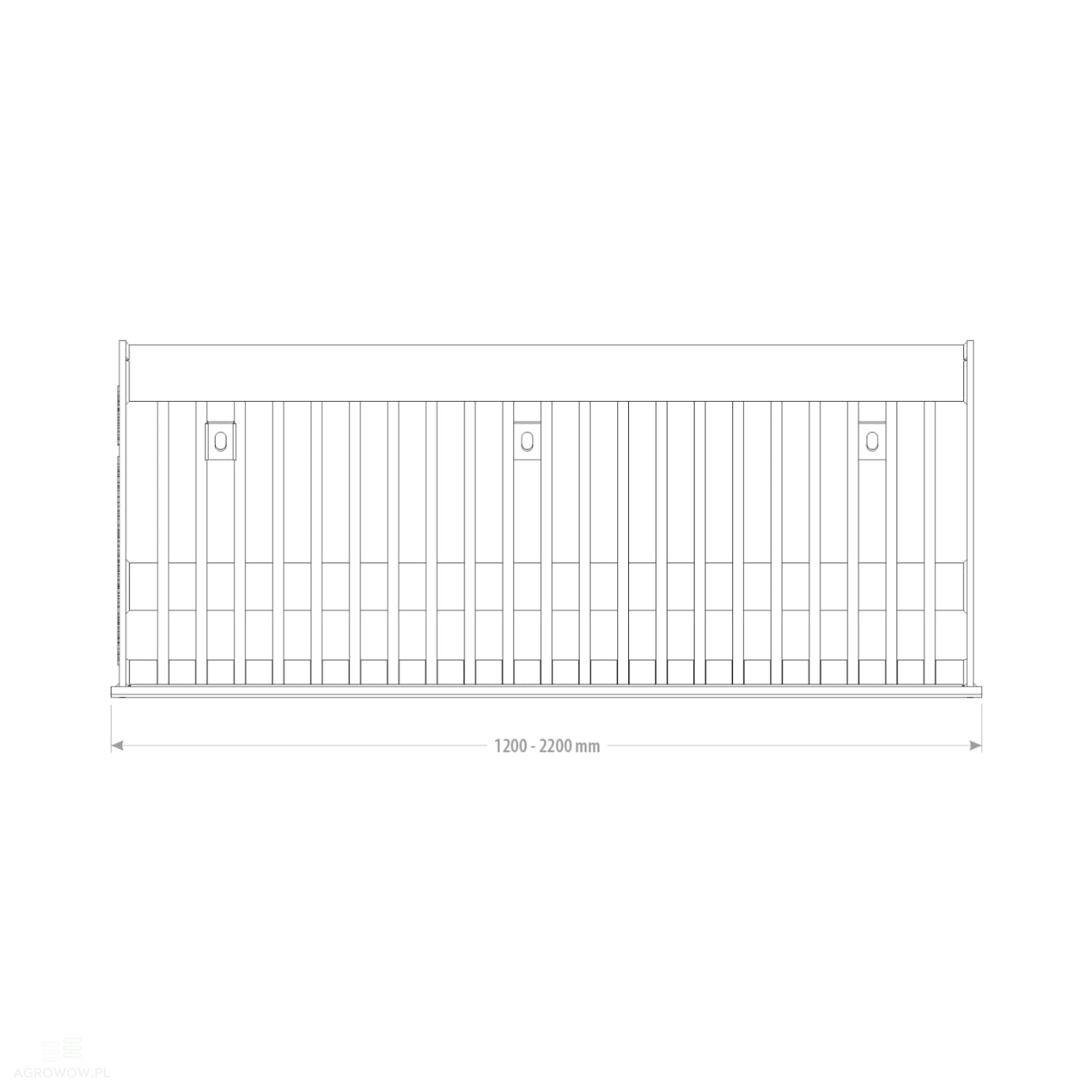

- Width: 1200 mm

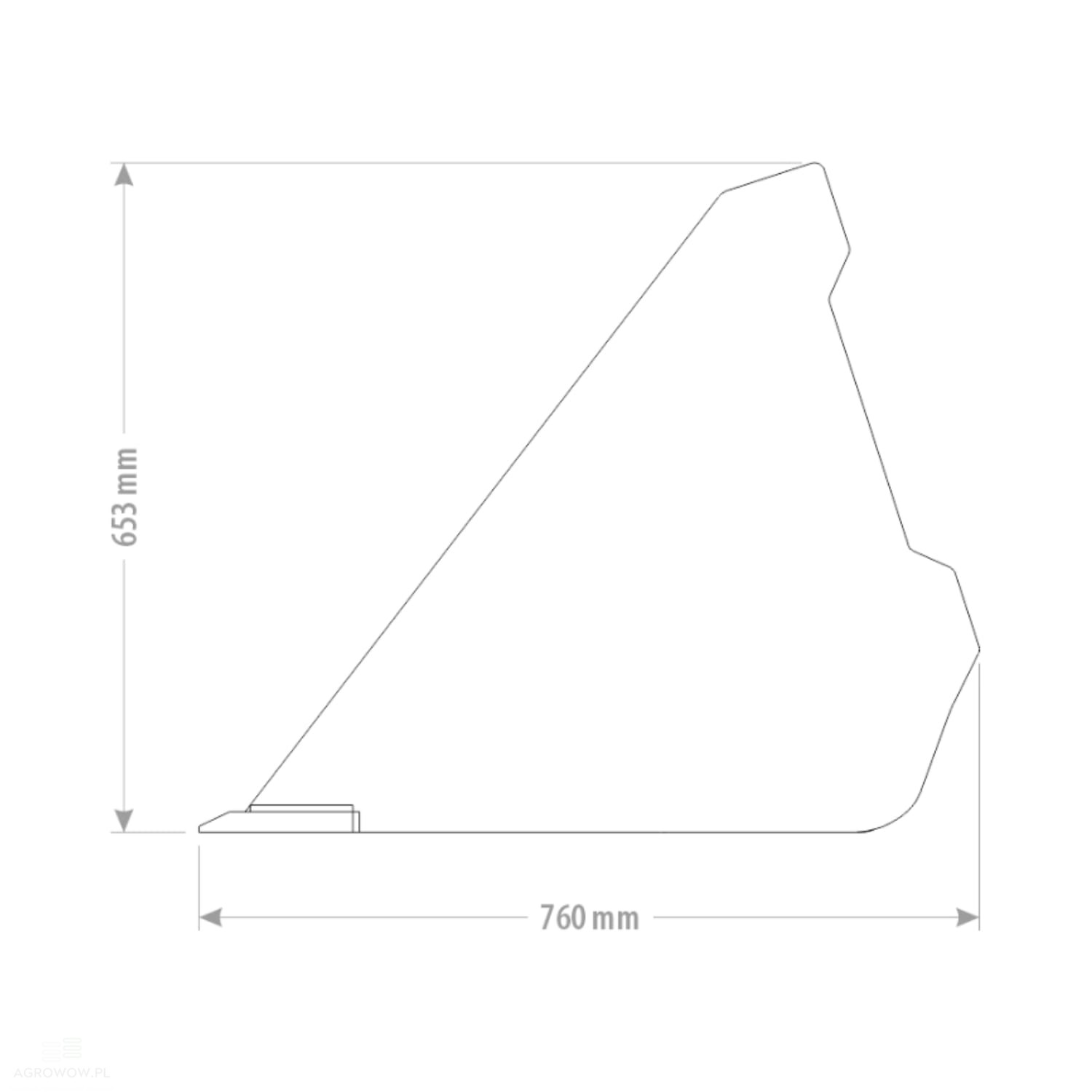

- Length: 760 mm

- Height: 653 mm

- Capacity: 0.26 m³

- Weight: 161 kg

- Side panel thickness: 6 mm

- Bar diameter: Ø20 mm

- HB500 cutting edge: 150x20 mm

- Spacing between bars: 50 mm

Optional equipment (at additional cost):

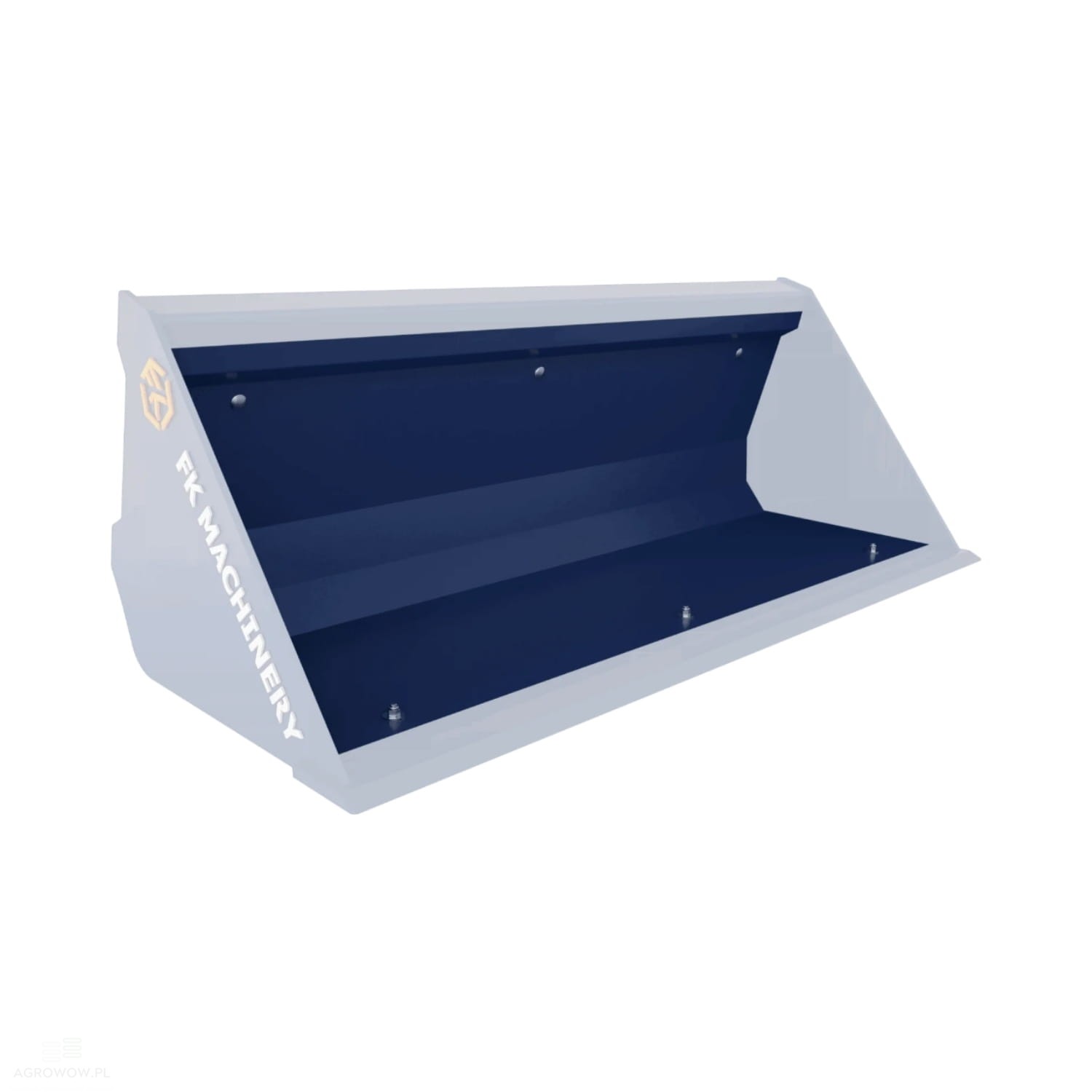

- Additional liner / insert

The additional liner for the beet bucket is a practical element that significantly increases the functionality of a traditional bar bucket. It enables the quick transformation of the open-bar shovel into a solid bucket adapted for loading and transporting loose or fine-grained materials that would otherwise fall through the spaces between the bars under standard conditions. Made of durable steel, the construction features high resistance to intensive use and heavy loads typical of agricultural work. The well-thought-out design of the insert allows for its quick and easy installation or removal using solid brackets or bolts, ensuring stability and operational convenience in daily work.

Detailed Description:

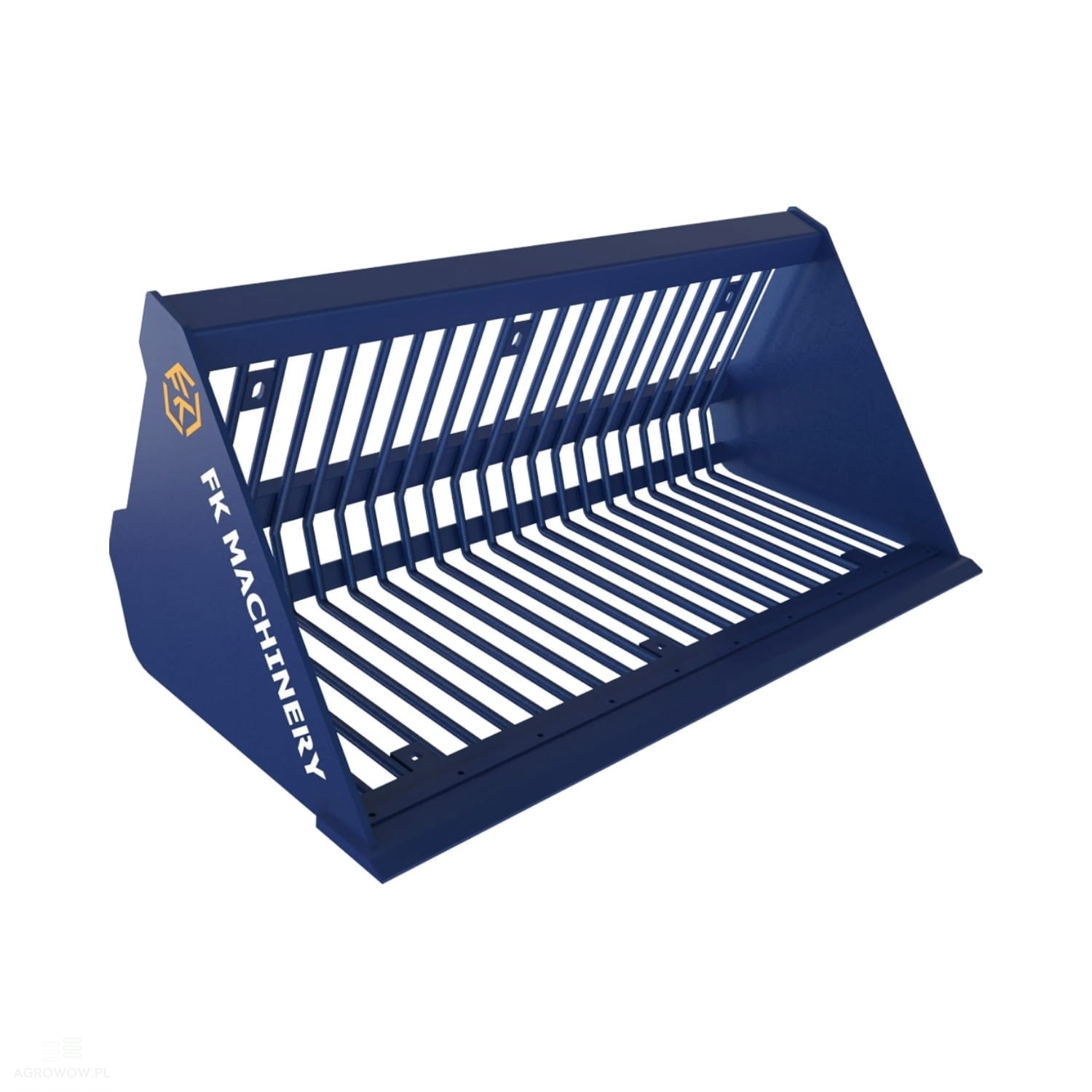

• This 1200 mm wide beet bucket is a compact and functional tool designed for smaller farms and tasks requiring precise maneuvering and handling within confined spaces.

• Thanks to its well-thought-out dimensions—length of 760 mm, height of 653 mm—and a capacity of 0.26 m³, the bucket is ideal for the rapid collection and transport of smaller quantities of sugar beets, while ensuring ease of operation even in tight yards or between crop rows.



• The floor, constructed from Ø20 mm steel bars spaced 50 mm apart, effectively separates soil and small debris right as the crop is scooped up, reducing the time needed for further beet processing and improving overall work efficiency.

• The design, based on 6 mm thick side walls, ensures durability and resistance to daily field use, minimizing the risk of damage when contacting harder ground elements.



• The lower edge of the tool is reinforced with a cutting edge made of wear-resistant HB500 steel (150x20 mm), which significantly extends the service life of the equipment and improves material scraping efficiency regardless of the surface type.

• Weighing 161 kg, the bucket provides appropriate counterweight during operation, translating into greater control over the loading process and operational safety, especially when paired with smaller tractors.



• This model can be optionally equipped with an additional solid liner, transforming the open-bar shovel into a tool suitable for transporting fine aggregates and loose materials, thereby increasing its versatility and utility value.

• The 1200 mm bucket works perfectly with light tractors equipped with front loaders as well as compact loaders, making it an ideal solution for smaller farms or auxiliary applications in larger production facilities.

• It is a practical choice for farmers seeking a solid, durable, and versatile tool that will effectively support daily work during beet harvesting and beyond.
