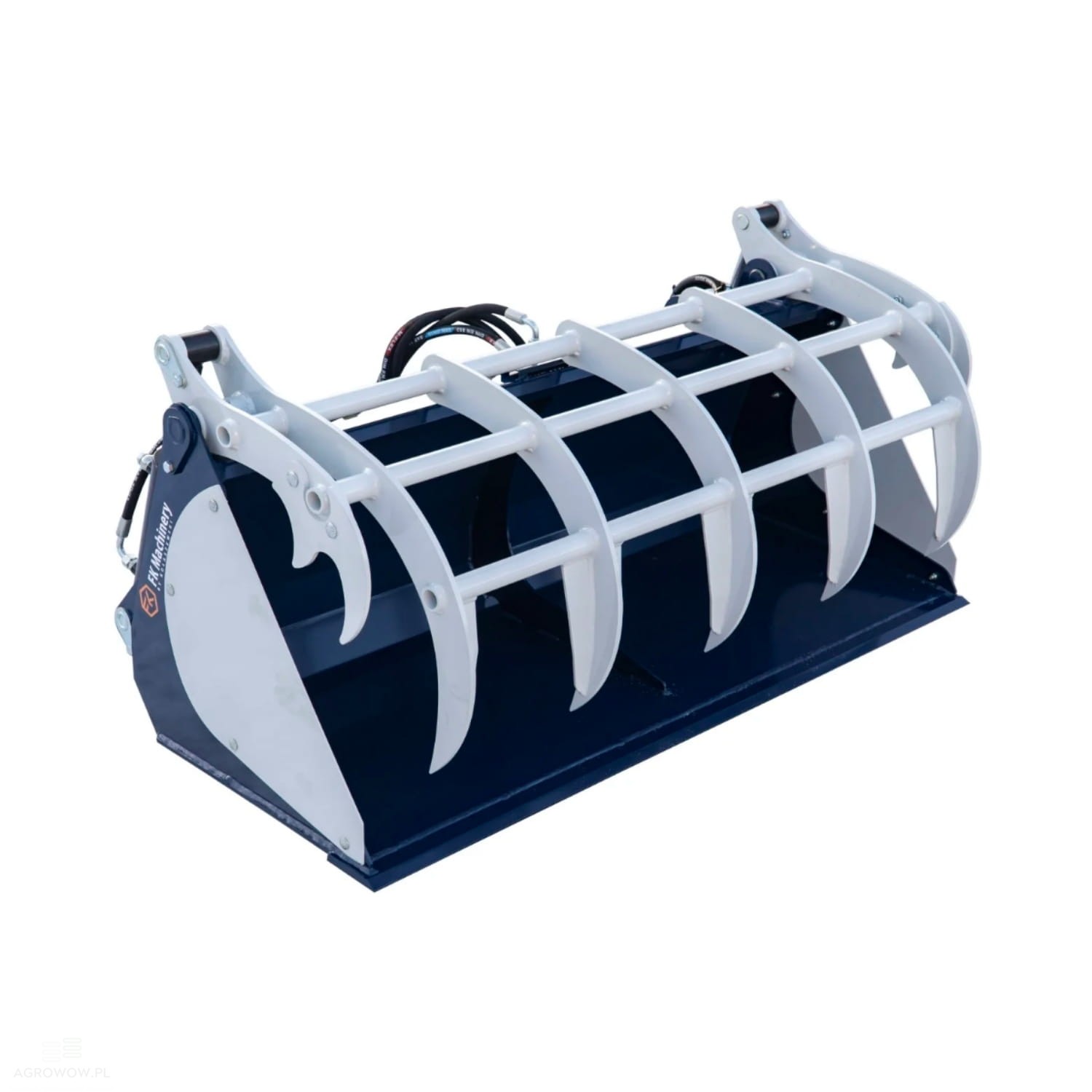

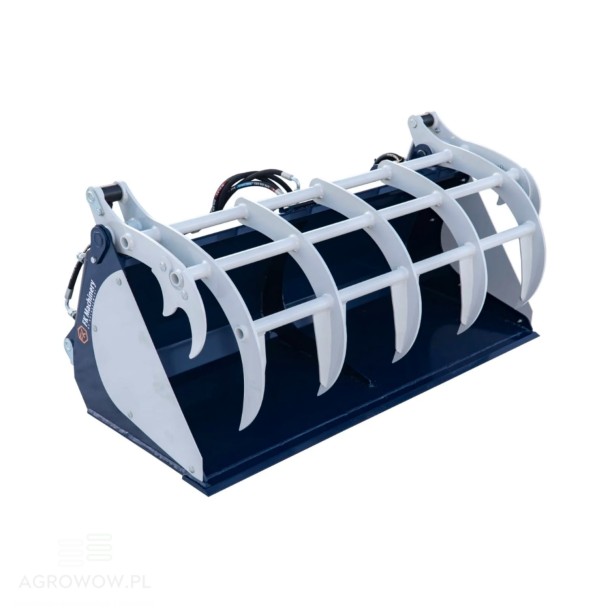

Kołaszewski MINI bucket grab with clamp 1.5 x 0.71 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KSBGB150

- Manufacturer's name: MINI bucket grab with clamp

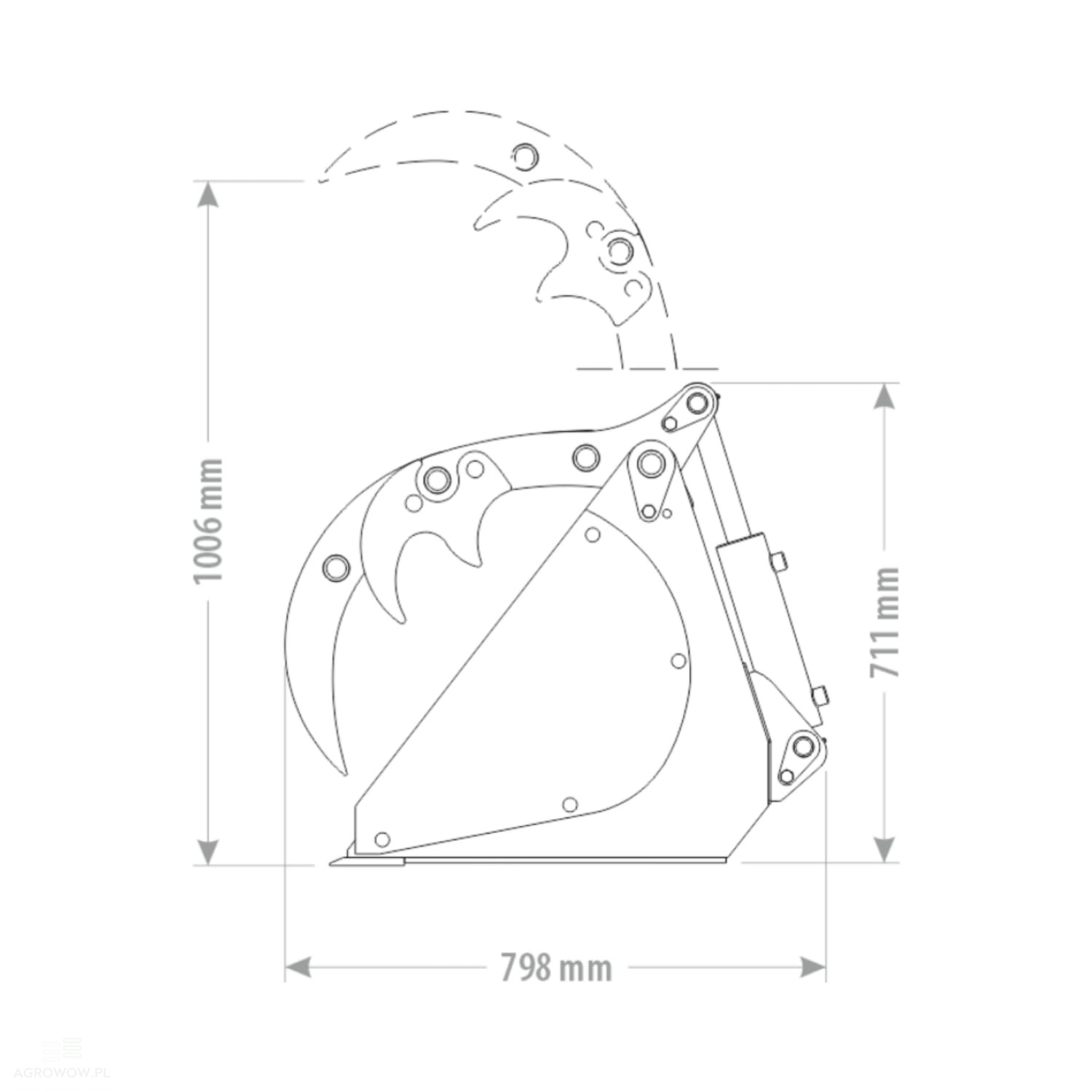

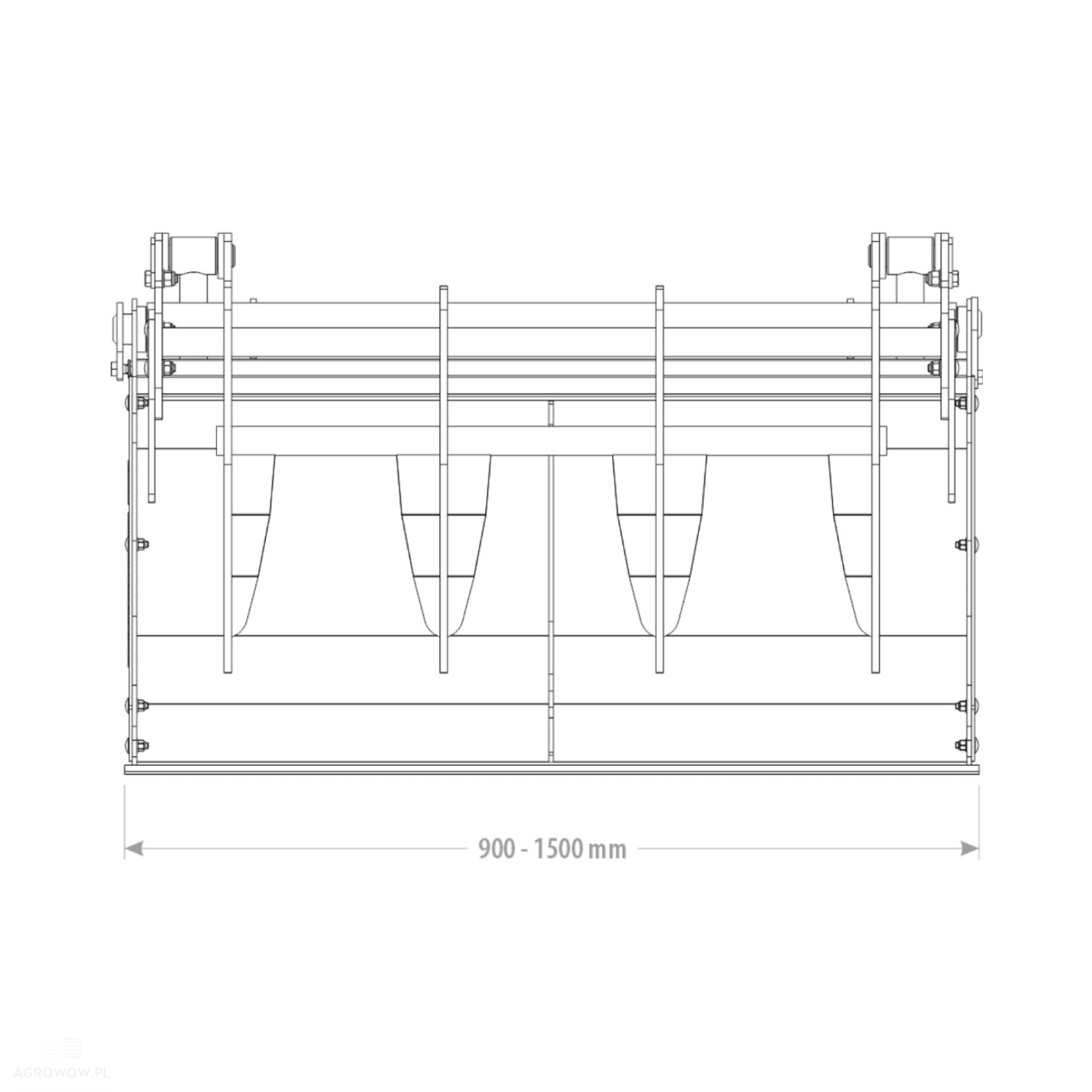

- Width: 1500 mm

- Length: 798 mm

- Height: 711 mm

- Height with clamp open: 1006 mm

- Capacity: 0.45 m³

- Weight: 218 kg

- Number of tines: 5

- Side panel thickness: 6 mm

- Main body shell thickness: 4 mm

- HB500 cutting edge: 110x12 mm

- Bolt-on tines in the clamp: 2

- Clamp tine thickness: 10 mm

- Bolt-on side panels: 4 mm

Optional equipment (at additional cost):

- VMP relief valve

The VMP type relief valve is an advanced hydraulic device designed to maintain proper pressure within the system. Its main function is to remove excess working fluid from the system when the pressure exceeds a specified value, preventing system overloads and potential damage. Thanks to this function, the VMP valve guarantees stability and efficiency for the hydraulic system. Equipped with a pressure adjustment mechanism, it allows accurate tuning of parameters to match the individual requirements of the equipment. Additionally, the valve features sensors monitoring the pressure and temperature of the working fluid, which transmit data to an electronic controller. Based on this information, the controller generates electrical impulses that alter the valve setting, precisely controlling fluid flow and ensuring optimal system performance under various working conditions.

- Bolt-on cutting edge / wear blade

The cutting edge with an adjustable bolt-on mounting is a key working element used in hydraulic tools such as buckets or transport machinery. Its design allows for easy adjustment and quick replacement, making it a highly versatile solution. The bolt-on cutting edge features high resistance to abrasion and damage, especially in harsh working conditions involving stones, gravel, or other hard materials. Made of high-quality materials like HB500 steel, it ensures long-term reliability and efficiency, even during heavy-duty use. Regular tightening and maintenance of the cutting edge help maintain its performance at an optimal level, reducing the operating costs of the work tools and ensuring their reliability in demanding environments.

Detailed Description:

• The MINI bucket grab with clamp is a highly efficient, compact agricultural tool designed for intensive use in smaller farming operations and low-clearance construction environments.

• It is ideal for handling smaller quantities of bulk materials such as silage, compost, grain, and other loose substances, ensuring excellent operational efficiency even under demanding conditions.

• With a capacity of 0.45 m³ and a width of 1500 mm, the bucket allows for quick, reliable loading cycles.

• Its compact profile makes it the perfect solution for working in tight spaces, low-roof barns, or confined areas, while maintaining high performance with smaller material batches.

• The top clamp mechanism features high-grade steel, bolt-on tines that secure unstable loads and prevent spillage or shifting during transport—especially in windy or harsh weather.

• The bolt-on design allows for quick, cost-effective maintenance and easy replacement, extending the tool's service life.

• Built for durability, the robust chassis features 6 mm thick side walls and a 4 mm shell to resist mechanical impacts, overloads, and uneven or stony ground.

• Additionally, the 110x12 mm HB500 steel cutting edge provides outstanding abrasion resistance, ensuring efficient material dosing, clean scraping, and faster loading cycles under intensive use.

• For operational convenience, easily accessible lubrication points simplify daily pin maintenance, protecting moving parts from premature wear.

• The system requires two hydraulic sections, utilizing dual circuits to give the operator precise control over clamping speed and force based on the material type.

• Combining premium build quality with reliable hydraulic functionality, the MINI bucket grab is an indispensable asset for smaller farms and tight construction sites, optimizing material handling, maneuverability, and safety in tough environments.
