Kołaszewski STANDARD bucket grab with clamp 2.0 x 0.91 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KMBGB200

- Manufacturer's name: STANDARD bucket grab with clamp

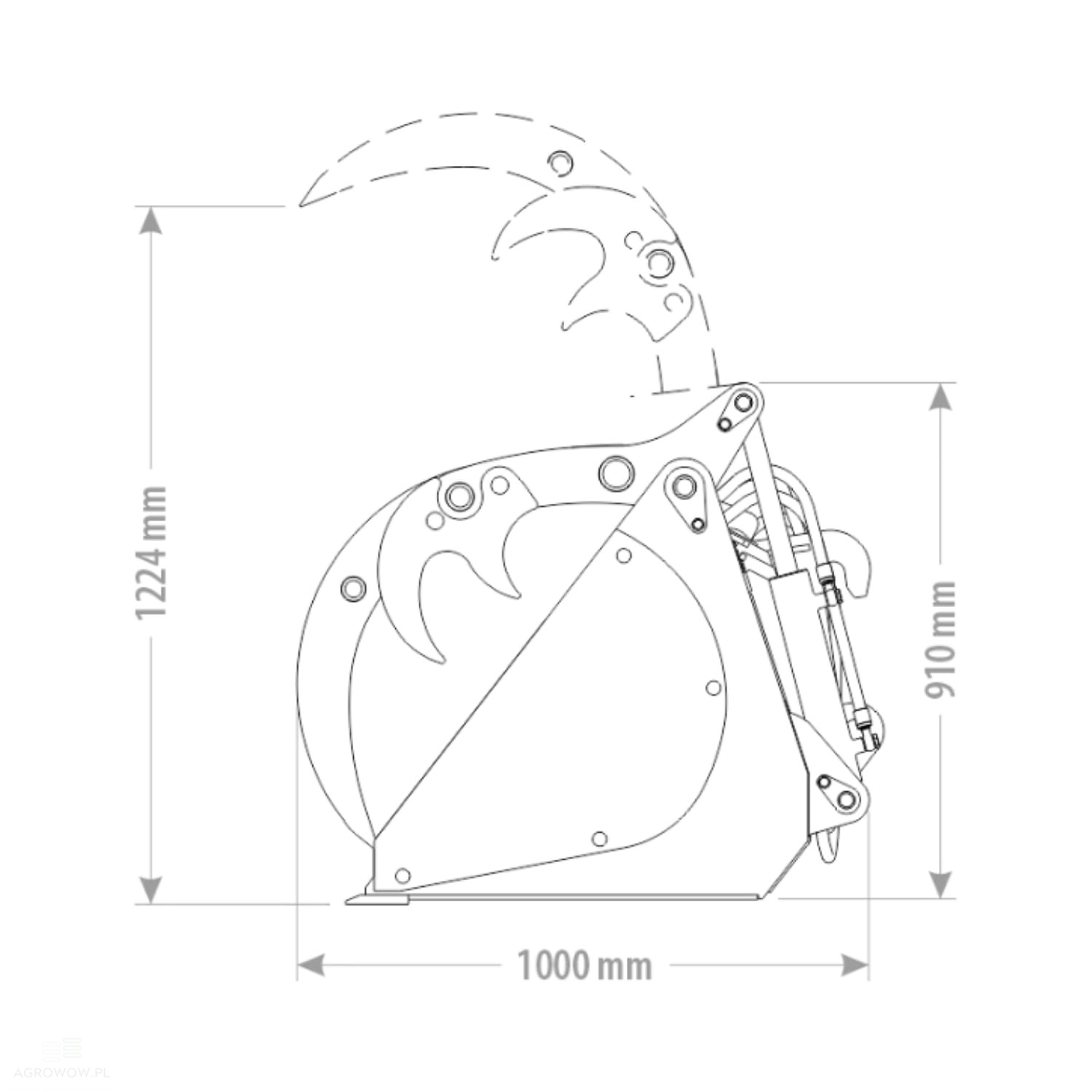

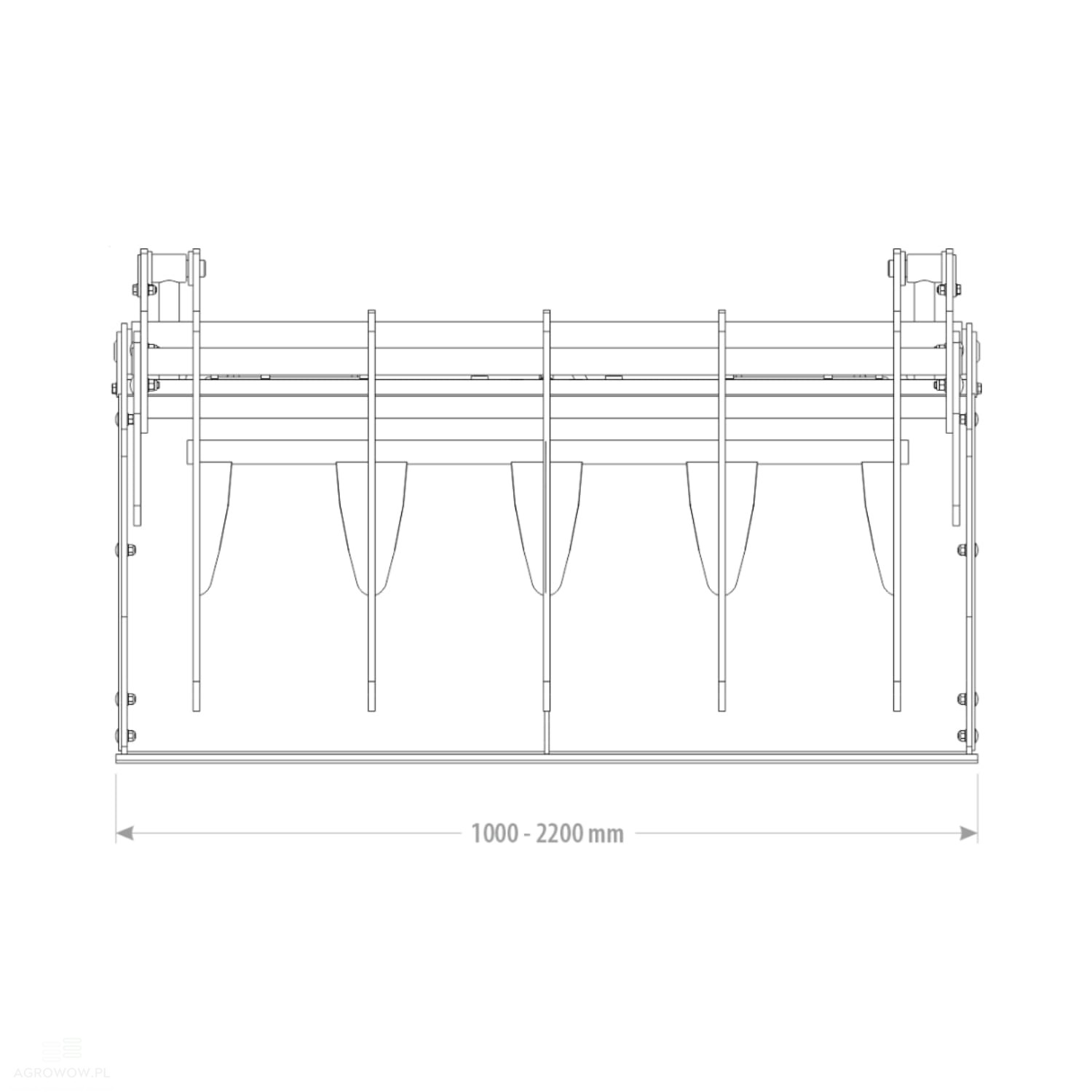

- Width: 2000 mm

- Length: 1000 mm

- Height: 910 mm

- Height with clamp open: 1224 mm

- Capacity: 0.84 m³

- Weight: 439 kg

- Number of tines: 6

- Side panel thickness: 10 mm

- Main body shell thickness: 5 mm

- HB500 cutting edge: 110x16 mm

- Bolt-on tines in the clamp: 2

- Bolt-on side panels: 5 mm

- Clamp tine thickness: 16 mm

Optional equipment (at additional cost):

- VMP relief valve

The VMP type relief valve is a modern hydraulic device designed to maintain proper pressure within the system. Its function is to remove excess working fluid from the system when the pressure exceeds a specified value, preventing system overloads and damage. Thanks to this function, the VMP valve guarantees stability and high efficiency for the hydraulic system. Equipped with a pressure adjustment mechanism, it allows accurate tuning of parameters to match the requirements of the equipment. Additionally, the valve features sensors monitoring the pressure and temperature of the working fluid, which transmit data to an electronic controller. Based on this information, the controller generates electrical impulses that alter the valve setting, precisely controlling fluid flow and ensuring optimal system performance under various working conditions.

- Bolt-on cutting edge / wear blade

The cutting edge with an adjustable bolt-on mounting is a key working element used in hydraulic tools such as buckets or transport machinery. Its design allows for easy adjustment and quick replacement, making it a versatile solution. The bolt-on cutting edge features high resistance to abrasion and damage, especially in harsh working conditions involving stones, gravel, or other hard materials. Made of durable materials like HB500 steel, it ensures long-term reliability and efficiency, even during heavy-duty use. Regular tightening and maintenance of the cutting edge help maintain its performance at an optimal level, reducing the operating costs of the work tools and ensuring their reliability in demanding environments.

Detailed Description:

• The STANDARD bucket grab with clamp is a heavy-duty, versatile tool designed for intensive use in both large-scale farming and the construction industry.

• It is ideal for handling bulk materials such as silage, compost, and grain, ensuring high operational efficiency even under demanding conditions.

• With a capacity of 0.84 m³ and a width of 2000 mm, the bucket maximizes loading volumes per cycle.

• This significantly reduces the number of operational runs required, saving time and increasing daily productivity when handling large quantities of material across expansive workspaces.

• The top clamp mechanism features high-grade steel, bolt-on tines that secure unstable loads and prevent spillage or shifting during transport—especially in harsh weather.

• The bolt-on design allows for quick, cost-effective maintenance and easy replacement, extending the tool's service life.

• Built for longevity, the robust chassis features 10 mm thick side walls and a 5 mm shell to resist severe mechanical impacts, overloads, and uneven or stony ground.

• Additionally, the 110x16 mm HB500 steel cutting edge provides outstanding abrasion resistance, ensuring efficient material dosing, clean scraping, and faster loading cycles.

• For operational convenience, easily accessible lubrication points simplify daily pin maintenance, protecting moving parts from premature wear.

• The system requires two hydraulic sections, utilizing dual circuits to give the operator precise control over clamping speed and force based on the material type.

• Combining premium build quality with reliable hydraulic functionality, the STANDARD bucket grab is an indispensable asset for large farms and construction sites, optimizing material handling and safety in tough environments.
