Kołaszewski bale grabber MIKRO

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KUBGN

- Manufacturer's name: Bale grabber MIKRO

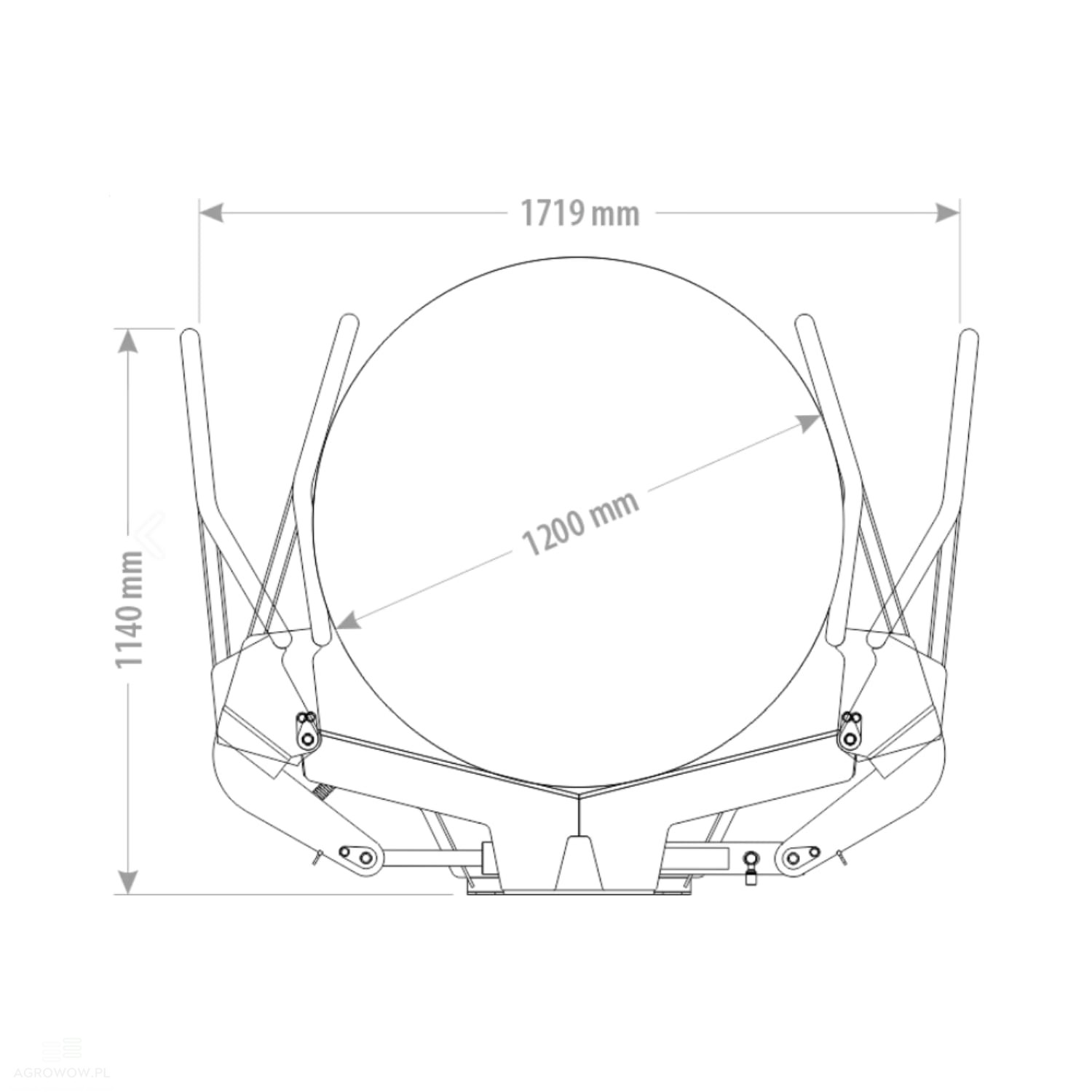

- Maximum grabber opening width: 1719 mm

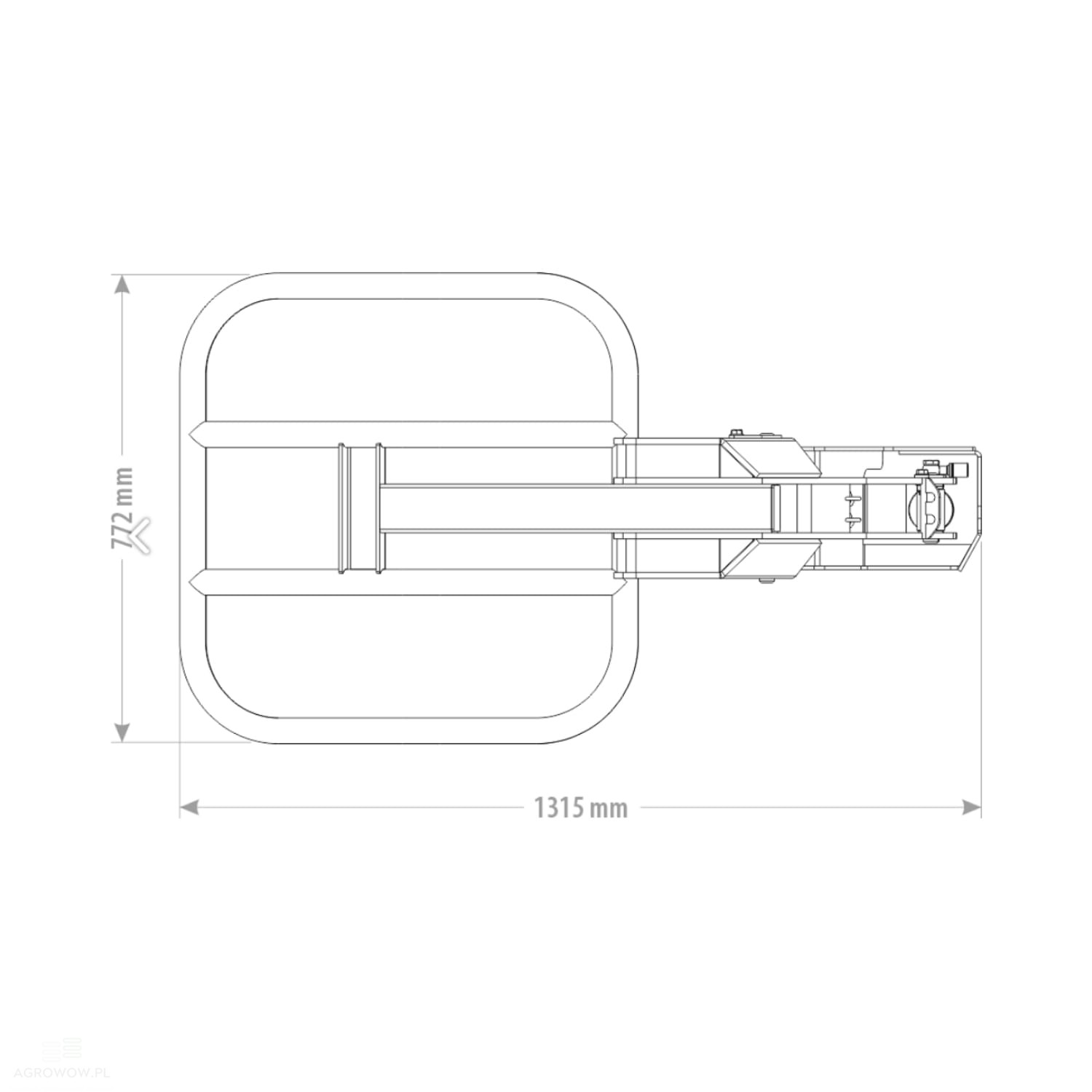

- Maximum grabber length: 1315 mm

- Grabber length: 1140 mm

- Height: 772 mm

- Bale size range: 800–1600 mm

- Load capacity: 950 kg

- Weight: 155 kg

- Arm tube dimensions: 63x3 mm

- Reach optimization: Geometry designed to maximize reach

- Hydraulic cylinders: 1

Optional Equipment (Extra Charge):

- VMP Relief Valve

A modern hydraulic device designed to maintain the proper pressure within the system. Its function is to discharge excess working fluid from the system when the pressure exceeds a specified value, protecting the system from overloads and damage. Through this function, the VMP valve ensures the stability and high operational efficiency of the hydraulic system. Equipped with a mechanism for pressure regulation, it allows for precise adjustment of operating parameters to match the system's requirements. Additionally, the valve features sensors that monitor the pressure and temperature of the working fluid, transmitting this data to an electronic controller. Based on this information, the controller generates electrical impulses that alter the valve setting, enabling precise control of fluid flow and ensuring optimal system performance under varying working conditions.

- VBPDE Pilot-Operated Check Valve

An innovative device designed for the precise control of working fluid flow in hydraulic systems. Its primary function is to block fluid flow or regulate pressure, ensuring system stability and safety. The hydraulic lock consists of a heavy-duty body, a locking valve, and a pressure regulation mechanism that allows parameters to be adapted to the specific needs of the equipment. Additionally, the valve is equipped with sensors that monitor the pressure and temperature of the working fluid. The VBPDE hydraulic lock is widely utilized in agriculture, construction, and the automotive industry, where precise fluid flow control is essential for the proper functioning of machinery. Thanks to the use of durable materials, easy maintenance, and a long service life, the hydraulic lock ensures reliability and efficiency in demanding working conditions.

Detailed Description:

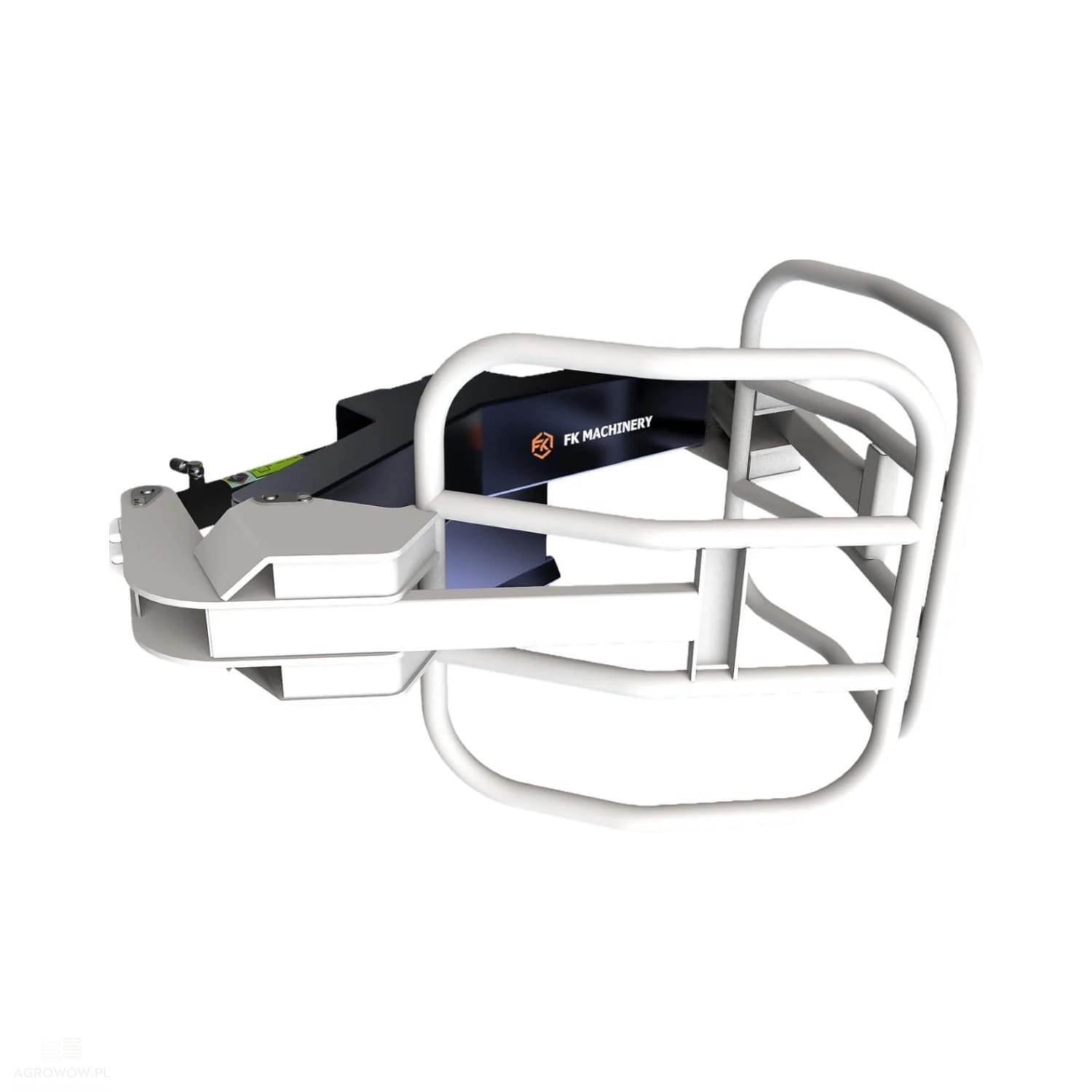

• The MIKRO bale grabber is a durable and functional agricultural tool engineered for the efficient transport and handling of bales of various dimensions, such as straw, hay, or silage bales.

• Its structure is built upon robust materials, ensuring outstanding reliability and longevity, making it an ideal choice for operations on farms as well as in other industries requiring bale transportation.

• Weighing 155 kg, the grabber provides adequate lifting force and stability during the transport of bales, up to a maximum load capacity of 950 kg.

• This tool performs excellently on medium-sized agricultural farms where daily operations involving the transport and stacking of bales of different diameters are carried out.

• The grabber features a length of 1140 mm and a maximum arm opening width of 1719 mm, allowing it to handle bales with diameters ranging from 800 mm to 1600 mm.

• This arm opening span makes the grabber highly universal, enabling secure gripping of bales of various dimensions, which significantly increases its operational flexibility.

• The 63x3 mm thick arm tube provides exceptional durability and resistance to mechanical damage, which is crucial in demanding working conditions such as uneven surfaces or intensively utilized areas.

• The grabber is equipped with a single hydraulic cylinder that ensures precise and smooth action, enabling quick and effective gripping and transporting of bales.

• The single-cylinder design ensures simple handling, which translates into workflow efficiency by reducing the time needed to transfer bales.

• Equipped with a reach-maximizing geometry, the grabber allows for comfortable manipulation of different bale sizes under various working conditions.

• Additionally, the grabber features retractable parking stands that simplify tool storage and provide greater stability when parked, especially on challenging terrain.

• Compatibility with front loaders and straightforward integration with agricultural machinery make this grabber an ideal selection for daily farm duties.

• The MIKRO grabber is a universal tool that fits perfectly across different types of farms, enabling the transport of straw, hay, silage bales, and other materials of similar dimensions.

• Thanks to the adjustable arm span, the device ensures the secure handling of bales of different diameters, allowing for flexibility based on current needs.

• The solid construction and high-grade materials guarantee durability and resistance to mechanical wear, extending the device's service life.

• Furthermore, the optimized hydraulic layout and precision engineering ensure faultless operation—something particularly vital on farms where every minute of downtime impacts overall productivity.

• The MIKRO bale grabber is a dependable tool that guarantees high efficiency and safety during bale transport, enabling quick and secure transfers.

• Thanks to its rugged build, large load capacity, and optimal adaptation to various bale types, this grabber streamlines daily farm duties while enhancing both efficiency and working comfort.
