Kołaszewski bale grabber SMART

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

Chętnie pomożemy w wyborze odpowiedniej konfiguracji oraz odpowiemy na każde pytanie.

- Manufacturer: Kołaszewski

- Catalogue number: KUBGS

- Manufacturer's name: Bale grabber SMART

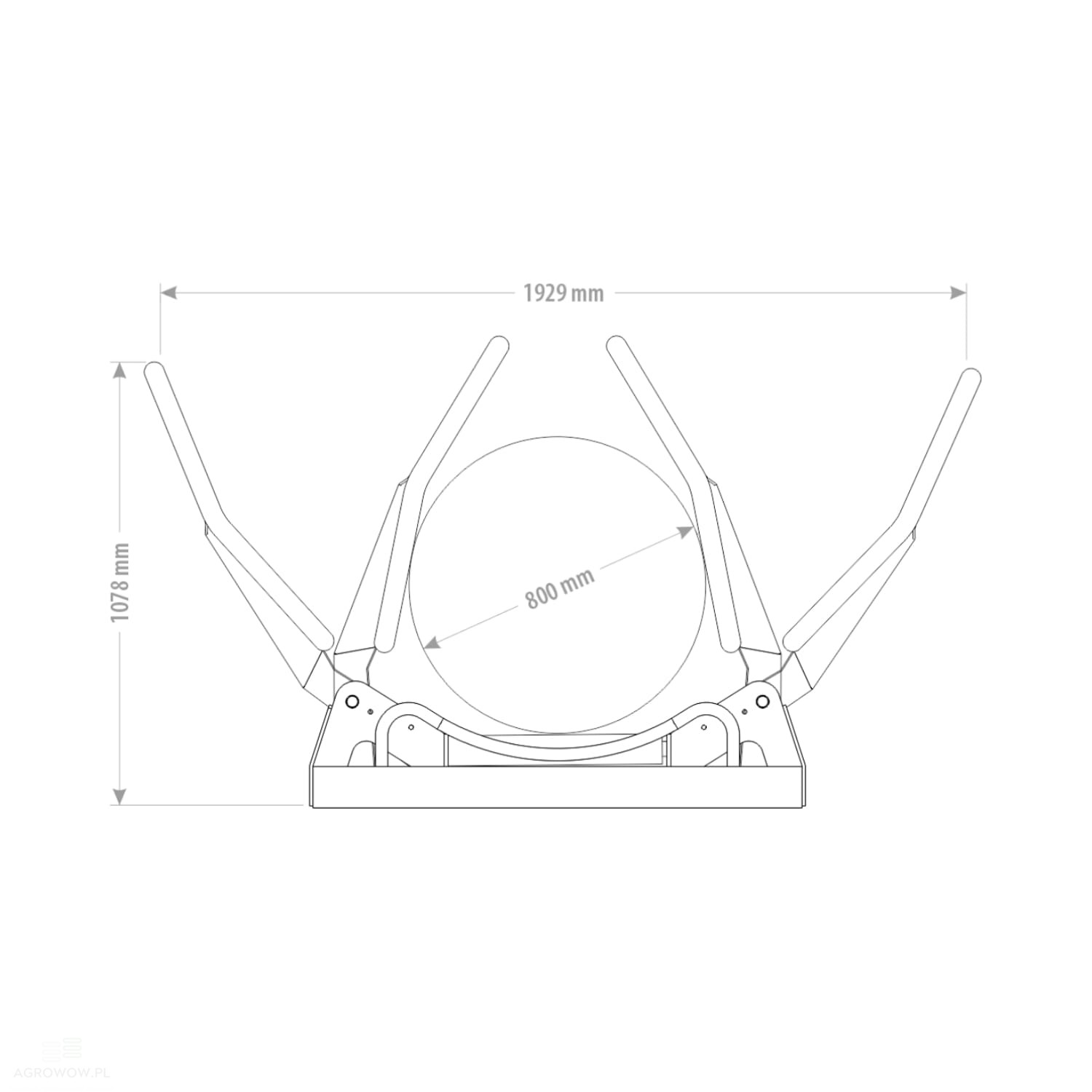

- Maximum grabber opening width: 1929 mm

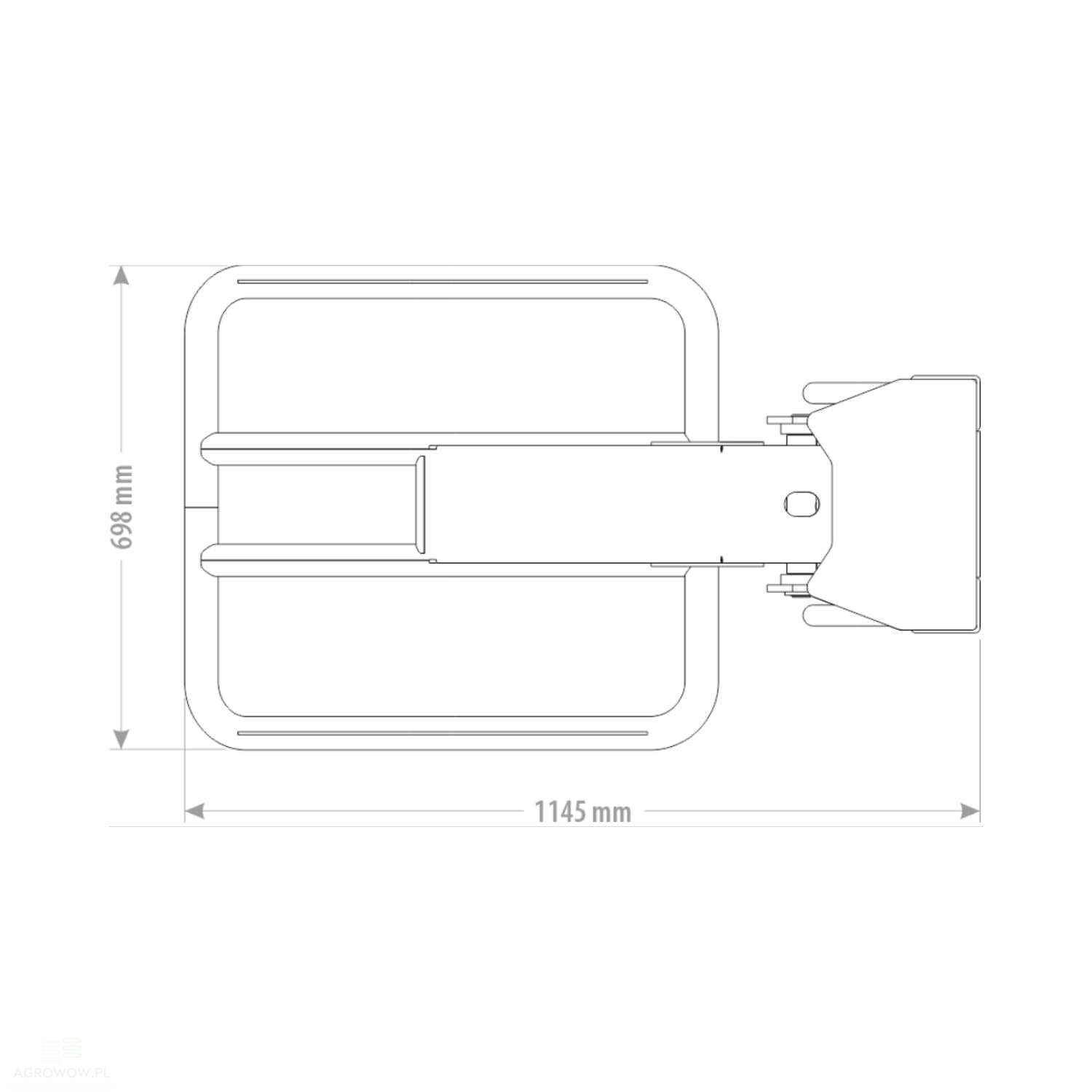

- Maximum grabber length: 1145 mm

- Grabber length: 1078 mm

- Height: 698 mm

- Bale size range: 800–1600 mm

- Load capacity: 1000 kg

- Weight: 165 kg

- Arm tube dimensions: 48x3 mm

- Bale handling: Optimized gripping for various bale diameters

- Hydraulic cylinders: 1

Optional Equipment (Extra Charge):

- VMP Relief Valve

A modern hydraulic device designed to maintain the proper pressure within the system. Its primary function is to discharge excess working fluid from the system when the pressure exceeds a set limit, protecting the system from overloads and damage. Through this function, the VMP valve ensures the stability and high operational efficiency of the hydraulic system. Equipped with a mechanism for pressure regulation, it allows for precise adjustment of operating parameters to match the specific needs of the system. Additionally, the valve contains sensors that monitor the pressure and temperature of the working fluid, with data transmitted to an electronic controller. Based on this information, the controller generates electrical impulses that adjust the valve setting, enabling accurate control of fluid flow and ensuring optimal system performance under changing working conditions.

Detailed Description:

• The SMART bale grabber is a robust agricultural tool designed for the precise and safe transport of bales.

• Its structure is built upon an arm made of heavy-duty 48x3 mm tube, ensuring durability and resistance to damage during intensive operations.

• Weighing 165 kg, the grabber offers a maximum load capacity of up to 1000 kg, which guarantees sufficient lifting force and stability when transporting bales of various diameters.

• The grabber performs excellently on medium and large-scale agricultural farms, where the transport and stacking of bales of different sizes are carried out daily.

• The grabber features a length of 1078 mm and a maximum arm opening width of 1929 mm, allowing it to handle bales with diameters ranging from 800 mm to 1600 mm, ensuring immense flexibility on the job.

• This wide arm opening span makes the grabber highly universal, enabling secure gripping of bales of various diameters, which increases its overall versatility.

• The 48x3 mm thick arm tube provides exceptional resistance to mechanical wear, which is crucial in demanding working conditions such as uneven surfaces or intensively utilized areas.

• Equipped with a single hydraulic cylinder, the grabber delivers smooth and precise operation, enabling quick and efficient gripping and releasing of bales.

• The single-cylinder design makes handling the grabber simple and intuitive, translating into increased workflow efficiency and faster bale transfers.

• Furthermore, the grabber features a geometry that maximizes reach, allowing for comfortable manipulation and transport of different bale diameters under various working conditions.

• The grabber is also equipped with retractable parking stands that simplify storage and increase stability when parked, especially on challenging terrain.

• Compatibility with front loaders and easy integration with agricultural machinery make this grabber an ideal choice for daily farm operations.

• The SMART grabber is a versatile tool that proves its worth across various types of farms, enabling the transport of straw, hay, silage bales, and other materials of similar dimensions.

• The adjustable arm span ensures secure handling of bales of different diameters, allowing for operational flexibility according to current needs.

• The rugged construction and premium materials guarantee durability and resistance to mechanical damage, extending the device's service life.

• Additionally, the optimized hydraulic layout and precision engineering of all components ensure faultless operation—something vital on farms where every minute of downtime impacts overall productivity.

• The SMART bale grabber is a dependable tool that guarantees high efficiency and safety during bale transport, enabling quick and secure transfers.

• Thanks to its solid build, high load capacity, and optimal adaptation to various bale types, this grabber significantly elevates both efficiency and comfort during farm duties.
