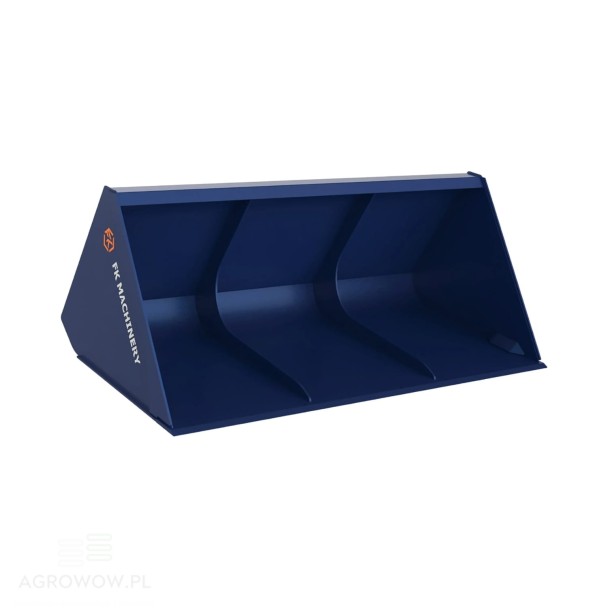

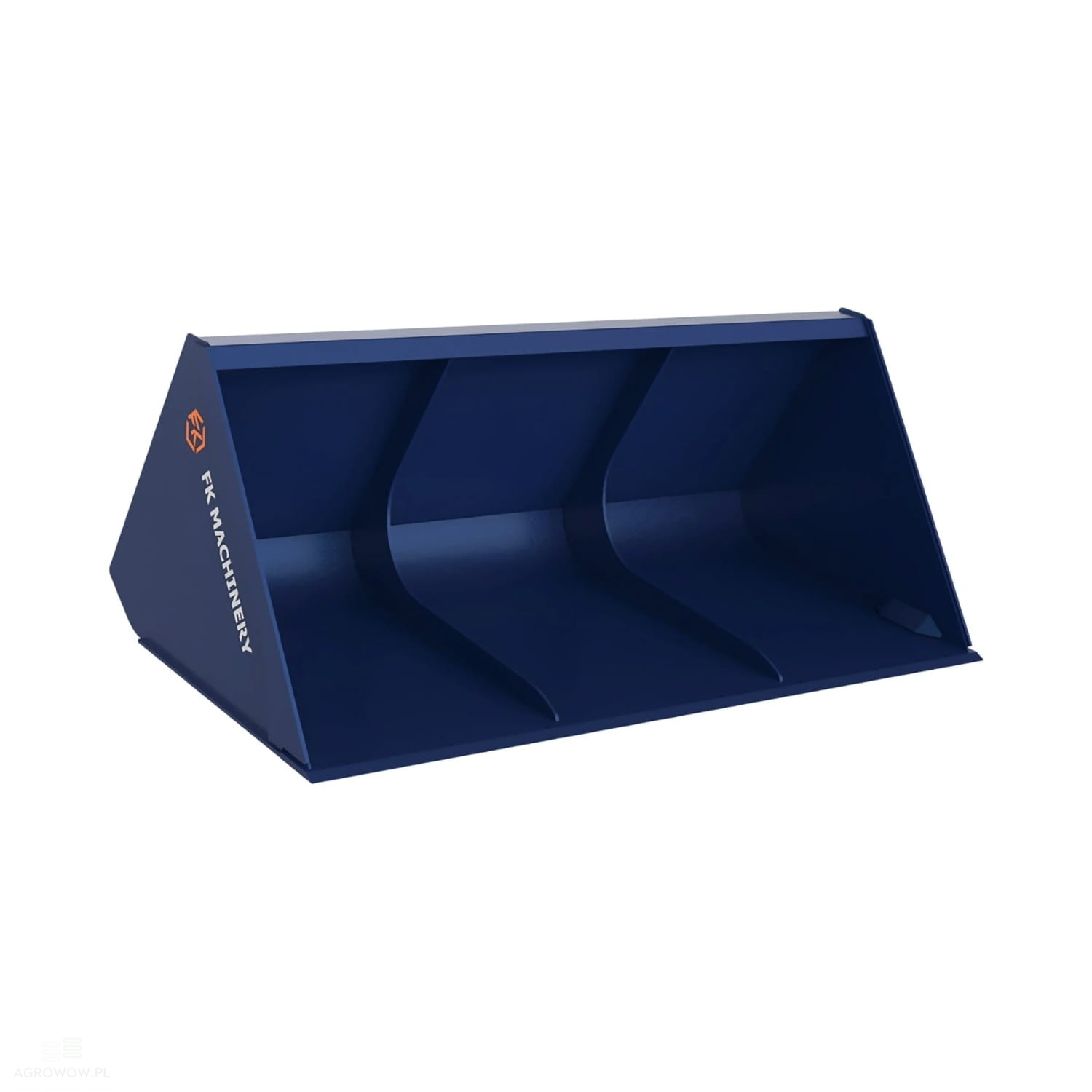

Kołaszewski heavy-duty earth bucket MINI 1.8 x 0.87 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KXLHBS-A180

- Manufacturer's name: Heavy-duty earth bucket STANDARD

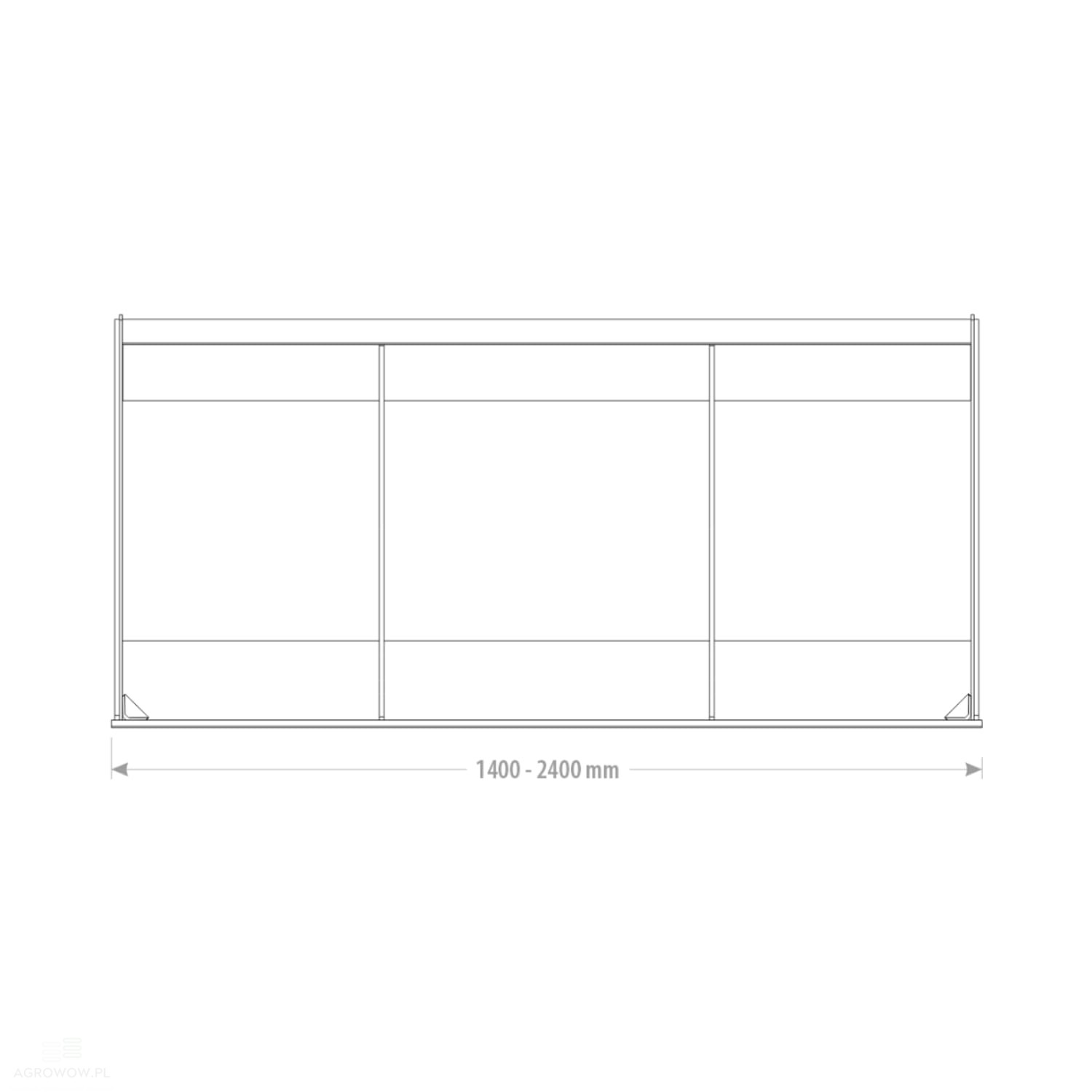

- Width: 1800 mm

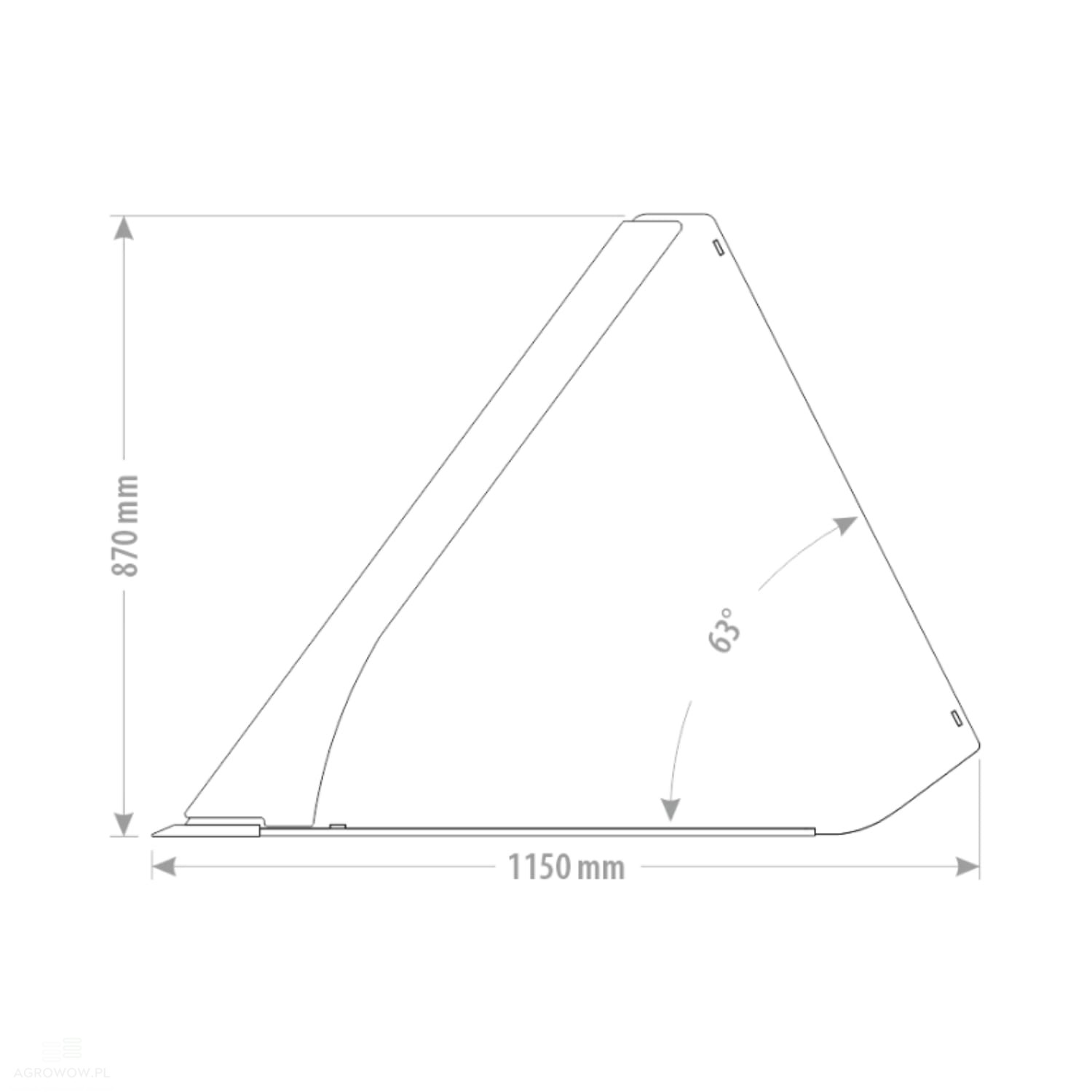

- Length: 1150 mm

- Height: 870 mm

- Capacity: 0.92 m³

- Weight: 209 kg

- Side thickness: 6 mm

- Shell thickness: 5 mm

- HB500 cutting edge: 150x16 mm

- Side extensions

- Bottom reinforcements: 10 mm

- Reinforced side-to-bottom connection

- Ribs: 10 mm

Optional extras (at additional cost):

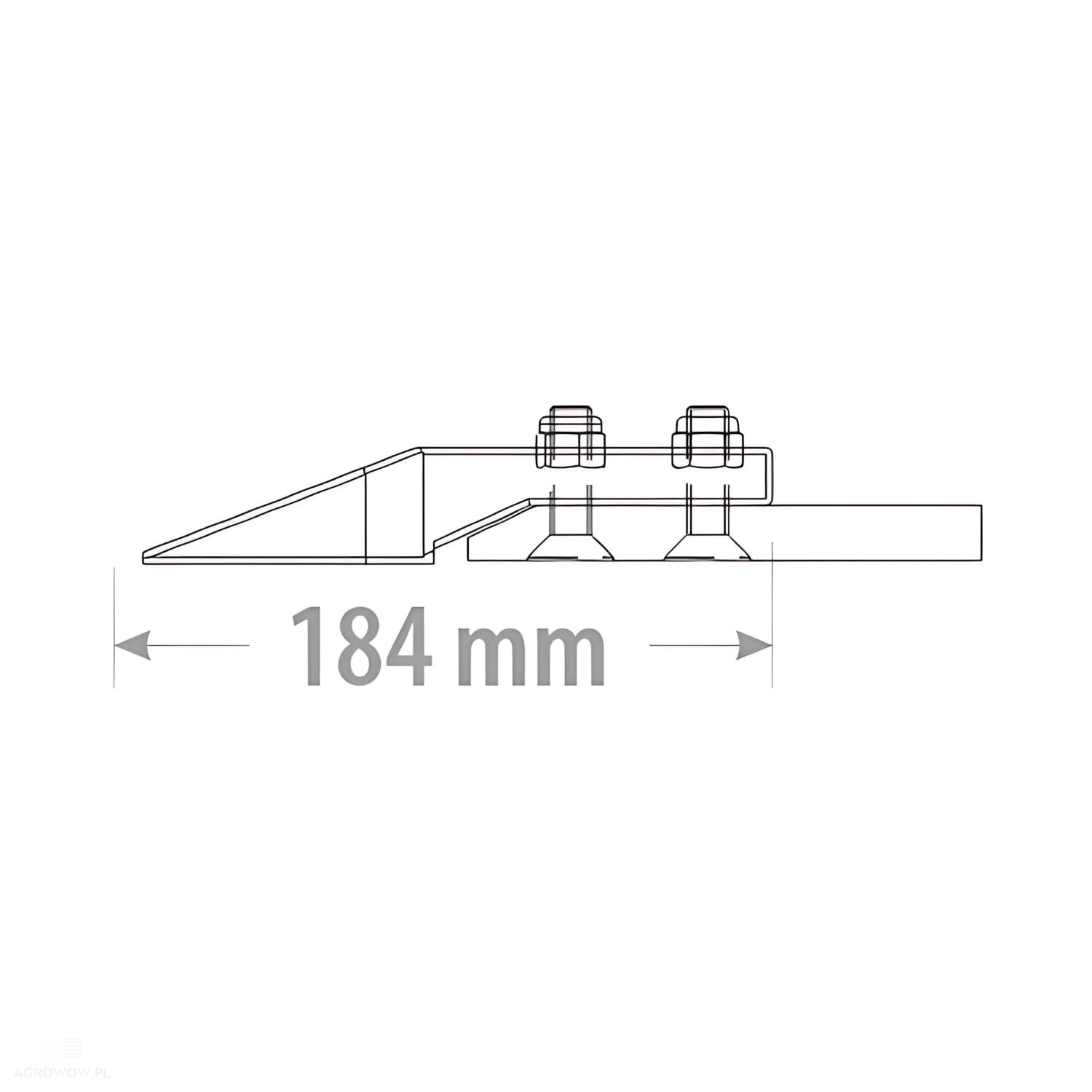

- Bolt-on tooth L-184: (Standard spacing 285 mm)

The L-184 tooth is an easy-to-install component that fits a wide range of agricultural tools. With a default spacing of 285 mm, it ensures a proper fit, allowing for easy adaptation to the user's individual needs. Its construction ensures work stability, especially during deeper soil loosening, making it an ideal solution for intensive agricultural work, even in changing terrain conditions.

- Profiled sides for increased capacity

Profiled sides are designed to increase the tool's capacity, allowing for the loading of a larger amount of material in a single cycle. This makes the tool more efficient, maximizing workspace, improving work comfort, and speeding up the execution of tasks.

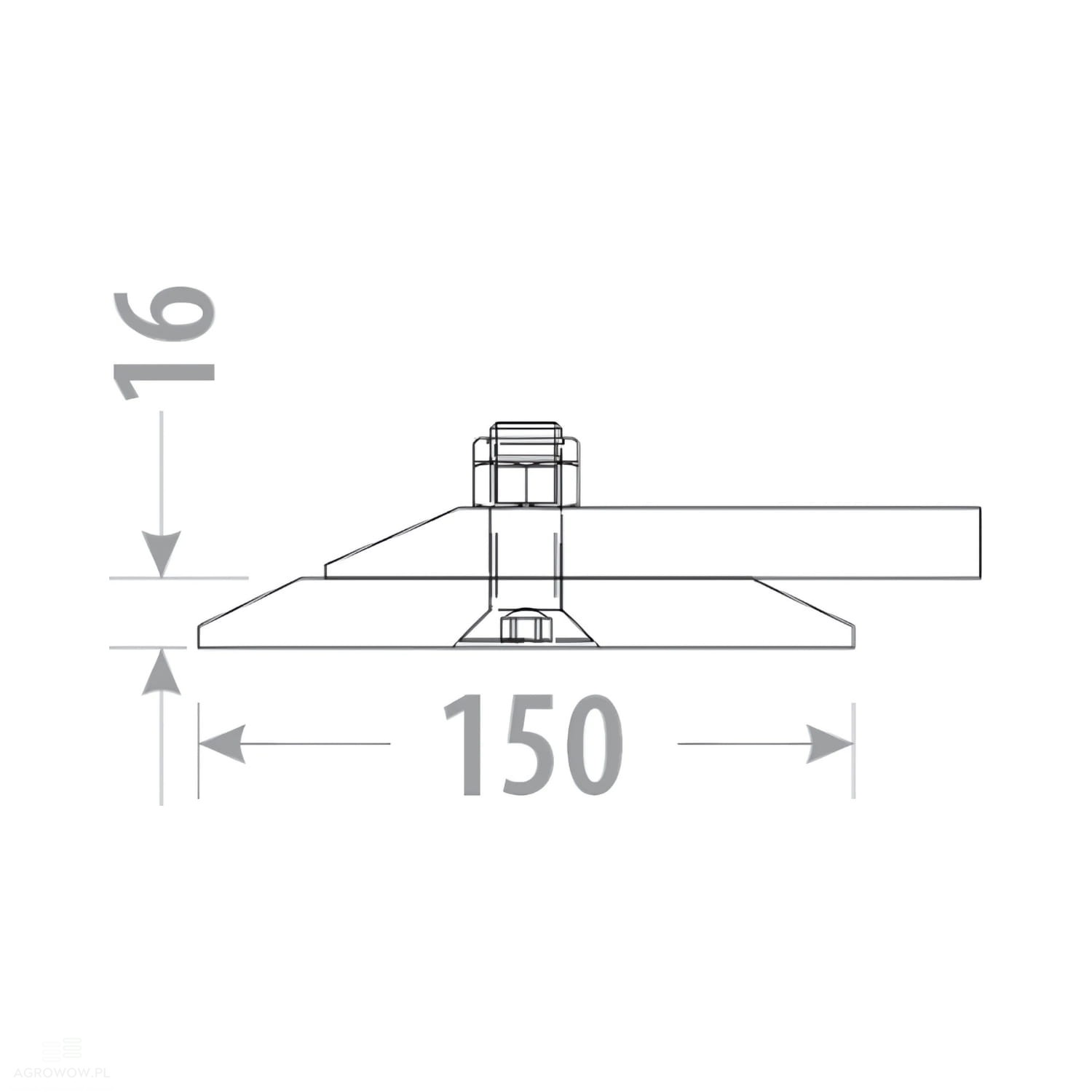

- Bolt-on HB500 cutting edge 150x16, double-beveled

The 150x16 mm cutting edge, made of highly durable HB500 steel, provides high abrasion resistance, which guarantees long-lasting durability, even in difficult ground conditions. The double-beveled edge features two working blades that can be used interchangeably, which significantly extends its service life and reduces the frequency of replacement. This design ensures high work efficiency, especially in demanding terrain, enabling easier and more effective task performance.

Detailed Description:

• The 1800 mm wide bucket is a robust tool designed for construction work and the transport of loose materials, such as sand, gravel, or earth. Thanks to its solid construction, it performs perfectly in demanding working conditions, ensuring reliability and efficiency in various work environments.
• Its durable construction makes it an ideal solution for work on construction sites, in warehouses, and in other places where tools with medium capacity and resistance to mechanical damage are required.
• The 1800 mm wide, 1150 mm long, and 870 mm high bucket is an excellent choice for loading and transporting medium quantities of materials, especially in more limited workspaces.
• With a working capacity of 0.92 m³, the bucket enables rapid pickup of earth and other materials, which speeds up the loading process, eliminates the need for repeated passes, and saves work time.
• Made of high-quality materials, including 6 mm thick sides and a 5 mm thick shell, the bucket provides adequate resistance to mechanical damage, even during intensive use in difficult working conditions.
• The bottom of the bucket has been reinforced by an additional 10 mm, which increases its durability and resistance to damage, extending its lifespan in demanding working conditions.
• The 150x16 mm cutting edge, made of high-quality HB500 steel, provides high abrasion resistance, which guarantees effective material pickup, even from hard surfaces, and long-term performance.
• Side extensions and a reinforced side-to-bottom connection further increase the tool's strength, ensuring its stability and reliability, even in difficult working conditions.
• 10 mm thick ribs reinforce the bucket's structure, improving its stability and control, especially during intensive transport tasks.
• The bucket weighs 209 kg, which provides appropriate ballast and stability during operation, improving loading precision and user safety, especially when working with smaller machines and tractors.
• Thanks to its solid construction and the durable materials used, the bucket guarantees long-term, trouble-free operation, becoming an indispensable tool in professional construction and transport tasks.
• The 1800 mm wide bucket is an efficient and reliable tool that performs perfectly in every type of construction work, increasing the efficiency and safety of performed tasks.
