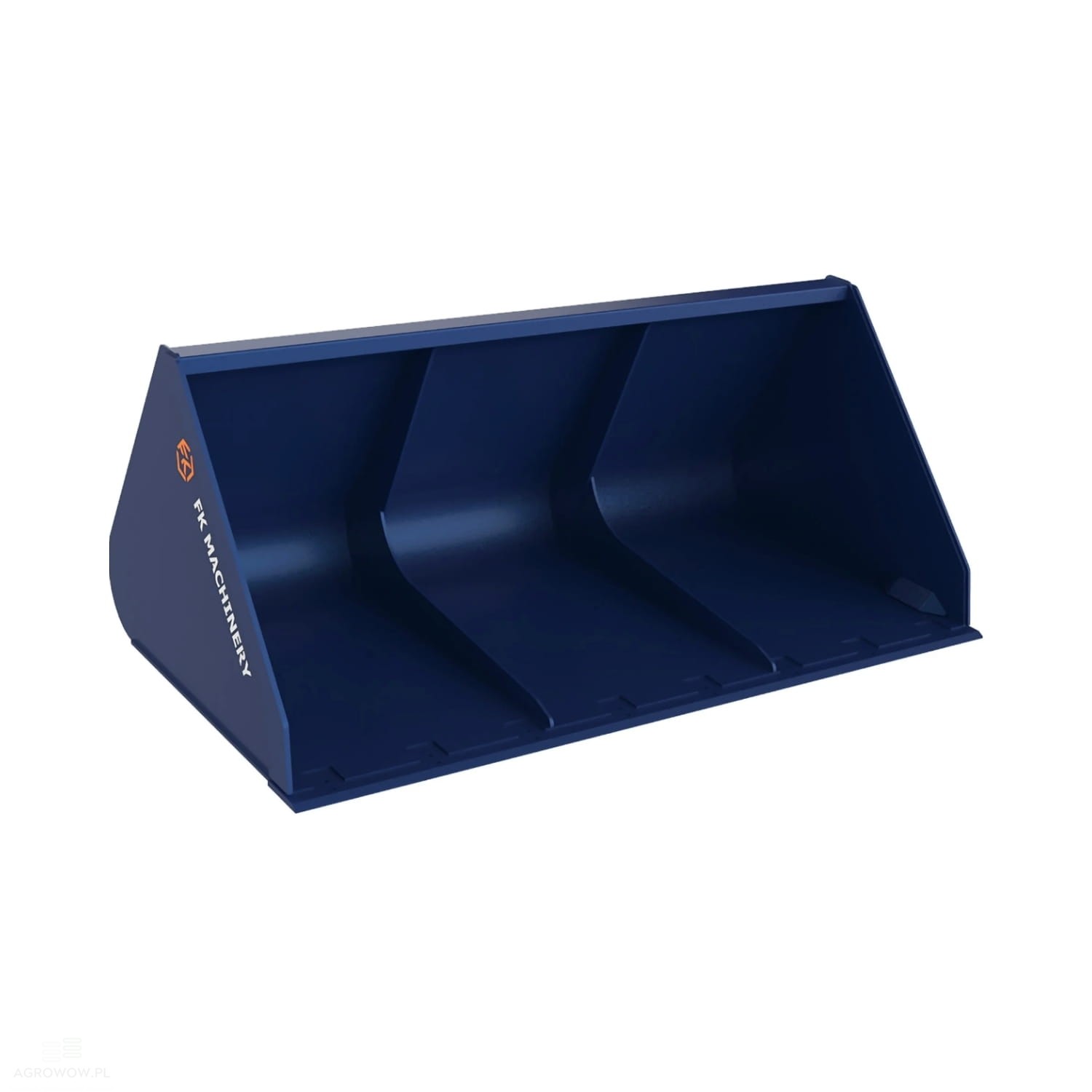

Kołaszewski heavy-duty earth bucket STANDARD 1.4 x 0.9 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: XLHBS-B140

- Manufacturer's name: Heavy-duty earth bucket STANDARD

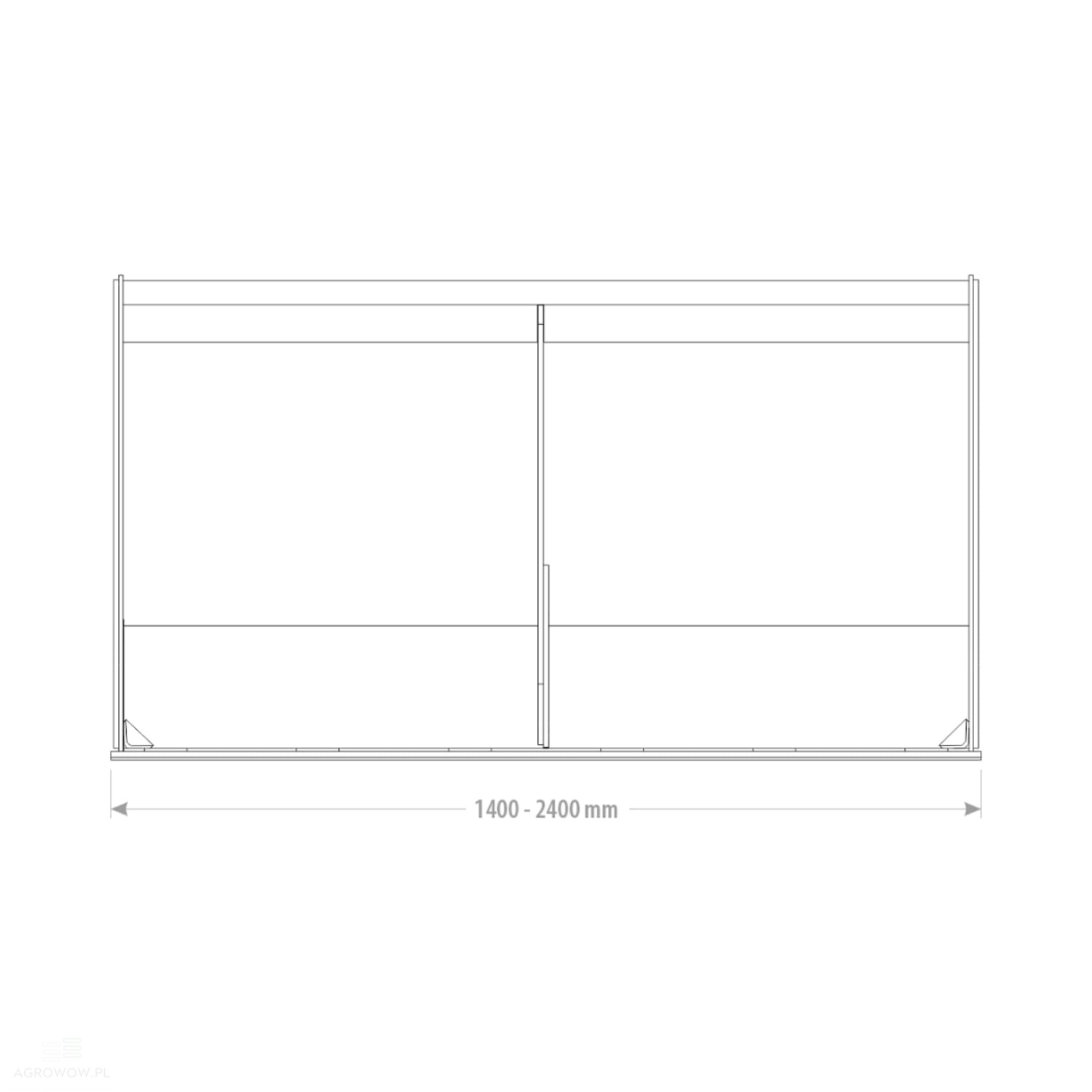

- Width: 1400 mm

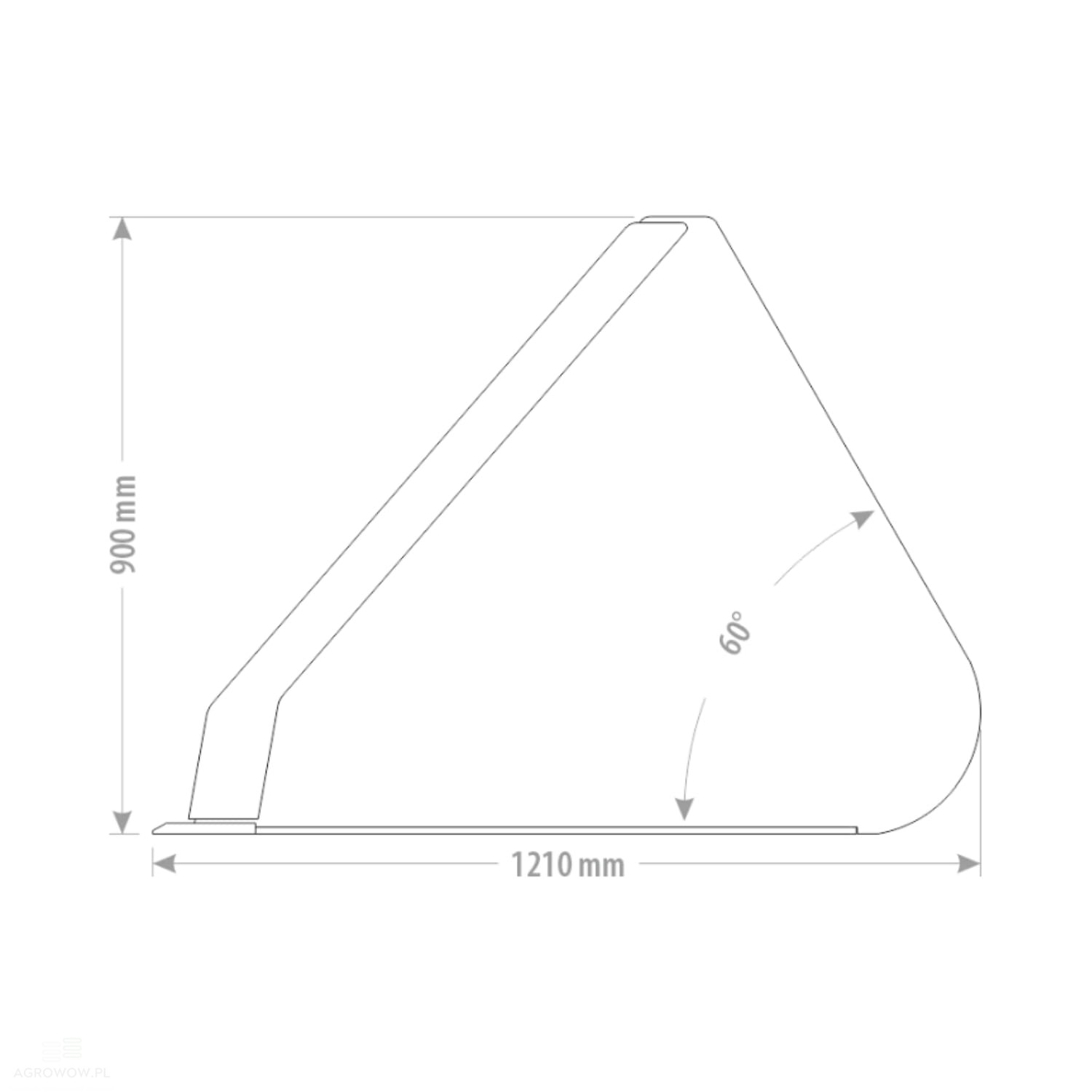

- Length: 1210 mm

- Height: 900 mm

- Capacity: 0.83 m³

- Weight: 317 kg

- Side thickness: 8 mm

- Shell thickness: 6 mm

- HB500 cutting edge: 150x16 mm

- Side extensions

- Bottom reinforcements: 10 mm

- Reinforced side-to-bottom connection

- Ribs: 10 mm

Optional extras (at additional cost):

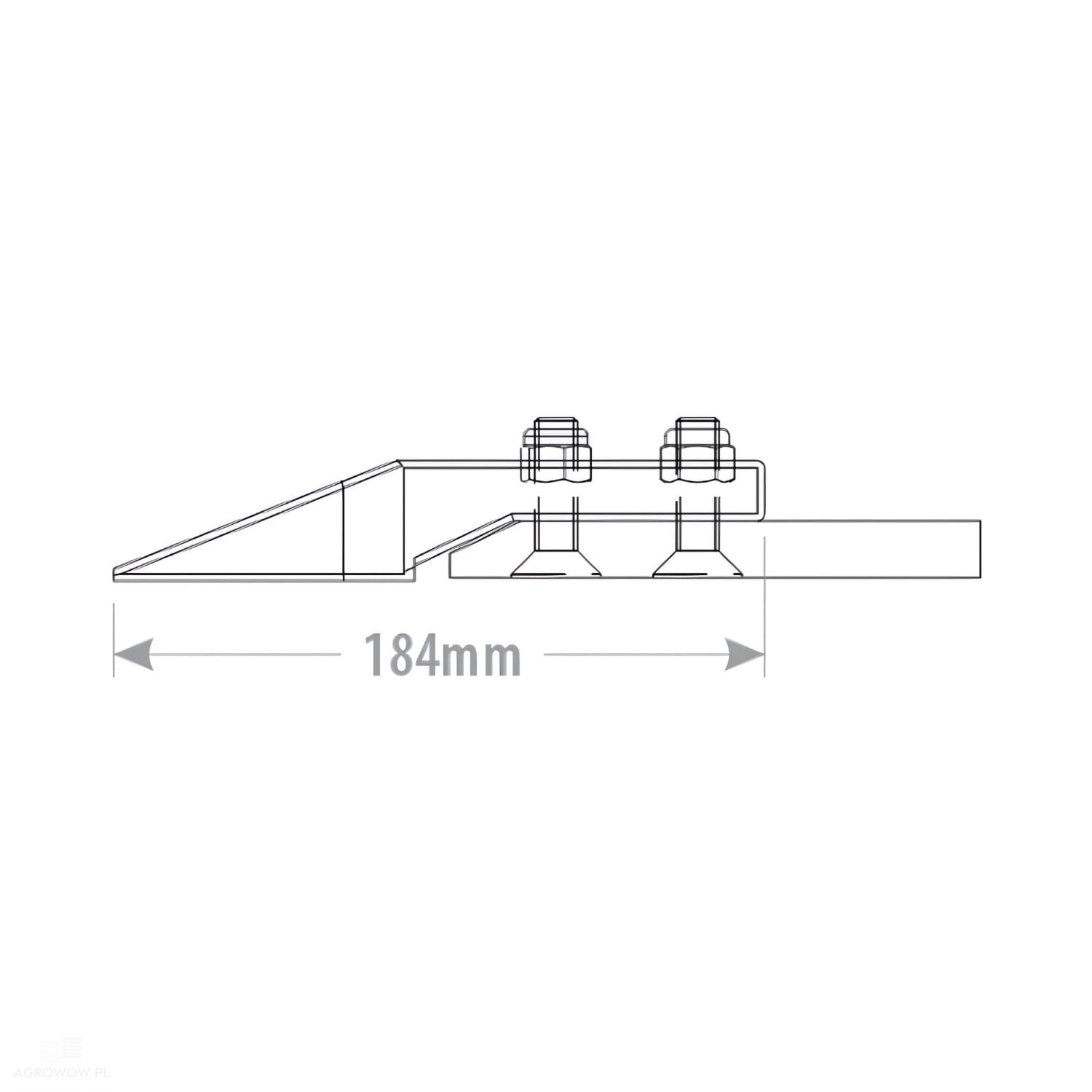

- Bolt-on tooth L-184: (Standard spacing 285 mm)

The L-184 tooth is easy to mount on agricultural tools and has a standard spacing of 285 mm, allowing for adjustment to individual user needs. Thanks to this design, the tooth ensures work stability, especially for deeper soil loosening. It is an ideal solution for intensive field work, enabling easy and effective task performance in various terrain conditions.

- Profiled sides for increased capacity

The tool's profiled sides are designed to increase capacity. This modification allows the tool to load and transport larger quantities of material in a single cycle. This solution optimizes the workspace, increases work efficiency, improves comfort in the field, and allows more work to be completed in less time.

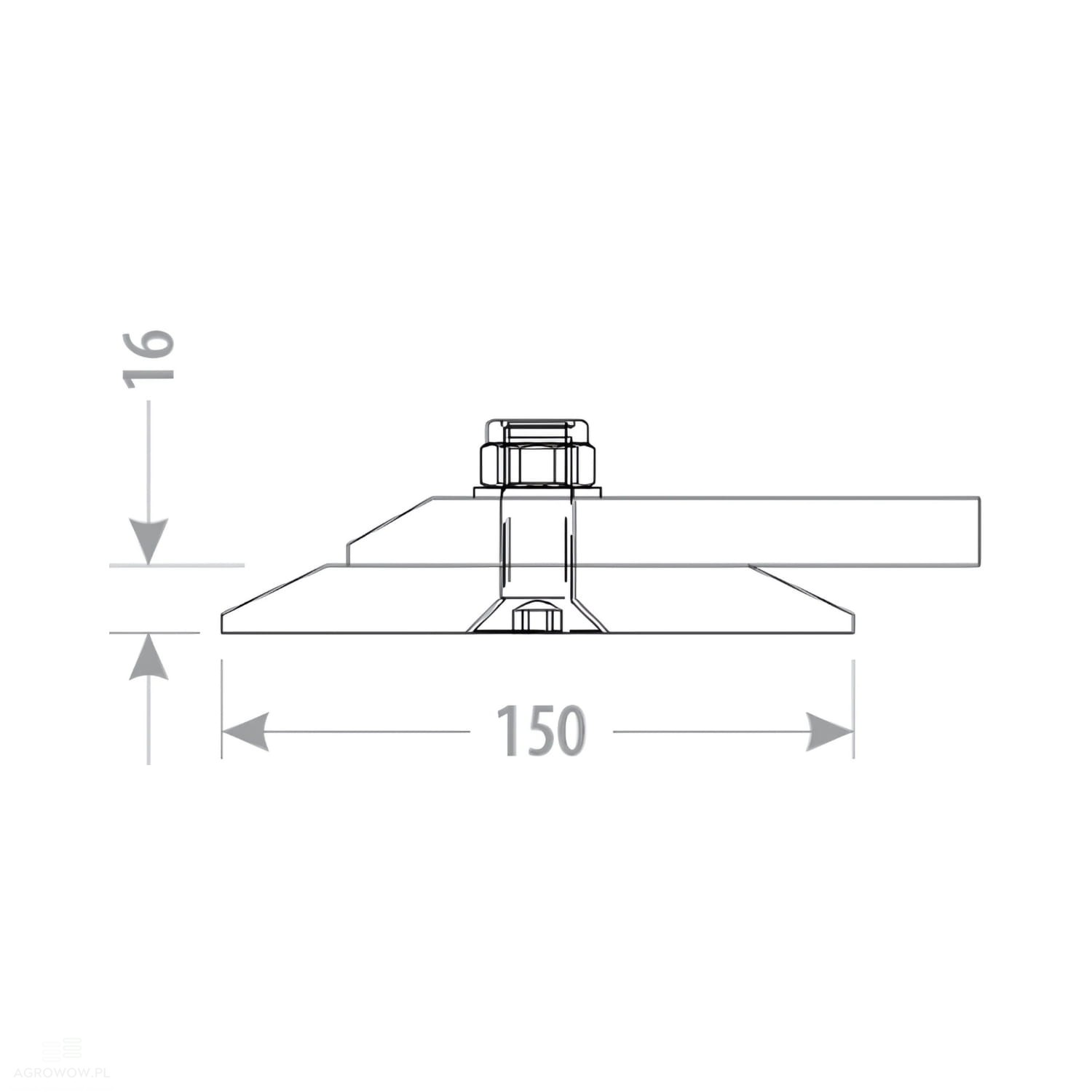

- Bolt-on HB500 cutting edge 150x16, double-beveled

Made of HB500 steel, the 150x16 mm cutting edge is characterized by high abrasion resistance, ensuring durability when working in difficult ground conditions. The double-beveled edge features two working blades that can be used interchangeably, significantly extending its lifespan and reducing the need for frequent replacement. This design ensures optimal work efficiency in intensive field conditions, enabling easier and more effective task performance.

Detailed Description:

• The 1400 mm wide bucket is a solid tool designed for construction work and the transport of loose materials, such as sand, gravel, or earth. It performs perfectly in various working conditions, offering reliability and high performance.

• Its durable construction makes it an excellent choice for work on construction sites, in warehouses, and in other locations where tools with high capacity and resistance to mechanical damage are required.

• The 1400 mm wide, 1210 mm long, and 900 mm high bucket is the ideal tool for loading and transporting smaller quantities of material in more limited workspaces.

• With a working capacity of 0.83 m³, the bucket enables rapid pickup of earth and other materials, speeding up loading and reducing work time by eliminating the need for repeated passes.

• The bucket is made of high-quality materials, including 8 mm thick sides and a 6 mm thick shell, which provides high resistance to mechanical damage, even in difficult terrain.

• The bottom of the bucket has been reinforced by 10 mm, providing additional durability and increasing resistance to damage, extending its lifespan in demanding working conditions.

• The 150x16 mm cutting edge, made of HB500 steel, is resistant to abrasion, ensuring effective material pickup from hard surfaces and guaranteeing long-term performance.

• Side extensions and a reinforced side-to-bottom connection provide the bucket with greater strength, enabling it to work in difficult conditions while ensuring tool stability and reliability.

• 10 mm thick ribs reinforce the stability of the structure, improving control over the bucket, especially during intensive transport tasks.

• The bucket weighs 317 kg, which provides appropriate ballast and stability during operation, improving loading precision and user safety, especially when working with smaller machines and tractors.

• Thanks to its solid construction and durable materials, the bucket guarantees long-term, trouble-free operation, becoming an indispensable tool in professional construction and transport tasks.

• The 1400 mm wide bucket is an efficient and reliable tool that performs perfectly in any type of construction work, increasing the efficiency and safety of performed tasks.
