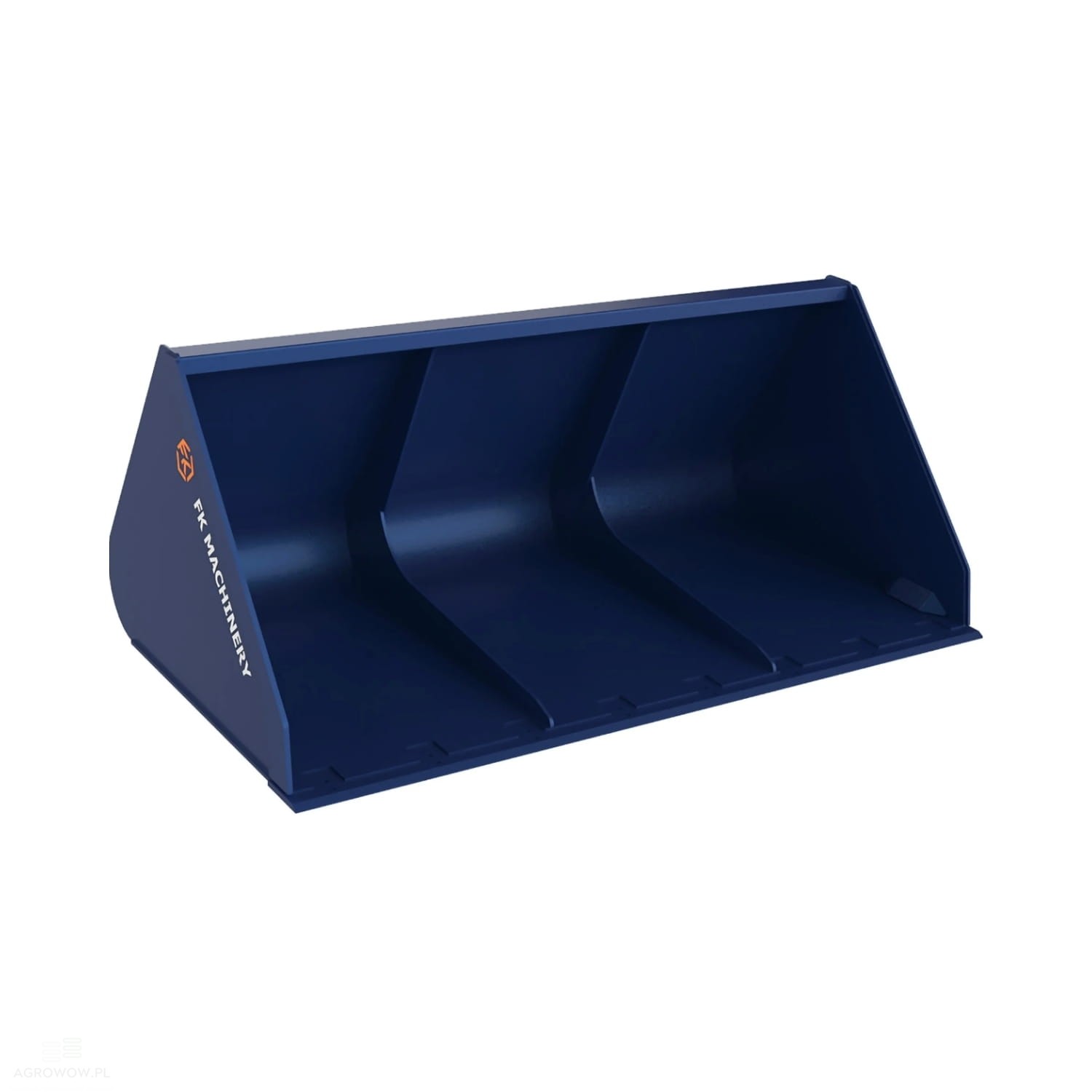

Kołaszewski heavy-duty earth bucket STANDARD 1.6 x 0.9 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: XLHBS-B160

- Manufacturer's name: Heavy-duty earth bucket STANDARD

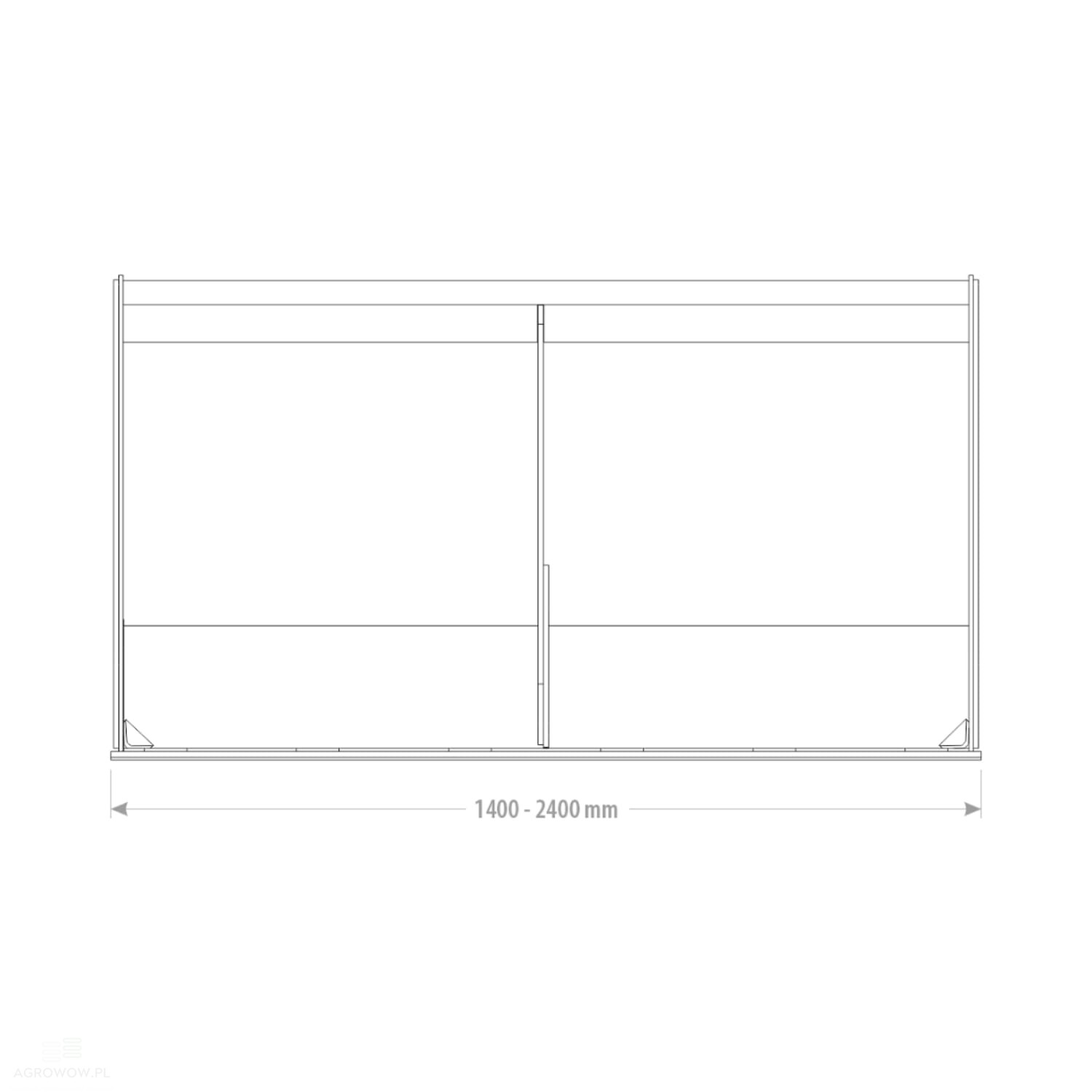

- Width: 1600 mm

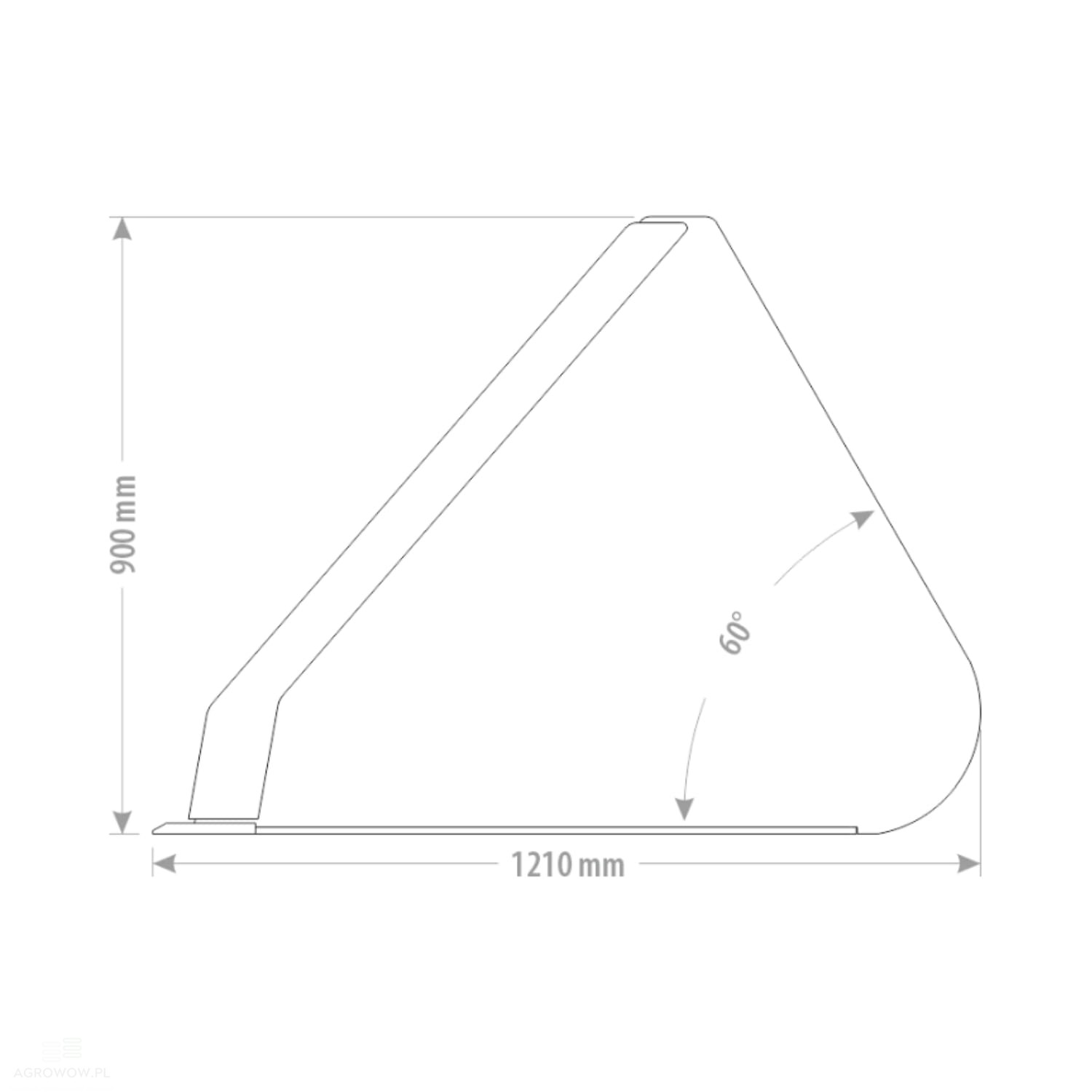

- Length: 1210 mm

- Height: 900 mm

- Capacity: 0.94 m³

- Weight: 356 kg

- Side thickness: 8 mm

- Shell thickness: 6 mm

- HB500 cutting edge: 150x16 mm

- Side extensions

- Bottom reinforcements: 10 mm

- Reinforced side-to-bottom connection

- Ribs: 10 mm

Optional extras (at additional cost):

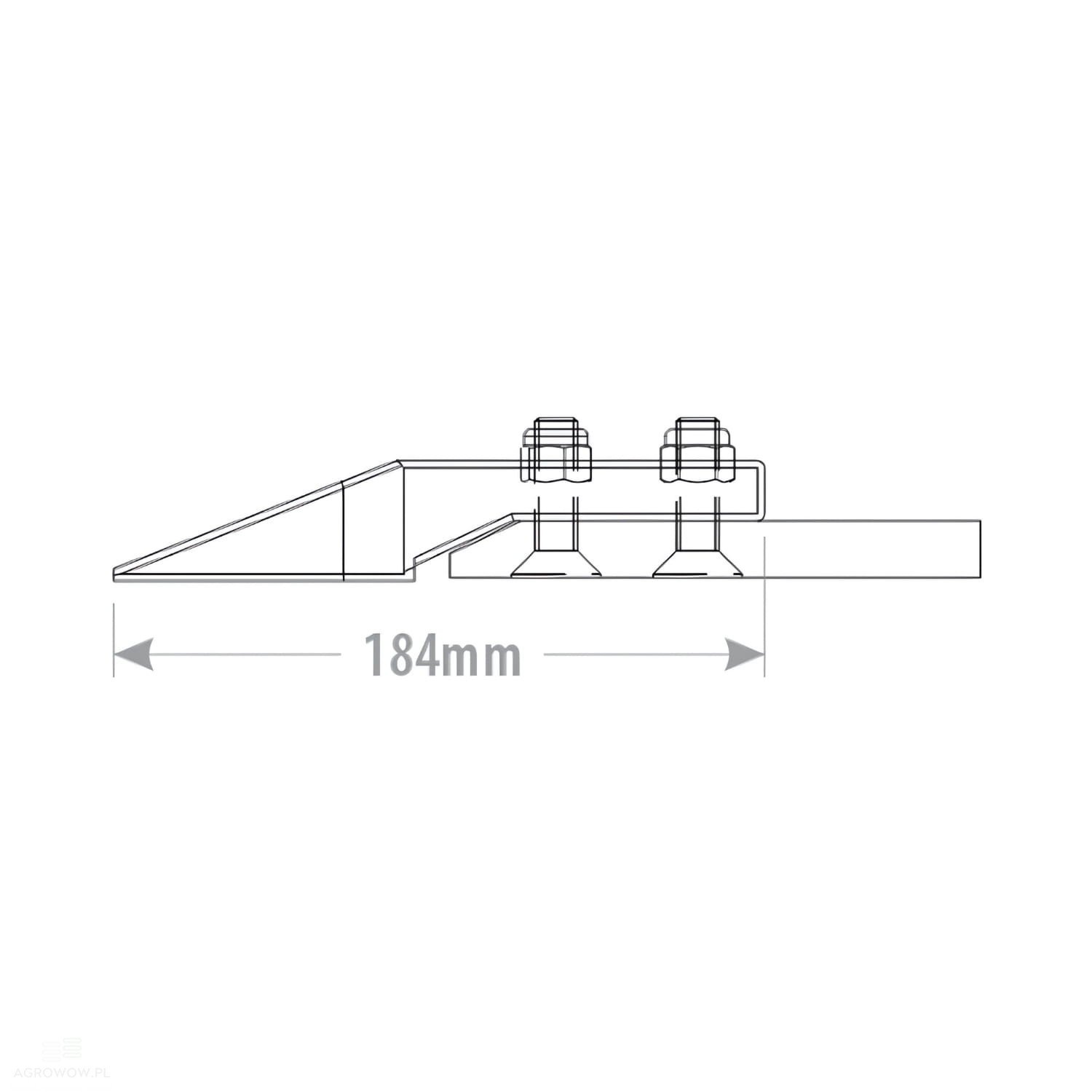

- Bolt-on tooth L-184: (Standard spacing 285 mm)

The L-184 tooth is an easy-to-mount element compatible with various agricultural tools. It has a standard spacing of 285 mm, which allows for perfect adjustment of the tool to the user's specific needs. Thanks to this design, the tooth ensures stable work, especially during deeper soil loosening. It is an excellent solution for demanding field work, enabling effective task performance in variable terrain conditions.

- Profiled sides for increased capacity

Profiled sides are designed to increase the tool's volume. This modification allows for loading and transporting a larger amount of material in a single cycle, which significantly improves work efficiency. As a result, the tool becomes more effective, optimizing workspace, increasing comfort in the field, and enabling more work to be completed in less time.

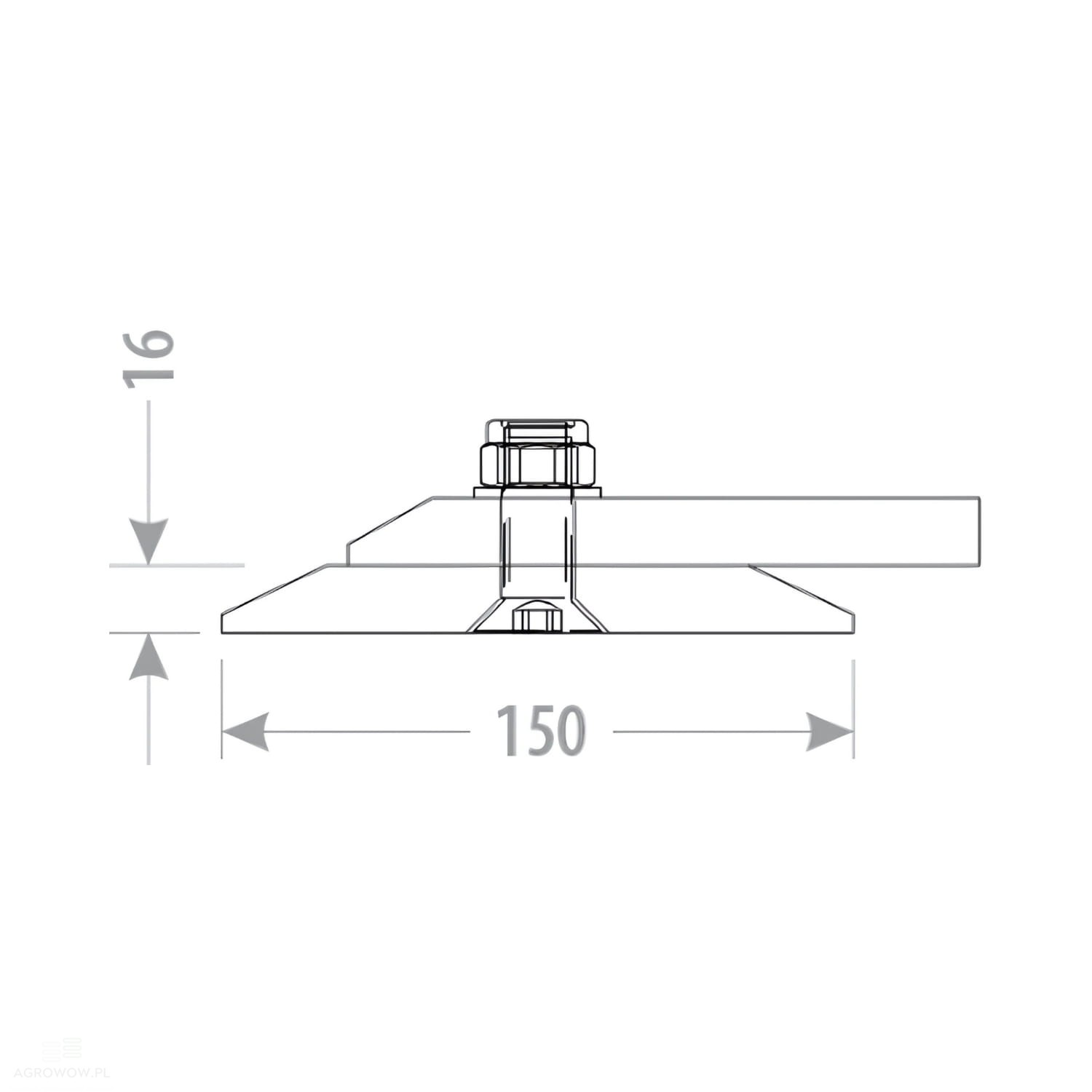

- Bolt-on HB500 cutting edge 150x16, double-beveled

The cutting edge made of HB500 steel (150x16 mm) is characterized by exceptional abrasion resistance, ensuring the tool's longevity in difficult ground conditions. The double-beveled cutting edge is equipped with two working blades that can be used interchangeably, which extends its lifespan and reduces the frequency of replacements. Thanks to this design, the cutting edge provides work efficiency in difficult terrain, enabling easier and more effective task performance.

Detailed Description:

• The 1600 mm wide bucket is an exceptionally durable tool designed for construction work and the transport of loose materials, such as sand, gravel, or earth. It performs perfectly in various working conditions, ensuring reliability and high efficiency for every task.
• Its solid construction makes it an excellent choice for work on construction sites, in warehouses, and wherever tools with high capacity and resistance to mechanical damage are required.
• The 1600 mm wide, 1210 mm long, and 900 mm high bucket is an ideal tool for loading and transporting smaller quantities of material in more limited workspaces.
• With a working capacity of 0.94 m³, the bucket enables rapid pickup of earth and other materials, which speeds up loading and reduces work time by eliminating the need for repeated passes.
• The bucket is made of high-quality materials, including 8 mm thick sides and a 6 mm thick shell, which provides high resistance to mechanical damage, even in difficult working conditions.
• The bottom of the bucket has been reinforced to 10 mm, providing additional durability and increasing resistance to damage, extending its lifespan in demanding working conditions.
• The 150x16 mm cutting edge, made of HB500 steel, is resistant to abrasion, which enables effective pickup of materials from hard surfaces, ensuring long-term efficiency.
• Side extensions and a reinforced side-to-bottom connection provide the bucket with greater strength, enabling it to work in difficult conditions while ensuring tool stability and reliability.
• 10 mm thick ribs reinforce the stability of the structure, improving control over the bucket, especially during intensive transport tasks.
• The bucket weighs 356 kg, which provides appropriate ballast and stability during operation, improving loading precision and user safety, especially when working with smaller machines and tractors.
• Thanks to its solid construction and durable materials, the bucket guarantees long-term, trouble-free operation, becoming an indispensable tool in professional construction and transport tasks.
• The 1600 mm wide bucket is an efficient and reliable tool that performs perfectly in any type of construction work, increasing the efficiency and safety of performed tasks.
