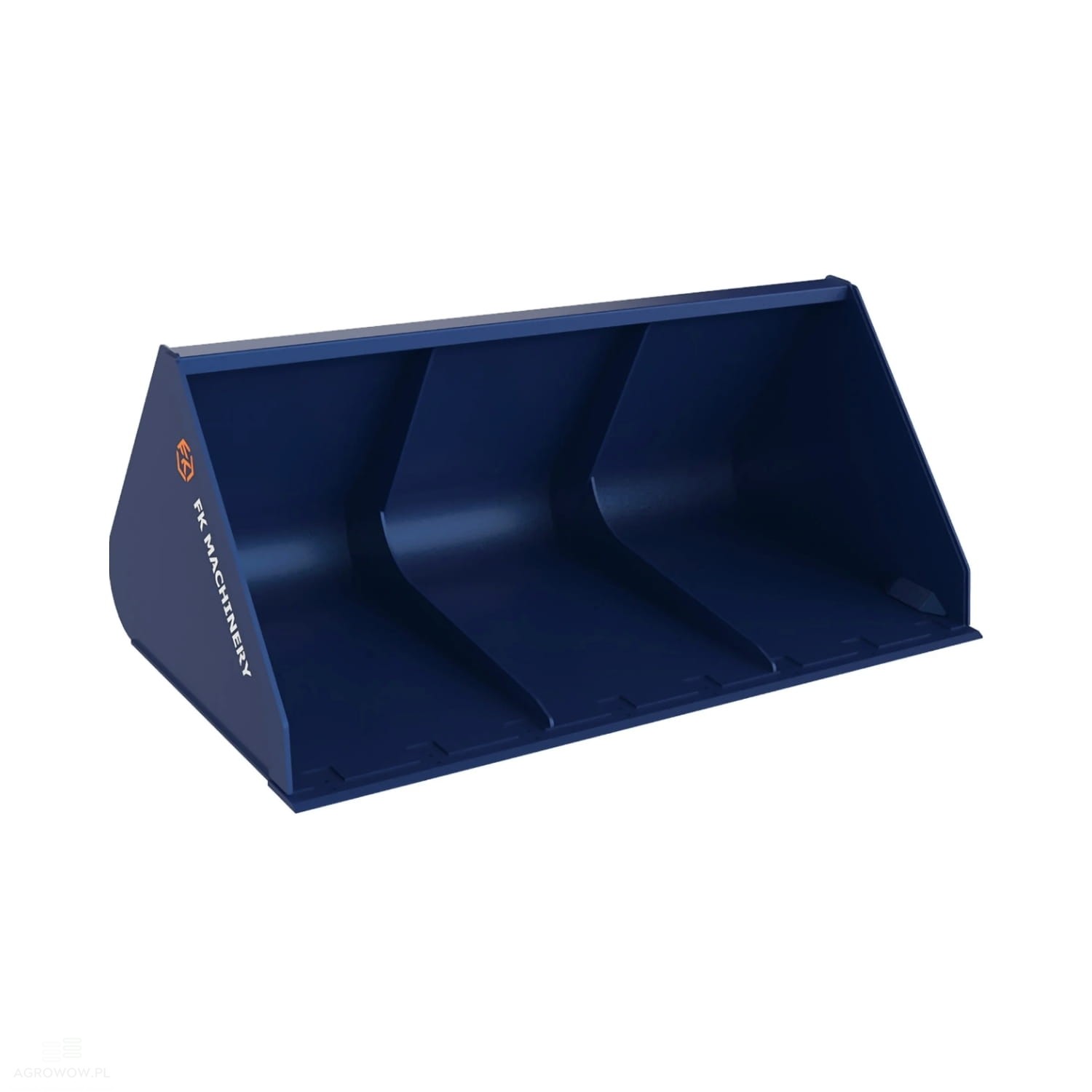

Kołaszewski heavy-duty earth bucket STANDARD 2.2 x 0.9 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KXLHBS-B220

- Manufacturer's name: Heavy-duty earth bucket STANDARD

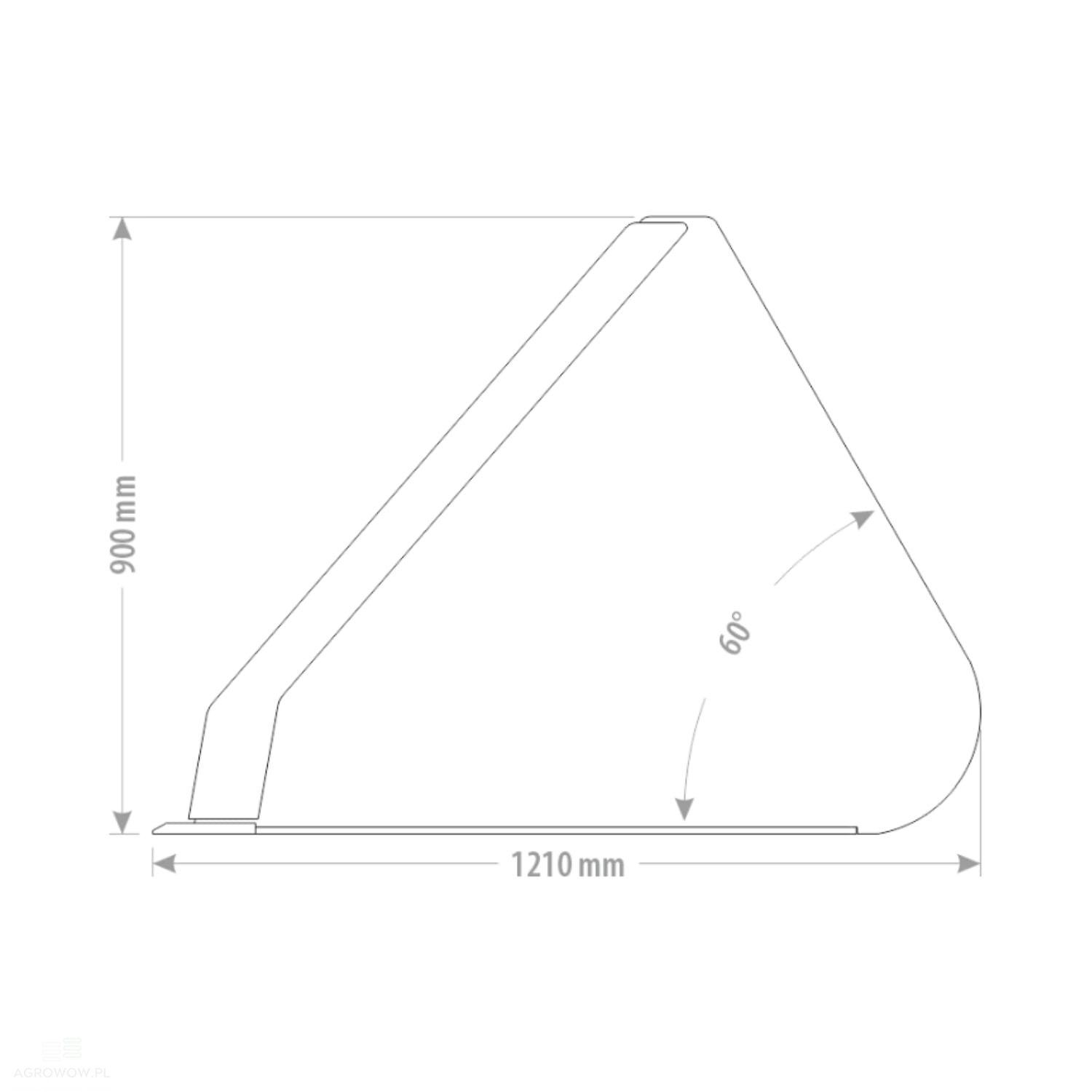

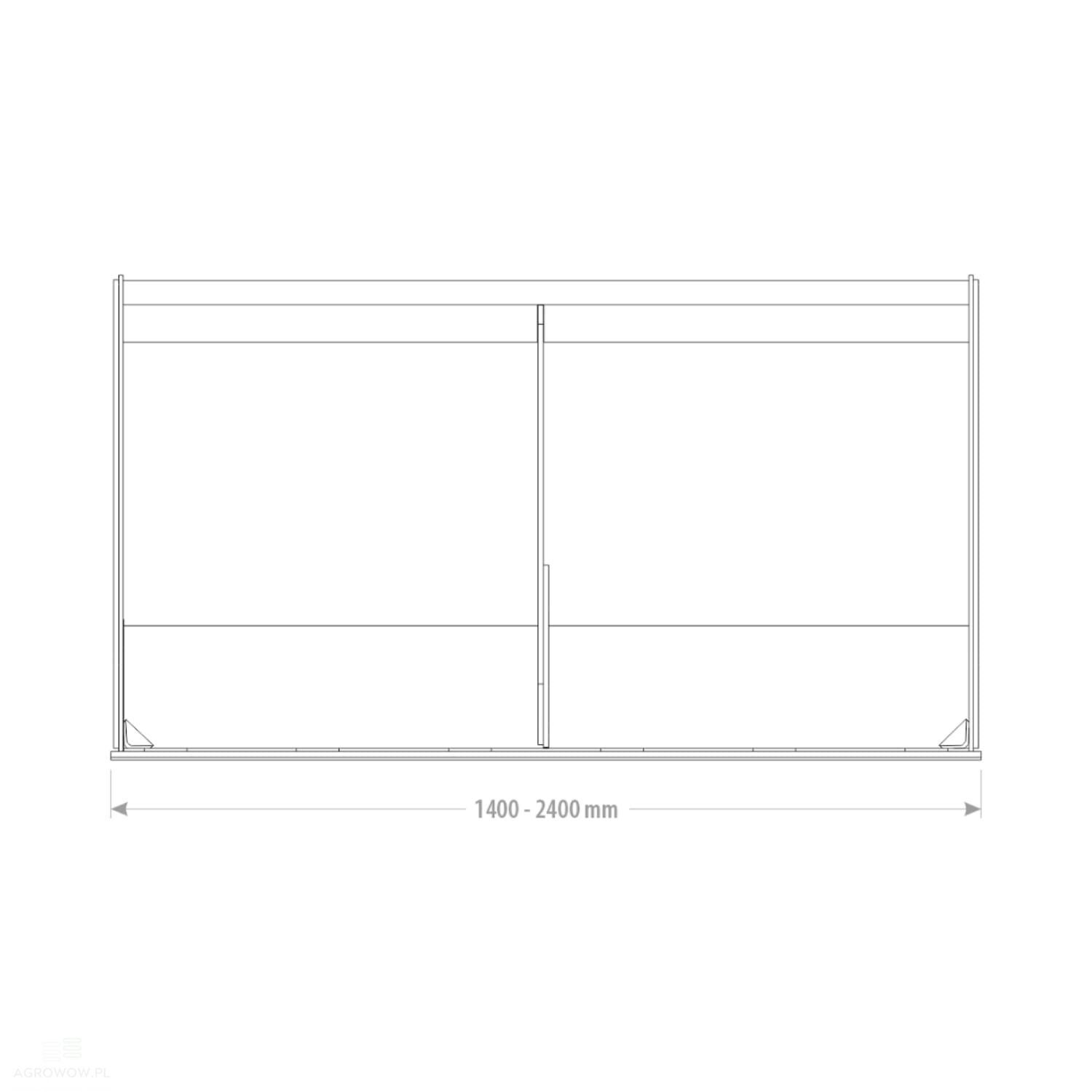

- Width: 2200 mm

- Length: 1210 mm

- Height: 900 mm

- Capacity: 1.30 m³

- Weight: 468 kg

- Side thickness: 8 mm

- Shell thickness: 6 mm

- HB500 cutting edge: 150x16 mm

- Side extensions

- Bottom reinforcements: 10 mm

- Reinforced side-to-bottom connection

- Ribs: 10 mm

Optional extras (at additional cost):

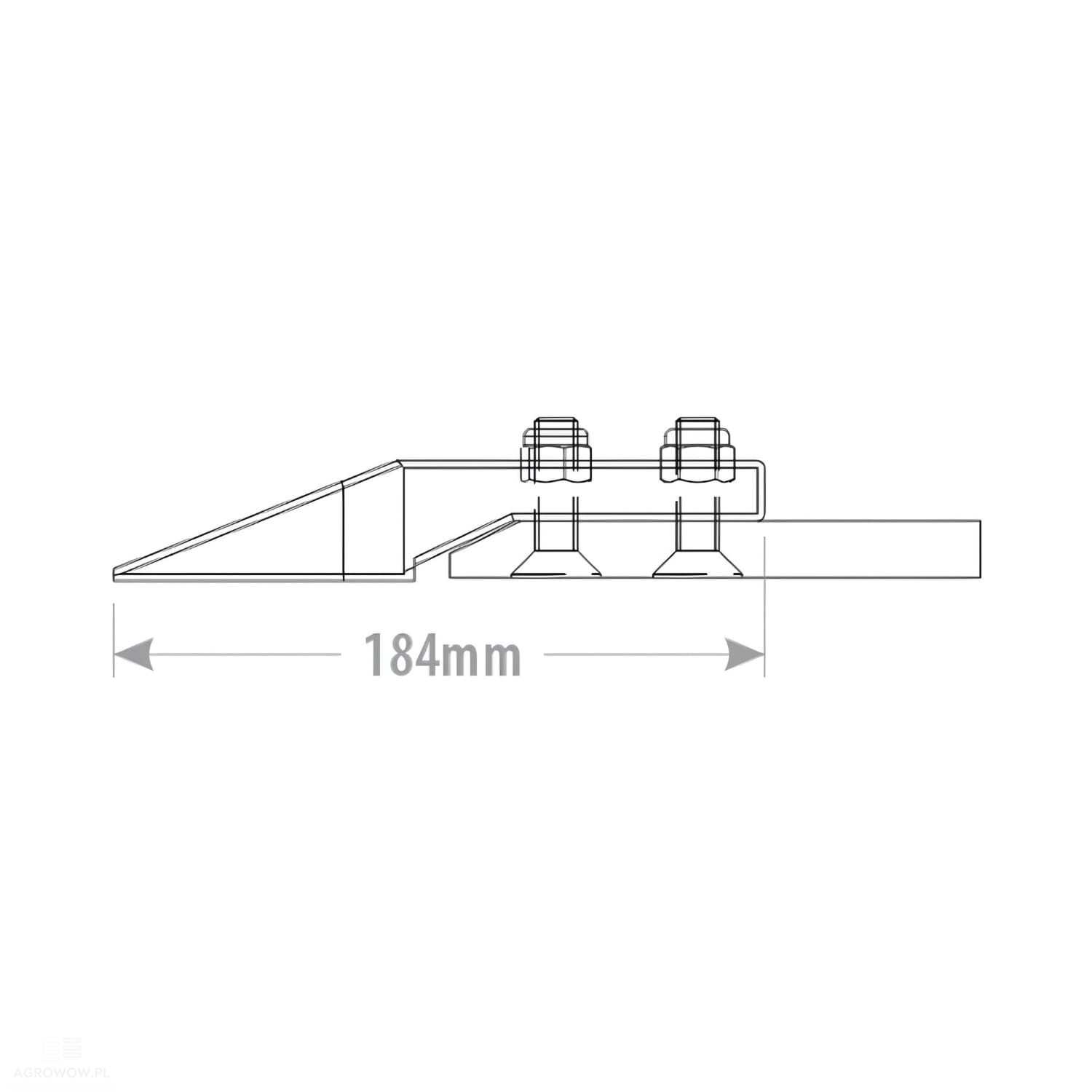

- Bolt-on tooth L-184: (Standard spacing 285 mm)

The L-184 tooth is an easy-to-mount component compatible with many agricultural tools. The 285 mm standard spacing ensures a proper fit, allowing the tool to be adjusted to specific user needs. Its design guarantees stability during operation, especially during deeper soil loosening, making it an ideal solution for intensive field work, even in varied terrain conditions.

- Profiled sides for increased capacity

Profiled sides are designed to increase the tool's capacity, allowing for a larger volume of material to be loaded in a single cycle. Thanks to this modification, the tool becomes more efficient, optimizing workspace and improving comfort. This allows for the completion of more tasks in a shorter time.

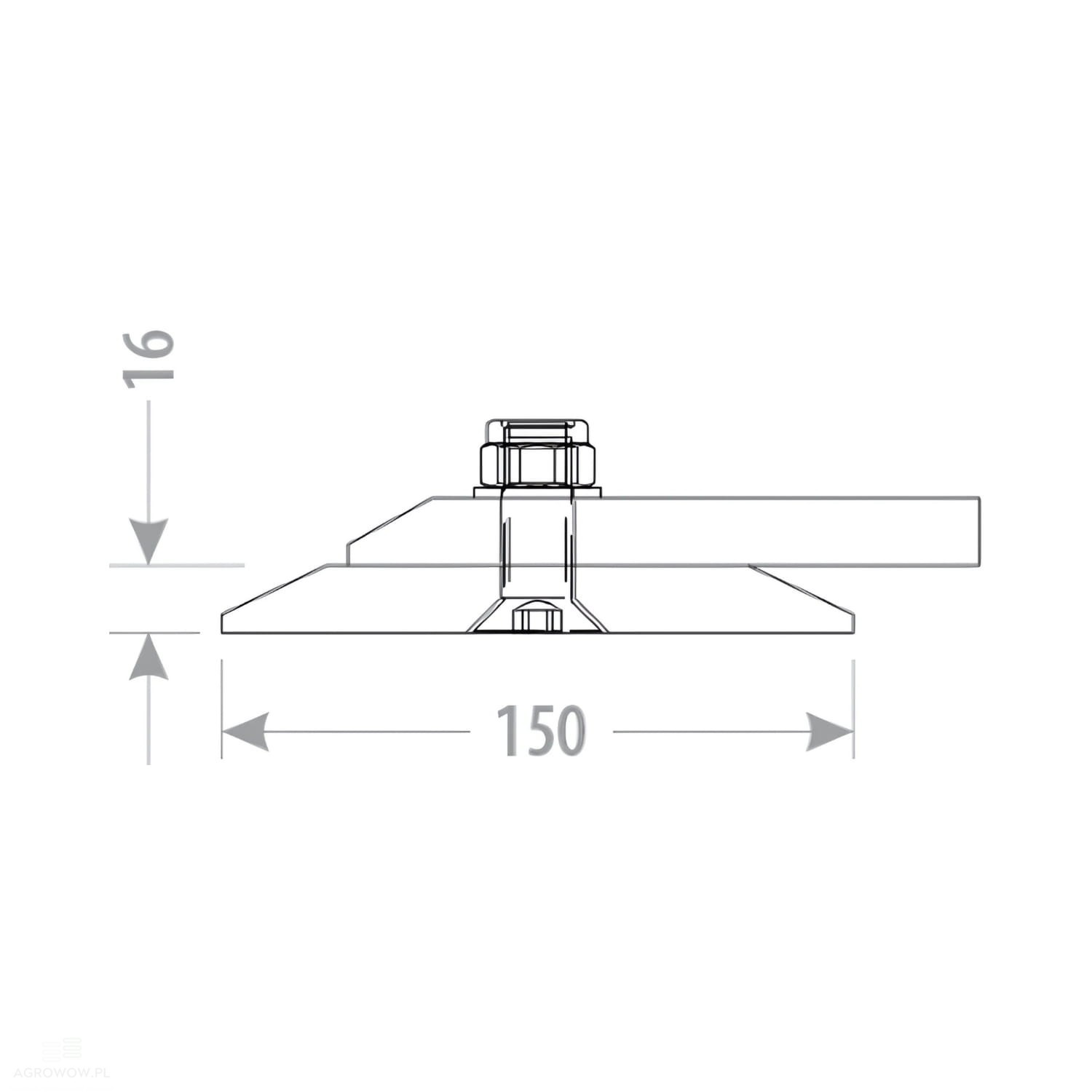

- Bolt-on HB500 cutting edge 150x16, double-beveled

A 150x16 mm cutting edge made of exceptionally resistant HB500 steel guarantees high abrasion resistance, ensuring long-term tool operation in difficult ground conditions. The double-beveled edge features two working blades that can be used interchangeably, which significantly extends its durability and reduces the frequency of replacement. This design ensures high efficiency, especially in difficult terrain, enabling easier and more effective task completion.

Detailed Description:

• The 2200 mm wide bucket is an extremely durable tool created for intensive construction work and the transport of loose materials, such as sand, gravel, or earth. Thanks to its solid construction, it performs well in difficult working conditions, guaranteeing reliability and high efficiency in various situations.

• Its solid build makes it an ideal solution for work on construction sites, in warehouses, and other locations where tools with large capacity and resistance to mechanical damage are needed.

• The bucket, with a width of 2200 mm, a length of 1210 mm, and a height of 900 mm, is an excellent choice for loading and transporting larger quantities of material, especially in more limited workspaces.

• With a working capacity of 1.30 m³, the bucket allows for rapid loading of earth and other materials, which significantly speeds up the loading process by eliminating the need for repeated passes, saving valuable work time.

• Constructed from high-quality materials, such as 8 mm thick sides and a 6 mm thick shell, the bucket provides high resistance to mechanical damage, even during intensive use in difficult working conditions.

• The bottom of the bucket has been reinforced with an additional 10 mm, which increases its durability and resistance to damage, extending its lifespan in demanding working conditions.

• The 150x16 mm cutting edge, made of highly durable HB500 steel, is characterized by exceptional abrasion resistance, which ensures effective material pickup—even from hard surfaces—and guarantees long-term efficiency.

• Side extensions and a reinforced side-to-bottom connection additionally increase the tool's strength, ensuring stability and reliability, even in difficult working conditions.

• 10 mm thick ribs reinforce the bucket's structure, improving its stability and control, especially during intensive transport tasks.

• The bucket weighs 468 kg, which provides adequate ballast and stability during operation, improving loading precision and safety, especially when working with smaller machines and tractors.

• Thanks to its solid construction and the high-strength materials used, the bucket guarantees long-term, trouble-free operation, becoming an indispensable tool in professional construction and transport tasks.

• The 2200 mm wide bucket is an efficient and reliable tool that performs excellently in any type of construction work, increasing the efficiency and safety of tasks performed.
