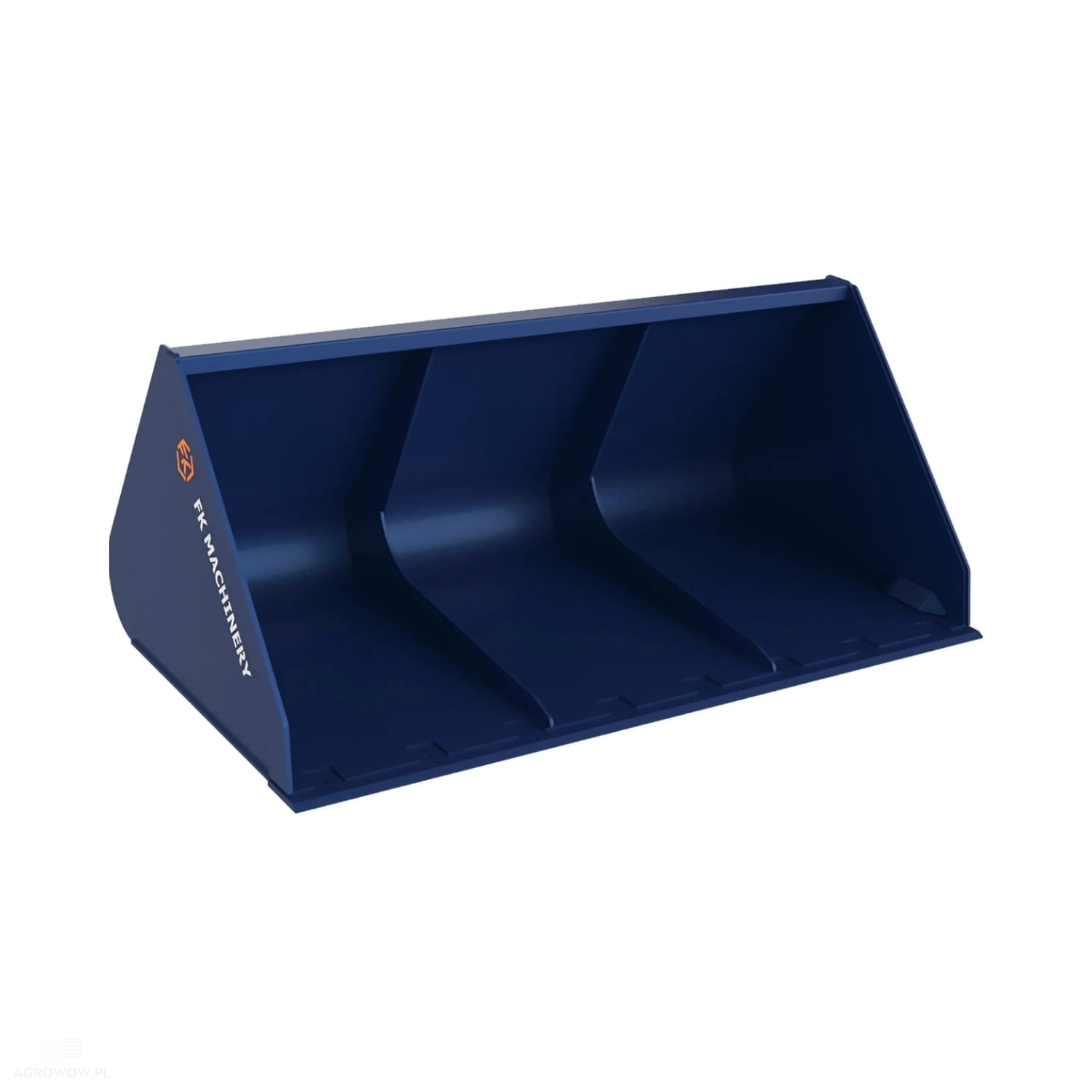

Kołaszewski heavy-duty earth bucket STANDARD 2.4 x 0.9 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KXLHBS-B240

- Manufacturer's name: Heavy-duty earth bucket STANDARD

- Width: 2400 mm

- Length: 1210 mm

- Height: 900 mm

- Capacity: 1.42 m³

- Weight: 508 kg

- Side thickness: 8 mm

- Shell thickness: 6 mm

- HB500 cutting edge: 150x16 mm

- Side extensions

- Bottom reinforcements: 10 mm

- Reinforced side-to-bottom connection

- Ribs: 10 mm

Optional extras (at additional cost):

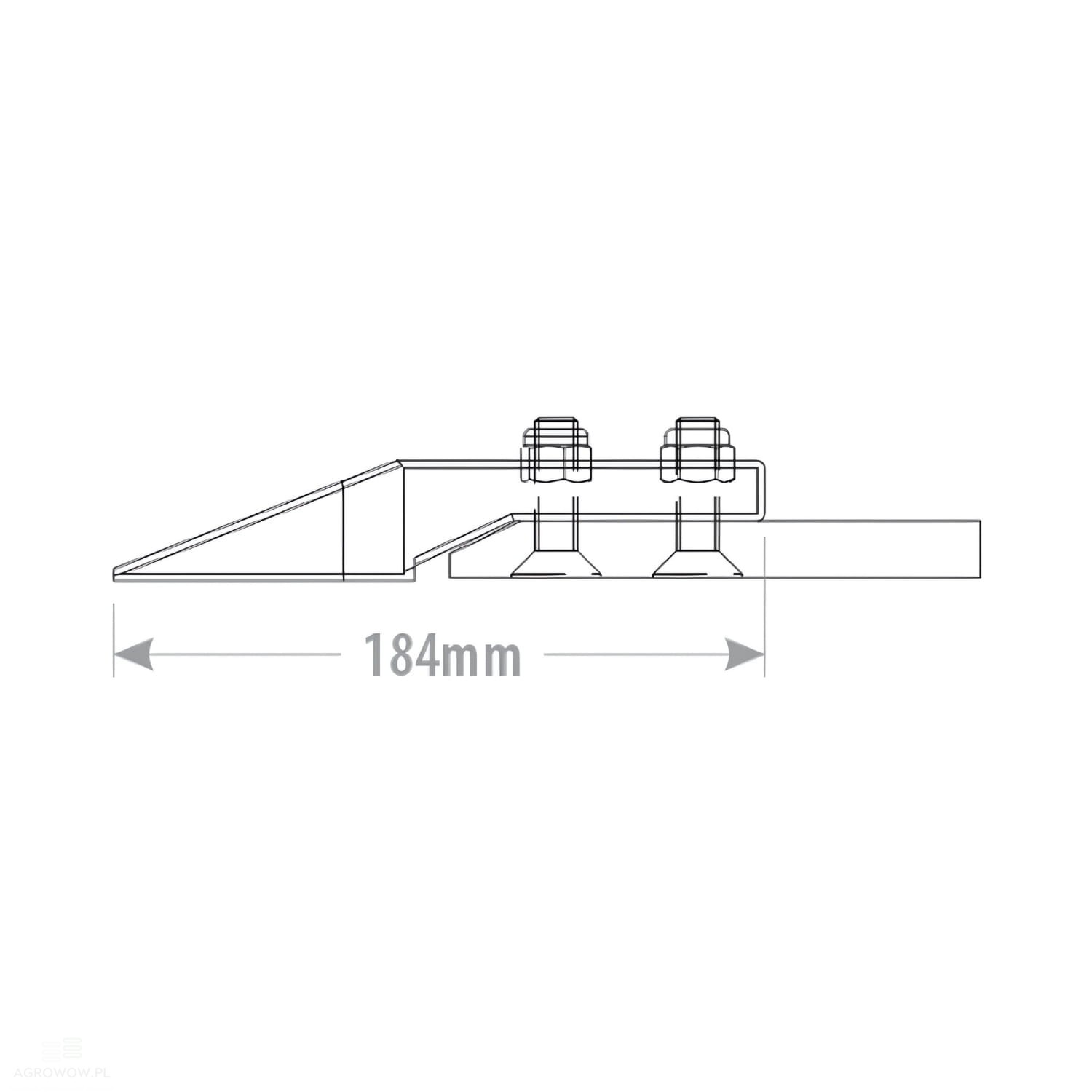

- Bolt-on tooth L-184: (Standard spacing 285 mm)

The L-184 tooth is an easy-to-mount component compatible with a wide range of agricultural tools. With a default spacing of 285 mm, it ensures proper fit, allowing the tool to be adjusted to individual user needs. Its design guarantees work stability, especially during deeper soil loosening, making it an ideal solution for intensive field work, even in varying terrain conditions.

- Profiled sides for increased capacity

Profiled sides are designed to increase the tool's capacity, allowing for a larger volume of material to be loaded in a single cycle. This makes the tool more efficient, optimizing workspace, improving comfort, and allowing for faster completion of tasks.

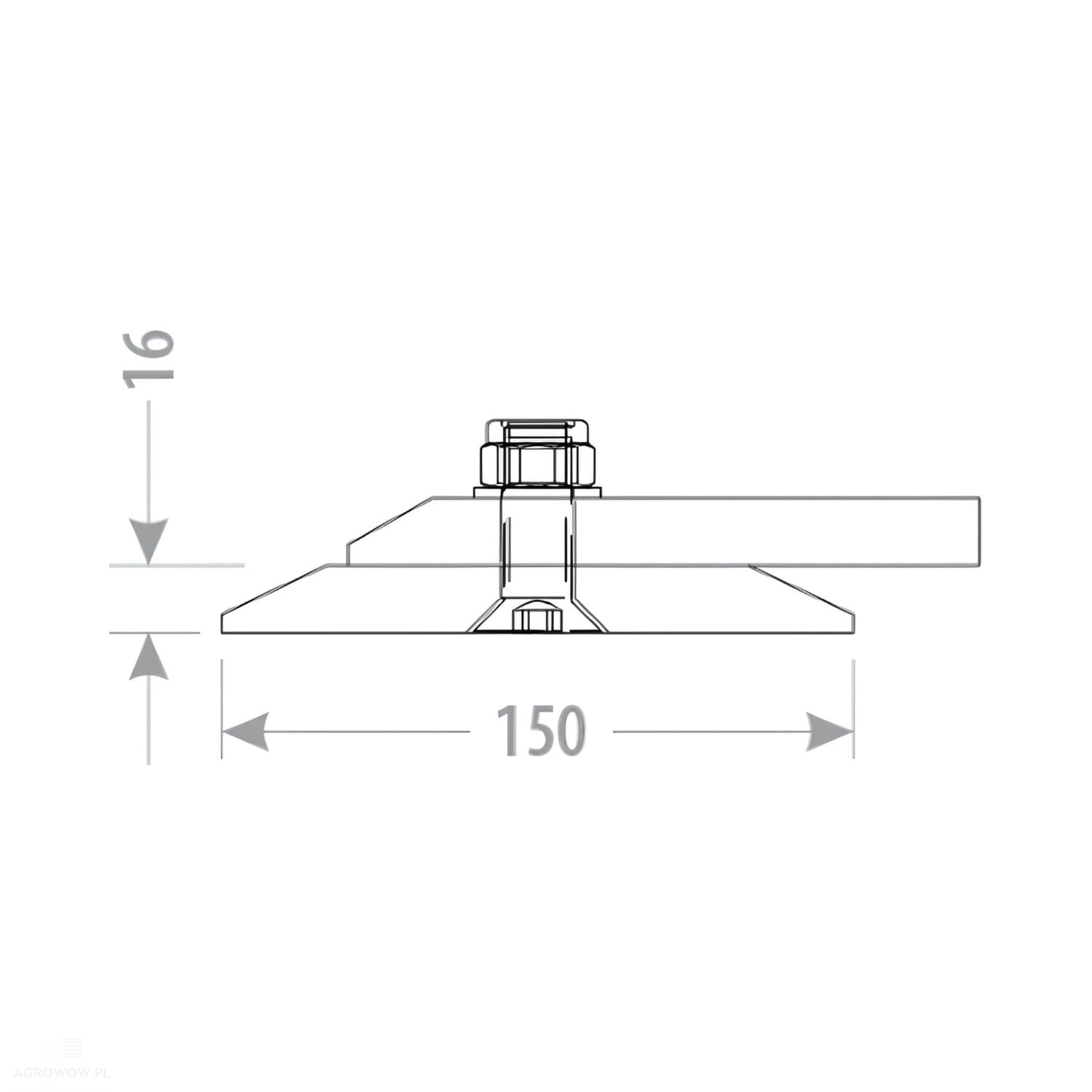

- Bolt-on HB500 cutting edge 150x16, double-beveled

A 150x16 mm cutting edge made of exceptionally durable HB500 steel offers high abrasion resistance, ensuring long-term operation in difficult ground conditions. The double-beveled edge features two working blades that can be used interchangeably, which extends its lifespan and reduces the frequency of replacement. This design ensures high efficiency, especially in demanding terrain.

Detailed Description:

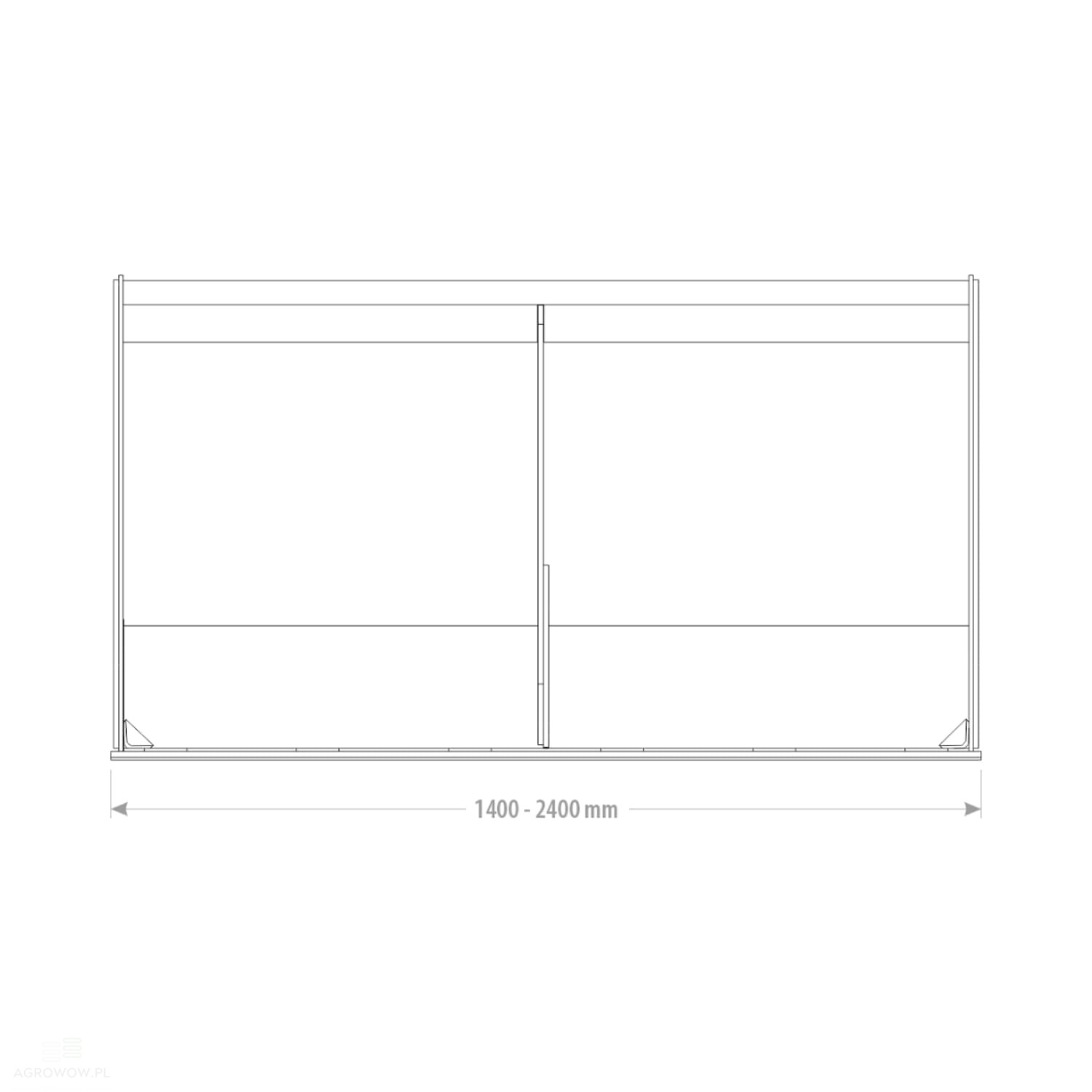

• The 2400 mm wide bucket is an exceptionally durable tool designed for intensive construction work and the transport of loose materials, such as sand, gravel, or earth. Its robust construction makes it excellent for use in difficult working conditions, guaranteeing reliability and high efficiency in various work environments.

• Its durable design makes it an ideal solution for use on construction sites, in warehouses, and other locations where tools with large capacity and high resistance to mechanical damage are required.

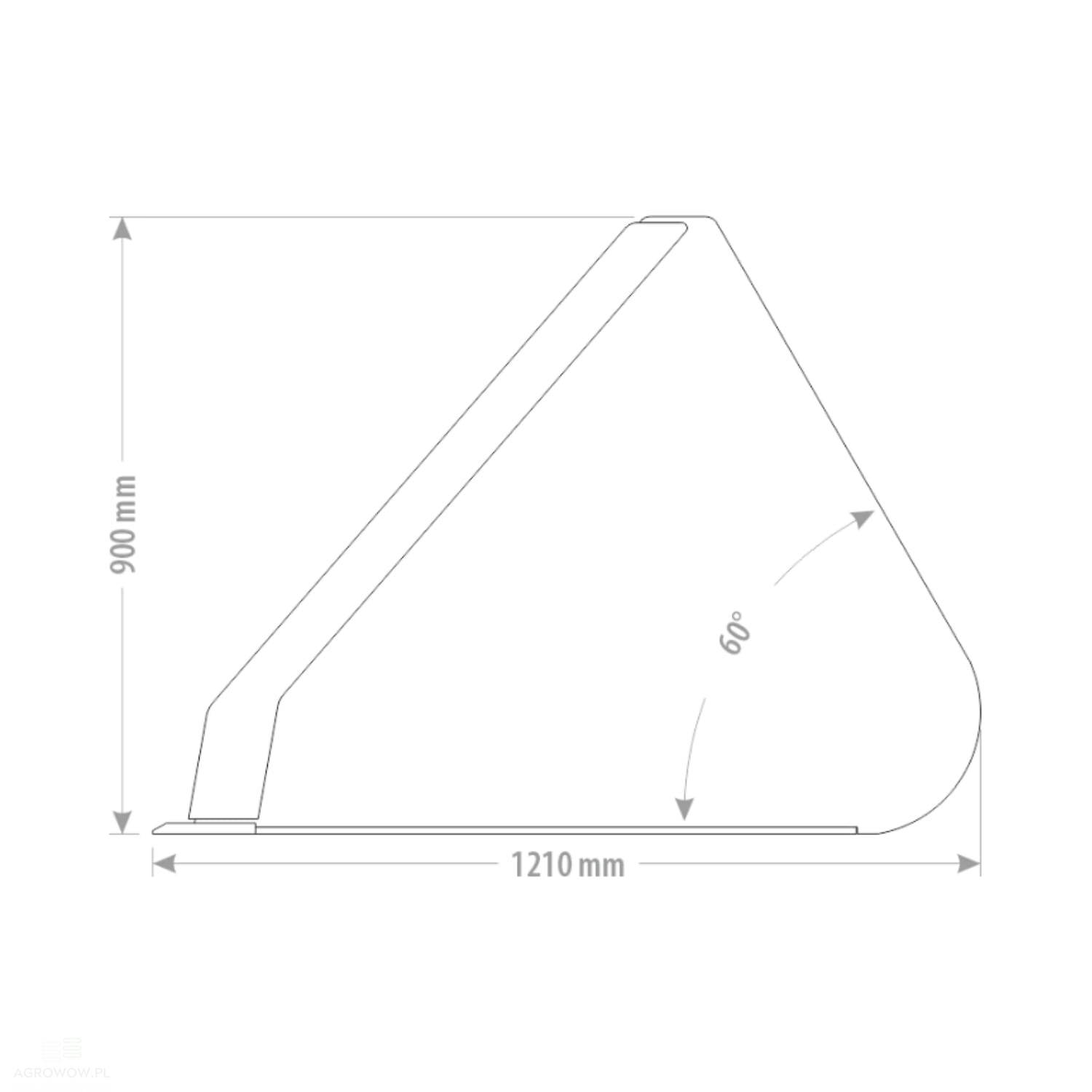

• With a width of 2400 mm, a length of 1210 mm, and a height of 900 mm, the bucket is an excellent choice for loading and transporting larger quantities of material, especially in more confined workspaces.

• With a working capacity of 1.42 m³, the bucket allows for rapid loading of earth and other materials, which speeds up the loading process by eliminating the need for repeated passes, saving valuable work time.

• Constructed from high-quality materials, such as 8 mm thick sides and a 6 mm thick shell, the bucket provides high resistance to mechanical damage, even during intensive use in harsh conditions.

• The bottom of the bucket has been reinforced with an additional 10 mm, which increases its durability and resistance to damage, extending the tool's lifespan in demanding conditions.

• The 150x16 mm cutting edge, made of highly durable HB500 steel, ensures exceptional abrasion resistance, guaranteeing effective material pickup—even from hard surfaces—and long-term efficiency.

• Side extensions and a reinforced side-to-bottom connection contribute to increasing the tool's strength, ensuring stability and reliability even in difficult working conditions.

• 10 mm thick ribs reinforce the bucket's structure, improving stability and control, especially during intensive transport tasks.

• The bucket weighs 508 kg, providing adequate ballast and stability during operation, improving loading precision and safety, particularly when working with smaller machines and tractors.

• Thanks to its solid construction and the use of high-strength materials, the bucket guarantees long-term, trouble-free operation, becoming an indispensable tool in professional construction and transport tasks.

• The 2400 mm wide bucket is an efficient and reliable tool that performs excellently in any type of construction work, increasing the efficiency and safety of tasks performed.
