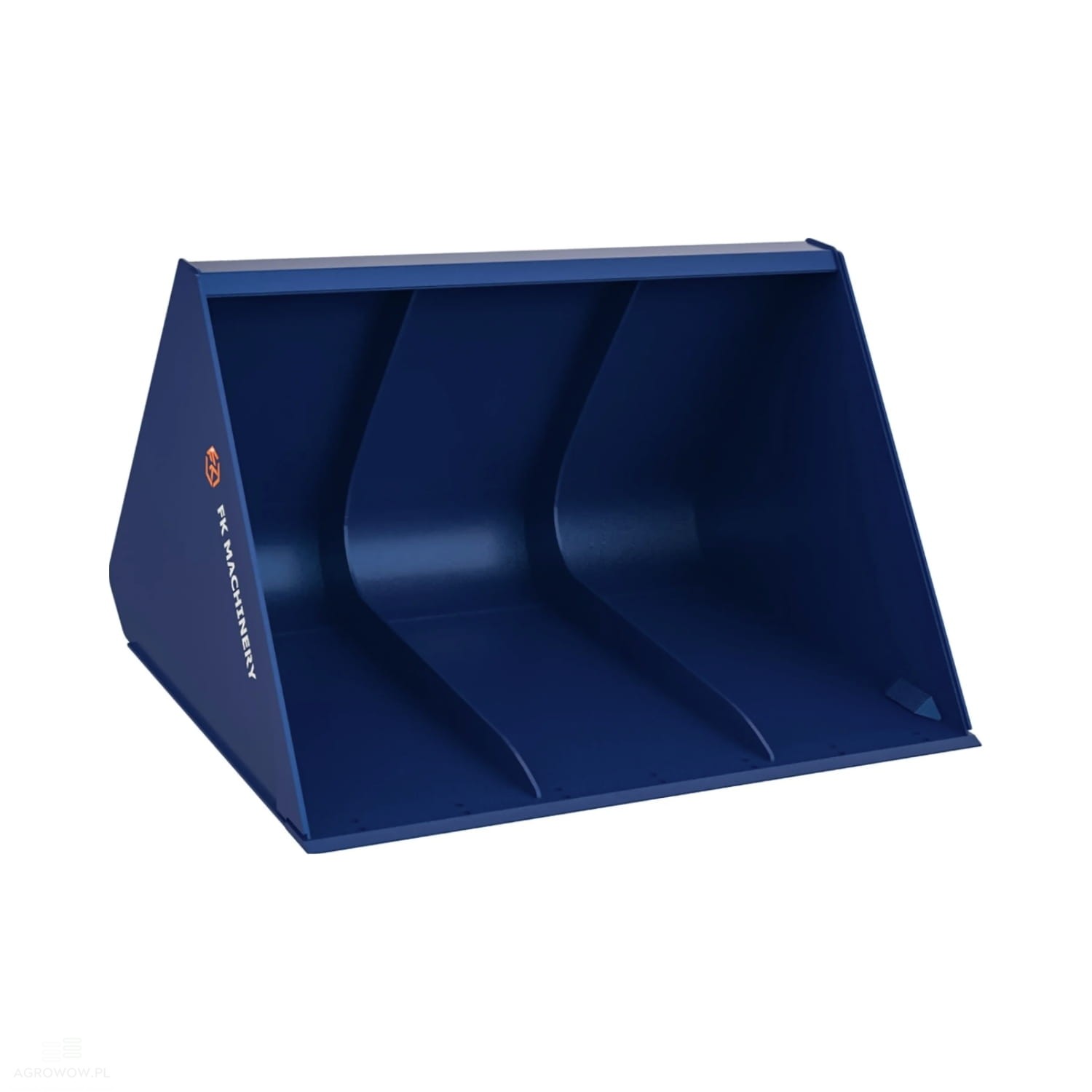

Kołaszewski heavy soil bucket MAXI 1.6 x 1.22 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KXLHBS-D160

- Manufacturer's name: Heavy soil bucket MAXI

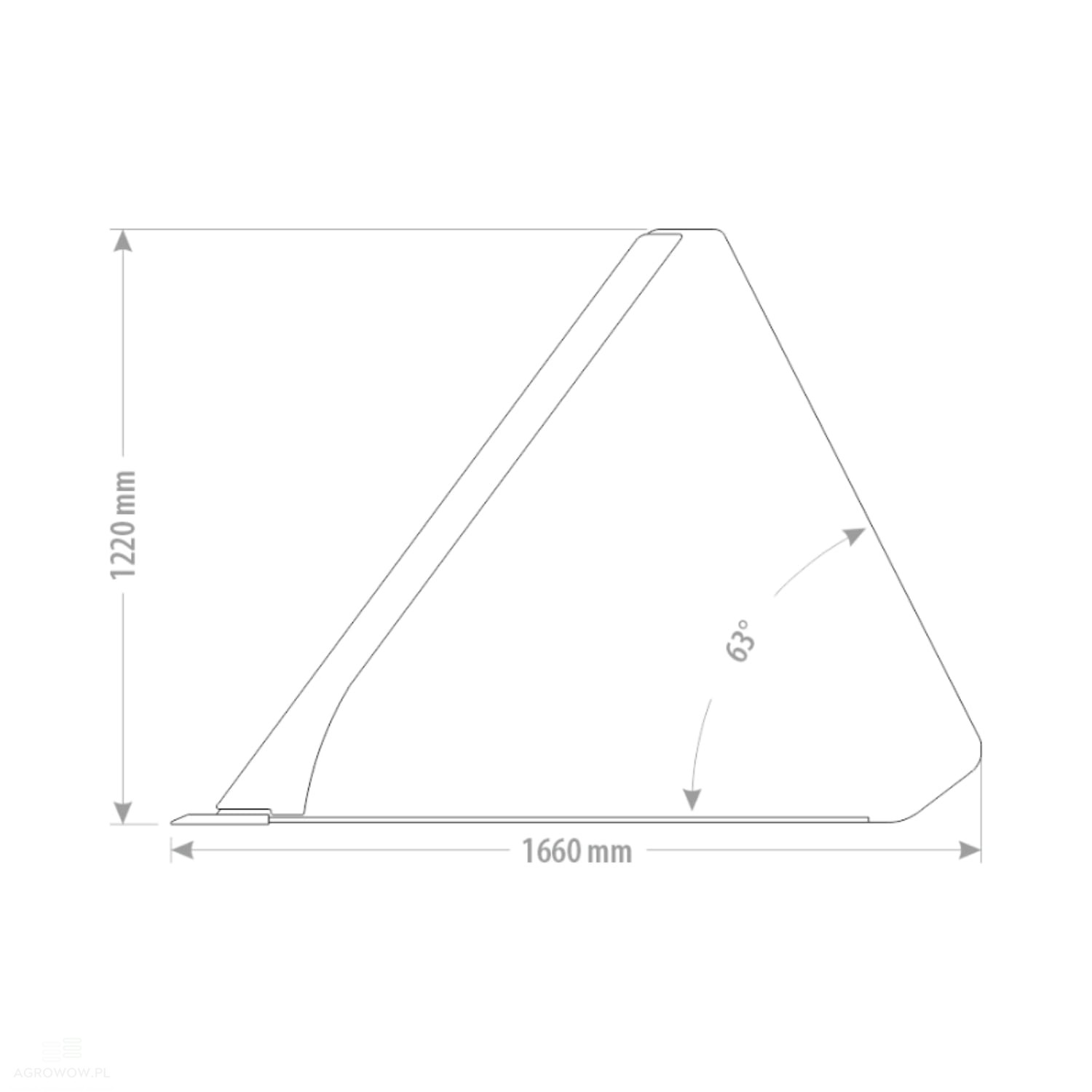

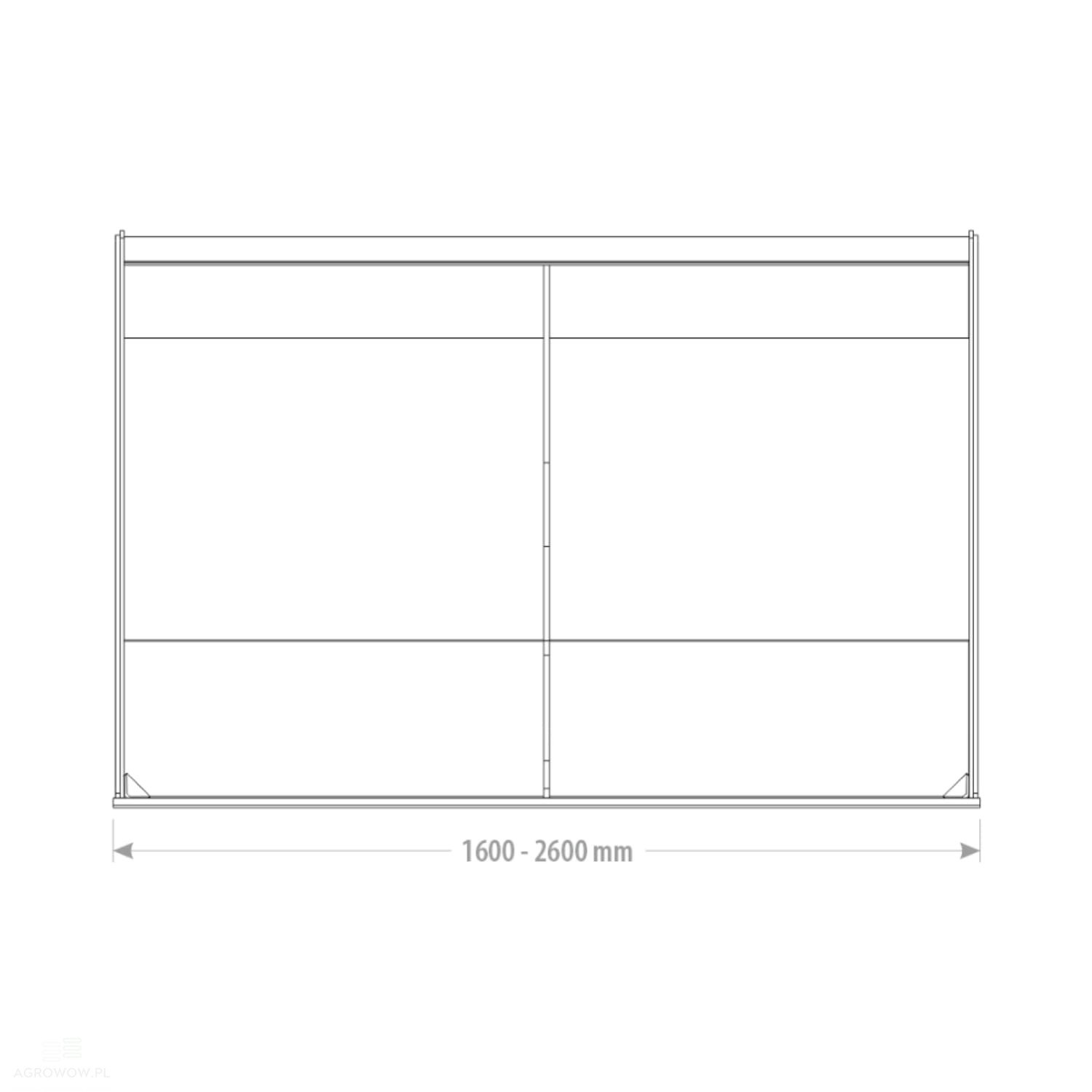

- Width: 1600 mm

- Length: 1660 mm

- Height: 1220 mm

- Capacity: 1.62 m³

- Weight: 522 kg

- Side plate thickness: 8 mm

- Shell thickness: 6 mm

- HB500 cutting edge: 200x20 mm

- Floor reinforcements: 10 mm

- Reinforced side-to-floor joint

- Wzmocnione łączenie boku z dnem

- Ribs: 12 mm

Optional extras (at additional cost):

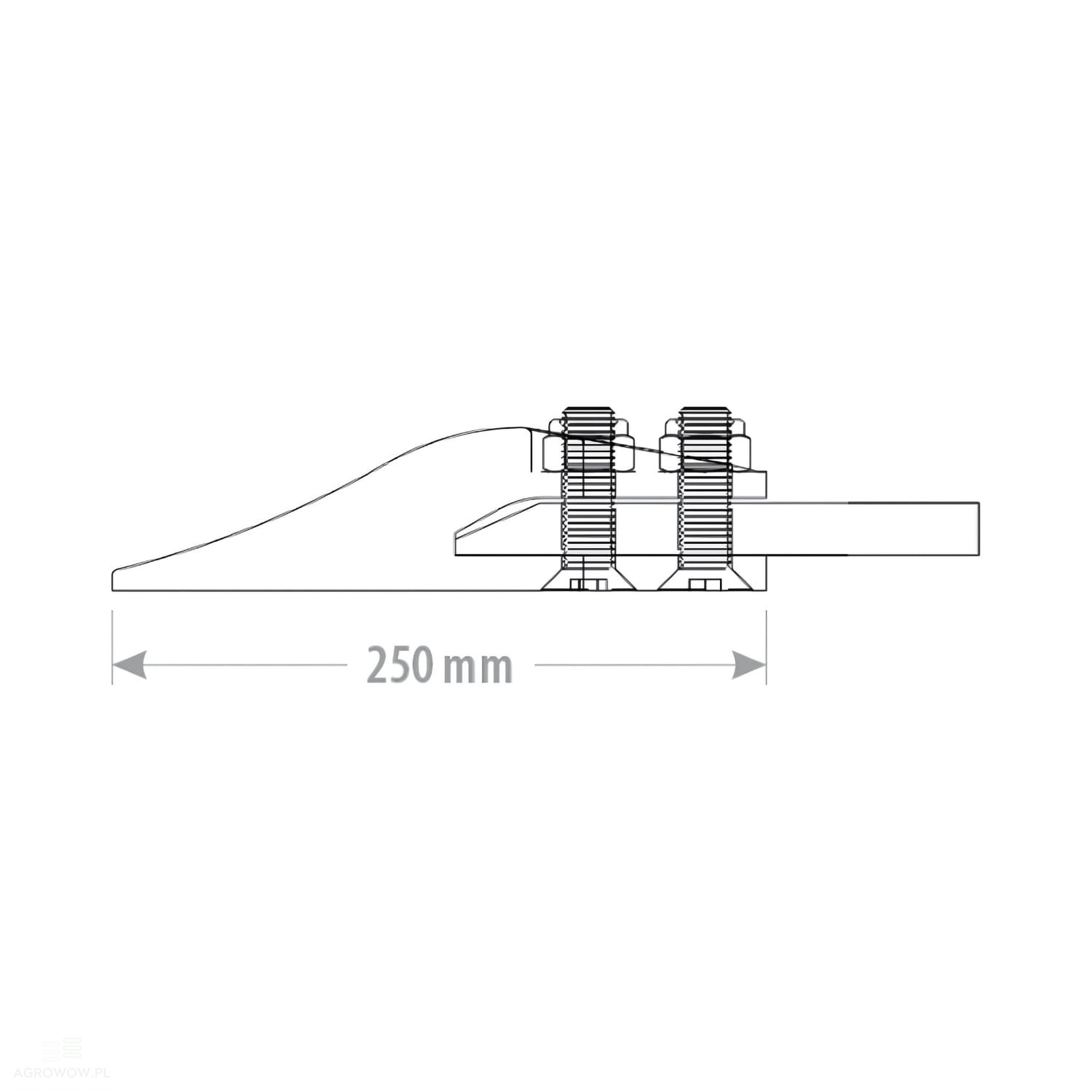

- Bolt-on tooth L-250 – default spacing 285 mm

The L-250 bolt-on tooth is a component that can be easily mounted on an agricultural tool. Its default spacing is 285 mm, which ensures an appropriate distance between the teeth depending on the user's needs. This type of tooth ensures operating stability in various field conditions, especially during work related to deeper soil loosening.

- Profiled sides for increased volume

Profiled sides are a structural element aimed at increasing the capacity of the working tool. Thanks to this modification, the tool is more effective when collecting and transporting larger quantities of material in a single load. This type of solution allows for better utilization of the workspace, increasing efficiency and work comfort in the field.

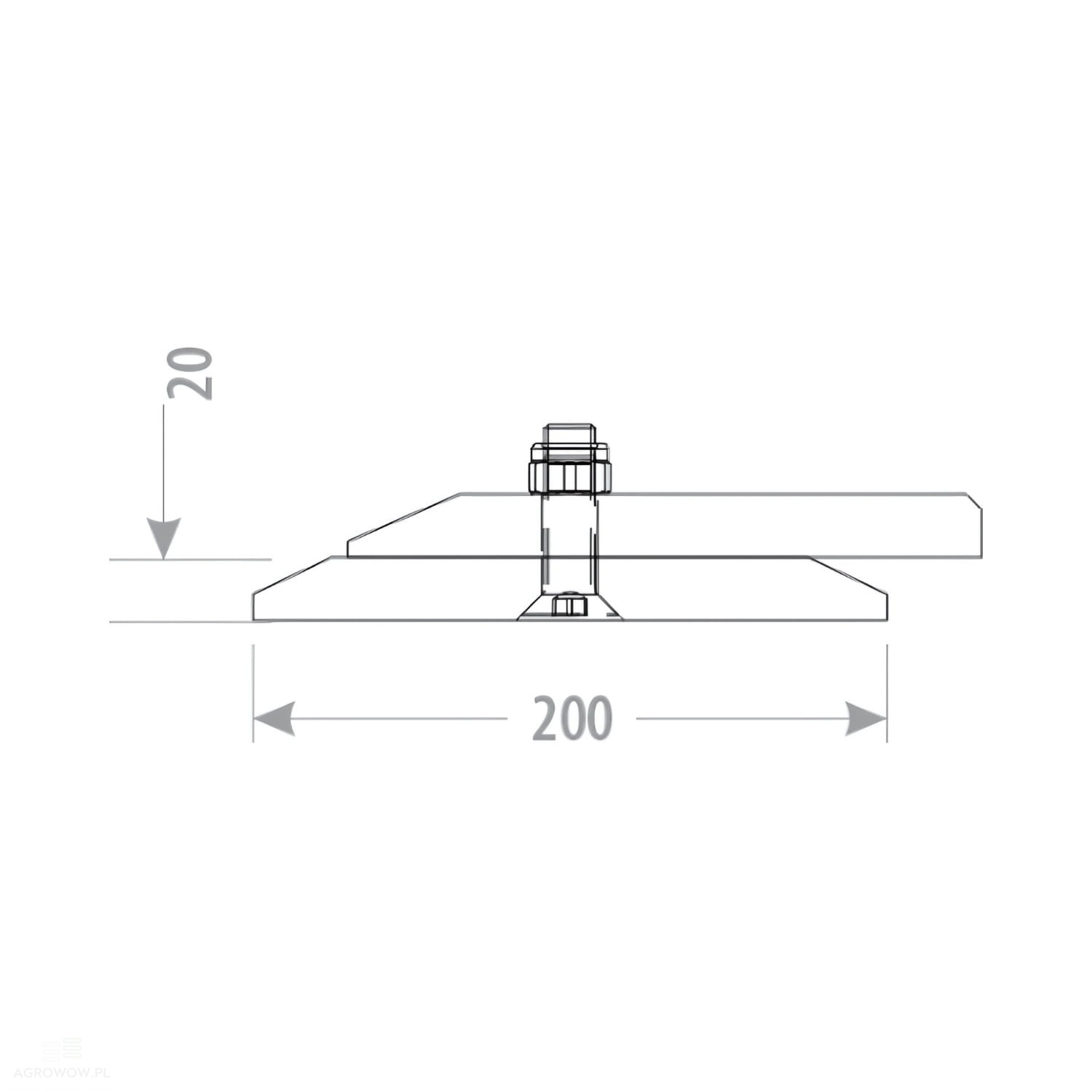

- Bolt-on HB500 cutting edge, 200x20 mm, double-beveled

The HB500 bolt-on cutting edge is a specialized component of the working tool, made of highly durable HB500 steel. The dimensions of the cutting edge are 200x20 mm, ensuring an appropriate working width and depth. The cutting edge is double-beveled, meaning it features two working blades that can be used interchangeably, extending its service life and reducing the need for frequent replacement. Thanks to this, the cutting edge is characterized by high wear resistance and is suitable for work in difficult terrain conditions.

Detailed Description:

• The MAXI soil bucket is an exceptionally strong and efficient tool, designed with demanding construction work and the transport of bulk materials such as sand, gravel, or stones in mind.



• Its robust construction makes it an ideal solution on construction sites, in warehouses, and for other tasks that require a tool with high capacity and durability.



• The MAXI soil bucket features a width of 1600 mm, length of 1660 mm, and height of 1220 mm, making it an ideal tool for loading and transporting larger quantities of material.



• With a working capacity of 1.62 m³, it allows for fast scooping of soil or other materials, which increases work efficiency and reduces the time required for multiple loading cycles.



• The bucket is made of exceptionally durable materials: 8 mm thick sides and a 6 mm thick shell ensure high resistance to mechanical damage and the effects of difficult terrain conditions.



• Additionally, the 10 mm thick floor reinforcement provides durability and resistance to damage, even under the most demanding operating conditions.



• The bucket cutting edge is made of high-quality HB500 steel with dimensions of 200x20 mm, ensuring not only resistance to abrasive wear but also efficiency when scooping materials from hard ground.



• The side extensions and the reinforced side-to-floor joint further increase the strength of the bucket, making it ready to work in difficult conditions.



• The bucket is also equipped with 12 mm thick ribs, which improve structural stability and further strengthen the entire framework, enabling better control over the tool during intensive work.



• The weight of 522 kg provides appropriate stability and counterweight during operation, which affects safety of use and loading precision, especially when working with heavier machinery and tractors.



• Thanks to its reinforced construction and proper maintenance, the MAXI bucket ensures long-lasting and trouble-free operation, making it an indispensable tool in professional construction and transport work.



• Ideal for use in demanding conditions, the MAXI soil bucket is an efficient and reliable solution for every professional.
