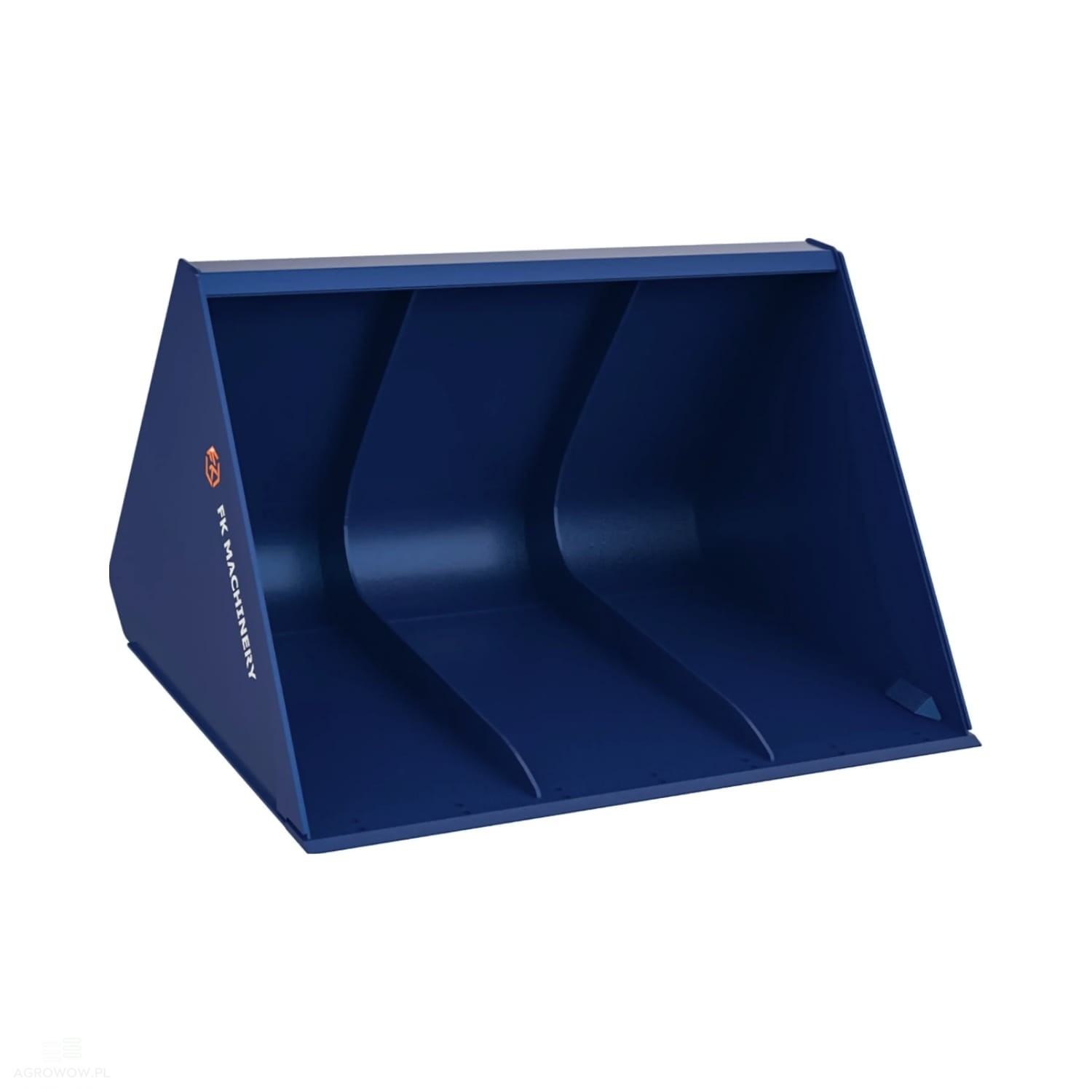

Kołaszewski heavy soil bucket MAXI 1.8 x 1.22 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KXLHBS-D180

- Manufacturer's name: Heavy soil bucket MAXI

- Width: 1800 mm

- Length: 1660 mm

- Height: 1220 mm

- Capacity: 1.82 m³

- Weight: 578 kg

- Side plate thickness: 8 mm

- Shell thickness: 6 mm

- HB500 cutting edge: 200x20 mm

- Side extensions

- Floor reinforcements: 10 mm

- Reinforced side-to-floor joint

- Ribs: 12 mm

Optional extras (at additional cost):

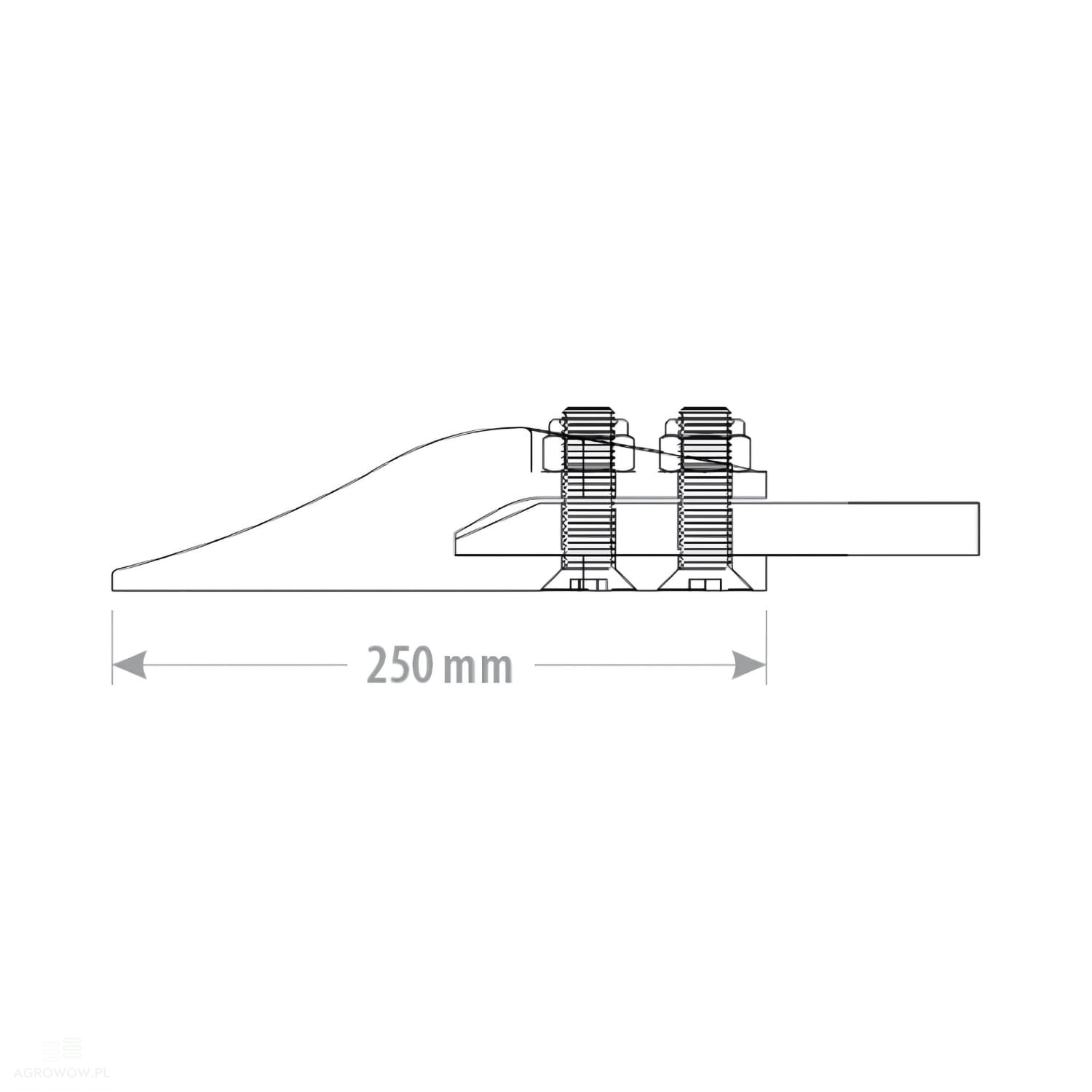

- Bolt-on tooth L-250 – default spacing 285 mm

The L-250 bolt-on tooth is a component that can be easily mounted on an agricultural tool. It features a standard spacing of 285 mm, which ensures an appropriate distance between the teeth, customized to the individual needs of the user. This tooth ensures operating stability in various conditions, especially during deeper soil loosening, making it suitable for intensive field work.

- Profiled sides for increased volume

Profiled sides are a structural modification that increases the capacity of the working tool, allowing larger quantities of material to be collected and transported in a single load. Thanks to this solution, the tool becomes more effective, improving workspace utilization and increasing efficiency as well as work comfort in the field.

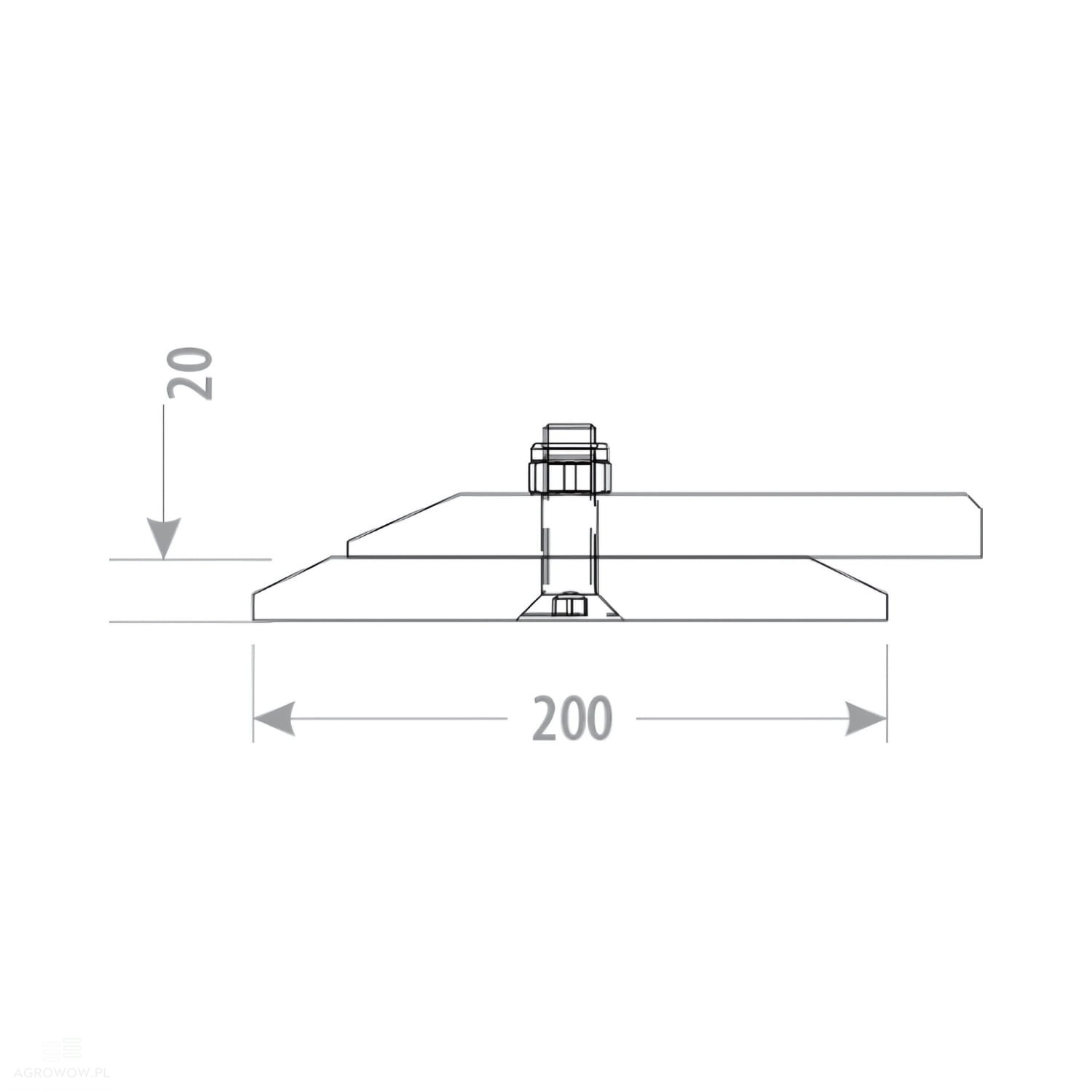

- Bolt-on HB500 cutting edge, 200x20 mm, double-beveled

The HB500 bolt-on cutting edge, made of highly wear-resistant HB500 steel, measures 200x20 mm, ensuring an appropriate working width and depth. It is double-beveled, meaning it features two working blades that can be used interchangeably, which significantly extends its durability and reduces the need for frequent replacement. Thanks to this design, the cutting edge is exceptionally resistant to wear and performs perfectly in demanding ground conditions.

Detailed Description:

• The MAXI soil bucket is an exceptionally solid and effective tool, created for intensive construction work and the transport of bulk materials such as sand, gravel, or stones.

• Its durable construction makes it an ideal choice for use on construction sites, in warehouses, and anywhere a high-capacity tool with resistance to difficult working conditions is essential.

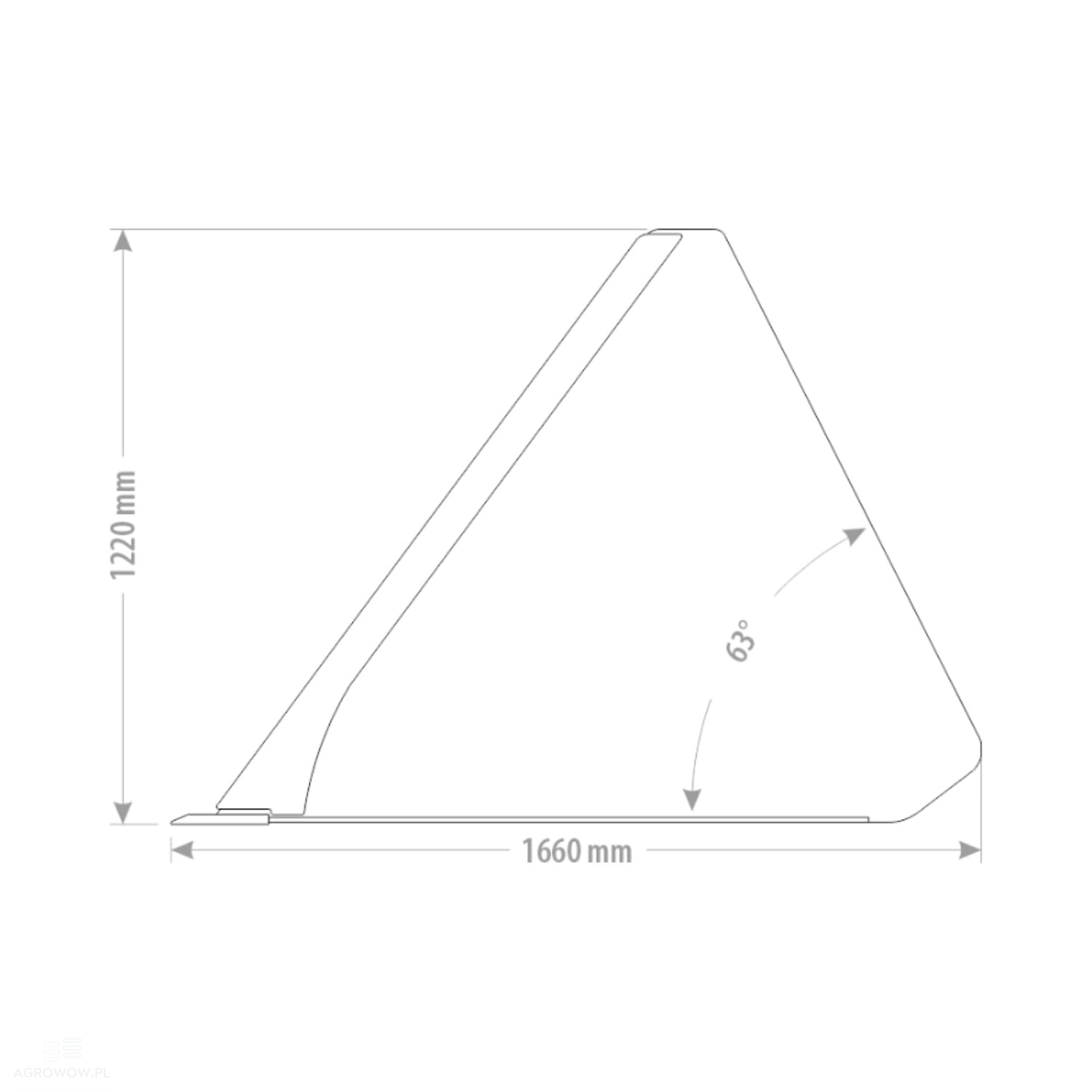

• The MAXI soil bucket features a width of 1800 mm, length of 1660 mm, and height of 1220 mm, making it ideal for loading and transporting larger quantities of material under demanding conditions.

• Offering a working capacity of 1.82 m³, it allows for fast scooping of soil or other materials, which increases work efficiency and shortens loading time by eliminating the need for multiple loading cycles.

• The solid construction, including 8 mm thick sides and a 6 mm thick shell, ensures resistance to mechanical damage, allowing the tool to work in difficult terrain conditions.

• An additional 10 mm thick floor reinforcement guarantees durability and resistance to damage, even in the case of intensive use in difficult terrain.

• The bucket cutting edge, made of durable HB500 steel with dimensions of 200x20 mm, ensures not only resistance to abrasive wear but also high efficiency when scooping materials from hard ground.

• The side extensions and the reinforced side-to-floor joint further increase the strength of the bucket, making it resistant to damage and ready to work in difficult operating conditions.

• The 12 mm thick ribs improve structural stability and strengthen the entire framework, enabling better control over the bucket, especially during intensive transport work.

• The bucket weighs 578 kg, which provides appropriate counterweight and stability, increasing operating safety and loading precision, especially when working with heavier machinery and tractors.

• Made of exceptionally durable materials, the MAXI bucket is a reliable tool that ensures long-lasting and trouble-free operation, becoming an indispensable element in professional construction and transport work

• The MAXI soil bucket is an efficient, solid, and reliable solution that will perform well in any demanding work environment, increasing the efficiency and safety of daily tasks.
