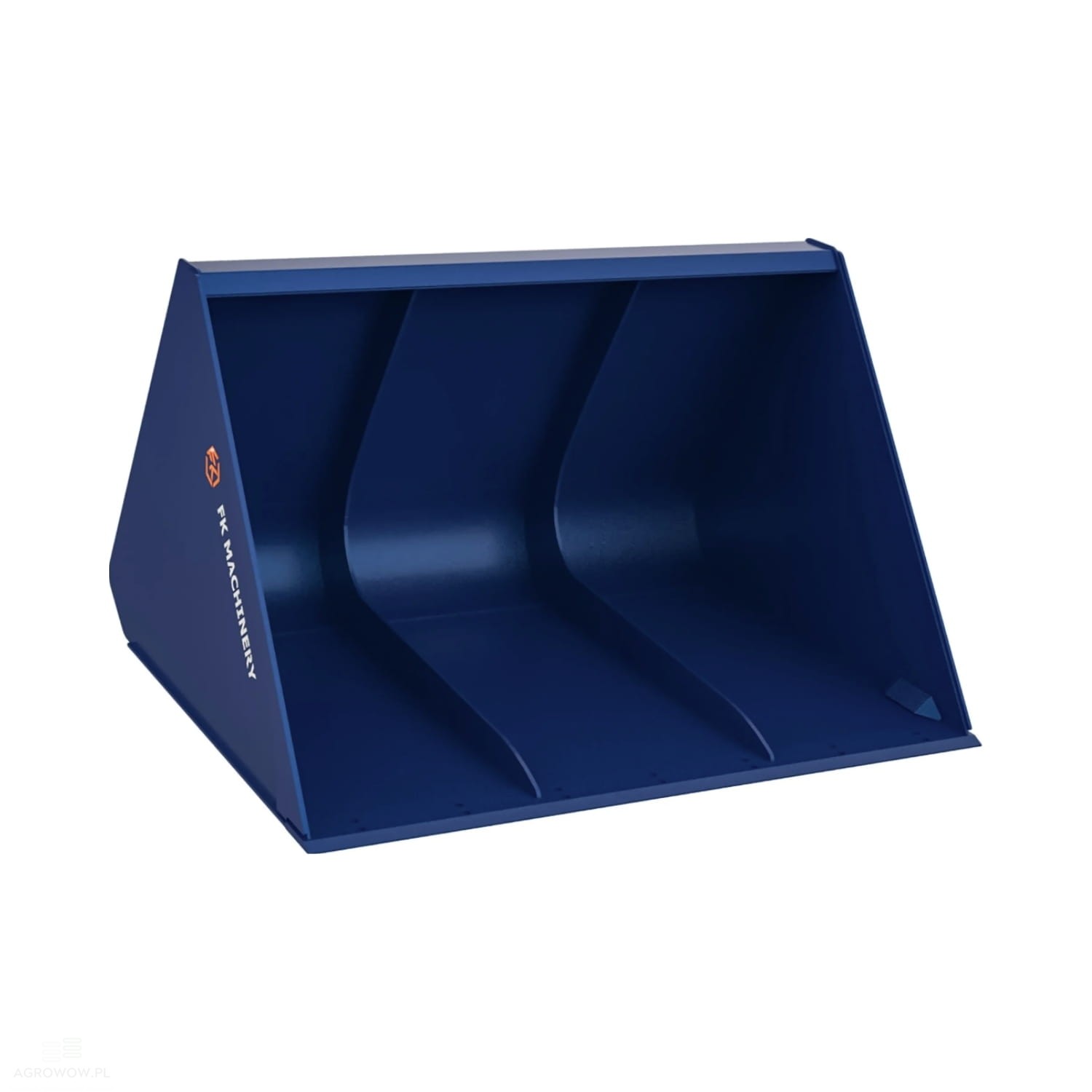

Kołaszewski heavy soil bucket MAXI 2.0 x 1.22 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KXLHBS-D200

- Manufacturer's name: Heavy soil bucket MAXI

- Width: 2000 mm

- Length: 1660 mm

- Height: 1220 mm

- Capacity: 2.02 m³

- Weight: 639 kg

- Side plate thickness: 8 mm

- Shell thickness: 6 mm

- HB500 cutting edge: 200x20 mm

- Side extensions

- Floor reinforcements: 10 mm

- Reinforced side-to-floor joint

- Ribs: 12 mm

Optional extras (at additional cost):

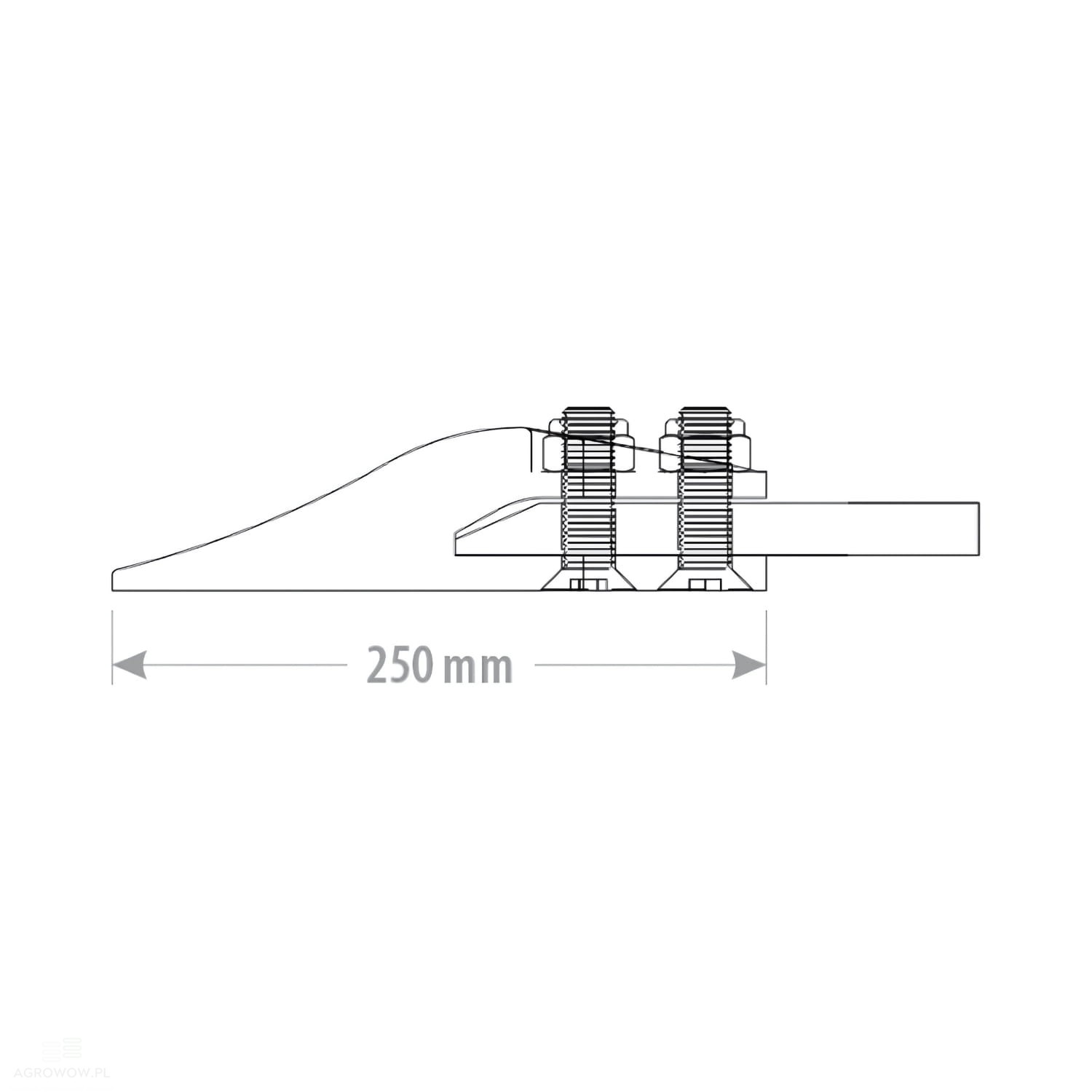

- Bolt-on tooth L-250 – default spacing 285 mm

The L-250 bolt-on tooth is a component that is easy to mount on an agricultural tool. The tooth features a standard spacing of 285 mm, ensuring an appropriate distance between teeth, which allows the tool to be customized to individual needs. Thanks to this design, the tooth ensures stable performance, especially during deeper soil loosening, making it an ideal solution for intensive field work.

- Profiled sides for increased volume

Profiled sides are a structural change to the tool that increases its capacity, allowing more material to be collected and transported in a single cycle. This solution makes the tool more efficient, improving workspace utilization and increasing effectiveness as well as work comfort in the field.

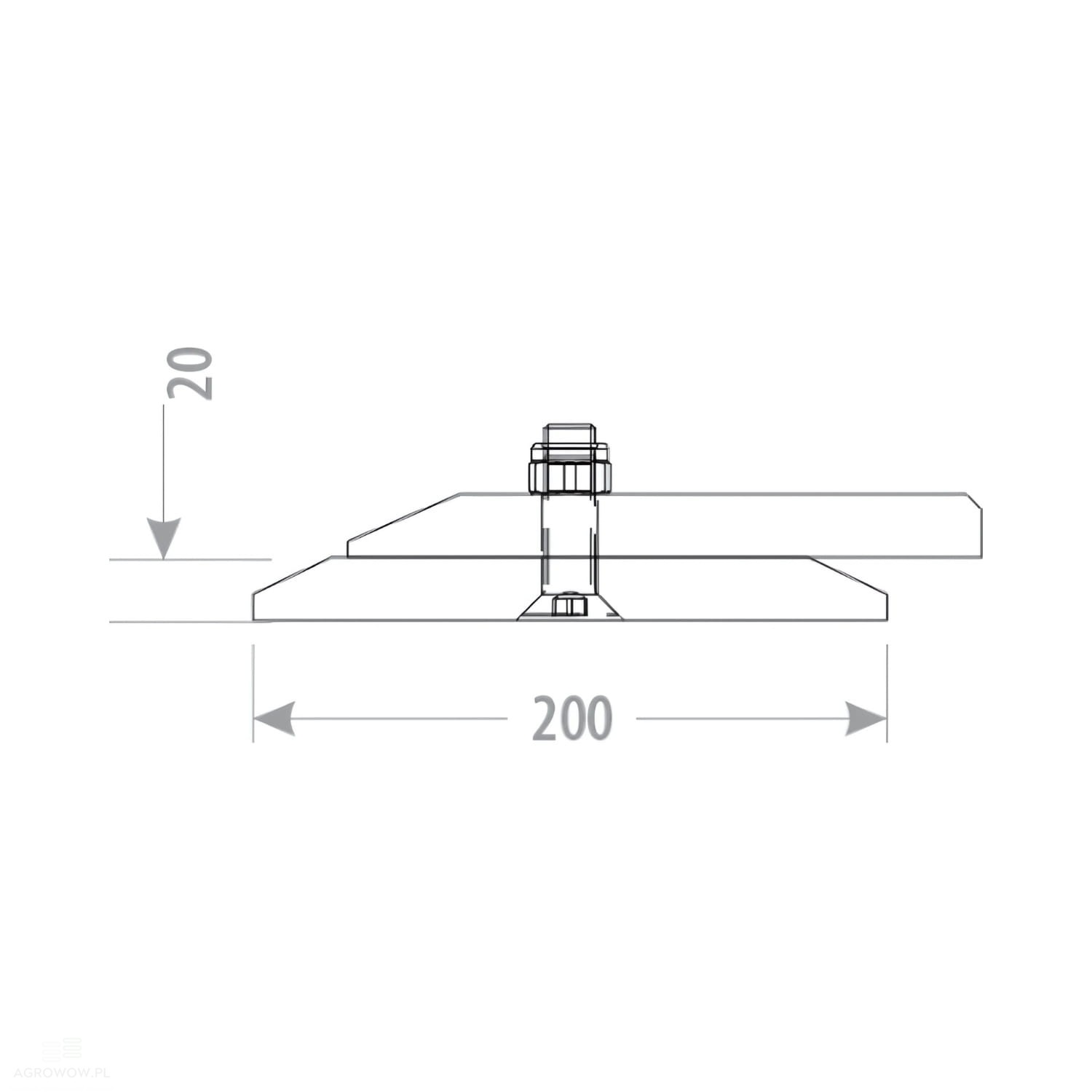

- Bolt-on HB500 cutting edge, 200x20 mm, double-beveled

The HB500 bolt-on cutting edge measuring 200x20 mm is a component made of extremely durable HB500 steel, which ensures high resistance to abrasive wear. The double-beveled cutting edge offers two working blades that can be used interchangeably, which significantly extends its service life and reduces the need for frequent replacement. Its design allows it to perform perfectly in difficult ground conditions, ensuring high work efficiency.

Detailed Description:

• The MAXI soil bucket is an exceptionally strong tool designed for intensive construction work and the transport of bulk materials such as sand, gravel, or stones. It fits perfectly in demanding operating conditions, ensuring high efficiency and reliability under all circumstances.

• Its robust construction makes it an excellent choice for work on construction sites, in warehouses, and anywhere a high-capacity tool with resistance to mechanical damage is essential.

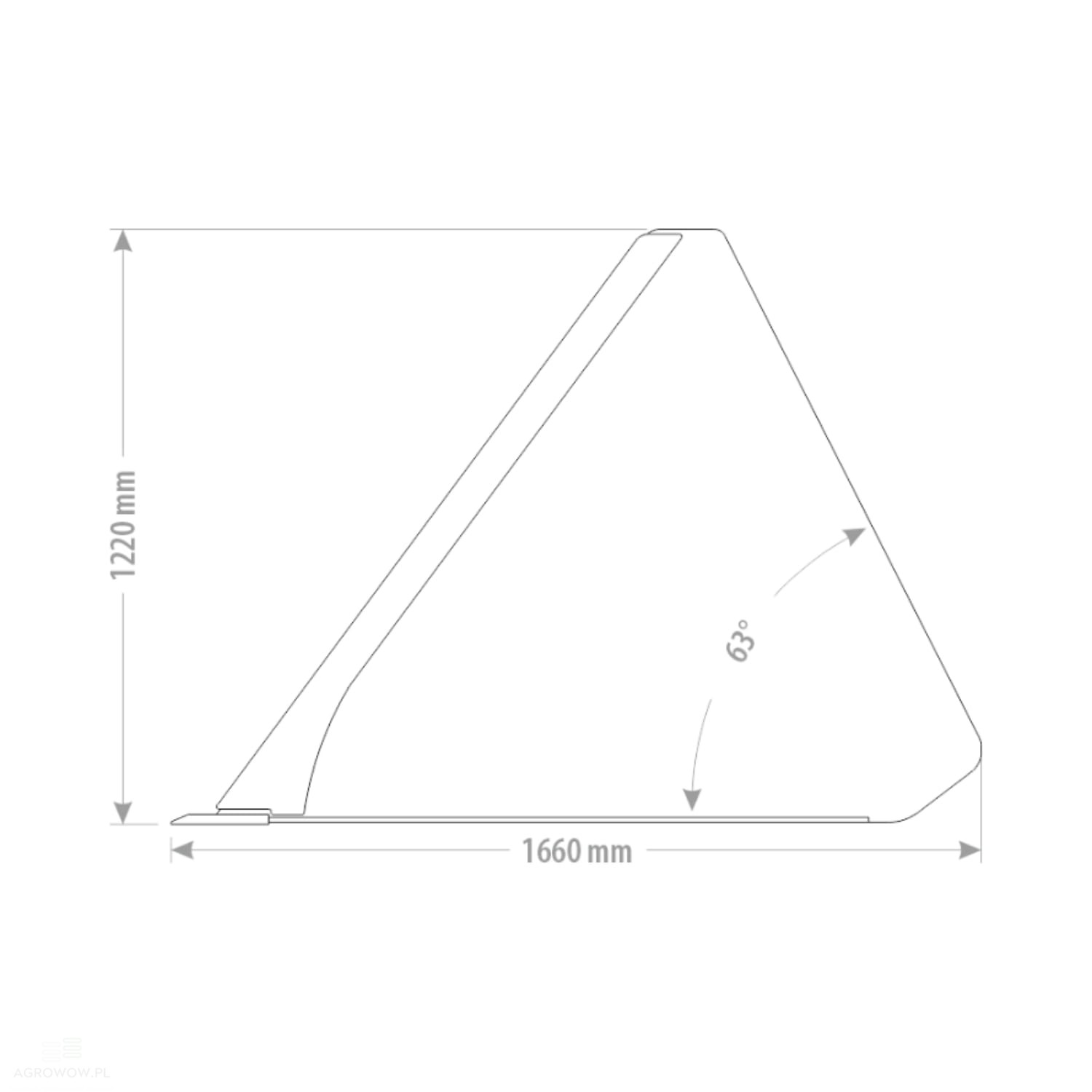

• The MAXI bucket, with a width of 2000 mm, length of 1660 mm, and height of 1220 mm, is an ideal tool for loading and transporting larger quantities of material in demanding terrain conditions.

• Offering a working capacity of 2.02 m³, it allows for fast scooping of soil or other materials, which accelerates loading operations, eliminating the need for multiple scoops of material and thereby increasing work throughput.

• Made of high-quality materials, the MAXI bucket is characterized by 8 mm thick sides and a 6 mm thick shell, which ensures high resistance to mechanical damage, even during intensive use in difficult terrain.

• The floor of the bucket has been additionally reinforced with a 10 mm thickness, which guarantees tool durability in harsh working conditions, ensuring greater resistance to damage.

• The cutting edge measuring 200x20 mm, made of HB500 steel, is characterized by high resistance to abrasive wear, which enables effective scooping of materials from hard surfaces, ensuring long-lasting efficiency.

• The side extensions and the reinforced side-to-floor joint improve the stability and strength of the construction, making the tool ready to work in demanding operating conditions.

• The 12 mm thick ribs provide additional stability and reinforcement for the entire structure, enabling better control over the tool during intensive transport work.

• The bucket weighs 639 kg, which provides appropriate counterweight and stability during operation, improving loading precision and user safety, especially when working with heavier machinery and tractors.

• Made of durable materials, the MAXI bucket ensures reliable, long-lasting operation, becoming an indispensable tool in professional construction and transport work.

• The MAXI bucket is a solid, efficient, and reliable tool that will perform well under all conditions, increasing the efficiency and safety of the operations performed.
