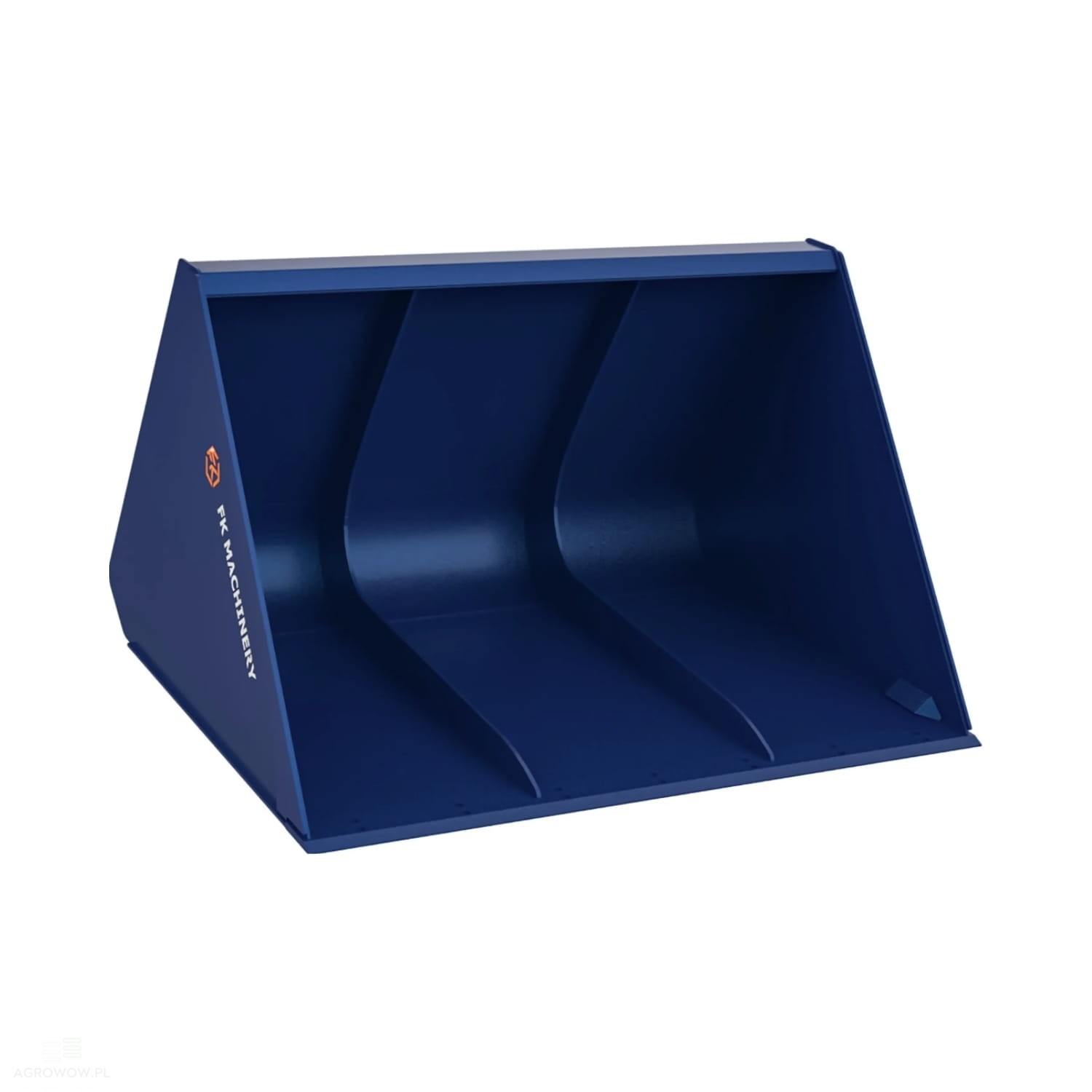

Kołaszewski heavy soil bucket MAXI 2.2 x 1.22 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KXLHBS-D220

- Manufacturer's name: Heavy soil bucket MAXI

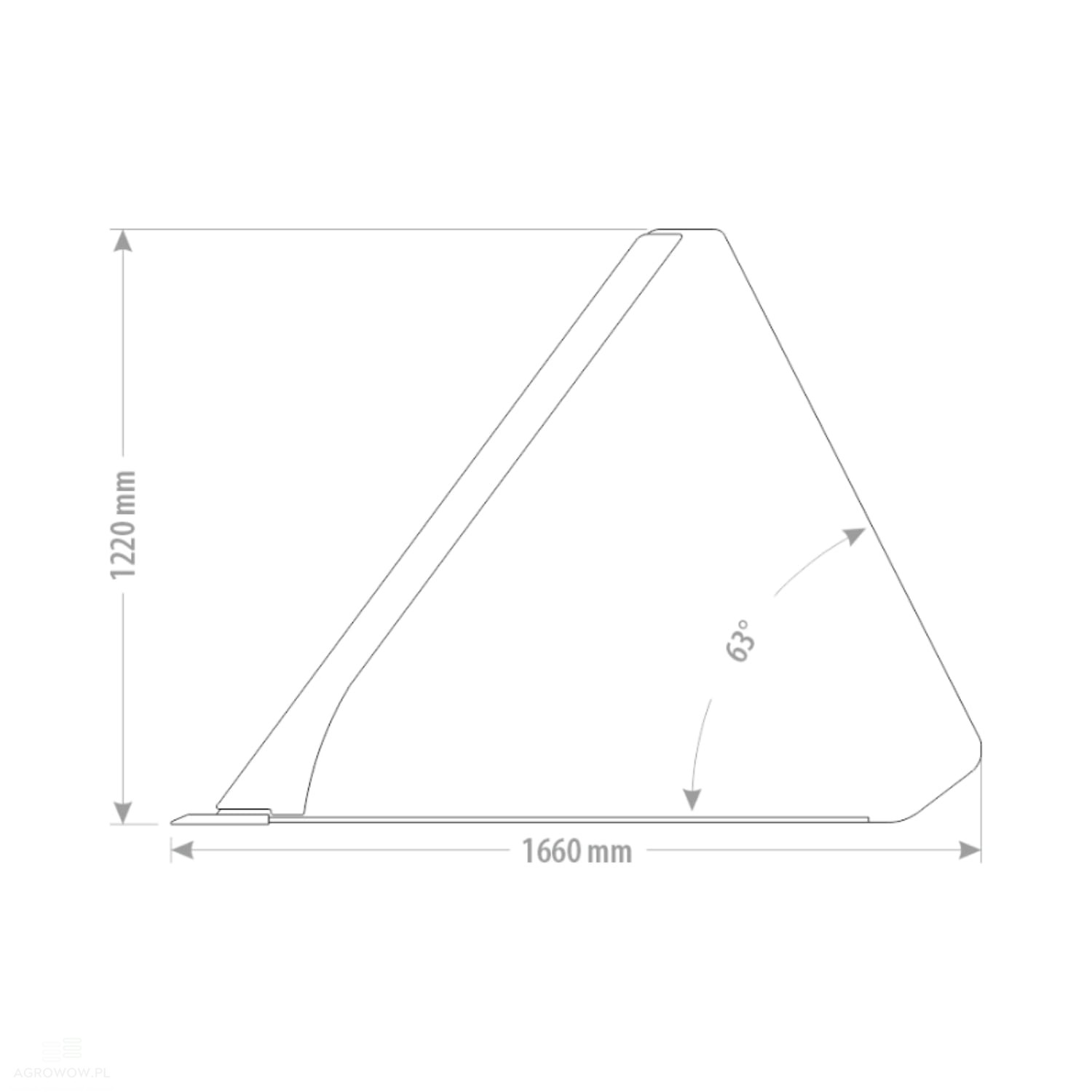

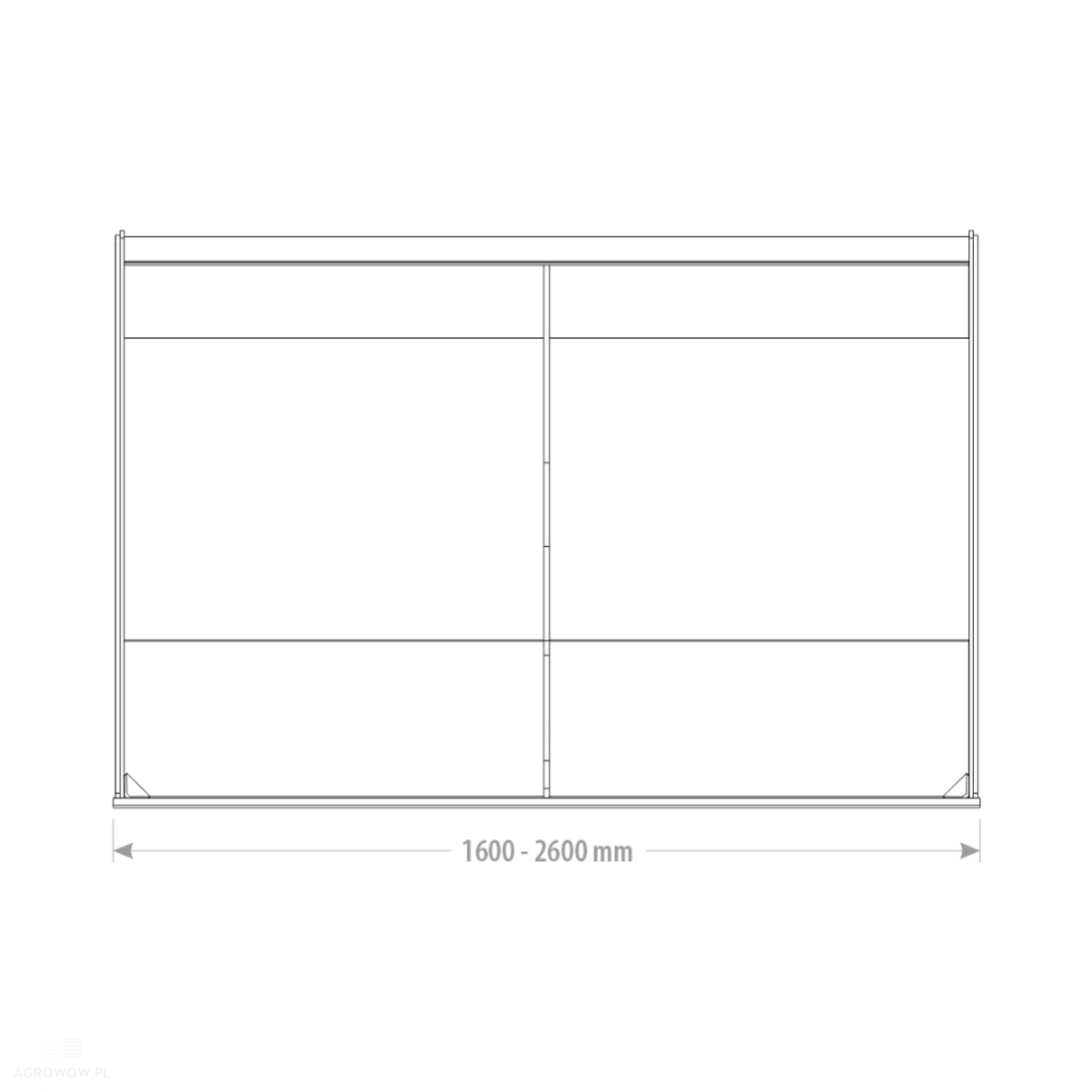

- Width: 2200 mm

- Length: 1660 mm

- Height: 1220 mm

- Capacity: 2.22 m³

- Weight: 701 kg

- Side plate thickness: 8 mm

- Shell thickness: 6 mm

- HB500 cutting edge: 200x20 mm

- Side extensions

- Floor reinforcements: 10 mm

- Reinforced side-to-floor joint

- Ribs: 12 mm

Optional extras (at additional cost):

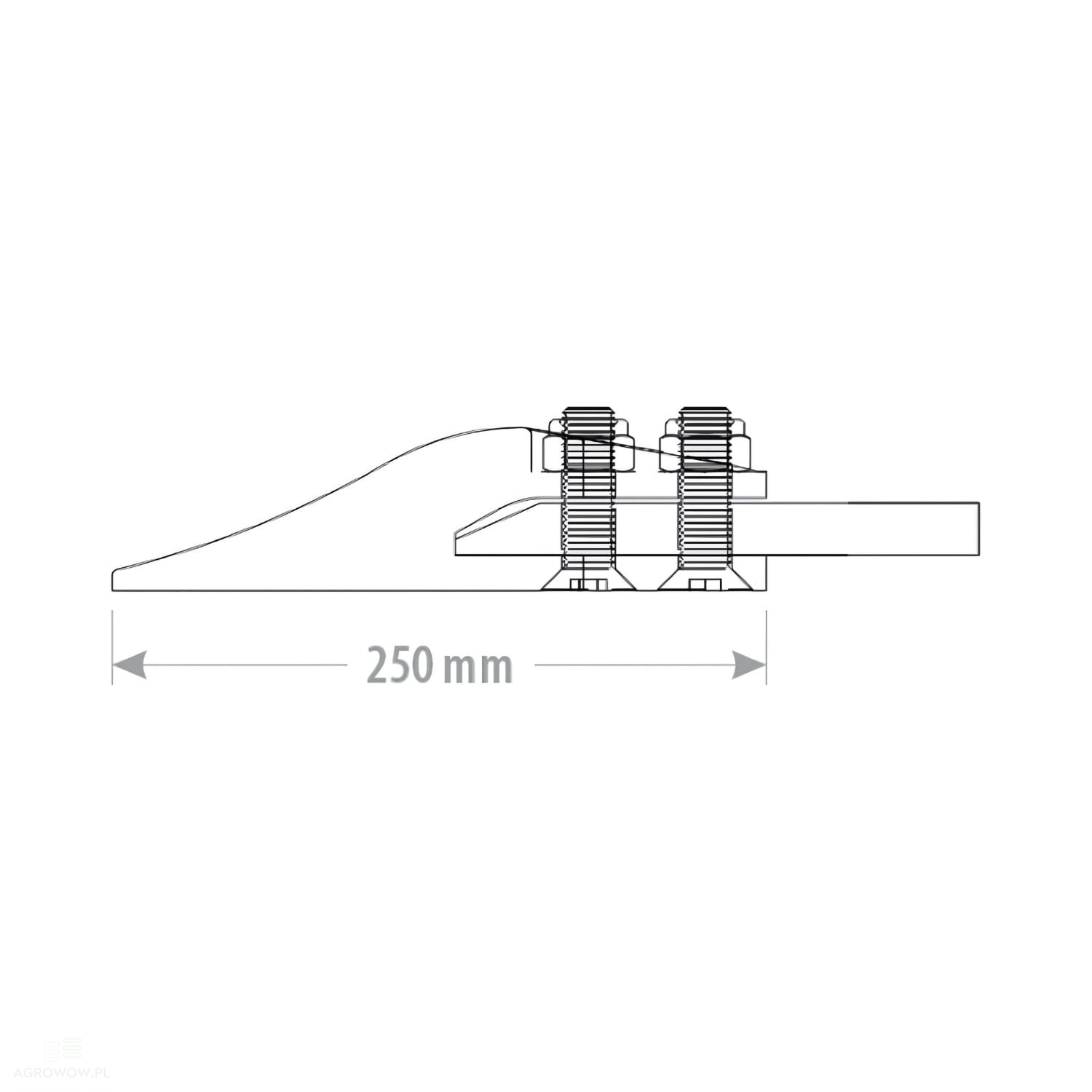

- Bolt-on tooth L-250 – default spacing 285 mm

The L-250 tooth is easy to mount on an agricultural tool. It features a standard spacing of 285 mm, which ensures an appropriate distance between the teeth, allowing the tool to be adapted to different working conditions. Thanks to this design, the tooth guarantees stable performance, especially during deeper soil loosening, making it an ideal solution for intensive field work.

- Profiled sides for increased volume

The modified sides of the tool increase its capacity, allowing more material to be collected and transported in a single cycle. This type of solution improves the efficiency of the tool, maximizing the use of workspace while raising comfort and work productivity in the field.

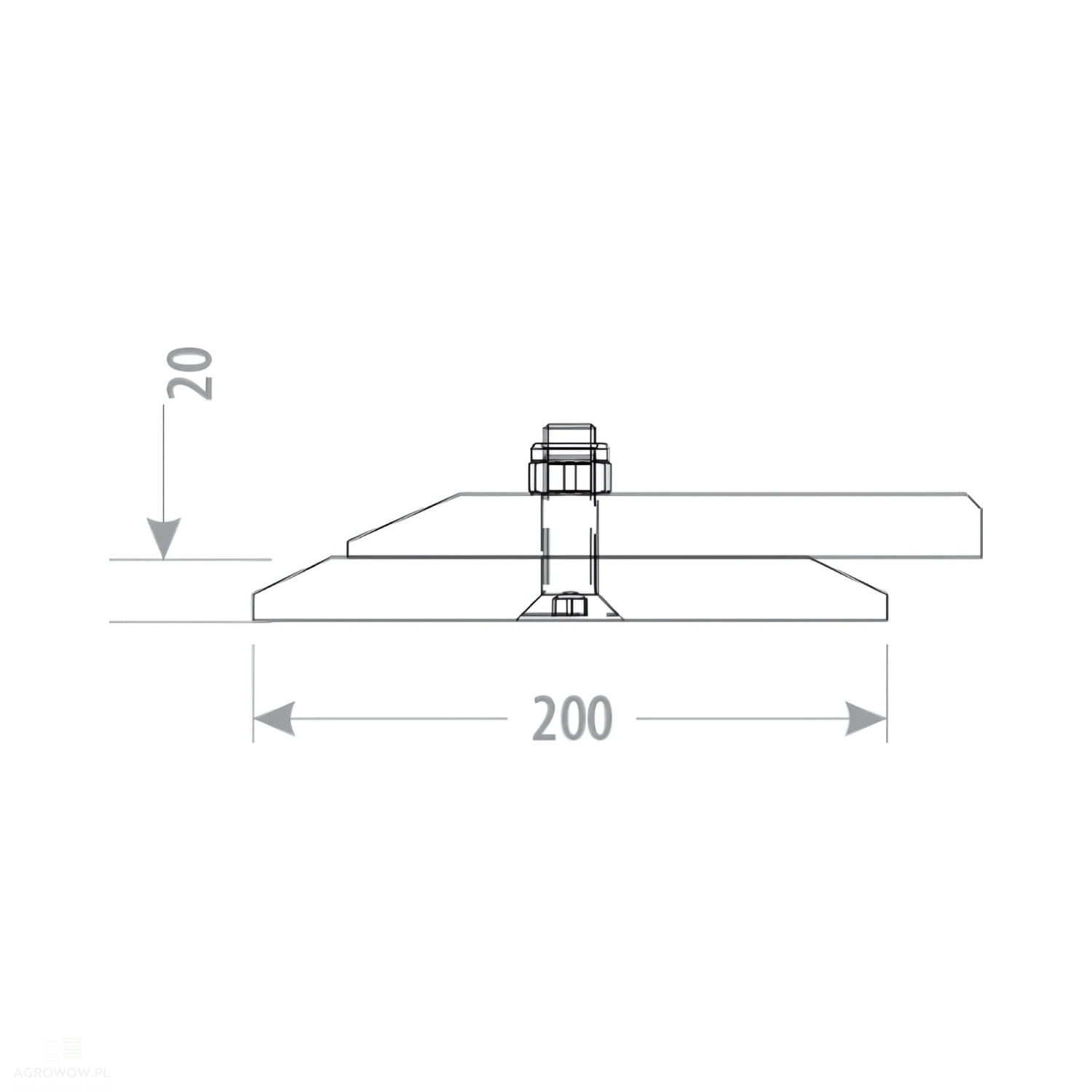

- Bolt-on HB500 cutting edge, 200x20 mm, double-beveled

The HB500 cutting edge measuring 200x20 mm is made of extremely durable steel, providing excellent resistance to abrasive wear. The double-beveled cutting edge offers two working blades that can be used interchangeably, which significantly extends its service life and reduces the need for frequent replacement. Its design allows it to perform excellently in difficult ground conditions, ensuring high work efficiency.

Detailed Description:

• The MAXI soil bucket is an exceptionally durable tool designed for intensive construction work and the transport of bulk materials such as sand, gravel, or stones. It performs perfectly in difficult operating conditions, ensuring high efficiency and reliability in every situation.

• Its robust construction makes it an excellent choice for work on construction sites, in warehouses, and anywhere a high-capacity tool with resistance to mechanical damage is required.

• The MAXI bucket, with a width of 2200 mm, length of 1660 mm, and height of 1220 mm, is an ideal tool for loading and transporting larger quantities of material, especially in difficult terrain conditions.

• With a working capacity of 2.22 m³, the bucket enables fast scooping of soil or other materials, which significantly increases work efficiency, eliminating the need for multiple loading cycles and reducing working time.

• The bucket is made of durable materials – 8 mm thick sides and a 6 mm thick shell ensure its resistance to mechanical damage, even during intensive use in difficult terrain conditions.

• The floor of the bucket has been reinforced to 10 mm, providing even greater durability for the tool, increasing resistance to damage, and extending its service life in harsh working conditions.

• The cutting edge measuring 200x20 mm, made of HB500 steel, is extremely wear-resistant, enabling effective scooping of materials from hard ground and ensuring long-lasting tool efficiency.

• The side extensions and the reinforced side-to-floor joint improve the strength of the bucket, allowing it to work in demanding operating conditions while guaranteeing the stability and reliability of the tool.

• The 12 mm thick ribs improve the stability of the entire construction, further strengthening it and ensuring better control over the bucket during intensive transport work.

• The bucket weighs 701 kg, which provides appropriate counterweight and stability during operation, improving loading precision and user safety, especially when working with heavier machinery and tractors.

• Thanks to its solid construction and durable materials, the MAXI bucket ensures long-lasting, trouble-free operation, becoming an indispensable tool in professional construction and transport work.

• The MAXI bucket is a solid, efficient, and reliable tool that performs perfectly in all working conditions, increasing the efficiency and safety of the operations performed.
