Kołaszewski heavy soil bucket MAXI 2.4 x 1.22 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KXLHBS-D240

- Manufacturer's name: Heavy soil bucket MAXI

- Width: 2400 mm

- Length: 1660 mm

- Height: 1220 mm

- Capacity: 2.42 m³

- Weight: 760 kg

- Side plate thickness: 8 mm

- Shell thickness: 6 mm

- HB500 cutting edge: 200x20 mm

- HB500 cutting edge: 200x20 mm

- Floor reinforcements: 10 mm

- Floor reinforcements: 10 mm

- Ribs: 12 mm

Optional extras (at additional cost):

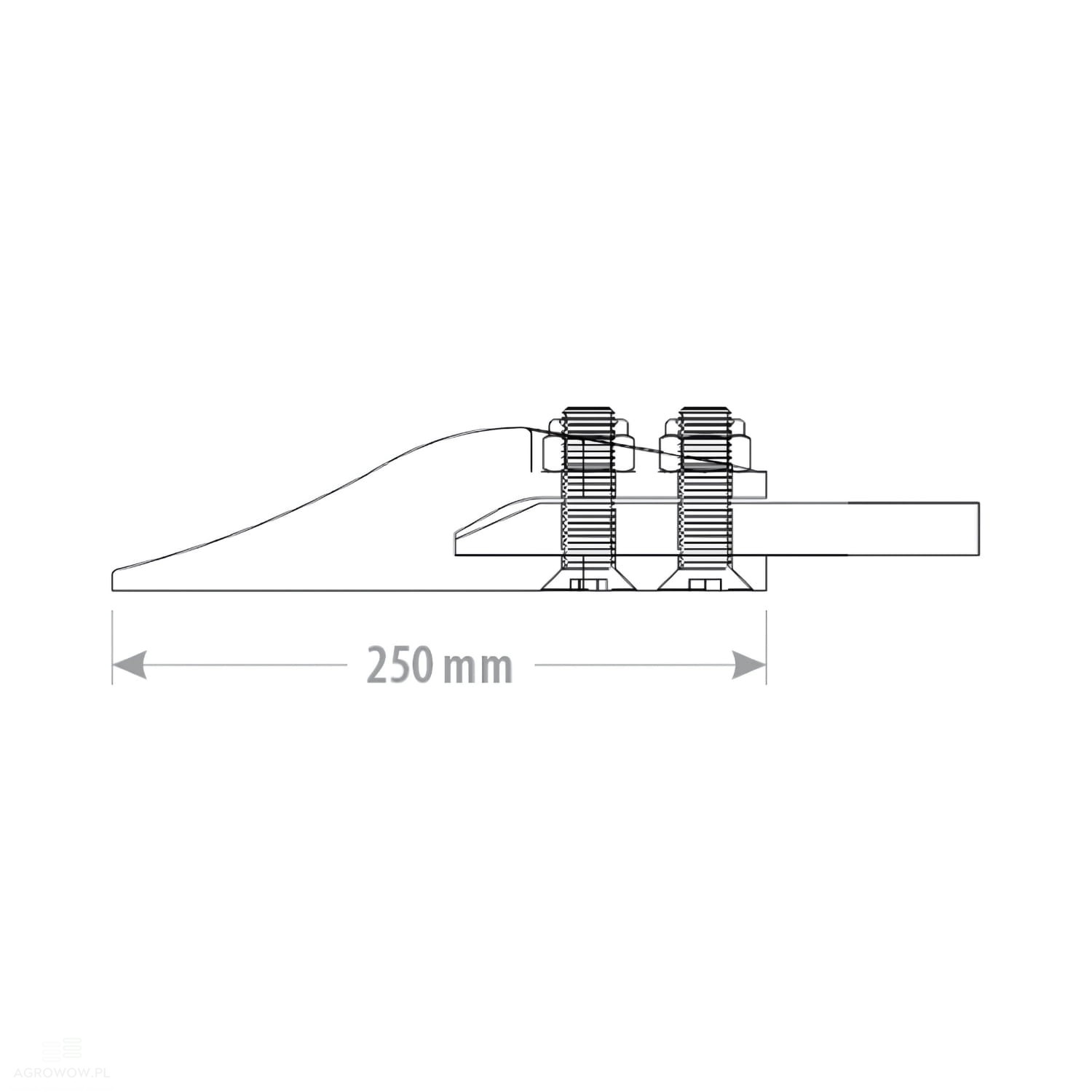

- Bolt-on tooth L-250 – default spacing 285 mm

The L-250 tooth is an easy-to-mount component that fits various agricultural tools. It features a standard spacing of 285 mm, which ensures an appropriate distance between the teeth, allowing the tool to be adapted to different operating conditions. Thanks to this design, the tooth ensures stable performance, especially during deeper soil loosening, making it ideal for intensive field work.

- Profiled sides for increased volume

The modified sides of the tool improve its capacity, enabling larger quantities of material to be loaded and transported in a single cycle. This type of modification increases the efficiency of the tool, maximizing the workspace while improving comfort and work efficiency in the field.

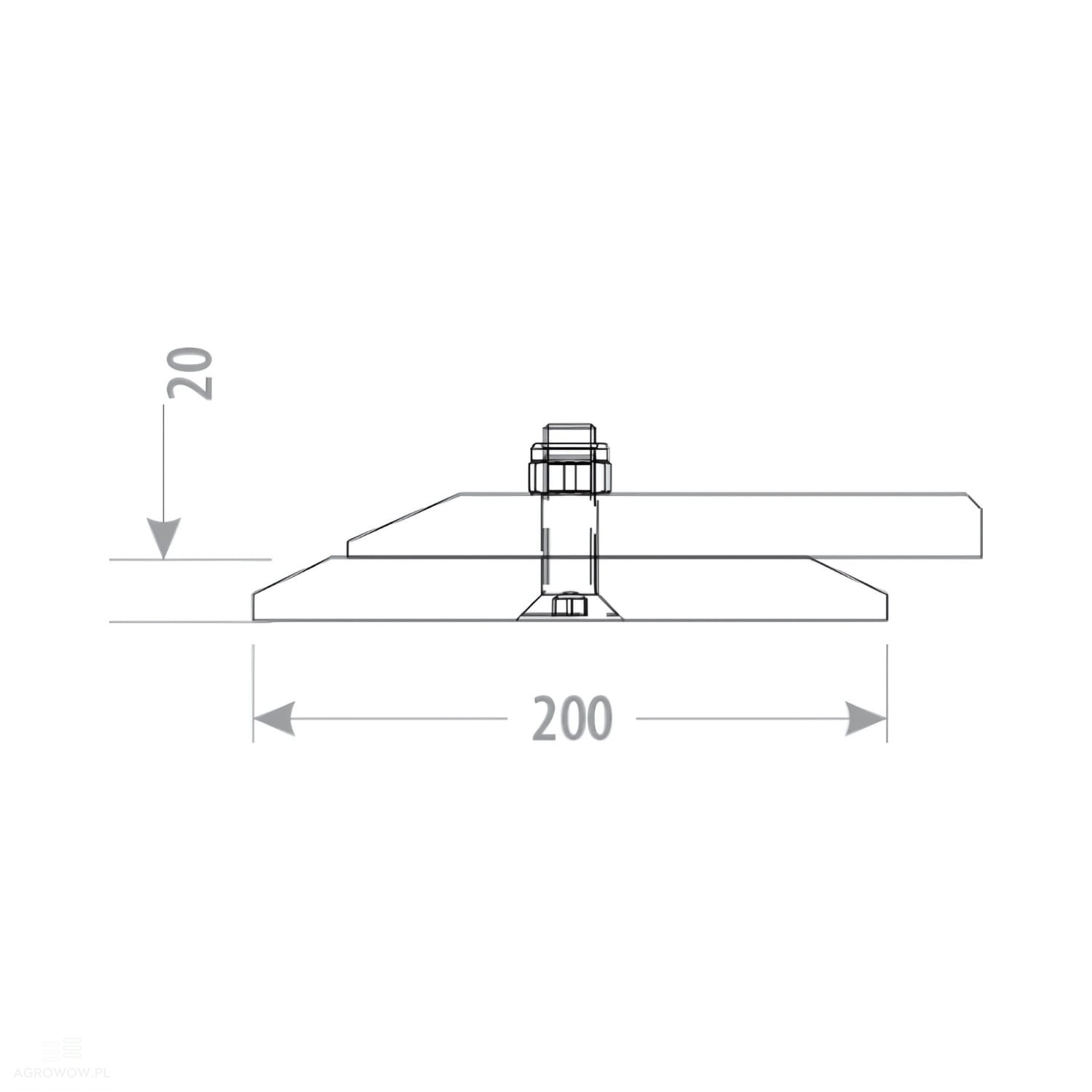

- Lemiesz dokręcany HB500 200x20 dwustronnie fazowany

The HB500 cutting edge measuring 200x20 mm is made of high-quality steel, providing excellent resistance to abrasive wear. The double-beveled cutting edge features two working blades that can be used interchangeably, which significantly extends its durability and reduces the need for frequent replacement. Its design allows for efficient operation in difficult ground conditions, ensuring optimal performance.

Detailed Description:

• The MAXI soil bucket is a highly durable and efficient tool, designed for intensive construction work and the transport of bulk materials such as sand, gravel, and stones. It performs perfectly in difficult operating conditions, ensuring reliability and high efficiency in every situation.



• Its robust construction makes the bucket an ideal choice for work on construction sites, in warehouses, and anywhere a high-capacity tool with resistance to mechanical damage is required.

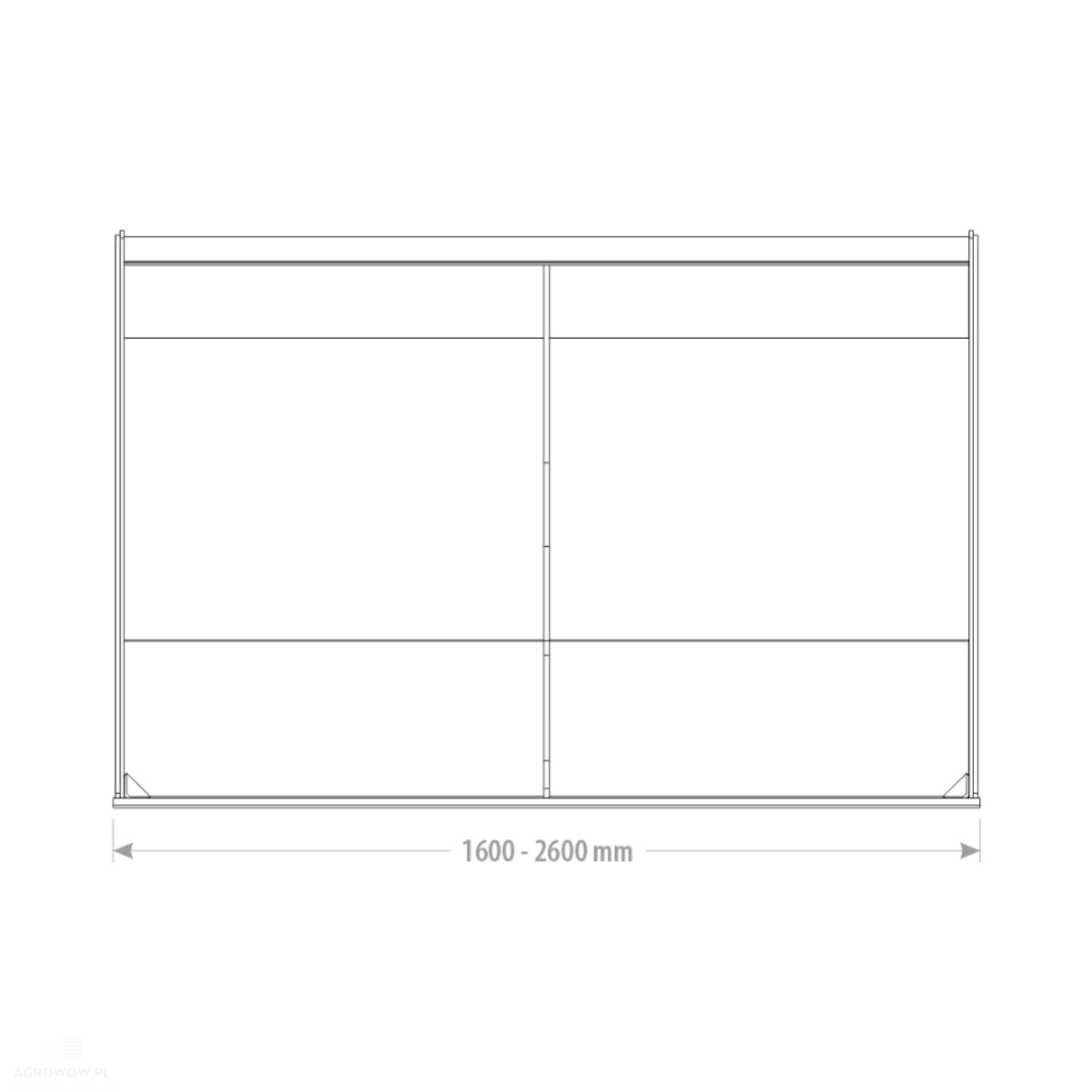

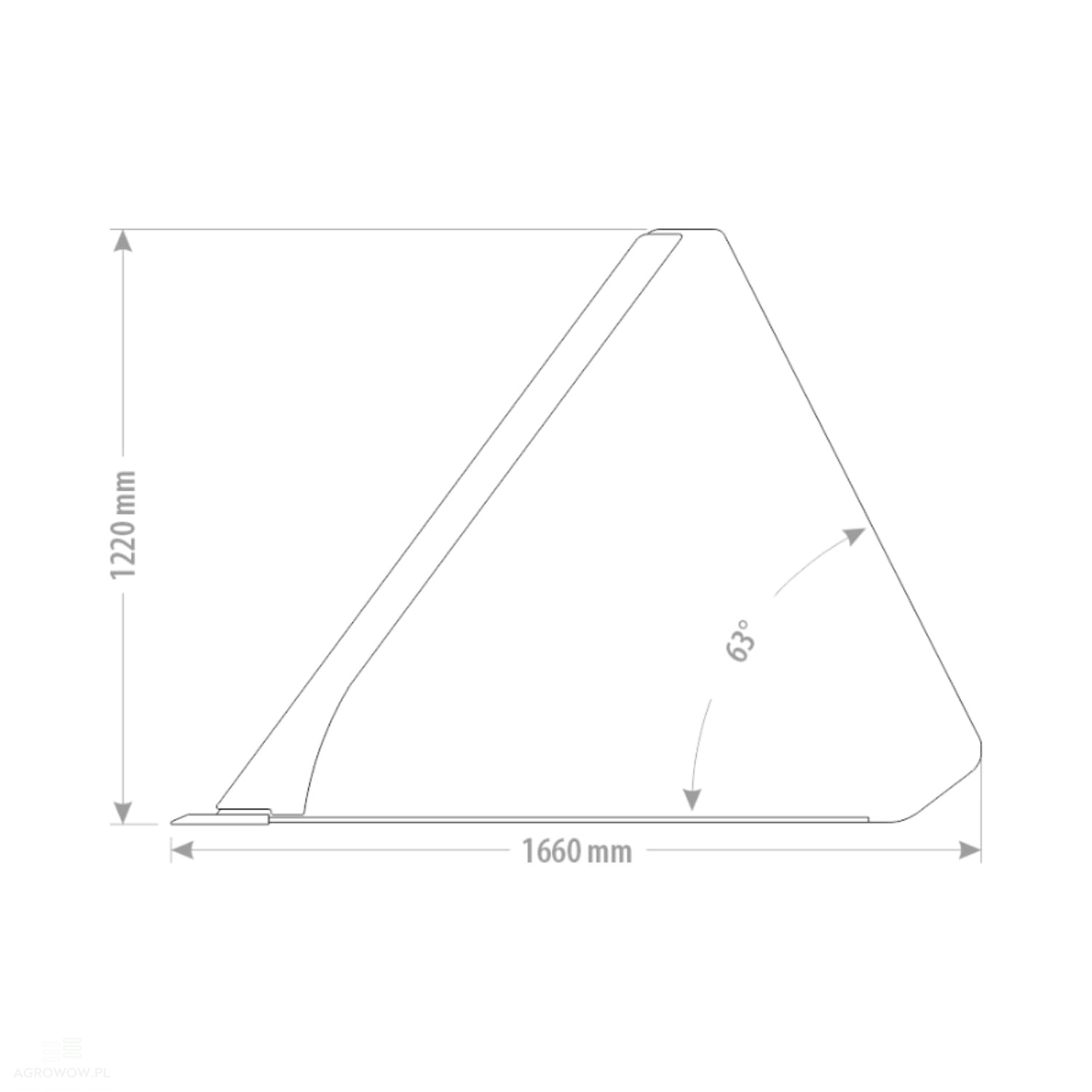

• The MAXI bucket, with a width of 2400 mm, length of 1660 mm, and height of 1220 mm, constitutes an excellent solution for loading and transporting large quantities of materials in difficult terrain conditions.



• With a working capacity of 2.42 m³, the bucket enables fast scooping of soil and other materials, which significantly accelerates loading operations, eliminating the need for multiple scoops and reducing working time.



• The bucket is made of durable materials – 8 mm thick sides and a 6 mm thick shell, which ensures high resistance to mechanical damage, even during intensive use in difficult terrain conditions.



• The floor of the bucket has been reinforced by 10 mm, providing additional durability for the tool, increasing its resistance to damage, and extending its service life in harsh working conditions.



• The cutting edge measuring 200x20 mm, made of exceptionally durable HB500 steel, is characterized by wear resistance, enabling effective scooping of materials from hard ground and ensuring long-lasting efficiency.



• The side extensions and the reinforced side-to-floor joint further increase the strength of the bucket, allowing it to work in difficult operating conditions while ensuring the stability and reliability of the tool.



• The 12 mm thick ribs strengthen the stability of the structure, improving control over the bucket during intensive transport work.



• The bucket weighs 760 kg, which provides appropriate counterweight and stability during operation, improving loading precision and user safety, especially when working with heavier machinery and tractors.



• Thanks to its solid construction and durable materials, the MAXI bucket guarantees long-lasting and trouble-free operation, becoming an indispensable tool in professional construction and transport work.



• The MAXI bucket is an efficient, reliable tool that performs perfectly in any type of working conditions, increasing the efficiency and safety of the operations performed.
