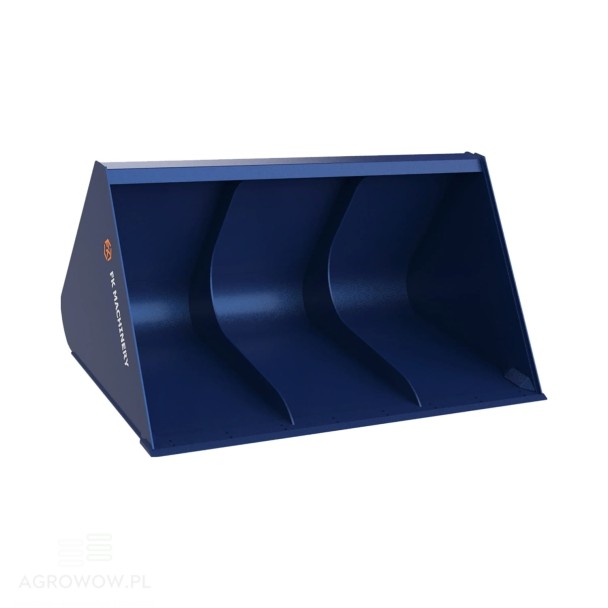

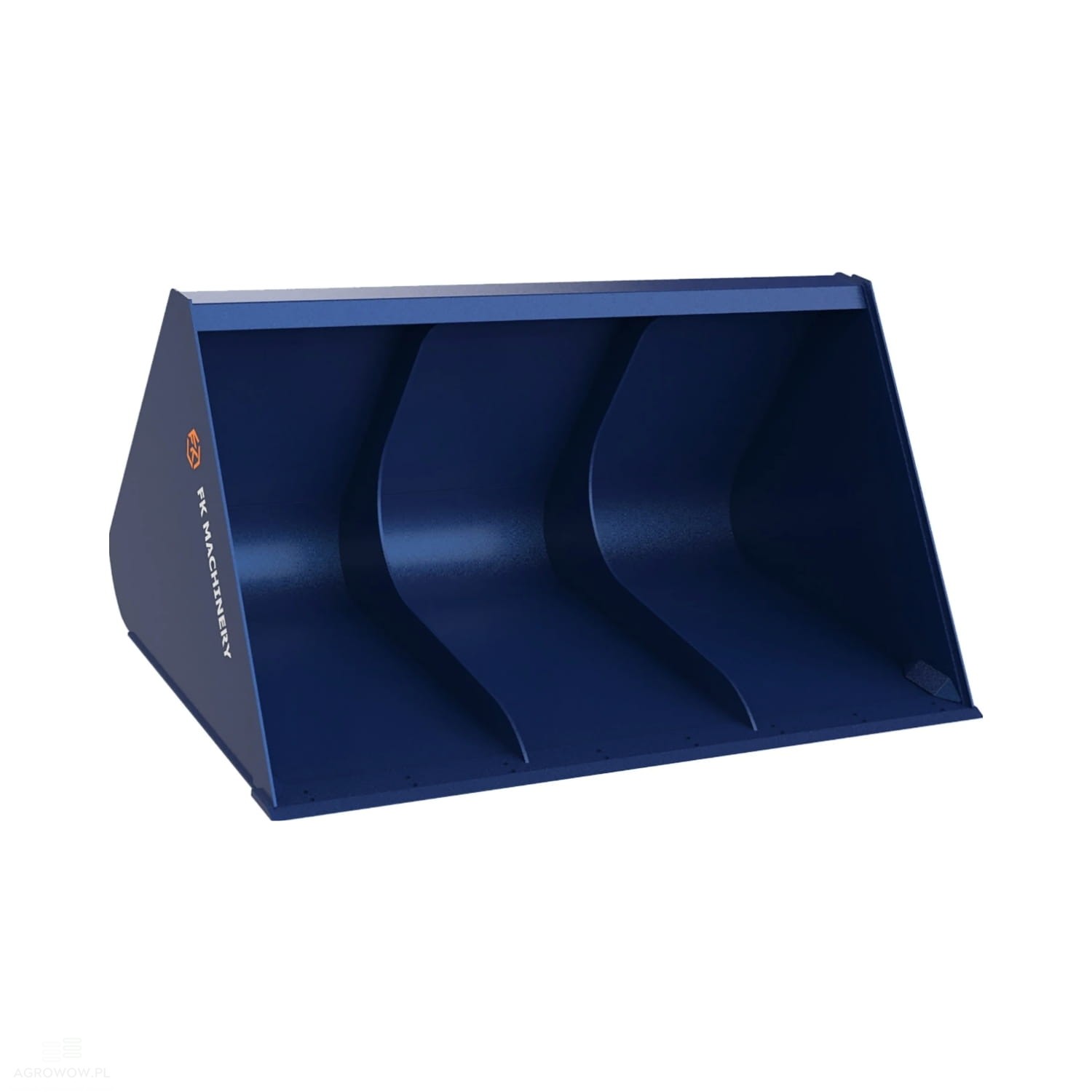

Kołaszewski heavy volume soil bucket 2.2 x 1.11 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KXLHBS-C220

- Manufacturer's name: Heavy volume soil bucket

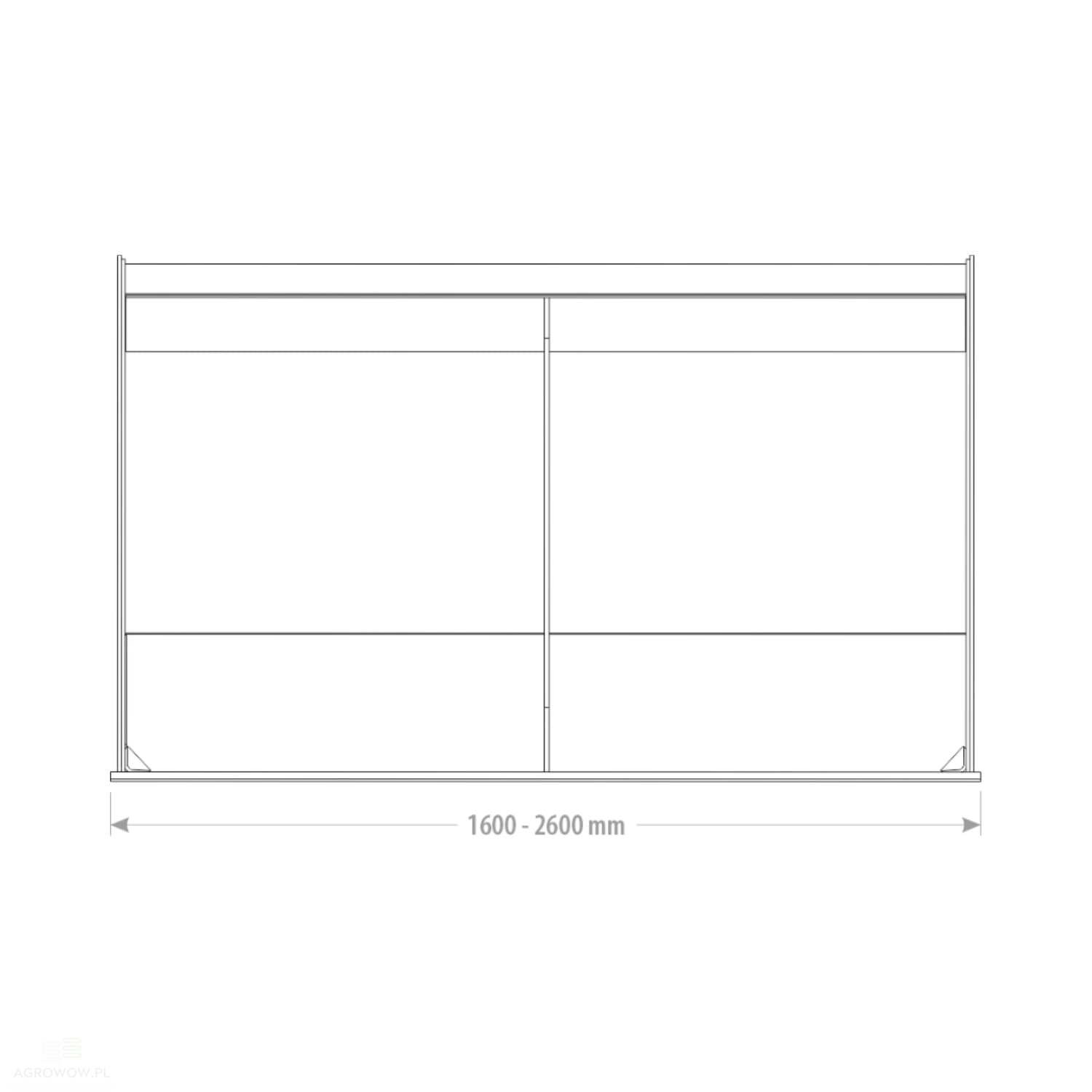

- Width: 2200 mm

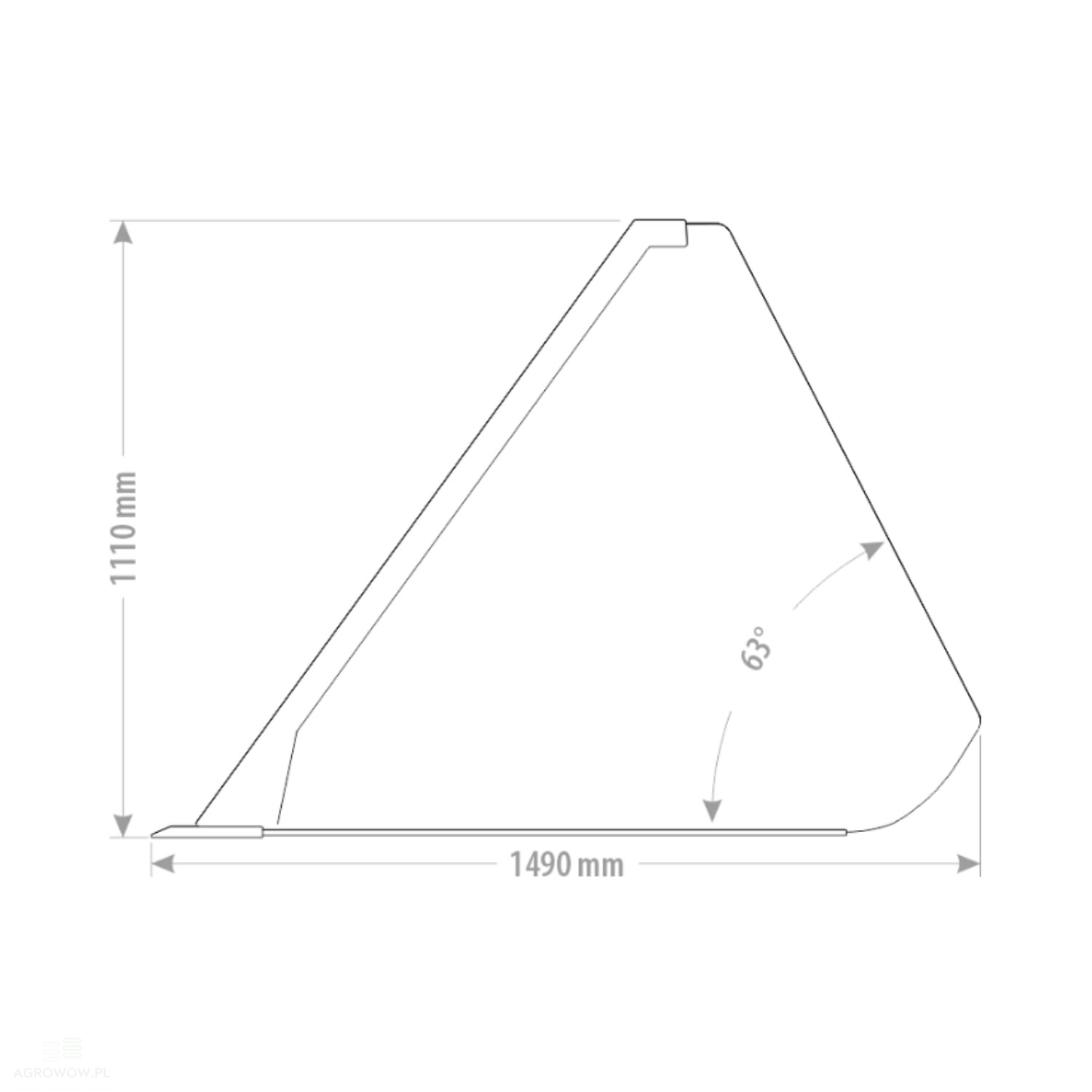

- Length: 1490 mm

- Height: 1110 mm

- Capacity: 1.80 m³

- Weight: 569 kg

- Side plate thickness: 8 mm

- Shell thickness: 6 mm

- HB500 cutting edge: 200x20 mm

- Side extensions

- Floor reinforcements: 10 mm

- Reinforced side-to-floor joint

- Ribs: 10 mm

Optional extras (at additional cost):

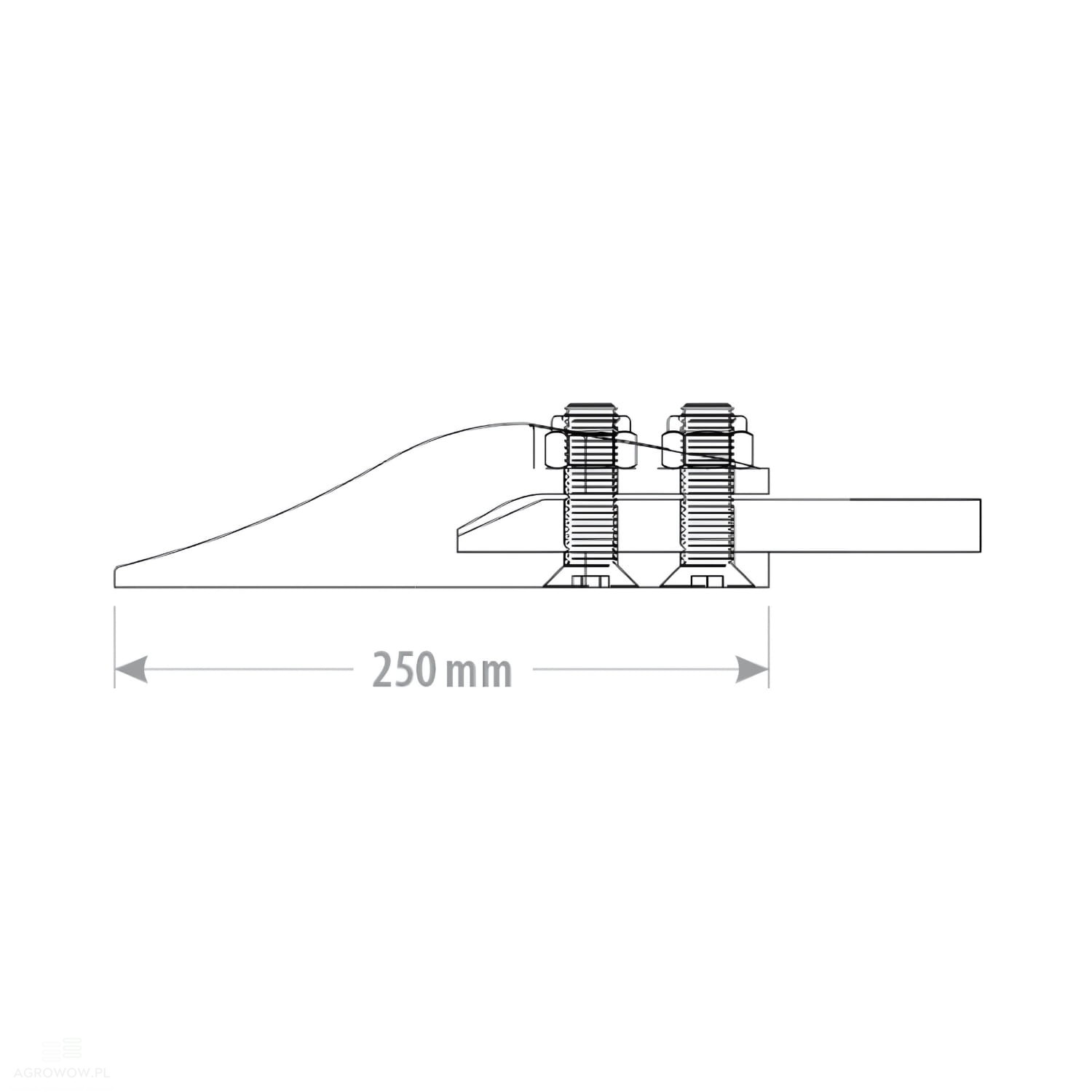

- Bolt-on tooth L-250 – standard spacing 285 mm

The L-250 tooth is an easy-to-mount component that is compatible with a wide range of agricultural tools. With a default spacing of 285 mm, it ensures a perfect fit, allowing the tool to be quickly adapted to the specific needs of the user. Its design guarantees stability during operation, especially during deep soil loosening, making it an ideal solution for intensive work in agriculture, even in changing terrain conditions.

- Profiled sides for increased capacity

Profiled sides are designed to increase the capacity of the tool, allowing more material to be loaded in a single cycle. This makes the tool more efficient, utilizes the workspace better, improves work comfort, and enables faster completion of more tasks.

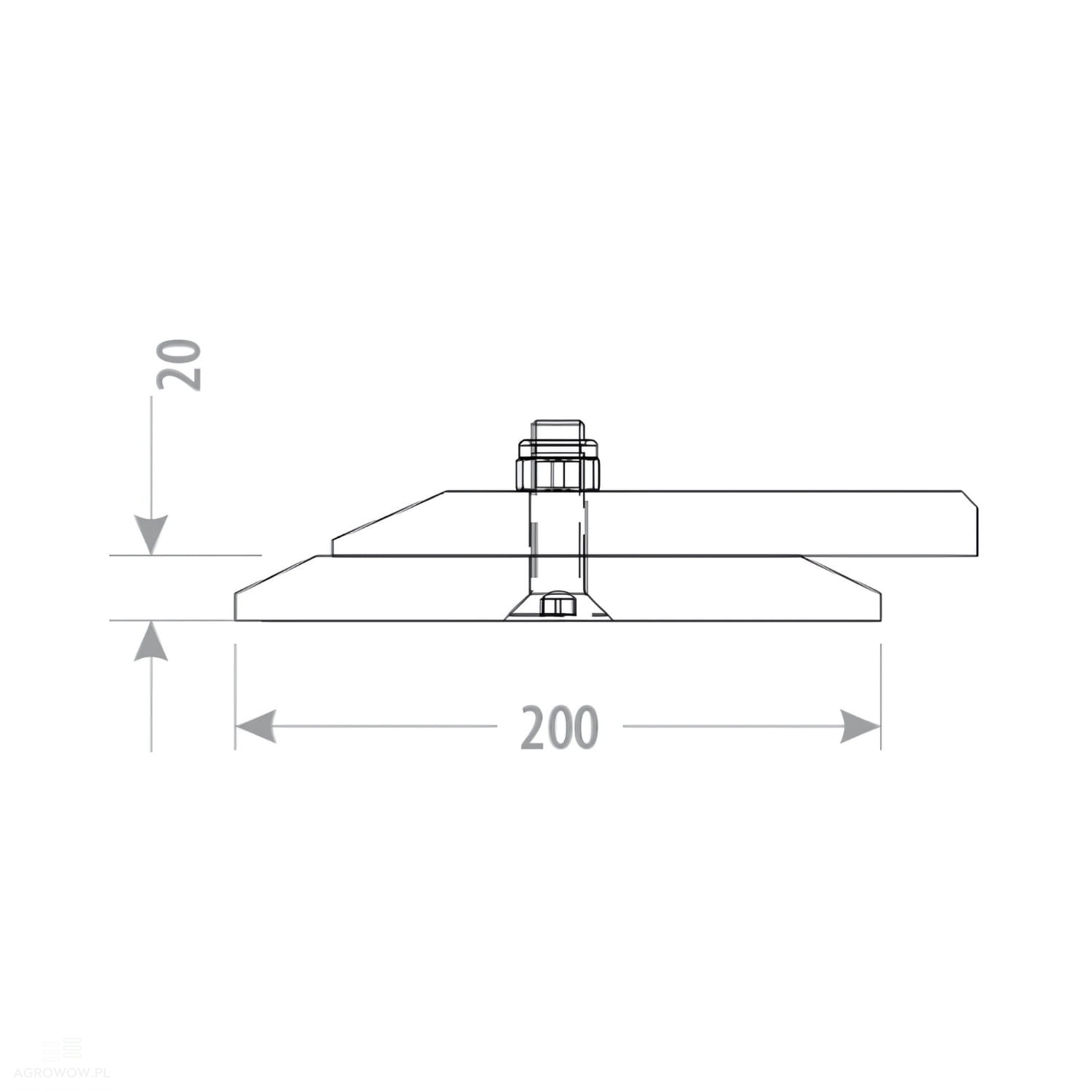

- Bolt-on HB500 cutting edge, 200x20 mm, double-beveled

The cutting edge measuring 200x20 mm, made of highly durable HB500 steel, features great resistance to abrasive wear, which ensures the longevity of the tool even in difficult ground conditions. The double-beveled cutting edge has two working blades that can be used interchangeably, which extends its durability and reduces the frequency of replacement. This design ensures high work efficiency, especially in demanding terrains, allowing tasks to be performed more easily and effectively.

Detailed Description:

• The 2200 mm wide bucket is a durable tool designed for intensive construction work and the transport of bulk materials such as sand, gravel, or soil. Thanks to its robust construction, it performs perfectly in difficult operating conditions, ensuring reliability and high efficiency in various work environments.

• Its durable build makes it an ideal solution for work on construction sites, in warehouses, and in other locations where tools with higher capacity and resistance to mechanical damage are required.

• The bucket, with a width of 2200 mm, length of 1490 mm, and height of 1110 mm, is an excellent choice for loading and transporting larger quantities of materials, especially in more confined workspaces.

• With a working capacity of 1.80 m³, the bucket enables fast scooping of soil and other materials, which accelerates the loading process, eliminating the need for multiple scoops of material and saving working time.

• Made of high-quality materials, such as 8 mm thick sides and a 6 mm thick shell, the bucket ensures appropriate resistance to mechanical damage, even during intensive use in difficult operating conditions.

• The floor of the bucket has been reinforced by an additional 10 mm, which increases its durability and resistance to damage, extending its service life in demanding operating conditions.

• The cutting edge measuring 200x20 mm, made of high-quality HB500 steel, provides high resistance to abrasive wear, which guarantees efficient scooping of materials, even from hard surfaces, as well as long-lasting performance.

• The side extensions and the reinforced side-to-floor joint further increase the strength of the tool, ensuring its stability and reliability, even in difficult working conditions.

• The 10 mm thick ribs reinforce the construction of the bucket, improving its stability and control, especially during intensive transport work.

• The bucket weighs 569 kg, which provides appropriate counterweight and stability during operation, improving loading precision and safety of use, especially when working with smaller machines and tractors.

• Thanks to its robust construction and the durable materials used, the bucket guarantees long-lasting, trouble-free operation, becoming an indispensable tool in professional construction and transport work.

• The 2200 mm wide bucket is an efficient and reliable tool that performs perfectly in every type of construction work, increasing the efficiency and safety of the operations performed.
