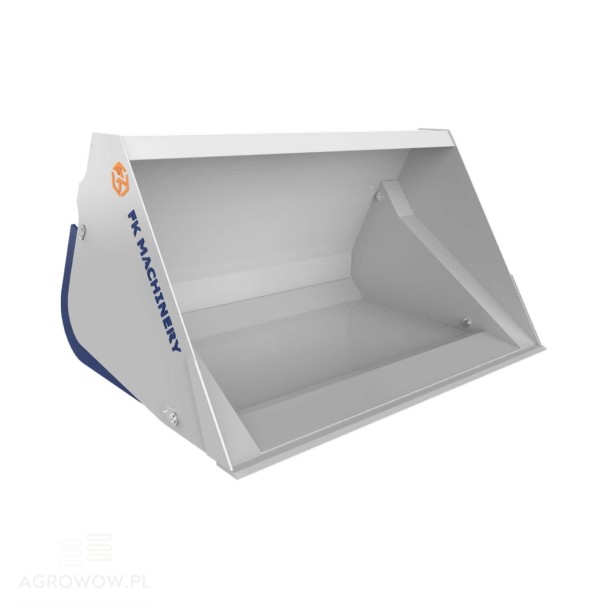

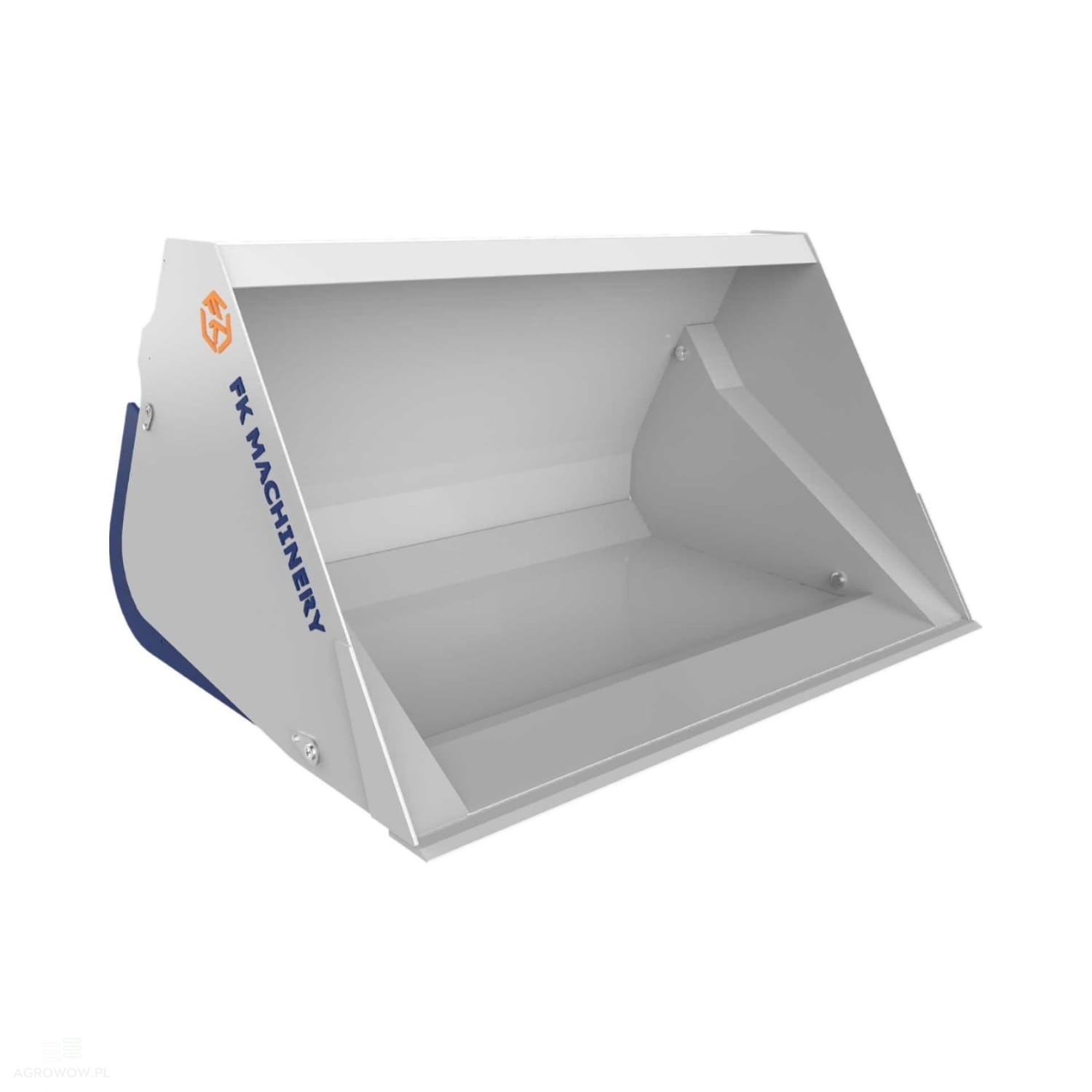

Kołaszewski high-dump bucket MAXI 1.6 x 1.28

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalog number: KXLHTB160

- Manufacturer name: MAXI high-dump bucket

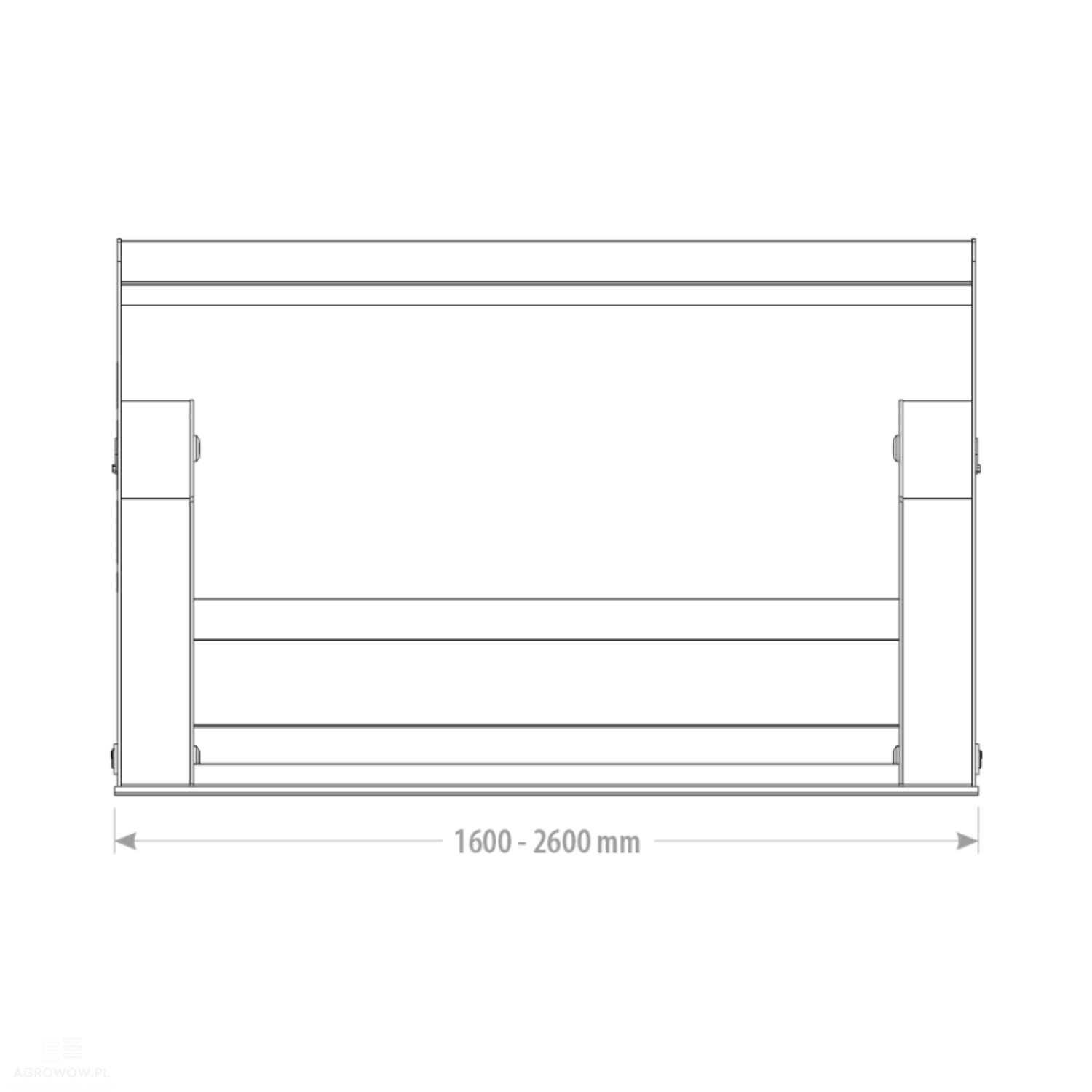

- Width: 1600 mm

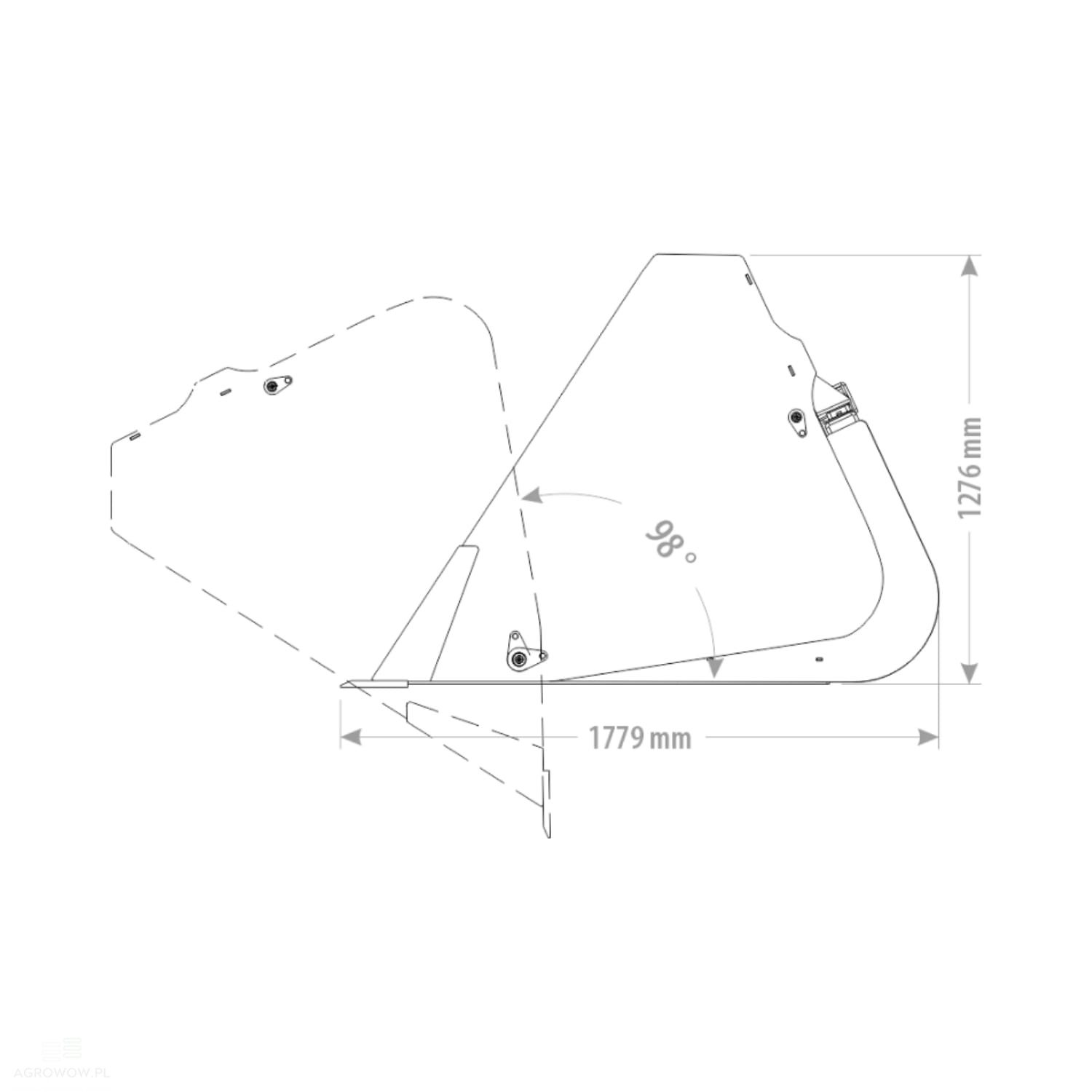

- Length: 1779 mm

- Height: 1276 mm

- Capacity: 1.61 m³

- Weight: 846 kg

- Side plate: 8 mm

- Shell: 6 mm

- HB500 cutting edge: 200x20

- Easy access for pin lubrication

- Overload-blocking valve - VBCD

Optional features (additional cost):

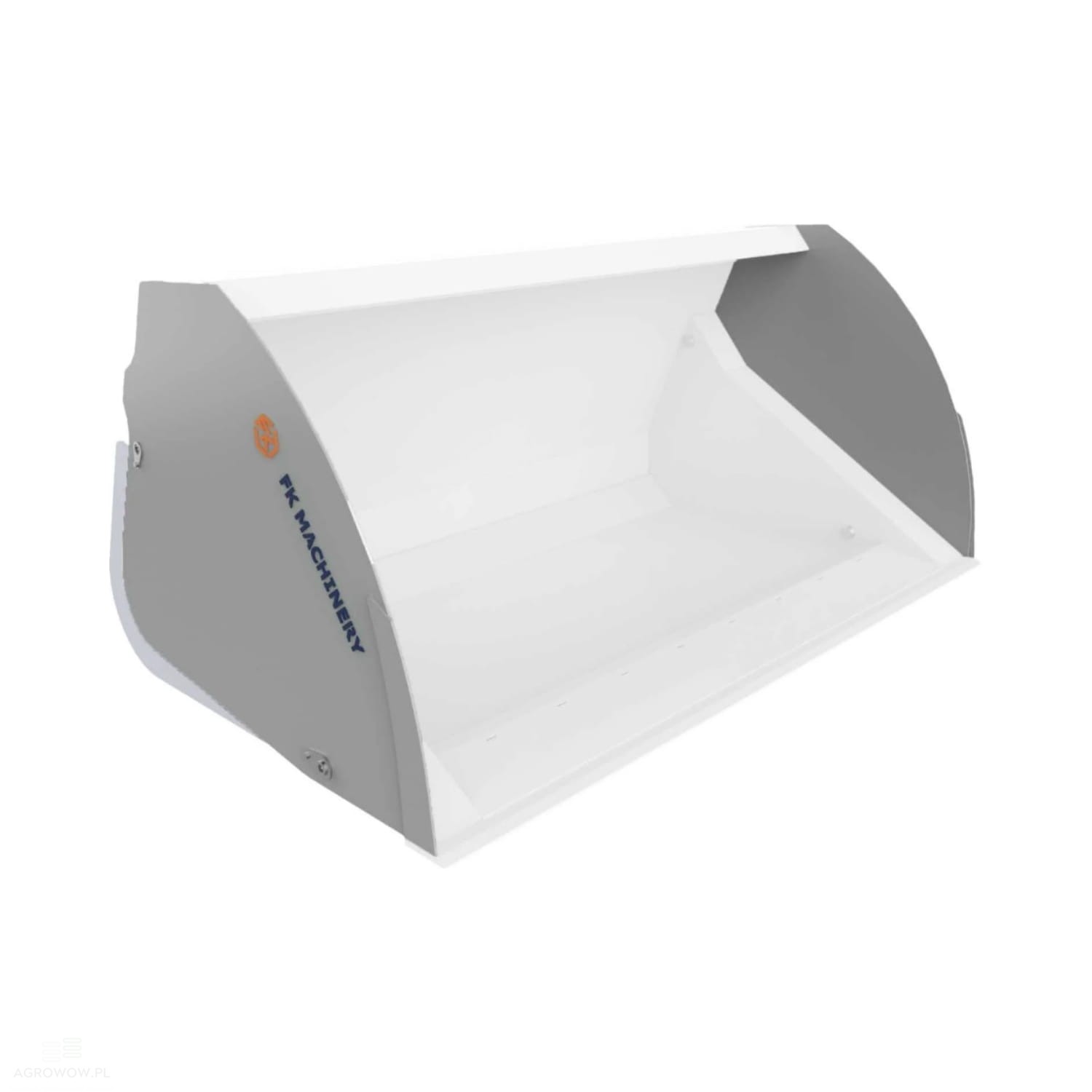

- Profiled sides increasing capacity

The profiled sides of this tool are designed for maximum use of available space, allowing for the loading of more material in a single cycle. Thanks to this design, the tool achieves higher efficiency, making better use of the workspace. The increased capacity not only boosts productivity but also improves work comfort, allowing for the faster and more efficient completion of more tasks in less time. Additionally, the profiled sides ensure greater stability of the tool, which facilitates the management of material loading and transport.

Detailed description:

• The MAXI high-dump bucket is an exceptionally functional and reliable tool that works perfectly in agriculture and construction.
• This advanced device combines excellent functionality with reliability, effectively handling a variety of transport tasks on farms and construction sites.
• The large dump angle ensures quick and effective movement of bulk materials such as sand, gravel, fertilizer, or grain.
• The optimal setting of the dump angle simplifies material transport, shortening loading and unloading times, which translates to higher work efficiency.
• The bucket, with a width of 1600 mm, length of 1779 mm, and height of 1276 mm, offering a capacity of 1.61 m³, is an ideal solution for more demanding transport tasks.
• This tool excels at loading and transporting various materials, both in agriculture and in other industries requiring the efficient transport of bulk materials.
• The large capacity of the bucket allows for quick and efficient loading of materials, ensuring full maneuverability of the tool even in difficult working conditions.
• The bucket weighs 846 kg, which ensures its appropriate stability and durability, even during intensive use.
• The high weight enables precise maneuvering in difficult working conditions, and the solid construction ensures resistance to any damage.
• The 8 mm thick side plate and 6 mm thick shell ensure the longevity of the tool, even in demanding conditions, such as hard surfaces or the presence of stones in the material.
• The 200x20 mm cutting edge, made of HB500 steel, provides excellent abrasion resistance, which guarantees long-term work efficiency.
• HB500 steel provides the cutting edge with high resistance to long-term operation, ensuring high efficiency in difficult working conditions.
• The reinforced connection between the side and the bottom improves the bucket's strength, reducing the risk of damage during intensive use.
• These reinforcements ensure the long-term reliability of the tool, which is essential during intensive use in difficult working conditions.
• The rounded bottom of the bucket facilitates the emptying of materials, minimizing the risk of material sticking to the tool.
• This solution improves work efficiency, especially with bulk materials, shortening the time required to empty the bucket.
• An additional advantage of the bucket is easy access to the pin lubrication points, which simplifies maintenance and ensures the long-term durability of the tool.
• Regular lubrication and proper maintenance of working components are necessary to keep the tool in optimal condition for a long time.
• The bucket has been designed with easy access to working components in mind, which allows for a quick response to service needs.
• The solid construction of the high-dump bucket ensures not only efficiency but also full safety during operation.
• You can rely on this tool, even in the most demanding working conditions, which makes it indispensable in daily work.
• The high-volume high-dump bucket is an ideal solution for large farms, construction companies, and other users who expect reliability and high performance in transport operations.
