Kołaszewski high-dump bucket MAXI 2.4 x 1.28

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KXLHTB240

- Manufacturer's name: High-dump bucket MAXI

- Width: 2400 mm

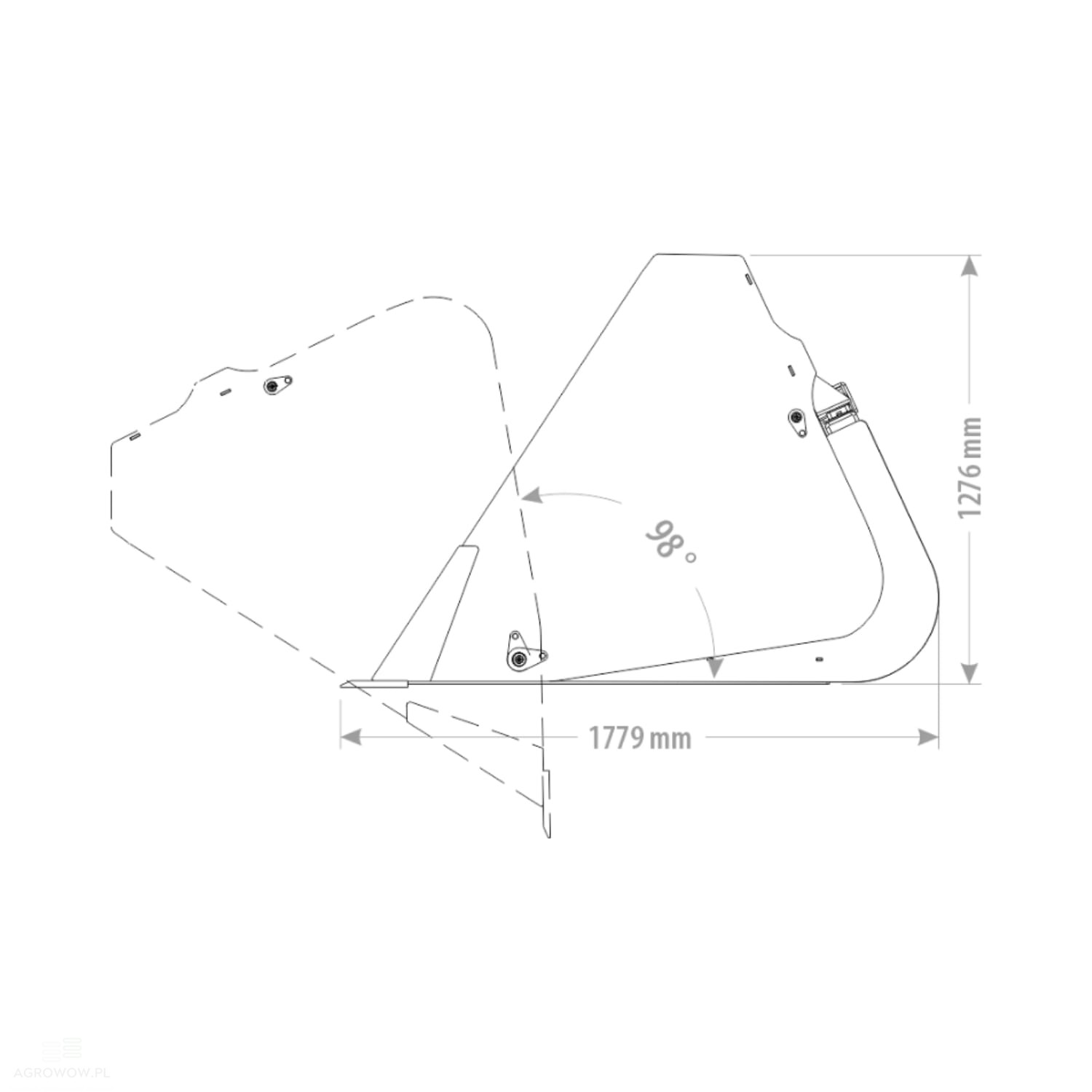

- Length: 1779 mm

- Height: 1276 mm

- Capacity: 2.53 m³

- Weight: 1110 kg

- Side: 8 mm

- Shell: 6 mm

- HB500 cutting edge: 200x20

- Easy access for pin lubrication

- Overload-blocking valve - VBCD

Optional extras (at additional cost):

- Profiled sides increasing capacity

The profiled sides of this tool have been designed to maximize the use of available working space, enabling the loading of more material in a single cycle. Such a solution improves work efficiency by better utilizing space. The increased capacity of the tool not only boosts productivity but also improves comfort, allowing for faster and more efficient completion of more tasks in less time. Furthermore, the profiled sides improve tool stability, which facilitates effective management of loading and transport of materials.

Detailed Description:

• The MAXI high-dump bucket is a reliable and extremely functional tool that works perfectly in agriculture and construction.

• This device combines high functionality with reliability, effectively coping with a wide range of transport tasks on farms and construction sites.

• A large dumping angle allows for quick and effective transport of loose materials such as sand, gravel, fertilizer, or grain.

• The optimally set dumping angle simplifies the material transport process, shortening loading and unloading time, which significantly increases work efficiency.

• The bucket, with a width of 2400 mm, length of 1779 mm, and height of 1276 mm, offering a capacity of 2.53 m³, is an excellent solution for more demanding transport tasks.

• It works perfectly for loading and transporting various materials, both in agriculture and in other industries requiring efficient transport of loose materials.

• The larger capacity of the bucket allows for quick and efficient material loading, ensuring full maneuverability of the tool, even in difficult working conditions.

• The bucket weighs 1110 kg, which ensures its proper stability and durability, even during intensive use.

• The high weight enables precise maneuvering in difficult working conditions, and the solid construction guarantees resistance to any damage.

• The 8 mm thick side and 6 mm thick shell ensure the tool's longevity, even in demanding working conditions such as hard surfaces or the presence of stones in the material.

• The cutting edge with dimensions of 200x20 mm, made of HB500 steel, guarantees excellent abrasion resistance, ensuring long-term work efficiency.

• HB500 steel provides the cutting edge with high resistance to long-term operation, maintaining high efficiency in difficult working conditions.

• The reinforced connection of the side with the bottom improves the bucket's strength, reducing the risk of damage during intensive use.

• Reinforcements ensure long-term tool reliability, which is crucial when used intensively in difficult working conditions.

• The rounded bottom of the bucket facilitates the emptying of materials, minimizing the risk of material sticking to the tool.

• This solution improves work efficiency, especially with loose materials, shortening the time needed to empty the bucket.

• An additional advantage of the bucket is easy access to the pin lubrication points, which simplifies maintenance and ensures the long-term durability of the tool.

• Regular lubrication and proper maintenance of working elements are necessary to keep the tool in optimal condition for a long time.

• The bucket has been designed with easy access to working elements in mind, which allows for a quick response to service needs.

• The solid construction of the high-dump bucket ensures not only efficiency but also complete safety during operation.

• You can rely on this tool, even in the most demanding working conditions, which makes it indispensable in everyday work.

• The volumetric high-dump bucket is an excellent solution for large farms, construction companies, and other users who expect reliability and high performance in transport operations.
