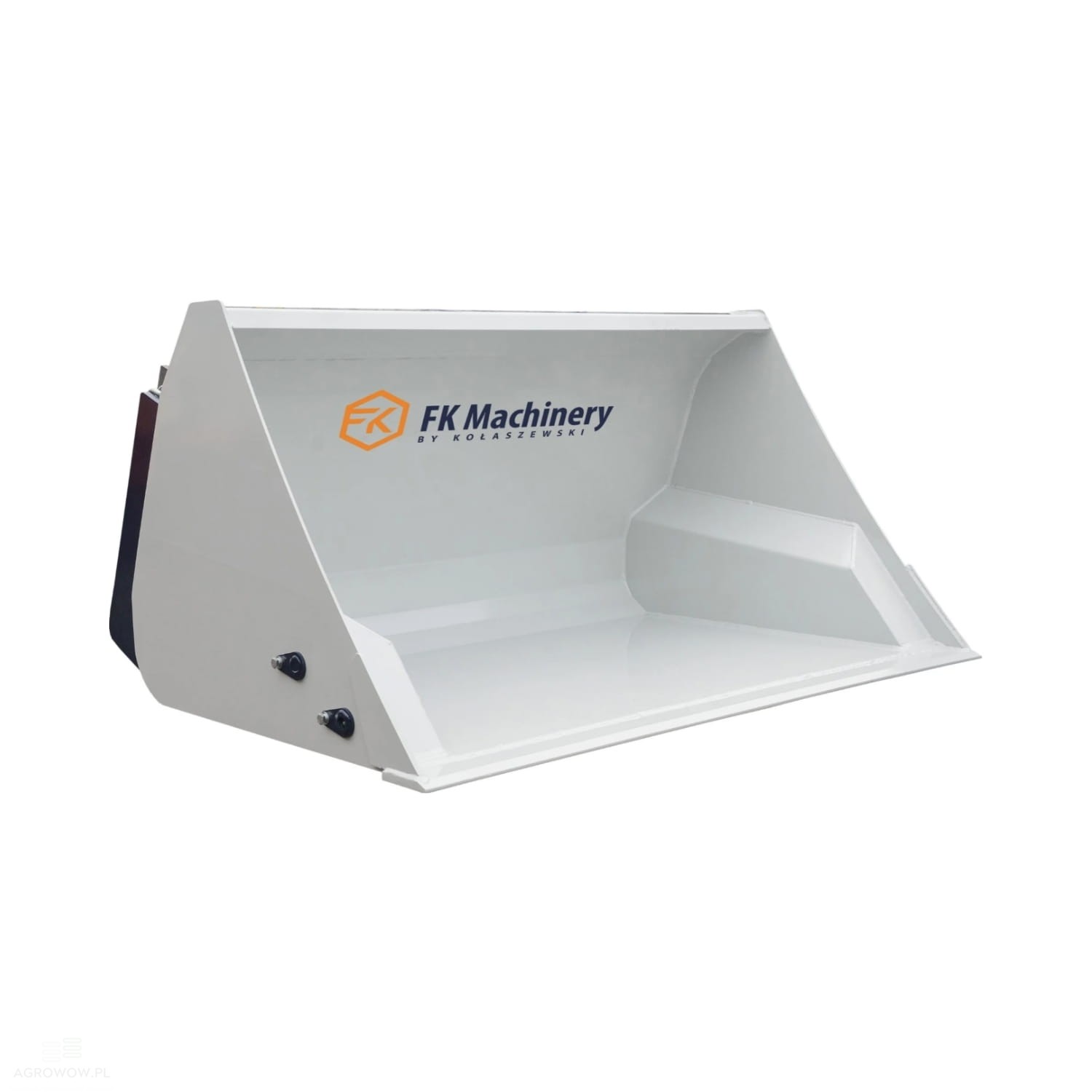

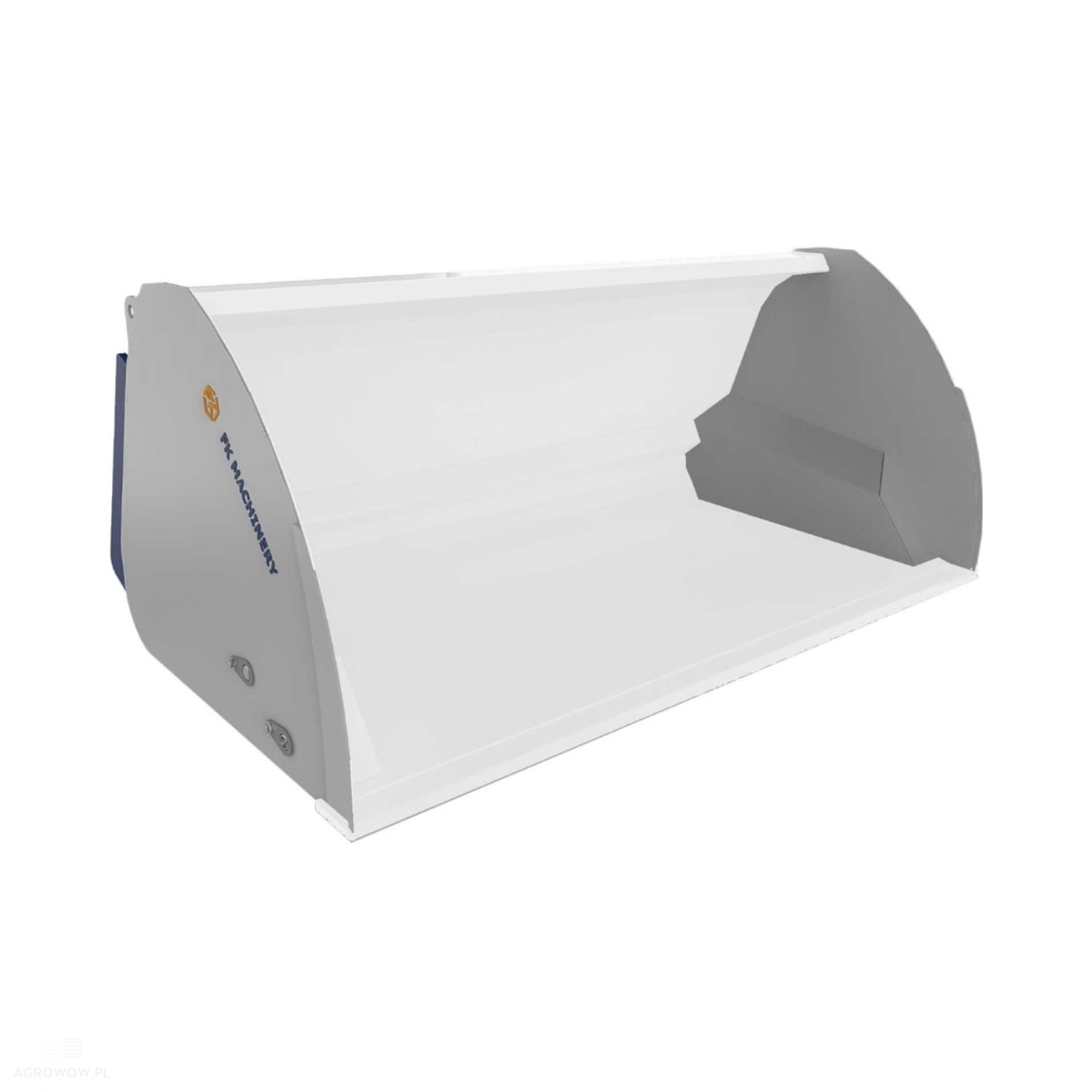

Kołaszewski high-tip bucket 1.6 x 0.77 m

Do you want to determine the parameters and customize the bucket to your individual needs?

We are able to prepare mounts for every type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We are happy to help you choose the right configuration and answer any questions.

- Manufacturer: Kołaszewski

- Catalog number: KMHTB160

- Manufacturer name: High-tip bucket

- Width: 1600 mm

- Length: 1060 mm

- Height: 770 mm

- Capacity: 0.58 m3

- Weight: 411 kg

- Side: 6 mm

- Shell: 5 mm

- HB500 cutting edge: 110x16

- Easy access for greasing pins

- Large dumping angle

- Reinforced connection between side and bottom

Paid options:

- Overload-blocking valve - VBCD

The overload-blocking valve (VBCD) is a key element of the system that protects against excessive pressure and overload. Its main function is to automatically stop the system when dangerous operating conditions are detected. Thanks to this valve, the device is better protected, minimizing the risk of component damage resulting from excessive pressure. Quick valve reaction in the event of a failure guarantees high system reliability, even in difficult operating conditions.

- Profiled sides increasing volume

The tool's profiled sides are designed to maximize the utilization of the available capacity, enabling the loading of a larger amount of material at one time. Thanks to this design, the tool achieves higher work efficiency, better utilizing the workspace. The increased capacity not only improves performance but also raises work comfort, enabling faster and more effective completion of more tasks in less time. Furthermore, the profiled sides increase the tool's stability, which facilitates better load management and material transport.

Detailed description:

• The high-tip bucket is a reliable and exceptionally functional piece of equipment, which works perfectly in both agriculture and construction.
• This advanced tool stands out for its reliability and high functionality, ideally handling many transport tasks, both on farms and at construction sites.
• The large dumping angle allows the bucket to quickly and effectively transport loose materials such as sand, gravel, fertilizer, or grain.
• Such dumping angle setting makes the transport process significantly easier and more efficient, minimizing the time needed for loading and unloading.

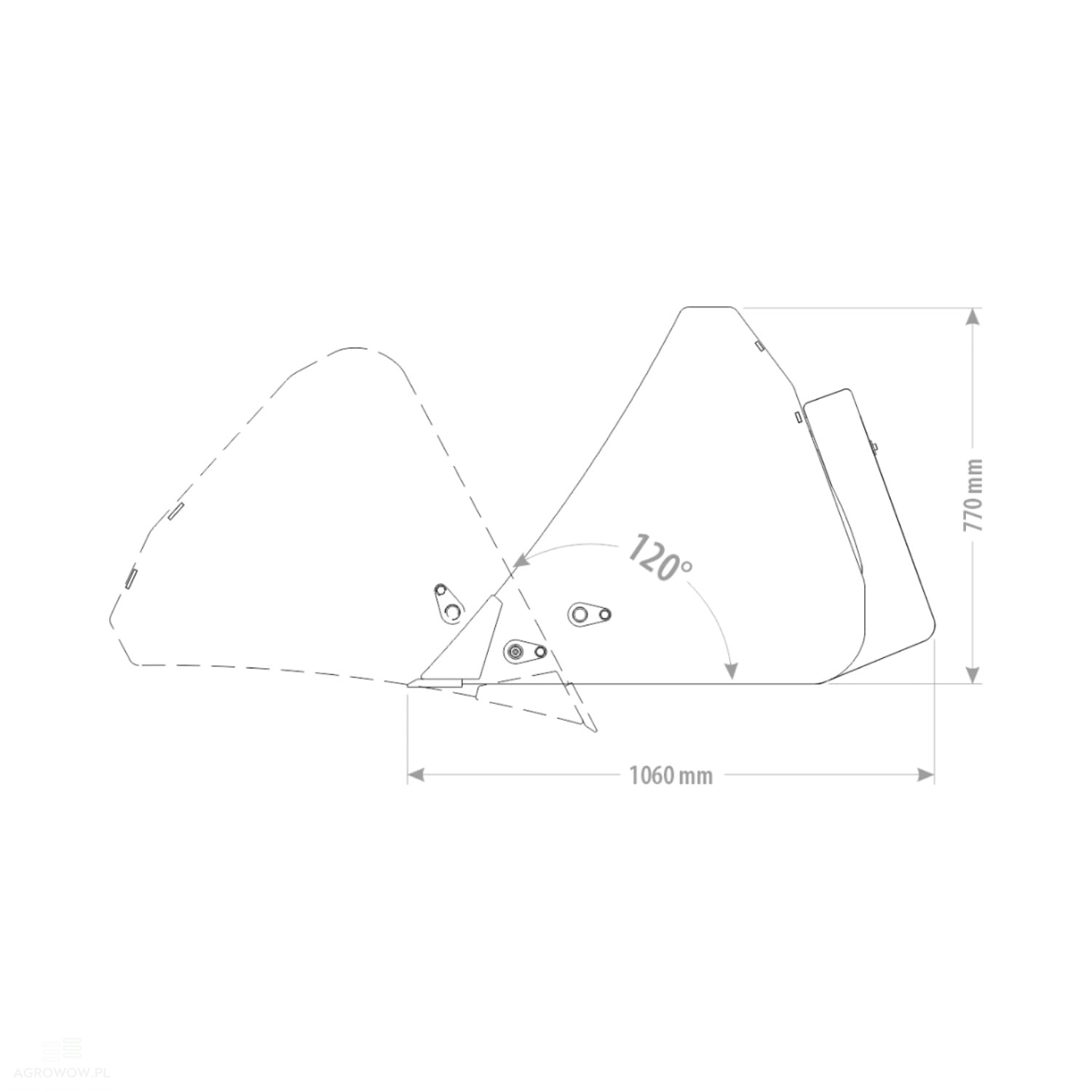

• With compact dimensions – 1600 mm width, 1060 mm length, and 770 mm height – the bucket offers a capacity of 0.58 m³, which makes it an ideal solution for medium-sized jobs.
• It is a tool that is perfect for loading and transporting diverse materials on farms, as well as in other industries where efficient transport of loose materials is required.
• The medium bucket capacity allows for fast and effective loading of material while ensuring full maneuverability of the tool in difficult working conditions.
• The bucket weighs 411 kg, which guarantees its appropriate stability and durability, even during intensive use.
• The appropriate weight enables precise maneuvering of the tool in difficult working conditions, and the solid construction ensures resistance to all kinds of damage.
• The durable 6 mm side and 5 mm shell ensure the tool's longevity, even in demanding working conditions, such as hard surfaces or the presence of stones in the material.
• The 110x16 mm cutting edge, made of high-quality HB500 steel, is characterized by excellent wear resistance, which guarantees long-term work efficiency.
• Thanks to the use of HB500 steel, the cutting edge withstands long-term operation, ensuring constant efficiency in demanding working conditions.
• The reinforced connection between the side and the bottom ensures even greater bucket strength, reducing the risk of damage during intensive use.
• This solution increases the reliability of the tool, which is necessary, especially during intensive operation in difficult working conditions.
• The rounded bottom of the bucket facilitates emptying and reduces the risk of material sticking to the tool.
• Thanks to this, work becomes more efficient and less time-consuming, especially when working with loose materials.
• An additional advantage is easy access to the pin lubrication points, which simplifies maintenance and ensures long-term tool durability.
• Regular greasing and maintenance of working components are crucial for maintaining optimal bucket performance for a long time.
• The bucket is designed in a way that allows for quick inspection of the condition of working components, which allows for instant reaction to service needs.
• Thanks to its solid construction, the high-tip bucket ensures not only efficiency but also safety during work.
• You can rely on it even in the most demanding working conditions, which makes it an indispensable tool in daily work.
• It is a piece of equipment that fully meets the needs of large farms, construction companies, and other users who require reliability and high performance in transport operations.
