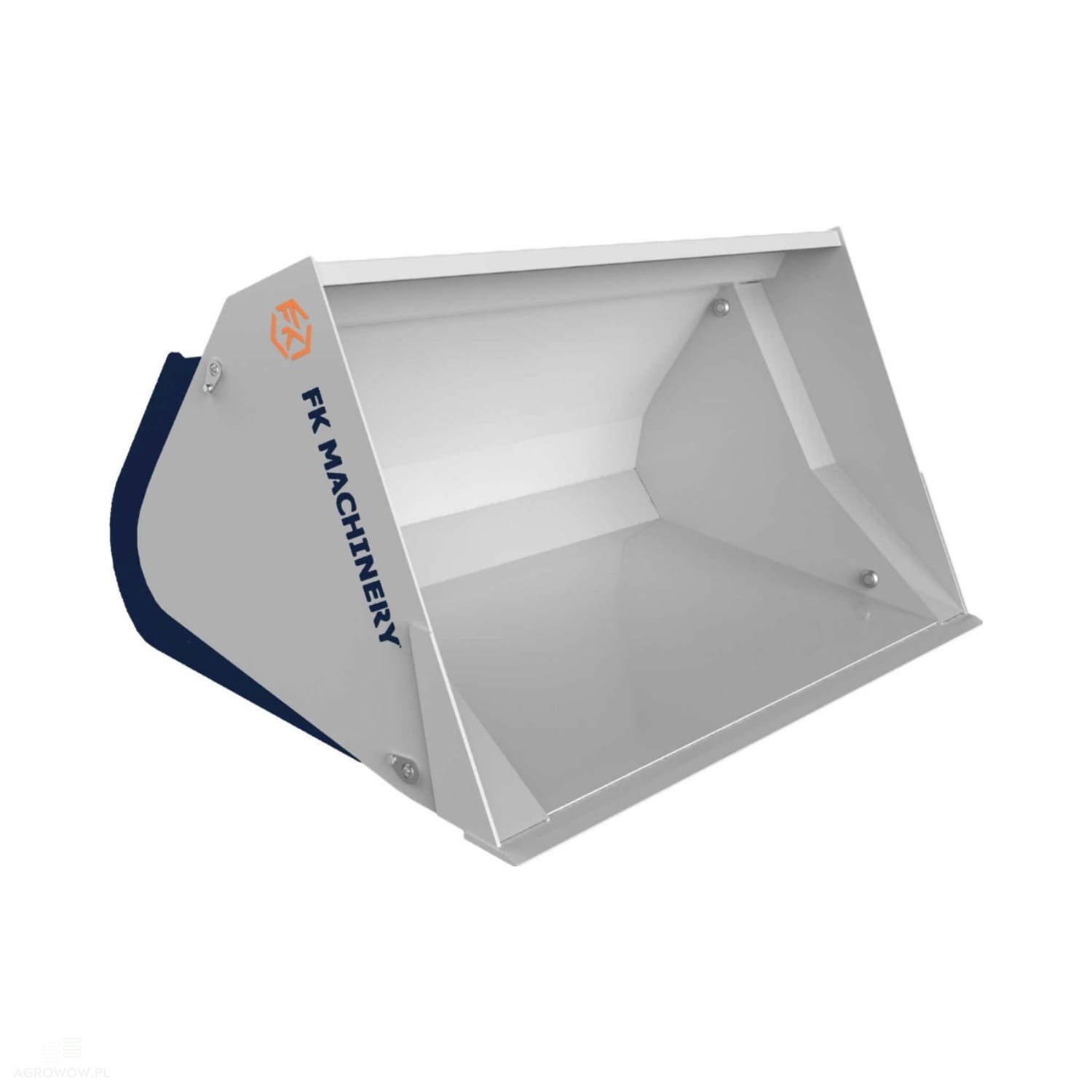

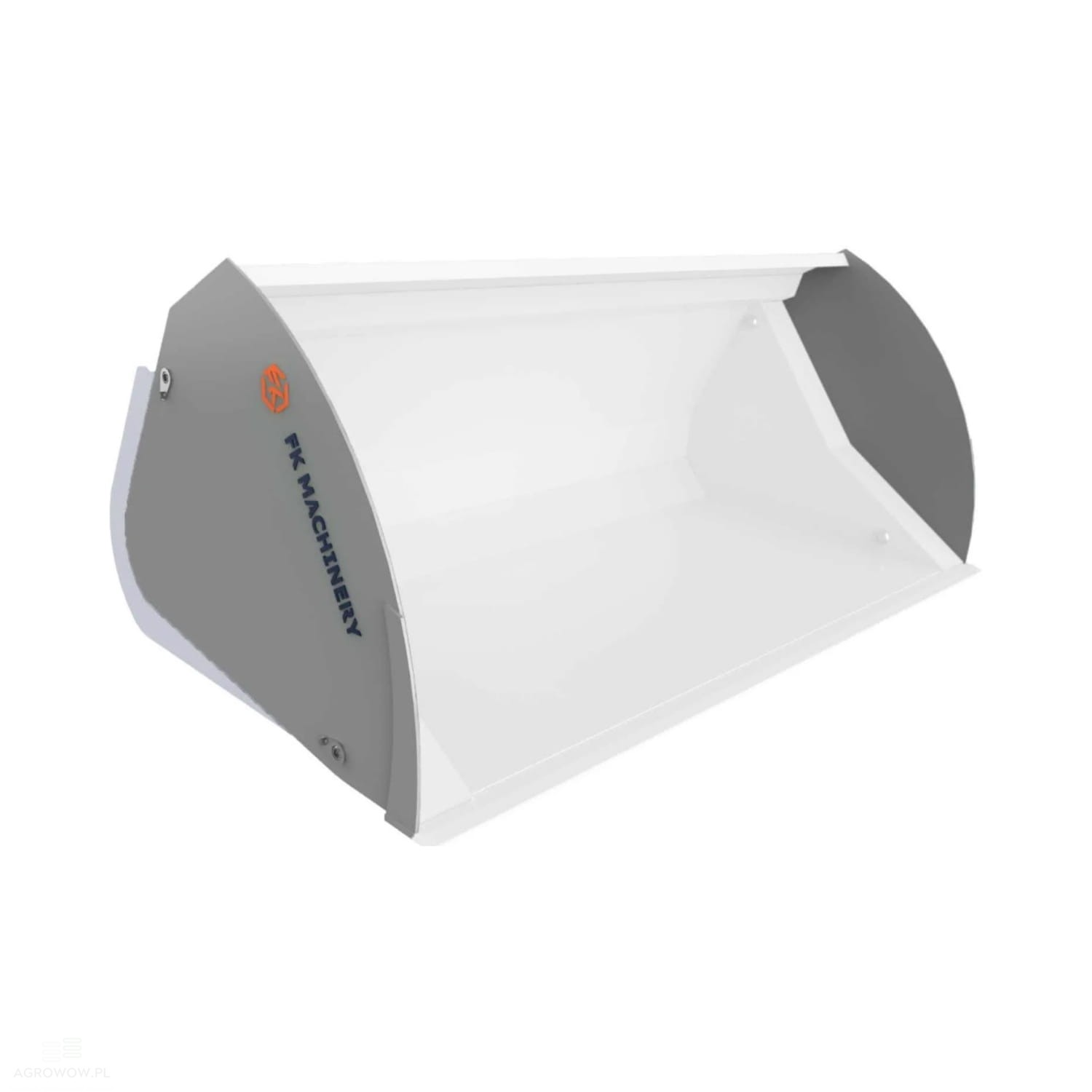

Kołaszewski high-volume high-dump bucket 2.6 x 1.11 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalog number: KMHTBM260

- Manufacturer name: High-volume high-dump bucket

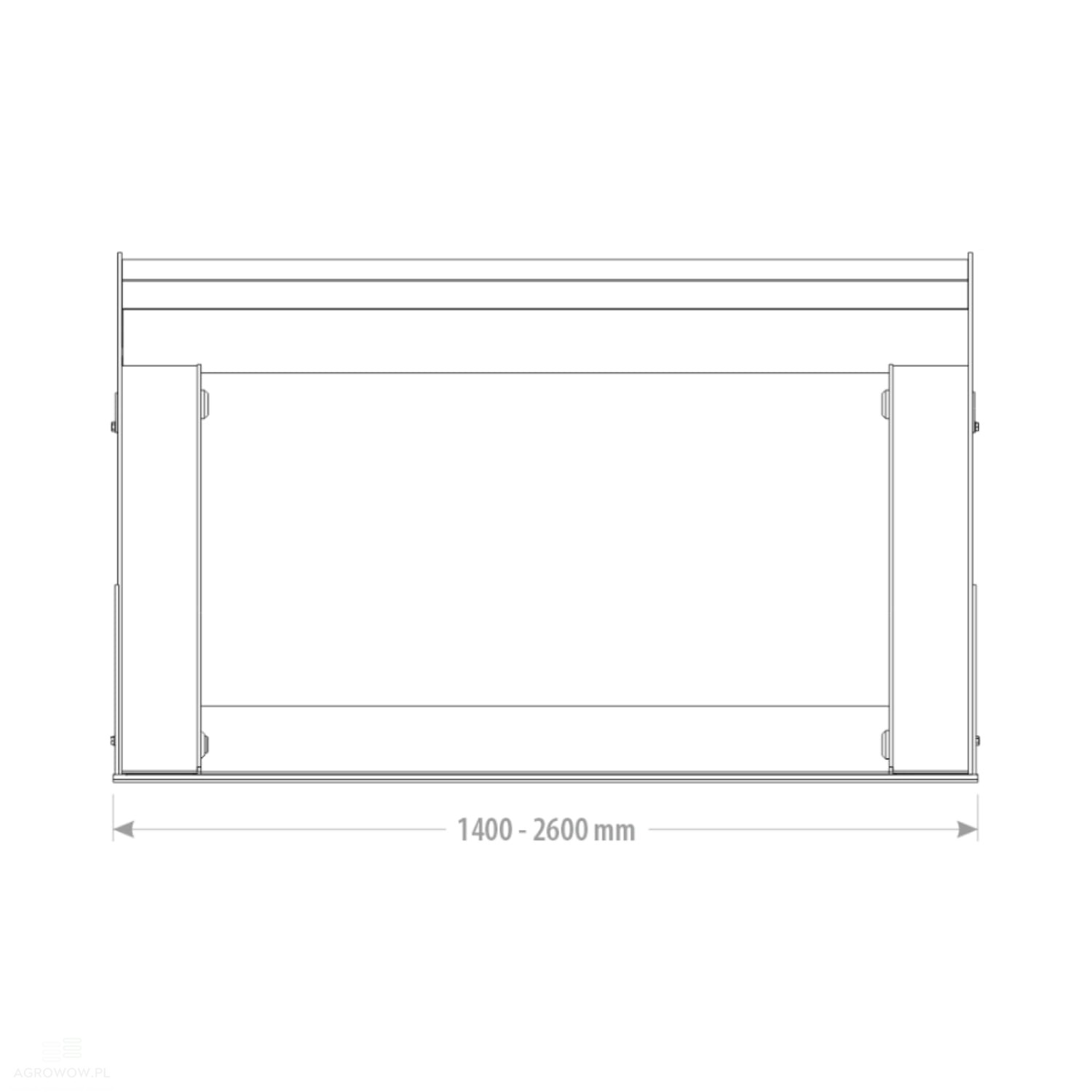

- Width: 2600 mm

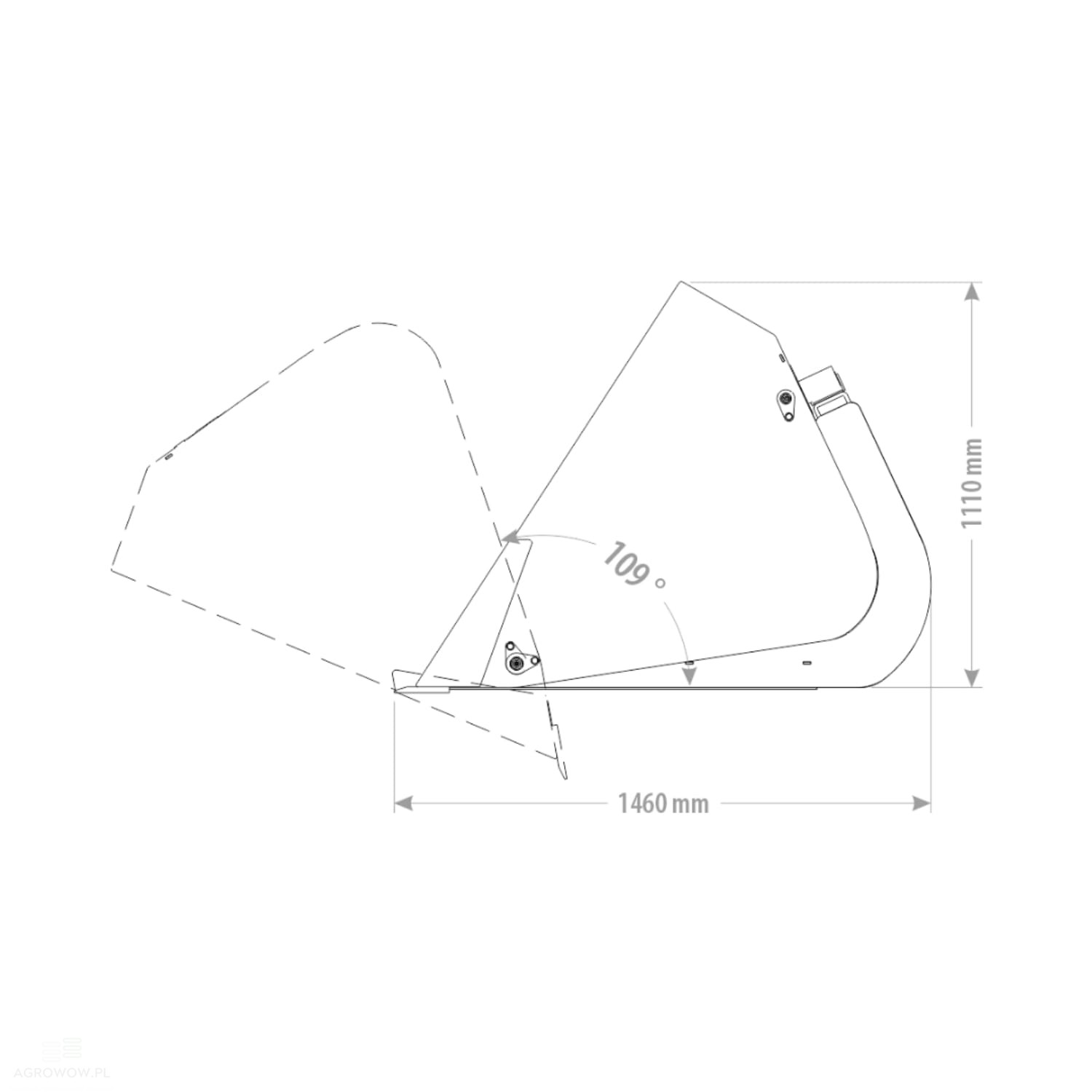

- Length: 1460 mm

- Height: 1110 mm

- Capacity: 1.92 m³

- Weight: 827 kg

- Side plate: 8 mm

- Shell: 5 mm

- HB500 cutting edge: 150x16

- Easy access for pin lubrication

Optional features (additional cost):

- Overload-blocking valve - VBCD

The overload-blocking valve (VBCD) is a key component of the system that prevents excessive pressure and overloads. Its main function is the automatic shutdown of the device when it detects dangerous operating conditions. Thanks to this valve, the system gains additional protection, reducing the risk of damage caused by excessive pressure. The valve reacts immediately to a failure, ensuring system reliability even in difficult working conditions.

- Profiled sides increasing capacity

The profiled sides of the tool are designed to make the best use of the available space, allowing for the loading of more material in a single cycle. Such a design increases work efficiency by making better use of the workspace. The increased capacity of the tool not only improves productivity but also enhances work comfort, allowing for the faster and more efficient completion of more tasks in less time. Furthermore, the profiled sides increase the stability of the tool, which helps in easier management of material loading and transport.

Detailed description:

• The high-volume high-dump bucket is an exceptionally functional and reliable tool used in agriculture and construction.
• This device combines high functionality with reliability, performing excellently in a wide range of transport tasks on farms and construction sites.
• The large dump angle allows for fast and effective movement of bulk materials such as sand, gravel, fertilizer, or grain.
• The optimally set dump angle simplifies material transport, shortening the time spent on loading and unloading, which translates to higher work efficiency.
• The bucket, with a width of 2600 mm, length of 1460 mm, and height of 1110 mm, offering a capacity of 1.92 m³, is an ideal solution for more demanding transport tasks.
• This tool excels in the transport and loading of various materials in agriculture and other industries requiring the efficient transport of bulk materials.
• The large capacity of the bucket enables quick and efficient loading of material, ensuring full maneuverability of the tool, even in difficult working conditions.
• The bucket weighs 827 kg, which ensures its appropriate stability and durability, even during intensive use.
• The high weight enables precise maneuvering of the tool in difficult working conditions, and the solid construction ensures resistance to any damage.
• The 8 mm thick side plate and 5 mm thick shell ensure the longevity of the tool, even when working in demanding conditions, such as hard surfaces or the presence of stones in the material.
• The 150x16 mm cutting edge, made of durable HB500 steel, provides excellent abrasion resistance, which guarantees long-term work efficiency.
• The use of HB500 steel provides the cutting edge with resistance to long-term operation, maintaining high efficiency in difficult working conditions.
• The reinforced connection between the side and the bottom improves the bucket's strength, reducing the risk of damage during intensive use.
• These reinforcements ensure the long-term reliability of the tool, which is essential in difficult working conditions.
• The rounded bottom of the bucket facilitates the emptying of materials, minimizing the risk of material sticking to the tool.
• This solution improves work efficiency, especially with bulk materials, shortening the time required to empty the bucket.
• An additional advantage is easy access to the pin lubrication points, which simplifies maintenance and ensures the long-term durability of the tool.
• Regular lubrication and proper maintenance of working components are necessary to keep the tool in optimal condition for a long time.
• The bucket has been designed with easy access to working components in mind, which allows for a quick response to service needs.
• The solid construction of the high-dump bucket ensures not only efficiency but also full safety during operation.
• You can rely on this tool, even in the most demanding working conditions, which makes it indispensable in daily work.
• The high-volume high-dump bucket is an ideal solution for large farms, construction companies, and other users who expect reliability and high performance in transport operations.
