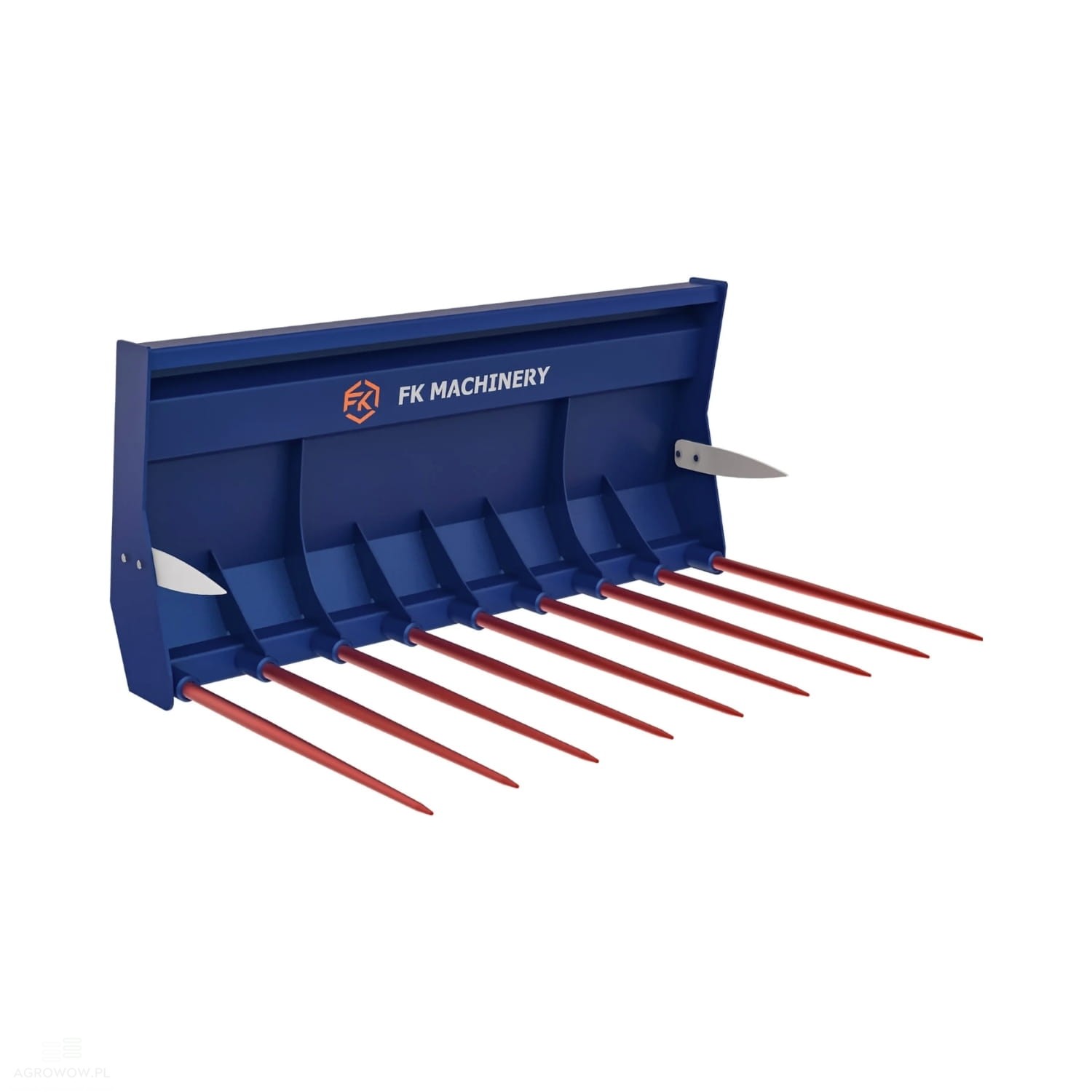

Kołaszewski manure fork MAXI 1.7 x 0.8 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KMMFM170

- Manufacturer's name: MAXI manure fork

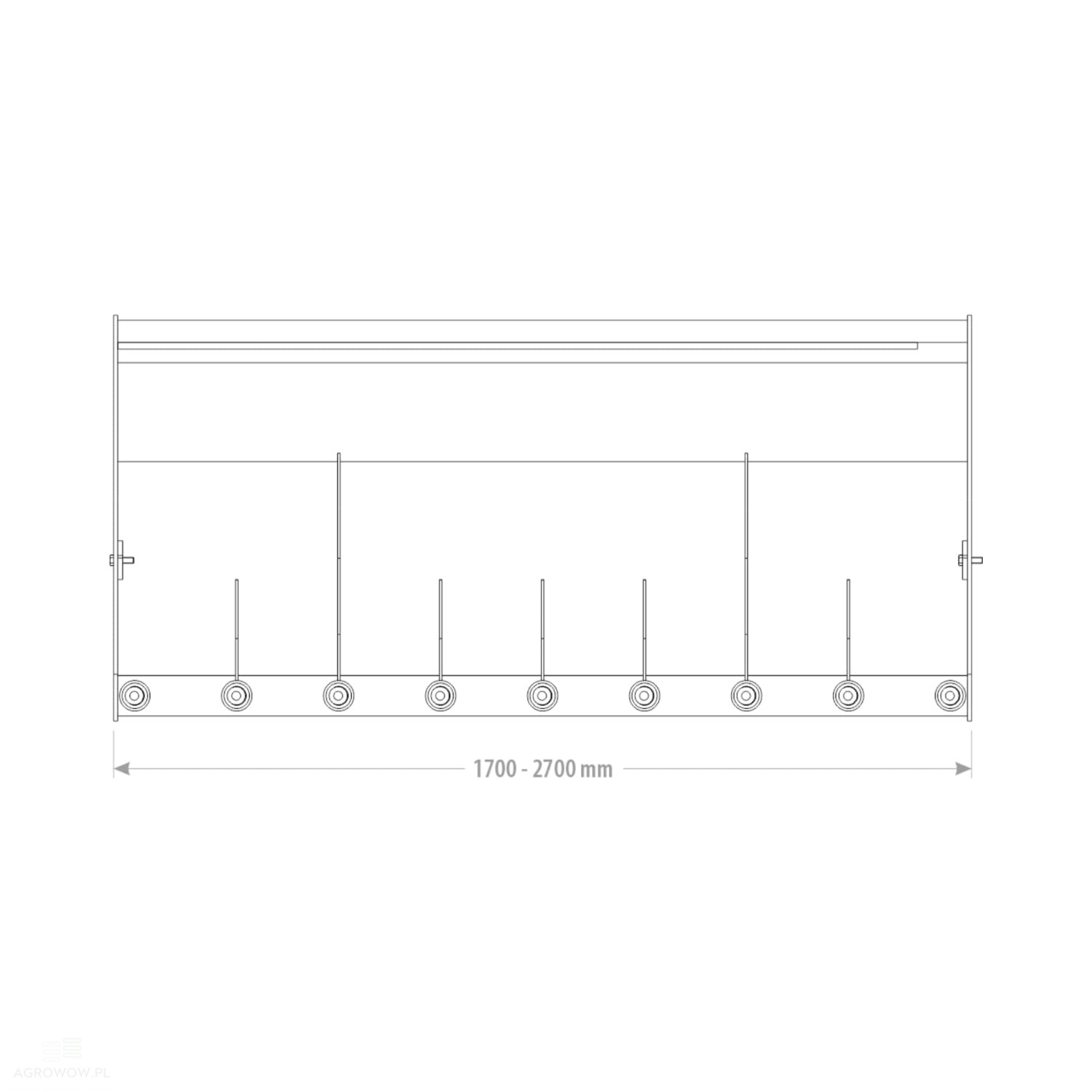

- Width: 1700 mm

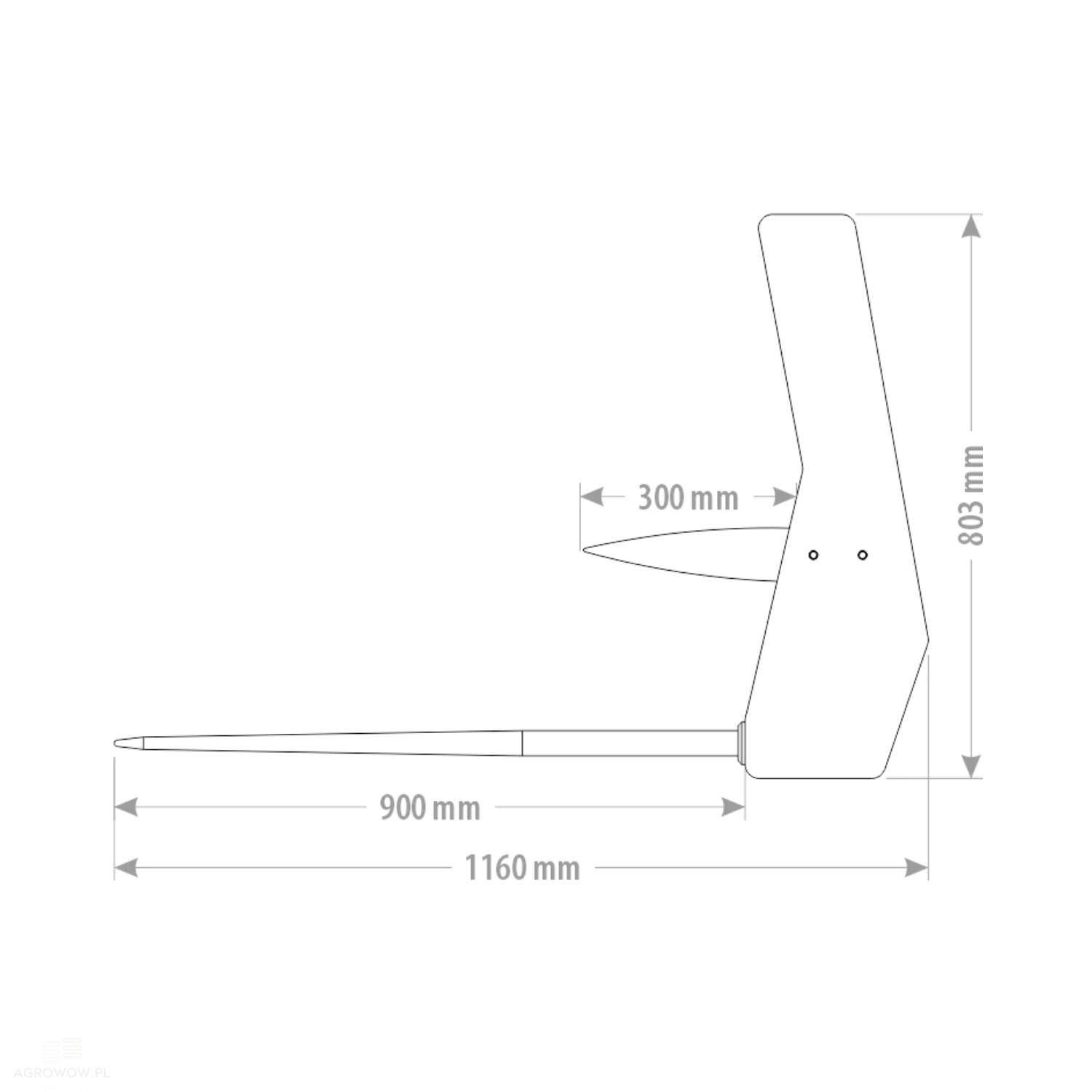

- Length: 1160 mm

- Tine length: 900 mm

- Height: 803 mm

- Capacity: 1.16 m³

- Weight: 210 kg

- Number of tines: 9

- Side plate thickness: 8 mm

- Main sheet/skin thickness: 6 mm

- Heavy-walled profile construction

- Tine mountings reinforced with conical sleeves

- Tines: forged L-1100 M22

- Bolted side tines: 2

Detailed Description:

• The MAXI manure fork with a width of 1700 mm is a reinforced, high-performance agricultural tool designed for intensive operations. Thanks to its solid construction and large capacity, it is excellent for loading and transporting manure, silage, compost, straw, and other bulk materials, particularly on medium and larger farms.

• A working width of 1700 mm and an impressive capacity of 1.16 m³ allow for collecting large portions of material in a single working cycle, which significantly increases work efficiency. The overall length of 1160 mm and height of 803 mm provide appropriate stability and handling comfort, even in tighter spatial conditions and when working with heavy loads.

• The fork's frame is made of heavy-walled steel profiles characterized by high resistance to overloading, twisting, and impacts. A 6 mm thick main sheet/skin and 8 mm sides further reinforce the entire structure, translating into the long life and reliability of the tool under the most demanding working conditions.

• This model is equipped with nine forged L-1100 M22 tines with a length of 900 mm, which easily penetrate compacted, wet material. Their distribution has been planned to ensure an even distribution of forces, facilitating the operator's work and reducing the risk of damage. Two additional side tines, mounted with bolts, increase the working width and make it easier to collect material from the sides of a clamp or pile.

• In order to increase durability and eliminate problems related to the loosening of tines, conical sleeves are used at the mounting points. This design provides exceptional operational stability and reduces the need for frequent service inspections.

• The total weight of the fork is 210 kg, which, given these large dimensions, represents a good ratio between strength and weight. The tool maintains appropriate rigidity and does not cause excessive load on the machine's drivetrain, while allowing for smooth maneuvering even when fully loaded.

• The MAXI 1700 mm fork is equipped with a EURO-type mounting, ensuring its compatibility with a wide range of front loaders and telehandlers. This allows for quick connection of the attachment and its flexible use in various agricultural tasks without the need for adapters.

• Its functionality, solid workmanship, and well-thought-out design make the tool excellent not only for seasonal work but also for intensive, daily use. This allows for a better utilization of working time and farm resources.

• With proper maintenance, this fork will serve for many years, offering reliability, comfort, and high efficiency even under the most difficult operating conditions.

• The MAXI manure fork with a width of 1700 mm is an excellent choice for farmers looking for equipment with a large capacity, durability, and universal application. It will perform well both as a primary tool on the farm and as a supplement to larger machines and loading systems.
