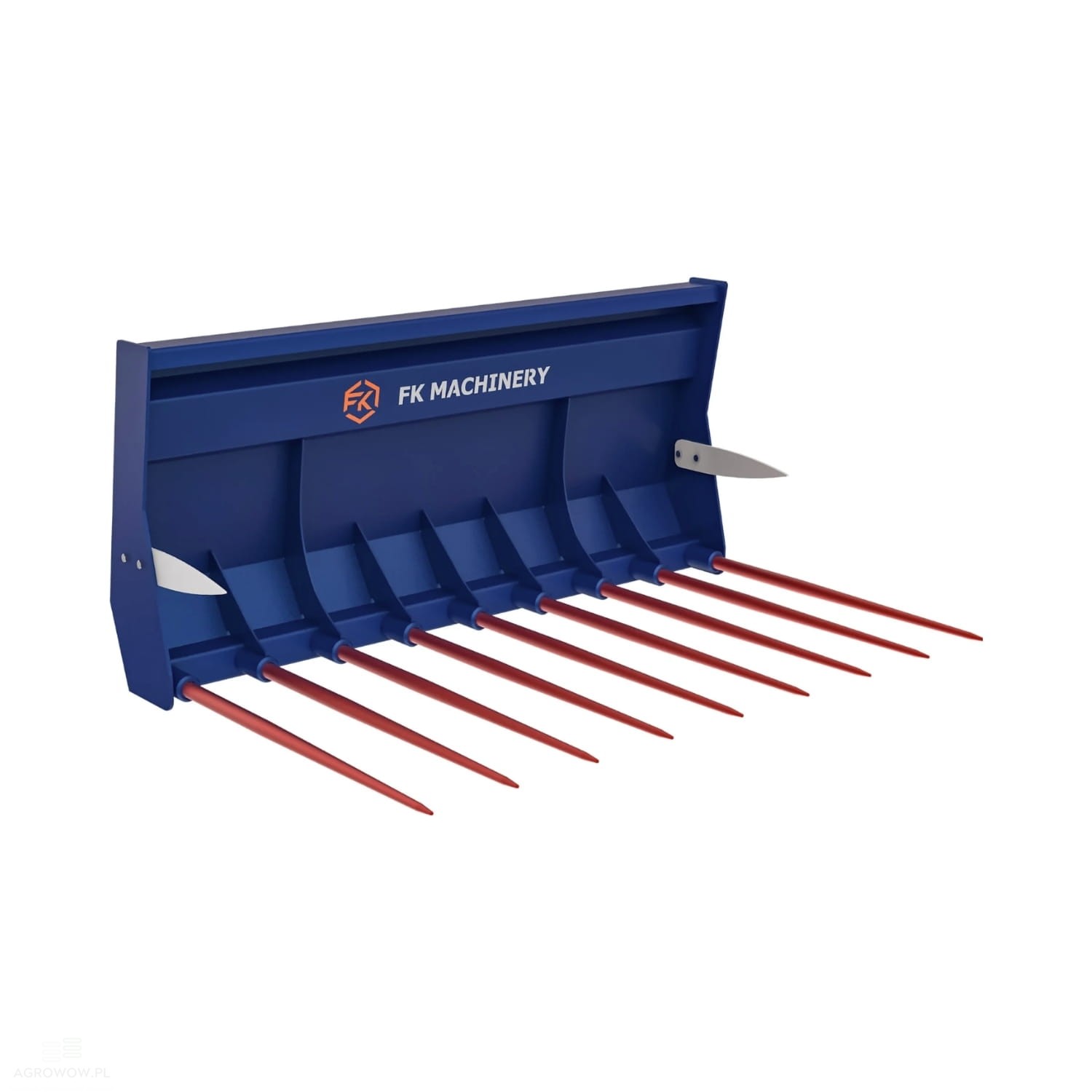

Kołaszewski manure fork MAXI 1.9 x 0.8 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: 2070-66062

- Manufacturer's name: MAXI manure fork

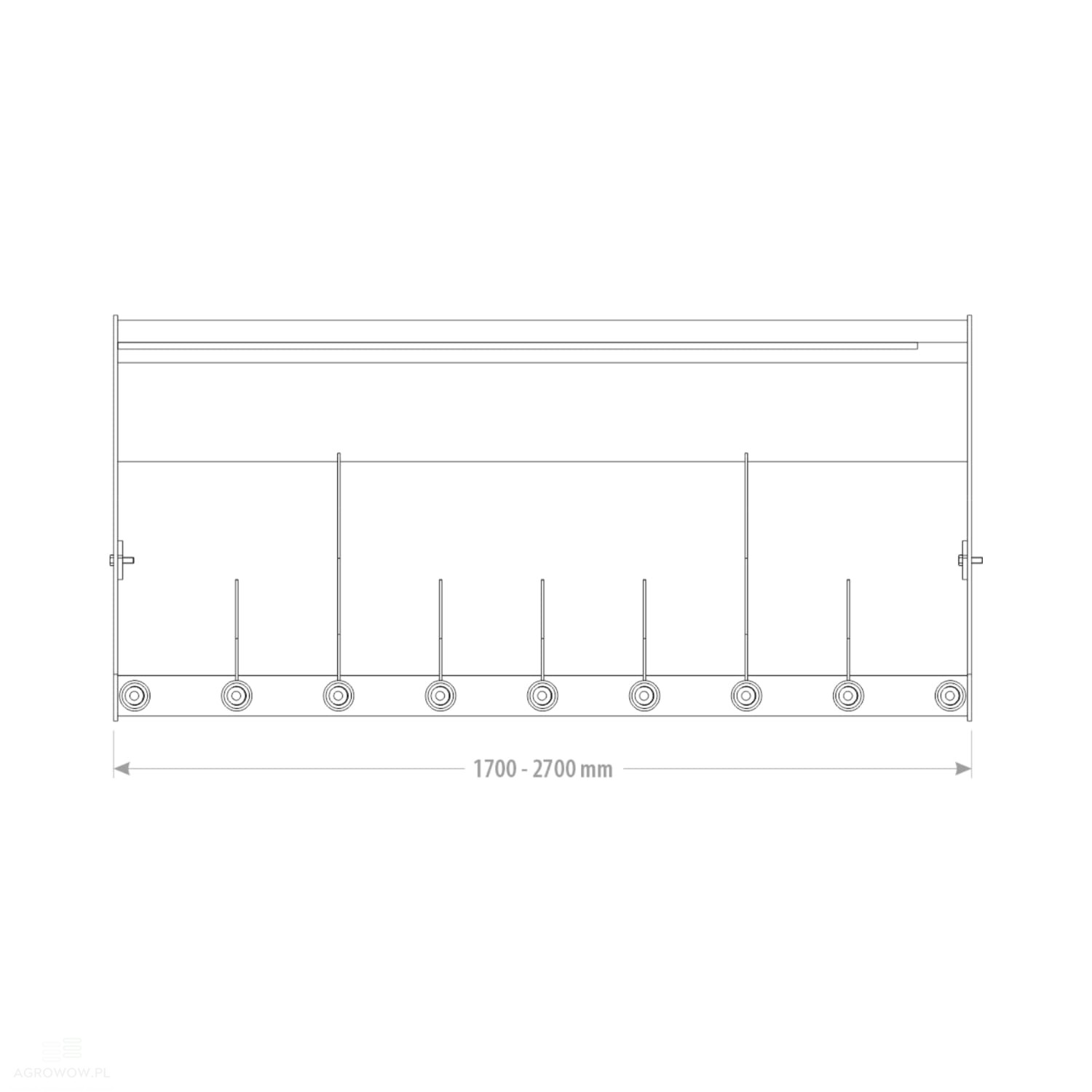

- Width: 1900 mm

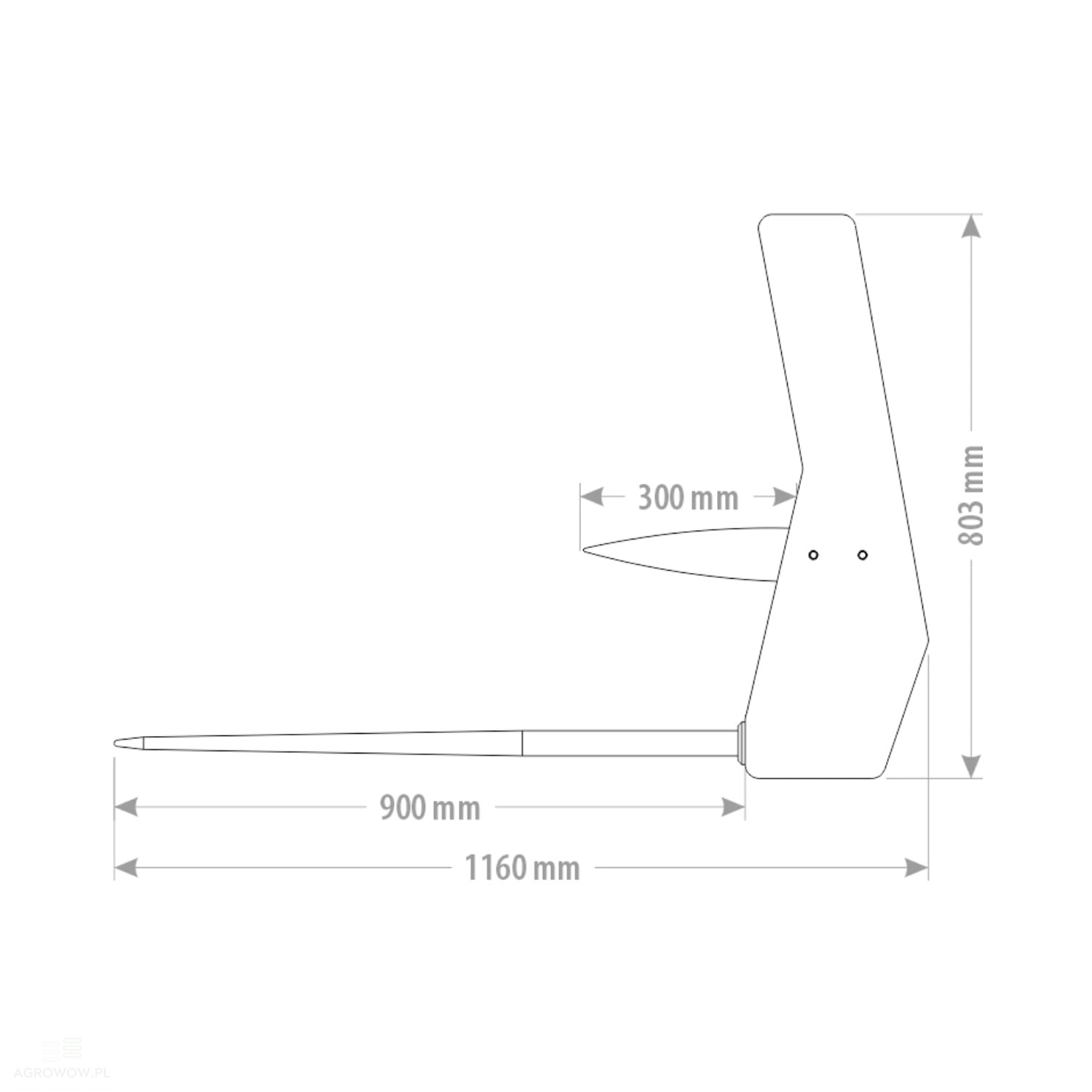

- Length: 1160 mm

- Tine length: 900 mm

- Height: 803 mm

- Capacity: 1.29 m³

- Weight: 226 kg

- Number of tines: 10

- Side plate thickness: 8 mm

- Main sheet/skin thickness: 6 mm

- Heavy-walled profile construction

- Tine mountings reinforced with conical sleeves

- Tines: forged L-1100 M22

- Bolted side tines: 2

Detailed Description:

• The MAXI manure fork with a width of 1900 mm is a solid and durable tool designed for intensive use on large agricultural farms. Its construction has been optimized for the efficient loading and transport of organic materials, such as manure, silage, straw, compost, and other loose or compacted agricultural fractions.

• An impressive working width of 1900 mm combined with a capacity of 1.29 m³ allows for collecting a significant amount of material in a single cycle, which speeds up the completion of work and reduces the number of operations. The overall length of 1160 mm and height of 803 mm provide appropriate tool stability and user comfort, both in open spaces and within livestock buildings.

• The frame structure, made of heavy-walled steel profiles and reinforced with a 6 mm main sheet/skin and 8 mm thick sides, guarantees resistance to twisting, impacts, and dynamic loads. This design ensures the durability of the attachment even in difficult field conditions and when working with heavy, wet materials.

• The model is equipped with ten forged L-1100 M22 tines with a length of 900 mm, which, thanks to their structure, provide high resistance to bending and abrasive wear. The distribution of the tines was selected to ensure an even distribution of forces and effective penetration into compacted material. Two additional side tines, mounted with bolts, increase the tool's functionality, enabling easier collection of material from the sides of a clamp or pile.

• The use of conical sleeves at the tine mounting points significantly increases the stability and durability of the structure. This mounting system protects against the loosening of the tines and allows the full functionality of the attachment to be maintained for a long time, even under intensive use.

• The total weight of the tool is 226 kg, which, given these operating parameters, represents a reasonable compromise between mass and strength. The tool does not overload the cooperating machine, while at the same time guaranteeing appropriate rigidity and smooth operation under all working conditions.

• The EURO-type mounting system allows for quick and trouble-free connection of the fork to most front loaders and telehandlers available on the market, which increases their versatility and flexibility of use on the farm.

• Thanks to its versatility and high quality of workmanship, the MAXI 1900 mm fork is indispensable in seasonal and year-round work, contributing to an increased pace of task completion and better work organization efficiency.

• Systematic maintenance and proper operation allow for many years of trouble-free use. This is a tool that supports daily work, ensuring durability, reliability, and ease of handling even in demanding conditions.

• The MAXI manure fork with a width of 1900 mm is an ideal solution for farms looking for an attachment that combines large capacity, durability, and practical design solutions—a reliable partner in daily field and livestock work.
