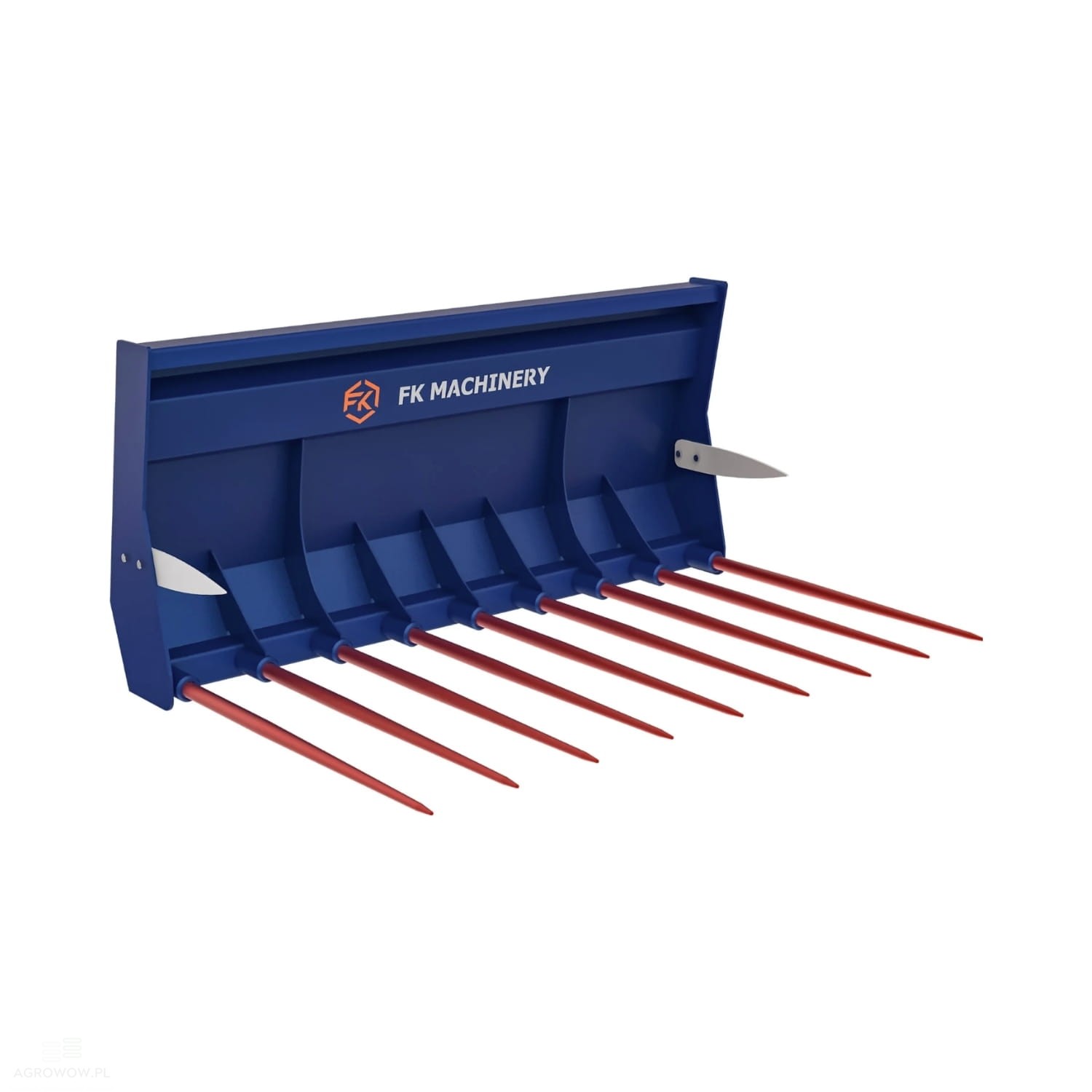

Kołaszewski manure fork MAXI 2.5 x 0.8 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KMMFM210

- Manufacturer's name: MAXI manure fork

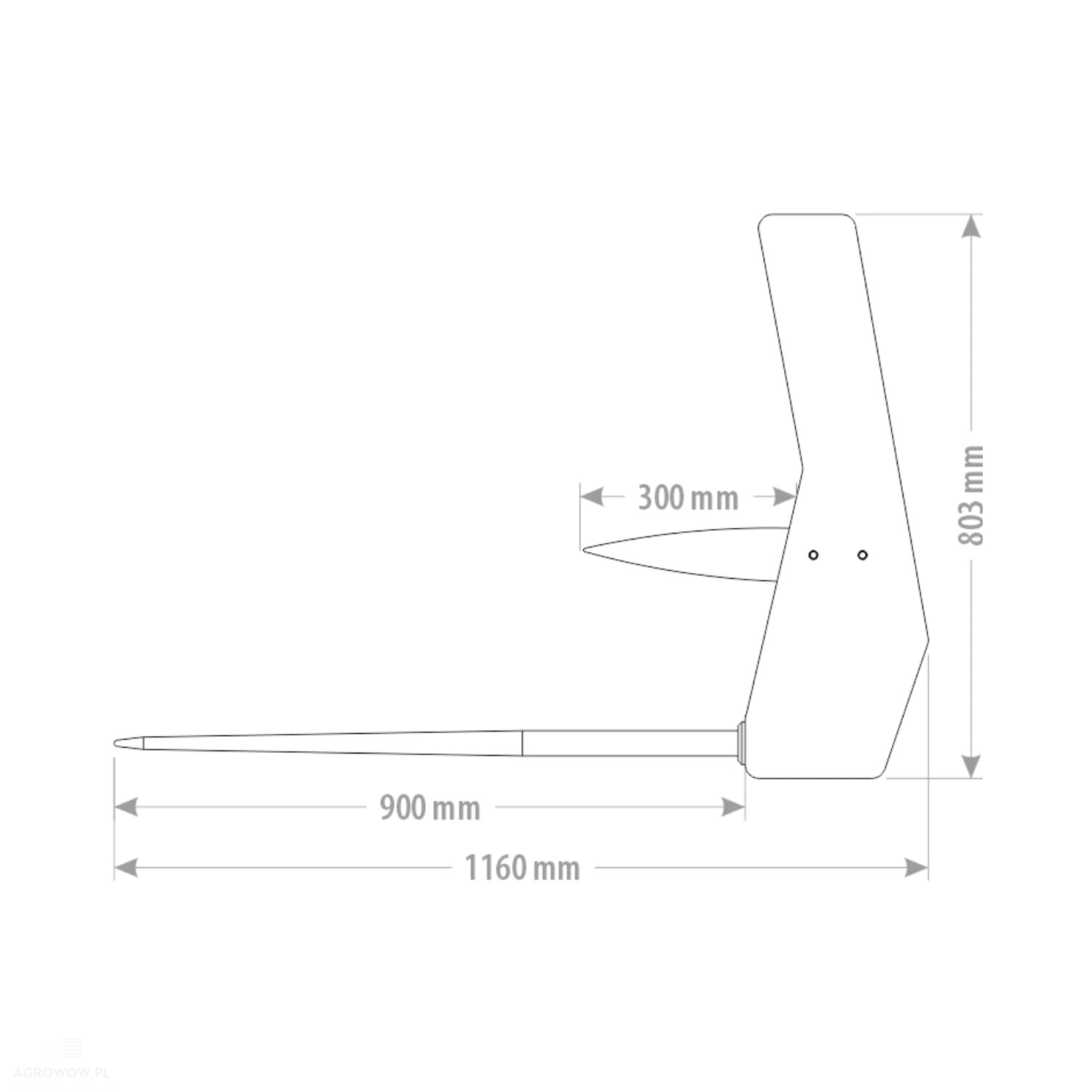

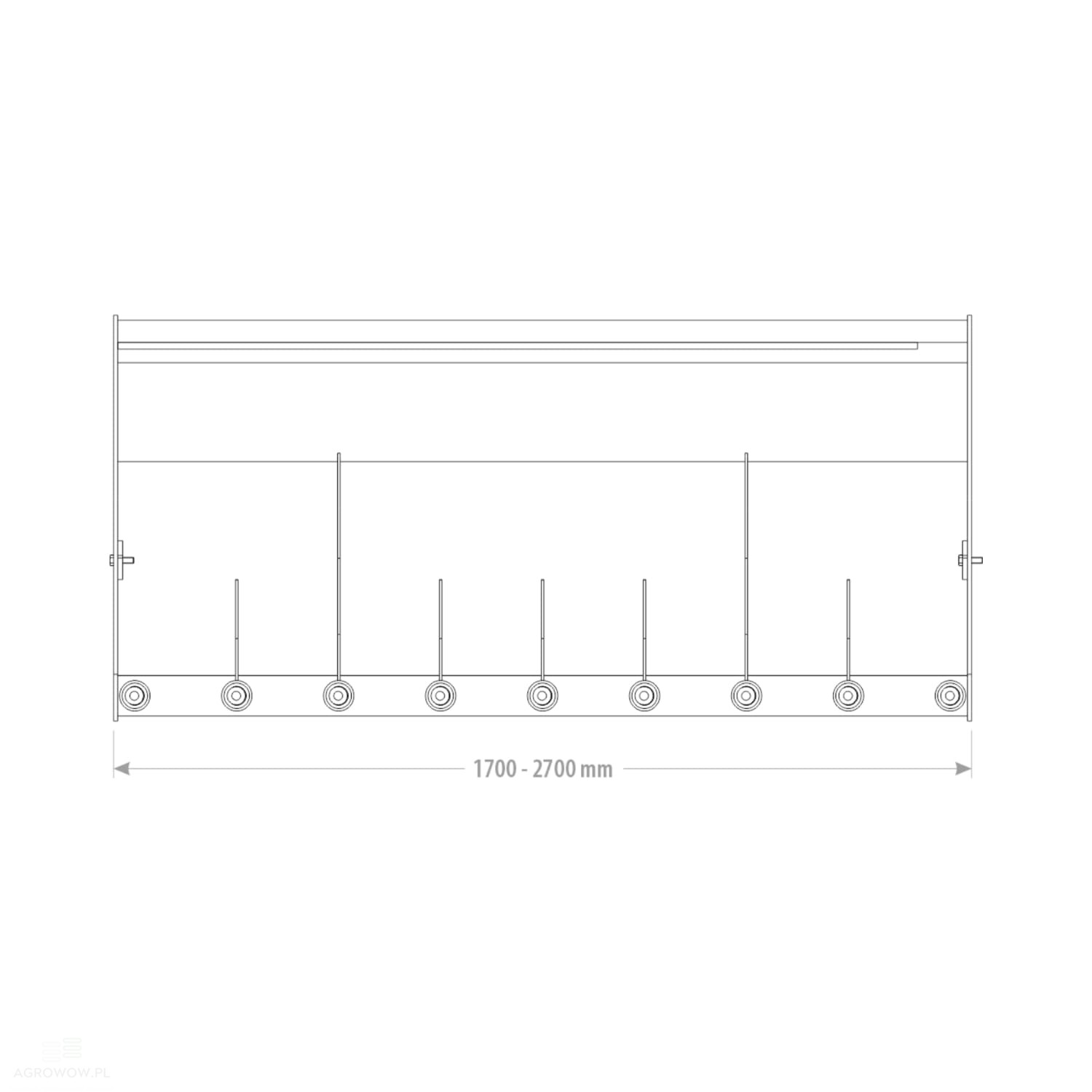

- Width: 2100 mm

- Length: 1160 mm

- Tine length: 900 mm

- Height: 803 mm

- Capacity: 1.43 m³

- Weight: 249 kg

- Number of tines: 10

- Side plate thickness: 8 mm

- Main sheet/skin thickness: 6 mm

- Heavy-walled profile construction

- Tine mountings reinforced with conical sleeves

- Tines: forged L-1100 M22

- Bolted side tines: 2

Detailed Description:

• The MAXI manure fork with a width of 2100 mm is an exceptionally solid and high-capacity agricultural tool, designed for intensive work on large farms where maximizing efficiency during the loading and transport of organic materials is a priority. Its construction has been engineered for the smooth handling of manure, straw, silage, compost, and other bulk materials, including those with a high degree of compaction.

• A large working width of 2100 mm and a capacity of 1.43 m³ enable the collection of a very large quantity of material in a single cycle, which significantly streamlines task completion and reduces the number of required runs. The length of 1160 mm and height of 803 mm provide the tool with proper stability, allowing for comfortable operation both in open spaces and within farm buildings.

• The fork's frame is made of heavy-walled steel profiles, and additional reinforcements in the form of a 6 mm thick main sheet/skin and 8 mm sides guarantee the durability of the entire structure, even when working with heavy, wet, or compacted materials. This engineering choice provides high resistance to impacts, structural twisting, and operational wear under high loads.

• This model is equipped with ten forged L-1100 M22 tines, each 900 mm long, which excel in their resistance to bending and abrasive wear. Their distribution is optimized to ensure even force distribution, facilitating effective penetration into compacted masses. Two additional bolt-on side tines make it easier to clean up material from the edges of clamps and piles, boosting the overall productivity of the loading process.

• To further increase the long-term durability and rigidity of the structure, conical sleeves are integrated at the tine mounting points. This technology eliminates the risk of components loosening, translating into an extended service life for the attachment and minimal maintenance requirements even under demanding deployment schedules.

• The tool features an unladen weight of 249 kg, offering an excellent balance between structural robustness and maintaining high maneuverability. This weight keeps the carrier machine from being unnecessarily overloaded while guaranteeing a stable and secure configuration when lifting full loads.

• The attachment comes equipped with a standard EURO mounting system, allowing for quick, easy, and intuitive hook-up to most popular models of front loaders and telehandlers on the market. This structural flexibility allows the fork to be seamlessly deployed across a wide range of logistics and handling operations on the farm.

• The MAXI 2100 mm model is ideal for year-round work—handling daily loading duties as well as seasonal work peaks. Its substantial volume capacity and rugged build help accelerate operational speed, optimize labor efficiency, and bring down overall operational costs.

• With routine maintenance and proper usage according to manufacturer guidelines, this manure fork guarantees reliable operation over many seasons. It represents a practical investment that enhances farm logistics and ensures dependable material handling performance.
