Kołaszewski manure fork MAXI 2.3 x 0.8 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Adres e-mail: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KMMFM230

- Manufacturer's name: MAXI manure fork

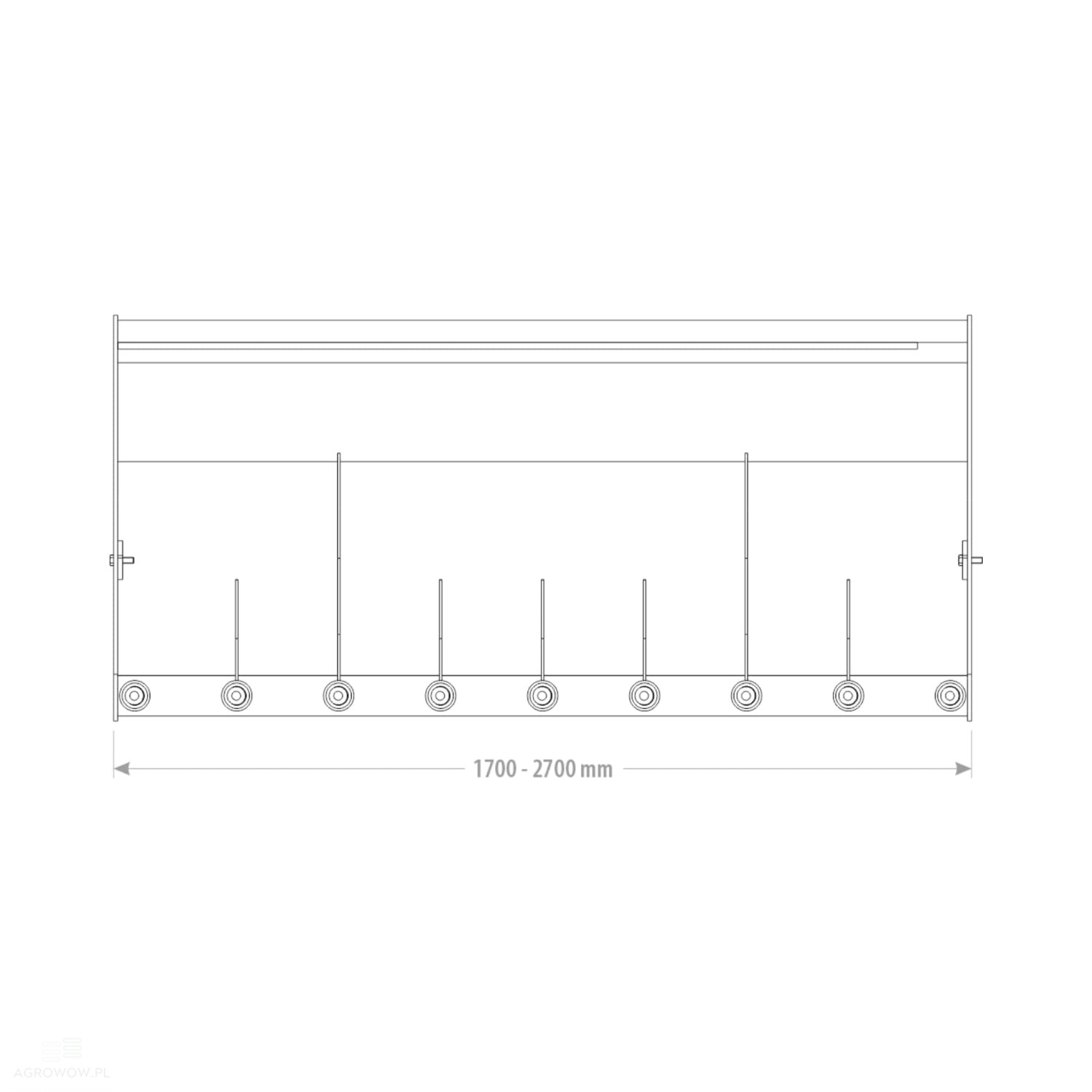

- Width: 2300 mm

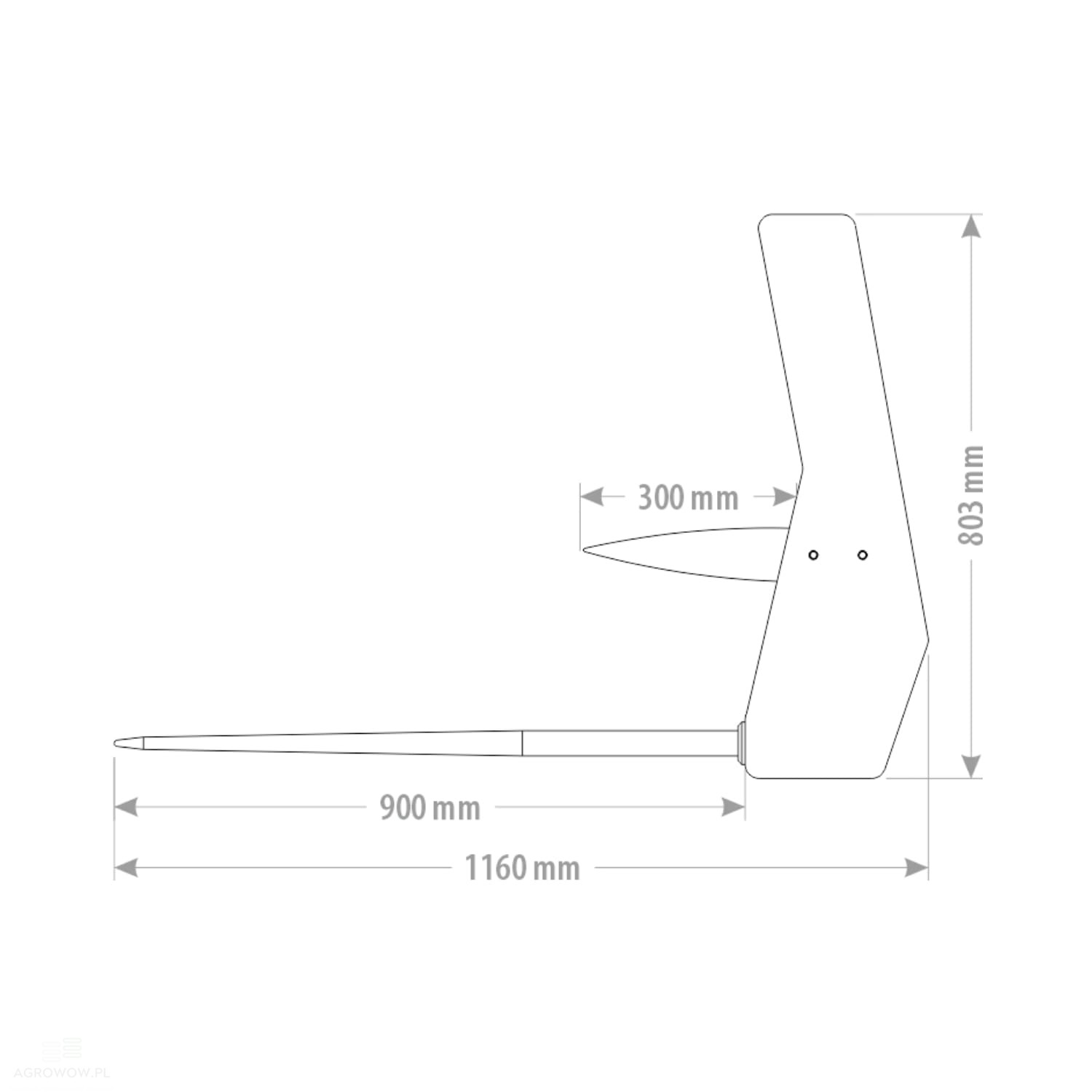

- Length: 1160 mm

- Tine length: 900 mm

- Height: 803 mm

- Capacity: 1.56 m³

- Weight: 275 kg

- Number of tines: 11

- Side plate thickness: 8 mm

- Main sheet/skin thickness: 6 mm

- Tine mountings reinforced with conical sleeves

- Heavy-walled profile construction

- Tines: forged L-1100 M22

- Bolted side tines: 2

Detailed Description:

• The MAXI manure fork with a width of 2300 mm is an exceptionally strong and high-capacity agricultural tool, created to meet the demands of large and intensively operating farms. It has been designed for the efficient handling of various organic materials such as manure, compost, silage, straw, and other bulk masses, especially those with a high degree of compaction and moisture.

• The impressive working width of 2300 mm and a capacity of 1.56 m³ allow for highly efficient loading operations—a single scoop holds a large portion of material, which translates into a significant reduction in operational times and fewer runs. The length of 1160 mm and height of 803 mm guarantee optimal stability and working comfort both outdoors and in enclosed spaces, such as barns or livestock halls.

• The main structural frame is made of durable, heavy-walled steel profiles, reinforced with additional components—a 6 mm thick main sheet/skin and 8 mm sides. This architecture provides high resistance to impacts, twisting, and intensive use, even under difficult environmental conditions and heavy loads.

• This model is equipped with eleven forged L-1100 M22 tines, each 900 mm long, arranged to ensure an even distribution of forces and effective penetration into compacted material. Two additional bolt-on side tines enable precise maneuvering near the edges of clamps or when retrieving material from piles.

• All tines are secured using conical sleeves, which significantly improves the rigidity of the connections, prevents them from loosening, and increases the overall durability of the structure. Thanks to this solution, the tool maintains its reliability even during multi-hour work in demanding conditions.

• The unladen weight of the tool is 275 kg, providing appropriate rigidity and strength while maintaining a reasonable load level for the carrier machine. This weight also translates into better balancing of the machinery setup and greater stability when loading heavy materials.

• The standard EURO-type mounting system enables quick and trouble-free connection of the fork to most popular models of front loaders and telehandlers. This makes the tool universal and easy to integrate into an existing machinery fleet.

• The MAXI 2300 mm fork is an excellent choice for year-round work—both during seasonal peaks and in daily transport and loading tasks. Its high capacity and solid construction contribute to a significant improvement in the pace of work, increased efficiency, and reduced operational costs.

• Regular maintenance and utilizing the tool in accordance with the instructions allow you to enjoy its reliability for many seasons. It is a solution that successfully combines durability, functionality, and ergonomics.

• The MAXI manure fork with a width of 2300 mm is an investment that pays off quickly—both in terms of time savings and work optimization. It is ideal for any modern farm focused on large-scale production and efficient organic material management.
