Kołaszewski manure fork MAXI 2.5 x 0.8 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KMMFM250

- Manufacturer's name: MAXI manure fork

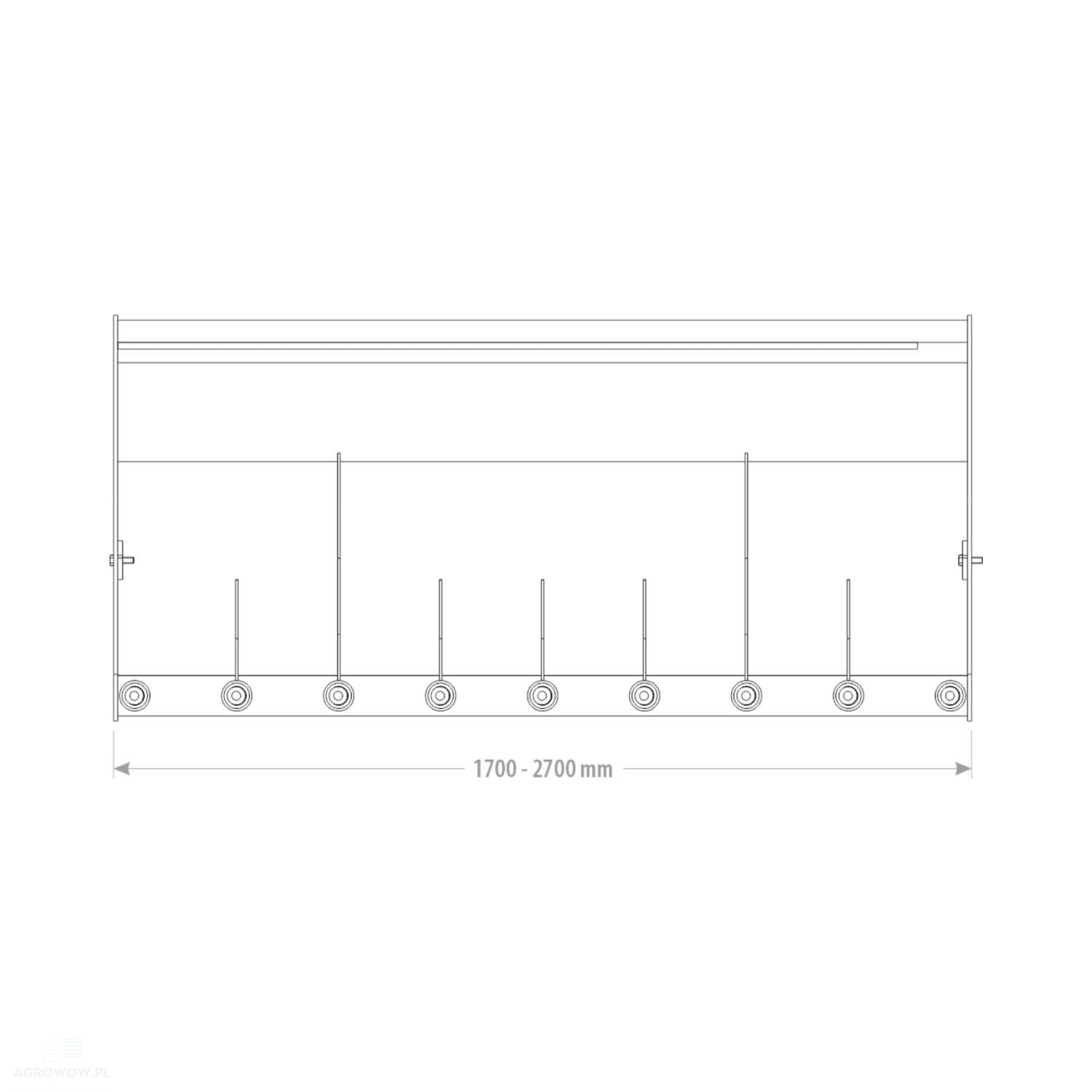

- Width: 2500 mm

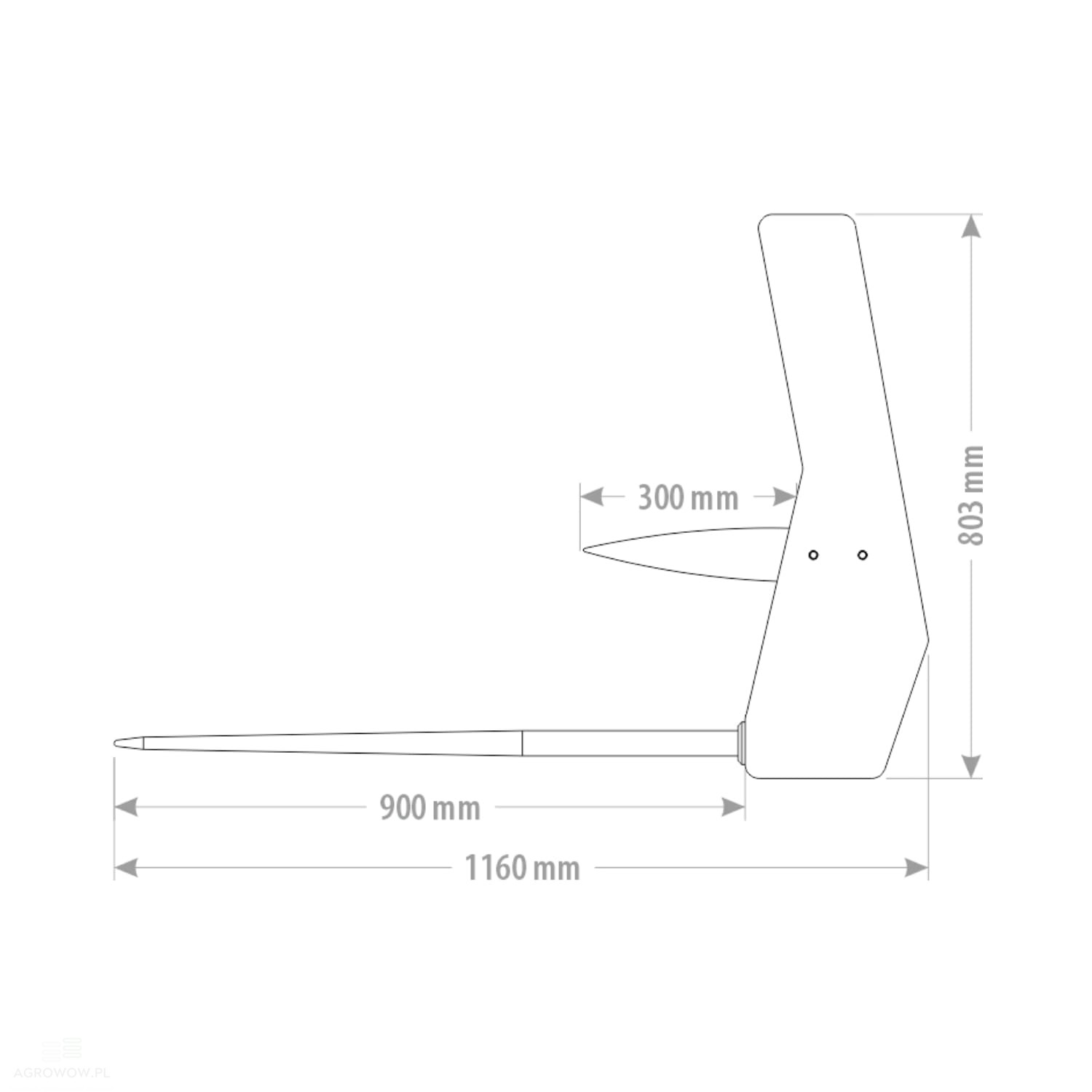

- Length: 1160 mm

- Tine length: 900 mm

- Height: 803 mm

- Capacity: 1.70 m³

- Weight: 297 kg

- Number of tines: 12

- Side plate thickness: 8 mm

- Main sheet/skin thickness: 6 mm

- Heavy-walled profile construction

- Tine mountings reinforced with conical sleeves

- Tines: forged L-1100 M22

- Bolted side tines: 2

Detailed Description:

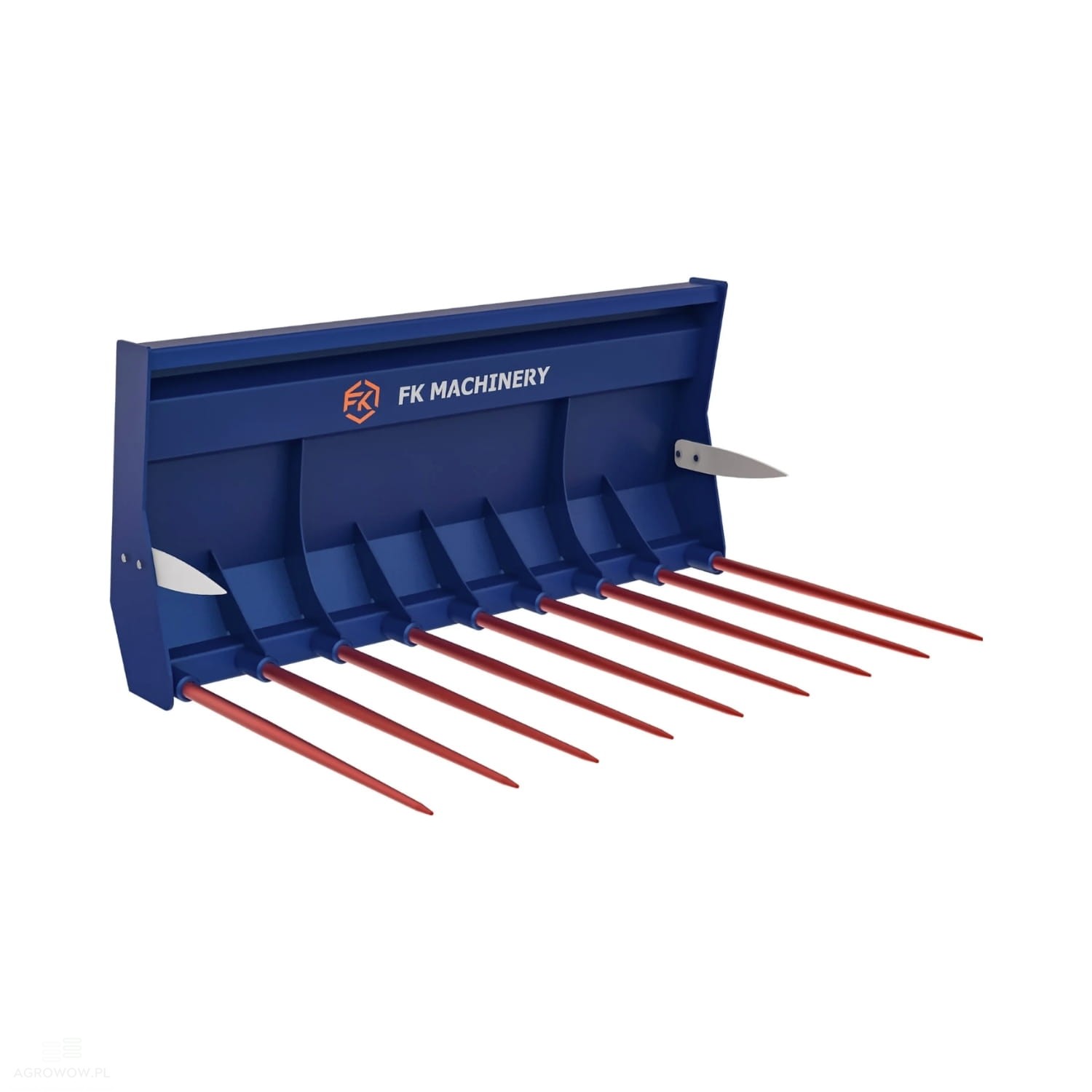

• The MAXI manure fork with a width of 2500 mm is an extremely solid and high-performance tool designed for use on large agricultural farms where reliability, durability, and maximum efficiency matter most.

• Its construction has been adapted for the intensive loading and transport of organic materials, such as manure, compost, silage, or straw, even under highly compacted and moist material conditions.

• The working width of 2500 mm combined with a capacity of up to 1.70 m³ allows for the single loading of very large amounts of material, which significantly reduces the number of work cycles and substantially shortens task completion times.

• The structural length of 1160 mm and height of 803 mm guarantee stability and safe operation even under full load, both in open areas and inside livestock buildings.

• The entire unit is made of heavy-walled steel profiles, and its structure is additionally reinforced with a 6 mm main sheet/skin and 8 mm thick side plates. This solution ensures exceptional durability and resistance to mechanical damage, twisting, or cracking, even during multi-hour work with heavy and wet organic materials.

• The model is equipped with twelve forged L-1100 M22 tines with a length of 900 mm, which stand out for their high resistance to bending and wear. Their optimal distribution ensures an even load distribution and effective penetration into compacted masses. Two additional bolt-on side tines make it easier to collect material from the sides of clamps and improve the efficiency of the entire loading process.

• To increase the durability and rigidity of the entire structure, conical sleeves are used at the tine mounting points. This solution eliminates the risk of components loosening, translating into a longer service life for the attachment and a reduced need for servicing, even under intensive use.

• The unladen weight of the fork is 297 kg, which, for such large dimensions, represents an excellent compromise between strength and maintaining smooth maneuverability. This weight ensures the stability of the entire structure during operation and limits the risk of overloading the host machine.

• The attachment is equipped with a standard EURO mounting system, enabling trouble-free connection to most popular models of front loaders and telehandlers available on the market. This significantly increases its functionality and allows for flexible deployment in various agricultural tasks.

• The MAXI 2500 mm fork is equipment adapted for year-round work, making it perfect for tasks related to loading, transport, and workspace organization. Its capacity and robustness enable the quick and safe completion of even the most demanding tasks.

• With proper maintenance and compliance with operating guidelines, this tool will serve reliably for many years. It is an investment that increases work efficiency, reduces downtime, and contributes to better logistics organization on the farm.

• The MAXI manure fork with a width of 2500 mm is an excellent choice for farmers looking for exceptionally high-capacity, solid, and practical equipment that can withstand even the most demanding operational conditions.
