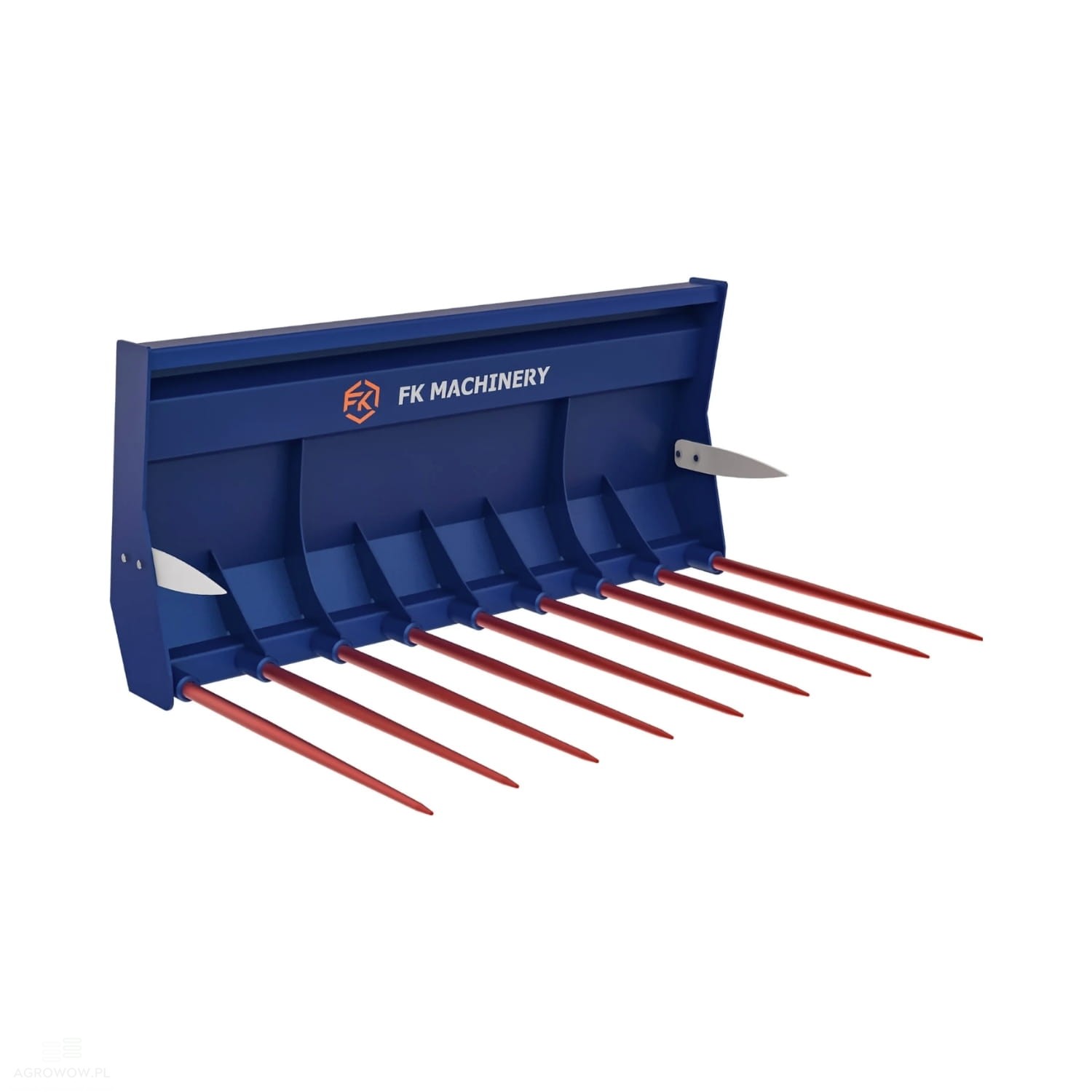

Kołaszewski manure fork MAXI 2.7 x 0.8 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Producent: Kołaszewski

- Catalogue number: KMMF270

- Manufacturer's name: MAXI manure fork

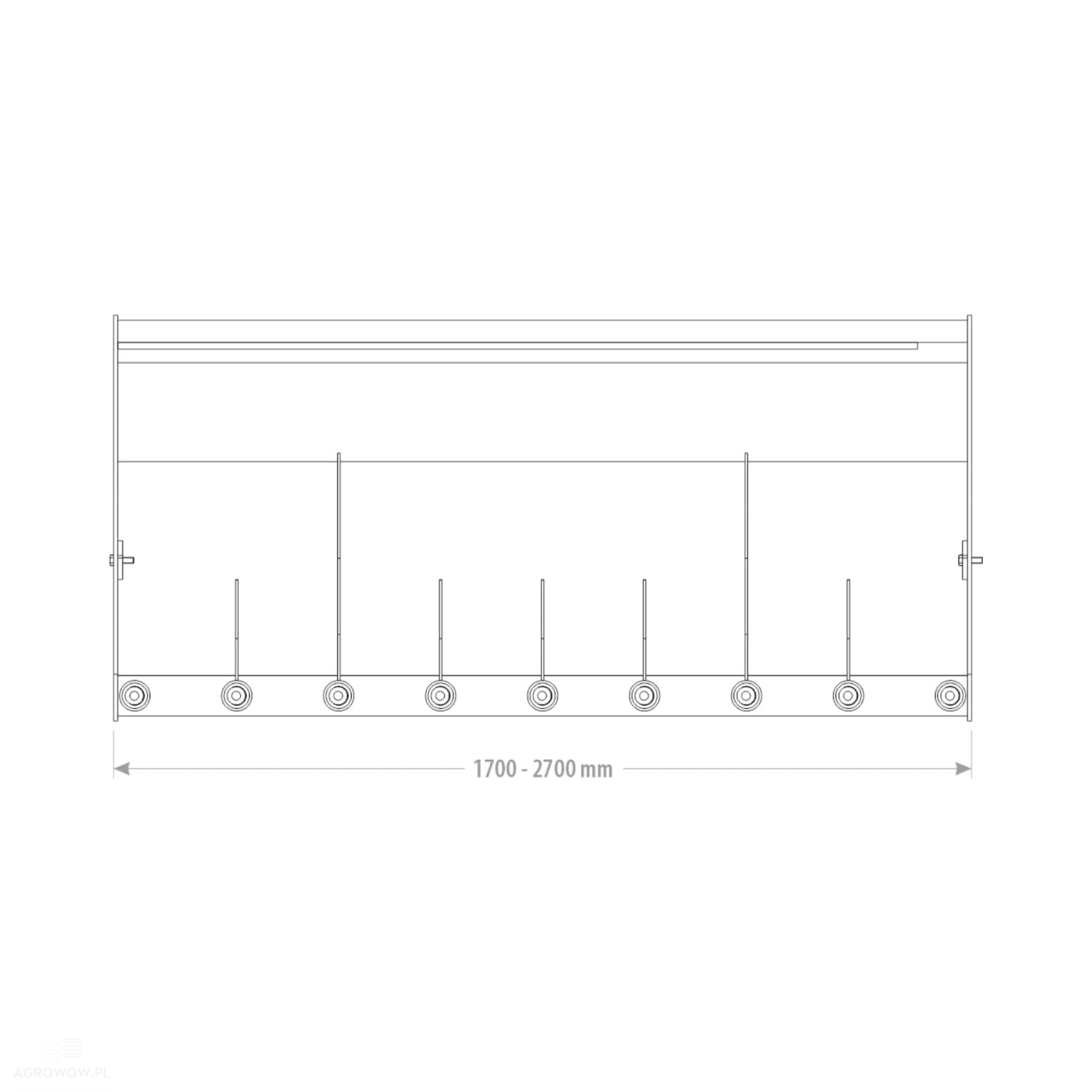

- Width: 2700 mm

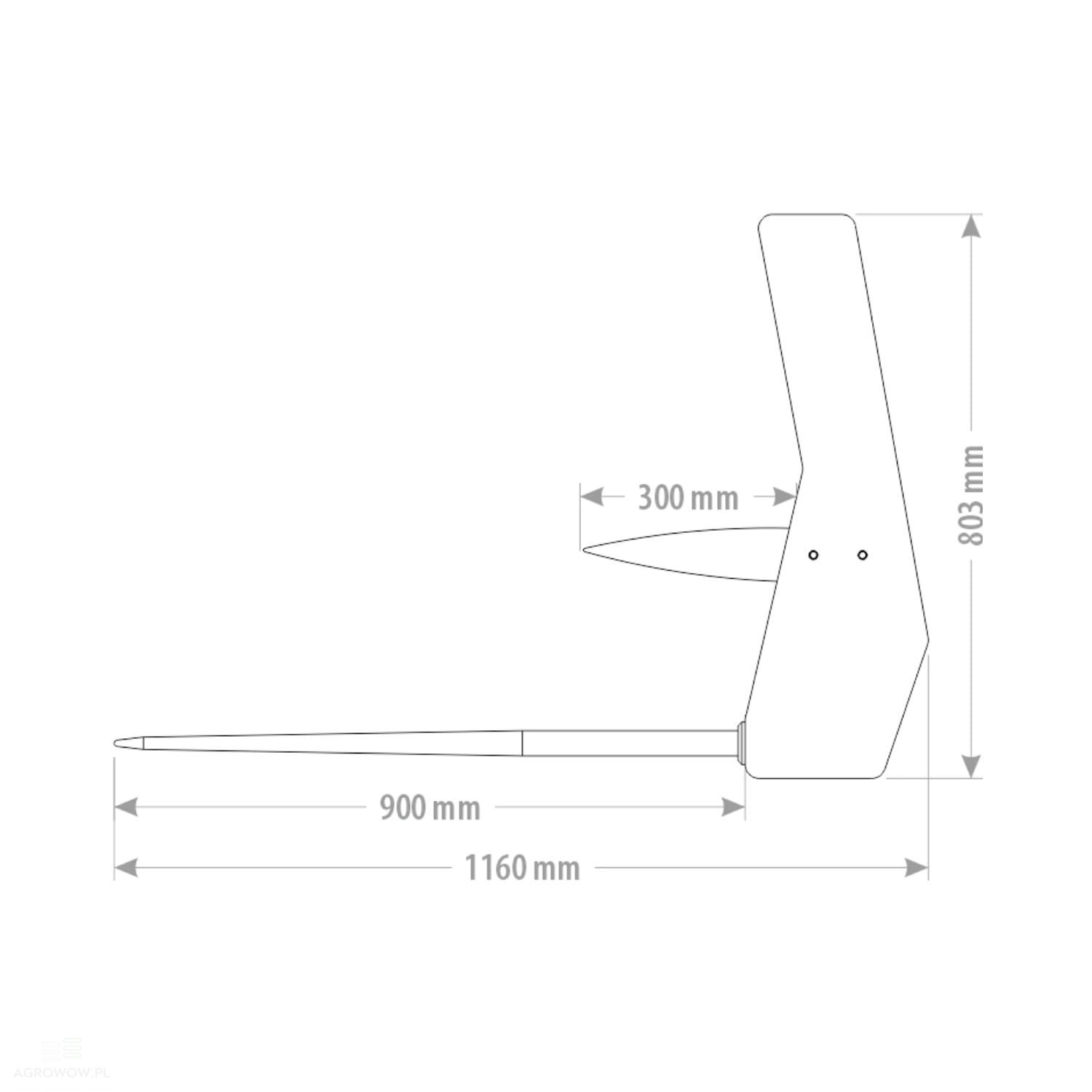

- Length: 1160 mm

- Tine length: 900 mm

- Height: 803 mm

- Capacity: 1.84 m³

- Weight: 316 kg

- Number of tines: 13

- Side plate thickness: 8 mm

- Main sheet/skin thickness: 6 mm

- Tine mountings reinforced with conical sleeves

- Heavy-walled profile construction

- Tines: forged L-1100 M22

- Bolted side tines: 2

Detailed Description:

• The MAXI manure fork with a width of 2700 mm is an exceptionally durable, high-capacity, and efficient tool designed for large-scale agricultural farms where efficiency, reliability, and trouble-free handling of large volumes of organic materials matter most.

• The tool has been designed for the efficient loading and transport of manure, silage, straw, compost, and other bulk materials, even under high moisture and compacted material conditions.

• The working width of 2700 mm and an impressive capacity of 1.84 m³ allow for the single loading of a very large amount of material, which significantly accelerates work progress and reduces the number of operational cycles.

• The tool's dimensions—a length of 1160 mm and a height of 803 mm—ensure its stability, optimal maneuverability, and safe use in various conditions, both in open spaces and inside livestock buildings.

• The fork's frame is made of heavy-walled steel profiles, additionally reinforced with a 6 mm thick main sheet/skin and 8 mm sides, making the structure exceptionally resistant to deformation, cracking, and intensive exploitation. This construction design guarantees durability as well as high resistance to mechanical damage and working stresses.

• Equipped with thirteen forged L-1100 M22 tines with a length of 900 mm, the fork effectively penetrates even highly compacted material. The tines are evenly spaced, which ensures an optimal distribution of forces and facilitates the operator's work. Two additional bolted side tines increase the tool's functionality and make it easier to scoop material from the edges of a clamp or pile.

• To increase the durability and rigidity of the entire structure, conical sleeves are used at the tine mounting points. This solution prevents the tines from loosening and significantly extends the period of trouble-free use, even during highly intensive work in difficult operating conditions.

• The total weight of the device is 316 kg, which provides appropriate rigidity, stability, and strength under heavy loads without excessively overloading the hydraulic system of the carrier machine. The well-balanced design allows for smooth and safe maneuvering even under full load.

• The attachment is equipped with a standard EURO mounting system, enabling quick and intuitive connection to most popular models of front loaders and telehandlers available on the market. Thanks to this, the fork can be flexibly used in various logistical and production activities.

• The MAXI 2700 mm model is a tool that performs excellently in year-round tasks related to the transport, loading, and organization of organic materials. Its high capacity and solid construction guarantee speed of action, efficiency, and a reduction in working time and operational costs.

• Proper maintenance and use in accordance with the manufacturer's recommendations allow the attachment to maintain full efficiency for many years. It is a practical, reliable tool that provides invaluable support in modern agriculture focused on large-scale production.

• The MAXI manure fork with a width of 2700 mm is an investment in quality, durability, and work efficiency—an ideal choice for demanding farmers who expect reliable equipment capable of facing the most challenging tasks.
