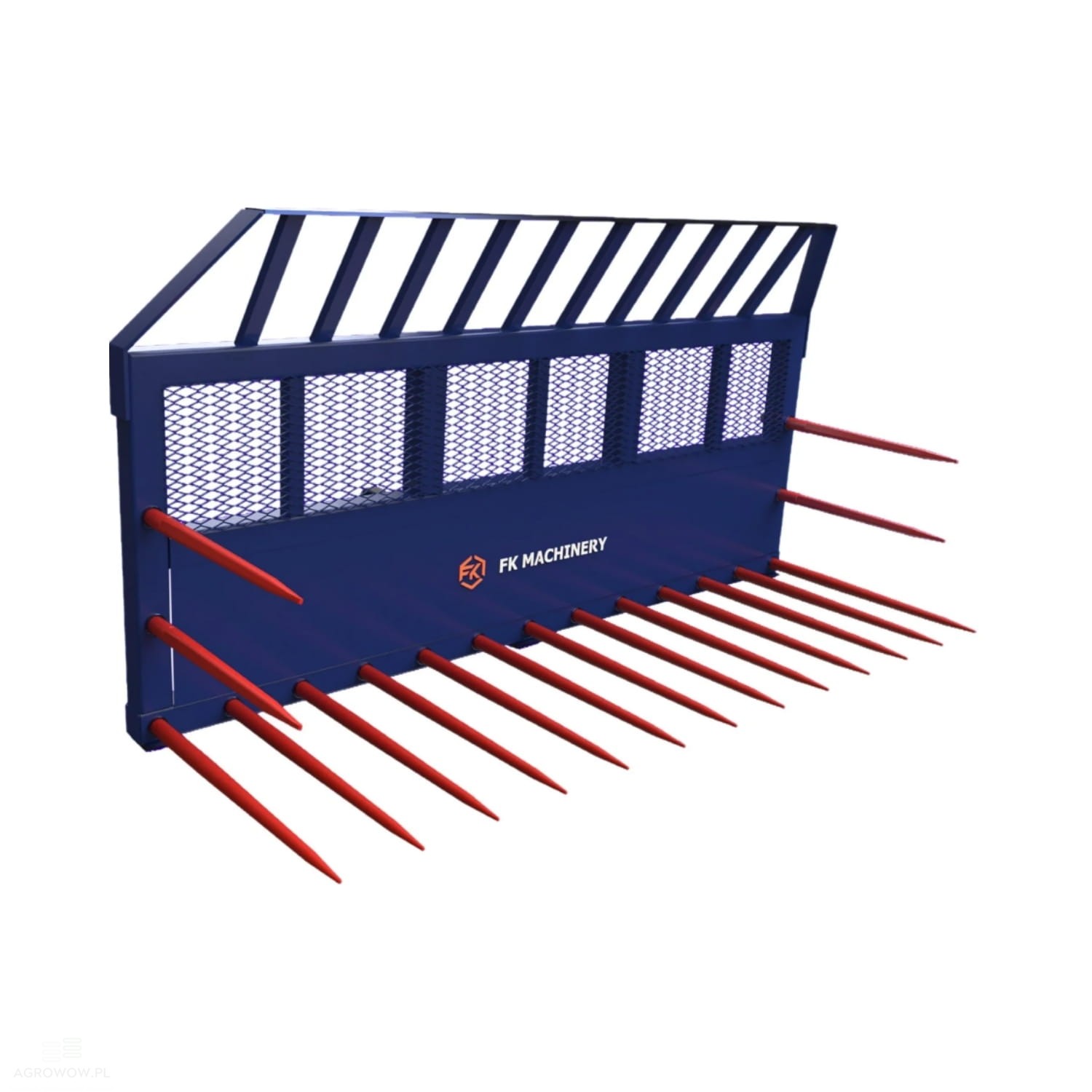

Kołaszewski manure fork MAXI TELESKOP 2.0 x 1.35 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KXLMMF200

- Manufacturer's name: MAXI TELESKOP manure fork

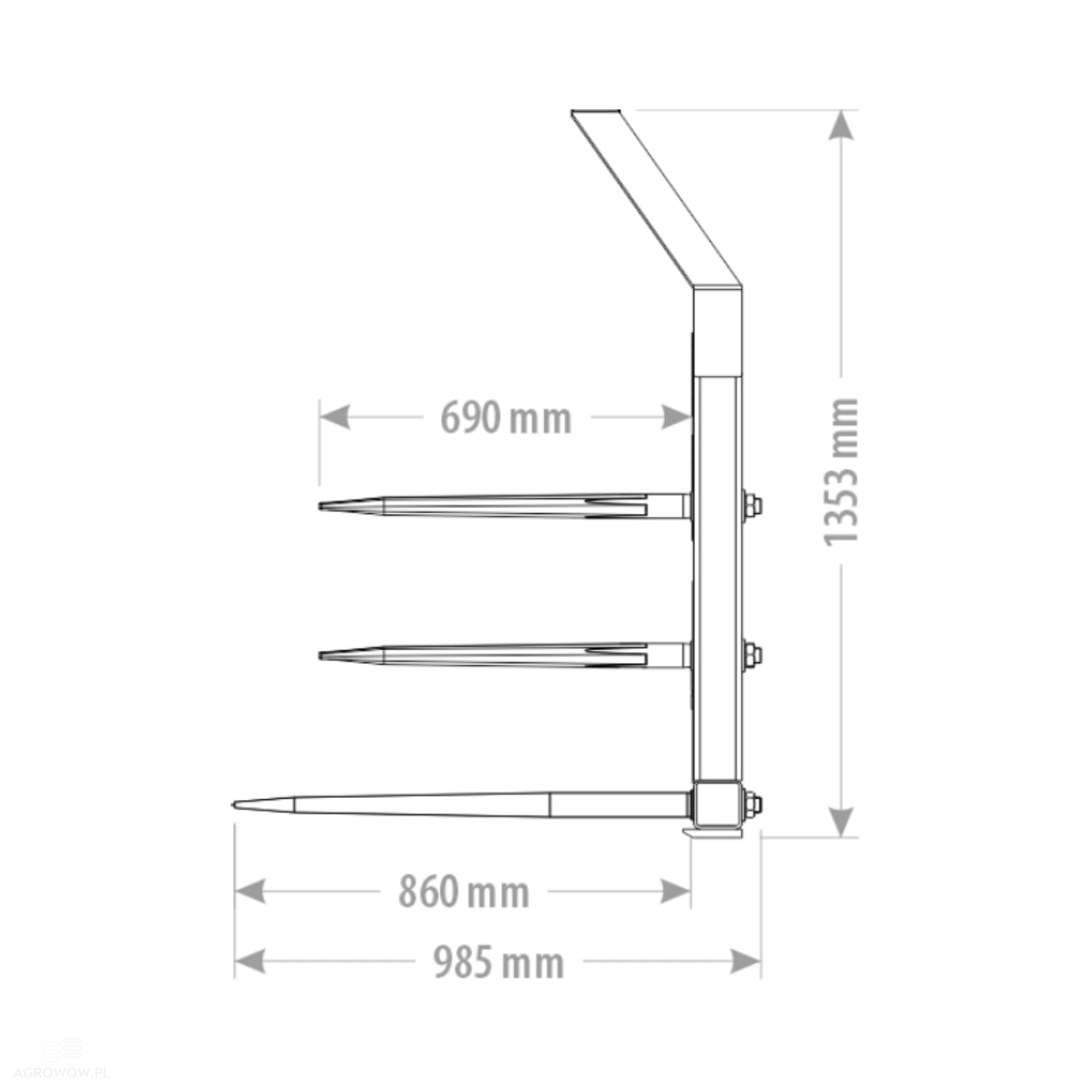

- Width: 2000 mm

- Length: 985 mm

- Tine length: 860 mm

- Height: 1353 mm

- Capacity: 1.52 m³

- Weight: 337 kg

- Number of tines: 10

- Heavy-walled profile construction

- Tine mountings reinforced with conical sleeves

- Tines: forged

- Mesh screen for better visibility

Detailed Description:

• The MAXI TELESKOP manure fork with a width of 2000 mm is an advanced, durable, and high-capacity tool adapted to work with telehandlers under heavy loads and intensive exploitation. Designed for large agricultural farms, it enables the efficient handling of organic materials such as manure, silage, compost, straw, and other agricultural waste.

• The working width of 2000 mm and a usable capacity of 1.52 m³ allow for the collection of a significant amount of material in a single work cycle, which substantially reduces the number of runs and accelerates task completion. The length of 985 mm and height of 1353 mm guarantee stability during operation and allow for full utilization of the telehandler's capabilities, even at high working heights.

• The construction is based on heavy-walled steel profiles, ensuring high resistance to overloads, twisting, and impacts. The tool maintains its operational properties even under extreme field conditions when handling wet and compacted material.

• This model is equipped with ten forged tines with a length of 860 mm, which feature excellent resistance to wear and bending. The layout of the tines has been planned to evenly distribute the load, translating into greater efficiency and increased operator comfort.

• To reinforce durability and reduce the risk of elements loosening, the tines are secured using conical sleeves. This technology improves structural rigidity and protects mechanical connections from excessive wear.

• The total weight of the fork is 337 kg, providing high stability while maintaining good maneuverability. This balance allows for the smooth handling of large material portions without overloading the carrier machine, while guaranteeing a solid foundation even under full load.

• An additional feature is the steel protective mesh screen, which improves operator visibility and facilitates operational control. This is particularly important for precise maneuvering near clamp walls or inside livestock buildings.

• The fork is equipped with a universal EURO-type mounting system, enabling quick and trouble-free connection to most telehandler models available on the market. This makes it a versatile tool that can be easily integrated into an existing machinery fleet.

• The MAXI TELESKOP 2000 mm is a solution that performs well in both daily and seasonal tasks related to fertilizer and feed management. Its high capacity, durability, and ergonomics translate into a significant improvement in the pace of work and a reduction in operational costs.

• With regular maintenance and proper use in accordance with recommendations, the fork ensures longevity and operational reliability. It is an investment that proves its worth in modern agriculture, where efficiency, reliability, and work safety matter most.
